ASSEMBLY GUIDE GUÍA DE MONTAJE | ENSEMBLE GUIDE - EX-315 LP SX-315 LP EX-315 NG SX-315 NG - cloudfront.net

Page created by Lawrence Cannon

CONTINUE READING
ASSEMBLY GUIDE GUÍA DE MONTAJE | ENSEMBLE GUIDE - EX-315 LP SX-315 LP EX-315 NG SX-315 NG - cloudfront.net
EX-315 LP • SX-315 LP
EX-315 NG • SX-315 NG

ASSEMBLY GUIDE
GUÍA DE MONTAJE | ENSEMBLE GUIDE

                                          53015
                                              111820
                                   enUS / esMX / frCA
ASSEMBLY GUIDE GUÍA DE MONTAJE | ENSEMBLE GUIDE - EX-315 LP SX-315 LP EX-315 NG SX-315 NG - cloudfront.net
1   1
1

        1

    1
1

        1
1

    1
1       2

    1   1

1

        5

    1

        2

1
    1
        2

        3
1   1

1       6

    1

            LP
1

        1
    1
1

1   1
Liquid Propane grills only.
                                                                             Solamente barbacoas de propano licuado.
1                                                   1
                                                                             Grills à gaz propane liquide uniquement.

    A
        -16

    B    -27                  -6         -1                  -2         -2

    D               -1              -2              -2

    E
        -2               -3

    F
          -8                                  -4

    G
              -2                         -2                       -1

                                                   LP

    C          -2                  -2                   -2             -1
TOOLS REQUIRED:
    HERRAMIENTAS NECESARIAS:
    OUTILS NÉCESSAIRES:

               7/16”    7/16” , 9/16”

              • Extra hardware
              • Partes adicionales
              • Quincaillerie
                supplémentaire

                -1

4
1                                                                       3   -6   B

• Download the free BILT™ app for 3D step-by-step instructions.
• Descarga gratis la app BILT™ y sigue las instrucciones 3D paso a paso.
• Téléchargez gratuitement l’application BILT™ pour obtenir les
  instructions étape par étape en 3D.

   2                 -2              -2                -16        A

                                                                           4   -1   B

                                                                                        WWW.WEBER.COM   5
5   -6                         B                              7   -2   B

    6
                                       52769_060920

                                                      Micro USB

        Micro USB
                    52769_060920

                                                                  8

6
9    -1    B   12

10

11        -6

                    WWW.WEBER.COM   7
13   -3   B   15   -4   B

14   -4   B

              16   -2   B

8
17   -2   B                            19

18
                                       20

          m Save hardware.
          m Conserve las partes.
          m Sauvegarder le matériel.

                                            WWW.WEBER.COM   9
23

                                                               LP
21             -2            -2          -1     B
                                                                               -2           -2          -2
                                                                                                                  C

                                                    Liquid Propane grills only.
                                                    See Owner’s Guide for complete gas instructions.

                                                    Solamente barbacoas de propano licuado.

22
      LP

                                                    Consulte las instrucciones completas respecto al gas en la Guía
                        -1         C                del Propietario.

                                                    Grills à gaz propane liquide uniquement.
                                                    Voir le mode d’emploi pour des instructions détaillées concernant le gaz.
                                                               NG

                                                     24

     Liquid Propane grills only.
     Solamente barbacoas de propano licuado.
     Grills à gaz propane liquide uniquement.       Natural Gas grills only.
                                                    See Owner’s Guide for complete
                                                    gas instructions.

                                                    Solamente barbacoas de gas natural.
                                                    Consulte las instrucciones completas respecto al gas en la Guía del
                                                    Propietario.
                                                    Grills à gaz naturel uniquement.
                                                    Voir le Mode d’emploi pour des instructions complètes concernant le gaz
                                                    naturel.

10
25   -2    D            27                 -2         D

26    -2       -3   E

                        See Owner’s Guide for the
                        Igniter Module Wire Guide chart.

                        Vea el cuadro de la Guía de Cableado del Módulo del
                        Encendedor en la Guía del Propietario.

                        Voir le Mode d’emploi pour le tableau Guide de câble du
                        module de l’allumeur.

                        28                          -1         D

                                     AA

                                                      AA

                                                                              WWW.WEBER.COM   11
29                   -4              -2         F           30                  -2        B

                                                            31                   -4              -2         F

 Tighten the nuts until snug. Turn only a quarter
 turn further. DO NOT OVER TIGHTEN.
 Apriete las tuercas hasta que queden ajustadas.
 Gire solo un cuarto de vuelta más.
 NO APRIETE EN EXCESO.
 Serrez les boulons jusqu’à ce qu’ils soient bien serrés.
 Ne tournez qu’un quart de tour supplémentaire.
 NE PAS TROP SERRER.

                                                            Tighten the nuts until
                                                            snug. Turn only a quarter
                                                            turn further. DO NOT OVER
                                                            TIGHTEN.

                                                            Apriete las tuercas hasta que queden ajustadas.
                                                            Gire solo un cuarto de vuelta más.
                                                            NO APRIETE EN EXCESO.

                                                            Serrez les boulons jusqu’à ce qu’ils soient bien serrés.
                                                            Ne tournez qu’un quart de tour supplémentaire.
                                                            NE PAS TROP SERRER.

12
32   34

33

          WWW.WEBER.COM   13
35

                LP
     37
     Liquid Propane grills only.
     Solamente barbacoas de propano licuado.
     Grills à gaz propane liquide uniquement.

36

14
Liquid Propane grills only.

     LP
38        Solamente barbacoas de propano licuado.
          Grills à gaz propane liquide uniquement.
                                                     40

                                                                                                        LP

39

                                                     See Owner’s Manual for the WEBER CONNECT Wire Chart.

                                                     Consulte el esquema de conexiones del módulo WEBER CONNECT en
                                                     el manual del propietario.

                                                     Référez-vous au « Schéma de câblage de WEBER CONNECT » du
                                                     Manuel du propriétaire.

                                                                                                    WWW.WEBER.COM    15
41   -2   43

           44

42

16
45   -2       -2   G   46   -2   -2

              -1

                       47

1         2

                                 WWW.WEBER.COM   17
48   51
                               Micro USB

                                           52769_060920
       For information on using an external power bank, refer
       to “Connecting an External Power Bank” in the Owner’s
       Manual.

       Para obtener información sobre el uso de una batería
       externa, consulte la sección “Conexión de una batería
       externa” en el manual del propietario.

       Pour obtenir des informations sur l'utilisation d'un

 49
       chargeur externe, référez-vous à « Branchement d’un
       chargeur externe » dans le Manuel du propriétaire.

 50

18
WWW.WEBER.COM   19
REGISTER TODAY.
          Register your grill to receive exclusive WEBER content that is
                 sure to make you the ultimate backyard hero.

                                        REGÍSTRATE HOY.
          Registra tu asador y recibe contenidos WEBER exclusivos que
        seguro te convertirán en el héroe definitivo de cualquier reunión.

                        ENREGISTREZ-LE AUJOURD’HUI.
      Enregistrez votre barbecue pour recevoir du contenu WEBER exclusif
        qui fera de vous le maître incontesté de la cuisson à l’extérieur.

U.S./EE. UU./États-Unis:           Mexico/México/Mexique : Canada/Canadá/Canada :
    1-800-446-1071                     01 800 0093237          1-800-446-1071

                 Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and
                other countries. App Store is a service mark of Apple Inc. Android and Google Play
                                          are trademarks of Google Inc.
                Apple y el logotipo de Apple son marcas comerciales de Apple Inc., registradas en
                EE. UU. y otros países. App Store es una marca de servicio de Apple Inc. Android y
                                Google Play son marcas comerciales de Google Inc.
                Apple et le logo d’Apple sont des marques de commerce d’Apple Inc. déposées aux
                États-Unis et dans d’autres pays. App Store est une marque de service d’Apple Inc.
                      Android et Google Play sont des marques de commerce de Google Inc.

                  © 2021 Designed and engineered by Weber-Stephen Products LLC,
                          1415 S. Roselle Road, Palatine, Illinois 60067 USA.
                                           www.weber.com
LP Owner’s Manual
EX-315 • SX-315

REGISTER TODAY.
We are so glad that you have joined us on the journey to grilling greatness. Register
your grill and gain access to fun and engaging WEBER information, including tips, tricks
and how to get the most out of your grilling experience.

      PHONE                    APP                  EMAIL                weber.com
                                                                                           53016
Keep this Owner’s Manual for future reference, thoroughly read through it, and               111820
if you have any questions please contact us today.                                             enUS
Welcome to WEBER   Important                                     Installation and Assembly
                                                                 m DANGER: This grill is not intended to be installed in
                                                                                                                             Storage and/or Nonuse
                                                                                                                             m WARNING: Turn off the gas supply at the gas
                   Safety Information                              or on recreational vehicles or boats.                       cylinder (tank) after use.
                                                                 m WARNING: Do not use this grill unless all parts           m WARNING: LP tanks must be stored outdoors out of
                   DANGER, WARNING, and CAUTION
                                                                   are in place and the grill was properly assembled           the reach of children and must not be stored in a
                   statements are used throughout this             according to the assembly instructions.                     building, garage, or any other enclosed space.
                   Owner's Manual to emphasize critical and      m WARNING: Do not build this model of grill in any          m WARNING: After a period of storage and/or nonuse,
                   important information. Read and follow          built-in or slide-in construction.                          the grill should be checked for gas leaks and burner
                   these statements to help ensure safety and    m WARNING: Do not modify the appliance (grill). Liquid
                                                                                                                               obstructions before use.
                   prevent property damage. The statements         propane gas is not natural gas. The conversion or         m Storage of the grill indoors is permissible only if the
                   are defined below.                              attempted use of natural gas in a liquid propane gas        LP tank is disconnected and removed from the grill.
                                                                   unit or liquid propane gas in a natural gas unit is
                   m	DANGER: Indicates a hazardous                unsafe and will void your warranty.                       California Proposition 65
                     situation which, if not avoided,            • In the United States, installation must conform with      m WARNING: Combustion byproducts produced when
                     will result in death or serious injury.       local codes or, in the absence of local codes, with         using this product contain chemicals known to the
                                                                   either the National Fuel Gas Code, ANSI Z223.1/             state of California to cause cancer, birth defects, or
                   m	WARNING: Indicates a hazardous               NFPA 54, Natural Gas and Propane Installation Code,         other reproductive harm.
                     situation which, if not avoided,              CSA B149.1; or Propane Storage and Handling Code,
                                                                                                                             m PROPOSITION 65 WARNING: Handling the brass
                     could result in death or serious injury.      B149.2; or the Standard for Recreational Vehicles,
                                                                                                                               material on this product exposes you to lead, a
                                                                   ANSI A119.2/NFPA 1192, and CSA Z240 RV Series,
                                                                                                                               chemical known to the state of California to cause
                   m	CAUTION: Indicates a hazardous               Recreational Vehicle Code, as applicable.
                                                                                                                               cancer, birth defects, or other reproductive harm.
                     situation which, if not avoided,            • In Canada, the installation of this grill must comply       Wash hands after handling this product.
                     could result in minor or moderate injury.     with local codes and/or the latest edition of Standard
                                                                   CAN/CSA-B149.2 (Propane Storage and Handling
                                                                   Code). These instructions, while generally acceptable,
                                                                   do not necessarily comply with the Canadian
                                m DANGER                           installation codes, particularly with piping above and
                                                                   below ground.
                    If you smell gas:                            • In Mexico, if there are local codes that apply to
                    • Shut off gas to the appliance                portable gas appliances, you must comply with the
                                                                   latest edition of Official Mexican Standard (NOM).
                       (grill).                                  • If an external electrical source is utilized (such as
                    • Extinguish any open flame.                   a rotisserie) it must be electrically grounded in
                                                                   accordance with local codes or, in the absence of local
                    • Open lid.                                    codes, with the National Electrical Code, ANSI/NFPA
                                                                   70, or the Canadian Electrical Code, Part 1, CSA C22.1.
                    • If odor continues, keep away
                       from the appliance (grill)                Operation
                       and immediately call your                 m DANGER: Only use the grill outdoors in a well-
                                                                   ventilated area. Do not use in a garage, building,
                       gas supplier or your fire                   breezeway, tent, any other enclosed area, or
                                                                   beneath overhead combustible construction.
                       department.
                                                                 m DANGER: Do not use the grill in any vehicle or in any
                                                                   storage or cargo area of any vehicle. This includes,
                               m WARNING                           but is not limited to, cars, trucks, station wagons,
                                                                   mini-vans, sport utility vehicles, recreational
                    • Do not store or use gasoline                 vehicles, and boats.

                      or other flammable liquids                 m DANGER: Do not use the grill within 24 inches (61
                                                                   cm) of combustible materials. This includes the top,
                      or vapors in the vicinity                    bottom, back and sides of the grill.

                      of this (grill) or any other               m DANGER: Keep the cooking area clear of flammable
                                                                   vapors and liquids such as gasoline, alcohol, etc.,
                      appliance.                                   and combustible materials.

                    • An LP cylinder (tank) not                  m DANGER: This appliance (grill) must be kept away
                                                                   from flammable materials during use.
                      connected for use shall                    m DANGER: Do not put a grill cover or anything
                      not be stored in the vicinity                flammable on, or in the storage area under the grill
                                                                   while it is in operation or is hot.
                      of this (grill) or any other
                                                                 m DANGER: Should a grease fire occur, turn off all
                      appliance.                                   burners and leave lid closed until fire is out.
                                                                 m WARNING: Accessible parts may be very hot.
                   USE OUTDOORS ONLY.                              Keep young children away.
                                                                 m WARNING: The use of alcohol, prescription drugs,
                   READ THE INSTRUCTIONS BEFORE USING              non-prescription drugs, or illegal drugs may impair
                   THE APPLIANCE (GRILL).                          the consumer’s ability to properly and safely
                                                                   assemble, move, store, or operate the grill.
                   NOTICE TO INSTALLER: These instructions
                   must be left with the consumer.               m WARNING: Never leave the grill unattended during
                                                                   pre-heating or use. Exercise caution when using
                   NOTICE TO CONSUMER: Retain these                this grill. The entire cookbox gets hot when in use.
                   instructions for future reference.            m WARNING: Do not move the appliance (grill)
                                                                   during use.
                                                                 m WARNING: Keep any electrical supply cord and the
                                                                   fuel supply hose away from any heated surfaces.
                                                                 m CAUTION: This product has been safety-tested and
                                                                   is only certified for use in a specific country. Refer
                                                                   to country designation located on outside of box.
 2                                                               • Do not use charcoal or lava rock in the grill.
Welcome to WEBER
 HELLO!                                                                                                       TABLE OF CONTENTS
 We are so glad that you have joined us on the journey to grilling happiness.                                 2    Welcome to WEBER
 Please take some time to read through this Owner’s Manual to ensure that you                                      Important Safety Information
 are up and grilling quickly and easily. We want to be with you for the life of your
 grill, so please take just a couple of minutes to register your grill. When you                              4    The WEBER Promise
 sign up for a WEBER-ID as part of your registration, we will deliver special grill-                               Warranty
 related content just for you to enjoy.
                                                                                                              5    Product Features
 So, come along and join us online, on your smart device or however else you'd
                                                                                                                   SPIRIT Features
 like to stay in touch.
 Thank you for choosing WEBER.                                                                                6    Getting Started
 We are happy you are here.                                                                                        Important Information about
                                                                                                                   LP Gas & Gas Connections
                                                                                                                   LP Tank Installation & Leak Checking
                                                                                                                   Refilling or Replacing an LP Tank

                                                                                                              10   Operation
                                                   Even your grill can                                             The Very First Time You Grill
                                                                                                                   Every Time You Grill
                                                   update its status
                                                                                                                   Igniting the Grill
      DOWNLOAD                                                CONNECT AND
  1   THE FREE APP                                     3      MONITOR
                                                                                                                   Integrated WEBER CONNECT
                                                                                                                   Technology
                                                                                                                   Using the WEBER CONNECT Module
      INSERT PROBE                                            PERFECT RESULTS
 2                                                     4                                                           Food Temperature Probe Care

                                                                                                              14   Tips and Hints
FEATURE              BENEFIT                                                                                       The Flame - Direct or Indirect
REMOTE GRILL         WI-FI AND BLUETOOTH® GRILL MONITORING                                                         Grilling Do's and Don'ts
MONITOR              Remote grilling access gives you the freedom to walk away and monitor the heat
                     from your smart device.                                                                  16   Product Care
STEP-BY-STEP         PERFECTLY GRILLED FOOD
                                                                                                                   Cleaning and Maintenance
GRILLING             Know when it’s time to flip, rest, and serve directly from your smart device.
                     Receive notifications on everything from when it’s time to flip food, to a               18   Troubleshooting
                     countdown that displays when it’s ready.

APP ENABLED FOOD     INSTANT FOOD STATUS READOUT                                                              22   Grilling Guide
THERMOMETERS         View food temperature & doneness without lifting the lid. The food probes monitor
                     doneness from beginning to end and will notify you via the app when it’s time to
                     flip, rest, and serve.
                                                                                                              23   Replacement Parts
RECIPES &            WEBER RECIPES AND COOK PROGRAMS
INSTRUCTION          Weber recipes and cook programs that provide real time, step-by-step grilling
                     instructions specific to your cook preference and cut of meat.

LED DISPLAY          DASHBOARD
                     The LED display dashboard on your module is where you can visually check
                     temperatures, receive notifications, view connectivity status, and check the status of
                     your cook.

                                                                                                                                                                    3
The WEBER Promise   Warranty
                    Thank you for purchasing a WEBER product. Weber-Stephen              PRODUCT WARRANTY PERIODS
                    Products LLC, 1415 S. Roselle Road, Palatine, Illinois 60067
                    (“WEBER”) prides itself on delivering a safe, durable, and           Cookbox:
                    reliable product.                                                    10 years, no rust through/burn through
                                                                                         (2 years paint excluding fading or discoloration)
                    This is WEBER’s Voluntary Warranty provided to you at no extra
                    charge. It contains the information you will need to have your       Lid assembly:
                    WEBER product repaired in the unlikely event of a failure or         10 years, no rust through/burn through
                    defect.                                                              (2 years paint excluding fading or discoloration)

                    Pursuant to applicable laws, the customer has several                Stainless steel burner tubes:
                    rights in case the product is defective. Those rights include        10 years, no rust through/burn through
                    supplementary performance or replacement, abatement of               Stainless steel cooking grates:
                    the purchasing price, and compensation. In the European              5 years, no rust through/burn through
                    Union, for example, this would be a two-year statutory
                    warranty starting on the date of the handover of the product.        Stainless steel FLAVORIZER BARS:
                    These and other statutory rights remain unaffected by this           5 years, no rust through/burn through
                    warranty provision. In fact, this warranty grants additional
                                                                                         Porcelain-enameled cast iron cooking grates:
                    rights to the Owner that are independent from statutory
                                                                                         5 years, no rust through/burn through
                    warranty provisions.
                                                                                         WEBER CONNECT Components:
                    WEBER’S VOLUNTARY WARRANTY
                                                                                         3 years
                    WEBER warrants, to the purchaser of the WEBER product
                                                                                         All remaining parts:
                    (or in the case of a gift or promotional situation, the person
                                                                                         2 years
                    for whom it was purchased as a gift or promotional item),
                    that the WEBER product is free from defects in material and
                    workmanship for the period(s) of time specified below when           DISCLAIMERS
                    assembled and operated in accordance with the accompanying           APART FROM THE WARRANTY AND DISCLAIMERS AS
                    Owner’s Manual. (Note: If you lose or misplace your WEBER            DESCRIBED IN THIS WARRANTY STATEMENT, THERE ARE
                    Owner’s Manual, a replacement is available online at                 EXPLICITLY NO FURTHER WARRANTY OR VOLUNTARY
                    www.weber.com, or such country-specific website to which             DECLARATIONS OF LIABILITY GIVEN HERE WHICH GO
                    Owner may be redirected.) Under normal, private single family        BEYOND THE STATUTORY LIABILITY APPLYING TO WEBER.
                    home or apartment use and maintenance, WEBER agrees                  THE PRESENT WARRANTY STATEMENT ALSO DOES NOT
                    within the framework of this warranty to repair or replace           LIMIT OR EXCLUDE SITUATIONS OR CLAIMS WHERE WEBER
                    defective parts within the applicable time periods, limitations,     HAS MANDATORY LIABILITY AS PRESCRIBED BY STATUTE.
                    and exclusions listed below. TO THE EXTENT ALLOWABLE BY
                    APPLICABLE LAW, THIS WARRANTY IS EXTENDED ONLY TO                    NO WARRANTIES SHALL APPLY AFTER THE APPLICABLE
                    THE ORIGINAL PURCHASER AND IS NOT TRANSFERABLE TO                    PERIODS OF THIS WARRANTY. NO OTHER WARRANTIES
                    SUBSEQUENT OWNERS, EXCEPT IN THE CASE OF GIFTS AND                   GIVEN BY ANY PERSON, INCLUDING A DEALER OR RETAILER,
                    PROMOTIONAL ITEMS AS NOTED ABOVE.                                    WITH RESPECT TO ANY PRODUCT (SUCH AS ANY “EXTENDED
                                                                                         WARRANTIES”), SHALL BIND WEBER. THE EXCLUSIVE
                    OWNER’S RESPONSIBILITIES UNDER THIS WARRANTY                         REMEDY OF THIS WARRANTY IS REPAIR OR REPLACEMENT
                    To ensure trouble-free warranty coverage, it is important (but       OF THE PART OR PRODUCT.
                    it is not required) that you register your WEBER product online      IN NO EVENT UNDER THIS VOLUNTARY WARRANTY SHALL
                    at www.weber.com, or such country-specific website to which          RECOVERY OF ANY KIND BE GREATER THAN THE AMOUNT OF
                    Owner may be redirected. Please also retain your original            THE PURCHASE PRICE OF THE WEBER PRODUCT SOLD.
                    sales receipt and/or invoice. Registering your WEBER product
                    confirms your warranty coverage and provides a direct link           YOU ASSUME THE RISK AND LIABILITY FOR LOSS, DAMAGE,
                    between you and WEBER in case we need to contact you.                OR INJURY TO YOU AND YOUR PROPERTY AND/OR TO
                                                                                         OTHERS AND THEIR PROPERTY ARISING OUT OF THE MISUSE
                    The above warranty only applies if the Owner takes reasonable        OR ABUSE OF THE PRODUCT OR FAILURE TO FOLLOW
                    care of the WEBER product by following all assembly                  INSTRUCTIONS PROVIDED BY WEBER IN THE ACCOMPANYING
                    instructions, usage instructions, and preventative maintenance       OWNER’S MANUAL.
                    as outlined in the accompanying Owner’s Manual, unless the
                    Owner can prove that the defect or failure is independent            PARTS AND ACCESSORIES REPLACED UNDER THIS
                    of non-compliance with the above mentioned obligations. If           WARRANTY ARE WARRANTED ONLY FOR THE BALANCE OF
                    you live in a coastal area, or have your product located near        THE ABOVE MENTIONED ORIGINAL WARRANTY PERIOD(S).
                    a pool, maintenance includes regular washing and rinsing of
                    the exterior surfaces as outlined in the accompanying Owner’s        THIS WARRANTY APPLIES TO PRIVATE SINGLE FAMILY HOME
                    Manual.                                                              OR APARTMENT USE ONLY AND DOES NOT APPLY TO WEBER
                                                                                         GRILLS USED IN COMMERCIAL, COMMUNAL OR MULTI-UNIT
                    WARRANTY HANDLING / EXCLUSION OF WARRANTY                            SETTINGS SUCH AS RESTAURANTS, HOTELS, RESORTS, OR
                                                                                         RENTAL PROPERTIES.
                    If you believe that you have a part which is covered by this
                    Warranty, please contact WEBER Customer Service using the            WEBER MAY FROM TIME TO TIME CHANGE THE DESIGN OF
                    contact information on our website (www.weber.com, or such           ITS PRODUCTS. NOTHING CONTAINED IN THIS WARRANTY
                    country-specific website to which Owner may be redirected).          SHALL BE CONSTRUED AS OBLIGATING WEBER TO
                    WEBER will, upon investigation, repair or replace (at its option)    INCORPORATE SUCH DESIGN CHANGES INTO PREVIOUSLY
                    a defective part that is covered by this Warranty. In the event      MANUFACTURED PRODUCTS, NOR SHALL SUCH CHANGES
                    that repair or replacement are not possible, WEBER may               BE CONSTRUED AS AN ADMISSION THAT PREVIOUS DESIGNS
                    choose (at its option) to replace the grill in question with a new   WERE DEFECTIVE.
                    grill of equal or greater value. WEBER may ask you to return
                    parts for inspection, shipping charges to be pre-paid.               Weber-Stephen Products LLC
                                                                                         Customer Service Center
                    This WARRANTY lapses if there are damages, deteriorations,           1415 S. Roselle Road
                    discolorations, and/or rust for which WEBER is not responsible       Palatine, IL 60067
                    caused by:                                                           U.S.A.
                    • Abuse, misuse, alteration, modification, misapplication,           For replacement parts, call:
                      vandalism, neglect, improper assembly or installation, and         1-800-446-1071
                      failure to properly perform normal and routine maintenance;
                    • Insects (such as spiders) and rodents (such as squirrels),
                      including but not limited to damage to burner tubes and/or
                      gas hoses;
                    • Exposure to salt air and/or chlorine sources such as
                      swimming pools and hot tubs/spas;
                    • Severe weather conditions such as hail, hurricanes,
                      earthquakes, tsunamis or surges, tornadoes or severe
                      storms.                                                                                                                     PROTECT
                    The use and/or installation of parts on your WEBER product
                    that are not genuine WEBER parts will void this Warranty,                                                                      YOUR
                                                                                                                                                INVESTMENT
                    and any damages that result hereby are not covered by
                    this Warranty. Any conversion of a gas grill not authorized
                    by WEBER and performed by a WEBER authorized service
                    technician will void this Warranty.
                                                                                                                                                  Shield your grill from the
                                                                                                                                                elements with a heavy-duty
                                                                                                                                                    premium grill cover.
 4
SPIRIT FE ATURES

                                                                                                                                                      Product Features
                                                                                    B

                                                                                            C                                        A

                                               D

                                                                                                          E

                                                                                                      F

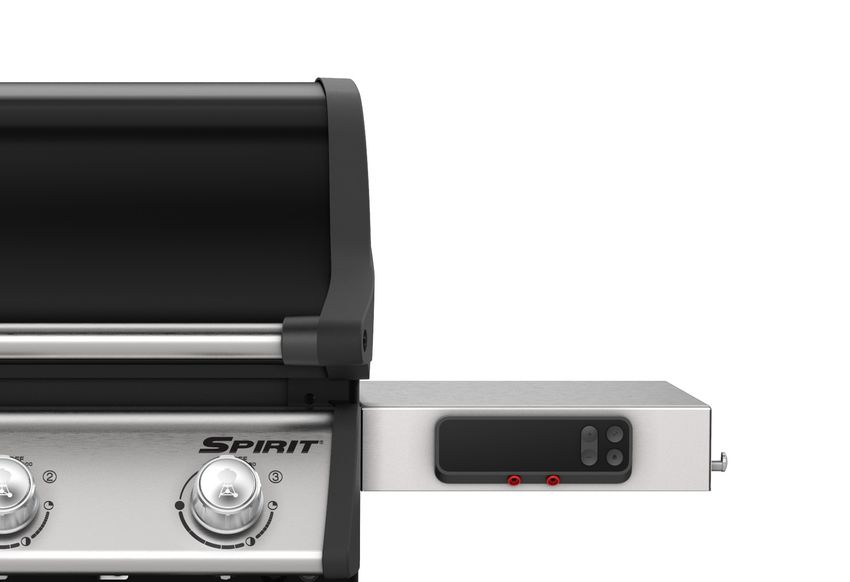

                             A WEBER CONNECT                                            D Side Tables
                             Confidently tend to the grill and your guests while         Use the side tables to keep platters, seasonings, and
                             using the integrated WEBER CONNECT technology. This         tools within arm’s reach.
                             device monitors internal grill temperature and uses
                             food temperture probes allowing you to monitor the          E Fuel Gauge
                             temperature of your food. You can also monitor your         The easy-to-read fuel gauge located next to the gas
                             grill from your smart device with the WEBER CONNECT         tank lets you see how much fuel is left in your tank at
                             app via Bluetooth® or Wi-Fi connection.                     all times. The WEBER CONNECT module also displays
                             One food temperture probe is included. Additional food      a fuel status indicator, as well as indicating fuel status
                             probes are sold seperately.                                 on your smart device with the WEBER CONNECT app.

                             B Warming Rack                                             F Grill Cabinet
                             The warming rack keeps food warm or toasts burger           The grill cabinet adds enclosed storage space for the
                             buns, as the main meal grills below.                        LP tank and the electronic components.

                             C P orcelain-Enameled,
                                Cast Iron Cooking Grates
                             The reversible cooking grates empower you to be
                             even more creative with your dish. The thin side of the
                             cooking grate is ideal for delicate food such as fish and
                             shrimp, while the wider side creates a thick sear mark
                             enhancing the flavor of your food.

The grills illustrated in this Owner’s Manual may vary slightly from the model purchased.                                                                       5
Getting Started   Important Information about
                  LP Gas & Gas Connections
                  What Is LP Gas?
                  Liquefied petroleum gas, also called LP, LP gas, liquid
                  propane, or simply propane or butane, is the flammable,
                  petroleum-based product used to fuel your grill. It is
                  a gas at moderate temperatures and pressure when
                  it is not contained. But at moderate pressure inside a
                  container, such as a tank, LP is a liquid. As pressure is     A
                  released from the tank, the liquid readily vaporizes and
                  becomes gas.
                                                                                    B
                  Safe Handling Tips For LP Tanks
                  • A dented or rusty liquid propane tank may be
                    hazardous and should be checked by your liquid
                    propane supplier. Do not use a liquid propane tank
                    with a damaged valve.
                  • Although your liquid propane tank may appear to be
                    empty, gas may still be present, and the tank should be
                    transported and stored accordingly.
                  • The LP tank must be installed, transported, and stored
                    in an upright, secure position. LP tanks should not be
                    dropped or handled roughly.
                  • Never store or transport the LP tank where
                    temperatures can reach 125° F (51.7° C) (the tank will
                    become too hot to hold by hand).
                  • Place dust cap on cylinder valve outlet whenever the
                    cylinder is not in use. Only install the type of dust cap
                    on the cylinder valve outlet that is provided with the
                    cylinder valve. Other types of caps or plugs may result
                    in leakage of propane.

                  LP Tank Requirements
                  • The tank must be approximately 18¼ inches (46.35
                    cm) high and 12¼ inches (31.1 cm) in diameter with a
                    marked 20 pound (9.07 kg) LPG capacity or 47.6 pound
                    (21.6 kg) water capacity as stated by the manufacturer.
                    Other tanks may be acceptable provided they are
                    compatible with the grill retention means (tank scale).
                  • The tank used must be constructed and marked
                    in accordance with the Specifications for LP gas
                    Cylinders of the U.S. Department of Transportation
                    (D.O.T.); or the Canadian Standard for Cylinders,
                    Spheres and Tubes for Transportation of Dangerous
                    Goods and Commission, CAN/CSA-B339, as applicable.
                  • Tanks must be provided with a listed OPD (Overfilling
                    Prevention Device) and a Type 1 (CGA 791) tank
                    connection. The tank connection must be compatible
                    with the grill connection.
                  • The tank must include a collar to protect the tank
                    valve.
                  • Tanks must have a D.O.T. certification (A), and a testing
                    date (B) that is within five years of current use.

                  What is a Regulator?
                  Your gas grill is equipped with a pressure regulator,
                  which is a device to control and maintain uniform gas
                  pressure as gas is released from the LP tank.

                  Regulator Requirements
                  • The regulator and hose assembly supplied with this
                    grill must be used. This regulator has a flow limiting
                    device built into the unit that will restrict the flow of
                    gas in the event that a leak is detected.
                  • Replacement regulator and hose assemblies must be
                    as specified by Weber-Stephen Products LLC (UL-listed
                    Type 1 (CGA 791) tank connection device as described
                    in the latest edition of ANSI Z21.81).

 6
LP Tank Installation &

                                                                    Getting Started
                                                            A   E
Leak Checking
Installation Location
The LP tank is installed inside the base cabinet, on the
tank scale (right side). The shape of the collar assembly
(the metal protective ring around the tank valve)
determines one of two directions in which the tank will
correctly hang on the tank scale (A).
                                                            B
Inspect the Tank
1) Confirm that the tank valve is fully closed. Close by
   turning valve clockwise.
2) Confirm that the tank valve is the proper mating
   type for the regulator (B).
3) Inspect the tank valve, including the internal rubber
   seal for damage or debris (C). If damaged, return
   tank to local retailer.

Install The Tank                                            C
1) Check that all burner control knobs are in the
   off position. Check by pushing in and turning
   knobs clockwise.                                             F
2) Open base cabinet door.
3) Loosen hand nut and rotate tank lock up (D).
4) Lift tank into position on the tank scale (E).
5) Rotate the tank lock down. Tighten the hand nut.
6) Screw the regulator coupling onto the tank valve,        D
   turning clockwise (F). Hand-tighten only. Using a
   wrench could damage the regulator coupling and
   could cause a leak. Proceed to “CHECKING FOR
   GAS LEAKS.”

                                                                              7
Getting Started   What is a Leak Check?
                  Once the LP tank is properly installed, it is necessary
                                                                                 G   J
                  to perform a leak check. A leak check is a reliable way
                  to verify that gas is not escaping after you connect the
                  tank. The fuel system in your grill features factory-
                  made connections that have been thoroughly checked
                  for gas leaks and the burners have been flame-tested.
                  WEBER recommends performing a thorough leak
                  check after assembly, as well as annually. The
                  following fittings should be tested:
                  • Where the regulator connects to the tank.
                  • Where the gas hose connects to the bulkhead.
                  • Where the bulkhead connects to the corrugated gas
                    line.

                  Checking for Gas Leaks
                  1) Wet fittings (G) with a soap and water solution,
                     using a spray bottle, brush, or rag. You can make
                     your own soap and water solution by mixing 20%
                     liquid soap with 80% water; or, you can purchase
                     leak check solution in the plumbing section of any          H   K
                     hardware store.
                  2) Slowly open gas supply by turning tank valve
                     counterclockwise while checking for bubbles.
                  3) If bubbles appear there is a leak:
                     a) If the leak is at the cylinder (H), turn off the gas.
                         DO NOT OPERATE THE GRILL. Disconnect the
                         tank and return the tank to your local retailer.
                     b) If the leak is at the regulator (I), turn off the gas.
                         NEVER ATTEMPT TO TIGHTEN THE REGULATOR
                         WITH TANK VALVE OPEN. DO NOT OPERATE
                         THE GRILL. Contact the Customer Service
                         Representative in your area using the contact
                         information on our website.
                     c) If the leak is at any fittings indicated in
                         illustration (J), re-tighten fitting with a wrench
                         and recheck for leaks with soap and water
                         solution. If leak persists, turn off the gas. DO NOT
                         OPERATE THE GRILL.                                      I
                     d) If the leak is at any fittings indicated in
                         illustration (K), turn off the gas. DO NOT
                         OPERATE THE GRILL.
                     If a leak is present, contact the Customer Service
                     Representative in your area using the contact
                     information on our website.
                  4) If bubbles do not appear, leak checking is complete:
                     a) Turn gas supply off at the tank and rinse
                         connections with water.
                  NOTE: Since some leak test solutions, including soap and
                  water, may be slightly corrosive, all connections should
                  be rinsed with water after checking for leaks.

                                                                                     m DANGER: Do not use a flame to check for gas
                                                                                       leaks. Be sure there are no sparks or open
                                                                                       flames in the area while you check for leaks.
                                                                                     m DANGER: Leaking gas may cause a fire or
                                                                                       explosion.
                                                                                     m DANGER: Do not operate the grill if there is a
                                                                                       gas leak present.
                                                                                     m DANGER: If you see, smell, or hear the hiss of
                                                                                       gas escaping from the liquid propane tank:
                                                                                         1) Move away from liquid propane tank.
                                                                                         2) Do not attempt to correct the problem
                                                                                            yourself.
                                                                                         3) Call your fire department.
                                                                                     m DANGER: Always close the tank valve before
                                                                                       disconnecting the regulator. Do not attempt
                                                                                       to disconnect the gas regulator and hose
                                                                                       assembly or any gas fitting while this grill is
                                                                                       in operation.
                                                                                     m DANGER: Do not store a spare LP tank under
                                                                                       or near this grill. Never fill the tank beyond
                                                                                       80% full. Failure to follow these statements
                                                                                       exactly may result in a fire causing death or
                                                                                       serious injury.
 8
Refilling or Replacing an

                                                                                                                                                                                                                                                        Getting Started
                                                              L                                                               O
LP Tank
How Much Fuel is in the Tank?
The tank scale indicates the amount of fuel in a
                                                              M
standard 20 pound (9.07 kg) tank once the tank is hung
from the scale. The fuel level is checked by viewing
the red level indicator line, located on scale. When the
indicator line is at the top, the tank is full (L). When it
is at the bottom, the tank is empty (M) and needs to be
removed to replace or refill.

Removal of the LP Tank
1) Confirm that the tank valve is fully closed. Close by
   turning valve clockwise (N).
2) Unscrew regulator coupling by turning
   counterclockwise by hand (O).
3) Loosen tank hand nut and turn tank lock up out of
   the way.
                                                              N
4) Lift tank off tank scale.

Additional Leak Check Precautions
The following fittings should be tested for gas leaks
each time a tank is refilled and reinstalled:
• Where the regulator connects to the tank (H) and at
  the regulator (I).
Follow the instructions for "Checking for Gas Leaks".

Notification on the WEBER CONNECT
Module
            The WEBER CONNECT module will display
            a fuel level notification when an LP tank is
            installed to your fuel scale. Refer to "Using
            the WEBER CONNECT Module" section in
            this manual.
                                                                                                                                                                                                                        OOL S • M
                                                                                                                                                                                                             L I NG T             US T
                                                                                                                                                                                                 RI L                                 -
                                                                                                                                                                                             V EG                                         HA
                                                                                                                                                                                                                                            VE
                                                                                                                                                                                       -   HA

                                                                                                                                                                                                                                                    GR
                                                                                                                                                                           ST

                                                                                                                                                                                                                                                        IL
                                                                                                                                                                                  U
                                                                                                                                                                               •M

                                                                                                                                                                                                                                                        L IN
                                                                                                                                                                                                            TONGS
                                                                                                                                                                            LS

                                                                                                                                                                                                                                                            GT
                                                                                                                                                             GR ILL ING TOO

                                                                                                                                                                                                                                                               OOL S
                                                                                                                                                                                      Consider these to be an extension

                                                                                                                                                                                                                                                                     • MUST-HA
                                                                                                                                                                                        of your hand. The best tongs
                                                                                                                                                                                      should have an effortless tension
                                                                                                                                                         AVE

                                                                                                                                                                                                                                                                              VE
                                                                                                                                                                                       mechanism, comfortable hand
                                                                                                                                                     T-H

                                                                                                                                                                                                                                                         GR
                                                                                                                                                   S

                                                                                                                                                                                          grips, and a lock to keep

                                                                                                                                                                                                                                                            IL
                                                                                                                                                 U
                                                                                                                                                                          •M

                                                                                                                                                                                                                                                        LI
                                                                                                                     OOL S • M
                                                                                                          L I NG T

                                                                                                                                                                                                                                                        N
                                                                                                     IL                        US T
                                                                                                                                                                                                                                                    G
                                                                                                  GR                                                                                           them compact.
                                                                                                                                                                                       S
                                                                                                                                   -H
                                                                                                                                                                                                                                               TO
                                                                                                                                                                                           OL
                                                                                             VE                                         AV                                                         O                                      OL
                                                                                           HA                                              E                                                    GT                                   S•
                                                                                       -
                                                                                                                                                                                                       IN                     MU S
                                                                                                                                                                                                            T-HAVE GRI LL

                                                                                                   BRUSH
                                                                                                                                                 GR
                                                                                  T
                                                                                US

                                                                                                                                                          IL
                                                                            •M

                                                                                                                                                               L IN

                                                                                                  AND MOP
                                                                      OL S

                                                                                                                                                                       GT
                                                                                                                                                                             OOL S
                                                                  IL L ING TO

                                                                                   Look for a basting brush with heat-
                                                                                                                                                                               • MUST-HA

                                                                                  resistant silicone bristles and a long
                                                                          GR
                                                                      AVE

                                                                                  handle, and a mop with long, cotton
                                                                                                                                                                                        V
                                                                  T-H

                                                                                                                                                                      EG

                                                                                     threads that sop up the thinner,                                                                                        L I NG T
                                                                                                                                                                                                                        OOL S • M
                                                                                                                                                                                                                                  US T
                                                                                                                                                                         R

                                                                                                                                                                                                 RI L
                                                                                   S

                                                                                                                                                              I LL
                                                                                MU

                                                                                                                                                                                               EG                                     -   HA
                                                                                         vinegar-based sauces.                                                                               V                                              VE
                                                                                                                                                         IN

                                                                                                                                                                                           HA
                                                                                  •

                                                                                                                                                  G
                                                                                       LS                                                   TO                                         -
                                                                                                                                                                                                                                                    GR
                                                                                                                                                                           ST

                                                                                            OO       T                            S•
                                                                                                                                       OL
                                                                                                                                                                                                                                                        IL
                                                                                                                                                                                  U

                                                                                                 ING
                                                                                                                                                                               •M

                                                                                                                           MU S
                                                                                                                                                                                                                                                        L IN

                                                                                                         T-HAVE GRI LL

                                                                                                                                                                                      GRILLING PAN
                                                                                                                                                                            LS

                                                                                                                                                                                                                                                            GT
                                                                                                                                                             GR ILL ING TOO

                                                                                                                                                                                                                                                             OOL S

                                                                                                                                                                              Designed for food that is either too
                                                                                                                                                                                                                                                                   • MUST-HA

                                                                                                                                                                             small or too delicate for the cooking
                                                                                                                                                                               grates, a perforated grilling pan
                                                                                                                                                         AVE

                                                                                                                                                                                                                                                                            VE

                                                                                                                                                                               keeps food right where it ought
                                                                                                                                                     T-H

                                                                                                                                                                                                                                                         RI L                  G
                                                                                                                                                   S

                                                                                                                                                                                      to be—on the grill,
                                                                                                                                                 U
                                                                                                                                                                          •M

                                                                                                                                                                                                                                                        LI
                                                                                                                                                                                                                                                        N

                                                                                                                                                                                                                                                    G
                                                                                                                                                                                           not in it.
                                                                                                                                                                                       S                                                       TO
                                                                                                                                                                                           OL      O                                      OL
                                                                                                                                                                                                GT     IN                     MU S
                                                                                                                                                                                                                                     S•
                                                                                                                                                                                                            T-HAVE GRI LL
                                                                                                                                                                                                                                                                       9
Operation   The Very First Time You Grill                               A   C
            Perform an Initial Burn-Off
            Heat the grill on the highest setting, with the lid
            closed, for at least 20 minutes prior to grilling for the
            first time.

            Every Time You Grill
            Meal-to-Meal Maintenance
            The Meal-To-Meal Maintenance plan includes the
            following simple, yet important, steps that should
            always be performed prior to grilling.

            Check for Grease
            Your grill was built with a grease management
            system that funnels grease away from food and into a
            disposable container. As you cook, grease is channeled
            down the slide-out grease tray and into a disposable
            drip tray that lines the catch pan. This system                 D
            should be cleaned each and every time you grill to
            prevent fires.
            1) Confirm that the grill is off and cool.
            2) Remove the slide-out grease tray by pulling the tray
               out of the cabinet (A). Remove excess grease with a
               plastic scraper.
            3) Remove the catch pan. Check for excessive
               amounts of grease in the disposable drip pan that
               lines the catch pan. Discard disposable drip pan         B
               when necessary and replace with a new one.
            4) Reinstall all components.

            Inspect the Hose
            Routine inspection of the hose is necessary.
            1) Confirm that the grill is off and cool.
            2) Check hose for any signs of cracking, abrasions, or
               cuts (B). If the hose is found to be damaged in any
               way, do not use the grill.

            Preheat the Grill
            Preheating the grill is critical to successful grilling.
            Preheating helps to prevent food from sticking to the
            grate and gets the grate hot enough to sear properly.
            It also burns off residue of a previously cooked meal.
            1) Open the grill lid.
            2) Ignite your grill according to the ignition
                instructions in this Owner's Manual.
            3) Close lid.
            4) Preheat the grill with all burners on the
                start/high position for 15 minutes (C).

            Clean the Cooking Grate
            After preheating, any bits of food or debris left over
            from previous use will be easier to remove. Cleaned
            grates will also prevent your next meal from sticking.
            1) Brush the grates with a stainless steel bristle grill
                                                                            m DANGER: Do not line the slide-out grease tray
               brush immediately after preheating (D).
                                                                                or cookbox with aluminum foil.
                                                                            m DANGER: Check the slide-out grease tray and
                                                                                catch pan for grease build-up before each use.
                                                                                Remove excess grease to avoid a grease fire.
                                                                            m WARNING: Use caution when removing catch
                                                                                pan and disposing of hot grease.
                                                                            m WARNING: Use heat-resistant barbecue mitts
                                                                                or gloves when operating grill.
                                                                            m WARNING: Grill brushes should be checked for
                                                                                loose bristles and excessive wear on a regular
                                                                                basis. Replace brush if any loose bristles are
                                                                                found on cooking grates or brush. WEBER
                                                                                recommends purchasing a new stainless steel
                                                                                bristle grill brush at the beginning of every
                                                                                spring.
                                                                            m WARNING: If the hose is found to be damaged
                                                                                in any way, do not use the grill. Replace using
                                                                                only WEBER authorized replacement hose.
                                                                            m WARNING: Keep ventilation openings around
                                                                                tank clear and free of debris.

 10
Igniting the Grill

                                                                                                                         Operation
                                                                   A
Using the Crossover Ignition System to
Ignite the Grill
The crossover ignition system ignites burner 1
furthest to the left with a spark from the igniter
electrode. You generate the energy for the spark by
pushing the igniter button. You will hear the igniter
ticking. Burner(s) 2 (and 3) can be lit after burner 1 is
lit. All burners should be lit for preheating, however, all
burners do not have to be lit while grilling.
1) Open the grill lid (A).
2) Check that all burner control knobs are in the off
         position. Check by pushing in and turning knobs
     clockwise (B).                                                B
     Note: It is important that all burner control knobs are
     in the off position before turning on the LP tank.
     If they are not, the flow limiting device built into the
     regulator will activate, limiting the flow of gas from
     the LP tank.
3) Turn the LP tank on by slowly turning the tank valve
     counterclockwise; wait 60 seconds (C).
     Note: It is important that the LP tank is turned on
     slowly. If it is opened too quickly, the flow limiting
     device built into the regulator will activate, limiting the
     flow of gas from the LP tank.
4) Begin with burner 1 furthest to the left. Push the
     burner control knob in and turn it counterclockwise           C
     to the start/high position (D).
     IMPORTANT: Always ignite burner 1 first.
     The other burner(s) ignite from burner 1.
5) Push and hold the electronic ignition button (E).
     You will hear it ticking.
6) Check that burner 1 is lit by looking through the
     cooking grates and through the cutout in the
     FLAVORIZER BARS.
7) If the burner does not ignite, turn burner control
     knob to the off position and wait five minutes to
     allow the gas to clear before attempting to light the
     burner again.
8) When burner 1 ignites, you can turn on burner 2
     (and burner 3).
                                                                   D
Should the burners fail to ignite using the electronic
ignition, refer to the TROUBLESHOOTING section.
There you will find instructions on igniting the grill
with a match to help determine the exact problem.

To Extinguish Burners
1) Push each burner control knob in and then turn
   clockwise all the way to the off position.
2) Turn gas supply off at the LP tank.

                                                                   E

                                                                       m WARNING: Open lid during ignition.

                                                                       m WARNING: Do not lean over open grill while
                                                                         igniting or cooking.
                                                                       m WARNING: If ignition does not occur within
                                                                         four seconds of attempting to light the first
                                                                         burner, turn the burner control knob to
                                                                         the off position. Wait five minutes to allow
                                                                         accumulated gas to dissipate, and then repeat
                                                                         the lighting procedure.

                                                                                                                              11
Operation   Integrated WEBER CONNECT                            Using the WEBER CONNECT Module
            Technology
                           WEBER CONNECT App                            A                                                                                       B             C
                           First things first.

                           Download the WEBER CONNECT app.

                           Open the app to receive:                                                                                                                          D
            • Flip and Serve Notifications

            • Food Readiness Countdowns

            • Custom Food Doneness Alerts
                                                                                                                                E
            • Step-by-step Grilling Assistance
                                                                                                                                                       Model: WC2 CONTROLLER
            • Propane Alert Notifications
             (US & Canada only)                                 A Dashboard
            Connecting Your Grill To Bluetooth® or                   The LED display dashboard on your module is where you can visually check temperatures, receive
            Wi-Fi Network                                            notifications, view connectivity status, and check the status of your cook.

            To connect your WEBER grill via Bluetooth® or
            your local Wi-Fi network, follow these steps:       B
            NOTE: WEBER recommends that your smart
                                                                     Push the     or      buttons to increase or decrease time or target temperatures. Push the         button to
            device be running the latest version of its              confirm your selection.
            operating system before attempting to connect
            your grill to Bluetooth® or your Wi-Fi network.
            1) Push any button located on the temperature
                                                                C         Confirm Selection
               controller to turn ON the WEBER CONNECT
               module.                                               After selecting a target time or temperature, push the         button confirm the selection.
            2) Verify that your smart device is connected to
               Bluetooth® or your local Wi-Fi network.          D         Timer
            3) From your smart device, download the new
               WEBER CONNECT app from the App Store on               Push the     button to start a new timer or navigate between grill temperature and food temperature probes.
               Apple devices, or the Play Store on Android
                                                                     Push the     or     buttons to increase or decrease the desired time or target temperature. Push the
               devices.
            4) Open the WEBER CONNECT app and follow                     button to confirm a selection.
               the in-app instructions for connecting to your
               WEBER grill.                                     E Food Temperature Probes
            NOTE: In order to successfully connect your
            smart device to your grill via a local Wi-Fi             Your new WEBER CONNECT module can handle up to two separate food temperature probes (one probe
                                                                     included) to gain superior control of your grill for perfect results every time.
            network, first make sure your grill is paired via
            Bluetooth® and that your grill is within range of
            your Wi-Fi router. If your attempts to connect      NOTE: Download the WEBER CONNECT app to get the latest grill software and features.
            have been unsuccessful, try moving the grill
            within range of the Wi-Fi router or adding a
            signal extender for a stronger signal.

                                                                         Notifications
                                                                                                                            The WEBER CONNECT module display will show your
                                                                                                                          fuel level when properly connected to your fuel scale. A
                                                                                                                           full fuel level will display in green. A mid fuel level will
                                                                                                                             display in yellow. A low fuel level will display in red.

                                                                                                                               A green wireless symbol is shown on the WEBER
                                                                                                                               CONNECT module display when connected to the
                                                                                                                               WEBER CONNECT app via your local Wi-fi network.
                                                                                                                                A blue wireless symbol is shown on the WEBER
                                                                                                                                CONNECT module display when connected to the
                                                                                                                                     WEBER CONNECT app via Bluetooth®.

                                                                                                                           A power indicator will display the battery power level
                                                                                                                           of the batteries for the WEBER CONNECT module. Full
                                                                                                                          battery level will appear in green. Low battery level will
                                                                                                                                                 appear in red.

                                                                                                                              To silence an audio notification, push the BELL button.

 12
Setting a Grill Temperature Notification

                                                                                                                    Operation
Please follow these steps for setting a notification to
                                                            F   Food Temperature Probe Care
alert you when your grill has reached a target internal
temperature:                                                    Cleaning the Food Temperature Probe
 1) Push any button located on the temperature                  Clean probe before first use. The probe should be
    controller to turn ON the WEBER CONNECT module.             cleaned by wiping with water and a damp cloth.
 2) Push the BELL button to activate grill temperature          The food temperature probes are not dishwasher
    notification.                                               safe or waterproof and damage may result from
 3) While the display is blinking, push the + or -              excessive water exposure. Never submerge the
    buttons to set the target grill temperature. Push the       probes directly in water or other liquids.
    CHECKMARK button to confirm your selection.
 4) Reapeat steps 2 and 3 to update or set a new target
                                                                Storing Food Temperature Probe
    temperature.                                                Once cleaned, neatly wrap the probe when not in
                                                                use and store indoors.
 5) Once the grill reaches the target temperature, the
    BELL button will blink, the controller will ding, and
    if using the WEBER CONNECT app, you will receive
    a push notification on your smart device.
 6) All of these WEBER CONNECT module functions can
    also be set wirelessly via Wi-fi or Bluetooth® from
    the WEBER CONNECT app on your smart device.             G

Grilling with Food Temperature Probes
Use the included food temperature probe to monitor
your WEBER grill for the perfect food, every time.
Please follow these steps for using food temperature
probes:
 1) Once the grill has been preheated, open the grill lid
    and clean the cooking grates using a grill brush or
    scraper, then set the control knobs to the desired
    grill temperature.
 2) Place your food on the grates.
 3) Plug the food temperature probe(s) into the ports
    of the WEBER CONNECT module (F) and, using
    heat resistant grill mitts or gloves, route food
    temperature probe cables through the side channel
    on the grill (G).
 4) Insert food probe(s) into the center of the thickest
    part of your food.                                      H
 5) Close the grill lid.
 6) Push any button located on the temperature
    controller to turn ON the WEBER CONNECT module.
 7) Push the BELL button to navigate between grill
    temperature and food temperature probes 1 and 2.
 8) Once you select which probe you are using,
    push the + or - buttons to set the target food
    temperature. Push the CHECKMARK button to
    confirm your selection.
 9) Reapeat steps 7 and 8 to update or set a new target
    temperature.
10) Once the probe reaches the target temperature,
    the BELL button will blink, the controller will ding,
    and if using the WEBER CONNECT app, you will
    receive a push notification on your smart device.
11) All of these WEBER CONNECT module functions can
    also be set wirelessly via Wi-fi or Bluetooth® from
    the WEBER CONNECT app on your smart device.

                     m   WARNING
   m Risk of injury! The food temperature probes
     are very sharp. Please be careful when
     handling probes.
   m Risk of burns! Handling the food temperature
     probes without hand protection will result in
     severe burns. The colored probe indicators
     are not intended to be touched with bare
     hands while using the grill as they are not
     heat-insulated. Please wear heat-resistant
     gloves at all times while using this product in
     order to avoid being burned.

                                                                                                                        13
Tips and Hints
                 The Flame -
                 Direct or Indirect
                                                                                                                  OFF

                        HIGH                                                                                   MEDIUM

                                        BURNER         BURNER           BURNER                                                   BURNER         BURNER             BURNER
                                            1              2              3                                                          1              2                3

                                                                                                                  OFF

                        HIGH                                                                                   MEDIUM

                                                BURNER          BURNER                                                                   BURNER           BURNER
                                                  1                 2                                                                       1                  2

                                         DIRECT HEAT                                                                           INDIRECT HEAT
                                            SETUP                                                                                  SETUP
                 Use the direct method for small, tender pieces of food that take less than 20            Use the indirect method for larger cuts of meat that require 20 minutes or more
                 minutes to cook, such as: hamburgers, steaks, chops, kabobs, boneless chicken            of grilling time, or for foods so delicate that direct exposure to the heat would
                 pieces, fish fillets, shellfish, and sliced vegetables.                                  dry them out or scorch them, such as: roasts, bone-in poultry pieces, whole
                                                                                                          fish, delicate fish fillets, whole chickens, turkeys, and ribs. Indirect heat can also
                 With direct heat, the fire is right below the food. It sears the surfaces of the food,
                                                                                                          be used for finishing thicker foods or bone-in cuts that have been seared or
                 developing flavors, texture, and delicious caramelization while cooking the food
                                                                                                          browned first over direct heat.
                 all the way to the center.
                                                                                                          With indirect heat, the heat is on both sides of the grill, or off to one side of the
                                                                                                          grill. The food sits over the unlit part on the cooking grate.

                                                                                                                                                         OFF

                                                                                                            START/HIGH                                                           LOW

                                                                                                                                                                     MEDIUM

 14
Grilling Do’s

                                                                                                                                                                                                                                                                              Tips and Hints
and Don’ts
Preheat each and every time.                                  Try not to peek.
If the cooking grates aren’t hot enough, food will stick,     The lid on your grill is for more than just keeping the
and you will likely never have a chance of searing            rain out. Most importantly, it’s for preventing too much
properly or developing those handsome grill marks.            air from getting in, and too much heat and smoke from
Even if a recipe calls for medium or low heat, always         getting out. When the lid is closed, the cooking grates
preheat the grill on the highest setting first. Open the      are hotter, the grilling times are faster, the smoky tastes
lid, turn up the heat, close the lid, and then let the        are stronger, and the flare-ups are fewer. So put a lid
cooking grate heat up for 15 minutes on high.                 on it!

Don't grill on dirty grates.                                  Only flip once.
Tossing food onto the cooking grates before they have         What’s better than a juicy steak with a deep sear and
been cleaned is never a good idea. Leftover “stuff” on        plenty of beautifully caramelized bits? The key to
the grates acts like glue, binding it to the grates and       accomplishing these results is to keep your food in
your new food. To avoid tasting last night’s dinner on        place. Sometimes we have the tendency to flip our food
today’s lunch, make sure you are grilling on a clean          before it reaches the desirable level of color and flavor.
cooking grate. Once the grates are preheated, use             In nearly all cases, you should turn food just once. If
a stainless steel bristle grill brush to make a clean,        fiddling with it more than that, you are probably also
smooth surface.                                               opening the lid too much, which causes its own set of
                                                              problems. So step back and trust the grill.

Be present in the process.                                    Know when to tame the flame.
Before firing up your grill, make sure that everything
                                                              When grilling, sometimes the most important thing to
you need is within arm’s reach. Don’t forget your
                                                              know is when to stop. The most reliable way to test
essential grilling tools, already oiled and seasoned
                                                              doneness of your food is to invest in an instant-read
food, glazes or sauces, and clean cooking platters for
                                                              thermometer. This slim little gem will help you pinpoint
cooked food. Having to run back to your kitchen not only
                                                              that critical moment when your food is at its best.
means missing out on the fun, but could also result in                                                                                                                                                                                        OOL S • M
                                                                                                                                                                                                                                   L I NG T             US T
burning your food. French chefs call this “mise en place”                                                                                                                                                              RI L                                 -
                                                                                                                                                                                                                     EG                                         HA
(meaning, “put in place”). We call it “being present”.        Don’t be afraid to experiment.                                                                                                                 -   HA
                                                                                                                                                                                                                   V                                              VE

                                                                                                                                                                                                                                                                          GR
Create a little elbow room.

                                                                                                                                                                                                  ST
                                                              Back in the 1950s, grilling meant one thing: meat (and

                                                                                                                                                                                                                                                                              IL
                                                                                                                                                                                                         U
                                                                                                                                                                                                      •M
                                                              only meat) charred over open flames. The modern

                                                                                                                                                                                                                                                                              L IN
Packing too much food onto the cooking grates restricts       day backyard chef doesn’t need a kitchen in order to

                                                                                                                                                                                                   LS

                                                                                                                                                                                                                                                                                  GT
                                                                                                                                                                                                                      BARBECUE
your flexibility. Leave at least one-quarter of the cooking   prepare a full course meal. Use your grill to make char-

                                                                                                                                                                                    GR ILL ING TOO

                                                                                                                                                                                                                                                                                     OOL S
grates clear, with plenty of space between each food          grilled appetizers, sides, and even desserts. Register
item, in order to get your tongs in there and easily          your grill to receive special content that will inspire

                                                                                                                                                                                                                                                                                           • MUST-HA
move the food around. Sometimes grilling involves
split-second decisions and the ability to jockey food
from one area to another. So give yourself enough room
                                                              you along the way. We’d love to join you on your grilling
                                                              adventures.
                                                                                                                                                                                AVE
                                                                                                                                                                                                                       MITTS
to operate.                                                                                                                                                                                        When in doubt, wear them. The good

                                                                                                                                                                                                                                                                                                    VE
                                                                                                                                                                            T-H

                                                                                                                                                                                                     ones are insulated and protect

                                                                                                                                                                                                                                                                               GR
                                                                                                                                                                          S

                                                                                                                                                                                                                                                                                  IL
                                                                                                                                                                        U
                                                                                                                                                                                                 •M

                                                                                                                                                                                                         both hand and forearm.

                                                                                                                                                                                                                                                                              LI
                                                                                                                                            OOL S • M
                                                                                                                                 L I NG T

                                                                                                                                                                                                                                                                              N
                                                                                                                            IL                        US T
                                                                                                                                                                                                                                                                          G
                                                                                                                         GR
                                                                                                                                                                                                             S
                                                                                                                                                          -H
                                                                                                                                                                                                                                                                     TO
                                                                                                                                                                                                                 OL
                                                                                                                    VE                                         AV                                                        O                                      OL
                                                                                                                  HA                                              E                                                   GT                                   S•
                                                                                                              -
                                                                                                                                                                                                                             IN                     MU S
                                                                                                                                                                                                                                  T-HAVE GRI LL
                                                                                                                                                                        GR
                                                                                                         T
                                                                                                       US

                                                                                                                                                                                 IL
                                                                                                   •M

                                                                                                                                                                                      L IN

                                                                                                                         SPATULA
                                                                                             OL S

                                                                                                                                                                                              GT
                                                                                                                                                                                                    OOL S
                                                                                         IL L ING TO

                                                                                                           Look for a long-handled spatula
                                                                                                                                                                                                      • MUST-HA

                                                                                                          designed with a bent (offset) neck
                                                                                                 GR

                                                                                                             so that the blade is set lower
                                                                                             AVE

                                                                                                                                                                                                               V

                                                                                                            than the handle. This makes it
                                                                                         T-H

                                                                                                                                                                                             EG

                                                                                                                                                                                                                                              OOL S • M
                                                                                                                                                                                                                                   L I NG T             US T
                                                                                                                                                                                                R

                                                                                                                                                                                                                       RI L
                                                                                                          S

                                                                                                               easier to lift food off the
                                                                                                                                                                                     I LL
                                                                                                       MU

                                                                                                                                                                                                                     EG                                     -   HA
                                                                                                                                                                                                                   V                                              VE
                                                                                                                                                                                IN

                                                                                                                                                                                                                 HA
                                                                                                         •

                                                                                                                                                                         G
                                                                                                              LS
                                                                                                                    cooking grates.                                                                          -
                                                                                                                                                                   TO
                                                                                                                                                                                                                                                                          GR
                                                                                                                                                                                                  ST

                                                                                                                   OO       T                            S•
                                                                                                                                                              OL
                                                                                                                                                                                                                                                                              IL
                                                                                                                                                                                                         U

                                                                                                                        ING
                                                                                                                                                                                                      •M

                                                                                                                                                  MU S
                                                                                                                                                                                                                                                                              L IN

                                                                                                                                T-HAVE GRI LL
                                                                                                                                                                                                   LS

                                                                                                                                                                                                                                                                                  GT
                                                                                                                                                                                    GR ILL ING TOO

                                                                                                                                                                                                                                                                                   OOL S

                                                                                                                                                                                                                                  TIMER
                                                                                                                                                                                                                                                                                         • MUST-HA

                                                                                                                                                                                                  Avoid the disappointment of torching
                                                                                                                                                                                                  your dinner by simply setting a timer.
                                                                                                                                                                                AVE

                                                                                                                                                                                                                                                                                                  VE
                                                                                                                                                                            T-H

                                                                                                                                                                                                    Nothing fancy needed—just one
                                                                                                                                                                                                                                                                               RI L                  G
                                                                                                                                                                        U S

                                                                                                                                                                                                         that is reliable and easy
                                                                                                                                                                                                 •M

                                                                                                                                                                                                                                                                              LI
                                                                                                                                                                                                                                                                              N

                                                                                                                                                                                                             S                                                            G
                                                                                                                                                                                                                                                                     TO
                                                                                                                                                                                                                 OL
                                                                                                                                                                                                                   to use.
                                                                                                                                                                                                                      GT
                                                                                                                                                                                                                         O
                                                                                                                                                                                                                             IN                     MU S
                                                                                                                                                                                                                                                           S•
                                                                                                                                                                                                                                                                OL
                                                                                                                                                                                                                                  T-HAVE GRI LL
                                                                                                                                                                                                                                                                                        15
Product Care   Cleaning and Maintenance                                     A   D
               Cleaning the Inside of the Grill
               Over time, the performance of your grill can
               diminish if it has not been maintained properly.
               Low temperatures, uneven heat, and food sticking
               to cooking grates are all signs that cleaning and
               maintenance are overdue. When your grill is off and
               cool, start by cleaning the inside, from the top down.           E
               A thorough cleaning is recommended at least twice a
               year. Consistent use may require quarterly cleanings.

               Cleaning the Lid
               From time to time you may notice “paint-like” flakes
               on the inside of the lid. During use, grease and smoke
               vapors slowly change into carbon and deposit on the
                                                                            B
               inside of your lid. These deposits will eventually peel,
               and looks very similar to paint. These deposits are
               non-toxic, but the flakes could fall onto your food if you
               do not clean the lid regularly.
               1) Brush the carbonized grease from the inside of the
                                                                                F
                  lid with a stainless steel bristle grill brush (A). To
                  minimize further build-up, the inside of the lid can
                  be wiped with a paper towel after grilling while the
                  grill is still warm (not hot).

               Cleaning the Cooking Grates
               If you have been cleaning your cooking grates as
               recommended, the debris on your grates should be
               minimal.
               1) With grates installed, brush the debris off your
                   cooking grate with a stainless steel bristle grill       C
                   brush (B).
               2) Take the grates out and set aside.

               Cleaning the FLAVORIZER BARS
               FLAVORIZER BARS catch drippings that smoke and
               sizzle, adding flavor to your food. Any drippings that
               are not vaporized by the FLAVORIZER BARS are
               funneled away from the burners. This helps prevent
               flare-ups inside of your grill, and protects the burners
               from getting clogged.
               1) Scrape the FLAVORIZER BARS with a plastic
                  scraper (C).
               2) If necessary, brush the FLAVORIZER BARS with a
                  stainless steel bristle grill brush.
               3) Remove FLAVORIZER BARS and set aside.

               Cleaning the Burners
               Two areas on the burners that are key to optimum
               performance are the ports (small openings running
               along the length of the burners) and the spider/insect
               screens on the ends of the burner. Keeping these
               areas clean is essential for safe operation.
               Cleaning the Burner Ports
               1) Use a clean stainless steel bristle grill brush
                  to clean the outside of the burners by brushing
                  across the top of the burner ports (D). Do not brush          m WARNING: Turn your grill off and wait for it to
                  lengthwise.along the tube, as this will only brush                cool before thoroughly cleaning.
                  debris from one port to another.                              m WARNING: Over time, the development of
               2) When cleaning burner 1, avoid damaging the                        rough surfaces can form on the FLAVORIZER
                  ignition electrode by carefully brushing around                   BARS. Wearing gloves is recommended when
                  it (E).                                                           handling. Do not clean FLAVORIZER BARS or
                                                                                    cooking grates in a sink, dishwasher, or self-
               Cleaning the Spider Screens
                                                                                    cleaning oven.
               1) Locate the ends of the burners on the underside of
                  the control panel where they meet the valves.                 m WARNING: When cleaning the burners, never
               2) Clean the spider/insect screens on each of the                    use a brush that has already been used to
                  burners using a soft bristle brush (F).                           clean the cooking grates. Never put sharp
                                                                                    objects into the burner port holes.
                                                                                m CAUTION: Do not place any grill components
                                                                                    onto the side tables as they may scratch the
                                                                                    paint or stainless steel surfaces.
                                                                                m CAUTION: Do not use any of the following
                                                                                    to clean your grill: abrasive stainless steel
                                                                                    polishes or paints, cleaners that contain
                                                                                    acid, mineral spirits or xylene, oven cleaner,
                                                                                    abrasive cleansers (kitchen cleansers), or
                                                                                    abrasive cleaning pads.

 16
Cleaning the Cookbox

                                                                                                                                                                                                                                                       Product Care
Look inside the cookbox for any grease accumulation
                                                              G
or leftover food particles. Excessive accumulation can
cause a fire.
1) Use a plastic scraper to scrape debris off the sides
   and bottom of the grill into the opening in bottom of
   the cookbox (G). This opening leads debris into the
   slide-out catch pan.

Cleaning the Grease Management System
The grease management system consists of an angled
slide-out grease tray and a catch pan (H). These
components were designed to be easily removed,
cleaned, and replaced; an essential step every time
you prepare to grill. Instructions on inspecting the          H
grease management system can be found in MEAL-TO-
MEAL MAINTENANCE.

Cleaning the Outside of the Grill
The outside of your grill may include stainless steel,
porcelain-enameled, and plastic surfaces. WEBER
recommends the following methods based on the
surface type.

Cleaning Stainless Steel Surfaces
Clean stainless steel using a non-toxic, non-abrasive
stainless steel cleaner or polish designed for use on
outdoor products and grills. Use a microfiber cloth to
clean in the direction of the grain of the stainless steel.
Do not use paper towels.
Note: Do not risk scratching your stainless steel with
abrasive pastes. Pastes do not clean or polish. They
will change the color of the metal by removing the top
chromium oxide film coating.

Cleaning Painted, Porcelain-Enameled
Surfaces and Plastic Components
                                                                                                                                                                                                                       OOL S • M
Clean painted, porcelain-enameled and plastic                                                                                                                                                               L I NG T             US T
                                                                                                                                                                                                RI L                                 -
components with warm soapy water, and paper towels                                                                                                                                          V EG                                         HA
                                                                                                                                                                                                                                           VE
or cloth. After wiping down the surfaces, rinse and dry                                                                                                                               -   HA

                                                                                                                                                                                                                                                   GR
                                                                                                                                                                           ST
thoroughly.

                                                                                                                                                                                                                                                       IL
                                                                                                                                                                                  U
                                                                                                                                                                               •M

                                                                                                                                                                                                                                                       L IN
Cleaning the Outside of Grills that are in

                                                                                                                                                                            LS

                                                                                                                                                                                                                                                           GT
Unique Environments
                                                                                                                                                             GR ILL ING TOO

                                                                                                                                                                                                                                                              OOL S
If your grill is subject to a particularly harsh
                                                                                                                                                                                                FOIL PANS

                                                                                                                                                                                                                                                                    • MUST-HA
environment, you will want to clean the outside more
often. Acid rain, pool chemicals, and salt water can
cause surface rusting to appear. Wipe down the                                                                                                                                                 Perfect for lining the
outside of your grill with warm soapy water. Follow
                                                                                                                                                         AVE

up with a rinse and thorough drying. Additionally, you                                                                                                                                      catch pan to make cleanup

                                                                                                                                                                                                                                                                             VE
                                                                                                                                                     T-H

may want to apply a stainless steel cleaner weekly to
                                                                                                                                                                                               convenient and easy.

                                                                                                                                                                                                                                                        GR
                                                                                                                                                   S

prevent surface rust.

                                                                                                                                                                                                                                                           IL
                                                                                                                                                 U
                                                                                                                                                                          •M

                                                                                                                                                                                                                                                       LI
                                                                                                                     OOL S • M
                                                                                                          L I NG T

                                                                                                                                                                                                                                                       N
                                                                                                     IL                        US T
                                                                                                                                                                                                                                                   G
                                                                                                  GR
                                                                                                                                                                                      S
                                                                                                                                   -H
                                                                                                                                                                                                                                              TO
                                                                                                                                                                                          OL
Cleaning the Inside of the Cabinet                                                           VE                                         AV                                                        O                                      OL
                                                                                           HA                                              E                                                   GT                                   S•
                                                                                       -
                                                                                                                                                                                                      IN                     MU S
                                                                                                                                                                                                           T-HAVE GRI LL
                                                                                                                                                 GR

Use a soft, damp cloth to wipe the interior of the
                                                                                  T
                                                                                US

                                                                                                                                                          IL

cabinet. Be careful not to pull any of the wire
                                                                            •M

                                                                                                                                                               L IN

connections when cleaning around the electronic
                                                                      OL S

                                                                                                                                                                       GT

components
                                                                                                                                                                             OOL S

                                                                                  THERMOMETER
                                                                  IL L ING TO

CAUTION: NEVER SPRAY THE GRILL WITH A
STEADY WATER STREAM SUCH AS FROM A
                                                                                                                                                                               • MUST-HA

GARDEN HOSE OR POWER WASHER. ELECTRONIC
                                                                                    Small and relatively inexpensive,
                                                                          GR

COMPONENTS COULD BECOME DAMAGED.
                                                                                   this gadget is essential for quickly
                                                                      AVE

                                                                                                                                                                                        V

                                                                                    gauging the internal temperature
                                                                  T-H

                                                                                                                                                                      EG

                                                                                                                                                                                                                       OOL S • M
                                                                                                                                                                                                            L I NG T             US T
                                                                                                                                                                         R

                                                                                                                                                                                                RI L
                                                                                   S

                                                                                                                                                              I LL
                                                                                MU

                                                                                                                                                                                                                                     -
                                                                                        of the meat when grilling.                                                                          V EG                                         HA
                                                                                                                                                                                                                                           VE
                                                                                                                                                         IN

                                                                                                                                                                                          HA
                                                                                  •

                                                                                                                                                  G
                                                                                       LS                                                   TO                                        -
                                                                                                                                                                                                                                                   GR
                                                                                                                                                                           ST

                                                                                            OO       T                            S•
                                                                                                                                       OL
                                                                                                                                                                                                                                                       IL
                                                                                                                                                                                  U

                                                                                                 ING
                                                                                                                                                                               •M

                                                                                                                           MU S
                                                                                                                                                                                                                                                       L IN

                                                                                                         T-HAVE GRI LL

                                                                                                                                                                                       GRILL BRUSH
                                                                                                                                                                            LS

                                                                                                                                                                                                                                                           GT
                                                                                                                                                             GR ILL ING TOO

                                                                                                                                                                                                                                                            OOL S

                                                                                                                                                                             A must-use before you even dream
                                                                                                                                                                                                                                                                  • MUST-HA

                                                                                                                                                                            of grilling. A quick once-over on hot
                                                                                                                                                         AVE

                                                                                                                                                                            grates prevents the charred remains
                                                                                                                                                                                                                                                                           VE
                                                                                                                                                     T-H

                                                                                                                                                                               of meals past from sticking to
                                                                                                                                                                                                                                                        RI L                  G
                                                                                                                                                 U S
                                                                                                                                                                          •M

                                                                                                                                                                                      your meals present.
                                                                                                                                                                                                                                                       LI
                                                                                                                                                                                                                                                       N

                                                                                                                                                                                      S                                                            G
                                                                                                                                                                                                                                              TO
                                                                                                                                                                                          OL      O                                      OL
                                                                                                                                                                                               GT     IN                     MU S
                                                                                                                                                                                                                                    S•
                                                                                                                                                                                                           T-HAVE GRI LL
                                                                                                                                                                                                                                                                  17
You can also read
