Quality of air means quality of life
Quality of air means quality of life
Nataliya Vasilyuk, contortionist
Amazingly flexible
HANSA ventilation and air conditioning units
HANSA is a member of the association of manufacturers for air conditioning devices
(Raumlufttechnische Geräte e.V.) Blue Line
About us
Since 1971, the headquarter of HANSA Klimasysteme Our Team
GmbH is located in Strücklingen in the district of
Saterland, which, along with its Sater Friesian, is We continuously train our employees in order to
known as Germany's smallest linguistic enclave. educate our team to be well-prepared for the changing
In contrast, we speak in plain language about our needs of the industry. The HANSA team consists of
products. We have been guaranteeing sophisticated experienced experts in the field of air conditioning
and high-quality air conditioning systems for more device production and the associated specialized
than 45 years. fields of refrigeration technique, control engineering
and control. We have excellent organizational means
and state-of-the-art manufacturing machines. The
construction and production are performed in QM-
The company conditions according to DIN EN ISO 9001:2015.
Since the founding of the company, we have been
known for the construction of air-conditioning
systems for schools, sports halls, swimming pools Our philosophy
and hospitals as well as for the use in industries and
process engineering in Germany and far beyond. Our goal is to optimally comply with the climate re-
Based on our experience with these systems, we quirements of our customers and to contribute to
have developed a wide range of air conditioning the protection of the environment. We offer there-
devices that we are pleased to present in our delivery fore systems that can be adapted to the individual
program. operating conditions of the customers at low energy
consumption thanks to flexible production processes
Our constructive solutions for the continuously and up-to-date components. As the energy demand
increasing of today‘s indoor air quality needs guarantee of the overall system and the individual modules can
a constant quality, functionality, and reliability with be reduced without affecting the efficiency of the
increasing energy efficiency levels. Many property system, the investment and energy costs will decre-
rights have been registered at the European Patent ase likewise.
Office during the development processes and have
been considered worthy of patents and protection.
As member of the association of manufacturers for air
conditioning devices (RLT Herstellerverbandes e.V.),
we undertake to construct our devices according
to the associations’ guidelines to always guarantee
quality, operational safety and legal security for our
customers and operators of our devices.
2
HANSA factory site
Blue Line type code
Our type code consists of the device box name "HKG",
the device size in decimetres (width and height,
two digits each) and short-cuts for the device's
installed components and properties. An HKG-
1010-KV-WF-CO is then a weatherproof ventilation
unit with run-around-system and control panel
(HEC-DDC) at 1,000 x 1,000 mm (width times
height).
Components
Accu Accubloc (regenerative heat recovery)
ASB Adiabatic spray humidification (HANSA)
CO Control panel with HEC-DDC
CS Control panel with Saia-DDC
DPT Double plate heat exchanger
eco-R Thermal wheel
GS Counterflow plate heat exchanger
iK Integrated mechanical cooling
iKr Reversible mechanical cooling
KUV Adiabatic spray humidification
(foreign manufacturer)
KV Integrated run-around-system
PT Plate heat exchanger
SMART Integrated chilled water production
WP Integrated heat pump
WPr Reversible heat pump
Properties
ATX ATEX-conforming design
Hy Hygienic design
WF Weatherproof
3
Version 05 / 2019 – Subject to construction modifications
Construction - energy efficiency labeling
Efficiency classes
As a member of the RLT manufacturers association,
we label the energy efficiency on all units that pos-
sess heat recovery features as A+, A or B.
The class is assigned based on three determinants
Class Air speed [m/s]
air speed
compliance to regulation 1253/2014 V1 ≤ 1.6
V2 > 1.6 up to 1.8
Please refer to the tables to the right for the precise V3 > 1.8 up to 2.0
classification. V4 > 2.0 up to 2.2
V5 > 2.2 up to 2.5
V6 > 2.5 up to 2.8
Criteria V7 > 2.8
Efficiency class nach RLT-Richtlinie
Zertifizierung
nach RLT-Richtlinie
Zertifizierung
nach RLT-Richtlinie
Zertifizierung
Table: Air speed class
Air speed classes for units
without air conditioning V5 V6 V7 Regulation 2009/125/EG
with heater V4 V5 V6
with further conditioning V2 V3 V5 European regulation 2009/125/EG defines
minimum requirements to energy-related
ErP2018 ErP2016 — Products (ErP).
The regulation targets reducing CO2 emis-
Efficiency ηt of the energy recovery system sions and increasing renewable energy.
• Circuit compound system 0.68 0.63 — 2009/125/EG is legally binding in the Euro-
• Rotary heat exchanger/PHE 0.73 0.76 — pean Union, EFTA and Turkey.
Refer to RLT Guideline Cerification for precise criteria.
Compared with Eurovent?
Whereas this same standard (DIN EN 13053) forms
the basis for the Eurovent efficiency classes, it does
not strictly exclude any one of the classes based on
one of the basic or essential determinants.
The compensations that are permissible for Eurovent
certification mean that the manufacturers associati-
on systems and the Eurovent systems are not com-
parable to each other.
ErP
Of course, our units are in
Complies with the
European directive accordance to regulation
1253/2014 for (EU) 1253/2014 where
ventilation units applicable.
READY (AHU)
4
AirCalc
Our ventilation and air conditioning units are
constructed entirely in our AirCalc design program,
which is then used to produce them. The software
provides customized solutions without any restric-
tions based on fixed, predefined unit types.
AirCalc is certified by TÜV Süd for determining the
energy efficiency classes according to the guidelines
of the Association of AHU Manufacturers.
The headquarters of the Federal Ministry for the Environment, Nature Conservation and Nuclear Safety in Berlin is a Passive House
project, ventilated by HANSA-Accu devices using highly efficient heat and moisture recovery.
5
Version 05 / 2019 – Subject to construction modifications
Construction - weather analysis
Weather analysis Right: Meteorological data for the 10-year ave-
rage for Frankfurt am Main on the psychrome-
Our engineers use weather data (see figure to the tric chart. Plotted are the number of hours per
right) to optimize the ventilation and air conditioning year that fall within that particular combination
units. Our efforts are particularly focused on energy- of temperature and humidity (green bubble on
efficient determinants tailored to suit market needs the left in each figure). In addition, the distri-
and components designed for heat recovery (inlet bution of the annual hours is recorded on the
and outlet temperatures, degree of efficiency, pos- individual temperatures (green-backed speed
sibly moisture recovery and dehumidification), inclu- range).
ding designing an appropriate control strategy.
The following questions can be answered based on
actual weather data:
With regenerative heat recovery, is re-humidification
through condensation adequate, or should a hygro-
scopic coating be used?
Should a humidifier be additionally provided?
How much heat/cooling power is enough?
Can dehumidification (e.g. in areas surrounding
swimming pools) be carried out without using a
mechanical refrigeration system?
Inadequate or too generously-sized HVAC systems
typically cause significant additional costs. Use our
expertise to determine the best system for your ap-
plication. Bottom: The adventure pool Aquadrome in Po-
lish Ruda Śląska. Fifteen HANSA ventilation
systems dehumidify and provide a comfortab-
le atmosphere for guests. Heat pump systems
and adiabatic cooling systems are used for air-
conditioning.
6
5 10 15 20 25 g/kg
°C %
45
50
60
40
70
80
35
90
2 2 100
5 5
30 7 4 3 14
6 2 1 3 15
3
6 3 4 6 6 6 31
5 7 10 4 6 4 8 2 46
2 10 14 16 5 9 9 7 72 25
25 2 5 17 18 16 5 7 7 5 82
10 9 24 22 22 4 9 21 4 80 125
144
5 14 19 19 27 32 15 6 6 1
14 23 22 21 38 30 17 10 5 1 181
26 32 24 37 46 39 23 14 241 20
20 37 21 4 235
3 24 32 26 40 48
227
4 31 40 27
5 48 36 68
46
65
56
60
17
24
4 2 60 306
4 14 65 43 76 61 59 4 326
15 6 16 51 86 90 69 26 344 15
8 15 73 101 108 34 2 341
15 38 88 114 71 5 331
22 64 98 132 33 349
2 26 69 149 131 8 40 kJ/kg 385
10 6 42 97 168 74 1 388 10
5 61 147 158 38 409
11 88 177 88 364
14 117 186 28 345
29 177 173 5 384
5 48 237 102 387
74 249 43 5
366
3 131 216 3
2 214 120 20 353
8 276 67 336
23 236 5 351
0 264
38 164 0
85 122 202
2 119 62 207
3 166 183
-5 1 90 169
4 51 91 -5
13 10 55
13 4 23
25 0 17
-10 34 25
5 34 -10
5
-15
°C
Meteorological Data 8,760 [h/a]
Designation: Wheather data bubble as a 10-year average
Location: Frankfurt/M/Germany
7
Version 05 / 2019 – Subject to construction modifications
Standards and regulations - export HANSA worldwide CE-marking (European Union, Switzerland and Turkey) As a member of the Manufacturers Association of RLT, we concur with the view that our machinery used in ventilation and air conditioning equipment must be in line with the EG Machinery Directive. As a consequence, our customers in the European Union, Switzerland and Turkey enjoy an immediate and decided advantage: Each complete unit is exten- sively tested according to the machinery, low vol- tage and EMC guidelines, and are appropriately CE labelled. This label assures the operator and the plan- ner/equipment manufacturer of legal certainty. A complete machine that is capable of CE marking comprises certain mandatory safety equipment (e.g. dedicated repair switch), the wiring and the control panel, with a controller, if necessary. While it is easy for a foreign company to add these components, the operator loses the advantage of having the CE decla- ration and must pay to have the appropriate certifica- tion carried out at his own expense. In addition, HANSA's control-technical processing si- gnificantly facilitates adapting the unit to match the customer's requests. Interfaces are avoided and the owner benefits from the experience of our engineers by using systems that are efficient and are able to meet demand. UL-marking (USA and Canada) Of course, as a UL-certified company, we manufac- ture control panels that meet UL standards for our customers in the U.S. and Canada, and we label them accordingly. GOST-R/TR certification (the Russian Federation, etc.) Our distributor for Eastern Europe, excluding the Eu- ropean Union countries, certify our equipment accor- ding to GOST-R/TR guidelines for the safe machinery design. 8

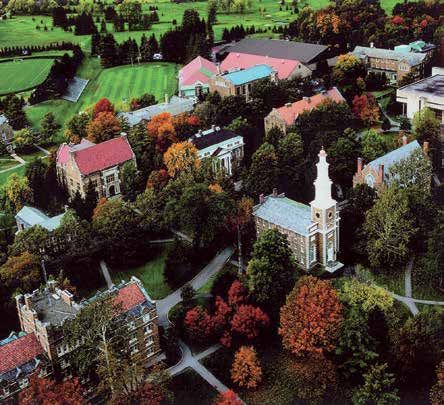

During many years of collaboration, numerous pro-
jects have been implemented on the campus of
Hamilton College in Clinton, New York (below),
including the award-winning LEED expansion and
modernization of the Kirner-Johnson Building (left),
the Sounders Center or the Wellin Museum of Art
(pictured below left), which requires a level of very
precise air conditioning to maintain the value of the
exhibits.
9
Version 05 / 2019 – Subject to construction modifications
Standards and regulations - certificates
Certified quality
The application-specific standards in design and ma-
nufacturing must be especially taken into account, in
addition to the European directives (e.g. MD, EMC,
LVD, ATEX) and the general principles for the design
and construction of air handling units.
For more than 45 years, we have been building air
handling units for supply of spaces occupied by peo-
ple, including hospitals, swimming pools, server are-
as, kitchens and food outlets.
In addition to our own independent, standards-com-
pliant design and manufacturing processes, we regu-
larly have independent laboratories check our units to
ensure compliance with all relevant standards.
Bottom: At the Wuppertal swimming performance center,
HANSA pool dehumidifiers provide highly efficient heat re-
covery suitable for Olympic athletes to work out in.
10rsc
haf
t mit
Sys Doing this has helped us develop considerable ex-
tne tem
Par
pertise, which in turn guarantees that your unit will
EN-9001
ISO 9001
QM-System comply with the required commercial and technical
...
guidelines for safety. Which in turn ensures sound
mit
uns
hne
n legal protection and that our systems will operate
kön rec
nen Sie perfectly and as intended.
Because our units are divided up into HVAC ener-
gy efficiency classes, we use design software
and components certified by TÜV Süd, in order
to provide our customers with ecologically and
economically optimal solutions that are always
competitive and comparable.
Various certificates and test reports by external
institutes confirm that we comply with all rele-
vant standards and guidelines in an exemplary
manner.
Test records confirm compliance with DIN stan-
dards 52210, 1886 and 10505.
Certificates confirm compliance with VDI 6022,
ÖNORM H 6021, VDI 3803, DIN EN 13779, DIN
1946-4, SWKI 99-3 and ÖNORM H 6020 stan-
dards.
ZDH-ZERT GMBH BE SC HEINIGT, DASS DI E ORGANISATION
We commission appropriate facility testing for
HANSA KLIMASYSTEME GMBH
STOCKWEG 19
26683 SATERLAND - STRÜCKLINGEN
IN DE N TÄTI GKEI TSBE RE ICHEN
ENTWICKLUNG, KONSTRUKTION UND HERSTELLUNG VON KLIMAGERÄTEN
special purposes (e.g. the Institute of Hygiene
for the Ruhr region, review of RZ- compact heat
dissipation units for use in spaces occupied by
EIN QUALITÄTSMAN AGEMENTSYSTEM ENTSPREC HEND DE R FOLGENDEN NORM EIN GE FÜHRT HAT
UN D AN WENDE T:
DIN EN ISO 9001:2015
people).
DE R EN TSPRE C HEN DE N AC HWE I S WURDE DURC H EIN E BE GUTACHTUNG E RBRAC HT.
ZERTIFIKAT GÜLTIG BI S 20.02.2019
ZERTIFIKAT-REGISTE R- NR.: Q1 01 95002
Bonn, 23.02.2018
Dipl.-Ing. Peter Löpp
Leiter der Zertifizierungsstelle
In commercial and technical terms, we show our-
selves to be a reliable partner to our customers
through the use of our QM system, which com-
prises all of the company processes.
11
Version 05 / 2019 – Subject to construction modificationsHousing and manufacturing standards
Profiles
Depending on the size of the unit and customer re-
quirements, we use 30 or 50 mm frame profiles (an-
odized, if necessary) made of aluminum (R30 and
R50 profiles).
These profiles are also used thermally separated and
insulated per cube type as needed (R30I and R50I).
These profiles are characterized by a good thermal
insulation and the avoidance of thermal bridges. This R30 profile R30I profile
avoids wasting energy and condensation problems.
Double-lip EPDM rubber seals are inserted into all the
profiles, which are characterized by
resistance to aging
resistance to alkalis and acids
resistance to disinfectants
suitability for hot disinfection
suction and pressure side seal
R50 profile R50I profile
Panels
Double-skin panels are made from zinc-plated sheet
steel with optional coating. The folding technique
and assembly used prevent cutting edges.
R50-panels can be carried out thermally separated
and be foamed up or filled with mineral wool.
Besides fixed, mounted elements, removable doors
and hinged doors are installed, which are closed us-
ing clamps or a catch.
A variety of security measures provide security in
hazardous areas:
Claws with torsion and captive screw
Catch with lock
Double-lever catch on the pressure side
Options:
Corrosion class C5-M
Custom color/material
12Certified quality
Of course, the HANSA housing meets the relevant
guidelines and standards (e.g. Machinery Directive,
if appropriate, the ATEX Directive, the DIN EN 1886
and DIN 52210, etc.). Several surveys and certifi-
cates acknowledge compliant construction and build-
quality.
Technical data *
Thermal transmission coefficient T2
Thermal bridge coefficient TB1
Deflection D2 (M)
Tightness class at 700 Pa L1 (M)
Applicable filter classes G1-F9
* R50I-C-frame and thermally
separated panels with rock wool insulation.
Standard of test DIN EN 1866 (07/2009)
Hygiene device HKG-HY-1007-GS-CO with counterflow
plate heat exchanger and HEC control. Profile: R50 per
customer request, panels with mineral wool. Location: Ex-
hibition space, St. Petersburg, RU.
13
Version 05 / 2019 – Subject to construction modificationsComponents - DDC
Control technology
Our technical control department has decades of ex-
perience in HVAC systems control. We rely on dif-
ferent systems to optimally meet each customer's
needs and requirements.
The control strategies are derived from the installed
components and their interconnection (defined in the
control scheme), the requirements (e.g. for operating
the swimming pool, the hospital, kitchen, etc.) and
operational conditions (e.g., the geographical loca-
tion). Optimally, a detailed clarification occurs as ear-
ly as the bidding phase. If this is not possible, an ap-
propriate margin must be provided in order to adapt
to parameters and algorithms after commissioning. Control cabinet with Saia-DDC
Hand-held devices, LCD panels, web panels or the
connecting standard PCs via the Ethernet (LAN and
Internet) provide access to the technology, whose
possibilities are defined precisely by the user's func-
tions. In this regard, we implement different user le-
vels, each of which are secured by passwords.
We highly recommend remote access by connec-
ting to the Internet or, if that is not possible, to a
GSM modem. Doing this enables our team to cost-
effectively carry out remote maintenance at the main HVAC 1 : 1.8 : 07.16
plant, which allows many of the necessary tasks to
be done without being present on site. HVAC
CONTROLS & POW
If required, we can integrate our technology into your
BMS. Typically, the required interface to BACnet, OJ-Air2-Touch-Bedienfeld
The HEC-controller is accessible through
Modbus or Saia S-BUS based protocols. Of course,
a web interface
we can offer these and other industry standards.
4:28 PM, Thu
OJ
• O
20,5°
• In
• 3,
0% 75% 50/53%
• B
• Q
Touch-screen interface for the HEC-DDC
OJ-Air2-HMI-35T ist ein benutzerfreundliches Intuitive T
Bedienfeld für den Einbau in ein Lüfteraggre- Möchten S
gat oder für Wandmontage in einem Raum. Dann bloß
14 Das Feld kommt gemeinsam mit einem OJ- die Einstel
Air2Master zum Einsatz. nach-unte
nie war dieHEC
HANSA • Energy • Control
Letters of recommendation such as the one regarding the Kunsthalle in Emden attest
to the excellence of our products and our ability to implement highly specialized
customer requirements.
15
Version 05 / 2019 – Subject to construction modificationsComponents - fans
Designs
The choice of a suitable design depends first on the
operating conditions. The following must be taken
into consideration:
the air flow
the required pressure
the available space
Fans with open impellers utilizing backward curved
blades are mainly used today. They are characte-
rized by high efficiency and the fact that they gene-
rate high pressure. They can also be placed on the
suction or pressure side of the components that are
used, because they have a lower dynamic pressure in
the outlet area. Taken together, this allows a flexible
design whose air-handling units are energy-efficient
and quiet.
Motors
Today, direct drive fan wheels have largely replace
dated belt drive technology, increasing the life of the
motors and reducing the pollution in the unit through EC fan module (EBM-Papst) in standard version
abrasion. The speed control is typically done using with spider suspension (vibration-isolated mounting
a variable frequency drive converter for three-phase on the pressure bulkhead)
motors or by using a control signal for BLDC motors
(EC motors). In both cases, the speed can be cont-
rolled as required by the DDC.
BLDC motors are used to provide power up to about
11 kW (37,533 BTU/h). The benefits are manifested
in the increased efficiency and using the outer rotor
is uncomplicated.
Models
Certifications
In general, fans do not take over safety functions
unless they are explicitly designed and certified to
do so.
Typically, the maximum allowable temperature
of the delivered air is 40 °C (104 °F). Special
designs allow higher temperatures and are thus Retractable fan module (Ziehl-Abegg) in a coated version
suitable for smoke extraction.
16 ATEX-compliant devices require fan modules that Corrosion caused by aggressive atmospheres such
are mandatorily certified and explosion-proof. as those found in the swimming pool area can lead
to imbalance and at worst to the blades tearing off.
Materials
Therefore, HANSA generally uses increased corrosion
Fan modules can be designed in different materials protection in their swimming pool dehumidification
and coatings that affect its lifespan. systems (HKG-PL-P/PWT/PT/DPT), which extends
through the housing and all installed components.
Installation situation
Smaller fan modules are fully assembled on the pres-
sure bulkhead (top left), including vibration isolation.
This facilitates the necessary cleaning work and sig-
nificantly lowers cost.
Medium-size modules are designed as pull-out units
(below left and above right). The vibration-isolated
module is mounted on a rigid rail here.
Very large modules are fix-mounted on a steel profile.
Smaller pull-out fan module (Ziehl-Abegg)
The AEROTEC plant in Varel was equipped with over 80 HANSA rooftop units and indoor units
17
Version 05 / 2019 – Subject to construction modificationsComponents - energy recovery systems
Exhaust air (EA) Supply-air (SA)
EEWärmeG 2011 Outside-air (OA) Return-air (RA)
The german Renewable Energies Heat Act (EEWär-
meG 2011) required building owners to commit to
proportionate use of renewable/regenerative energy
for heating and cooling in new buildings. In § 7 para-
graph 1 (a), heat recovery in HVAC systems is defi-
ned as "an alternative measure for meeting required
quotas." The requirements of the Renewable Ener-
gies Heat Act are met if the heat recovery in HVAC
systems covering at least 50 % of the total heating
and cooling energy demand of a building.
In addition, regulation EU 1253/2014 have required
minimum efficiencies for energy recovery systems
since January 1st, 2016 and from January 1st,
2018, respectively.
Plate heat exchanger
Recuperators are typically designed as a cross-flow
or cross-counterflow heat exchanger and implemen- The cross-counterflow heat exchanger is designed
ted as a plate heat exchanger (PHE), or as a double as a double plate exchanger (marked in red) in the P-iK
plate heat exchanger (DPT, above right). As static compact air conditioning unit. Standard colors are used
systems, these recuperators are particularly uncom- to indicate the air in the unit (OA=Green, SA=Blue,
plicated. In addition, they provide for good air flow RA=Yellow, EA=Brown).
separation.
RA
SA
In a plate heat exchanger,
the return air-exhaust
air and the outside air-
supply air flows stream
crosswise in layers past
OA
each other and are sepa-
rated by plates.
EA
Depending on customer requirements, we install
plate heat exchangers with increased corrosion pro-
tection or coatings for special applications (e.g. spray
humidifier).
A very flat design featuring counter-current heat ex-
changers (below right) that we use in our HKG-K-GP
unit series is available. These units can be easily ac- Counter-current heat exchanger with a bypass valve. This
commodated in suspended ceilings and are available design allows for extremely flat construction equipment
in 800 and 1,600 m3 / h (470-940 CFM) performance (e.g. HKG-K-GP) at high recovery numbers.
classes.
Also available are PHEs as regenerators conductive
for moisture.
18Thermal wheel
The rotor (pictured left) is a regenerative heat ex-
changer with excellent heat and moisture recovery
(with hygroscopic coating or through condensation).
The ideal conditions for integrating these rotors are
in the presence of high air flow rates and non-toxi-
cally polluted air.
Rotors are installed in our successful Blue Line eco-
R series devices that cover a broad range of line
classes and come supplied ready for connection with
the controller.
Accubloc
Rotors are primarily used for high air flows. They are shown
usually as depicted above, mounted for the factory test run Compact ventilation units with highly efficient rege-
and then disassembled again for transport. nerative heat recovery can be implemented with the
Accubloc (Polybloc) series (pictured left). Two se-
parate storage masses take on moisture and energy
Supply air
from the exhaust air line and enter them in the supply
air line. A particularly fast damper actuator ensures
Return air
minimization of leaked air.
Return air
Circuit compound systems
Outside air
Where separate ventilation systems for supply and
Exhaust air Supply air exhaust air are realized, or where the air lines must
be separated, the heat reco-
very can take place via the
Outside air
integrated circuit compound
Exhaust air
system (KVS). The heat car-
OA SA rier is a brine, which absorbs
or supplies heat energy via
The Accubloc system operates with two storage masses, the air-brine register.
which alternately absorb and re-emit energy.
M The KVS is inherently ro-
bust against any pressure
differences between the air
lines and provides a perfect
separation of exhaust and
air intake. Thus, the heat re-
EA RA
covery system is mandatory
for category ETA-4 exhaust
use.
Left: HANSA‘s hydraulic
unit etaHydro (integrated
into this AHU) can be ordered with integrated DDC
and in a redundant version.
19
Version 05 / 2019 – Subject to construction modificationsComponents - mechanical cooling
Evaporative cooling
10 15 g/kg %
HANSA offers a very successful evaporative cooling °C 40
system (Blue Line ASB).
40
50
On cooling request, the return air side of the plate
heat exchanger is sprayed with water, resulting in 35 60
cooling the return air adiabatically and detracting the Outside air
Exhaust air 70
energy used for evaporation of residual water from 30
the plate heat exchanger. 80
90
Without moving parts and including a cleaning me- 25 Return air 100
chanism, the Blue Line ASB system is nearly main-
Supply air
tenance free. It uses the water very efficiently with 20
little residue, preventing microbial growth. 60
Return air after
15
The outside-air cooling is up to 10 K (a change of humidification
18 °F). Typically, this is enough to reach the recom- kJ/kg
40
mended temperature difference between inside and
outside temperature of 6 K (a change of 10.8 °F). This image shows an example of air handling
by a HANSA ASB. When there is a cooling
The absolute humidity of the supply-air is not in- request, the return air side of the plate heat
creased because no direct moisture enters from the exchanger is sprayed with water, resulting in
return air side. evaporative cooling of the return air. This air
flows through the heat exchanger, taking
energy from the outside air.
Left: The laboratory areas of the wastewater treatment plant in Dresden Kaditz
are air-conditioned using HANSA - Blue Line ASB units.
20Mechanical cooling
Mechanical refrigeration systems are an essenti-
al part of complete air conditioning units. They are
used to cool and dehumidify the air that is introdu-
ced and are thus essential for preserving a defined
air space.
HANSA offers:
in-house refrigeration design and installation
various control strategies, e.g. energy-conser-
ving speed-controlled compressors (HANSA eta-
Cool)
integration into an external refrigeration system
top-notch components and a perfect cold ins-
tallation
environmentally friendly, needs-based refrige-
rants
Attention: Starting with a refrigerant charge of 5
and 10 (hermetically sealed) tons CO2 equivalent,
the operator must maintain a log on the leakage
tightness testing and repair work. The logbook is
part of our operating instructions.
HANSA is a member of the Guild for Refrigeration
and Air Conditioning Technology Bremen-Oldenburg.
21
Version 05 / 2019 – Subject to construction modificationsComponents - mechanical cooling
Speed-controlled
Compressors
Speed-controlled compressors offer the most advan-
ced solution to continuously adapt the cooling capa-
city to varying requirements.
Significant energy-savings at the highest efficiency
can be realized by stepless controlled operation. An
expensive stop-and-go operation can be avoided in
favor of the unit's lifespan.
For many years, a number of buildings on the Harvard University campus in Cambridge, Massachusetts have used HANSA
ventilation and air-conditioning equipment.
22Heat Pumps for
Pool Dehumidification
In the field of swimming pool dehumidification, the
heat pump is an effective system for dehumidify-
ing and reheating. Our HKG-PL-P / PWT / PT / DPT de-
vices are specifically designed for this purpose, and
also provide a circulation system that retains 100%
of the used energy, in addition to its long service life
due to increased corrosion protection.
In addition, pool water condensers can be used to
heat the water. It is the same case here as with the
integrated chilled water production: our customers
benefit from a system that uses a single refrigeration
Grand Hotel Bellevue, Gstaad. Swimming pool dehumidifica-
system and control technology.
tion unit with highly-efficient heat recovery and heat pump.
In terms of basic construction, all pool units are
powder or hot-dip coated and are made of durable
components, including mounting material made of
V4A or V2A stainless steel.
Public indoor pool Schöneberg, Berlin Weatherproof pool
dehumidification unit with heat pump.
Pool Line Rooftop unit with control cabinet,
Strandvägen, Stockholm
23
Version 05 / 2019 – Subject to construction modificationsFurther references
First-class Technology for
First-class Objects
Customized ventilation and air conditioning units by
HANSA are increasingly in use worldwide. There are
good reasons for this: in addition to functionality,
efficiency and quality, we offer our customers a high
degree of customization.
We have found that there is a great demand for
high-quality items made in Germany and that they
are also competitively priced. In the interest of our
customers, we are constantly optimizing our produc-
tion processes and thus keeping investment costs
low. At the same time, we maintain our high quali-
ty standards to protect your investment in terms of
sustainable business.
Of course, HANSA is also a pioneer in modern, ener-
Three ventilation units with hygroscopic rotors have been
gy-saving systems. Back in the 70s, we patented an
mounted in the former AWD headquarters exactly in the
air curtain system, which is characterized by a high wings of the building (inset bottom left, blue elements).
efficiency of injected air flow (Coanda effect). We Overall, a ventilation capacity of 290,000 m3 / h
also came up with clever solutions for our customers (170,687 CFM) was installed.
related to pool dehumidification, which led to our be-
coming market leaders and gaining significant mar-
ket share in this area. There is always new potential
in design and construction that we capitalize on by
collaborating closely with our customers.
Developing innovative technologies is another core
focus of our business. A recent example is the de-
velopment of a speed-controlled mechanical cooling
system (etaCool).
We have been producing HVAC systems for Wellesley
College for over 15 years, e.g. for the Campus Center, the
Science Center, Animal Facility, Library West End,
Green Hall, etc.
24John Deere, Mannheim The Oldenburg State Theater
Technology Center Nordenham European Central Bank, Frankfurt
DKB ski sports hall in Oberhof is ventilated using six HANSA air treatment units.
25
Version 05 / 2019 – Subject to construction modificationsProducts
Compact air handling units - HKG-K-GP
Ready for operating ventilation units with counter-current
heat exchanger and DDC up to 1,600 m3 / h (940 CFM)
and 400 Pa (1.6 in. w.g.) external pressure for installation
in suspended ceilings.
Kompakt Line catalog
Compact air handling units and complete A HKG-P-034 ventilates the new laboratory building of the
Fraunhofer Institute in Ilmenau.
HKG-P / P-iK air conditioners
The P-series air conditioning units are ideal for use in
confined spaces because they have a very small footprint,
overhead duct connections and DDC. They provide flow
rates of up to 3,400 m3 / h (2,000 CFM) and 400 Pa (1.6
in. w.g.) and highly efficient heat recovery with a dual-
plate exchanger (cross-counter current).
Kompakt Line catalog
Pool dehumidifying units Dehumidification (50,000 m3/h [29,428 CFM]) and air condi-
tioning for secondary facilities including kitchen and sauna
Optimized devices for the extreme demands placed on
swimming pool equipment. Special corrosion protection,
high-efficiency heat recovery, integrated regulation,
control and wiring. Turnkey construction. The units are
designed to be ready for operation. Our P / PWT / PT / DPT
series cover flow rates of 1,500 to 40,000 m3/h (882-
23,543 CFM) and provide excellent corrosion protection.
PT and DPT units are available in a weatherproof version.
Pool Line catalog
Blue Line Hy
hygiene devices in healthcare
In addition to our DIN EN ISO 9001:2015 certified Quality In the Heart Center Leipzig, several Blue Line Hy units provide
Management System, numerous certificates and reports health and standards-compliant ventilation of the stations,
etc.
attest to our high-quality and efficient equipment (e.g.
TÜV: meets VDI 3803; RLT-Zentrale.de: in compliance
with DIN 1946-4, and VDI 6022) the quality of our climate
control solutions in the healthcare industry.
Blue Line Hy catalog
26Free Line heat dissipating units
Freely configurable heat dissipation units for datacenters
with free and mechanical cooling; humidifier and heater
on request.
Free Line catalog
LF-Hy high pressure and filtration
Heat dissipation from throttle halls at the DolWin 3
converter station; 4 Free Line units with each 50,000 m3/h systems for fresh produce departments
(29,428 CFM) a, cooling capacity of 320 kW (1,091,885 BTU/h)
and integrated electric air heaters A reliable system solution: turnkey equipment with
complete production control system and perfect production
of the air curtain using slot rails made of aluminum (variable
length). Our systems meet the stringent Regulation (EC)
No. 852/2004 requirements for hygiene and the DIN
10505 requirements in an exemplary manner. These
systems have been installed for years, and proven their
worth thousands of times over. Each device can supply a
counter length of up to 25 m (~82 ft).
LF-Hy catalog
HANSA LF-Hy overpressure and air curtain systems for fresh
produce counters offer compact, reasonably-priced and effici-
Slim-Line / Slim-Line-Q compact heat
ent system solutions which satisfy DIN 10505, as are used, dissipation units
for example, in the eat happy sushi bars.
Heat dissipation units for telecommunication facilities,
data centers, server rooms and control rooms, etc.
Energy-optimized and highly compact units with free and
mechanical cooling, on request in VDI 6022 version. Our
Slim Line devices have a DDC that allows the creation of
redundant cooling and integration into your BMS (Modbus,
BACnet, S-Bus).
Slim Line catalog
More than 8,000 HANSA HVAC systems with a mechanical
cooling capacity that is between 7 and 125 kW (23,884
and 426,517 BTU/h) and with volume flows of at least
1,500 m3 / h (882 CFM) have been built and installed for
Deutsche Telekom.
HANSA products
27
Version 05 / 2019 – Subject to construction modificationsHANSA Climate Systems
Office North/Butjadingen
Office North/Stade
Headquarters / Saterland
Office North/Lengede
Office West/Dülmen
Office West/Waltrop
Office East/Bautzen
Office West/Leverkusen
Office Central/Giessen
Office South/Nürnberg
Office South-West/St. Ingbert
Find your contact:
www.hansa-klima.de/en/sales/national
HANSA Klimasysteme GmbH
Stockweg 19
D-26683 Saterland / Strücklingen
+49 4498 890
+49 4498 687
info@hansa-klima.de
www.hansa-klima.com www.hansa-klima.de/en/sales/internationalYou can also read
