T H E              B U S I N E S S                                 O F . . .

ADAS CALIBRATION
Properly aligned screen-mounted cameras can contribute significantly to road safety

                    Sponsored by        Published by
                                                       FleetNews
ADAS CALIBRATION Properly aligned screen-mounted cameras can contribute significantly to road safety - National Windscreens
Sponsored by
THE BUSINESS OF: ADAS CALIBRATION

                                                                                                                                                                                                                                                                                       AEB FITMENT VARIES
                                                                                                                                                                                                                                                                                       ACFO supports AEB installation in all

                                   MORE ADAS SYSTEMS
                                                                                                                                                                                                                                                                                       vehicles, across all ranges. There are
                                                                                                                                                                                                                                                                                       wide variations between manufacturers
                                                                                                                                                                                                                                                                                       and models that have it as standard.

                                   NEED TO BE STANDARD
                                                                                                                                                                                                                                                                                          Corporate fleet big hitters like Ford
                                                                                                                                                                                                                                                                                       and Vauxhall have the lowest standard
                                                                                                                                                                                                                                                                                       fitment percentage out of all
                                                                                                                                                                                                                                                                                       manufacturers in the UK (7% and 14% of
                                   Fleet and insurance bodies campaign for additional safety technologies                                                                                                                                                                              all models respectively), according to
                                                                                                                                                                                                                                                                                       research by Thatcham.
                                   to be part of the car’s spec. They may cost more, but are worth the extra                                                                                                                                                                              All Volvo and Land Rover models have
                                                                                                                                                                                                                                                                                       AEB as standard, Toyota (53%) and
                                                                                                                                                                                                                                                                                       Mercedes-Benz (88%) are the only two
                                                                                                                                                                                                                                                                                       manufacturers in the UK top 10 by
                                                                                                                                                                                                                                                                                       registration volume to have more than
                                                                                                                                                                                                                                                                                       half of their range with AEB.
                                                                                                                                                                                                                                                                                          Pryor says: “All available evidence
                                                                                                                                                                                                                                                                                       points to its life- and injury-saving
                                                                                                                                                                                                                                                                                       potential and whether occupying an
                                                                                                                                                                                                                                                                                       executive car or a city car there should
                                                                                                                                                                                                                                                                                       be no discrimination in terms of the

    F
                     leet replacement cycles often                                                                                                                                                                                                                                     value of an individual’s life.”
                     mean the company car market                                                                                                                                                                                                                                          A spokesperson for insurance provider
                     is at the forefront when it                                                                                                                                                                                                                                       Aviva says Euro NCAP research showing
                     comes to experiencing the                                                                                                                                                                                                                                         systems like AEB can reduce rear-end
                     latest safety systems available.                                                                                                                                                                                                                                  crashes by 38% are supported by its
                       These advanced driver                                                                                                                                                                                                                                           own findings.
assistance systems (ADAS) are a stepping stone                                                                                                                                                                                                                                            The Aviva spokesperson says: “We
on the way to fully autonomous vehicles and fleets                                                                                                                                                                                                                                     want to support the uptake of this
are using the technology to cut incident rates and                                                                                                                                                                                                                                     technology, so Aviva provides discounts
protect their drivers behind the wheel.                                                                                                                                                                                                                                                to vehicles where AEB is fitted.
  The first ADAS widely offered on the market                                                                                                                                                                                                                                             “Customers will also see premiums
was electronic stability control (ESC) in the early                                                                                                                                                                                                                                    benefits as they see their claims
2000s, before it was made mandatory in 2012.                                                                                                                                                                                                                                           incidents reduce.”

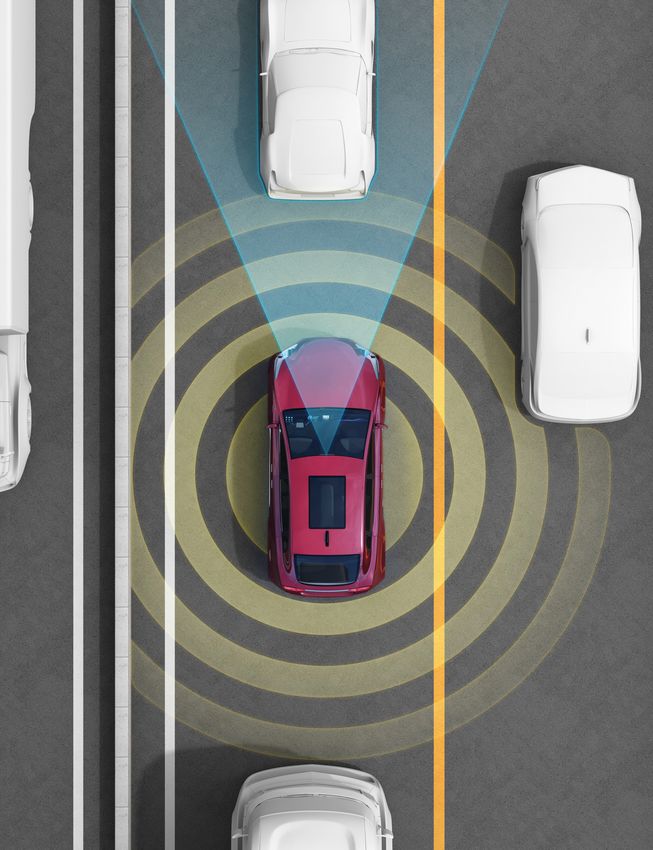

  New models on sale today feature a wide range                                                                                                                                                                                                                                           Thatcham is also pushing for AEB to
of technologies like autonomous emergency                                                                                                                                                                                                                                              be standard on every make and model.
braking (AEB), adaptive cruise control (ACC), lane      and reduces the effects of vehicle impact by auto-                                                                                                                                                                             The technology is now required in order
departure warning (LDW) and lane-keeping                matically applying the brakes.                                                                                                                                                                                                 to get a five star Euro NCAP rating and it
assist systems (LKAS).                                     Then there are overtaking sensors and ACC,                                                                                                                                                                                  has to be a sophisticated system that
  All are supported by a range of sophisticated         which automatically speeds or slows a vehicle to                                                                                                                                                                               works at speeds of up to 60-70kph
sensors, cameras, radars and lidars (systems            safely match the speed of vehicles in front. These                                                                                                                                                                             (37-43mph).
that use light to measure things like distance).        are available on 42.1% and 36.2% of new cars
  These ADAS systems are already having a               respectively.
tangible impact with a 38% reduction in rear-end           The number of vehicles available with collision                                                                                                                                                                             WHAT’S NEXT?
collisions, according to safety assessors Euro          warning systems is also up 20% on the previous            “A culture should exist within organisations that,   particularly as systems have to be recalibrated         tions at the same appointment.                          ADAS is closely linked to a vehicle’s Euro
NCAP (the European New Car Assessment                   year.                                                  if drivers require additional advice or training with   (see page 6), its view is that the benefits from          Teo says: “Our network sits at the centre of a        NCAP star rating and as new technology
Programme).                                                Matthew Avery, Thatcham director of insurance       regards to an ADAS feature, they should feel            reduced collisions outweigh the costs.                  partner programme that includes preventative            is developed, Thatcham looks for these
  The Volvo XC90, which featured blind-spot             research, says forward-facing collision detection      comfortable in making that request.”                       Aviva is working to establish the benefits of        maintenance to identify glass damage early, often       systems on the latest models to help
detection on the first generation model and AEB         is generally available with either radar-based or         Crashes involving vehicles potentially result in     other ADAS, but currently AEB is the stand-out          allowing repair to be undertaken rather than            secure that important five star rating.
as standard on the second generation vehicle,           camera-based technology.                               death or injury to occupants and other road users.      feature which reduces collisions.                       replacement and calibration.                              The next thing Matthew Avery wants
stands out for its safety record, according to             Thatcham’s view is that a combination of the two       In addition, they are costly in terms of ‘bent          The Aviva spokesperson says: “Our experience           “Our Partscheck process identifies the glass          to see is the increased sophistication
insurance research centre Thatcham. Of the              is the best way forward and that is being reflected    metal’ and can have a major impact on business          shows ADAS (and other aftermarket fit safety            type required right first time, with more than          with which the latest ADAS can sense
50,000-plus XC90s on the road the in UK not one         by manufacturers’ latest approach to safety            efficiency and administration for fleets.               solutions) are most beneficial when fleet               99.5% accuracy and the service is provided              obstacles coming from a junction. For
has been involved in a recorded fatality (at the        systems.                                                  Additionally, reducing expensive vehicle off-road    managers and drivers are engaged with the tech-         throughout Europe.”                                     example, if a car is at a T-junction, the
time of writing).                                          John Pryor, ACFO chairman, says his organisa-       time is a continual focus for fleets.                   nology and understand the uses and parameters;            Around 15-18% of all National Windscreens’            driver is looking one way and a car is
  Volvo now has 100% of its models with AEB as          tion and fleet operators have always welcomed             Pryor says: “ADAS have a key role to play in not     this can then lead to improved driver behaviour         fleet customers have some kind of ADAS tech-            coming from the opposite direction, the
standard and is pushing towards having no               the new breed of active safety systems, with many      only keeping vehicles on the road and all road          and reduced claims incidents.”                          nology fitted and that has doubled in the past 12       “turn across path” technology would
fatalities or serious injuries in one of its vehicles   fleets mandating safety features and Euro NCAP         users – including employees – safe, but in fleet           National Windscreens managing director Jan           months. It is expecting that pace of change to          stop the car from pulling out into a
by 2020.                                                ratings as part of company car choice lists.           cost reduction in numerous areas.                       Teo advises fleet managers to put an ADAS               continue in 2019.                                       potential T-bone collision.
  Two-thirds of new vehicles (66.8%) now come              However, he says, wholelife costs and a vehicle’s      “Nevertheless, vehicle repair costs are acceler-     strategy in place to best realise the full benefits       Pryor says it is important for fleets to strike the     This technology will be worked into the
with at least one form of self-activating safety        fitness for purpose continue to underpin how           ating due, in part, to vehicles increasingly being      of the technology and the impact it has on areas        right balance between specifying new technology         Euro NCAP testing and will need to be
system, as standard or as an optional extra,            vehicles are chosen.                                   fitted with sophisticated features used for a range     like repair costs and windscreens.                      to reduce the risk of an incident and the cost of       present by 2020 to secure a five star
according to the Society of Motor Manufacturers            Pryor says: “The increasing sophistication of       of ADAS technology. The cost of more sophisti-             She says: “This requires a partner with the proven   repair if that system is involved in a collision.       rating.
and Traders (SMMT) and Jato Dynamics.                   today’s range of company cars means the vehicle        cated replacement parts and more complex repair         capability to deliver best practice in all aspects of     He says fleets must always ensure that repairs          Avery says these new technologies are
  The SMMT report says a range of new tech-             handover process is critical and drivers should be     methodology is driving the increase.”                   glass repair, replacement and calibration.”             are carried out correctly in accordance with            all working towards vehicles having 360
nologies is optionally available on 53.1% of cars.      shown how the technology functions and be                 Insurer Aviva says that while there is increased        National Windscreens has a network of 108            manufacturer recommendations and corners are            sensors to be aware of their entire
  These technologies include AEB, which avoids          comfortable in their use.                              windscreen repair costs involved with ADAS,             locations able to fit glass and perform recalibra-      not cut to save money.                                  surroundings at all times.

2                                                                                                                                                                                                                                                                                                                                   3
ADAS CALIBRATION Properly aligned screen-mounted cameras can contribute significantly to road safety - National Windscreens
Sponsored by
THE BUSINESS OF: ADAS CALIBRATION

ADAS TECHNOLOGY
EXPLAINED
A guide to how some of the latest safety systems work and their impact

 LANE DEPARTURE/KEEPING                            AEB                                              TRAFFIC SIGN RECOGNITION
 Most lane departure warning (LDW) and             Automatic Emergency Braking (AEB) has            These systems use forward-facing cameras
 lane-keep assist systems (LKAS) use a             now been available for more than 10 years.       that scan the road ahead for traffic signs, in
 forward-facing camera mounted inside the          It works to consider traffic conditions ahead    effect offering drivers a second pair of eyes.
 windscreen by the rear view mirror to             and will automatically brake a vehicle if the      The camera can detect speed limits,
 identify road lane markings and whether           driver fails to respond to the conditions.       overtaking restrictions and road works
 they are being crossed.                              AEB systems can use lidar (sensors that       before drivers encounter them. Some
   When a LDW system is activated typical          use light), radar, camera or a fusion of all     systems will even suggest optimum speeds
 warnings include a flashing symbol on the         three technologies and this affects the speed    for wet weather driving.
 dashboard display or audible alert. If the        range over which the system can effectively        The system works by connecting the
 indicators are used before changing lanes,        operate, as well as the types of hazard that     forward-facing camera to the vehicle’s
 the warnings are deactivated.                     the vehicle is able to identify and avoid.       recognition software and this matches the
   LKAS builds on the LDW system and                  Low speed systems are often named ‘city’,     traffic sign the camera is seeing to a library
 steers the vehicle to keep a central position     there are also higher speed ‘inter urban’        to cross reference, match and then display
 between lane markings.                            AEB systems, as well as more sophisticated       to the driver on their dash display or
   If the car starts to unintentionally cross      systems that can detect pedestrians and          instrument panel.
 lanes, steering and/or braking is                 cyclists.                                          The information stays there until any
 automatically applied to return the car to the       The latest AEB systems also work when         change occurs, so if a driver is unsure of the
 centre of the lane and a warning is sounded.      the car is reversing. AEB can apply the          current speed limit all they have to do is
   On tighter bends, if lane markings are poor     brakes to avoid reversing into objects or        check the information that the car has noted.
 or the driver takes their hand off the steering   people and other AEB systems can detect          The display will change automatically as the
 wheel, LKAS automatically suspends itself.        vulnerable road users like pedestrians and       vehicle moves between new speed limit
   Latest iterations of the technology include     cyclists.                                        areas or if there is a new sign the camera
 Tesla’s Enhanced Autopilot. It uses LDW and          Having standard-fit AEB on your car can       has detected.
 LKAS to help vehicles keep within a lane and      reduce insurance group ratings by three to         The system will recognise traffic signs
 automatically change lanes without requiring      five groups (the higher the group rating – up    whether they are at the side of the road, or
 driver input. It can also transition from one     to 50 – the greater the likelihood of a higher   above it and it will also be able to recognise
 motorway to another, exiting onto a slip road.    insurance premium).                              temporary signs that have been put up, as
   Volvo’s Pilot Assist system can provide            Different manufacturers use a range of        well as any permanent ones.
 steering assistance and help drivers              terms and specific trade names to describe         Traffic sign recognition can also work in
 maintain the distance to the vehicle in front     their AEB systems. These include City Safety     tandem with a vehicle’s speed limiter to keep
 of them. The steering assistance is still         (Volvo), Smart City Brake Support (Mazda),       vehicles within legal limits.
 limited though, so drivers need to use the        Active City Stop (Ford) and City Emergency         The system is common on German-made
 steering wheel to execute sharper turns.          Braking (Volkswagen).                            executive cars, but others make it optional.

                                                                                                                                                     5
ADAS CALIBRATION Properly aligned screen-mounted cameras can contribute significantly to road safety - National Windscreens
Sponsored by
THE BUSINESS OF: ADAS CALIBRATION

THE IMPORTANCE                                                                                                            Recalibration is required

OF ACCURATE
                                                                                                                          when the windscreen on
                                                                                                                           an ADAS-assisted car is
                                                                                                                          replaced. But the screen

WINDSCREEN
                                                                                                                      does not have to be damaged
                                                                                                                              for realignment to be
                                                                                                                             necessary. Just going
                                                                                                                       through a big pothole could

CALIBRATION
                                                                                                                         adversely affect cameras

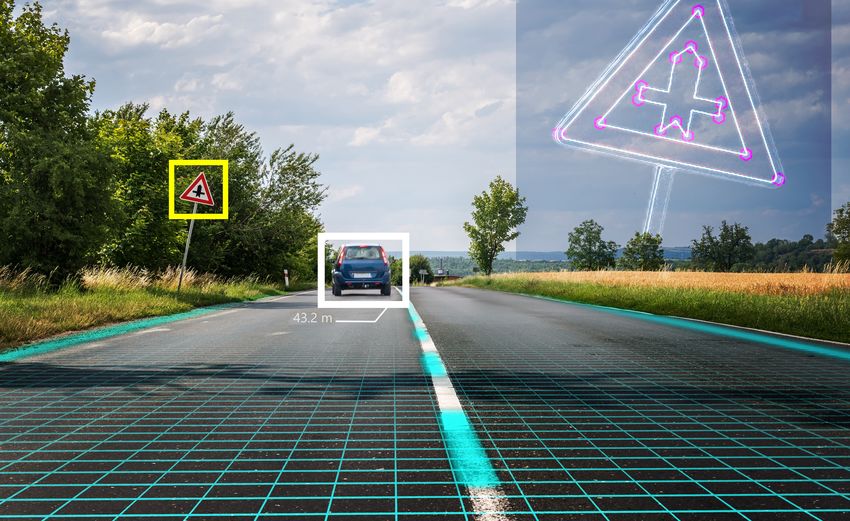

Many safety features rely on accurate information from
screen-mounted cameras which must be properly aligned

    A
                   s vehicle safety technology           The price National Windscreens charges for
                   continues to develop rapidly, a     windscreens will vary from model to model, but
                   well maintained windscreen has      there is a flat rate charged for recalibration,
                   become a vital part of keeping      regardless of manufacturer or model.
                   ADAS (advanced driver assis-          Carlton says: “If you take your car in for a
                   tance systems) functioning.         recalibration at a dealership, the cost is going to
   The latest vehicles come with sensors, cameras      be different between Audi or BMW. A flat rate
and radars and these are all set up to work in         helps fleet managers with budgeting if they know
cooperation with the windscreen.                       the fixed costs involved.
   If a vehicle has been involved in an incident,        “Being able to fit glass and recalibrate at the
whether that’s a minor bump, alloy damage from         same appointment also means we can limit any
a pothole or something more major, these               downtime and that’s really important for fleets.”
systems can be knocked out of alignment.                 Autoglass parent company Belron has now
   Smaller stone chip glass repairs can be done        carried out more than 700,000 ADAS calibrations
without recalibration as long as the chip isn’t in a   globally and it will do in excess of 70,000 calibra-
camera’s field of view.                                tions this year in the UK.
   According to the National Body Repair Associa-        Neil Atherton, Autoglass sales and marketing
tion (NBRA), close to a quarter (24%) of new           director, says: “We can calibrate around 90% of
vehicle windscreens have ADAS capability. This         makes and models on the road today.
has gone up from 4% just two years ago.                  “For those few we can’t, we will make an
   When a windscreen is replaced, ADAS has to          appointment for the customer somewhere that
be recalibrated to restore 100% functionality.         can.”
   However, there is disagreement across the             ADAS recalibrations were done on 14% of all
industry about the best way to do this. One party      windscreens in 2018 and Atherton believes this
believes manufacturer-approved glass needs to          will increase to 20% in 2019 and then to 30% by
be used and only a franchised dealership can           2030.                                                                                          research on the subject to be released next year.     director, is passionate about educating fleet          debate of approved versus aftermarket solution
restore ADAS systems the way the manufacturer                                                                                                           Billyeald says: “We’re working to update what       managers and drivers about how important               depends on the individual stance of the insurer.
intended. Not everyone agrees.                         STATIC VS DYNAMIC CALIBRATION                               If you take your                   was the code of practice to try to agree some         approved repairs are when it comes to ADAS.              Armitage says price isn’t the main sticking point
   There are also aftermarket solutions offered by
companies like National Windscreens and Auto-
                                                       There are two methods for windscreen recalibra-
                                                       tion, static and dynamic. Static accounts for
                                                                                                                    car in for a                      guidance across the industry for ADAS repair and
                                                                                                                                                      calibration.
                                                                                                                                                                                                              He wants the industry to be regulated as he
                                                                                                                                                                                                            believes non-genuine parts and non-approved
                                                                                                                                                                                                                                                                   for fleets or insurers to choose the approved option
                                                                                                                                                                                                                                                                   versus aftermarket, it’s the amount of downtime.
glass, who contend that their systems are also         around 65% of all the recalibrations National            recalibration at a                      “As you can imagine, trying to get the whole        methods of repair are a threat to safety.                He says: “Fleets and insurers want to limit the
capable of restoring the majority of ADAS systems
on the market to 100% functionality.
                                                       Windscreens carries out.
                                                         The difference between the two is that the
                                                                                                                 dealership, the                      industry to agree is easier said than done.
                                                                                                                                                        “There are a lot of agendas out there. There are
                                                                                                                                                                                                              Auto Windscreens only offers repairs to wind-
                                                                                                                                                                                                            screens and recalibrations using the vehicle
                                                                                                                                                                                                                                                                   downtime of the vehicle so they want a one-stop
                                                                                                                                                                                                                                                                   shop approach.
   The aftermarket method means there is only          dynamic calibration involves taking a car out for       cost is going to be                    aftermarket systems that can in most cases            manufacturer’s approved parts and approved               “We have lost business over the past two years
one appointment that takes around two hours,
rather than having to make separate visits to fit
                                                       a drive for a specific amount of time, usually up to
                                                       40mph to check systems. Static tests can be done        different between                      restore 100% capability, but there will be situa-
                                                                                                                                                      tions where it can’t. In those situations, they can
                                                                                                                                                                                                            method through franchised dealers.
                                                                                                                                                                                                              Aftermarket solutions are available and fleets
                                                                                                                                                                                                                                                                   as a result of only doing manufacturer-approved
                                                                                                                                                                                                                                                                   recalibrations, but we are sticking to our guns
the glass and another appointment to go to the         on the spot.                                             Audi or BMW. A                        subscribe to a manufacturer’s method, or they         are using them, but Armitage says they are infe-       because we think getting that manufacturer
dealership for recalibration.
   Thatcham, the automotive insurance research
                                                         Carlton says: “The split has been pretty similar
                                                       since ADAS systems started coming out and              flat rate helps fleet                   can be referred to the franchised network.
                                                                                                                                                        “Our stance also isn’t to ignore what the manu-
                                                                                                                                                                                                            rior as they are not to a manufacturer’s standard.
                                                                                                                                                                                                              Armitage says that of Auto Windscreens total
                                                                                                                                                                                                                                                                   stamp of approval is the right way to do things.”
                                                                                                                                                                                                                                                                     Armitage says awareness of the issue will vary
centre, is supportive of both methods.                 there’s no relation to them being static or dynamic       managers with                        facturers are saying. But we want to look at the      work, ADAS recalibration has gone from 1% of           from fleet to fleet. Those that outsource manage-
   Alistair Carlton, National Windscreens technical
manager, says: “The aftermarket solution is just
                                                       based on how recent the technology is.
                                                         “It just depends on what method each manu-             budgeting if they                     evidence and present the facts.”
                                                                                                                                                        Darren Bedford, Covea Insurance claims motor
                                                                                                                                                                                                            total work in January 2017 to 12% today.
                                                                                                                                                                                                              He estimates this will increase to 20% of all jobs
                                                                                                                                                                                                                                                                   ment of their fleet may have no idea, while those
                                                                                                                                                                                                                                                                   with transport managers who are very close to
as good and will do the same job as any dealer         facturer takes for each model. We have seen a             know the fixed                       engineer manager, says his company supports           in the next 12 months.                                 the vehicles that are operating on the ground may
tools. This will recalibrate to 100% functionality
and will do exactly the same job as a dealer
                                                       slight shift towards static recalibrations, but it’s
                                                       remained pretty similar over the past few years.”        costs involved                        both aftermarket and manufacturer-approved
                                                                                                                                                      methods of repair.
                                                                                                                                                                                                              Armitage acknowledges that aftermarket solu-
                                                                                                                                                                                                            tions can recalibrate “some ADAS elements” but
                                                                                                                                                                                                                                                                   know more detail.
                                                                                                                                                                                                                                                                     One thing Auto Windscreens will be doing to
recalibration.”                                                                                                                                         He says the business has not had any problems       he says: “The fact remains that you would be           help awareness is to launch an online portal in
   Carlton says the insurers his company works         UPDATED GUIDANCE                                                                               on repairs done with an aftermarket method.           getting a recalibration that is not manufacturer       February that will help identify what ADAS tech-
with are on-board with an aftermarket approach.        Richard Billyeald, Thatcham chief technical              ALISTAIR CARLTON,                       Bedford says: “At the moment, I don’t see the       approved.                                              nology is fitted to each vehicle.
He also says warranty for the windscreen trans-        officer, says the position around aftermarket          NATIONAL WINDSCREENS                    evidence from the manufacturer side that an             “For me, it’s irresponsible not to offer an            Fleet managers and drivers will be able to use
fers to National Windscreens’ responsibility after     methods versus manufacturer-approved comes                                                     aftermarket approach is detrimental to ADAS           approved method with OEM glass. The buck has           the portal to look up specific models and learn
it has carried out a replacement. The company          down to what is safe.                                                                          functionality.”                                       to stop somewhere.”                                    about which ADAS systems it has and how this
has 108 centres able to fit glass and recalibrate.       Thatcham is currently putting together detailed                                                Rupert Armitage, Auto Windscreens managing            Armitage says the view from insurers on the          plays in to the repair process.

6                                                                                                                                                                                                                                                                                                                    7
ADAS CALIBRATION Properly aligned screen-mounted cameras can contribute significantly to road safety - National Windscreens
A World Leader in
                                               ADAS camera calibration
                                                   ...serving you faster

Realising the full benefits of ADAS
108 purpose designed buildings dedicated to ADAS
calibration and glass replacement means
glass replacement and calibration in one visit.

For even more reasons why you should upgrade
to National Windscreens, please get in touch
nationalwindscreens.co.uk
ADAS CALIBRATION Properly aligned screen-mounted cameras can contribute significantly to road safety - National Windscreens ADAS CALIBRATION Properly aligned screen-mounted cameras can contribute significantly to road safety - National Windscreens ADAS CALIBRATION Properly aligned screen-mounted cameras can contribute significantly to road safety - National Windscreens ADAS CALIBRATION Properly aligned screen-mounted cameras can contribute significantly to road safety - National Windscreens
You can also read
