5G for Connected and Automated Mobility
across the borders
Nextworks' experiences in EU corridor trials
Dr. Gino Carrozzo
Nextworks, Italy
Giornata su 5G e la Mobilità del Domani - 11 aprile 2019
www.nextworks.it
Nextworks in pills
• Core research (strategy towards 2022)
▪ 5G Networks: architectures, technologies and ctrl
tools
▪ Internet-of-Things and M2M technologies and
architectures for Smart Building, Smart Factory,
Smart City
▪ SDN/NFV for datacenters (edge/core) and Cloud
Offices: Established
▪ RINA: network architectures beyond TCP/IP
Pisa + Rome 2002
• Virtuous cycle
▪ know-how generation → knowledge services &
products
• Collaborative R&D with top-international Team R&D expend.
consortiums
~50 ~22%
▪ 20+1 projects in H2020 (9+1 in 5G PPP phase 1/2/3) (95% MSc) (6M€ turnover)
Nextworks - 5G for Connected and Automated Mobility across the borders, Giornata 5G e Mobilità, 11 Apr. 2019, Pisa (IT) 2
Multi-year research program on 5G Control & Orchestration
• Design & develop tools for Network Slice control
• Design end-to-end 5G facilities for trials
• Measure 5G KPIs for relevant Vertical industries
▪ Automotive, Energy & Utilities
Manufacturing, Media
• Align and work with Standards phase 3 & MiSE trial:
E2E 5G infra & trials with
Verticals
▪ Leader STF NFV VIM APIs,
phase 2:
NFV API Conf. Test & Research results
NFV OpenAPI consolidation
▪ 2nd/3rd/4th NFV Plugtests
▪ STF MEC Testing Fmk &
MEC API Conf. Test phase1:
Research foundations
• Member of the on 5G
Board of 5G IA
Nextworks - 5G for Connected and Automated Mobility across the borders, Giornata 5G e Mobilità, 11 Apr. 2019, Pisa (IT) 3
Where we are: 5G development roadmap
We are here
Source: 5G PPP
5G: L'industria e le città, ITALIA 5G - IOTHINGS2018, Milan (IT), 10 Apr. 2018 4
Connected and Automated Mobility: connected corridors with 5G
• From 5G Action Plan [1]
▪ Action 1: EU timetable […] ensuring that every Member
State will identify at least one major city to be
"5Genabled" by the end of 2018 and that all urban areas
and major terrestrial transport paths have uninterrupted
5G coverage by 2025

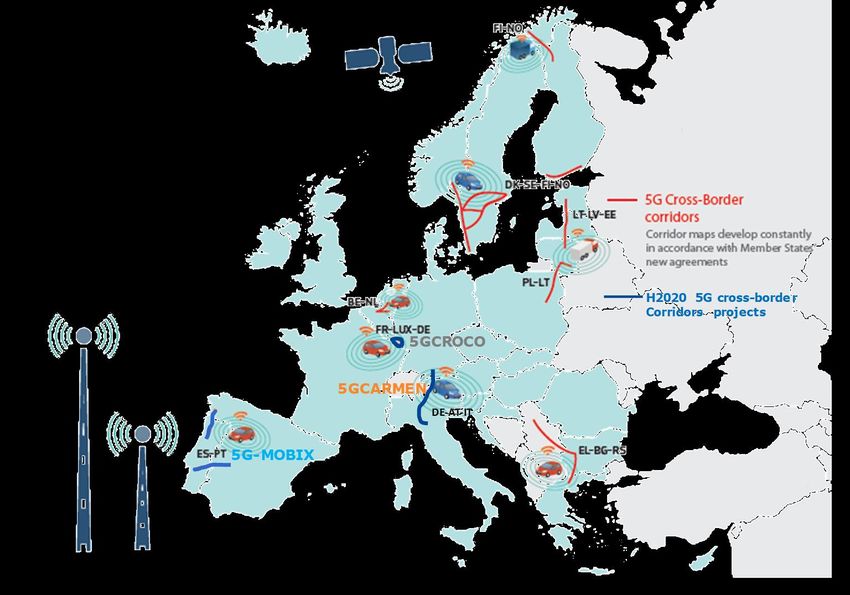

• Digital cross-border EU corridors to implement the
biggest experiment area in 5G technology for CAM
- Metz-Merzig-Luxembourg (FR-DE-LU)
- Rotterdam-Antwerpen-Eindhoven (NL-BE-NL)
- Porto-Vigo and Evora-Merida (PT-ES)
- Tromso-Kolari - E8 "Aurora Borealis": (NO-FI)
- Helsinki-Turku-Stockholm-Gothenburg-Oslo-Copenhagen
Nordic Way2 (FI-SE-NO-DK)
- Munich-Bologna - Brenner Corridor (DE-AT-IT)
- Thessaloniki-Sofia-Belgrade (EL-BG-RS)
- Tallinn-Riga-Kaunas - Via Baltica (E67)– Lithuanian/Polish
border (EE-LV-LT)
- Kaunas-Warsaw - Via Baltica (LT-PL)
[1] https://ec.europa.eu/transparency/regdoc/rep/1/2016/EN/1-2016-588-EN-F1-1.PDF
Nextworks - 5G for Connected and Automated Mobility across the borders, Giornata 5G e Mobilità, 11 Apr. 2019, Pisa (IT) 5
5GCroco: Fifth Generation Cross-Border Control

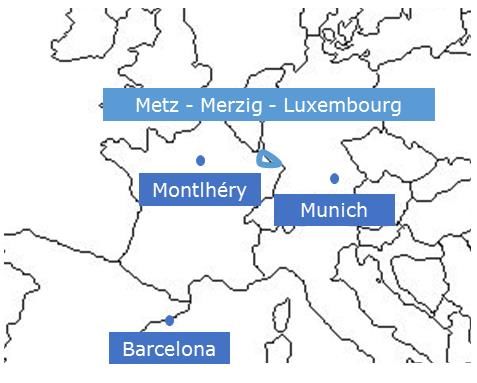

• Large-scale 5G validation along France, Germany and Luxembourg
• Small-scale pilots for pre-trial & KPI identification
▪ France (Montlhéry test track)
▪ Germany (Munich City Center and A9 Motorway)
▪ Spain (Barcelona City Center)
• 5G technology features under test
▪ Cross-border/MNO/vendor/generation Operation
▪ Distributed Computing enabled by Mobile Edge Computing (MEC)
▪ New Radio
▪ Network Slicing
▪ Predictive QoS
▪ Improved Positioning • 3 Telco vendors
• 3 MNOs
• 3 CCAM key use cases to trial •
•
3 Road Traffic Auth.
4 Automotive OEMs
▪ Tele Operated Driving • 1 Automotive Tier-1
▪ High Definition Map Generation and Distribution supplier
• SMEs and Academia
▪ Anticipated Cooperative Collision Avoidance (ACCA) • Explicit support from
governments of FR,
DE, LUX
Nextworks - 5G for Connected and Automated Mobility across the borders, Giornata 5G e Mobilità, 11 Apr. 2019, Pisa (IT) 6
Our core focus in 5GCroco

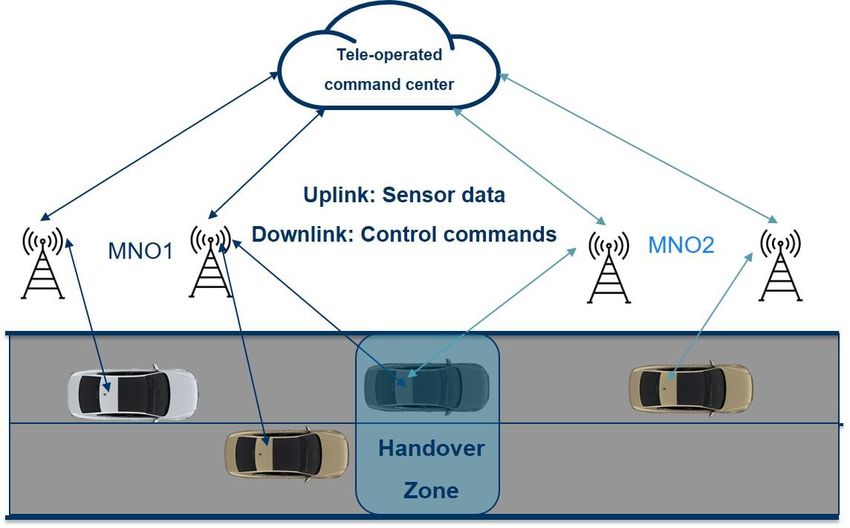

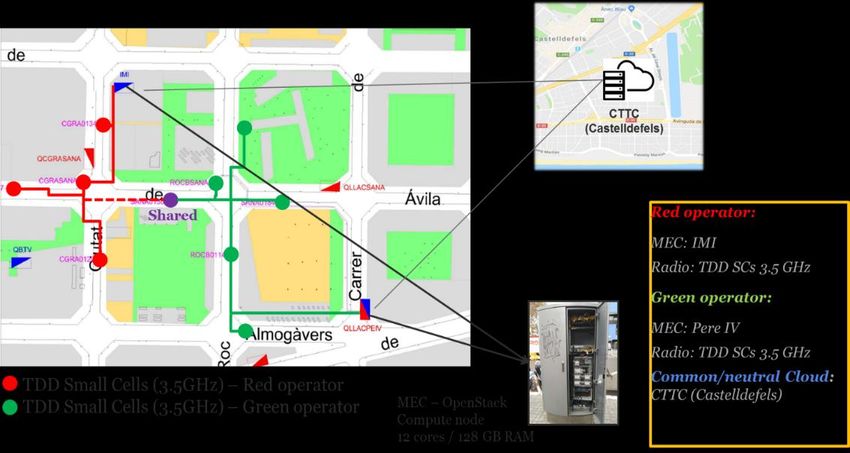

• Tele-operated Driving (TID) trial • Cross-border Cloud and MEC Service
orchestration in Small scale trial @BCN
Nextworks - 5G for Connected and Automated Mobility across the borders, Giornata 5G e Mobilità, 11 Apr. 2019, Pisa (IT) 7
Our solutions – work in progress
Vertical-driven Network Slicing
• Vertical Service Blueprints &
Descriptors for Automotive use
cases
• Service decomposition to derive
E2E, multi-domain network slices
• Support multiple functions (incl.
MEC apps) and nested network
services
Multi-domain 5G service coordination
• On-boarding, advertisement and
discovery of elementary service
components, e.g. virtual (MEC) apps or
nested services
• Lifecycle management of the E2E service
components across multiple orchestrators
(incl. MEC apps and MEC services)
Nextworks - 5G for Connected and Automated Mobility across the borders, Giornata 5G e Mobilità, 11 Apr. 2019, Pisa (IT) 8
Other works in 5G for Automotive vertical

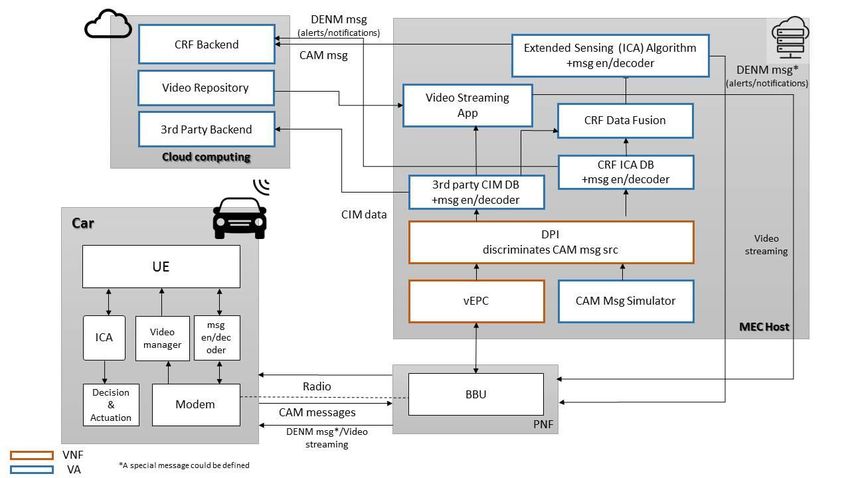

• Intersection Collision Avoidance
(ICA) service across Cloud and Workgroup:
MEC domains
▪ In the MEC
- Vehicle collision detection algorithm
- Video streaming service
- Data fusion between data acquired from
the vehicles and internal DB
- vEPC
- Etc.
▪ In the Cloud
- 3rd party backend to provide a list of
intersections within a geographical area,
and their associate relevance level
- backend for providing more general
reporting and statistics
- video repository
• Trial with 2 vehicles in CRF’s
Orbassano circuit, Turin (IT)
Nextworks - 5G for Connected and Automated Mobility across the borders, Giornata 5G e Mobilità, 11 Apr. 2019, Pisa (IT) 9
New roles and relationships in 5G V2X business
Users are licensed by authorities
• Users
▪ Drivers, vehicle owners, passengers or pedestrian, all expected
to take an active role of “passenger enjoying different mobility
services”
• Policy makers Buy Automotive Regula- Policy
▪ Road and transport authorities, telecom regulators Users tion
Industry makers
• Automotive industry
▪ Car manufacturers, component manufacturers, Tier 1 suppliers,
Buy services Buy & build new
CAM service providers and HD map providers, logistic sector
beyond advanced services:
• Road Infrastructure Operators connectivity
ADAS, autonomous
driving, TID, ICA
▪ Nat. or Reg. entities in charge of deployment, operation and
maintenance of physical road infrastructure
Standard
• Standard Development Organizations 5G industry Development
Organizations
▪ coordinate development of technical standards by ISO (e.g. For
ADAS and autonomous driving), 3GPP, ETSI, IETF/IRTF, IEEE,
NGMN, IIC, 5GAA Deploy or operate (parts of)
the 5G V2X network
• 5G industry
▪ Mobile Network Operators (MNOs), Telecom vendors, Cloud Road
providers and device providers, software developers, etc. Infrastructure
Source: 5G PPP Automotive Working Group, Business Feasibility Study for 5G V2X Deployment Operators
Nextworks - 5G for Connected and Automated Mobility across the borders, Giornata 5G e Mobilità, 11 Apr. 2019, Pisa (IT) 10Cloud
Big Data
NFV
SDN 5G Internet of
Things
Leader STF Member of the Board 9+1 H2020 5GPPP 3 H2020 projects
Thank You
OpenStack/VIM APIs of 5G Infrastructure projects on IoT, FoF
&NFV testing Fmk &
NFV OpenAPI
Association (phase 1/2/3) Gino Carrozzo
Tech team 2nd/3rd/4th Deputy Head of R&D
NFV Plugtests, STF
MEC testing Fmk, MEC
Vice-chair of the
g.carrozzo@nextworks.it
API Conf. Test
Steering Board Member of 8 H2020 projects
Participant in AIOTI on SDN/NFV
NFV, MEC, ZSM,
NGP ISGs,OSM OSG
via Livornese, 1027
56122 S.Piero a Grado, Pisa, ITALY
Nextworks - 5G for Connected and Automated Mobility across the borders, Giornata 5G e Mobilità, 11 Apr. 2019, Pisa (IT) www.nextworks.it11You can also read
