Wondlan Ares
   Video Camera stabilizer

Wondlerland International (HK) Co., Limited

www.wondlan.net                       Wonderland International (HK) co., Limited

         Ares series professional video camera
                       stabilizer

                         Page - 1 -

www.wondlan.net                                        Wonderland International (HK) co., Limited

Ares series is a professional video camera stabilizer which launched by Wondlan
international Ltd. It is specially designed by America film and video equipment designers
to meet needs of professional film and video, wedding and advertising industries and
retains the professional high-end quality of Wondlan.

Ares series stabilizer is light weight, rotated fold, easy setup, easy adjustment and easy
control.

Ares series stabilizer incorporates lightweight aviation aluminum with only 1.2kg in
weight and is one of the lightest professional stabilizers in the world, allowing
professional film-video makers to steadily shoot for a long time, which greatly reduces
burden of these professional persons.

Technical specification
Weight of machine body: 1.2kg
Dimension of machine body: folded: 35cm×16cm×10cm(height×width×thickness)
                            unfolded: 38cm×30cm×10cm(height×width×thickness)
Maximum bearing capacity: 3.3kg
Minimum bearing capacity: 0.6kg

Features Overview
Marvelous stabilization: Professional “universal dynamic self-balance system” and
“handheld damping system” allow Ares series stabilizer to achieve smooth shots with
professional standard in either quick running, normal shooting or on bumpy terrain.

Easy adjustment: Balance adjustment is an ultimate process before stabilizer working.
The adjustment directly affects shooting and control of photographers, meanwhile the
adjustment whether convenient also affects the convenience of use. At present as absence
of fine adjustment system or poor accuracy of fine adjustment, experienced users even
take several minutes to adjust balance and support models are limited. Wondlan Ares
stabilizer can meet needs of film and video, wedding and advertising markets, etc...
Wondlan Ares series camcorder stabilizer with unique “Fine adjustment system of
bidirectional platform”-----its quick adjustment way will bring you bran-new use effect.

Professional Platform: Platform system of Ares is designed for professional film and
video cameras (including shoulder-carrying cameras) with wide range. Ares platform
system can precisely adjust front-back and side-side balance of cameras and finely adjust
gravity of camera with knobs, greatly improving fine adjustment function of stabilizer and
allowing Ares stabilizer to support a wider range of cameras. The unique and simple
adjustment way allows you to adjust balance in 2-3 minutes with high precision. Fine
adjustment system of bidirectional platform has precise scale, as long as you record the
adjustment scale of the first time, stabilizer will automatically balance next time with

                                         Page - 2 -

www.wondlan.net                                        Wonderland International (HK) co., Limited

adjustment time just “zero” if you repeat the scale of the first time. The unique design
allows Ares series camcorder stabilizer to be the first “camcorder stabilizer that don’t
need adjust balance” in the world.

Perfect control performance: Wondlan Ares series is designed by America top grade
film and video equipment designers. Dual-link U-shaped crank arm and hollow-out
design is research result of precise calculating, repeat testing and experiment. Improved
professional universal dynamic self-balance system with damping handle that great
absorbs shake allows control performance of Ares series camcorder stabilizer to be
first-rate, no matter whether professional photographers or enthusiast can shoot
professional images with handy.

Lightweight: Ares series is light in weight and steady in performance with skillful design.
The full aluminum alloy body is only 1.2 kg; it is one of the lightest stabilizers in the
world. Equipped with professional cameras, you can also smoothly shoot for a long time,
which not only reduces burden of photographers but also improves shooting effect.

Exquisite workmanship, excellent quality: Produced by international advanced CNC
production line and incorporated surface treatment process of international advanced
precision aviation-specific lens.

Competitive price: Ares Series allows film and video professionals and camcorder
enthusiasts who are refused by steadicam to realize their dream of shooting movies
themselves, allowing each photographer to won a shooting tool that can compare to
Hollywood movie shooting masters’.

Descriptions of main component parts
Fine adjustment system of bidirectional platform
①camera platform mounting plate (antiskid damping pad, camcorder exclusive screw,
telescopic locating pin )
② camera platform (platform base, platform bracket, front-back fine adjusting knob,
front-back locking wrench, left-right fine adjusting knob, left-right locking wrench)
The unique design allows Pegasus series camcorder stabilizers to be the stabilizers with
the quickest adjustment in balance and the most convenient in use of the world.

Universal dynamic self-balance system
Gimbal technology is widely used in aerospace, aviation, cars, trains, ships, large
machinery industries, etc.. Skilful design of Wondlan designers allows this highly
sophisticated industrial technology to be used in professional film and video equipment
industry.

Ares balance bracket:
incorporate lightweight aviation-specific aluminum; dual-link U-shaped crank arm and

                                         Page - 3 -

www.wondlan.net                                       Wonderland International (HK) co., Limited

hollow-out design greatly reduces swing caused by windage. With precise calculating,
testing and experimenting, Wondlan designers prove that U-shaped crank arm design
achieves precision dynamic balance easily with simple adjustment, greatly simplifying
set-up and adjustment.

Handheld damping system
The system incorporates war grade high-strength alloy spring. Wondlan’s unique patented
hand-held shock absorption and balance design greatly absorbs vibration generated during
shooting. Combined with fine adjusting system of bidirectional platform, your shooting
will be the best stability.

Counterweight
High-grade chrome-plated weights
Wondlan counterweights: wide scope of application; complete specification, easy fine
adjustment, quick set-up and disassembly, etc..

Guide spring system:
guide spring allows operators to control the camcorder more easily, especially in running
or fast moving without the camera swinging around sharply. Please note in using guide
spring: The index finger gently hooks on the guide ring to avoid the camera head
swinging around sharply affected by airstream caused by the high velocity.

Folding system
Upper balance pole incorporates dual-link design, enhancing the stability and folding
lower balance pole within. It is fixed with locking wrench at the connection between
platform and upper balance pole. Lower balance pole can be folded or unfolded and
locked at the connection between upper and lower balance poles with knob.

Product pictures
Two kinds of color——

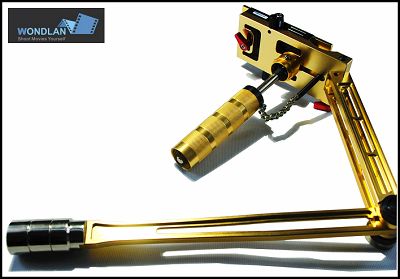

Gold:

                                        Page - 4 -

www.wondlan.net                            Wonderland International (HK) co., Limited

Black:

Product packages
Two kinds of package——

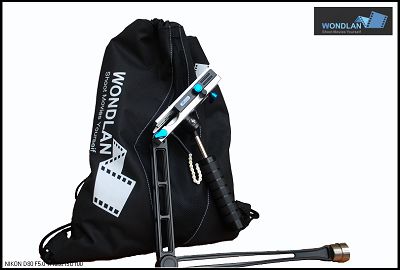

Fashion bag:

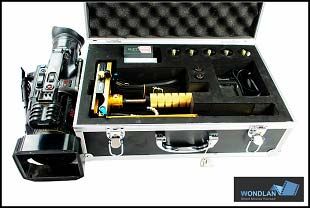

Professional aluminum case:
