Executive Summary
   Wolfram Camp – Long history of tungsten mining
   Deutsche Rohstoff AG (DRAG) is a German Mining
    Group (metals, oils & gas)
   DRAG acquired Wolfram Camp in 2011
   Processing plant was refurbished and open pit
    commenced within 6 months
   First test wolfram concentrate was produced in
    December 2011, first delivery made in March 2012
   Production ramp up to 350,000tpa completed January
    2013
   Currently producing 2 tonnes of WO3 concentrate per
    day
WOLFRAM CAMP MINING Operations Status and Geology
What is tungsten?
   A metal with very particular properties
     Highest   melting point of all metals (3422°C)
     Same specific gravity as gold (19.3g/cm³)
     Tungsten carbide is almost as hard as diamond

   Properties determine applications
     Filaments  in light bulbs
     Vibrator in mobile phones, armour-breaking
      weapons
     Alloy for speciality steel

     By far the most important; hard metal tools
WOLFRAM CAMP MINING Operations Status and Geology
WOLFRAM CAMP MINING Operations Status and Geology
WOLFRAM CAMP MINING Operations Status and Geology
WOLFRAM CAMP MINING Operations Status and Geology
Who uses tungsten                        Data from Dr. Fritsch Sondermaschinen
GmbH & USGS

                              2%
                         6%

                    6%
                                         26%

                                                             Western Europe
                                                             USA
                                                             Japan
                                                             China
                                                             Russia
                                                             India
              34%
                                                             Other
                                           16%

                                   10%
WOLFRAM CAMP MINING Operations Status and Geology
WOLFRAM CAMP MINING Operations Status and Geology
Site History
   1894
       First mining recorded & first WO3 mimed in the British Empire outside the
        British Isles
       Prior WW1 Nth QLD is worlds largest tungsten supplier
   1967-1971
       Metals Exploration – 560t WO3
       Mined from between the Leisner 2 and 4 levels
       10,161m of UG drilling!
   1971-1991
       Mount Arthur Molybdenum, no official records
       Development of new Forget Me Not and extension of Lane Decline
   1992-2004
       Great Northern Mining Corporation – Did very little
       1994-1995 Allegiance Mining NL drilled 37 RC holes
   2004
       Queensland Ores (later Planet Metals)
           Exploration & Constructed 150,000tpa processing plant
   2011
       Wolfram Camp Mining Pty Ltd
       April 2011
           DRAG acquires 85% of Wolfram Camp
       November 2011
           DRAG acquires remanning 15% of Wolfram Camp and Bamford Hill
WOLFRAM CAMP MINING Operations Status and Geology
Old Workings
Wolfram Camp and mineral
prospects
Bringing WCM back into
Production
   May 2011: Refurbishment
    commenced immediately after
    acquisition
       Several adjustments to plant layout
        and equipment purchase
       Set up of new tailings dam
   Oct 2011: Off-take agreement with
    Global Tungsten Powders (GTP),
    GTP also support project financing
   Dec 2011: First test production
   March 2012: First shipment of
    concentrate @ 65% WO3 and
    higher
   January 2013: Processing upgrade
    completed
Wolfram Camp Mining
   Martel 2011 indicated and inferred 1.89Mt @ 0.37%W & 0.07%Mo
   The current open pit has a four year mine life
   Ore is feed to the plant either directly to the mill crusher or after pre-
    concentration
   Molybdenum concentrate is produced by flotation
   Wolframite(tungsten) is produced by gravity processing including spirals,
    jigs and tabling
   Concentrate cleaning is required and includes magnetic and electrostatic
    separation
   Concentrate is bagged and transported by road to Brisbane before being
    shipped overseas to Global Tungsten Powders (GDP) in Pennsylvania,
    USA
Wolfram Camp Mine Site

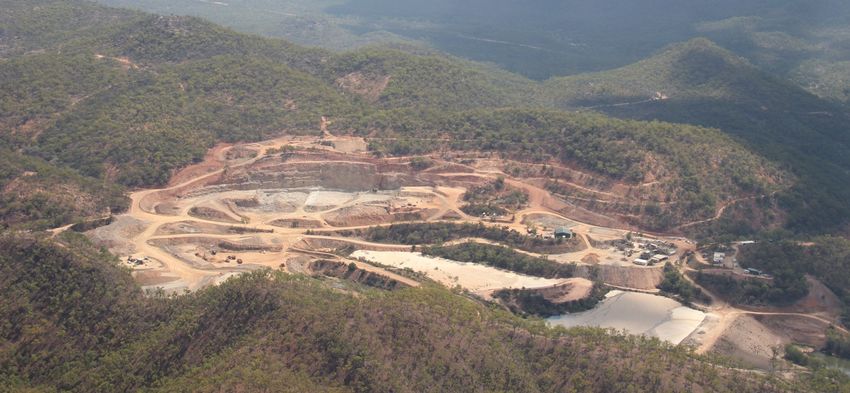

Arial Photo taken January 2013 showing Pit stage 1 and supporting
infrastructure
Wolfram Camp Mine Site
Arial Photo taken January 2013 showing Pit stage 1 and supporting
infrastructure
Wolfram Camp Mine Site
Arial Photo taken January 2013 showing Pit stage 1 and supporting
infrastructure
Wolfram Camp Mine Site
Arial Photo taken January 2013 showing Pit stage 1 and supporting
infrastructure
Wolfram Camp Mine Site
Arial Photo taken January 2013 showing Pit stage 1 and supporting
infrastructure
Wolfram Camp Mine Site
Arial Photo taken January 2013 showing Pit stage 1 and supporting
infrastructure
Mine to Mill Flow Diagram
Mine from Pit
                High Grade to
Pre-concentrating
   Screening
       100mm 57% of tonnes and 7% of metal
   Ore Sorting
       Accepts 5-10% of tonnes and 80-85% of
        metal
       Rejects 90-95% of tonnes and 15-20% of
        metal
   Crushing
       < 15mm 66% of tonnes and 79% of metal
       15-50mm 34% of tonnes and 21% of
        metal

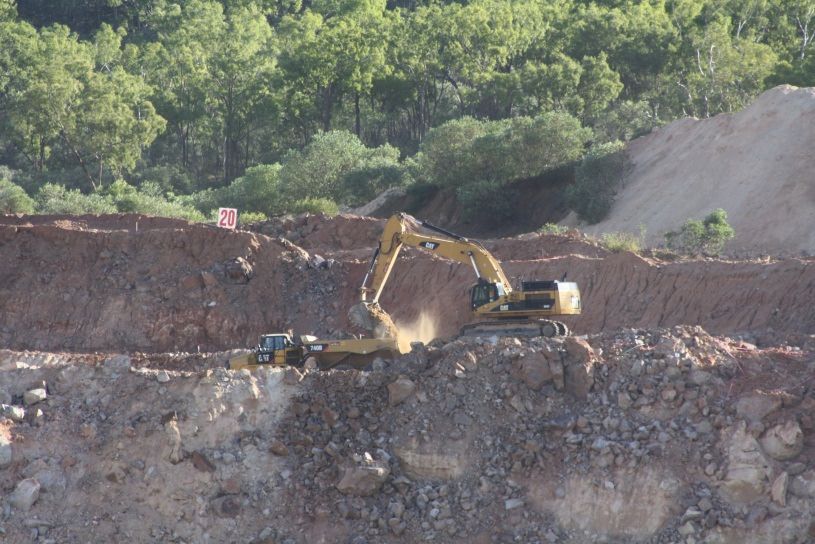

Operation
   Mine production constantly increasing
       Currently ~4,000 t/day
       ~50 people working onsite
       Majority are tablelands locals and all are QLD residents
   Screening ~2,500t/day
   Mill processing constantly increasing
       Currently ~35t/hr with the aim to achieve 45t/hr
   Forecast of 4-6 tonnes of concentrate production per day
Geology
Quartz rich wolframite-molybdenum-
bismuth pipes occur within the greisen
altered margin of a early Permian granite in
contact with Hodgkinson sediments
Regional Geology
   Situated in the Hodgkinson Basin which forms
    part of the Palaeozoic Tasman Geosyncline and
    comprises Middle to Upper Devonian flysch
    sequences intruded by a series of late
    Carboniferous to early Permian granitic rocks
    (Ootann Supersuite) and overlain by Permian
    Featherbed Volcanics (de Keyser and Wolff,
    1964)
   The Ootann Supersuite has a distinct W, Mo
    and Bi metallogenic association and the late
    stage siliceous (greisen) alteration at Wolfram
    Camp reflects this
Mine Geology
   Hodgkinson formation sediments
    to the north east are fine grained
    sandstones and siltstones which
    have undergone penetrative
    deformation and are low-grade
    regional metamorphic rocks.
    They have been folded and
    uplifted and contain very little to
    no mineralisation
   The James creek granite
    (formally the Elizabeth Cr.
    Granite) to the south west is a
    pale-to-medium grey, pinkish
    grey or pink, fine to coarse
    grained biotite granite and
    leucogranite which has been
    dated to 291 +/-6Ma
Mineralisation and Alteration
    Pipe-like deposit hosted in the greisen altered margin and roof zone of
     the James Cr. Granite
    Altered Granite/Greisen zone up to 50m wide and 3km long with
     variable dip
    Granite in Contact with Hodgkinson formation sediments

              Plimer, 1974
Quartz Pipes
   Range from 6m to a few centimetres
   Discontinuous, at times associated with jointing and
    follow the contact trend
   Dominated by quartz, clear-white-smoky with minor
    calcite
   Wolframite, molybdenite and bismuth often found
    but not always together and not all pipes are
    mineralised
   Also scheelite, pyrite, arsenopyrite, pyyrotite
   Minor siderite, chalcopyrite, sphalerite, galena and
    cassiterite
Quartz Greisen
   Forms a rim which can be several meters wide around quartz pipes
   Crystals are pyramidal
   Minor muscovite and common accessory pyrite
   Greyish colour with abundant vuggs
   Variable mineralisation
Mica Greisen
   Grades to quartz greisen
   Increasing amounts of Muscovite and decreasing
    Quartz
   Minor mineralisation and sometime siderite
    replacing Micas
Grade Control
   Blast Hole Sampling
   Blast Hole Collar logging
   Floor mapping
   Blast adjustment
   Blast monitoring
   Grade control block
    modelling
   Dig block mark out
   Visual spotting of high
    grade
   Oversize sorting
   Stockpile sampling
Resource Modelling Challenges
   “Clearly, unless the drilled area
    contains only one well-defined
    vein, one would need extremely
    good arguments to combine
    high-grade intersection in a
    “narrow vein- high grade
    scenario”
       From Steffen Schmidt, P.Geo.,
        Wolfram Bergbau & Hutten AG,
        March 2010
