SMDG Mission

 SMDG (Ship Message Design Group) is a non-profit organization, run by
 and on behalf of companies and organizations working in the maritime
  industry: container terminals, ocean carriers, software vendors and
     related organizations (UN/ECFEACT, DCSA, ITIGG, PROTECT,…).

                SMDG develops, maintains and promotes
the use of EDI messages and their best practices for the maritime industry.

          The SMDG is recognized by the UN/EDIFACT Board as
                      official Global User Group.
Welcome to SMDG Michael Schröder Hapag-Lloyd AG, Hamburg - UNECE
SMDG stakeholders

                                        Terminal Operator

Vessel Operator

                  Container Operators

+ Software Providers +
Welcome to SMDG Michael Schröder Hapag-Lloyd AG, Hamburg - UNECE
Since 1987 SMDG develops and promotes UN/EDIFACT EDI-messages for the Maritime
Industry and is an official Pan European User Group, recognised by the UN/CEFACT body

Message structures essential to the use of electronic commerce in the transport sector have
been agreed and approved by the relevant United Nations and local authorities, have been
implemented by various communities around the world over the past 20+ years.

       SMDG documentation can be downloaded by any interested party
          free-of-charge from the SMDG website: www.smdg.org
Welcome to SMDG Michael Schröder Hapag-Lloyd AG, Hamburg - UNECE
74th SMDG Meeting in Singapore 2019
  The SMDG plenary meetings are held twice yearly in April and October.
   Interim meetings are held by the working groups via conference calls.
Welcome to SMDG Michael Schröder Hapag-Lloyd AG, Hamburg - UNECE
SMDG bodies
                       UN/CEFACT maintains and publishes the                   The UN/CEFACT Forum decides about change requests from authorized
       UN/CEFACT       official UN/Edifact directory. CEFACT                   bodies, such as the SMDG, across all industries. They publish directory
                       Forum f2f meetings are held twice per                                          updates twice per year.
                       year.                                                                 They maintain the UN/LOCODE directory.

                                                                             Chairman and Secretary are preparing and organizing the Plenary meetings:
           SMDG        •   Chairman                                                            Location, agenda, minutes, website.
           Leader      •   Secretary                                                      They provide general guidelines for the SMDG.
                                                                               Provide SMDG representation are legal bodies and manage the budget.

                                                                 The Plenary nominates Chairmen and members for the workgroups. The chairmen will
                       Plenary f2f meetings
          SMDG         are held twice per year,
                                                                       present results and proposals from their workgroup and request approval.
                                                                            Then they will submit the change request (DMR) to UN/CEFACT.
          Plenary      hosted by different                                     Also any topics of interest to members can be presented.
                       member companies                                    Guests are welcome, but no commercial interest shall be pursued.

                                                                                                  Terminal
                       Workgroups meet f2f                      SMDG           BAPLIE /                               Webservice
                                                                                                Performance
                                                               Code Lists      MOVINS                               Standardization
         SMDG          during plenary sessions                                                   Reporting                                  Intercompany
                       and interim via                                                                                                     Communication
       Workgroups      e-meeting                                Vessel
                                                                                                    VGM
                                                                                                                    Stowage Plan             and process
                                                                               Container
                                                               Schedule                                               Validation
                                                                               Messages            VERMAS
                                                                IFTSAI                                             SHPDAT, TANSTA

September 2021
Welcome to SMDG Michael Schröder Hapag-Lloyd AG, Hamburg - UNECE
SMDG is responsible for the development of the following UN/EDIFACT messages
SMDG publishes the Message Implementation Guides

BAPLIE                 Bayplan Message - position of containers on a ship
MOVINS                 Move Instruction Message (for Stowage)
TANSTA                 Tank Status Message
TPFREP                 Terminal Performance Report
VESDEP                 Vessel Departure Message
COPRAR                 Container Discharge and Loading List
COARRI                 Container Discharge and Loading Confirmation
CODECO                 Container Delivery Confirmation (Gate Moves)
COPARN                 Container Pre-Announcement and Release Notice
COPINO                 Container Pick-Up Notification
COREOR                 Container Release Order
INVOIC                 Freight Cost and other Charges (e.g. invoice from a terminal)
IFTSAI                 Vessel Schedule
IFTSTA                 Status Message
IFTMBF                 Booking Firm (only for DG Bookings between shipping lines)

SHPDAT                 Ship Technical Data Message (under construction)

VERMAS                 Verified Gross Mass (new in 2015)
Welcome to SMDG Michael Schröder Hapag-Lloyd AG, Hamburg - UNECE
Typical use of messages from booking to loading

                                                                                                          Not in SMDG scope
SHIPPER = CUSTOMER

                        Transport                Booking                                  Documentation                                     Container                                                                                     Container
                          Order                Confirmation                                   B/L                                            Tracing                                                                                       Tracing

                                                  IFTMBC                                                                                     IFTSTA                                                                                        IFTSTA
                                                                                                  provide Doc
= CONTR. OPERATOR

                          IFTMBF                                                         IFTMIN
   = PARTNER LINE

      CARRIER

                                                                                             Shipping                                       Container                  Load Order                                                         Container
                                     Booking
                                                                     Container stuffed

                                                                                            Instruction                                      Tracking                   Summary                                                            Tracking

                                                                                                                                                                                                                         Vessel Arrival
                                                     CODECO                                                                                 CODECO                                                                                        COARRI
OPERATOR

                                                                                                                                                        Container                                                                                     Container
 VESSEL

                                                                                                                                                         Tracking                           Load Order       Ship                                      Tracking
                                                           Booking
                                                                                                                Container arrives at Gate

                                                                                                                                                                                             Summary       Planning
                                                                                                                                                        CODECO                                                                                        COARRI

                           COPARN                          COPARN                                                                                                            COPRAR               COPRAR    MOVINS
TERMINAL

                                                            Pre-                                                                            Gate-In      Gate-In                                            Stowage                         Load        Load
                          Pre-Advice                                                                                                                                                  Load List
                                                           Advice                                                                            Full         Full                                                Plan                           Full        Full

                                    COPARN                                                                                                                                                                  BAPLIE
                                                                                                                                                                    VESSEL
DEPOT

                                                       Gate-
                                MT Release                                                                                                                                                                 Provisional
                                                        Out
                                  Order                                                                                                                                                                     Stowage
                                                       Empty
                                                                                                                                                                                                              Plan

                                                                                                                    In SMDG scope
The way to standardisation

                          Start:
           Business Requirement for enhancement
                of an Edifact Message Format                           Submit official DMRs to
                                                                        UN/CEFACT Secretary

        Prepare draft DMRs for the message
           structure and codes/qualifiers

               Propose to SMDG Plenary                       Assessed by Methodology & Technology PDA
                                                               • EDIFACT: Syntax Focal Point
                                                               • ebXML: Library Maintenance Focal Point
    Rejected     Assessed by SMDG
                                                       Added into the UNTDED           Not added into the UNTDED
                               Approved
                                                                 Approved                          Rejected
           Propose to T&L Domain Group

                                            Approved                           End
    Rejected      Assessed by T&L
                   Domain Group
Recent standardisation projects

•   TPFREP (Terminal Performance Report)
    Long wish list had piled up since last upgrade in 2011. It is fully covered now by the new version 4.1 which
    was published in May 2021.

•   IFTSAI Vessel Schedule
    Enhancements for reporting from Barge operator to terminal, for reporting connecting vessels, for additional
    cut-off dates etc.  under development

•   VGM and VERMAS
    VERMAS was developed as a completely new message type in 2016, for reporting of Verified Gross Mass as
    per IMO / SOLAS convention. It has become the world standard in short time. No enhancement request were
    tabled that would justify a new version.

•   IFTMBF for exchange of DG bookings between shipping lines
    SMDG has assumed responsibility for this special variant of the IFTMBF and published the MIG on our
    website.
In the pipeline

• MOVINS (Stowage Move Instruction)
Major redesign, in line with the new BAPLIE 3.1 - MOVINS and BAPLIE go hand in hand in the stowage planning
process

• TANSTA (Tank Status Message)
Redesign is required by shipping lines and software vendors.

• Repair Estimate
from the container repair shop to the container operator.
Redesign of the DESTIM and WESTIM messages.

• ConRo vessels
Support the special data transmission needs regarding vessels for both RoRo and Containers to be loaded.
SMDG Code lists 1/2
The code lists are maintained and published by the SMDG and are widely recognized

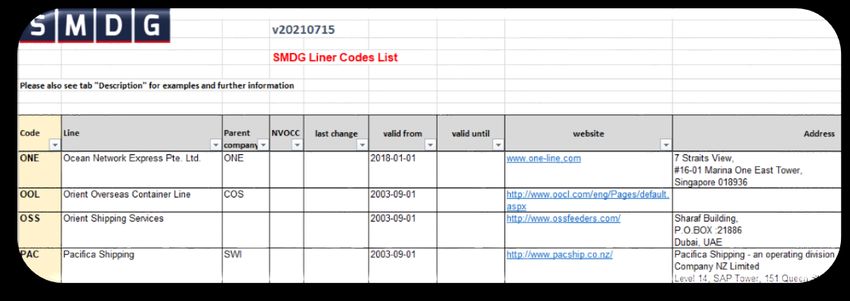

SMDG Liner codes =
vessel operator codes

 SMDG Terminal codes =
 more detailed level than
 port UN/LOCODE.
 Recognized as
 «child code list» under
 the UN/LOCODE.
 Also available via the
 API provided by the BIC.
SMDG Code lists 2/2
The code lists are maintained and published by the SMDG and are widely recognized

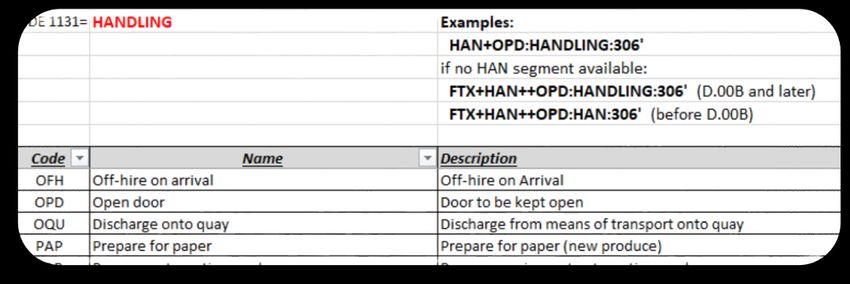

SMDG Handling codes =
Terminal handling
instruction or Stowage
instruction

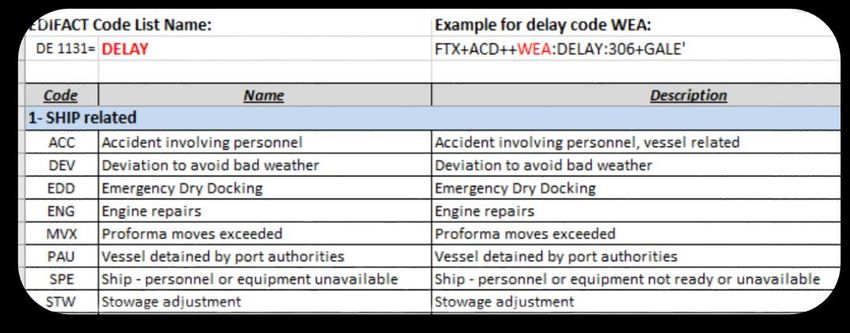

 SMDG Delay Reason
 codes =
 Delays in vessel schedule
 or in terminal operation
SMDG Recommendations

The Recommendations for standardization requirements that are not otherwise
covered are widely recognized. Examples:

1.   Tier numbering = How to define stow positions for vessels with more than 9 tiers on deck
                  that are not covered by ISO 9711

2.   Containers with non-ISO ID = How to handle a container number without alpha-prefix

6.   Best practices - use of message formats for standard business use cases between a carrier and a terminal

 New recommendation under development:
8. Empty tankcontainer with residue – reporting in Edifact message

                           The Recommendations can be downloaded from www.smdg.org
Liaison with standardisation and other organisations

                                                                                     DCSA
          UN/CEFACT                                                     The DCSA information model and
   Good cooperation in many                                              APIs make reference to many of
   standardisation initiatives                  BIC                           the SMDG Code Lists
                                 publishes the Facility Code List for
                                  inland depots and repair shops
                                  Joint API used by BIC and SMDG!
                                                                           PROTECT publishes the IFTDGN,
          UNECE                                                            WASDIS and BERMAN messages
    UN-Locode directory                  ISO9711 stow position
                                          and ISO6346 container
                                             size/type.                             ANSI X.12
                                     Cooperation could be closer               could be more intense

     Future validation portal

                                                                             EXIS provides a code list for
                                     INTTRA might development MIGs
                                                                             reporting Dangerous Goods
                                     for IFTMBF and IFTMIN enhanced
            PCS                              for VGM reporting
    Various PCS using our
          messages
Join the community and set the standards !

                     Contact us at www.smdg.org
                      or at secretariat@smdg.org
                       or come to our meetings!

Michael Schröder              Hapag-Lloyd AG
Project Manager e-Solutions   Hamburg, Germany
                              Tel: +49 40 3001-2906
                              michael.schroeder@hlag.com
                              www.hlag.com
