Insulated Panels
Middle East, Africa, Turkey & Central Asia
Trapezoidal Roof
Series KSD1000 RW
Product Data Sheet
Approved
2 Insulated Trapezoidal Roof
Panel Systems Series KSD1000 RW
Data Sheet
Trapezoidal Roof
Series.6'5:
Overview
Trapezoidal Roof is a distinct pitched roof panel that offers outstanding performance in key building criteria such as airtightness,
thermal bridging, moisture resistance and weathertightness, with a range of high performance, weather resistant coatings providing
unparalleled, long term roof durability.
Highlights
– Accelerated build speed through pre-
engineered, single component, single-fix
installation.
– R
ange of optional extras including Integrated
rooflight systems.
–
Available in lengths up to 18m (subject to
transport limitations).
– Can incorporate safety and fall protection
systems, such as Kingspan Saferidge and
Safetraxx.
Ecosciences Precint, Australia
Trapezoidal Roof Insulated 3
Series KSD1000 RW Panel Systems
KSD1000 RW SystemOverview

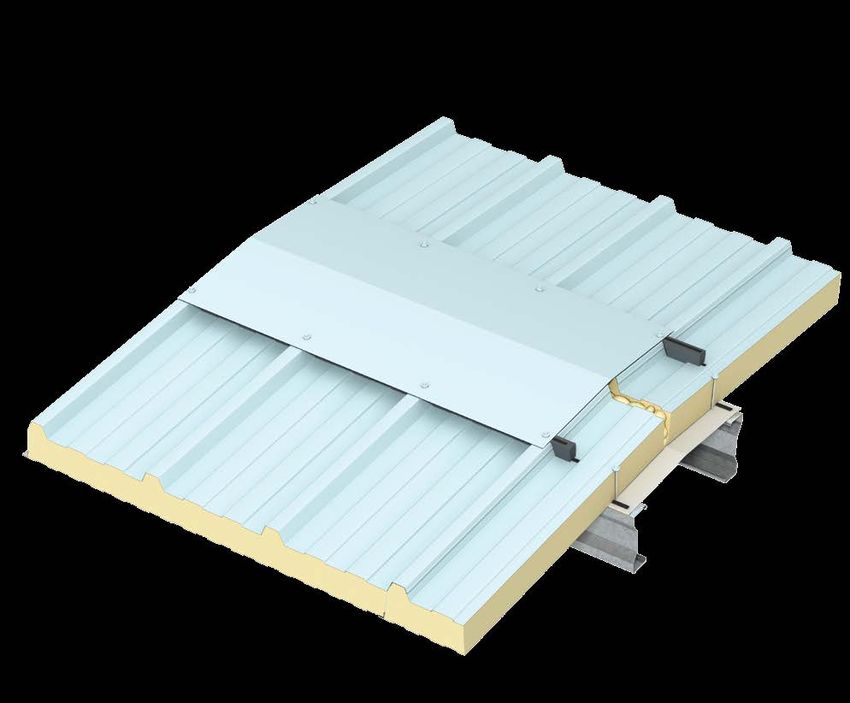

Kingspan KSD1000 RW is a 35mm deep trapezoidally profiled insulated roof panel which can be laid on roof slopes from 4º upwards.
It is a proven and tested system with a performance track record of 30 years.
Cover width 1000mm
333mm 333mm 333mm
30.4
35
Thickness
Core
Thermal Performance, Dimensions and Weight
KSD1000 RW 46 32 28 25 20
U-value (W/m²K) 0.47 0.32 0.27 0.24 0.19
R-value (m²K/W) 2.16 3.10 3.58 3.97 5.00
Core Thickness (mm) 40 60 70 80 100
Overall Thickness (mm) 75 95 105 115 135
Weight (kg/m2) 0.5 steel / 0.4 steel 9.90 10.70 11.20 11.50 12.30
The U-values have been calculated using a thermal conductivity when tested at 10°C.
Product Specifications and Accreditations
Standard Temperature High Low Fire Rating
Product Reference Hygiene
Environment Control Humidity Temperature ASTM D 1929 BS EN 13501-5
KSD1000 RW •
Profile: Trapezoidal 35mm
Fixing Detail: Through-fix
Metal Type: Steel or Aluminium
Colours: All of the below coatings are available in a wide range of colours. Please consult our Customer Services
Team for availability
Coatings: External: Kingspan Spectrum, Kingspan PVDF & Polyesters
Internal: Kingspan CLEANsafe coating
Application: Pitched roofs of 4° or more after deflection
Lengths: From 1.8m to 18m
Cover Width: 1000mm
Spanning Capability: Please see Load Span Table
Environmental Rating: Zero Ozone Depleting Potential (ODP), Low Global Warming Potential (GWP)
Free from CFC, HCFC & HFC, free from Halogenated Fire Retardants and 100% recyclable
Fire Rating: ASTM D 1929-16: Self Ignition above 343°C
BS EN 13501-5 +A1:2009 B roof (t4)
Product Compatibility: Integrates with Kingspan Day-Lite Trapezoidal and Kingspan Safety solutions
Seals: Site Applied
4 Insulated Trapezoidal Roof
Panel Systems Series KSD1000 RW
Case Study
West Australian Institute of Sport
Location
Churchlands, Australia
Wall/Façade Products
BENCHMARK Evolution
Roof Product
KSD1000 Trapezoidal Roof
Membrane Lined Insulated
Gutter
Trapezoidal Roof Insulated 5
Series KSD1000 RW Panel Systems
Data Sheet
Trapezoidal Roof
Series KSD1000 RW
Trapezoidal Series System
Kingspan roof, wall and façade systems, featuring Kingspan’s self-blended ECOsafe PIR insulation, incorporate a range of special
fabrications, including a large range of made to measure flashings and the revolutionary range of Daylighting solutions.
These systems are designed to deliver superior protection for buildings from fire and rising energy costs, with unparalelled
sustainability and support from the industry’s most transparent and comprehensive guarantees.
Flashings Day Lite Rooflight
Safety
Services Kingspan Warranty
We focus on consistently offering the best service to our We offer the industry’s most comprehensive and transparent
customers. We offer high levels of customer support, including warranty for the ultimate protection and peace of mind.
technical services through to product training. The Kingspan Warranty provides maximum protection for
the structural and thermal performance of the panel and its
Technical Support
coating. Our warranty also offer the ultimate cover for the
From the provision of project specific details through to the
system components of our panel series including flashings,
creation of project specific specifications, Kingspan Technical
Day-lite Rooflight, Membrane Lined Insulated Gutters & Safety.
Services can help to ensure that your building performs and
complies with building regulations. Please note that you must apply to avail of the Kingspan
Warranty. Please contact your sales person for more information.
Customer Service
Customer service personnel are available to support you from
initial enquiry through to final order delivery to site.
6 Insulated Trapezoidal Roof
Panel Systems Series KSD1000 RW
Flashings
The Kingspan range of flashings combine functionality, performance and true aesthetics to provide the finishing touch to any
building envelope. With a wide selection of materials, gauges and finishes available, the possibilities are endless.

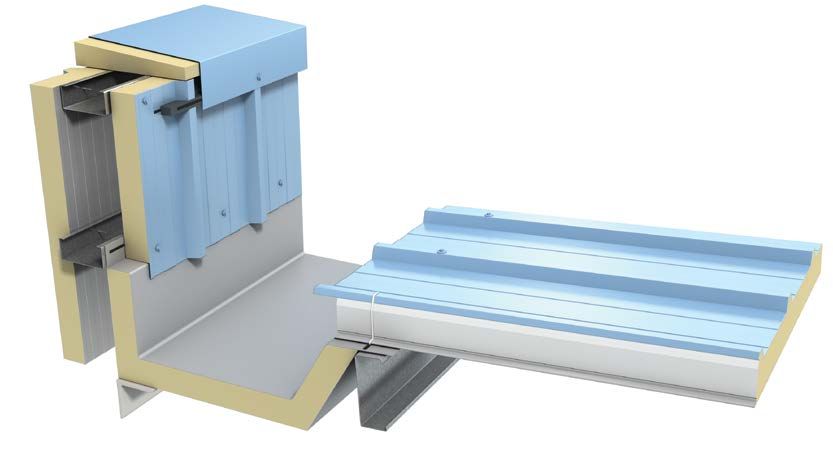

Membrane Lined Insulated Gutters & Highline Gutters
Kingspan offers a comprehensive range of high performance and aesthetic insulated membrane and highline gutters.
Trapezoidal Roof Insulated 7
Series KSD1000 RW Panel Systems
Day-Lite Range
The Kingspan Day-Lite range offers a quality of daylight management unrivalled within the industry, whilst still providing architects
with maximum design flexibility and industry-leading guarantees.
Our portfolio of translucent polycarbonate daylighting solutions delivers the optimum balance between energy efficiency
requirements and the use of natural and artificial lighting:
Kingspan Day-Lite Trapezoidal and Trapezoidal Plus are trapezoidal-profiled rooflights designed to integrate with our Trapezoidal Roof
panel.
Safety
Kingspan offers a range of discreet personal Safepro2 Safeside
and collective fall protection systems for
working at height including:
– Safepro2, an innovative roof anchor
system that employs force minimisation
technology to limit the load transferred
to the roof in a fall arrest event;
– Safetraxx, a flexible high-grade,
precision-extruded aluminium rail
designed to be fixed continuously across
a variety of roof positions to minimise
potential roof damage;
– Saferidge, a high-grade precision-
extruded aluminium rail which is factory-
fitted to a bespoke steel ridge capping
and is designed to dissipate fall arrest
forces across a wide roof area; Saferidge Safetraxx
– Safeside, a cost-effective collective fall
protection system that provides a
perimeter guard rail to prevent access to
the edge of the roof.
UAE Kingspan Insulated Panels Manufacturing LLC PO Box 60493 Dubai Investment Park Jebel Ali Dubai, UAE T: +971 (0) 4-8854 232 E: info@kingspanpanels.ae www.kingspanpanels.ae Care has been taken to ensure that the contents of this publication are accurate, but Kingspan Limited and its subsidiary companies do not accept responsibility for errors or for information that is found to be misleading. Suggestions for, or description of, the end use or application of products or methods of working are for information only and Kingspan Limited and its subsidiaries accept no liability in respect thereof. 03/2020
