Southwest Florida Dealer
ES Windows www.eswindows.com
340 Tamiami Tr N, PMB 206
Naples, FL 34102
EnglerWindow.com
Windows and Doors
V2 - March 2017
Prestige products meet today’s top architectural trends: Narrow sightlines Superior energy efficiency Hurricane resistance Custom colors Insulated glass and thermally broken aluminum Corrosion-resistant hardware for coastal applications
The Prestige residential line is designed for sophistication and
style. Each piece is carefully manufactured and checked for
quality, ensuring full functionality and the ultimate end-user
experience. These luxury windows and doors are built to
the highest specifications and user demands, and meet our
exceptional standards for service and reliability.
www.eswindows.com
The Prestige® collection was developed in collaboration with architects and
designers who specialize in modern construction. The result: clean lines and
large glass panels.
More than 30 years of experience as a window and door manufacturer has
allowed us to develop this premier line of products that meet the highest
performance standards. These products are crafted with one purpose: to
bring the topmost quality and design to every project.
Prestige Features
Consolidated under a single source warranty
TecnoAIR glass
Standard Duranar (Kynar) architectural coatings
Windows
High performance insulation from efficient spacers ES-P252 Casement/Awning/Fixed
Superior energy performance with low U-values ES-2020 Fixed
Reduced sound transmission ES-3050 Fixed
ES-SW340 Sliding
Two tone frame profiles
ES-H340 Single Hung
Exclusive hardware
Extended warranty
Color or ultra-clear interlayers
Consolidated under a single source warranty
Doors
Coastal hardware standard ES-GW 400 Lift and Slide
ES-46T Swing
ES-2020 Sliding Glass
ES-2040 ProSlide
ES-BF 5010T Bifold
WINDOWS

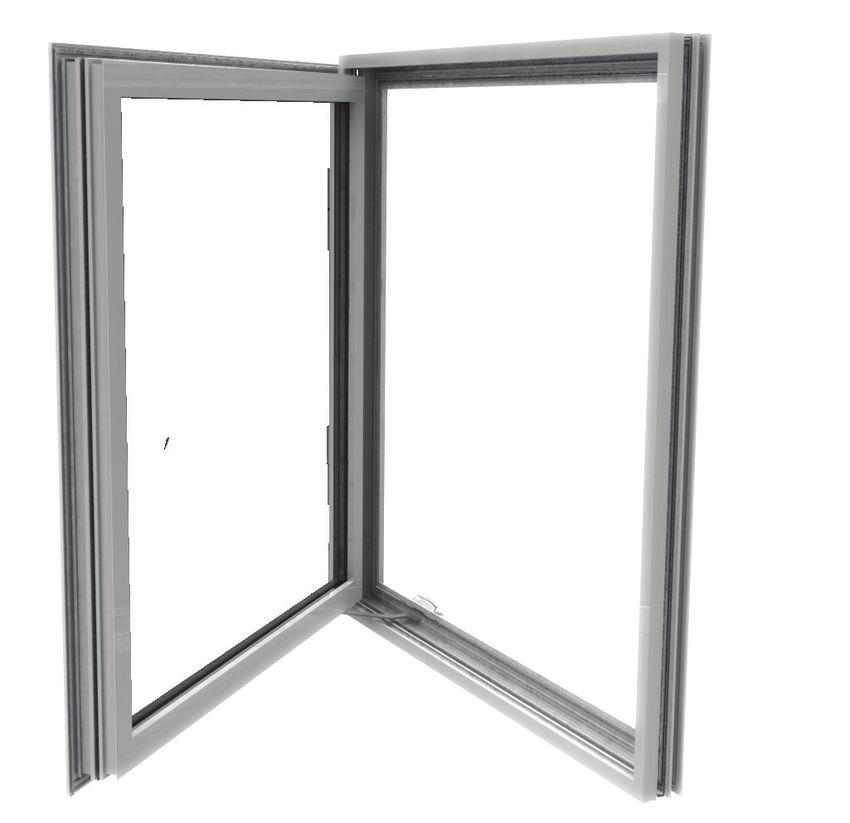

ES-P252
Casement/Awning/Fixed
ES-P252 is an operable out-swing window that offers an
unobstructed view and excellent ventilation. The unit is
ideal for areas that demand high light transmittance
and minimal thermal transfer.
Single arm operator and multi-point lock
High performance stainless steel four bar hinge or butt hinges
Head receptor, sub-sill and strap anchors available
Thermally broken frame
Casement
- Maximum size 48” x 84”
- Frame depth: 2 1/2”
Awning
- Maximum size: 74” x 37”
- Frame depth: 2 1/2”
Fixed
- Maximum size: 60” x 120” / 48” x 144”
- Frame depth: 2 1/2”
ES-2020
Fixed Window
The ES-2020 Fixed window is a narrow window that allows
homeowners to achieve a consistent look across their
façade.
Fixing match for the 2020 Sliding Glass Door
Stand-alone jambs
5’ x 12’ panels or 6’ x 10’ panels
Male and female mullions
WINDOWS
ES-SW340
Sliding Window
The ES-SW340 horizontal sliding window offers wide
window opening, while providing durability and
maximum ventilation.
Polyamide rollers with stainless steel housing
Sweep lock
Thermally broken frame
Maximum size
- Conf XOX: 126” x 63”
- Conf XO: 81 3/5” x 67 1/5”
Frame depth: 3 3/8”
ES-H340
Single hung Window
The ES-H340 is a hung window that operates vertically and is
ideal for narrow spaces where you need accessibility and airflow.
Ultralift spiral balances
Sweep lock
Thermally broken frame
Maximum size
- Conf O/X: 39” x 81”
- 53 1/8 x 76 / 48” x 108” Oriel
Frame depth: 3 3/8”

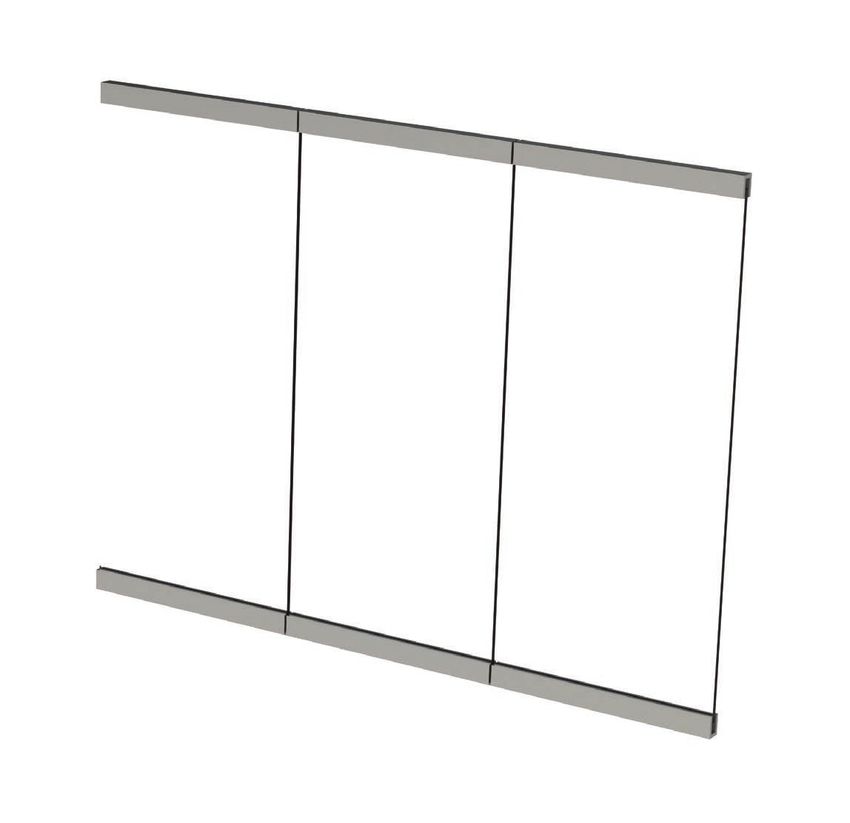

ES-3050
Fixed Window
The ES-3050 Fixed window is a glass wall that has no
vertical aluminum profiles. The result is more glass
and a clearer view.
1 1/16” monolithic laminated glass
Maximum Size: 53” x 120”
Frame depth: 3 3/8”
Frame height: 144”unobstructed view
DOORS ES-GW400 Lift and Slide Door The hardware for the ES-GW400 Lift and Slide door allows panels to slide smoothly and effortlessly in order to minimize threshold height and handle larger panels. 6’ x 10’ panels Thermally broken frame Configurations: OX, OXO, OXXO Frame depths available: 7 5/8”
ES-46T
Swing Door
ES-46T is a swing door designed for balconies
and open spaces. It pairs easy operation with a
sophisticated, modern look.
ADA threshold and high bottom rail optional
Multi-point hardware
Thermally broken frame
Single door: 41 3/16” x 108” and 48” x 120”
Double door with sideliites: 160” x 98”
Double door: 80” x 120”
Frame depth: 4 1/2”
Standard Threshold height: 2 1/4”
Ada Threshold height: 1/2”sophistication and style
ES 46T Swing DoorDOORS
ES-2020
Sliding Glass Door
The ES-2020 is an impact-rated sliding glass door with
minimal sightlines. This narrow door features less
aluminum and more glass than other options to allow
for a clearer view.
Removable sill riser
Five-track options
Inside and outside pockets and multitrack frames
90 degree and 135 degree corners
5 x 12 panels
6’ x 10’ panels
2” interlocks
Maximum sizes
- 2 & 3 Track with outside pockets: 60” x 144”
- 4 Track with inside & outside pockets: 72” x 120” and 48” x 120”
- 5 Track 90 degree and 135 degree corners” 60” x 144” / 72” x 120
Frame depth: 4 3/8” (2 track), 6 7/16” (3 track), 8 1/2” (4 track)
Sill height: 1 7/8”, with sill riser heights 2 5/8”, 3 1/8”, 3 5/8” or 4 1/4”
Unlimited panel & configurationsES-2040
ProSlide
The ES-2040 ProSlide sliding glass door uses exclusive
hardware designed for maximum protection. Our low-rise
threshold provides easily accessibility while meeting
hurricane standards for water intrusion resistance.
Standard low sill option
Balances ADA accessibility and water intrusion protection
Exclusive hardware
Smooth operation
6’ x 10’ panels
Configurations: OX, XO, OXO, XOX, OX-XO
Sill height: 1 5/16”
Frame depth: 6 1/2”ES-BF
5010T Bifold Door
The Bifold allows you to join two spaces effortlessly.
The system provides a completely clear opening with
a 10’ height.
Multiple 3’6”x 10’ panels
Thermally broken frames
Insulating laminated glass
2” threshold for maximum water infiltration protection
Maximum 16 panels center meet
Maximum sizes: 44” x 120”
Frame depth: 5”the perfect combination to expand
and connect spacesCOLORS
AND FINISHES
Standard Colors
Duranar
Sunstorm Silverstorm Sunstorm Arcadia Silver Bermuda Bronze Bone White
UC106685F UC70123F UC70123F UC43350
Woodgrain
Embero Nogal Sapely Teka
DS 739 2301/02L DS 750 1807/01L DS 750 2505/01L DS 733 2601/01L
Hardware Finishes
Satin Chrome Antique Brass White Black
Bronze Polished Chrome Silver
*Custom Colors and Hardware Finishes AvailableACCESORIES
Design elements
The Prestige line pairs fine architectural detail with uncompromising performance.
Every Prestige window and door is produced from the finest materials, using the latest technologies
and benefiting from the skilled talent of our experienced team. The result is an aesthetic design with
engineered precision and proven performance.
ES
P252 ES 46T
ES 46T
ES 46T
GW400
ES 2020
SGD ES 2020
SGD ES 2040 SGD BF 5010TEXPERTISE
Engineering and Design
We specialize in providing solutions for the most complex projects
and responding efficiently to the toughest demands of architects and
developers. The combination of advanced software technology and a
team of engineers and designers who specialize in aluminum, glass,
window systems and facades allows us to ensure delivery of high-quality
products that meet our customers’ needs.
The Prestige line provides customers with the perfect combination of
luxury, design and performance across a wide range of product types.
Whether you are looking for noise reduction, temperature control, or
protection from extreme weather, our line of products can provide the
perfect solution, without sacrificing aesthetics.
Service
Our engineers and designers provide ongoing assistance and technical
support to ensure the best solution for each type of project. We offer each
customer complete and personalized guidance, pointing out the main
factors to consider in order to plan and carry out their construction with
maximum benefits
The information contained herein is exclusive property of ESWINDOWS, who reserves the right to modify it, including but not limited to the designs and its specifications, without notice.Design. Quality. Luxury. Southwest Florida Dealer 340 Tamiami Trail N, PMB 206 Naples, FL 34102 englerwindow.com
Design. Quality. Luxury. The Power of Quality
