TEDDI NGTON AI R CU RTAI N SYSTEMS
SHOP & BUSINESS DES I G N I N DU STR I ES
The Reference in
Air Curtain Technology.
TEDDINGTON
TEDDINGTON What is Air Curtain Technology?
It's definitely more than only hot air.
Air curtains, castles in the air, hot air …
What are air curtain systems used for?
We all know the physical effects The first air curtain systems used
of hot air: “Hot air rises” – a law of warm rising air at the permanently
nature which is effectively used open doors of department stores in
primarily by balloonists or glider the 1960s. In this respect you may be
pilots. reminded of the famous picture of
Marilyn Monroe standing over an air
However, this effect is not only
shaft of Manhattan’s underground.
beneficial. It causes a loss of warmth
when doors are left open. These The aim of the new technology at the
unpleasant consequences of thermal time was to protect the sales area
currents as well as the cold air inlet against cold air. Air curtain systems
are countered by our air curtain are still used for the same purpose
systems. today – among other things. Only the
The benefits for you: Distinctly lower air guide system as such has been
energy costs and higher comfort. adapted to the technical progress.
Today, the curtain is operated more
comfortably from top to bottom.
We are in the vanguard of progress
with respect to the air curtain
principle. Or rather, we have taken
the lead, and have opened up many
new applications.
Almost everywhere, where
differently conditioned air meets,
the systems produced by Teddington
offer economical and aesthetically
attractive solutions for more
comfort – and that in well-nigh
innumerable fields of applications.
Warm air rises. Balloonists use this principle
of thermal currents to rise into the skies.
We act against the laws of thermal currents
in order to reduce your costs of energy.
2
3
TEDDINGTON Function of Air Curtain Systems.
It's no trick, it's only physics.
The functional principle of air curtain systems:
In each highly frequented building, In the process volume flow, velocity, Integrated energy saving.
physics takes upon itself to ensure a temperature and impulse have to Air curtain systems contribute
proper compensation of air masses. correspond to the value of the entry considerable to saving energy
of cold air. costs. Even up to 80% with our
What has been expensive to heat up,
patented EVOLVENT® system.
now disappears through doors and The air curtain jet stream R consists
gates. of the horizontal and vertical Integrated sales psychology.
components required. In a shop with just the right
It is the task of the air curtain system
temperature without unpleasant
to counter the unpleasant entry of We have taken the principle of the air
draught, the customers are distinctly
cold air K in the entrance area with a curtain technology one step further.
more willing to stay and the
counter current H. Quite some astonishing things have
inclination to buy something
cropped up:
increases.
Integrated environmental
protection.
The energy savings of the operator
also result in a lower production of
energy required in the end, which is
good for the environment.
Integrated good climate.
Unpleasant smells or dust
developments, for example, can
be shielded in industry. Moreover,
the sick list of the staff members
is significantly reduced, if an air
curtain system is installed, because
the systems ensure a permanently
good climate.
R
V
␣
H
K The EVOLVENT® air curtain system
produced by Teddington controls exactly
the blow-out angle ␣ , the volume current
R and the velocity V , thus producing
counter force H as a counter impulse to the
cold air inlet K.
4
An air curtain system from a scientific point of view.
Within the framework of a diploma The graphics of the temperature
thesis written at the Department of differences in particular render clear
Technical Building Equipment, Plants, the precise screening of the plant.
Energy and Machine Systems of the
By means of a company testing
University of Applied Science of
chamber (right), the systems
Cologne, the mechanisms of an air
newly developed by Teddington
curtain system was scientifically
are tested thoroughly and
examined in a testing chamber
important experience is gathered
in 2007.
for the layout of air curtain systems.
The drawings show the cross section
of the testing chamber. The course of
temperature as well as the course of
the air velocity are shown when the
system is in operation.
Left: The thermographic chart of the
testing chamber reveals clearly the
effective screening of the cold air (blue).
The temperature curves (top) also
substantiate the effectiveness of
the air curtain system.
Left: Chart of the course of air velocity
in metres per second.
Top: Diagram of the air velocity vectors.
5
TEDDINGTON Lead by Innovation.
The nozzle makes the difference.
In the 18th century, Giovanni Battista In the EVOLVENT® system, the air
Venturi discovered that the velocity current is compressed in the pressure
of flow in a pipe is highest where the chamber and is equally spread across
pipe is narrowest. Presumably, he did the entire blow-out width by the
Pressure-chamber not even suspect at the time which nozzle. By means of the concave
nozzle system benefit this observation would have nozzle cheeks, the air current is
some time later. accelerated to such an extent that a
Patent No. DE4415079C2 concentrated low-eddy air curtain is
Today, we find this so-called “Venturi
produced with a high penetration
principle” in many technical fields –
depth.
from vacuum technology and vehicle
carburettors to comfortable wine By turning the nozzle, the blow-out
decanters. direction can be set precisely.
Compared with a conventional
In 1994, we adapted this principle to
system, distinctly less air is required
the air curtain technology and made
and thus less energy.
it usable for you.
Given the same screening
Something genius will performance, EVOLVENT® saves up
always be state of the to 40% of energy compared to
conventional air curtain systems.
art.
Our patented pressure-chamber Given today’s energy prices and
nozzle system EVOLVENT® utilises their foreseeable increases, this is
the Venturi principle and is far a decisive advantage.
superior to conventional systems The energy-saving pressure-chamber
with air guide ducting by means nozzle system is available only in the
of lamella. air curtain systems manufactured by
Teddington.
Grazie, Signore Venturi.
EVOLVENT® nozzle has been fitted in the The secret of EVOLVENT®. The air current
Teddington systems in such a way that is compressed which is then bundled and
they can be adjusted very precisely. The accelerated by the nozzle. A turbulence-
blow-out angle can be aligned exactly free uniform air curtain is produced with
to achieve a perfect screening effect. a high screening effect.
6
through the centre of the room (°Celsius).
Course of air temperature on average
In the diploma thesis quoted beforehand,
a direct comparison was carried out
in the testing chamber between a
conventional unit with lamella systems
through the centre of the room (°Celsius).
and a unit with EVOLVENT® nozzle.
Course of air temperature on average
The respective temperature comparison
shows clearly that the air barrel of the
lamella system is pushed from outside
to inside by the air current in the lower
section (top illustration). The air barrel of
the nozzle system remains stable right to
the bottom (bottom illustration). In order
to stabilise the air barrel of the lamella
system in such a way that the same
screening effect as with the EVOLVENT®
nozzle is achieved, the system had to be
operated at a distinctly higher energy.
7
TEDDINGTON The Reference in Air Curtain Technology.
From pioneer to reference.
Teddington recognised the potential Since 2001, Teddington Our company is
of air curtains early on, and thus Luftschleieranlagen GmbH
belongs to the pioneers of this has been using a new spacious
synonymous with
technology. In 1965 our company was manufacturing building in air curtain systems.
established by Teddington Controls Buchholz-Mendt, Germany. The comprehensive programme of
England as a German sales subsidiary. devices and controls, know-how of
Today, our programme comprises
So we are the eldest German decades, the consulting and planning
energy-saving air curtain systems,
manufacturer on the market. service – all of that has made us a
especially low-noise versions, air
reference in air curtain technology.

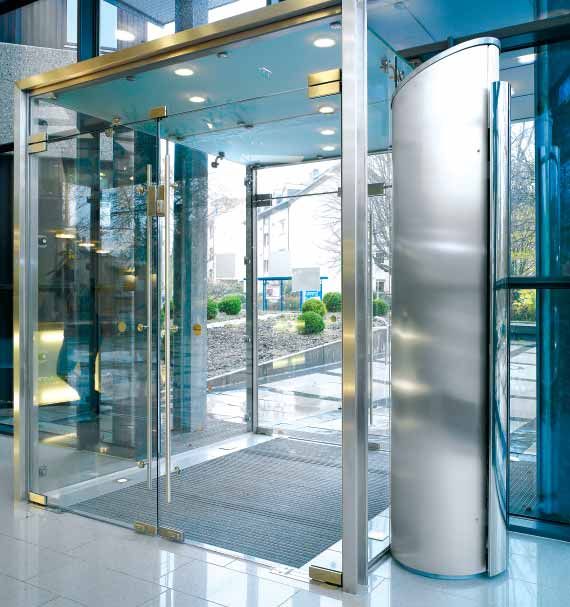

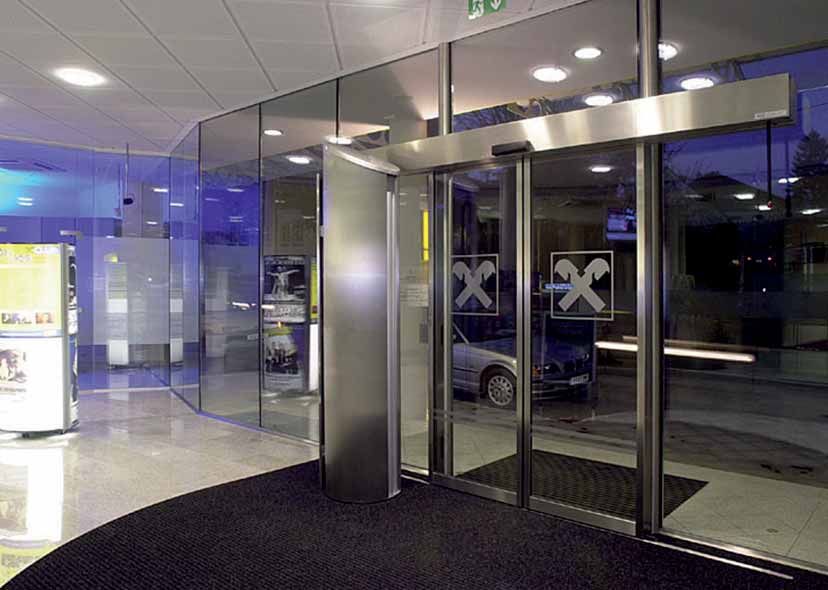

In 1974, we were the first company curtain systems for automatic
to present an air curtain system sliding doors in straight or bent Directly or indirectly we are selling
developed in Germany. With a lot shape, for revolving doors and for our products in over thirty countries.
of success. space-saving doors … Perhaps it Among others, our customers are
would be easier to list those doors industrial enterprises, chains of
The development of the EVOLVENT®
or gates, for which we have not stores, banking institutions, airports,
system in 1994 was a milestone in
found a solution yet. stations, shopping centres, sports
the history of air curtain systems,
facilities and fair companies.
which is unique selling proposition
and guarantee for success still today. Even small retail stores rely on the
well-tried systems produced by
Teddington.
Pioneering in air curtain technology.
Teddington Luftschleieranlagen GmbH
located in Buchholz (Mendt), Germany.
8
Trust needs safety.
} Teddington uses well-tried Irrespective of which Teddington-
reliable components only. made system you decide in favour
of – you have the guarantee of
} Modern production with CNC
having chosen a high-quality
systems ensures a constant
branded product built in keeping
high-quality level.
with the latest state of technology.
} And, we are continuously
developing new technologies
which minimise your operating
costs and optimise the
effectiveness of our units.
9
TEDDINGTON Competence and Reliability.
A good piece of safety.
Foresighted planning is decisive for For this reason, we assist our With the best recommendations.
every project; a lot of know-how and customers … Teddington air curtain systems are
experience are required in order to being used in many fields – from
} with well-founded consultation
take into consideration all relevant small shops, representative bank and
during the planning phase
factors when planning the setup of office buildings to spacious shopping
already,
an air curtain system. centres, fair halls, airports and
} with decades of experience industrial plants.
But, which planner or which builder
in designing and producing
has the time to intensively deal with The best air curtain system is one
air curtain systems,
the complex subject of air curtain that integrates harmoniously into
technology? } with reliable service whenever its surroundings.
and wherever you need Minimum noise level, intelligent
The only thing important to the
assistance. controls, minimised maintenance
customer is that everything
required, reliable technology and
operates reliably.
demanding design ensure that
Teddington’s air curtain systems fit
into every surroundings in an ideal
way.
Innovative techniques, high-quality
workmanship and reliable service
have made Teddington a reference
in air curtain technology.
Trust a good name.
10The better the consultation,
the more effective the result is.
We help you with your planning work
and assist in the selection of the perfect
unit for your needs. We also provide
comprehensive service after the initial
operation as well.
11TEDDINGTON Systems for Every Kind of Application.
It depends on the situation.
Frequently, a system from our Which thermal currents prevail
standard programme is absolutely in the building?
the right solution – simple and Which wind force acts on the
effective, inexpensive and entrance area?
continuously functional.
How big is the door or gate area
But, in many cases the “one-size- to be screened?
fits-all” principle does not work at
Which shape is requested?
all, because physics is rarely willing
to compromise. These are only four of many factors
which have an influence on the
Many individual factors of the
design of a device.
respective installation situation have
to be taken into consideration to It is good, if you can trust an
permit an ideal operation of the air experienced partner in this decision.
curtain system, thus achieving the We analyse your situation with all our
requested energy saving effect. know-how. And, we offer you the
perfect solution for your needs.
And, if the situation requires, we
produce an individual system –
precisely harmonised to your needs.
Thrust and thermal current
as found in various building situations:
Situation A Situation B Situation C
The door surfaces The door surfaces Unscreened door
Depending on the situation or the are on one side of are on one side of surfaces are present
request of the customer, air curtain
the building. the building. at other sides of the
systems are produced in various designs,
such as visible wall or ceiling installation building as well, such
There is hardly any Air is removed by
(S), installation in false ceiling with as at the side or
air discharge worth the thermal currents
visible lower side (U) with an air barrel opposite.
turning to the inside or outside,
mentioning caused in the upper storeys
integration in a false ceiling (Z) and by thermal currents or by the chimney The volume of potential
many other possibilities. or chimney effect. effects. air removal is identical
with the volume of the
door surface to be
screened or larger.
1213
TEDDINGTON Systems for Every Kind of Application.
You have the choice.
We have divided our programme into our customers to find the right unit sizes, performance classes and
three categories, with which we faster. Within the category, the user colours suited perfectly to his needs.
create a clear differentiation of the can choose between various types of
fundamental characteristics, helping systems, installation possibilities,
Shop & Business
This range comprises a large number
of types, which have been designed
specifically for operation in buildings
with a high demand for comfort –
extremely low-noise, unobtrusive,
but effective in action and appealing
in design.
Design
Special situations require special
solutions, wherever an air curtain
system has to meet top optical
demands – this is where Teddington
offers exclusive design, fine surfaces,
high-quality materials and the best
of workmanship.
And, if your requests are beyond all
standards? We will develop your
individual solution – Teddington
Manufacture.
Industries
Maximum performance is needed
in this field. These systems are
extremely robust and offer a very
high performance potential at an
ideal energy balance.
14Everything at a glance.
In our extensive catalogue, all
product information are divided
up into three categoris.
In addition, you will find all
information required on the
controls, the technical accessories
as well as planning aids, such as
texts for invitations for tender.
Use our entire know-how.
15TEDDINGTON Applications.
SHOP &Pleasure
BUSINESS
whilst shopping.
16There are areas, in which a low noise load
is important despite a high performance
of the air curtain system, such as in foyers
of banking institutions, insurance and
administrative buildings as well as in
exclusive shops and shopping centres,
in which the customer expects a
pleasant atmosphere.
17TEDDINGTON Applications.
SHOP & BUSINESS
Simply comfort.

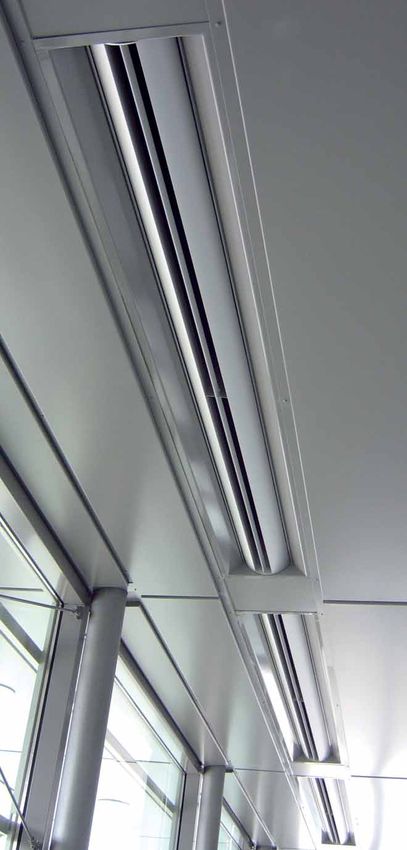

18Integrated in or suspended from
the ceiling in a hardly perceived way,
the systems offer unobtrusive comfort
at perfect performance in shop and
business areas.
19TEDDINGTON Applications. DESIGN Superior technology in a fine housing. 20
In a high-quality ambience nothing
may disturb the fine appearance.
In this case air curtain systems
have to meet the highest of
design demands.
21TEDDINGTON Applications. DESIGN Individually matched. 22
We adapt the air curtain systems to
your individual surroundings so that
your designed system fits exactly into
the high-quality ambience.
23TEDDINGTON Applications.
INDUSTRIES
We love the extreme.
24Highly frequented factory halls with
metre-high gates cause enormous
draught with high energy losses.
Energy-saving solutions are required
here for low-draft climate conditions.
Our industrial systems for vertical
or horizontal installation have been
designed for extreme conditions.
We offer special systems for every
industrial application, including cold
warehouses, where warm air has
to be screened.
25TEDDINGTON High Efficiency by Comfortable Control.
Friendly and intelligent.
Easy, but not simple; comfortable, Don't worry. We rack our brains for you.
but not complicated – this is the way The owner of a small shop will In other applications, the control has
the control of an air curtain system hardly be interested to know to master a large number of highly
should be. It is a significant factor which technology is working for complex, continuously changing
for the economic performance, the him. The framework conditions are parameters, such as in industrial
effectiveness and the comfort of a almost the same every day and the facilities where gigantic gate systems
system. adjustment options cover the few cause enormous air movements.
functions. A simple three-step Here it is important that you can rely
In order to meet every individual
switching unit is completely on the control which uses numerous
situation, we have various controls
adequate in this case to achieve measuring functions to analyse the
in our programme.
a comfortable performance of system and to intelligently adapt the
The variants comprise simple three- the air curtain system. performance of the air curtain device
step devices for standard applications by means of freely programmable
to versions which can be integrated settings.
into complex computer-control
Wherever you employ a Teddington
domestic engineering systems.
air curtain system – the suitable
control offers maximum comfort
with a minimum of worrying.
26Our best unit.
With the TCU control, you can adapt your
Teddington air curtain system precisely to
various requirements.
On the LCD display all functions and parameters
are shown clearly at a glance. Thus, it is the
easiest thing in the world to program the
versatile functions and options.
By means of an integrated BUS system, up to nine
air curtain systems can be operated by means of
one operating panel only, which facilitates the
administration of complex systems enormously.
Robust intelligence for
industrial applications.
The TSDM5 / TEsM5 controls offer all
possibilities you need for your industrial
air curtain system. The robust workmanship
ensures high reliability in daily operation.
} VDE 06660, part 500; DIN EN 60439-1
} Insulation class E
} IP 23 (optional IP 54)
} Operation and failure report
} Integrated repair switch
} Outgoing protection
} 5-step system
} Summer / winter switchover, control by
magnetic valve or pump (optional)
} Manual / automatic operation switchover,
control by external contact
} Potential-free operation and failure
report (optional)
} Frost protection operation (optional)
27TEDDINGTON. The Pioneers of Air Curtain Technology.
¢ Innovative Technology
¢ Highest Economy
¢ Trendsetting Design
¢ Top Quality
¢ Perfect Service
a t́ s Te ddin gto n.
... th 䊚 by Teddington. Subject to errors and technical modifications. 12/07
Teddington Luftschleieranlagen GmbH
Industriepark Nord 42 · D-53567 Buchholz (Mendt) · Germany
Tel. +49 (2683) 9694-0 · Fax +49 (2683) 9694-50
info@teddington.de · www.teddington.deYou can also read
