TECH TALKS 2021 - Energy Boat Challenge
Ideas & Inspirations

Boat & propulsion

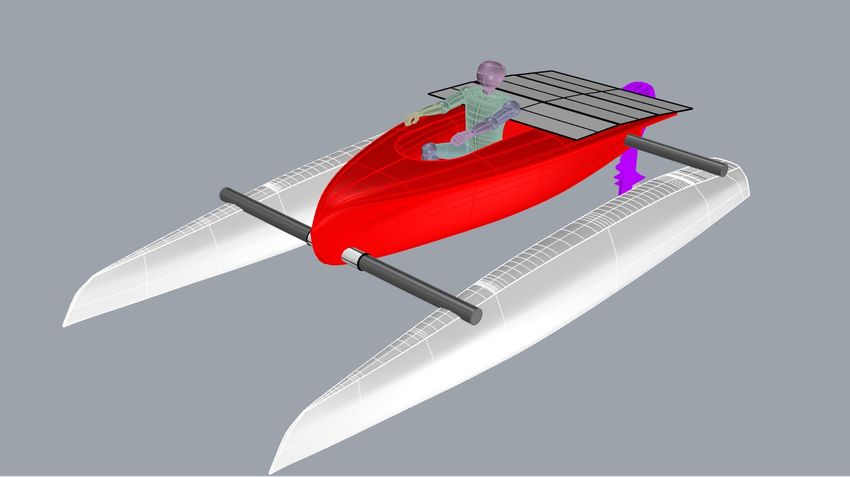

                    Catamaran type boat
Caracteristics:
 • Fast             designed with gliding
 • Light            characteristics with ailerons
 • Ergonomic        that generate aerodynamic
 • Manned
 • Sustainable      lift when reaching high
 • Electric         speeds
 • Solar
 • Maneuverable
TECH TALKS 2021 - Energy Boat Challenge
Conception methods,
                                                                                  design, optimisation

Conception Methods, Design, Optimisation:
• Design of a safety system based on ECG and infrarred.

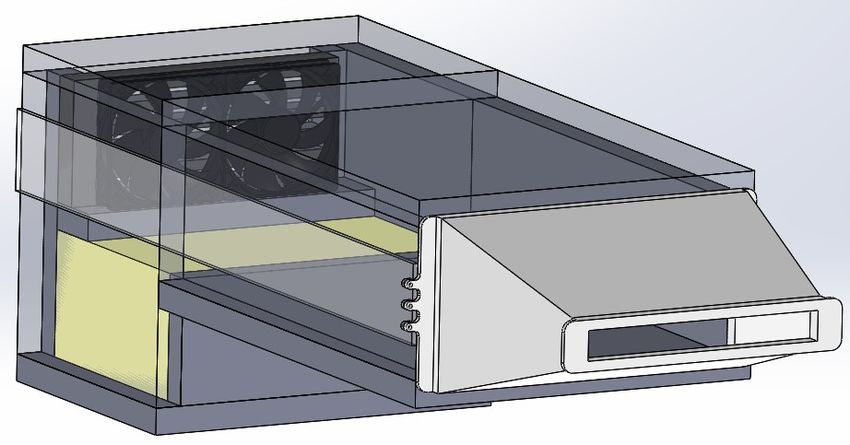

• Design of a liquid cooling system for electronic components.                              3D design, software
• Design of an internal structure for the catamaran.                                        motion
• Design of a photovoltaic system with the implementation of
   flexible solar panels

                                                                 Conception Methods, Design, Optimisation :

                                                                  ●   Design of an energy storage system with the use of
                                                                      hydrogen cells.
                                                                  ●   application of construction methods with waterproof
                                                                      materials
                                                                  ●   Design of an ergonomic fuselage prototype
                                                                  ●   Airframe design analyzed using regression and CFD
                                                                      methods
TECH TALKS 2021 - Energy Boat Challenge
Production

                                                        Time of production :
                                                        Fuselage construction: 2 weeks
Materials:                                              Hull construction: 2 weeks

•   Pump, radiator, ventilator,
    polystyrene
•   Wood,carbon fiber, cattail,aluminum
•   Woodworking materials
•   Excess weight on the fuselage

Problems faced:

•   Test the performance of the currently liquid      Budget:
    refrigeration design.                             fuselage construction: 1000 dollars
•   Optimize the structure such that it would be as
    light as possible.
•   Excess weight on the fuselage
•   New coating material work.
•   Cost of lithium batteries and motor
TECH TALKS 2021 - Energy Boat Challenge
Testing & Results

                                                           Results description

                                                           •    …………………..         ..………………………..
                                                           •    ……………………          …………………………….
                                                           •    ……………………          ……………………………..
                                                           •    …………………..         …………………………....

                                                                 Datas, wheight,
                                                                 drag, max speed,                  Datas
                                                                 efficien speed: RPM
Condition of testing & measurement                               propeler efficient

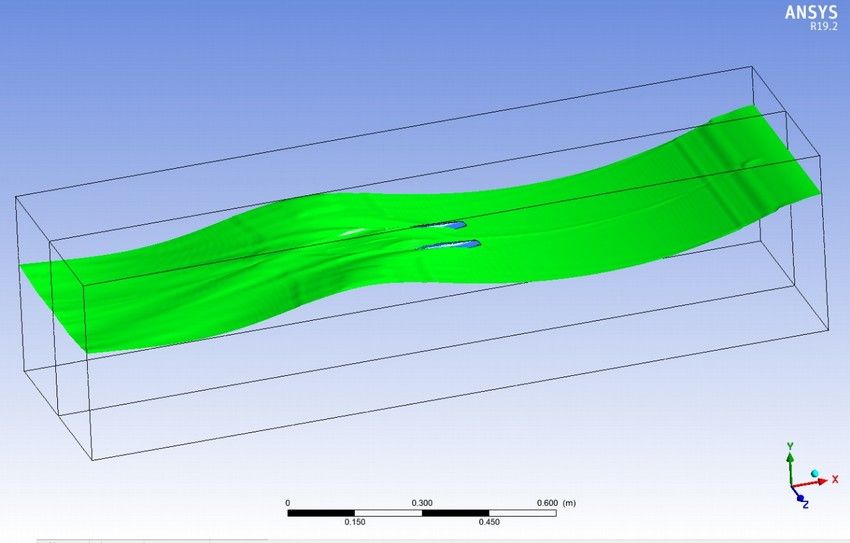

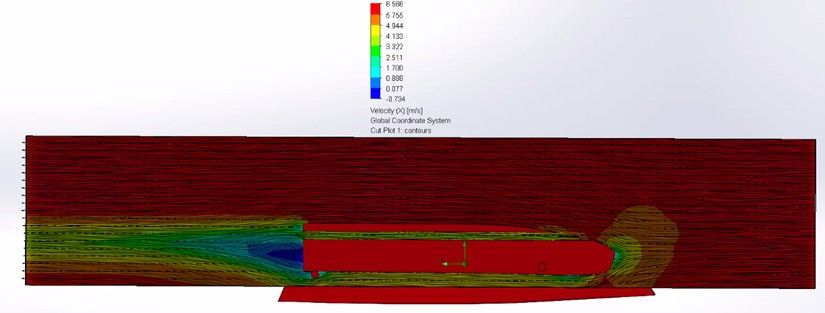

•   Modelo de turbulencia K-omega en canal abierto

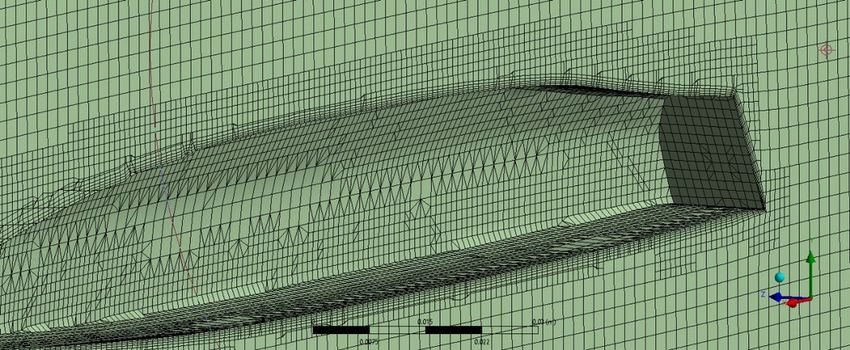

•   Mallado fue realizado mediante cuerpos de influencia y el
    comando de inflación
•   Aprox. 2.5 millones de elementos y 2 millones de nodos
Life Cycle
                                                                       Assessment

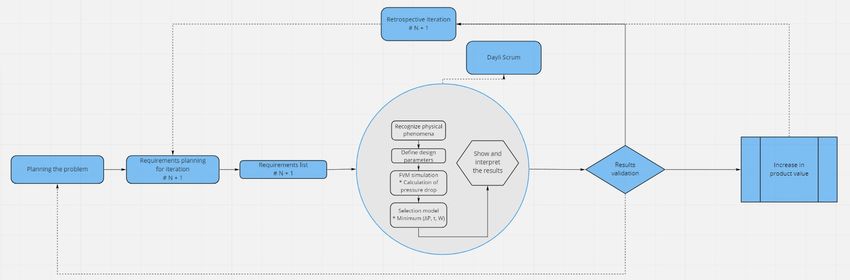

Being a project with few antecedents, we apply the SCRUM methodology

•   …………………..          ……………………..
•   ……………………           …………………….
•   ……………………           ……………………..
•   …………………..          ………………………
Eco Design

Please provide details on the eco design
dimension of project

• Length: 5 m
• Beam: 2.5 m
• Draft: 0.12 m
• Depth: 0.95 m
• Power outboard electric motor: 2240w
• ARM based circuit.
• High-efficiency electronic propulsion
  system
• Semi-rigid solar panels
Innovation

Please provide details on the main innovative feature of your project

 The streamlined fuselage shape creates lift in the boat to gain more speed.
 Adaptation of a liquid cooling system for personal computers to a
  electronic system of a catamaran.
 Fuselage design based on an aerodynamic prototype with eaves, which will
  reduce the friction between the catamaran and the sea.

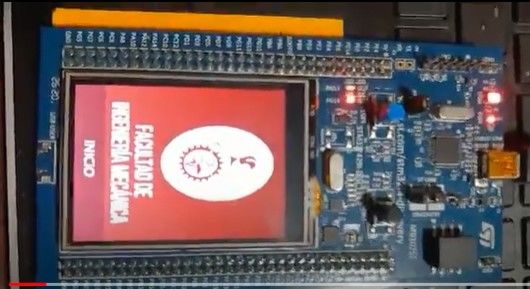

 Use of a controller with ARM architecture and touch interface
 Infrared and ECG based safety system
 Design of a photovoltaic system with the implementation of flexible solar
  panels located on the catamaran to achieve the best performance.
Industrialisation
                                                                                             of the Project

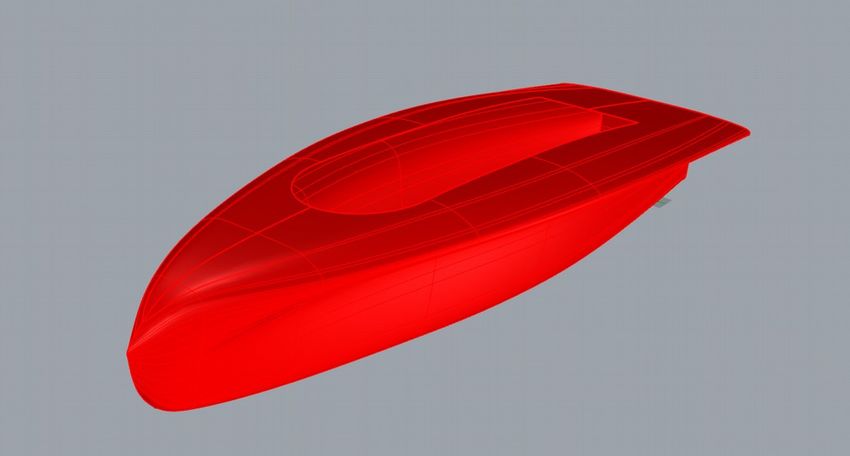

                                                                                              The design of the fuselage
                                                  Description                                 was made with the particular
Efficience Gain                                                                               characteristic that it can be
                                                  •   Electric motors have the                suspended and the pilot has
 •   Outboard electric motor                          peculiarity of being friendly with
 •
                                                                                              good ventilation, as well as
     ARM based circuit.                               nature.
 •   High-efficiency electronic propulsion        •   The panels give the boat                the solar panels. The
     system                                           unlimited power so there is no          propulsion system is
 •   Semi-rigid solar panels                          need to buy fossil fuels anymore.       electronic and consists of an
                                                  •   ARM models have low power               electric outboard motor.
                                                      consumption,
                                                                                              This boat, being supported by
                                                  •   Electric motors are easy and
Explain how to transfer the special features of                                               solar panels and high speed,
your boat/propulsion for industrialisation.           cheap to maintain, which makes
                                                  •   It profitable for companies that        can be used for military or
                                                      want to build them.                     tourism use in northern Peru,
Present a Business plan financed by the gain of
the efficience
                                                                                              as it is eco-sustainable.
Challenge of the Expert

                                                        Description
The Special Feature(s)
                                                          ●   The ailerons reduce the
• Finned fuselage                                             resistance to the advance
• Design of a safety system based on ECG and                  of the boat due to the lift
  infrared.                                                   it generates.
• Amare materials, natural biodegradable                  ●   Throught the ECG and
                                                              infrared we monitor the
                                                              status of the pilot.                Special Feature of
                                                          ●   The reeds will be used as           the Boat(s)
                                                              mooring materials and
                                                              reinforcements of the
                                                              cabin
