2020 GLOBAL OFFSHORE WIND SUMMIT TAIWAN

        Taipower's Practices for Offshore Wind Power

                                                Speaker : Lee, Wen-bing
                                                   Deputy Director
                                          Department of Renewable Energy, TPC
                                                      2020.10.13

                                                                                1
Taipower's Practices for Offshore Wind Power - 2020 GLOBAL OFFSHORE WIND SUMMIT TAIWAN - Global Wind Energy ...
Taipower's Practices for Offshore Wind Power - 2020 GLOBAL OFFSHORE WIND SUMMIT TAIWAN - Global Wind Energy ...
➢ To produce more Green
  Energy ourselves
• Taiwan government carry out the Energy
  Transition of NULC, i.e. No Nuclear and
  Low Carbon. To fulfill the policy, Taipower
  has been taking several measures to
  enhance the utilization of green energy.
Although currently Taipower is the the
largest producer of green energy in Taiwan,

• We cannot keep the championship in
  the future without developing offshore
  power.
Now we have 2 projects in construction.
                                                3
Taipower's Practices for Offshore Wind Power - 2020 GLOBAL OFFSHORE WIND SUMMIT TAIWAN - Global Wind Energy ...

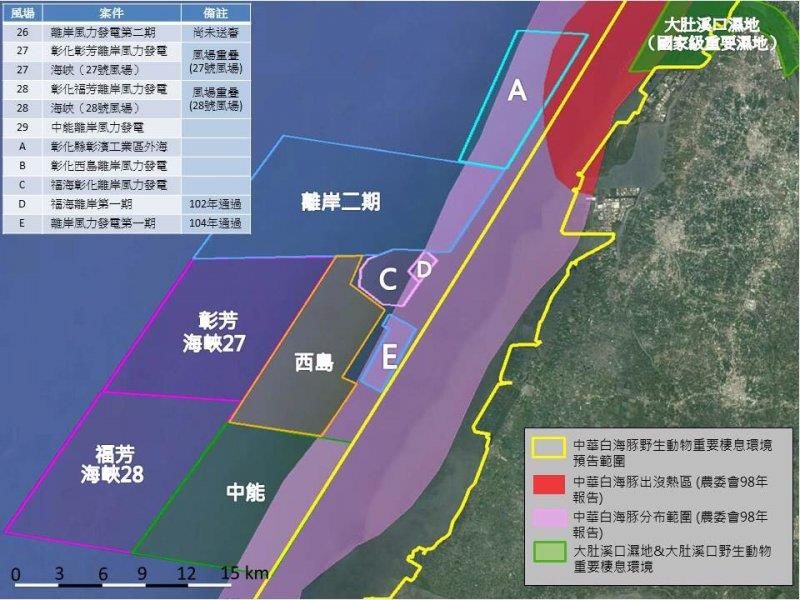

Zonal
        Project
Code

  E     Phase I
               宇騰風場

 #26    Phase II      #26

                            White
                            dolphin
                            habitat

                                      4
Taipower's Practices for Offshore Wind Power - 2020 GLOBAL OFFSHORE WIND SUMMIT TAIWAN - Global Wind Energy ...

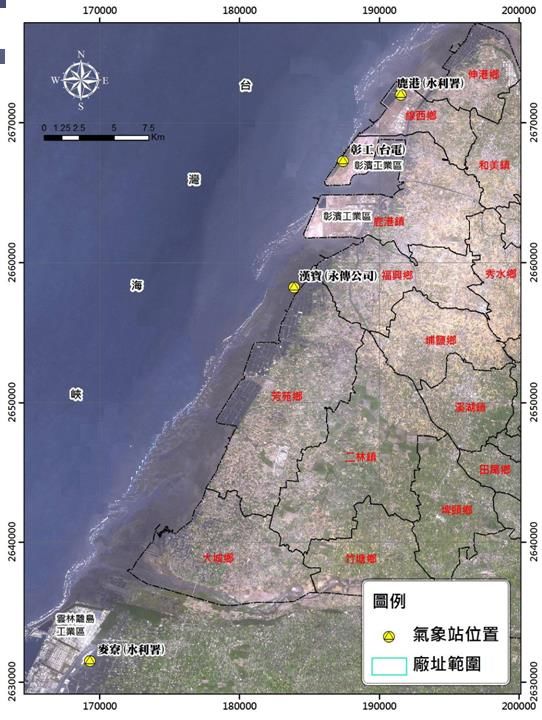

Phase I Project                             phase Ⅱ project

                                    鹿港測站

                                彰工電廠測站

  Project site
                           漢寶測站
         Met. Mast

                                                            Unit Output    9.5MW
                                                         Number of Unit      31
                     Unit Output     5.2MW
                                                         Capacity(MW)       295
                 Number of Unit          21
                                                         Completion Date   12/2025
                 Capacity(MW)            109
                 Completion Date    12/2021              Water Depth(m)    37~49
    麥寮測站
                 Water Depth(m)      15~26
TAIWAN POWER COMPANY                                            5
Taipower's Practices for Offshore Wind Power - 2020 GLOBAL OFFSHORE WIND SUMMIT TAIWAN - Global Wind Energy ...
⚫ The 10-minute average wind speed of 50year return
    periods estimated as 57m/s, and 3-sec gust as 77m/s.
⚫   Weak bearing capacity of soil seabed without rock.
⚫   Local installation vessels are lack.
⚫   Steel is tent to rust due to high temp. & humidity.
⚫   Local supply chain capability isn’t enough.
⚫   There is no certificated port or wharf for offshore
    wind farm construction.
⚫   Local marine technicians are lack.
⚫   Migrating birds & ocean mammals guarded by NGO.
⚫   The negotiation between developer and fishermen
    group is not proceeding smoothly.
                          6
Taipower's Practices for Offshore Wind Power - 2020 GLOBAL OFFSHORE WIND SUMMIT TAIWAN - Global Wind Energy ...
Challenge 1: ET-proof wind turbine to be manufactured

⚫   Considering the severe environment with typhoons and
    earthquakes in Taiwan strait, design level in compliance with
    IEC Class I at least and Class T recommended.
⚫   Although several models of offshore wind turbines available,
    but ET-proof wind turbine can be manufactured locally
    in time?

                                   7
Taipower's Practices for Offshore Wind Power - 2020 GLOBAL OFFSHORE WIND SUMMIT TAIWAN - Global Wind Energy ...
⚫   Wind turbine wharf: Taichung harbor #5A and #5B wharfs
    will be ready by 2020. And will be more available if needed.
⚫   Substructure wharf : Hsinta harbor far-ocean
    wharf will be ready by the end of 2019.

                             遠洋泊區碼頭

                                                                   5
Taipower's Practices for Offshore Wind Power - 2020 GLOBAL OFFSHORE WIND SUMMIT TAIWAN - Global Wind Energy ...

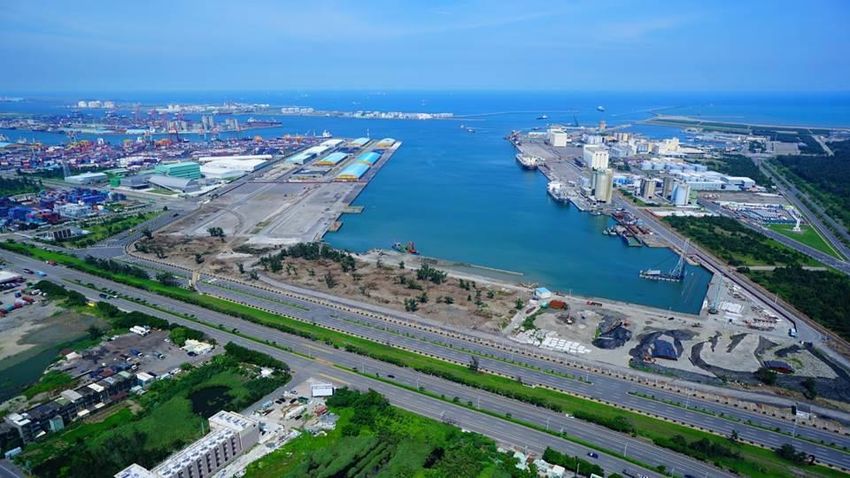

◼ Construction Wharf and backside in Taichung Harbor ----
  Taipower rents for 20 years and share with other developers
                                                 Taichung Harbor

                                   5A
                Backside         5B
                total 12.8 ha.

                                            4C

                                        9                          9
Taipower's Practices for Offshore Wind Power - 2020 GLOBAL OFFSHORE WIND SUMMIT TAIWAN - Global Wind Energy ...
⚫ Local installation vessels, supply chain capability,
   and marine technicians are all insufficient.

                          10
Localization Schedule issued by IDB
Industry Correlation Program showing Items should be locally-made each year
Time         2021~2022                   2023                  2024          2025
     ➢Tower                   ➢ Spare Parts of WT ➢ Spare Parts of
     ➢Marine substructure       :                      WT:
     ➢Power facility:           Nacelle assembly,      Gear box,
      1.Transformer             transformer, panel,    generator,
                                UPS, nose cone,        power transition
      2.Switch.
                                cable, hub casting,    system, blade &
      3.Panel                   fastener               its resin, nacelle ➢
     ➢Maritime engineering ➢ Submarine cable                                All the
                                                       cover, nacelle
     1. Investigation,                                                      items
                              ➢ Maritime               base casting
                                                                            from
       exploration, cable       engineering          ➢ Maritime
Item                                                                        2021~
       laying, audition        1. Construction,        engineering
                                                                            2024
     2. Construction vessel :    installation, cable
                                                                            includ
       New build or rebuild      laying, audition
                                                                            ed
                                   2. Construction
                                     vessel : New build
                                     or rebuild
                                                          ➢ All the items
                                  ➢ 2021~2022 items
                                                            from 2021~2023
                                   included
                                                            included
◼ Local Supply Chain is Developing
            Some active local partners shown as below :

 Offshor
 e Wind
 Turbine
 System

 Comp                                                      Controler/Transfo
 onent
               Tower    Generator   Blade     Gear Box     rmer/switchboard    Yaw
                                              Formosa
 Local        CSMC        TECO                             Shihlin Electric
             CENTURY      Tatung    Atech      Heavy       Fortune Electric    TECO
 Firm                                         Industry

Periphera
l system

 Compo             Foundation         transmission       Marine Engineering Vessel
  nent

 Local             CSMC              WOENJINN                       CSBC
 Firm             CENTURY              TAYA                       HUNG HUA
                                                                   HWA CHI
                                                                  WOENJINN
                                                                                      12

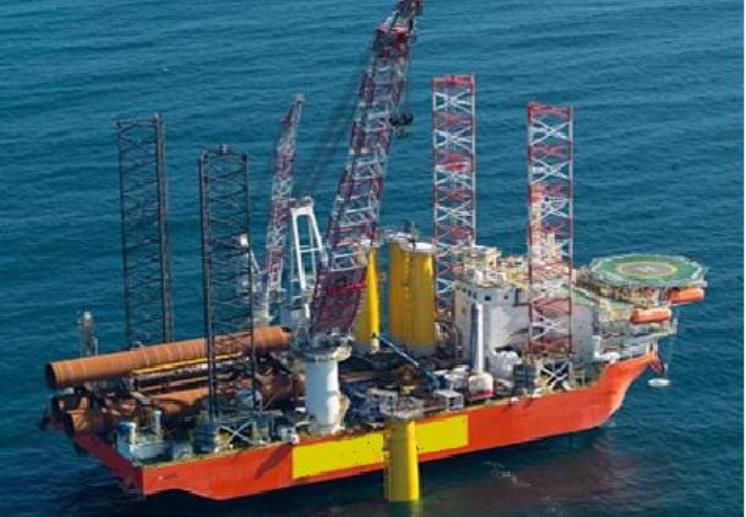

CSBC ‘S                       TIV
           M-Team                 (rent first)
           Plan
⚫ To set up a Wind
  power Vessel company
  to acquire TIV x1 and
  Bargex2
⚫ Cooperate with other
  vessels to form a fleet

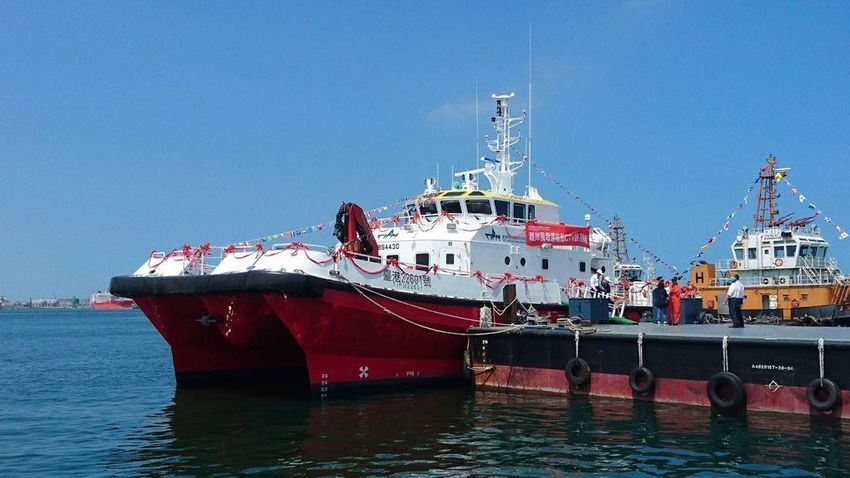

O&M ship

                            140m Barge
                            (building)
Third Party Certification’s division of labor in Taiwan
     BSMI counsel the following Corporations to sign MoU with
         K2 Management, DEWI–OCC, DNV GL, TÜ V SÜ D
                                              Accreditation
    Finance & Insurance
                                              全國認證基金會(TAF)
    台經院(TIER) (DD)

                                              (PC)
  Communication                               金工中心(MIRDC)
  電檢中心(ETC)

Power quality
大電力中心(TERTEC)                                   (MWS)
                                                驗船中心(CR)
➢ To Strengthen the Grid and Friendly for Connection

  • As being the unique operator of power grid in Taiwan, Taipower is
    also obliged to make the grid-connection friendly.
 However, the challenge ahead is much more tough than ever to face the
 renewable energy rush-in situation. The government’s RE target is as following :

  ⚫     By 2025 : 27GW (PV 20GW, Wind 6.7GW and others)
  ⚫     By 2035 : 37GW (Offshore wind power increase 1GW every year
        to reach 10GW of accumulation.
  Taipower has to upgrade the present grid of 5GW scale of green power to that
  large scale still with good quality in 5 and 15 years. The smart grid plan is now in
  progress to fulfill this mission.
                                                                                         15
2nd stage (Selection and Auction)
         Winners of selection                    Winners of auction

                                                          Total 5.5GW to
                                                          be constructed
                                                          by 2025

                        14        15

                                            26

                                       27

                                                       大彰化西北#12
                             19

                                       29

                                                        582.9MW

                                                       大彰化西南#14
                                                        337.1MW

                                                       海龍三號#18
                                                        512MW

                                                       海龍二號#19
                                                        232MW
OWFs Grid Connection Review
                                    麗威風力 372MW
                                  桃園塘尾D/S,併網無困難

                    台海風力 492MW
                   桃園塘尾D/S,待加強電              麗威風力 300MW
                      力網完成                  桃園榮成D/S ,待加
                                              強電力網完成
     福海風力 232MW
      彰化漢寶D/S,
    系統事故時須配合降載
                                             竹風風力 450MW
                                           新竹朝山D/S,併網無困難

     台電公司 108MW
   彰化大城D/S,併網無困難
                                            海洋風力 128MW
                                          苗栗營盤D/S,併網無困難

         允能風力 360MW
          雲林台西D/S,                        Conclusion :
        系統事故時須配合降載
                                          mostly no
      允能風力 360MW
    雲林四湖D/S,併網無困難
                                          problem, but
                                          some need grid
                                          enhancement.
                                                           17
Grid Connection in Changhua area
                                      Note: more the NT$50 billion budget
                2021.12     2022.12   2023.12    2024.12      2025.12

   capacity     彰一甲                   彰一乙         彰一乙         彰工2,000
                              0
    (MW)        1,000                  500        1,000       永興2,000

 Accumulated
                    1,000    1,000     1,500      2,500         6,500
    (MW)

government also
urges Taipower to
enhance the
Changhua grid and
provide more
connecting
capacity for OWP.
                                                                        18
➢ Smart Dispatch Facing with Renewable Energy
➢ The intermittent characteristic of Renewable Energy is the
  biggest challenge to system operation in period of high
  penetration.
➢ If the Renewable Energy generation suddenly drops, the
  system frequency may drop consequently to trigger UFLS
  relays and affect the reliability of power supply.

                                                               19
The Change Rate of Wind Power Generation in 2019

                                                   20
Smart Dispatch : Measures of System Operation
 Prepare all kinds of ancillary services                                                      Regulation

Reserve      Responsive      Regulation         Spinning      Supplemental
 type         Reserve         Reserve           Reserve         Reserve
Response                                        ~ 10 min         ~ 30 min
  time
             ms~seconds    seconds~3 min
                                             (30 min for now) (60 min for now)
                                                                                               Spinning    Supplemental
Duration     3-15 min↑        15 min↑            1 hr↑           2-4 hr↑                       Reserve     Reserve

Demand
in 2025
        1000~1200MW          ±1300MW            1000MW           1000MW
                                                                                 Responsive
                                                                                 Reserve
             Energy Storage System (590MW)        Energy Storage System
           Demand Response Demand Response
            (with UF-Relay)   (with ESS)
                                                 Demand Response
 Source
             Generator       Generator
                (Primary
               Frequency
                              (Automatic      Generator        Generator
                              Generation
               Response)       Control)

                                                                                                                   21
Seek for cooperation from Major Private Developers

Technical Requirements for Offshore Wind New Players
I. Improve RE generation forecast
II. Improve the ability of voltage support
III. Improve the ability of frequency support
IV. Capabilities of Voltage/Frequency Ride Through
V. Regulations for the ramp rate needs to be enacted
However, the above-mentioned requirements will be discussed to reach a
common acceptance through the reviewing of Grid Code before execution.

                                                                         22
⚫ Taipower being the unique public power buyer and seller in
  Taiwan, to meet the green energy demand of customers is also
  our upmost goal of business.
⚫ Should Orsted want to sell the energy of her Changhua OWF
  to TSMC, Taipower will provide the wheeling service.
⚫ However, don’t forget Taipower is the largest green energy
  provider, our green energy is abundant, price-justified with
  good quality and lots of diversity. Please contact our Business
  Department for further information.

                                23
➢ Conclusion and Suggestion
 • Taiwan strait is appraised to possess the richest offshore wind resources
   in the world, but also the most severe environment with lots of
   difficulties.
 • Taipower has taken three practices for more green energy and still keep
   the system safe, i.e. produce own green energy in spite of low rate of
   return, strengthen the grid and make the connection more friendly, and
   finally perform a smart dispatch.
 • Working cooperatively with all the developers and stakeholders,
   Taipower is confident to cope with the 10GW more capacity of OWP by
   2035, and we welcome all the partners from all over the world, coming
   to Taiwan to accomplish our common dream of OWP in Asia.

                                                                           24

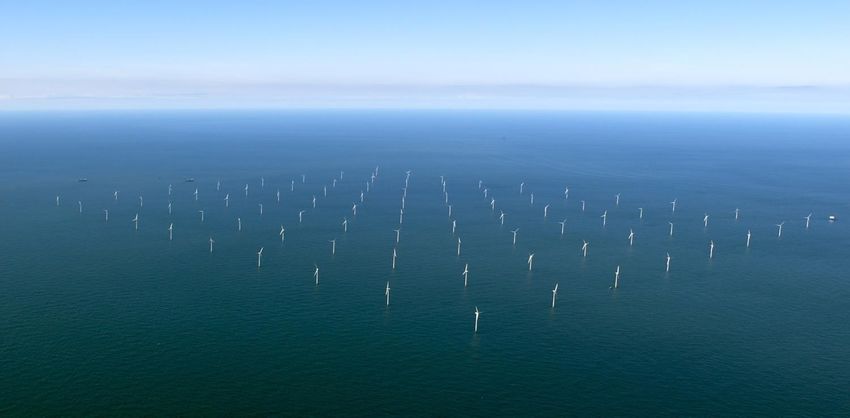

✓ Danish Horns Rev I
  OWF 80@2MW
  since 2003
✓ Changhua OWF
  4GW by 2025
