SOUND PACK CONFIGURATOR - 2021 sound system
Sound Pack Configurator
OEM sound system upgrade for:
// R S 10
// - 2021 Recommended Setup Files Upgrade Level
Plus
AMP + FRONT + REAR + SUB
Description
Large basket 2way front + Small basket Coax rear + SUB4ohm underseat + AP8.9 bit + cables
Description
8 ch dsp-amp + 2 way system driven by active bi-amplification with 6 x 9 in. woofers in the front doors and tweeters in the
a-pillars + 6.5 in. coaxials in the rear doors + 10 in. active sealed sub box under the rear seats.
Cables and accessories provided.
Download setup files
Phone: +39 0733 870800 / General inquiries: questions@elettromedia.it Page 1/5
SOUND PACK CONFIGURATOR - 2021 sound system
DSP setup file
Memory A: soundstage optimized for driver's seat.
Memory B: overall soundstage optimization.

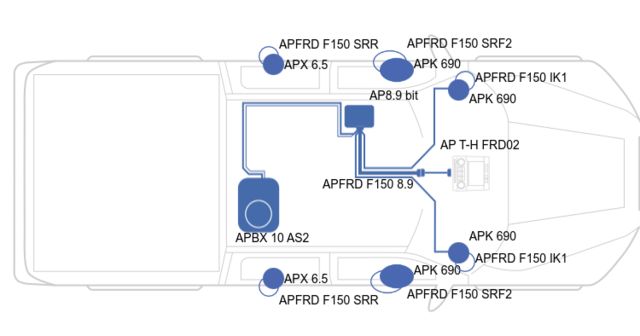

Components
AP8.9 bit
Quantity: 1
Position: Under front left seat
Description: The AP8.9 bit amplifier was designed by Audison R&D Department to
achieve maximum sound quality in OEM Integration applications. The powerful
management software proves the ability to acquire the bit Drive presets which the
Audison team fine-tuned specifically for your car. Thanks to the innovative power
supply stage, a power of 520 W total can be achieved in an extremely compact case.
The non-amplifiable ninth channel can be used to drive a subwoofer via the mono
AP1 D amplifier.
APK 690
2 Way system components
Quantity: 1
Position: Front door and A-pillar
Description:
APK 690 systems are ideal for car models with doors equipped to house
elliptical speakers, featuring 6x9 in. woofers and AP 1 tweeter with dedicated
crossovers APCX TW 690. The crossovers are ultra-compact to facilitate their
installation, and include an attenuation of the tweeter output level for outstanding
fine-tuning.The R&D team optimized the electro-acoustic parameters of the new
woofers for installation in the car door, respecting all the characteristics of the
Prima speakers, such as the compact size of the basket to facilitate installation. The
mechanical cut-off of the woofer cone-dust cap system ensures they can be used
without a filter, maximizing efficiency to be easily driven by any type of amplifier. The
large voice coil ensures high power handling and impeccable control even in the
most aggressive dynamic transients. The double Faston connectors with direct link to
the tweeter speed up the speakers connection, always ensuring a perfect contact.
Phone: +39 0733 870800 / General inquiries: questions@elettromedia.it Page 2/5
SOUND PACK CONFIGURATOR - 2021 sound system
APBX 10 AS2
ACTIVE SUB BOX
Quantity: 1
Position: Under rear right seat
Description: The Prima APBX 10 AS2 active subwoofer, with 10-inch driver,features
a dedicated high performance amplification module which enhances all the
passive box technologies, such as the 2S² (2 Sides / 2 Sounds) design, the Plug &
Play terminal block and ultra-compact size. The amplification module, with power
outputs of 400W RMS is developed with he-li technology (high efficiency / low
impedance), which thanks to the absence of the DC-DC voltage booster reaches the
impressive 90% efficiency level, very close to the theoretical limit of the D-Class.
New input stage DBT (Dynamic Bass Tracking) technology allows 100% use of
the he-li (High Efficiency Low Impedance) amplifier power and to enjoy a tense and
dynamic bass even at very high listening volumes. Eliminating the voltage booster
was made possible thanks to the development of the new dual coil drivers, which
inherit all the technological background of the Prima subwoofers, but differ for the
ultra low impedance (0.16 ohms for APBX 10 AS). This feature ensures a perfect
synergy with the he-li (High Efficiency Low Impedance) technology, maximizing the
combination of amplifier, speakers and sealed box, to obtain low, powerful and
crisp frequencies. The controls section is complete and provides an optimal
regulation of the low frequency emission in the car cabin. The Butterworth low
pass filter at 12dB/Oct. with variable cut-off frequency (50-200 Hz) can be
bypassed, when used with an AP bit processor with pre-out output dedicated to the
sub. The adjustable bass-boost control (0 ÷ 6 dB) at 45 Hz allows the user to
emphasize the response in the lower side of the spectrum. The high-level
speaker-in input on multi-pole connector eases the integration with OEM audio
systems while the low-level input on RCA is dedicated to the connection with after
market sources. The subwoofer automatic turn on/off function ART (Automatic
Remote Turn-On) can be configured to be controlled by the source’s remote signal,
by the voltage variation on the high-level input or by the audio signal on both inputs.
Phase control (0 - 180 °) completes the equipment. The SSP (Sub Smart Plug)
terminal block is provided with a single Plug&Play connector to be able to disconnect
the box easily and safely.
Phone: +39 0733 870800 / General inquiries: questions@elettromedia.it Page 3/5
SOUND PACK CONFIGURATOR - 2021 sound system
AP T-H FRD02
PRIMA T-HARNESS FORD 2015 ->
Quantity: 1
Position: Dashboard
Description: T-Harness “DCC” is the Plug&Play solution for FORD models released
after 2015 to integrate Audison Prima with the factory car audio system. The battery
positive is taken from the head unit without the need of reaching the engine
compartment thanks to the DCC* solution. *The DCC solution, (Direct Cockpit
Current) can be used combined with the AP bit amplifiers’ feature which controls the
amplifier absorption peaks, protecting the car power supply system.
APFRD F150 8.9
ACTIVE FRONT&SUB CABLE 2011-->
Quantity: 1
Position: Cabin
Description: Extension cables for AP8.9 bit specifically developed for Ford F-150
APFRD F150 IK1
AP 1 INSTALLATION KIT
Quantity: 1
Position: A-pillar
Description:
AP 1 tweeter speaker support dedicated to Ford F-150 A-Pillars.
APFRD F150 SC2
Quantity: 2
Position: None
Description: FORD F-150 speaker cable adapter.
Phone: +39 0733 870800 / General inquiries: questions@elettromedia.it Page 4/5
SOUND PACK CONFIGURATOR - 2021 sound system
APFRD F150 SRR
REAR WOOFER RING
Quantity: 1
Position: Rear door
Description:
Adapter rings to install the APX 6.5 coaxial in the FORD F-150 rear door OEM
placement.
APFRD F150 SRF2
Quantity: 1
Position: Front door
Description: Adapter rings to install the AP 690 in the FORD F-150 front door OEM
placement.
APX 6.5
Quantity: 1
Position: Rear door
Description: APX 6.5 features a concentric coaxial tweeter: with one single point of
sound emission it is possible to obtain a consistent in-phase response, with
consequent reconstruction of the acoustic scene comparable to a system of separate
woofer + tweeter. The 6.5" cones surround features the exclusive shallow “Triple
Wave” profile, for maximum excursion linearity.
Phone: +39 0733 870800 / General inquiries: questions@elettromedia.it Page 5/5
