Security Camera and Video Doorbells Building Automation Users must independently evaluate the suitability of and test each product selected for their own specific applications. It is the User’s sole responsibility to determine fitness for a particular system or use based on their own performance criteria, conditions, specific application, compatibility with other parts, and environmental conditions. Users must independently provide appropriate design and operating safeguards to minimize any risks associated with their applications and products. Littelfuse products are not designed for, and may not be used in, all applications. Read complete Disclaimer Notice at littelfuse.com/disclaimer-electronics. REV0420
Smart homes are equipped with intelligent technologies for convenient and energy-efficient living Security IoT-controlled system s appliances Sm art locks & access controls Zigbee Lighting controls Energy m anagem ent Entertainm ent Z wave system s Sm art outlets IoT devices protect, control, and sense to improve safety, reliability, convenience, and energy efficiency of buildings Littelfuse, Inc. © 2020 2
Security cameras are a fast-growing market Projected increase in security camera Market Trends and Drivers Ingenico and Verifone comprise installation from 2018 to 20238ctions An estimated 120 million units of non-residential security cameras are installed each year globally, and this is expected to Residential Security Cameras increase at a CAGR of 11% Non-Residential Security Cameras 160 Growth in Asia is driven by government initiatives to improve public safety and security. Growth in the Americas is driven by retail and 140 commercial use 120 Million Units 100 Global residential security camera unit shipments are expected to 80 grow from 54 million units in 2018 to 120 million units in 2023 at a CAGR of 17% 60 40 Wired and wireless cameras are expected to maintain the majority 20 of the shipment volume. The video doorbell segment is expected to show the largest growth over the next three years 0 2018 2019 2020 2021 2022 2023 Cameras with thermal imaging functionality to detect body Year temperature will show significant growth driven by the COVID-19 Sources: 1. Global Video Surveillance Market (Markets and Markets, Apr 2020) pandemic 2. Security Cameras Market (Transparency Market Research, 2016) Littelfuse, Inc. © 2020 3

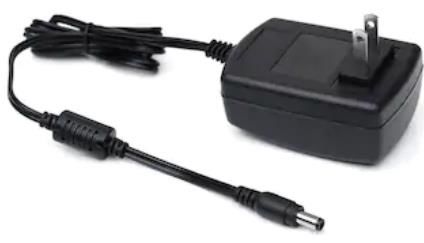

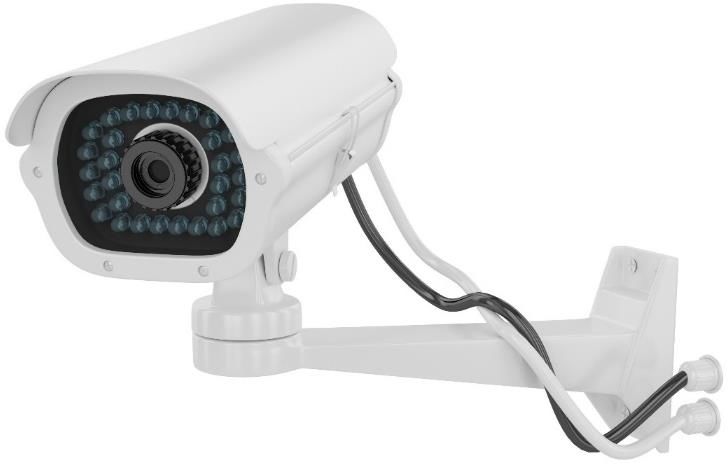

Littelfuse solutions for wired security cameras Memory DC power input ⚫ TVS diode ⚫ Fuse, PPTC ⚫ TVS diode Motor drive Power over ethernet ⚫ Solid state relay ⚫ Fuse, PPTC ⚫ Diode array Power adapter ⚫ Fuse ⚫ MOV ⚫ TVS diode Protect Control Sense Littelfuse, Inc. © 2020 4
Click on the product series in the table below for more info Wired security camera functional block diagram Technology Series AC mains 1 100 ̶ 240 Vac DC input Lens Fuse 875, 807, 373 Pow er *Image adapter stage sensor 1 MOV TMOV*, LA, UltraMOV 2a interface TVS diode P6KE, P6SMB Fuse, PPTC 461, 449, picoSMD Control board 2a DC TVS diode 5.0SMDJ 3 Motor Drive motor LED Fuse, PPTC 461, 449, picoSMD Memory indicator & 2b Lens SRV05-4HTG, (SD card) Diode array driver motor SP0504SHTG driver 3 Diode array SP1006 2b 4 Solid state relay CPC1560 Wired DC input Pan & interface MCU * TMOV is the recommended solution to comply with the new (RJ45) tilt motor IEC 62368-1 standard 4 POE Legend: Power Line Signal Line Littelfuse, Inc. © 2020 5
Click on the product series in the table below for more info Benefits of Littelfuse products for wired cameras Technology Function in application Product series Benefits Features Protects power stage from Reduces customer qualification time by Third-party compliance (UL/IEC); low internal Fuse 875, 807, 373 complying with third-party safety standards overcurrent events resistance; shock safe; vibration resistant such as UL/IEC Reduces customer qualification time by Protects power unit from voltage High energy absorption capability: 1 MOV transients and lightning TMOV*, LA, UltraMOV complying with third-party safety standards 40–530 J (2 ms) such as UL/IEC Improves system reliability by protecting 600 W peak pulse capability; glass Protects power unit from voltage TVS diode P6KE, P6SMB downstream parts from transients on passivated chip junction; compatible with transients power lines lead-free solder reflow temperature profile Surface mountable; resettable option; Protects the power stage from Reduces customer qualification time by Fuse 461, 449, picoSMD compatible with the lead-free solder process overcurrent events complying with UL/IEC; compact design per IEC standards 2a Protects sensitive electronic parts 5000 W peak pulse capability; compatible Improves system reliability by clamping the TVS Diode in power stage from voltage 5.0SMDJ with high temperature soldering; fast voltage at safe levels during transients transients response time (< 1.0 ps) Surface mountable; resettable option; Protects the power stage from Reduces customer qualification time by Fuse, PPTC 461, 449, picoSMD compatible with the lead-free solder process overcurrent events complying with UL/IEC; compact design per IEC standards 2b Protects sensitive electronic parts SRV05-4HTG, Compact package with multi-rail protection; Multiple rail-to-rail protections; low leakage Diode array current; low capacitance of 1 pF (TYP) from voltage transients SP0504SHTG retains high-speed signal reliability per I/O Protects memory card from user- Industry’s smallest footprint available (0201); 3 Diode array induced ESD event SP1006 Enables compact design; low power loss low leakage current Optically-isolated switch to drive Robust operation with integrated protection Integrated current limit, thermal shutdown; 4 Solid state relay motor CPC1560 incase of motor stalling bounce-free switching; fast turn-on Littelfuse, Inc. © 2020 6

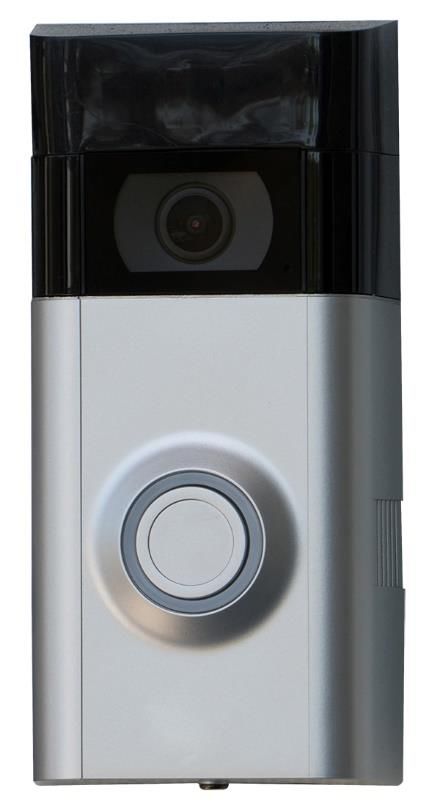

Littelfuse solutions for wired doorbell cameras Memory Power supply unit ⚫ TVS diode ⚫ Fuse ⚫ TVS diode ⚫ Solid state relay Wireless interface Door bell chime ⚫ Polymer ESD suppression ⚫ Solid state relay User interface Charging port ⚫ Diode array ⚫ Fuse ⚫ TVS diode ⚫ Diode array Protect Control Sense Littelfuse, Inc. © 2020 7
Click on the product series in the table below for more info Wired doorbell camera functional block diagram 1a Technology Series Lens Pow er Image Fuse 443, 449 supply sensor Utility unit interface 1a Solid state relay PLB190 24 Vac TVS diode 4.0SMDJ24A 5 Fuse 469, 449 Wireless interface 1b* TVS diode SMBJ 1b Battery pack MLV MLA Control board 4 Battery 2 TVS diode array SP1006 management LED MCU indicator Memory 3** Solid state relay LCB710 unit (SD card) & driver 4 Diode array SP1006 Polymer ESD PGB10603, Li-Ion cells 5*** suppressor PGB10402 USB * In some applications, micro-USB port is provided for charging removable Li-Ion charging 3 User interface 2 batteries. The rechargeable battery is built in and gets power from the main power stage cable USB Doorbell Microphone & Push User ** This is found in European markets where SSR is used to cut off vampire power chime speaker button and as an energy harvester switch to transfer power to the image sensor only a few times an hour, as per privacy regulations *** This is recommended for compact designs where clearance between the antenna and the casing is < 2 mm Legend: Power Line Signal Line Littelfuse, Inc. © 2020 8
Click on the product series in the table below for more info Benefits of Littelfuse products for doorbell cameras Technology Function in application Product series Benefits Features Reduces customer qualification time by Surface mountable; compatible with the Protects the power stage from Fuse 443, 449 complying with UL/IEC; compact design; lead-free solder process; wide range of overcurrent events avoids nuisance trips current ratings; time lag 1a Solid state relay Optically-isolated switch PLB190 Improves system reliability; enables 5000 Vrms input/output isolation; no EMI/RFI compact design generation; arc-free with no snubbing circuits Protects sensitive electronic parts Improves system reliability by clamping the 4000 W peak pulse capability; lead-free TVS diode 4.0SMDJ24A from voltage transients voltage at safe levels during transients solder reflow temperature profile compatible Surface mountable; wide range of current Protects from high discharge Reduces customer qualification time by Fuse 469, 449 ratings available; compatible with the lead- currents due to external shorts complying with UL/IEC; compact design free solder process, per IEC standards Enables compact design; improves system 600 W peak pulse power capability; 1b TVS diode Protects sensitive electronic parts SMBJ reliability by protecting downstream parts excellent clamping capability; fast response from voltage transients through clamping the voltage at safe levels time: typically less than 1.0 ps during transients on power lines Fast clamping response; rigid performance Bidirectional clamping; low form factor; wide MLV ESD protection for data lines MLA under high temperatures operational temperature range Protects memory card from user- Industry’s smallest footprint available (0201); 2 Diode array induced ESD events SP1006 Enables compact design; low power loss low leakage current Optically-isolated switch functions Enables OEMs to meet European privacy Normally closed switch; no EMI/RFI 3 Solid state relay as an dual purpose switch LCB710 regulation; enables compact design; low between chime and camera power loss and potential energy harvesting generation; arc-free with no snubbing circuits Protects memory card from user- Industry’s smallest footprint available (0201); 4 Diode array induced ESD events SP1006 Enables compact design; low power loss low leakage current Enables compact design and low clearance Polymer ESD Protects the Wi-Fi chipset from PGB10603, Ultra-low capacitance; compact form factor; 5 suppressor user-induced ESD events PGB10402 between antenna and casing; retains RF signal integrity; improves system reliability low leakage current; fast response time Littelfuse, Inc. © 2020 9
Littelfuse solutions for wireless security cameras Wireless interface Power adapter ⚫ Polymer ESD suppressor ⚫ Fuse ⚫ MOV ⚫ TVS diode Memory ⚫ TVS diode Charging port ⚫ PPTC ⚫ MLV Protect Control Sense Littelfuse, Inc. © 2020 10
Click on the product series in the table below for more info Wireless security camera functional block diagram 2 Technology Series Battery pack Image Lens Fuse 875, 807, 373 Battery sensor MOV C-III, LA, UltraMOV management interface 1 unit TVS diode P6KE, P6SMB 4 Temperature indicator** setP TM AC mains Wireless 100 ̶ 240 Vac Li-Ion cells interface PPTC 0805L, nanoSMD, picoSMD 2 MLV MLA 1 3 Temperature indicator** setP TM Control board USB USB adapter LED 3 Diode array SP1006 Memory PGB10603, MCU indicator Polymer ESD (SD card) 4* suppressor PGB10402 & driver * This is recommended for compact designs where clearance between the antenna and the casing is < 2 mm Legend: ** The setP™ solution is recommended for USB type C port protection. Power Line Signal Line Littelfuse, Inc. © 2020 11
Click on the product series in the table below for more info Benefits of Littelfuse products for wireless cameras Technology Function in application Product series Benefits Features Reduces customer qualification time by Protects power stage from Third-party compliance (UL/IEC); low internal Fuse 875, 807, 373 complying with third-party safety standards overcurrent resistance; shock safe; vibration resistant such as UL/IEC Reduces customer qualification time by Protects power unit from voltage High energy absorption capability: MOV C-III, LA, UltraMOV complying with third-party safety standards transients and lightning 40–530J (2ms) 1 such as UL/IEC Improves system reliability by protecting 600 W peak pulse capability; glass Protects power unit from voltage TVS diode P6KE, P6SMB downstream parts from transients on power passivated chip junction; compatible with transients lines lead-free solder reflow temperature profile Temperature Protects USB-C plugs and Auto resets after fault is removed; allows for setP TM Resettable; low resistance; compact design indicator receptacles from overheating compact design Protects the power stage from 0805L, nanoSMD, Auto resets after fault is removed; allows for PPTC Resettable; low resistance; compact design overcurrent events picoSMD compact design Fast clamping response; rigid performance Bidirectional clamping; low form factor; wide 2 MLV ESD protection for data lines MLA under high temperatures operational temperature range Temperature Protects USB-C plugs and Auto resets after fault is removed; allows for setP TM Resettable; low resistance; compact design indicator receptacles from overheating compact design Protects memory card from user- Industry’s smallest footprint available (0201); 3 Diode array induced ESD events SP1006 Enables compact design; low power loss low leakage current Enables compact design and low clearance Polymer ESD Protects the Wi-Fi chipset from PGB10603, Ultra-low capacitance; compact form factor; 4 suppressor user-induced ESD events PGB10402 between antenna and casing; retains RF signal integrity; improves system reliability low leakage current; fast response time Littelfuse, Inc. © 2020 12
Select safety standards for surveillance cameras Standard Title General scope Littelfuse Technology Region Audio/video, information and This part of IEC 62368 is a product safety standard that classifies communication technology energy sources; prescribes safeguards against those energy IEC 62368-1 Fuse, MOV Global equipment – Part 1: safety sources; provides guidance on the application of, and requirements requirements for, those safeguards Secondary cells and batteries Safety requirements for portable sealed secondary lithium cells, IEC 62311-2 containing alkaline or other non- and for batteries made from them, for use in portable applications Fuse, PPTC Global acid electrolytes - Part 2: Lithium systems Thermal scanning using security cameras to monitor body temperature post COVID-19 Littelfuse, Inc. © 2020 13
Additional information can be found on littelfuse.com LittelfuseCapability Brochure Integrated Circuits Catalog Click on images to open the catalog Littelfuse, Inc. © 2020 14
Local resources supporting our global customers Bremen Mount Prospect Lampertheim Lake Mills Essen Chicago Leiden Lauf Champaign Amsterdam Deventer Beijing Burlington Wuxi Saskatoon Suzhou Kaunas Shanghai Chippenham Kunshan Legnago Tsukuba Rapid City Tokyo Beverly Dongguan Fremont Hong Kong Seongham San Sebastian Seoul Milpitas Round Rock Charneca de Caparica Taipei Long Beach Chu-pei Piedras Negras New Delhi Taguig Matamoros Lipa City Muzquiz Singapore Manaus São Paulo Legend Sales R&D Manufacturing Littelfuse, Inc. © 2020 15
Partner for tomorrow’s electronic systems Broad product portfolio Compliance & regulatory expertise A global leader with a broad product We help customers in the design portfolio, covering every aspect of process to account for requirements protection, sensing, and control set by global regulatory authorities Safer Application expertise Testing capabilities Our engineers partner directly with To help customers get products to customers to help speed up product market faster, we offer certification design and meet their unique needs testing to global regulatory standards Connected Greener Global customer service Global manufacturing Our global customer service team is High-volume manufacturing that is with you to anticipate your needs and committed to the highest quality ensure a seamless experience standards Littelfuse, Inc. © 2020 16
