Renault MASTER Always delivers
VAN SPECIFICATIONS
LWB Mid
Roof
SWB Low Roof MWB Mid Roof LWB Mid Roof LWB Mid Roof ELWB High Roof
Window
Van
L1H1 L2H2 FWD L3H2 FWD L3H2 RWD L4H3 RWD
Transmission 165 MT 150 AMT 165 MT 150 AMT 165 MT 150 AMT 150 AMT 165 MT 150 AMT 165 MT 150 AMT
ENGINE
Type Turbocharged & intercooled direct injection diesel
Emission standard Euro 5
Capacity (cc) 2,299
Bore x stroke (mm) 85 x 101.3
Cylinders / valves 4 / 16
Maximum power (kW) @ (rpm) 120 @ 3500 110 @ 3500 120 @ 3500 110 @ 3500 120 @ 3500 110 @ 3500 110 @ 3500 120 @ 3500 110 @ 3500 120 @ 3500 110 @ 3500
Maximum torque (Nm) @ (rpm) 360 @ 1500 350 @ 1500 360 @ 1500 350 @ 1500 360 @ 1500 350 @ 1500 350 @ 1500 360 @ 1500 350 @ 1500 360 @ 1500 350 @ 1500
TRANSMISSION
Type 6 speed manual / 6 speed automated manual
Driven wheels Front Rear
Speeds at 1000 rpm in: 1st gear 6.75 5.93
2nd gear 12.64 11.5
3rd gear 20.36 17.1
4th gear 28.95 23.36
5th gear 37.36 30.55
6th gear 40.34 38.22
STEERING & BRAKES
Turning circle (kerb to kerb) (m) 12 13.6 15.7
Turns lock-to-lock 3.76
Brakes (front) 302 x 28 Disc
Brakes (rear) 305 x 12 Disc 302 x 18 Disc
WHEELS & TYRES
Wheels (front)
6.5 J16 5.5 J16
Wheels (rear)
Tyres (front) 195/75 R16 (Single)
225/65 R16 (Single)
Tyres (rear) 195/75 R16 (Dual)
CAPACITY (L)
Fuel tank 100
WEIGHTS (KG)
Kerb weight 1847 1816 1927 1927 1970 1970 2020 2288 2288 2366 2366
Gross vehicle mass 3510 3890 4495
Payload 1663 1694 1583 1583 1540 1540 1870 2207 2207 2129 2129
Front axle load 1850
Rear axle load 2100 3200
Towing weight, braked 2500 3000
Towing weight, unbraked 750
VOLUME (M³)
Load volume 8 10.8 13.0 12.4 17.0
DIMENSIONS

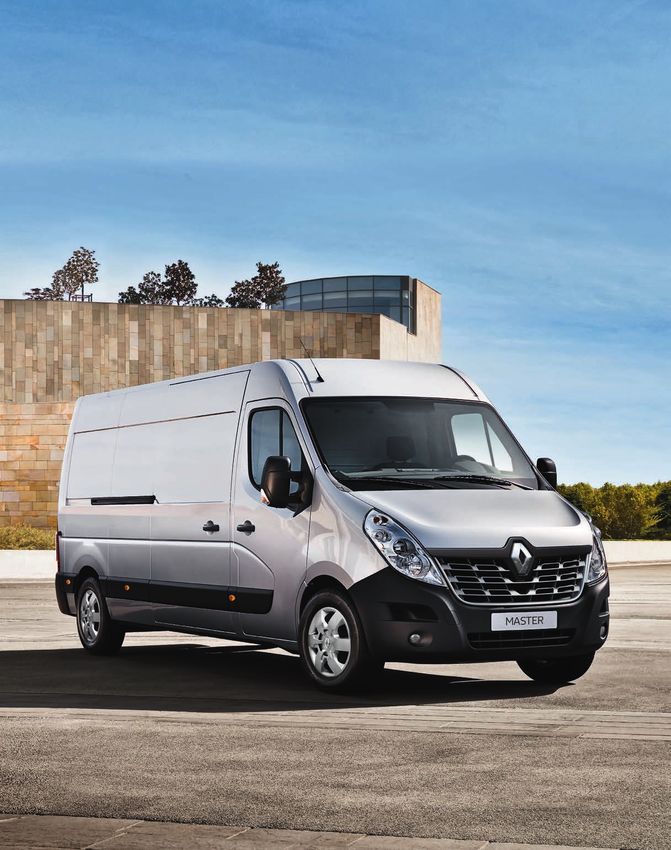

Overseas model shown
LWB Mid
Roof
Model SWB Low Roof MWB Mid Roof LWB Mid Roof LWB Mid Roof ELWB High Roof
Window
Van
L1H1 FWD L2H2 FWD L3H2 FWD L3H2 RWD L4H3 RWD
DIMENSIONS (MM)
A - Wheelbase 3182 3682 4332
B - Overall height (unladen) 2310 2499 2549 2808
C - Overall width (excluding
2070
standard door mirrors)
D - Overall width (including
2470
standard door mirrors)
E - Overall length 5048 5548 6198 6848
F - Cargo bay length (Max.) 2583 3083 3733 4383
G - Cargo bay width (Max.) 1765
H - Cargo bay height (Max.) 1700 1894 2048
I - Cargo bay width between
1380 1080
wheel arches (Max.)
J - Front overhang 842
K - Rear overhang 1024 1674
L - Width of sliding door(s) 1050 1270
Height of sliding door
1581 1780 1684
opening(s)
M - Rear door width 1580
Rear door height 1627 1820 1724
N - Loading sill height
Min: 546 / Max: 560 Min: 550 / Max: 564 Min: 543 / Max: 557 Min: 706 / Max: 724 Min: 700 / Max: 715
(laden/unladen)
Minimum ground clearance 219 214
FEATURES
Window Window
Panel van Panel van
van van
FWD RWD FWD FWD RWD FWD
L1H1 L2H2 L3H2 L3H2 L4H3 L3H2 L1H1 L2H2 L3H2 L3H2 L4H3 L3H2
SAFETY & SECURITY 2 x USB audio inputs & 3.5mm
ABS (Anti-Lock Braking AUX jack (1x USB with R-Link S S S S S S
System) with EBD (Electronic S S S S S S system)
Brake Force Distribution)
12V dashboard power outlet
ESC (Electronic Stability Control) S S S S S S (2x 12V dashboard power S S S S S S
Renault Grip X-tend S S S S S S outlet with R-Link system)
Hill Start Assist S S S S S S ESM (Energy Smart
3-point height adjustable front Management) with S S S S S -
S S S S S S regenerative braking systems^
seat belts with pre-tensioner
Driver and passenger 180A alternator S S S S S S
S S S S S S
front airbags Reverse parking sensors S S S S S S
Remote central locking S S S S S S Reversing camera S S S S S S
One touch door locking S S S S S S EXTERIOR
Hands-free key O O O O O O Small wheel covers S S S S S O
Renault Anti-Intruder Device Full wheel covers O O O - - S
(R.A.I.D) – automatic locking of
S S S S S S Under body spare wheel S S S S S S
doors while driving (activated
once above 30km/h) Front & rear mud flaps S S S S S S
Alarm O O O O O O Protective body side mouldings S S S S S S
Engine immobiliser S S S S S S Front bumper with
S S S S S S
integrated step
Double optic front headlamps S S S S S -
Electric adjustable door mirrors
Double optic front headlamps S S S S S S
O O O O O S with wide angle blind spot
with cornering lamps
Left sliding door - unglazed S S S S S O
Automatic headlights and rain Left sliding door - glazed
sensing windscreen wipers O O O O O O O O O O O S
& right panel - glazed
(available with front fog lights)
Left sliding door - opening
Automatic headlights with window & right panel - - - - - - O
High/low beam function opening window
and rain sensing windscreen O O O O O O Left & right sliding
wipers (only available with O O O O O O
door - unglazed
front fog lights)
Left & right sliding
O O O O O O
Variable speed windscreen door - glazed
S S S S S S
wipers Left & right sliding door -
O O O O O O
Turn indicator lights on door opening window
S S S S S S
mirrors with highway mode
Glazed rear side panel
Front fog lights S S S S S S (only available with left & right
O O O O O O
Brake pad wear indicator S S S S S S sliding doors glazed or
opening windows)
Lane departure warning O O O O O O
Dual rear doors with 180
Cruise control & variable S - - - - -
S S S S S S degree opening - glazed
speed limiter
TECHNOLOGY Dual rear doors with 180
O - - - - -
degree opening - unglazed
R-Link Enhanced Satellite
Navigation system with O O O O O O Dual rear doors with 270
touchscreen - S S S S S
degree opening - glazed
Multifunction trip computer S S S S S S
Dual rear doors with 270
- O O O O O
Automatic Start&Stop engine degree opening - unglazed
S S S S S -
technology (programmable)^
Eaton® automatic
ECO Mode^ S S S S S - - - - O O -
differential lock
Gear change indicator S S S S S S
2x15W CD/MP3 radio with
S S S S S S
steering mounted controls
Bluetooth® hands-free
connectivity with audio S S S S S S
streaming*
OPTION PACKS
Window Window
Panel van Panel van
van van
FWD RWD FWD FWD RWD FWD
L1H1 L2H2 L3H2 L3H2 L4H3 L3H2 L1H1 L2H2 L3H2 L3H2 L4H3 L3H2
INTERIOR CARGO
Height, reach, lumbar Full steel bulkhead - glazed S S S S S -
adjustable driver’s seat S S S S O O Cargo tie downs S S S S S S
with armrest
12V power outlet S S S S S S
Isringhausen® driver’s
O O O O S S 2 x interior cargo area lighting S S S S S S
suspension seat
Dual passenger bench seat Mid-height plastic cargo
with fold down centre seat & S S S S S S S S S S S S
area lining
integrated seat back table
Mid-height plywood cargo
- O O O O -
Storage compartment under area lining
passenger seat (not compatible O O O O O O Anti-slip timber floor O O O O O -
with Vinyl-look seat upholstery)
Anti-slip timber floor & plywood
O O O O O -
Height, reach, lumbar cargo area lining
adjustable single O O O O O O
WARRANTY
passenger seat
3 Year / 200,000 Kilometres with 24 Hour Roadside Assistance
3 front headrests with 2 height
S S S S S S PRO PACK
adjustable headrests
Alarm O O O O O -
Cloth seat upholstery S S S S S S
Hands-free key O O O O O -
Heavy Duty Low Maintenance
(Vinyl-look) seat upholstery Cornering double optic front
O O O O O -
(not compatible with storage O O O O O O headlamps
compartment under passenger
Anti-slip timber floor and
seat or driver’s suspension seat) O O O O O -
plywood cargo area lining
Height adjustable
S S S S S S PREMIUM PACK
steering column
Lane Departure Warning O O O O O -
Power steering S S S S S S
Climate controlled air
Wide view mirrors S S S S S S O O O O O -
conditioning
Rear view mirror S S S S S S
Automatic headlights, rain
Manual air-conditioning with sensing windscreen wipers, O O O O O -
S S S S S S
pollen filter fog lights
Climate controlled air Cornering double optic front
conditioning (only available O O O O O -
headlamps
with automatic headlights, O O O O O -
windscreen wipers and Hands-free key O O O O O -
fog lights) A4 dashboard storage
O O O O O -
compartment
Electric front windows S S S S S S
Overhead storage shelf S S S S S S Storage compartment under
O O O O O -
passenger seat
Cup holders (2 x dash, 2 x
S S S S S S R-Link Enhanced Satellite
console, 2 x seat back)
Navigation system with O O O O O -
2 x drink bottle door storage S S S S S S touchscreen
A4 dashboard storage PREMIUM PACK WINDOW VAN
O O O O O S
compartment
Automatic headlights with
Closed glove box S S S S S S High/low beam function and rain - - - - - O
Rear window demister S S S S S S sensing windscreen wipers
Smoking accessory S S S S S S Lane departure warning - - - - - O
Coat hooks x 3 S S S S S S Hands-free key - - - - - O
Interior light S S S S S S R-Link Enhanced Satellite
Digital clock with outside air Navigation system with - - - - - O
S S S S S S touchscreen
temperature display
*Bluetooth compatibility may vary depending on phone
^
Manual Transmission only
S — Standard
O — Factory Option
COLOURS

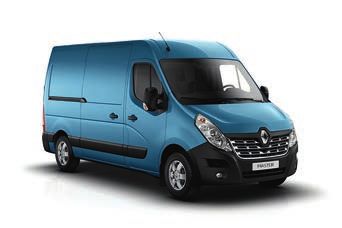

TEMPEST BLUE (J47) M PEARLESCENT BLACK (676) M

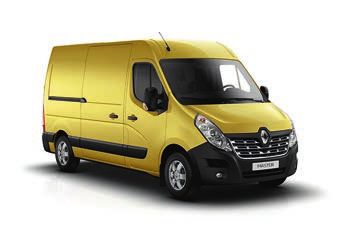

STAR GREY (KNH) M CHROME YELLOW (396) S
GLACIER WHITE (389) S ORANGE (031) S
ATLANTIC BLUE (489) S CARMEN RED (719) S
PERSIAN BLUE (RNQ) S CARIBBEAN BLUE (423) S
M Metallic
S Solid
