QUBE CENTER
YOUR PERSONAL ALL-ROUND PROTECTION

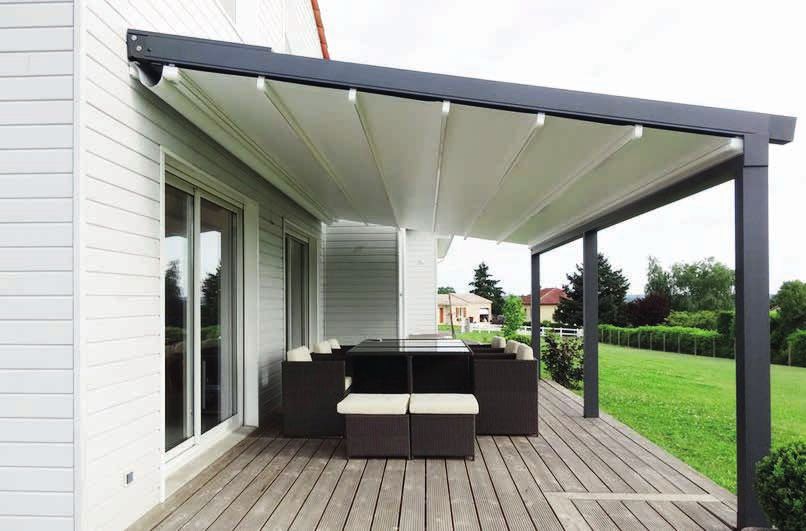

With its Qube series, ERHARDT Markisen has extended its range of pergolas. The QUBE Center is a modular
pergola for complete sun protection. It looks extremely elegant due to its slim profiles, and is flexible and
expandable in a modular manner. It combines design and functionality with maximum comfort, and thus
protects your terrace. This lets you extend your outdoor season. It is an “ingenious” solution for protecting
yourself from the sun, rain, wind and heat. The modern design of the QUBE Center allows it to fit perfectly
into your environment.
QUBE CENTER THE PERGOLA THAT GIVES YOU ALL-ROUND PROTECTION - QUBE CENTER
QUBE CENTER
ONE PRODUCT MANY OPTIONS

                                   Complete protection combined with appealing design

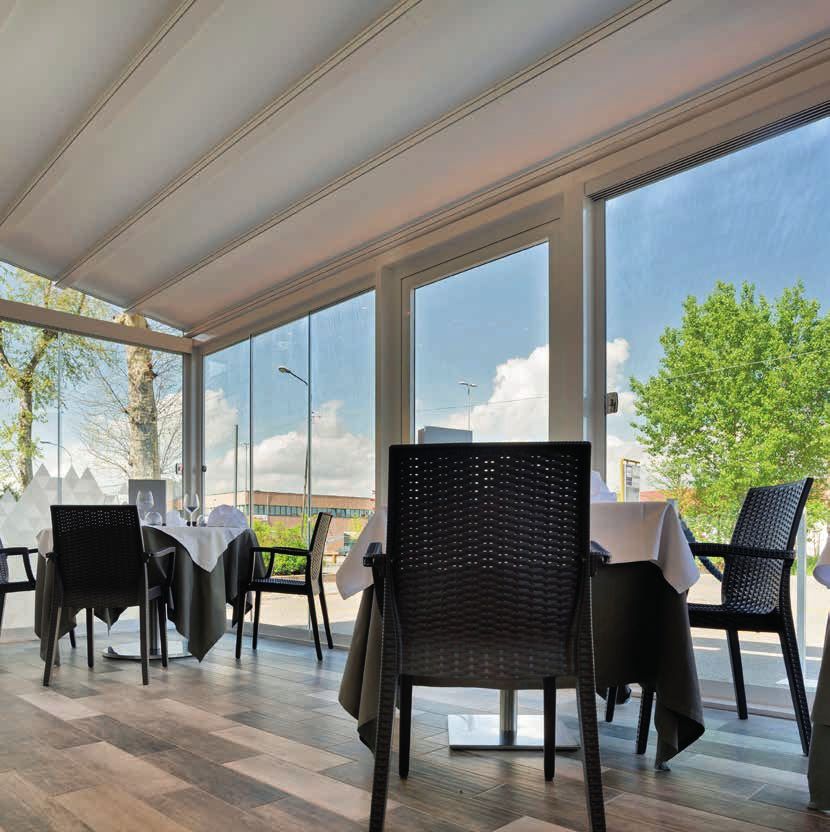

                                   The QUBE Center is characterised by its modularity with maximum protection of
                                   the terrace. In combination with the waterproof fabric and vertical zip awnings
                                   and/or all-glass sliding doors, the aluminium construction creates ideal protection
                                   for your terrace without being obtrusive.

Provision of maximum shade
The QUBE Center can protect large terraces up to a width of 13 m and a depth of
6.5 m.

                                   Patented sealing system
                                   Patented rain protection piping is attached to the side guide rails. This profile can-
                                   not move when the fabric is moving and is attached to the fabric with two sealing
                                   lips. This ensures the required impermeability and prevents water from penetrat-
                                   ing, even in the event of wind.

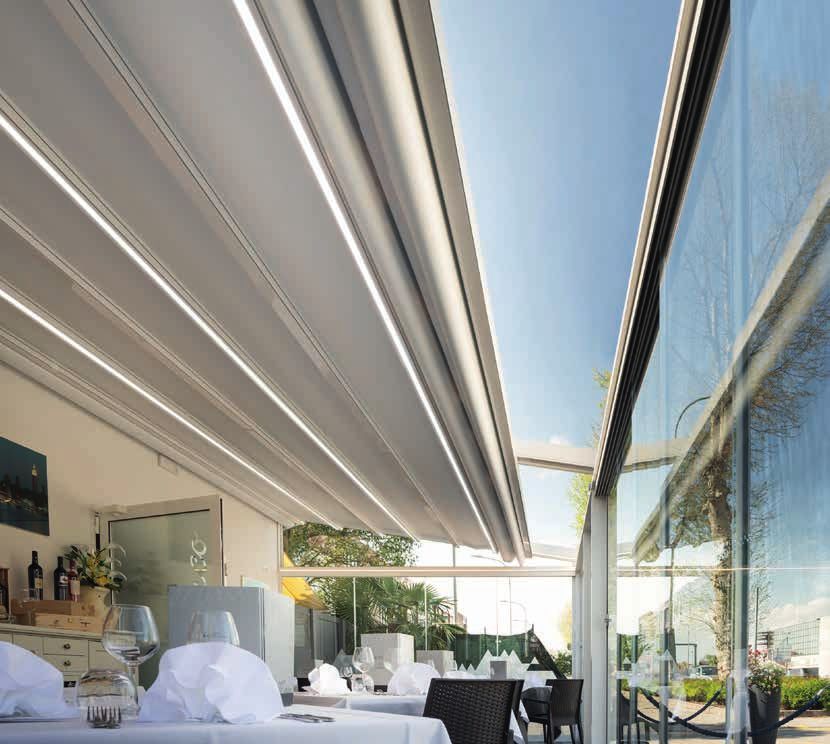

Ambience with dimmable LED strips
Dimmable LED strips (only dimmable with io) in the fabric support profile are avail-
able as an option and ensure your personal ambience by allowing you to conve-
niently use them via a remote control.

                                   Optimum protection for the fabric
                                   In its retracted state, the fabric is protected against dirt from above thanks to its
                                   rain cover.
Intelligent, concealed drainage
The waterproof fabric channels the rainwater into the front gutter. From there, the
water is drained in a concealed manner by the supports. No external downpipe
constructions disrupt the harmonious look.

                                  Adjustable support feet
                                  The slightest unevenness of the terrace is incorporated within the construction.
                                  The concealed and adjustable support feet enable the pergola to be mounted
                                  quickly and perfectly.

Resistant to high wind loads
The construction is designed for higher loads (up to class 7 according to the
Beaufort scale) in order to achieve comprehensive protection even in exposed
locations.
QUBE CENTER
AT A GLANCE

All features of QUBE Center
Maximum dimensions              1300 x 650 cm                                  Special features          » Concealed drainage due to posts
                                (max. width 1300 cm fabric in one piece)                                 » Fixed gutter in the front
                                                                                                         » Wind resistance class 6 in accordance
Means of installation           Wall mounting                                                              with UNI EN 13561
Areas of application            Pergola awning
Technology                      » One drive for both
                                  guide rails
                                » Aluminium construction with two guide
                                  rails, two posts and one water gutter
                                » Motors compatible with Somfy RTS
                                  and io control                               Optional additional features
                                                                               » Automatic wind and rain control
Frame colour                    » White (RAL 9016)                             » Lighting with LED strip in fabric support profile possible
                                » Grey-aluminium structured                    » Cross member in the side optional
                                  (RAL 9007 finely structured)
                                                                               » Vertical awnings ERHARDT Z E-105 and ERHARDT Z E-125
                                » Anthracite (DB 703)
                                » Available in any RAL colour                    for lateral shading
                                                                               » Create your refuge with all-glass sliding doors (GST)
Fabric designs                  » Flexlight SMART 6002
                                                                               » Infrared heating element
                                » Flexlight OPAQUE 6002
                                » Precontraint 502 Satin
                                » Precontraint 622 GRIGIO
                                » Precontraint 602 BIANCO / AVORIO
                                » Precontraint 622 BIANCO / AVORIO
                                » Soltis Proof W96

 For more information, please contact your ERHARDT dealer.

                                                                                                                                                   muproqubecenter | Effective 05/2021
