The point-to-point interface
for sensors and actuators.
i-
o m mun
c n
catio N,
, WA t TCP / IP
,
L A N e
r n
Ethe L
tion XM 1,
ry lisa t / IP, H A
p e rviso visua rn e
Ethe rofibus C
B
s u e t ,
leve
l trolN S, P
Con fibus FM
Pro
s,
rolle
r
I n t erbu s DP,
cont v i
t, bu
cene n, Profi - Link
D e
ope , CC
CAN finet IO
Pro
r
ont rolle
lised c rface
n
uctioevel tra nte
r o d decen AS - i
p rol l
cont
ink
IO - L nalo
gue
utput r y, a
bina 20 mA) /
t/o
inpu ( . meter s data
4 . .
para nostic
diag
l
leve
field
ess
proc
Interface for the last metre.
IO-Link is a point-to-point inter- the ”last metre“ to the sensor. sensors (pin 4 for M12 connectors).
face for the connection of any IO-Link is suitable for binary and The signal level is at standardised
sensors and actuators to a control analogue sensors. 24 V DC.
system. The combined switching status So, all existing connection cables
In contrast to conventional field- and data channel is the special can further be used for IO-Link
bus systems, there is no bus feature of IO-Link sensors. It is units.
wiring but parallel wiring. It is connected to the same pin as the
intended for the connection of switching output of conventional
Compatibility: Communication: Simple replacement of units:
Use also for older installations, IO-Link sensors command three Parameter setting of sensors and
downward-compatible by using types of communication: actuators can be done ”at the
the standard sensor signal. • Switching status (binary, like press of a button“ from the
conventional sensors). control level. Complex parameter
setting of each sensor on site, e.g.
Quick set up: • Cyclical process data (e.g. digi-
if recipes or tools are changed, is
Easy replacement of the IO-Link tal transmission of measured
a matter of the past.
units without additional soft- values).
ware changes or operating • Transmission of device param-
panels, reduction of the set-up eters and diagnostic data Data storage in the IO-Link
times. (e.g. faulty electronics of the master enables simple and reli-
sensor, load of the analogue able replacement of units.
output too high or device tem- The IO-Link master immediately
Future-proof: detects when a faulty unit is
perature too high).
Only one manufacturer and field- replaced by a new identical one
bus independent system that will and writes the saved parameters
replace all proprietary systems in The connection of the ”last of the replaced unit into the new
the medium term. metre“ is done via an unscreened device. The complex saving of
3-wire M12 standard cable up to device parameters is moved from
a length of 20 m.
Reduced downtimes: the higher-level fieldbus system
Additional diagnostic informa- to the IO-Link master.
tion which can be demanded, if Process data, e.g. measured
needed, means simpler fault values, is transmitted digitally. Standardised:
location and reduced downtimes. This reduces D/A and A/D con-
The specification of the manu-
version losses to a minimum,
facturer and fieldbus indepen-
enabling, for example, the con-
Central diagnosis: troller to process high-precision
dent system has been submitted
Central diagnosis of the complete to IEC as 61139 (CiD) by the IO-
signals of a pressure measuring
plant, e.g. via the FDT software. Link consortium. ifm electronic,
cell almost without loss.
a member of this consortium,
played a major role in the imple-
Automatic parameter In the communication mode 16 mentation of the specification.
setting: bits are transmitted per cycle.
Restoring the sensor / actuator With a baud rate of 4.8 kbaud
parameters in case of replace- the cycle time is 2 ms. Larger data
ment and servicing. volumes up to 32 bytes per cycle
can be transported in a special
frame type.
For hygienic For industrial
and wet areas applications

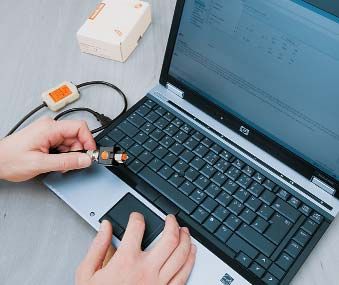

Saving IO-Link data –
quickly and easily.
Easy data storage for Just copy data:
IO-Link sensors: Sensors with the
IO-Link memory plug. same parameter
setting can be
The memory plug can be installed outside programmed even
prior to installa-
the critical zone so that the parameters
tion in the plant.
remain saved and quickly accessible even
when the sensor has been destroyed.
Especially for machine operators who
have not yet used an IO-Link master this
unit is an easy, time-saving and low-cost
alternative for data storage.
IO-Link interface:
Using the FDT
Container and IO-
Link interface data
can be written to
the memory plug
or restored to the
factory settings.
IO-Link memory plug
Looking into the sensor: The FDT techno- protocol used and With IO-Link the
logy standardises of the respective FDT technology is
with the FDT Container software. the communi- software environ- complemented
cation interface ment. and supported in
between field The user is also an optimum
devices and the free to choose the manner.
system environ- device and control
ment (host). system to be used.
The special feature In brief: With FDT
of this technology it is possible to
is that it is inde- address any unit
pendent of the via any system
communication using any protocol.
For more information
just scan the QR code with
your smartphone or
visit us at:
www.ifm.com/gb/io-link
An easy and efficient way to the goal –
ifm product families with IO-Link.
Pressure sensors with
To ensure the right level –
level and point level sensors
from ifm electronic.

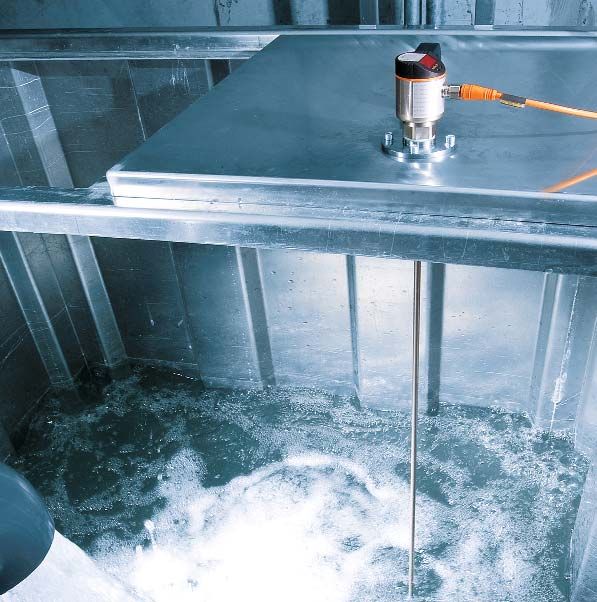

The LR level sensor is suitable for contin-
uous level monitoring. It measures level
using the guided wave radar principle.
The LMT point level sensor switches in
contact with the medium, e.g. to monitor
minimum or maximum levels. The sensor
can also be used for run-dry monitoring
of pumps. The optimum adjustment to
the medium is done via IO-Link. If there
are different media, the parameters can
also be changed via IO-Link.
Designs:
LR LMT
Level sensors with
Overload protection
and long-term stability:
pressure sensors.
Flush units for hygienic applications as
well as pressure sensors and pressure
switches for industrial applications are
some examples of ifm electronic’s product
Uninterrupted
range. The PN type sensors are available communication:
with different output configurations. This the IO-Link module.
is particularly important when IO-Link is
The point-to-point communication inter-
not used exclusively and the units are
face takes the physical signals of IO-Link
partly used as standard pressure sensors.
and standard sensors and transfers them
to the next higher bus level (AS-Interface).
Designs:
The module combines the advantages of
reduced bus wiring with the possibility of
PP PN PI
transmitting diagnostic, parameter and
process data of intelligent IO-Link units.
Conventional sensors and actuators can
also be connected.
Modular and precise:
temperature sensors.
Besides standard temperature sensors such
as transmitters and combined devices with
display, modular systems, transmitters for
drift monitoring and analogue measured
signal converters complete the product
portfolio.
Measured values, parameters and diagnos-
tic information such as self-test, output
interference, faulty sensor element, short
circuit of the outputs or parameter setting
errors can be transmitted via IO-Link.
Designs:
TN TR TAD TP
Temperature sensors with
Hand in hand:
IO-Link and AS-Interface.

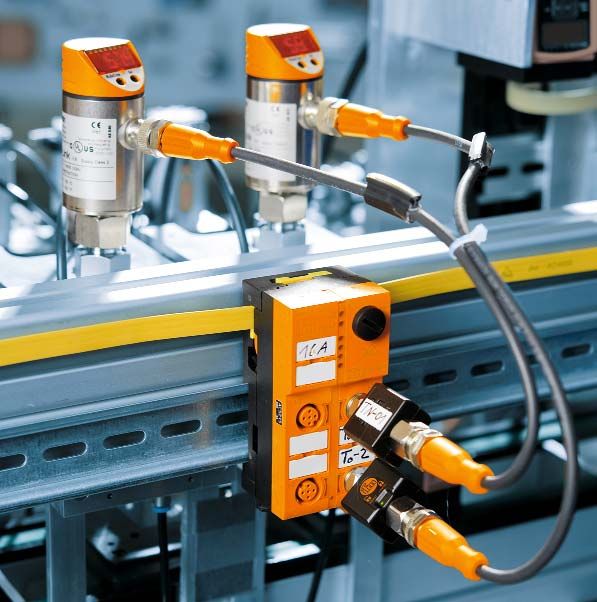

AS-Interface and IO-Link complement These IO-Link ports can be integrated When IO-Link was defined special em-
each other in an optimum manner. AS-i is directly into controllers or decentralised phasis was placed on the compatibility
a serial bus system with a master and up bus modules. with conventional units with a simple
to 62 slaves on a common communication The use of IO-Link compatible bus mod- binary output stage. In the standard I/O
cable. IO-Link is a connection between ules combines the advantages of savings mode IO-Link sensors can also be opera-
only one unit and exactly one counterpart in wiring with the diagnostic options of ted on conventional input modules.
(port). intelligent IO-Link sensors.
IO-Link sensor
optimises com-
pressed air con-
sumption:
Depending on the
measuring range
the SD compressed
air meter is avail-
able with different
cross-sections.
Less cost:
Avoid leaks, increase
energy efficiency.
The compressed air meter efector metris
(SD series) measures the consumption of
compressed air or technical gases and the
temperature of the medium. Compressed
air is one of the most expensive energy
carriers in production. Therefore monitor-
ing the consumption makes sense not only
in large installations or for large machines.
Flow sensors with
Leaks in the compressed air system can be
detected, located and removed using the
compressed air meter. This increases the
energy efficiency and reduces the operat-
Annual energy costs caused by leakage:
ing cost.
Hole Ø Air Air Energy Energy Costs Costs
loss loss loss loss at at
Designs: at at kWh kWh 6 bar 12 bar
6 bar 12 bar at at
SD [mm] [l/s] [l/s] 6 bar 12 bar [EUR] [EUR]
1 1.2 1.8 0.3 1.0 144 480
3 11.1 20.8 3.1 12.7 1,488 6,096
5 30.9 58.5 8.3 33.7 3,984 16,176
10 123.8 235.2 33.0 132.0 15,840 63,360
kWh x EUR 0.06 x 8,000 operating hours / year;
source: www.druckluft-effizient.de
