Computing Platforms
FS2021 ETH Zürich
Dynamo: Amazon’s Highly Available Key-value Store
G. DeCandia, D. Hastorun, M. Jampani, G. Kakulapati, A. Lakshman, A. Pilchin, S. Sivasubramanian, P. Vosshall, W.
Vogels (2007)
by Jie Lou and Yanick Zengaffinen
D-INFK
29.03.2021
Introduction – Problem ETH Zürich
Effect of High Latency
Akamai Technologies Inc. (2017)
• « A 100-millisecond delay in website load time can hurt conversion rates by 7 percent »
• « A two-second delay in web page load time increase bounce rates by 103 percent »
https://www.akamai.com/uk/en/about/news/press/2017-press/akamai-releases-spring-2017-state-of-online-retail-performance-report.jsp
https://yoursmallbusinessgrowth.com/are-your-sales-down-because-of-poor-decisions-made-months-ago/
Introduction – Situation & Goal ETH Zürich
Amazon Ecosystem [2007]
• Decentralized
• Loosly coupled
• Service oriented (>100 services)
Requirements
• Low and predictable latency
• Always writeable
• Partition tolerance
• Scalability
• Minimal administration
https://dl.acm.org/action/downloadSupplement?doi=10.1145%2
F1323293.1294281&file=p205-slides.zip&download=true
Introduction – Situation & Goal ETH Zürich
Amazon Ecosystem [2007]
• Decentralized
Microservices at Netflix
• Loosly coupled
• Service oriented (>100 services)
Requirements
• Low and predictable latency
• Always writeable
• Partition tolerance
• Scalability https://www.infoq.com/presentations/netflix-chaos-
• Minimal administration microservices/?utm_source=youtube&utm_campaign=newcircle
experiment&utm_medium=link
Introduction – Alternatives ETH Zürich
RDBMS’s [2007]
• Overhead
− Latency (C in ACID)
− Cost
− Administration
• Don’t scale-out / poor load balance
Simple Storage Service (S3)
• Overhead / high latency
• Designed for large objects
• No tight control over tradeoffs between
− Availability

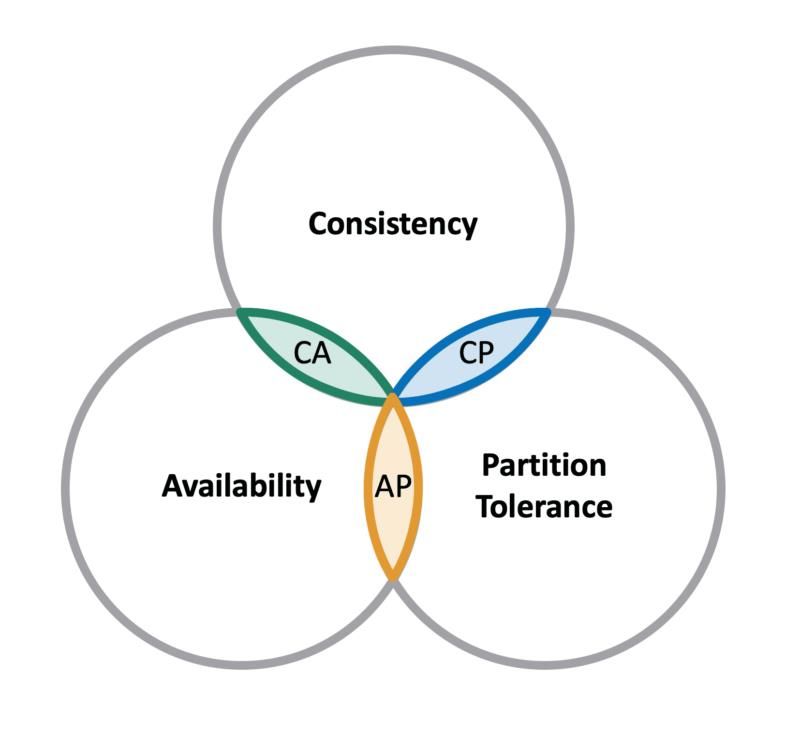

https://hazelcast.com/glossary/cap-theorem/
− Consistency
− Cost-Effectiveness
− Performance
ClusterixDB Paper: https://mariadb.com/wp-content/uploads/2018/10/Whitepaper-ANewApproachtoScaleOutRDBMS.pdf
Implementation – Overview ETH Zürich
What is Dynamo?
• Key value store
• Decentralized system of nodes
• Eventual-consistency
• Others
− Incremental scalability (add nodes)
− Symmetry (all nodes the same)
− Heterogeneity (servers differ)
▪ Partition and replication – Consistent Hashing
▪ Consistency – Object Versioning
▪ Consistency among replicas – Quorum and Decentralized Sync Protocol
▪ Failure detection & membership – Gossip Based
Implementation – Interface ETH Zürich
Interface
• get (key) -> (object) or (objects, context)
• put (key, value, context)
• context for versioning
• Hash of key determines node
• All nodes can receive any request
• Through load balancer (high latency!)
• Forward requests to nodes responsible for data
Implementation – Partition and Replication ETH Zürich
Partition – Consistent Hashing
Goal
• Dynamically partition data over set of nodes
Idea
• Output of hash function mapped to ring
• Each node
Consistent Hashing
• has random position on ring
• is responsible for region on ring between it and its predecessor
• Departure or arrival of node only affects immediate neighbors
Problems
• Non uniform data and load distribution
Consistent Hashing – New NodeImplementation – Partition and Replication ETH Zürich
1. Virtual Nodes
• Each node assigned to multiple points on ring (virtual nodes)
Advantages
• Better load balancing
− Evenly dispersed on node failure
− New node takes load from all others
Virtual Nodes
• #virtual nodes allows for heterogenity
Problems
• Slow repartitioning
Virtual Nodes – New NodeImplementation – Partition and Replication ETH Zürich
2. Fixed Arcs Strategy
• Divide into fixed amount of equal segments
• New node adopts virtual existing nodes
Advantages
• Fast repartition
• Simple archival
Fixed Arc
• Known segments
➢ Less metadata
➢ Less overhead
Problems
• Limited scaling
Fixed Arc – New NodeImplementation – Partition and Replication ETH Zürich
Replication
• Data replicated on first N healthy hosts
• Preference list
− Computable
− > N entries (node failure)
− Distinct physical nodes
ReplicationImplementation – Consistency ETH Zürich
Consistency – Data Versioning
Example: Shopping Cart
• Most recent state unavailable and user makes change
=> change still meaningful
• Old and divergent version reconciled later (e.g. carts merged)
• Eventual consistency
• Vector clocks (node, counter, timestamp)
• Vector clock truncated (FIFO)Implementation – Consistency ETH Zürich
Vector Clock Example
1. Client writes new object D1 [Sx, 1]
2. Client updates D1 to D2 [Sx, 2]
3. Sx down
4. Client updates D2 to D3 [Sy, 1]
5. Sy down
6. Sx online
7. Other client reads D2
8. Sx down
9. Other client updates D2 to D4 [Sz, 1]
10. Sy,Sx online
11. Client reads D2, D3, D4 and reconciliates to D5
Fig 3. Dynamo PaperImplementation – Consistency Among Replicas ETH Zürich
Consistency Among Replicas – Sloppy Quorum
• Replication over first N healthy nodes
• Write successfull if W nodes participate
1. Coordinator generates new version
2. Sends to first N healthy nodes
3. Success if W-1 respond
• Read successfull if R nodes participate
1. Coordinator gathers from first N healthy nodes
2. Success if R-1 respond
Problem
• Data spreads on failure
=> Handoff to preferred node when target node back onlineImplementation – Consistency Among Replicas ETH Zürich
Handling Longterm Errors
• Need to synchronize nodes
=> Hashtrees (aka Merkletrees)
Advantages
• Each branch checked individually
• Reduces amount of traffic
Disadvantages
• Key ranges change when node joins/leaves
https://de.wikipedia.org/wiki/Hash-Baum#/media/Datei:Hash_Tree.svg
=> intensive recalculationImplementation – Membership and Failure Detection ETH Zürich
Membership and Failure Detection – Ring Membership
• Node outage ≠ permanent departure
=> explicit mechanism for adding/removing nodes
• Local failure detection
• Nodes comunicate changes in membership or status through gossip based protocol
Problem
• Temporal logical partition
=> seed nodesImplementation – Summary ETH Zürich
Summary
Table 1 Dynamo PaperResults – Latency ETH Zürich
Results – Latency
Figure 4: Average and 99.9 percentiles of
latencies for read and write requests
during our peak request season of
December 2006. The intervals between
consecutive ticks in the x-axis correspond
to 12 hours. Latencies follow a diurnal
pattern similar to the request rate and
99.9 percentile latencies are an order of
magnitude higher than averages
Figure 4 Dynamo PaperResults – Load Balance ETH Zürich
Load Balance
Figure 6: Fraction of nodes
that are out-of-balance (i.e.,
nodes whose request load is
above a certain threshold
from the average system
load) and their corresponding
request load. The interval
between ticks in x-axis
corresponds to a time period
of 30 minutes.
Figure 6 Dynamo PaperResults – Divergence ETH Zürich
Divergence
• Number of different versions returned
• Over 24h period
#versions Amount of requests [%]
1 99.94
2 00.00057
3 00.00047
4 00.00009
Data from Dynamo PaperCritical Analysis – Paper ETH Zürich
Critical Analysis – Paper
❖ Lots of aggregated data
❖ Unprecise description of method for some data (e.g. divergence)
❖ Few things lack detail (e.g. seed nodes)
❖ Lots of references to upcoming sections
✓ Still a very good paper ☺
Methodology
❖ Conflict of interest
✓ Considered lots of alternatives (2007)
✓ Iterative approach (e.g. partitioning)
✓ Smart combination of technologies to give system as a whole properties that individual nodes
don’t provideCritical Analysis – Dynamo ETH Zürich
Dynamo
✓ Meets latency requirements
✓ Can choose (N,W,R) to customize
✓ Incrementally scalable
✓ Dynamo instance might not scale indefinitely but the concept does
❖ Does not support transactional semantics
❖ Programmer needs to do reconciliation
❖ New model (different from ACID)
❖ Cannot iterate over data
❖ No data hierarchy
❖ No partial updates => not suited for large objects
❖ High operational complexity
=> Good for very specific set of servicesDynamos Legacy – Adoption ETH Zürich
Dynamos Legacy
• Dynamo itself not widely adopted (high operational complexity)
− S3 and SimpleDB popular (run as managed web services)
− Engineers choose operational ease over suitedness
«Dynamo might have been the best technology in the world at the time but it was still software
you had to run yourself. And nobody wanted to learn how to do that if they didn’t have to.
Ultimately, developers wanted a service.» - Werner Vogels, CTO Amazon
Interview: https://www.allthingsdistributed.com/2012/01/amazon-dynamodb.htmlDynamos Legacy – Ancestors ETH Zürich
Dynamos Legacy
• SimpleDB
− Multi-data center replication
− High availability
− Durable
− No setting up, configuring or patching
− High latency for big data
− Limited scaling (10GB per container)
=> workaraounds
https://insights.stackoverflow.com/survey/2020#most-popular-technologies
• DynamoDB
− Combines advantages of Dynamo and SimpleDB
− Still in use, gaining popularityDiscussion ETH Zürich
Are there any questions?
