Perfect Hygiene Air-Conditioning Solutions for all Hospital Departments - Weiss Klimatechnik GmbH Geräte- und Anlagenbau
MEDICLEAN®

Perfect Hygiene Air-Conditioning
Solutions for all Hospital Departments

                  Weiss Klimatechnik GmbH
                   Geräte- und Anlagenbau
Perfect Hygiene Air-Conditioning Solutions for all Hospital Departments - Weiss Klimatechnik GmbH Geräte- und Anlagenbau
MEDICLEAN®
    in use throughout
                   the world

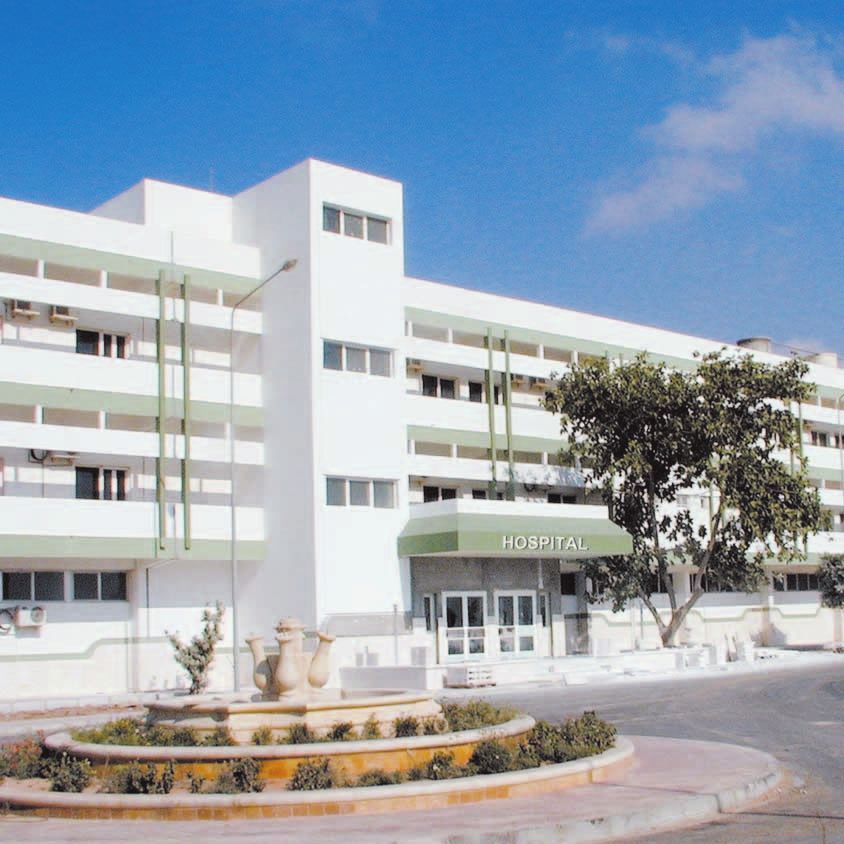

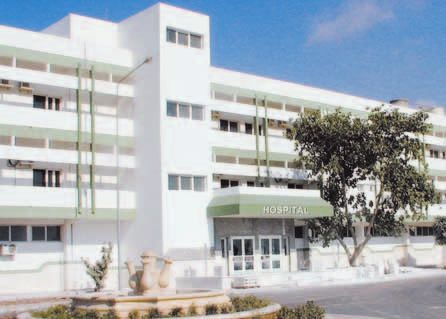

      Al-Batnan Medical Center, Tobruk

                                         System solutions for all hospital
                                         departments are amongst the most
                                         demanding fields of application of
                                         modern clean room technology.
                                         The MEDICLEAN® field from Weiss
                                         Klimatechnik provides a full range:

                                           Operating theatres
                                           Sterile cabinets
                                           Laboratories/Hospital pharmacies
                                           Sterilisation
                                           Intensive care units
                                           Sterile laundries
                                           Diagnosis

2
Perfect Hygiene Air-Conditioning Solutions for all Hospital Departments - Weiss Klimatechnik GmbH Geräte- und Anlagenbau
MEDICLEAN®

                                                                                     Weiss is represented in
                                                                                     the following countries:

                                                                                                 Egypt

                                                                                        Ethiopia

                                                                                     Belgium
With its MEDICLEAN® brand, Weiss Klimatechnik is one of the
                                                                                    China
few companies worldwide providing products and equipment as
a system solution. More than 6,000 operating theatres have
been equipped up to now.                                                       Dubai

System solutions from one source                                    Great Britain

Weiss Klimatechnik is the right partner                                     Italy
if you are interested in tailored hygiene
air-conditioning solutions. We provide                            Kazakstan
everything from one source – from
system consulting, development, plan-                                Libya
ning, manufacturing, installation and
commissioning up to maintenance and                              Malaysia
service. And the best possible support –
worldwide.                                                        Mexico

                                                              Netherlands
Weiss MEDICLEAN®
                                                                  Austria
Weiss Klimatechnik has been synony-
mous with pioneering developments
                                                                  Poland
and high quality in air-conditioning tech-
nology all around the world for many
decades now. Our air-conditioning units                          Portugal
and systems have proven their effective-
ness for over 40 years wherever opti-                             Romania
mum air-conditioning requirements for
production processes are needed for
                                                                     Russia
both people and machinery.

                                                                 Saudi Arabia
Weiss MEDICLEAN® – Part of an
international technology group
                                                                        Sweden
For over 40 years Weiss Klimatechnik
has been concerned with manufacturing                                        Slovenia
units and systems for generating opti-
mum air-conditioning requirements.
                                                                                    Tunisia
Weiss Klimatechnik's core business re-
volves around complete ceiling systems
and air-conditioning for operating thea-                                                Turkey
tres, clean room technology develop-
ments and production as well as data                                                          Ukraine
room air-conditioning. Weiss Klimatechnik
is part of the Schunk Group – an interna-                                                          Hungary
tional technology group with a broad
range of work & services in materials
                                                                                                             USA
                                                                                                                   3
and systems technology.
Perfect Hygiene Air-Conditioning Solutions for all Hospital Departments - Weiss Klimatechnik GmbH Geräte- und Anlagenbau
Best-possible sol

             Media bridges
             Medical gas supply (oxygen, compressed air,
             instrument actuating air, CO2, N2O), anaesthetic
             gas extraction system in keeping with power
             supply acc. to DIN VDE 0100, Section 710 and
             DIN EN ISO 13485. The equipment is configured
             to reflect customer requirements.

                                           Circulating air wall modules
                                           They are part of the MEDICLEAN® system
                                           solution and particularly suited where space
                                           is at a premium, such as in relatively small
                                           operating theatres with large OT ceilings

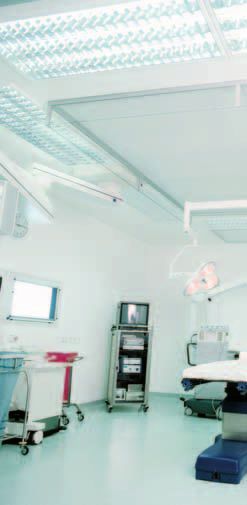

    Walsgrave Hospital in                  (approx. 3 x 3 m), when beams or sanitary
    England/ MEDICLEAN®                    plumbing are in the suspended ceiling or
    circulating air ceilings               where the ceiling is low.
4
Perfect Hygiene Air-Conditioning Solutions for all Hospital Departments - Weiss Klimatechnik GmbH Geräte- und Anlagenbau
MEDICLEAN®

utions for the OT

                                                                        Remote control panels
                                                                    For individually adjusting the
                                                         air-conditioning system, lighting of the
                                                       OT table and IT network monitoring unit.

                                              Fluff filter
                                              Meets DIN 1946-4 for exhaust air
                                              passages to protect exhaust air
                                              ducts. Easily dismountable, made
                                              of stainless steel.

 Hygiene recessed light fixtures
 (IP 65 protection class) with toughened
 laminated safety glass and aluminium
 frames. Individually adjustable reflectors
 can reduce any dazzle.
                                                                                                     5
Perfect Hygiene Air-Conditioning Solutions for all Hospital Departments - Weiss Klimatechnik GmbH Geräte- und Anlagenbau
System units
                                       for all eventualities

                       MEDICLEAN®- System Unit
                       with redundant ventilator (optional)

                                                              A system unit sets new standards

                                                              The new MEDICLEAN® System Unit
                                                              sets new standards in the demanding
                                                              field of ventilation technology and
                                                              air-conditioning. Features of the new
                                                              unit include innovative technological
                                                              design, reduced operating costs and
                                                              compact dimensions. MEDICLEAN®
                                                              System Units are particularly suited
                                                              for new hospital facilities and modern-
                                                              ization of existing operating theatres
                                                              and intensive care units. The new units
                                                              meet all requirements of DIN 1946-4
                                                              and those of the related DIN, VDI and
    Oncology – Moscow:                                        hygiene regulations, such as SNIP (RUS)
    Trust is placed here on the                               and HTM 2025 (GB).
    long-standing track record
    of Weiss Klimatechnik's
    MEDICLEAN®
6
Perfect Hygiene Air-Conditioning Solutions for all Hospital Departments - Weiss Klimatechnik GmbH Geräte- und Anlagenbau
MEDICLEAN®

                                                        Use in the air-conditioning central unit

                                                           Flexible duct connection
                                                           4-way hot gas switching for optimum energy use
                                                           Built-in safeguard from a 100 % air capacity
                                                           redundancy
                                                           Outer air filter with anti-freeze protection
                                                           Interior outer air damper
                                                           Thermally insulated corner profiles
                                                           Mirror image designs available
                                                           Refrigeration circuit and heat recovery tested
                                                           in the factory

Clinics of the Justus-Liebig University, Gießen

                                                  MEDICLEAN® hygiene air-conditioning central units are used in
                                                  central air-conditioning units where large air quantities and
 MEDICLEAN® circulating air                       low ceiling heights are involved.
 unit - single-module

                                                                                                                   7
Perfect Hygiene Air-Conditioning Solutions for all Hospital Departments - Weiss Klimatechnik GmbH Geräte- und Anlagenbau
Departments
    Sterile cabinets
    For ultrasterile shielding of infection-prone
    severe patients as e.g. at intensive care
    after heart and marrow transplants or in
    the case of third-degree burns, Weiss
    Klimatechnik has developed a modular,
    flexible system for ultrasterile cabinet
    installation. The cabinets are supplied as
    complete unit and can be installed in exist-
    ing rooms.

    Laboratories/Pharmacies
    In laboratories and pharmacies
    MEDICLEAN® System Units ensure
    the best possible product safeguards
    and personal safety as well as
    optimum hygiene – for instance in
    ancestral cell research and dacarbazine
    production.

                                              Sterilisation
                                              Fresh air supply and selective ambient
                                              air extraction of clean room units ensure
                                              the removal of steam and disinfection
                                              vapours from central sterilisation and
                                              surgical instrument units.

8
Perfect Hygiene Air-Conditioning Solutions for all Hospital Departments - Weiss Klimatechnik GmbH Geräte- und Anlagenbau
MEDICLEAN®

around the OT
                                                                                Diagnosis
                                               In diagnosis MEDICLEAN® creates optimum
                                                 climate for analytical and technical fields,
                                                  such as in magnetic resonance tomogra-
                                                phy together with comfort air-conditioning
                                                                 adapted to patient needs.

                                                                           Sterile laundries
                                               In the sterile laundry, MEDICLEAN® systems
                                                   and units ensure hygienic conditions for
                                                                 the entire cleaning process.

                      Intensive care units
        MEDICLEAN® units see to optimum
   hygiene and air-conditioning in intensive
    care units – that sensitive link between
           operating theatre and the ward.

                                                                                                        9
Perfect Hygiene Air-Conditioning Solutions for all Hospital Departments - Weiss Klimatechnik GmbH Geräte- und Anlagenbau
<

     Certification and safety

     Weiss Klimatechnik GmbH provides its
     customers with the greatest possible
     safety together with a considerable
     number of certificates and registrations:

         DIN EN ISO 9001
         Test certificate in accordance
         with DIN 1946-4
         EMV certificate
         Medical registrations
         GOST certificate
         Quality assurance certificates
10
MEDICLEAN®

                                                               Competence
                             Let us know about your project requirements.
                                 Thanks to a long track record with several
                              thousand projects, we can provide invaluable
                                 tips right at the early planning stages and
                           prepare the appropriate hygiene air-conditioning
                                                             concept for you.

                          Hygiene Technological Centre
                     We cordially invite you to our hygiene
               technology centre in Reiskirchen to see the
                   range of our products and services in a
                  fully functional model operating theatre.

                           Effective partnership
      We are particularly interested in a long-term
 partnership based on trust to the benefit of both
  parties. Our marketing staff and representatives
are available across the world for you as problem-
          solvers and consultants. You can find the
    addresses on the Internet under www.wkt.com

                                     Symposiums
       Together with medical branch specialists, we
   regularly hold symposiums. They include confer-
    ences on hospital hygiene air-conditioning, new
     hygiene concept generations, changes in codes
 and standards and the resulting recommendations.

                                Service and development
              In both development and service, MEDICLEAN®
            units and systems are kept to the state-of-the-art
              in information and communication technology.

                                                                                             11
Competence immediate information   We would be glad to advise you on:

                                     The new MEDICLEAN® System Units
                                     Weiss ULA and FFA filtered air canopies
                                     Circulating air wall modules
                                     System concepts
                                     Media bridges
                                     Remote data transmission
                                     Installation, service and maintenance

Hygiene Technology Centre          Do visit us at our Hygiene Technology Centre
                                   (HTZ) in Reiskirchen-Lindenstruth.
