Trimble Roadworks
Paving Control Platform
    for Asphalt Pavers

       Transforming the way the world works.
Paving Control Platform - Trimble Roadworks for Asphalt Pavers - SITECH UK ...
INTUITIVE SOFTWARE,                                                                         Natural interactions

80% of construction jobs run into overtime…                                          RUGGED HARDWARE                                                         Android OS
                                                                                                                                                                                 and gestures with modern,
                                                                                                                                                                                 colorful graphics

Achieve Undertime                                                                    The Trimble Roadworks Software runs on the 10-inch (25.4

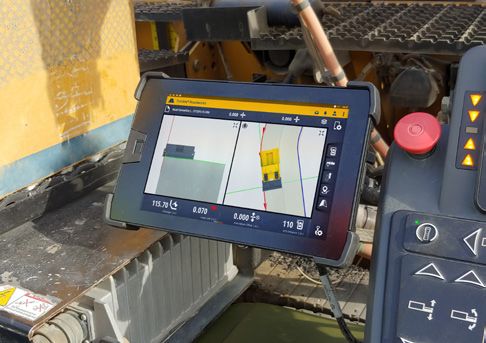

                                                                                     cm) Trimble TD520 display for 3D applications, or the 7-inch
                                                                                     (17.8 cm) Trimble TD510 display with tactile keypads for
                                                                                     2D applications. Colorful graphics, natural interactions and
     Ask for the next generation of        The Trimble® Roadworks Paving
                                                                                     gestures, and self-discovery features make Trimble Roadworks
machine control. From the company          Control Platform for asphalt pavers
                                                                                     intuitive and easy to learn.
    that invented machine control.         is designed to help you do more in less

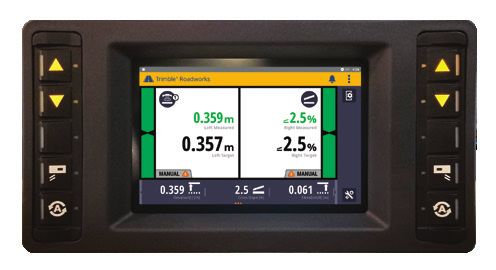

                                                                                     Trimble Roadworks features a large display and an easy-to-
                                           time. Our innovative, next-generation
                                                                                     understand layout for controlling cross slope and material
                                           paving control platform features          thickness. Configurable views allow you to control and monitor
                                           intuitive, easy-to-learn software that    the left and right side of the screed with just one operator,
                                           runs on an Android™ operating system.     and make it easier to see the right perspective for maximum
                                           State-of-the-art software and hardware    productivity. With the Android operating system, users can also
                                                                                     download other applications that provide the operator with                 Rugged display     Configurable views
                                           give operators of all skill levels the
                                                                                     additional useful tools.
                                           ability to work faster and more
                                           productively than ever before.

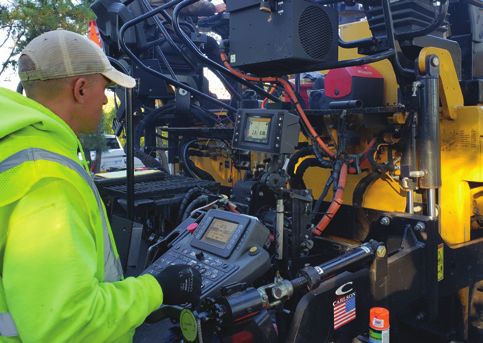

                                                                                     PRODUCTIVE AND PRECISE PAVING                                                                           The Trimble Roadworks
                                           Ideal for projects that require meeting                                                                                                           2D display features
                                                                                     X   Achieve smoothness and accuracy up to the finished surface                                          tactile keypads for use
                                           a thickness or elevation specification,                                                                                                           in the field
                                                                                     X   Minimize the use of expensive material by paving within a
                                           Trimble Roadworks is a non-contact            tighter tolerance and getting closer to the minimal asphalt
                                           paving control platform that gives you        thickness specification early in the process
                                           greater flexibility and more control      X   Improved sensor mobility to easily swap sensors based on
                                           over the mat. Speed up your paving            application, such as cross-slope to joint matching configurations

                                           production while laying a smoother        X   Monitor the measured and target values of the cross slope and
                                                                                         mat thickness simultaneously
                                           surface and reducing material costs.
                                                                                     X   Rugged and durable components for tough construction
                                                                                         conditions, rated to protect against dust and water
                                                                                     X   Reduce labor costs by controlling the screed with one operator
                                                                                     X   Increase efficiency by eliminating the need to pick up the
                                                                                         mechanical averaging beam when going over hot asphalt, storm
                                                                                         drains or other obstructions
                                                                                     X   In 2D applications, contractors can easily change sensor values
                                                                                         and operate the system in the field with the combined touch-
                                                                                         screen display and tactile keypads
                                                                                     X   In 3D applications, eliminate any complications involving
                                                                                         stringlines: human error, costly setup, maneuvering hazards, etc.

                 Trimble Roadworks helps paving
                                                                                     OFFICE TO FIELD CONNECTIVITY
                    contractors achieve excellent
                                                                                     Reduce waste and overruns with efficient communication and data
                     rideability results and finish                                  transfer with Trimble WorksManager—mobile-friendly software
                    projects on time and budget.                                     that easily manages data and technology assets across jobsites.
                                                                                     With the Trimble SNM941 Connected Site® Gateway, transfer
                                                                                     3D designs from the office to the machine wirelessly and                                                           Trimble

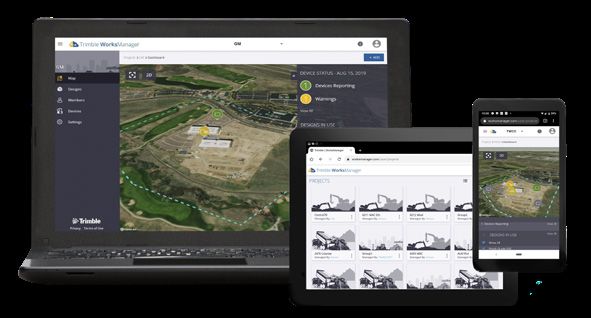

                                                                                                                                                                                                        WorksManager
                                                                                     automatically so that the operator is always using the latest
                                                                                                                                                                                                        Software
                                                                                     design. Productivity data collected from the machine can
                                                                                     automatically sync back to the office.
Paving Control Platform - Trimble Roadworks for Asphalt Pavers - SITECH UK ...
Trimble Roadworks:
             Asphalt Paver Configuration Options
             2D System                                                                                                                    3D System
                                                                                SD510
                                                                                                                                          Install the Trimble Roadworks 3D system over many different paver 2D systems.
                                                                                Switch

                                       VM510
                                       Valve Module                                                                                                     EC520
                                                                                                                                                        Electronic
                                                                                                                                                        Controller

                                                                                                                                             AA510                                                             SNM941
                                                                                                                                             Alarm                                                             Connected
                                                                                                                                                                                                               Site Gateway
EC520                                                                                                                                                                                                          (optional)
Electronic
Controller

                                                                                                                                                                                                         SNRX30
                                                                                                        ST220                                                                                            On-machine
                                                                                                        Sonic Tracer                                                                                     Radio
                                                                                                        (Sonic Averaging
                                                                                                        Beam upgrade optional)

                                 TD510                                                                                                                   TD520       AS450                        MT900
                                                           AS200                                        AA510                                            Display     Slope Sensor                 Machine Target
                                 Displays                  Angle Sensor                                 Alarm
                                 with keypads                                                                                                                                                     with mast

             The Trimble Roadworks 2D system can reference
             off a surface, cross-slope or stringline, making
             it an excellent, lower cost option for roads that
             have been graded or milled using Trimble 3D
             paving control systems.

             Slope Sensor Reference                                                                                                       Surface Reference
             The Trimble Roadworks 2D system can use the Trimble AS200                                                                    Follow surfaces with contact-free accuracy. ST220 Sonic
             Angle Sensor to reference the desired cross-slope of the road.                                                               Tracers average out uneven reference surfaces such as stones,
             Designed specifically for asphalt pavers, the sensor rarely needs                                                            grates and shovels for better joint matching off previously laid
             calibration to pave cross slopes accurately and consistently.                                                                asphalt layers and curbs, and a smoother, more accurate mat.
