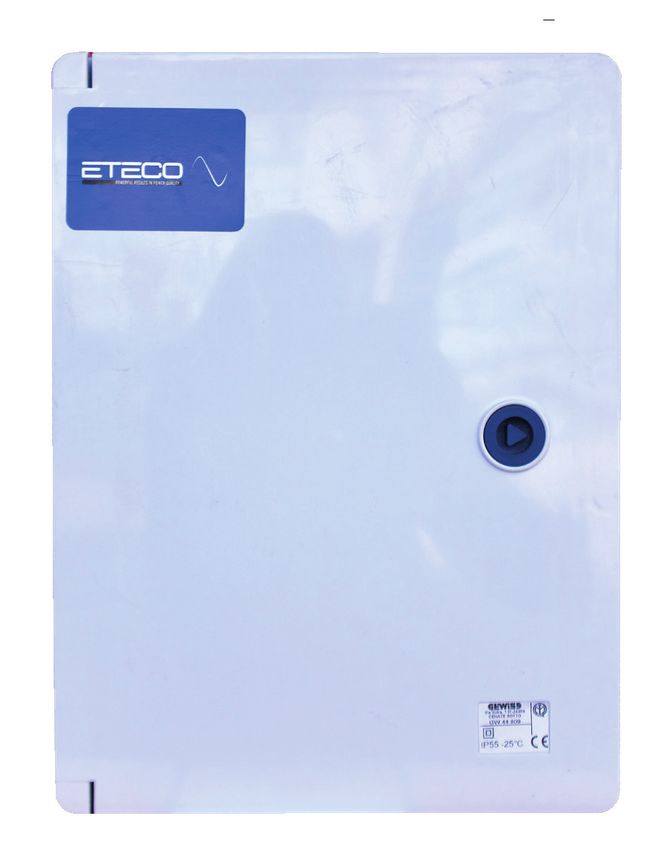

ETECO F3 POWER CONDITIONING SYSTEM
premise
ETECO F3 is a power conditioning system, connected
in parallel, able to reduce the additional power losses
caused by the high frequency conducted disturbances,
starting at 2,5 kHz, inside the electrical grid in which it is
installed (transformers, cables, electrical panels and
electric motors).
AROUND THE WORLD, ALL THE ELECTRICAL GRIDS
RECEIVE AND PRODUCE HIGH FREQUENCY
CONDUCTED DISTURBANCES
The presence of such electrical disturbances
lowers the power quality, causing:

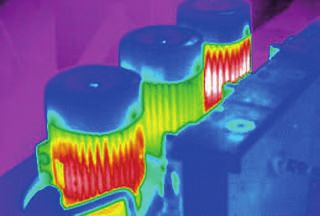

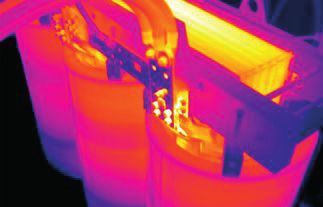

Rise of the temperature
of the electrical grid
Malfunctions and electronic
equipment breakdowns
These electrical disturbances result in:
Increased usage of electricity
Increased maintenance
Reduced life cycle of all loads
This sheet can be changed without notice (Rev. 14)
ETECO S.r.l. a socio unico | PEC: eteco@pec.eteco.it | www.eteco.it | Cap. Sociale € 100.000,00 i.v.
C.F. e P.IVA IT07871300724 | Viale Volga, Pad. 129 c/o Impact Hub (Fiera del Levante) | 70123 Bari (BA) – ITALY | CCIAA N. REA BA – 587682 | Iscr. Reg. Imprese BA
applications
ETECO F3 is a versatile and modular system, composed
of one or more modules depending on the electrical grid in
which it is installed.
ETECO F3 is a system able to improve the power qua-
lity not only at the industrial, commercial and institutional
level, but also for those companies that generate power
(LV or MV)

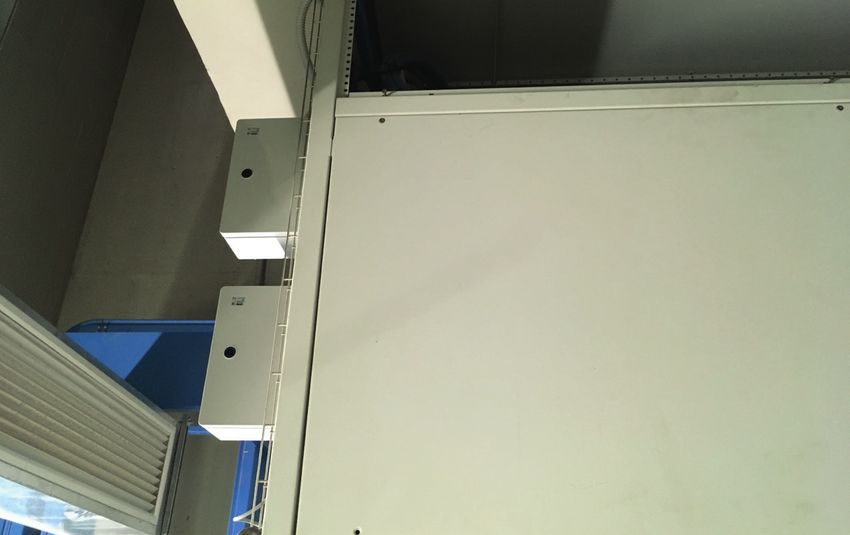

IT IS CONNECTED IN PARALLEL ON THE ELECTRI-
CAL GRID, CLOSE TO THE MAIN ELECTRICAL
PANELS AND SUB-PANELS
For each electrical grid, we provide an installation scheme,
which that defines:
The electrical grid connection nodes (panels)
The number of modules for each node
THE INSTALLATION SCHEME IS CUSTOMIZED FOR EACH ELECTRICAL GRID, AFTER A THOROUGH
SITE INSPECTION
EACH INSTALLATION SCHEME IS INTENDED TO MAXIMIZE THE ACHIEVABLE ENERGY SAVING
This sheet can be changed without notice (Rev. 14)
ETECO S.r.l. a socio unico | PEC: eteco@pec.eteco.it | www.eteco.it | Cap. Sociale € 100.000,00 i.v.
C.F. e P.IVA IT07871300724 | Viale Volga, Pad. 129 c/o Impact Hub (Fiera del Levante) | 70123 Bari (BA) – ITALY | CCIAA N. REA BA – 587682 | Iscr. Reg. Imprese BA
functions
ETECO F3 is the culmination of painstaking research and experimentation. The capacitors used
are built according to proprietary specifications and are the only ones able to maximize the achie-
vable energy saving.
These capacitors are the key factor to improve the power quality. For power conditioning,
ETECO F3 integrates components such as:
PROPRIETARY CAPACITORS
TRANSIENT SUPPRESSION DEVICES
RC PASSIVE FILTERS
The power conditioning is carried out by intervening on the following disturbances:
By absorbing the oscillatory transient overvoltages
By reducing the electromagnetic interference CONDUCTED
Without diverting to ground the electromagnetic interference DISTURBANCES
Without creating unbalancing “ground loops”
These conducted disturbances are generated by electronic equipments that are present in all
the electrical grids. These noises are, in fact, increasing as a result of the presence of more and more
digital grids (Smart Grids).
ETECO F3 IS A SYSTEM THAT CAN BE INSTALLED IN ANY ELECTRICAL GRID AROUND THE WORLD

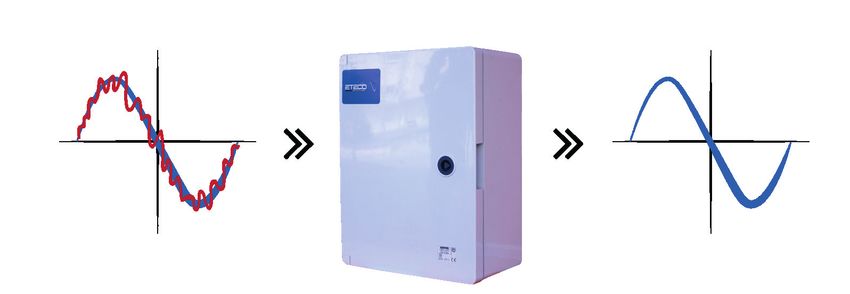

INPUT POWER OUTPUT POWER
LOW POWER QUALITY HIGH POWER QUALITY
LOW EFFICIENCY HIGH EFFICIENCY
This sheet can be changed without notice (Rev. 14)
ETECO S.r.l. a socio unico | PEC: eteco@pec.eteco.it | www.eteco.it | Cap. Sociale € 100.000,00 i.v.
C.F. e P.IVA IT07871300724 | Viale Volga, Pad. 129 c/o Impact Hub (Fiera del Levante) | 70123 Bari (BA) – ITALY | CCIAA N. REA BA – 587682 | Iscr. Reg. Imprese BA
benefits & warranty
ETECO F3 allows to improve the efficiency of ETECO F3 is warranted twice:
the electrical grid in which it is installed (tran-
sformers, cables, electrical panels and electric 1. With the 10 years of warranty on manu-
motors). facturing defects (there are manufacturing de-
fects only when the capacitors do not work);
ETECO F3 allows to save on the energy usa-
ge (kWh) reducing power losses such as heat, 2. With CE mark (the CE mark certifies that the
with a short payback period and no scrapping of product has been evaluated and meets the EU
any equipment or machinery. requirements for safety, health and environmen-
tal protection. It is valid for products produced
ETECO F3, in addition, by reducing the electro- both inside and outside the EEA and marketed
magnetic interference, protects the health and within its territory).
safety of people who are exposed to harmful
10
electromagnetic fields (EMF) generated by such
interference.
ETECO F3 is an innovative system that allows
to save energy (KWh) by improving power YEARS OF
quality. WARRANTY
highlights
ETECO F3 is a system patent pending.
Title: Apparatus for reducing of thermal, magnetic and mechanical
losses in electrical networks
Patent application number: 102017000036805
Date: April 4, 2017
This sheet can be changed without notice (Rev. 14)
ETECO S.r.l. a socio unico | PEC: eteco@pec.eteco.it | www.eteco.it | Cap. Sociale € 100.000,00 i.v.
C.F. e P.IVA IT07871300724 | Viale Volga, Pad. 129 c/o Impact Hub (Fiera del Levante) | 70123 Bari (BA) – ITALY | CCIAA N. REA BA – 587682 | Iscr. Reg. Imprese BA
tecnhical
specifications
Rated voltage AC 400 Vrms three phase (3P3W) (other values also available LV or MV)
Rated frequency 50/60 Hz
Temperature / Max relative humidity -25 ÷ +60 °C / 95%
IP Rating IP55
Protection class Classe II (Double insulation)
Flammability Rating UL 94 V0
Electrical mounting Parallel
Self-consumption About 10 W
Dimensions 236 x 316 x 135 mm
Weight About 3 kg
Cables for connection to the grid 2,5 mm2
Switch disconnector Inside the module
Minimum saving guaranteed From 5% at 15% (kWh) in compliance with protocol IPMVP®
Standard reference Dir. 2014/35/UE “BT”, Dir. 2014/30/UE “EMC”, Dir. 2011/65/CE “RoHS”, Dir.
2012/19/UE “RAEE”
manufacturer
ETECO F3 is designed, produced and marketed by ETECO S.r.l. (ITALY), an innovative startup fo-
cused on providing technology solutions aimed at improving energy efficiency.
Energy efficiency is seen as a strategic lever for the reduction of energy usage (economic profitabi-
lity) and the reduction of CO2 emissions (environmental sustainability).
The company’s inside Research & Development department enables continuous improvement and
makes ETECO F3 a cutting-edge and Made in Italy system.
For more information and contacts, please visit the website www.eteco.it
