DE LA RECHERCHE À L’INDUSTRIE OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES NCSP TPR MEETING, 2021 FEBRUARY THE 23RD DES (DIRECTION OF ENERGIES) SERMA (SACLAY)-SPRC (CADARACHE) DES/ISAS/DM2S – DES/IRESNE/DER C Carmouze, M Laget, YK Lee, D Noyelles, JC Trama Commissariat à l’énergie atomique et aux énergies alternatives - www.cea.fr Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES
2021 NCSP TPR MEETING : CEA participants Coralie Carmouze : Cadarache (SPRC, CEA expert on neutronics applied to criticality-safety and nuclear fuel cycle) Michael Laget : Saclay (SERMA, CEA criticality safety expert team, criticality accident expert) Yi-Kang Lee : Saclay (SERMA, TRIPOLI Monte Carlo team, benchmarking expert) David Noyelles : Saclay (SERMA, CEA criticality safety expert team, criticality safety expert) Jean-Christophe Trama : Saclay (SERMA, criticality safety and radiation shielding advanced users group manager) Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES 2
CEA CRITICALITY SAFETY ORGANISATION Commissariat à l’énergie atomique et aux énergies alternatives - www.cea.fr Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES 3

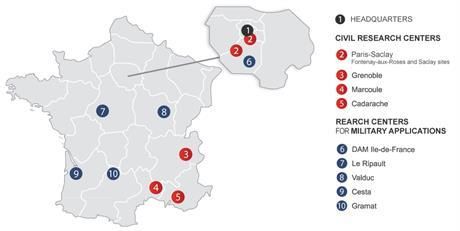

CEA : Alternative Energies and Atomic Energy Commission A key player in research, development and innovation in four main areas: defense and security (CEA DAM), low carbon energies (CEA DES nuclear and renewable energies), technological research for industry (CEA DRT), fundamental research in the physical sciences and life sciences (CEA DRF). 20181 employees, 9 research centers, 5 billion euros budget (2019). cea.fr/english Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES 4

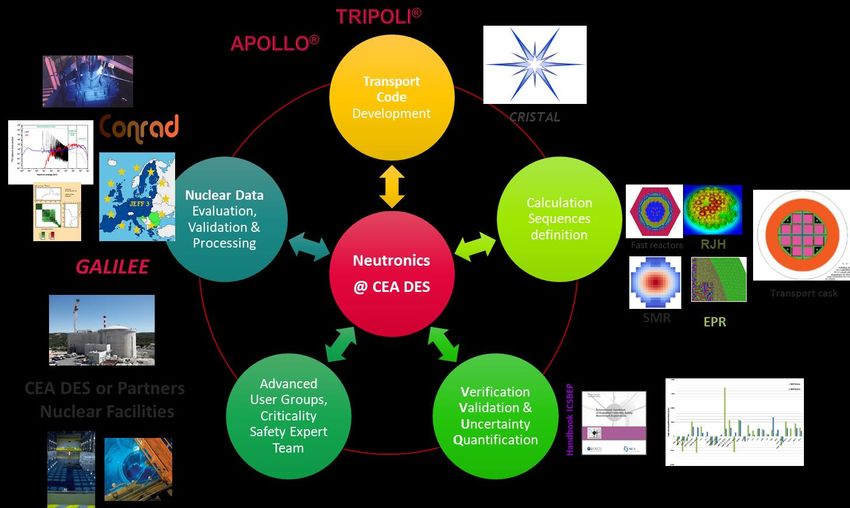

Neutronics @ CEA DES : reactor physics, fuel cycle, criticality- safety, radiation protection and shielding From R&D to nuclear facilities Two R&D units, SERMA @ Saclay and SPRC @ Cadarache, totaling 140 permanent staff + 40 PhD + 50 interns/yr. https://www.cea.fr/energies/tripoli-4 For criticality safety, CEA is closely working Transport with IRSN on the CRISTAL* Code criticality-safety Development package, embedding codes CRISTAL from both institutions Nuclear Data JEFF 3 Calculation Evaluation, Sequences Validation & definition Processing Fast reactors RJH GALILEE Neutronics @ CEA DES Transport cask SMR EPR CEA DES or Partners Advanced Verification User Groups, Nuclear Facilities Validation & Criticality Uncertainty Safety Expert Quantification Team *www.cristal-package.org // *https://www.oecd-nea.org/tools/abstract/detail/nea-1903 Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES 5
CEA DES as a nuclear operator : criticality safety organisation CEA–MARCOULE CEA–PARIS SACLAY CEA DES as a Nuclear operator : ~30 facilities CONTROL LINE – LOCAL CS : CS handling fissile material CCE on Saclay, Marcoule and Criticality Specialist QCE1, Cadarache : SUPPORT LINE – LOCAL QCE2... experimental reactors, CCE : dry storages, pools, Centre Criticality Engineer shielded cells, glovebox, Facility #1 Facility #2 storage facilities, waste QCE OPERATIONAL LINE management CEA–CADARACHE QCE : Facility #3 Qualified Criticality Engineer QCE CS CCE Facility #x Facility #5 Facility #4 QCE1, QCE QCE QCE QCE2... Saclay Marcoule SUPPORT LINE – CENTRAL Cadarache Criticality Safety Expert Team (CST) Saclay CSEG : Criticality Safety Expert Group People involved : CST (Saclay) 8 ; CCE 4 ; QCE : ~30 and CS 3 Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES 6
EXAMPLES OF CEA DES R&D IN CRITICALITY SAFETY Commissariat à l’énergie atomique et aux énergies alternatives - www.cea.fr Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES 7

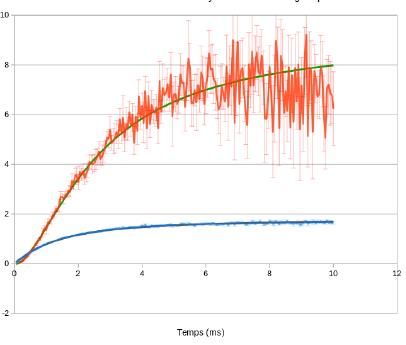

CEA DES R&D in criticality-safety example 1 (CST, SERMA, Saclay) early detection of criticality accident through neutron noise analysis • Criticality accidents are monitored by Criticality Accident Alarm System (CAAS), basically by monitoring neutron counts on sensors • Is it possible to have an earlier warning based on the monitoring of statistics of neutron arrival times on the sensors ? • Feasibility of neutron noise analysis on analog TRIPOLI4® simulations: demonstrated on SILENE experimental results • Different analysis techniques implemented : Feynman-α, Rossi- α, uncertainties by bootstrap method 2nd and 3rd order Feynman parameters, simulated through a • Preliminary evaluation of different fission models (FREYA, sequentiaal binning of events FIFRELIN) Next step: Parametric studies on the sensitivity and potential range of application of the method Further: define an experimental setup (probes, electronics) to evaluate the concept on a critical assembly 8 2nd and 3rdorder Feynman parameters, as a function of double and triple correlated detections Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES 8

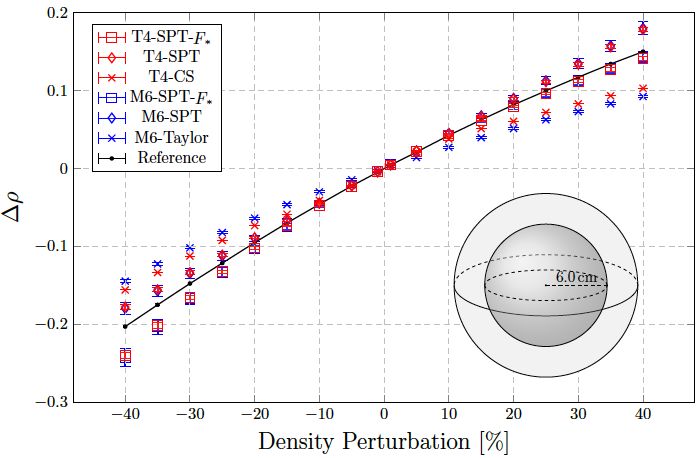

CEA DES R&D in criticality-safety example 2 (TRIPOLI Team, SERMA, Saclay) sensitivity analysis tools for k-eigenvalue TRIPOLI-4®: continuous-energy Monte Carlo particle transport code developed by CEA, Saclay, production-level code for CEA and EDF, and R&D tool Reference calculation sequence for CRISTAL Generic features: https://www.cea.fr/energies/tripoli-4 V&V based on international benchmarks (including ICSBEP) and CEA proprietary experimental facilities Examples of sensitivity analysis tools for k-eigenvalue - Reactivity perturbations: variations in material compositions, cross sections, and fission neutron multiplicities - Sensivity coefficients of k-eigenvalues to nuclear data: cross sections, fission spectra, scattering laws and fission neutron multiplicities - Uncertainty propagation: COMAC covariance matrices 9 Reactivity effect due to variations in the density of an inner shell for GODIVA Terranova et al., ANE 121, 335-349 (2018). Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES 9
CEA DES R&D in Criticality-Safety Example 3 (SPRC, Cadarache) Nuclear Data evaluation, processing & benchmark calc. e.g. Thermal Scattering Laws Experiment - Evaluation Processing Processing with the LEAPR and THERMR modules of NJOY Phonon density of states JEFF-3.3 Experimental validation with ILL data (Bariloche, Argentina) (Grenoble, France) Integral benchmark calculation e.g. OCDE/NEA-WPNCS-SG3 Covariance matrix generated with the CONRAD code Effect and Uncertainties of H in Ice Thermal Scattering Laws on neutron multiplication factor for PWR Fuel criticality capplications. ICNC 2019, Sensitivity Coefficient & Uncertainty propagation (TRIPOLI-4) M. Tiphine, C. Carmouze, G. Noguere et all. Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES 10
CEA DES R&D in Criticality-Safety Example 4 (SPRC, Cadarache) From codes VV-UQ* to industrial application e.g Burnup Credit Depletion calculations Criticality calculations keff CEAV512 Nuclear Data Libraries based on JEFF-311 Evaluation Codes development : APOLLO2, TRIPOLI-4, DARWIN2 (@CEA Saclay) Nuclear data processing Dedicated experimental programs Dedicated calculation sequence definition & VV-UQ process DARWIN depletion calculation package (CEA, EDF, Framatome, Orano) VV-UQ based on French Post Irradiated Experiment CRISTAL criticality-safety package (CEA, IRSN, Orano, Framatome) VV-UQ based on international benchmarks (including ICSBEP) & Nuclear Data validation : Oscillations Experiments in the CEA MINERVE reactor for the validation of the BUC Fission Products capture cross-sections *Verification, Validation and Uncertainty Quantification BUC integrated method to take calculation bias & bias uncertainties into account in industrial 11 calculations Burnup Credit application for transport cask using french expriments. PHYSOR 2014, M. Tardy et. all. Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES 11
POSSIBLE COLLABORATION WITH THE US DOE NCS PROGRAM Commissariat à l’énergie atomique et aux énergies alternatives - www.cea.fr Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES 12
criticality safety training : the lack of hands-on training at CEA The example of the CCE training course A very high level training course under the responsibility of INSTN (National Institute for Nuclear Science and Technology) 1 session every 2 years, 7 one-week sessions including a one-week internship with a CCE (from any French licensee) 2 exams, 1 internship report, 1 oral exam to an expert committee Mandatory to become CCE of CEA or any other licensee Trainers are recognized experts of the domain (from IRSN, CEA -including the CST-, Orano…) See backup slides for the detailed content of the training But since the shut down of the VALDUC facilities in 2014, after years of fruitful collaboration between CEA, US DOE and IRSN : there has been no possibility for the CEA personnel to have hands-on criticality safety training on experimental facilities. We would be very interested to study the possibilities for CEA personnel to be trained in the US https://ncsp.llnl.gov/training.php Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES 13
Possible collaboration with the US DOE Nuclear Criticality Safety Program Hands-on training session : CEA personnel trained in partnership with the NCS Program Early detection of criticality accident : theoretical work, comparisons of simulations, definition of an experiment Monte Carlo and Nuclear Data benchmarking : independent evaluation of US experiments (ICSBEP, Post- Irradiated Experiments) - comparison with the last JEFF evaluation Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES 14
THANK YOU FOR YOUR ATTENTION Commissariat à l’énergie atomique et aux énergies alternatives - www.cea.fr Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES 15
BACKUP SLIDES Commissariat à l’énergie atomique et aux énergies alternatives - www.cea.fr Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES 16
Neutronics @ CEA DES : reactor physics, fuel cycle, criticality- safety, radiation protection and shielding From R&D to nuclear facilities Two R&D units, SERMA @ Saclay and SPRC @ Cadarache, totaling 140 permanent staff + 40 PhD + 50 interns/yr. Together they are in charge of a whole set of modeling and simulation tools for neutronics : nuclear data evaluation and processing, transport codes development, calculation sequences edition, verification, validation and uncertainty analysis. Advanced user groups are in charge of specific nuclear analysis in reactor physics, fuel cycle, criticality-safety, radiation shielding and nuclear instrumentation for CEA and its partners, at all stages of nuclear facilities life cycle (from design to D&D). A dedicated team to support the CEA nuclear facilities with regards to criticality safety : the CEA Criticality Safety Expert Team (CST) Some signature codes and sequences : the APOLLO cell and lattice code, the TRIPOLI Monte Carlo code (https://www.cea.fr/energies/tripoli-4), CONRAD for nuclear data evaluation and GALILEE for their processing, the REL calculation sequence for PWR core physics, all are production level For criticality safety, CEA is closely working with IRSN on the CRISTAL criticality safety package, embedding codes from both institutions. www.cristal-package.org and NEA-1903 package https://www.oecd-nea.org/tools/abstract/detail/nea-1903/ Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES 17
criticality safety training CCE training course - content Introduction to criticality hazard Calculations Organization in France Module 3 Codes and tools of Cristal package Introduction to neutron physics Practical exercices Module Nuclear physics 1 Chain reactions, neutron balance Criticality safety in tranportation Boltzmann Equation Introduction to nuclear fuel cycle Practical use of simplified theory Fissile material storage Methods to prevent criticality risks Enrichment and conversion manipulate the order of magnitude UOX Fuel fabrication dilution law and isopiestic Reprocessing Plant Module 4 using curves and control modes Mass control Module guidances and standards MOX Fuel Fabrication 2 codes validations exp. benchmarks Practical examples methods of control Fuel Storage safety margins Dismantling NCS analysis and demonstrations Events : Feed back and lessons Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES 18
criticality safety training CCE training course - content Introduction to criticality accidents History of criticality accidents Interaction CCE and calculation teams Experimental machines Module 6 Practical cases Practical exercices Human factors Accident calculs codes Module 7 Internship with a CCE Practical case on a reactor Numerical case Conversations with CCE CAAS Module 8 Exam Intervention and examples Jury Module 5 Radiation in case of accidents Visit of measurement laboratory Medical aspects Emergency prepardnessmanagement Visit of the crisis center of IRSN Regulatory aspect (accident) Simple formulas to estimate fisson number CCE in case of a crisis Practical case Commissariat à l’énergie atomique et aux énergies alternatives NCSP TPR MEETING : OVERVIEW OF CEA DES CRITICALITY SAFETY ACTIVITIES 19
