OPEL COMBO, NEW VIVARO AND MOVANO 2015 Models Edition 1
OPEL COMMERCIAL
VEHICLES. BUILT FOR YOU
AND YOUR BUSINESS.
The purchase of a commercial vehicle represents a significant investment.
Its true value can be judged by how efficiently it works for you and your
business. All Opel vehicles excel to meet the demands of operators and we
go to extraordinary lengths to ensure that they also spend the maximum
time where they work their hardest – on the road.
CONTENTS VEHICLE RANGE
Combo4-11
New Vivaro 12-27

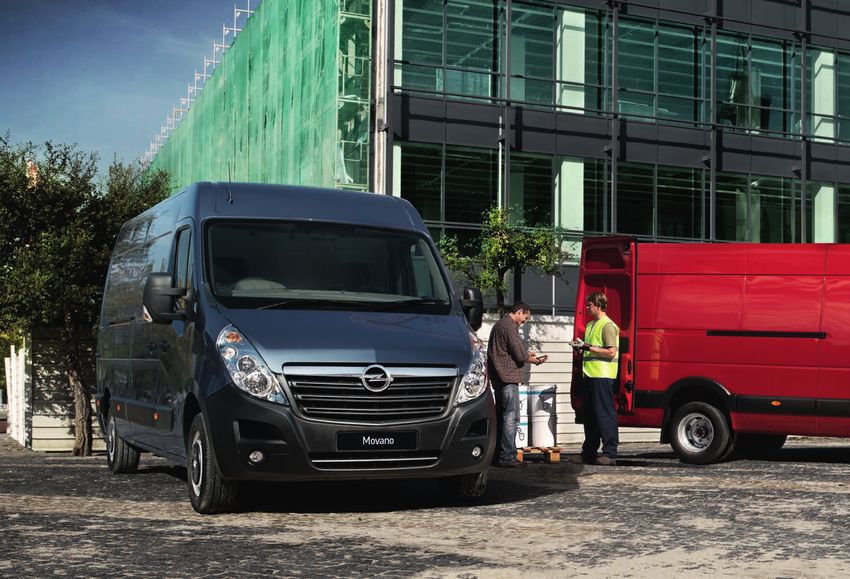

Movano 28-35
Options36
Accessories 37
Colours and trims 38
Some of the vehicles shown in this brochure include options and accessories available at extra cost. And not all of the features
described are available on every model. So please check the Vehicle Price Guides available from your Opel dealer. Or log on to
www.opel.ie for more information.

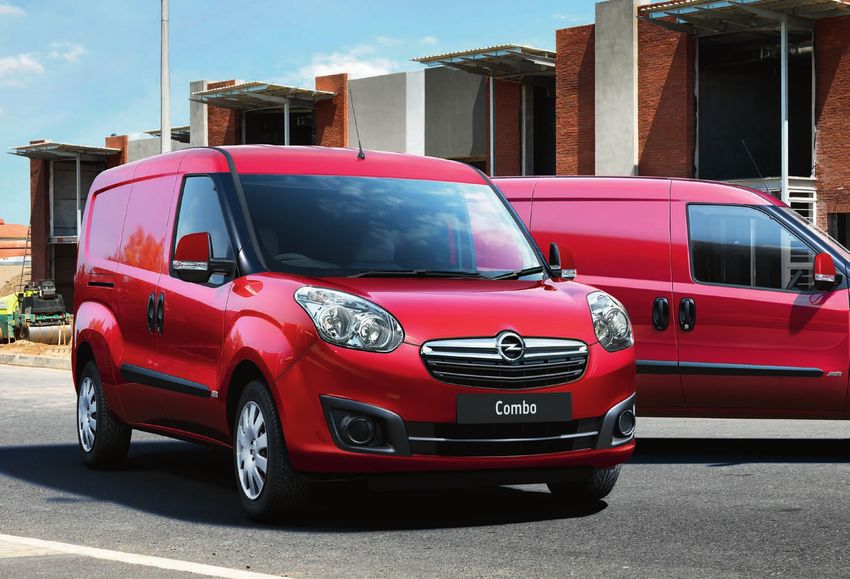

COMBO.
SOLID CAPABILITIES.
Want to give your business a lift? Then get yourself a vehicle that
delivers a list of commercial firsts.
The Combo from Opel can haul up to a tonne. In addition, not only
does it have one of the longest and most spacious load areas in its
class but it has the highest rear axle weight and the largest rear door
opening; coupled with a useful, low rear loading height.
The Combo also has ultra-low fuel consumption figures of up to 5.0
litres/100km for the 1.3CDTi model. It’s also practical, dependable
and versatile, with long wheelbase and high roof models now
available. With capabilities such as these and now the introduction
of our versatile Crew Van models, Combo can really help your
business deliver.
Combo | 5
INTERIOR From the ergonomically designed facia and fully adjustable driver’s seat through to electric windows and air conditioning, the Combo range is simply packed with features designed to make the driver’s day more comfortable. Options like cruise control, rear parking distance sensors and electronic climate control further enhance driver well-being. The result: a mobile working environment you really won’t mind spending time in. Sportive model illustrated. 6 | Interior
1 2 3 4 1. Clean design. Combo’s facia is clearly and simply laid out, with controls 3, 4. Practical storage features. Combo is full of practical storage features to easy to reach and just as easy to operate. Switchgear is logical and the assist with keeping the cabin safe and tidy, such as a recessed storage high-mounted driver’s seat provides an excellent all-round view of the road. facility in the upper facia, lockable glovebox and door pockets. 2. Room for five. The new Glazed Crew Van model provides five-seater capacity for many different working uses. Not all the features and options listed are available on every model. Please see the Combo Price and Specification Guide for details. Interior | 7
1
LOADSPACE
At a massive 3.4 cu.m for the standard wheelbase
version, there’s no mistaking Combo’s cavernous
load area.
Access and loadspace features* include:
• Accommodates up to two Euro pallets – L2 models
• Low rear sill height assists loading and unloading
• Choice of side loading door options increases
convenience
• New Glazed Crew Van models available for
increased versatility
Loadspace dimensions mm inches 2
Maximum rear door aperture heights 1250-1455 49.2-57.2
Maximum rear door aperture width 1231 48.5
Maximum load area heights 1305-1550 51.4-61.0
Maximum load area width 1714 67.5
Width between wheel arches 1230 48.4
Maximum load floor lengths – Panel Van 1820-2170 71.7-85.4
Maximum load floor lengths – Crew Van 991-1750 39.0-68.9
Sliding side-access door aperture height 1175 46.2
Sliding side-access door aperture width 700 27.5
Loading height (unladen) 545 21.4
Loadspace volumes (VDA method) cu.m cu.ft 1. Load up. Open the rear doors and you’re looking at a record holder. Quite
Maximum loadspace volumes – Panel Van 3.4-4.2 121-148 simply, the Combo has the biggest payload in its class. It also boasts one of the
Maximum loadspace volumes – Crew Van 0.8-1.9 28.2-67.1 longest and most spacious cargo areas plus a low rear loading height, so there’s
Payloads kg
less risk of straining your back while working.
Maximum payload 730-1000
2. Instant access. Combo is big on convenience. Offside and nearside sliding
*Not all options are available on every model. Please see the Combo Price and Specification side-access doors are fitted to all long wheelbase models; a nearside sliding
Guide for details. side-access door is also standard on short wheelbase Sportive models.
Panel Van | 9
The engine range comprises a 1.3CDTi 90PS, a 1.6CDTi 105PS unit and a powerful
2.0CDTi 135PS. In addition the 1.6 and 2.0 units both feature Opel’s Start/Stop system as
standard. Start/Stop switches the engine off when you stop at the lights or in traffic,
POWER AND EFFICIENCY then restarts it once the clutch is depressed, cutting fuel bills and reducing emissions.
Combo drivers can also look forward to long service intervals (up to 30,000km or
two-year) and class-leading fuel consumption for the 1.3CDTi 90PS engine.
Combo doesn’t only ride and handle like a dream; it also performs
with remarkable verve for what is, to all intents and purposes, a
working vehicle. Drivers can select from three powerful yet efficient
Euro 5 compliant turbo-diesel engines, all designed for optimum
ease of serviceability and low running costs.
Choice of engines
• 1.3CDTi 90PS
• 1.6CDTi 105PS Start/Stop
• 2.0CDTi 135PS Start/Stop
More great features
• Five-speed manual gearbox (1.3CDTi)
• Six-speed manual gearbox (1.6CDTi/2.0CDTi)
• Service intervals up to 30,000km/two-year*
• Five-year/150,000km manufacturer’s warranty and
12-year body panel anti-perforation warranty
*Or oil-life quality monitor warning whichever is the sooner.
10 | EfficiencyENGINES
Fuel economy (litres/100km)# CO2 emissions
Maximum power Maximum torque
Urban driving Extra-urban driving Combined figure (g/km)#
Diesel
1.3CDTi 90PS 90PS (66kW) @ 4000rpm 200Nm (148 lb.ft.) @ 1500rpm 6.6 – 6.5 4.3 – 4.2 5.1 – 5.0 136 – 133
1.6CDTi 105PS Start/Stop 105PS (77kW) @ 4000rpm 290Nm (214 lb.ft.) @ 1500rpm 6.4 – 6.1 5.3 – 4.6 5.7 – 5.2 146 – 136
2.0CDTi 135PS Start/Stop 135PS (99kW) @ 3500rpm 320Nm (236 lb.ft.) @ 1500rpm 7.3 5.2 6.0 158
For full model availability please refer to the Combo Price and Specification Guide.
#Official Government Test Environmental Data. Official EU-regulated test data is provided for comparison purposes and actual performance will depend on driving style, road conditions and other non-technical factors.
Efficiency | 11NEW VIVARO
BUILT TO TAKE IT ALL.

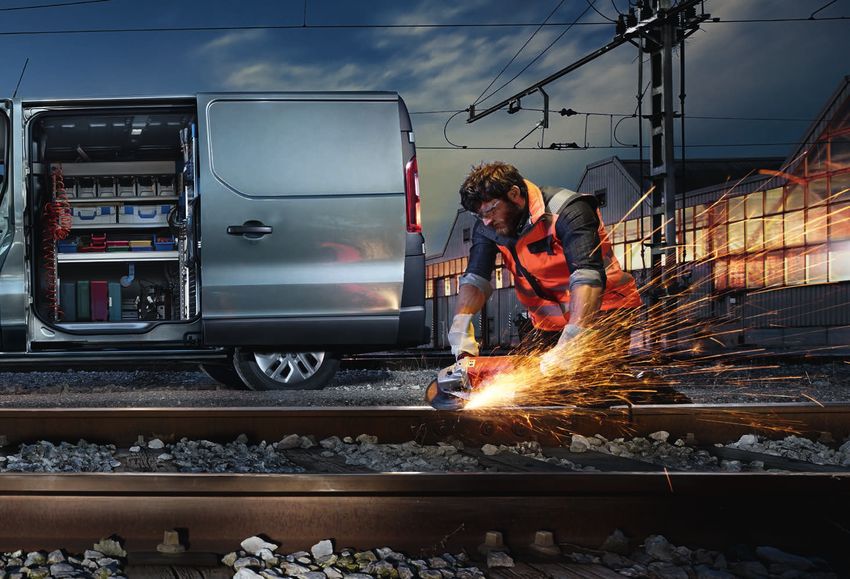

New Vivaro has been completely redesigned to improve performance
in every way. In Panel Van, Doublecab and Combi variants, the New
Vivaro seizes the mantle of its illustrious predecessor and moves the
game on – big time!
With bold new styling, ultra-efficient engines and all-new in-cab
connectivity that turns the working environment into a mobile office
– New Vivaro is built to the toughest standards so it’s robust enough
to take everything you can throw at it, and in it.
New Vivaro | 13BUILT TO WORK HARDER Well-equipped with a host of convenience features, New Vivaro is built to work harder with intelligent cab design and is loaded with clever but practical ideas that help get the job done. 14 | New Vivaro
INTERIOR The all-new Vivaro interior is exactly that. New. We’ve improved the driving environment so you sit more comfortably, with everything you need right at your fingertips. Then there’s an improved infotainment system, which means you’re well connected and have all your entertainment at hand. On top of all that, the New Vivaro is better to drive than ever. NAVI 80 IntelliLink. Features 7-inch colour touch-screen, Bluetooth® connectivity, audio streaming and advanced navigation functions – with maps that can be simply updated by USB download and data transfer. Better still, the IntelliLink system integrates the most important functions of your smartphone. The system also features voice commands for navigation. 16 | Interior
1 2 3 4 1. CD 18 BT USB. The CD 18 BT USB features the same specifications as the R 16 BT USB but adds a CD player and is configured in the double-DIN format. Standard on Sportive models. 2. Aux-in and USB. Most audio units feature integrated aux-in and USB ports within the facia, enabling drivers to connect their mobile devices and access a wide range of multi-media files. An additional USB port is fitted in the upper facia to enable the charging of mobile phones and MP3 devices. 3. Smartphone docking station. This optional feature allows smartphones of up to a 4.7-inch screen size to be securely mounted within easy sight and perfect reach. Power is taken from the upper USB socket on the facia. 4. Tablet docking station. Compatible with the R 16 BT USB, this facility allows tablets between 4.8 and 10.6 inches to be securely fixed in place for ease of use. Not all the features and options listed are available on every model. Please see the New Vivaro Price and Specification Guide for details. Interior | 17
INTERIOR New Vivaro’s interior reflects Opel’s understanding of the challenges faced by van operators in their daily working lives. Comfort and control levels are optimised right across the cab, along with enhanced infotainment connectivity and improved levels of safety and security that are so important to any business. Premium quality materials are used throughout for improved appearance, durability and owner appeal. Finally we’ve improved the interior ergonomics across the van, further enhancing the interface between driver and vehicle. Fold-flat centre front passenger seat. The centre section of the fold-flat front passenger seat features a handy clipboard holder which can be removed when necessary, leaving a solid and flat surface. The unit also flips forward to create a lidded work surface, with hidden, secure storage for work paraphernalia – along with an additional drinks holder. The folding process takes just seconds. Standard on Sportive and optional on standard Panel Van models. 18 | Interior
1 2 3 4 1. Wide-angle blind spot mirror. Located in the passenger sunvisor, it provides additional visibility. 2. The New Vivaro facia features nine storage spaces, providing more than 24 litres of storage volume in total. Highlights include a large, usable glovebox, upper facia storage, three drinks holders and a handy driver’s storage pocket. 3. The clipboard itself can be securely fastened in two positions, easily visible to either the driver or passenger. It’s suitable for documents up to A4 in size, including contracts, invoices and general day-to-day paperwork. 4. Generous door pockets provide useful stowage space for maps, documents and other essential workday items. Not all the features and options listed are available on every model. Please see the New Vivaro Price and Specification Guide for details. Interior | 19
1
PANEL VAN
Versatility and flexibility in equal measure.
Whatever you need, the New Vivaro has it all.
Access and loadspace features* include:
• Choice of two wheelbases
• Easy-access, 1m-wide nearside sliding
side-loading door
• Full-height steel bulkhead
• Unglazed rear doors (90/165° opening)
• Illuminated load area
• 12-volt electrical accessory socket in load area
Loadspace dimensions mm inches
2
Maximum load floor length 2537-2937 99.9-115.6
Maximum load floor length with load-through
2967-3367 116.8-132.5
facility to seat**
Maximum load floor length with load-through
3750-4150 147.6-163.4
facility to front footwell**
Width load area width 1662 65.5
Width between wheel arches 1268 49.9
Maximum load area height – H1 1387 54.6
Maximum load area height – H2 1820 71.6
Maximum rear door aperture height – H1 1320 52.0
Maximum rear door aperture height – H2 1820 71.6
Rear door aperture width (at floor) 1391 54.8
Loading height (unladen) 552 21.7
Sliding side-access door aperture height 1284 50.5 1. Euro-pallet friendly. Specifically designed to carry Euro-pallets, New Vivaro
Sliding side-access door aperture width 1030 40.5 can accommodate up to three pallets, even on L1 models. Assisted by easy side
Loadspace volumes cu.m cu.ft access, the generous 1.2m width between the rear wheel arches also makes the
Maximum loadspace volumes (VDA method) 5.2-8.6 183.6-303.7 new van suitable for carrying wide loads such as 8ft. x 4ft. plywood sheets.
Payloads kg
Maximum payload 1079-1281 2. Flexible loadspace. Standard on Sportive and optional on Panel Van models,
*Not all the features and options listed are available on every model. Please see the New the FlexCargo bulkhead allows loads of up to 4150mm in length to be
Vivaro Price and Specification Guide for details. accommodated with ease.
**Approximate. Front passenger outer seat cannot be used when the FlexCargo
load-through facility to footwell is in operation. Panel Van | 211
DOUBLECAB
The Doublecab matches practical and
comfortable crew transport to excellent
loadspace and payload.
Access and loadspace features* include:
• Choice of two wheelbases
• Twin sliding side-access doors with fixed windows
• Up to 4.0 cu.m (141.3cu.ft.) maximum loadspace volume
• High-strength ABS plastic bulkhead with window
• Half-height sidewall trim with storage pocket
• Three-passenger rear bench seat
Loadspace dimensions mm inches
Maximum load floor length at load floor 2023-2423 79.6-95.4
Maximum load floor length behind rear seats 1340-1740 42.7-68.5
2 3
Maximum load area width 1662 65.5
Width between wheel arches 1268 49.9
Maximum load area height 1387 54.6
Maximum rear door aperture height 1320 52.0
Rear door aperture width (at floor) 1391 54.8
Loading height (unladen) 552 21.7
Sliding side-access door aperture height 1284 50.5
Sliding side-access door aperture width 1030 40.5
Loadspace volumes cu.m cu.ft
1. Twin sliding side-access doors. The extra-wide door opening ensures easy
Maximum loadspace volumes (VDA method) 3.2-4.0 113.0-141.3 passenger access while the individually-contoured rear bench seat
Payloads kg accommodates up to three passengers in complete comfort with excellent leg
Maximum payload 1005-1061 room and raked rear seat backs.
*Not all the features and options listed are available on every model. Please see the New
2. and 3. Loads of loadspace. There’s instant access to underseat storage in the
Vivaro Price and Specification Guide for details. passenger section, plus up to 4.0 cu.m of usable loadspace.
Doublecab | 231
COMBI
The Combi provides generous accommodation
allied to generous luggage space and is ideally
suited to hotel and airport shuttle bus work and
private-hire companies.
Combi standard features* include:
• Nine-seat configuration with choice of
two wheelbases
• Twin sliding side-access doors with fixed windows
• Three-passenger second and third-row bench seats
• 60/40 split-folding seat back for second-row
bench seat 2 3
• Fold and tumble facility for third-row bench seat
• Removable second and third-row bench seats
• Inertia-reel lap and diagonal seatbelts for all seats
• Glazed tailgate with heated rear window and
wash/wipe facility
• Rubber floor covering
• Half-height sidewall trim
• Load restraint lashing eyes for load area
• Appearance Pack option available.
1. Transport for up to eight passengers.
With maximum versatility assured through its mix of foldable/removable seating
configurations, Combi provides transport for up to eight passengers, making it ideal for
transporting work crew. Generously proportioned rear sliding doors make Combi easy
to enter and exit, heightening the model’s potential as a courtesy vehicle.
*Not all the features and options listed are available on every model. Please see the New 2. and 3. Rear seat combinations. With its tumble and fold or removable third-row
Vivaro Price and Specification Guide for details. seating, Combi can accommodate the required mix of passengers and luggage with ease.
Combi | 25POWER AND EFFICIENCY
Delivering more power combined with lower emissions and
impressive fuel economy, New Vivaro’s smaller displacement – but
no less efficient – Turbo and BiTurbo diesel engines deliver the
perfect mix of day-to-day performance and competitive fuel Award-winning technology
With its superb new range of flexible and highly economical turbo-diesel engines,
consumption. At the same time, our latest ECO system technology – this is an altogether more cost-effective Vivaro, with engines delivering up to 140PS
allied to our proven Start/Stop functionality – ensures operating and 340Nm, CO2 emissions as low as 155g/km and impressive fuel economy of up to
costs are held firmly in check. 5.9 litres/100km (combined figure). Indeed, its sophisticated 1.6 litre BiTurbo CDTi with
sequential turbocharging and twin-cooler system has already been presented with the
prestigious Innovation Award in the Van Fleet World Honours 2014.
New BiTurbo engines
• Frugal, sequential twin-turbo system
PS PS
• Lag-free acceleration at any speed 150 150
• 1.6 BiTurbo 120PS/140PS available with Start/Stop technology 140 140
130 130
120 120
Quiet, clean and efficient diesel engines 110 Nm 110 Nm
• Variable-displacement oil pumps reduce fuel consumption 100 360 100 360
• Low-maintenance chain-driven camshafts 90 340 90 340
• Multi-point fuel injection for low emissions and high performance
80 300 80 300
70 260 70 260
• Optimised thermal management increases efficiency
60 220 60 220
• Service intervals up to 40,000km/two-years (whichever occurs sooner)
50 180 50 180
• Five-year/150,000km manufacturer’s warranty and six-year body panel 40 140 40 140
anti-perforation warranty 30 100 30 100
20 20
10 10
1000 2000 3000 4000 5000 1000 2000 3000 4000 5000
Engine speed (rpm) Engine speed (rpm)
1.6CDTi 90PS Power 1.6CDTi 115PS 1.6CDTi 120PS BiTurbo Power 1.6CDTi 140PS BiTurbo
260Nm Torque 300Nm 320Nm Torque 340Nm
26 | EfficiencyENGINES
Fuel economy (litres/100km)# CO2 emissions
Maximum power Maximum torque
Urban driving Extra-urban driving Combined figure (g/km)#
Diesel
1.6CDTi 90PS 90PS (66kW) @ 3500rpm 260Nm (192 lb.ft) @ 1500rpm 7.9 – 7.8 5.9 – 5.7 6.6 – 6.5 170 – 174
1.6CDTi 115PS 115PS (84kW) @ 3500rpm 300Nm (221 lb.ft) @ 1750rpm 7.9 – 7.8 5.9 – 5.7 6.6 – 6.5 170 – 174
1.6CDTi 120PS BiTurbo Start/Stop 120PS (88kW) @ 3500rpm 320Nm (236 lb.ft) @ 1500rpm 8.1 – 6.6 6.4 – 5.5 7.0 – 5.9 155 – 185
1.6CDTi 140PS BiTurbo Start/Stop 140PS (103kW) @ 3500rpm 340Nm (250 lb.ft) @ 1750rpm 7.2 – 7.0 5.7 – 5.6 6.2 – 6.1 160 – 164
For full model availability please refer to the New Vivaro Price and Specification Guide.
#Official Government Test Environmental Data. Official EU-regulated test data is provided for comparison purposes and actual performance will depend on driving style, road conditions and other non-technical factors.
Efficiency | 27MOVANO.
NO JOB TOO BIG.
Big. Strong. And Versatile. That’s Movano. With an extensive range of
models that give you more of what you need from a commercial
vehicle. Three load lengths. Larger load volumes. Higher gross
combination weights. Plus a choice of front-wheel drive, single
rear-wheel drive or twin rear-wheel drive variants.
Add to this more powerful, more efficient engines. A vastly improved
cabin environment with plenty of useful storage, plus a host of
innovative features that can really make a difference when you’re
out on the road.
In short, there’s ‘No Job Too Big’ for Movano.
Movano | 29INTERIOR Movano raises the bar on cabin design, creating a practical, well-equipped driver environment. With a height-adjustable steering wheel and a driver’s seat that’s adjustable for height, cushion angle, reach and rake, it’s one workspace you won’t mind spending time in. Outstanding ergonomics – allied to high levels of equipment (including an excellent audio package that includes Bluetooth® connectivity and USB facility as standard), maximum ease of access and a superb driving position – come together to create the right travelling and working experience, whatever job you’re undertaking. Model illustrated right features Office Pack and bulkhead window optional at extra cost. 30 | Interior
1
2 3
1. Mobile office capability. The Convenience and Storage Pack options help transform the cab into a state-of-the-art,
full-on mobile office.
2. Bluetooth® connectivity. Virtually universal in compatibility and enables hands-free mobile phone communication.
3. Ample storage. There’s a handy shelf above both driver and passenger as well as an 11-litre passenger glovebox
and a semi-covered tray on top of the dashboard.
Not all the features and options listed are available on every model. Please see the Movano Price and Specification Guide for details.
Interior | 311
PANEL VAN
Maximum payload and usable loadspace are an
absolute must have in this class of van. Movano
boasts serious flexibility to match the van’s
capacity to your exact business needs, whatever
the requirement.
Access and loadspace features* include:
• Full-height steel bulkhead
• Half-height load area protection panels – RWD models
• Floor-mounted load lashing eyes
• Unglazed rear doors (90/180° opening)
• Wide opening side and rear doors 2
• Choice of three wheelbases
Loadspace dimensions mm inches
Maximum load floor length 3083-4383 121.4-172.6
Maximum load area width 1765 69.5
Width between wheel arches 1380 54.3
Maximum load area height 1798-1894 70.8-74.6
Maximum rear door aperture height 1724 67.9
Rear door aperture width (at floor) 1577 62.1
Loading height (unladen) 557-724 21.9-28.5
Sliding side-access door aperture height 1684 66.3
Sliding side-access door aperture width 1270 50.0 1. Versatile rear doors. Movano rear doors can be swung clear to 180° and
Loadspace volumes cu.m cu.ft
locked in place at 90° – providing safe and convenient loading, even where
space is restricted.
Maximum loadspace volumes (VDA method) 9.4-12.9 322-456
Payloads kg 2. Swallows Euro pallets. The wider opening, standard 1270mm sliding
Maximum payload 1176-1610 side-access door means a Euro pallet can now be loaded sideways.
*Not all the features and options listed are available on every model. Please see the
Movano Price and Specification Guide for details.
Panel Van | 33POWER AND EFFICIENCY
Our new 110PS units can help lower CO2 emissions to a competitive 207g/km. Moving up
At the heart of Movano’s flexible performance lies a 2.3 litre a division, our range-leading new BiTurbo option features Start/Stop technology and an
ECO mode function,helping to deliver excellent fuel consumption (up to 6.9 litres/100km
16-valve common-rail diesel engine available in three power on the Combined cycle) and impressive CO2 emissions of just 180g/km – that’s outstanding
outputs. Starting with 110PS and 125PS power outputs and moving for a van in this class. Better still, the high power and torque levels of our new BiTurbo
up to a 163PS BiTurbo option that delivers seriously impressive models make driving the new van a pleasure – whatever the load on board.
performance, excellent fuel economy and low emissions. Start/Stop technology
Ideal for multi-drop use in city traffic, the Start/Stop system switches off the engine
Along with outstanding durability, 40,000 km servicing intervals when you stop at the lights or in traffic. Simply depress the clutch to start the engine
ensure downtime is kept to a minimum. So whatever your needs, again. A first for Opel in the medium to heavy van sector, the system helps to cut fuel
bills and lower emissions.
whatever your line of business – Movano has it covered.
Choice of engines PS PS PS
• 2.3CDTi 110PS 170 170 170
• 2.3CDTi 125PS 160 160 160
150 150 150
• 2.3CDTi 163PS BiTurbo Start/Stop
140 140 140
130 130 130
Features include:* 120 120 120
• Six-speed manual gearbox 110 110 110
Nm Nm Nm
• Power-assisted steering 100 400 100 400 100 400
• Service intervals up to 40,000km/two-years (whichever occurs sooner) 90 350 90 350 90 350
• Five-year/150,000km manufacturer’s warranty and six-year body panel
80 300 80 300 80 300
70 250 70 250 70 250
anti-perforation warranty
60 200 60 200 60 200
50 150 50 150 50 150
Options include:* 40 100 40 100 40 100
• Locking rear differential 30 30 30
• Engine-drive power take off 20 20 20
• Gearbox-driven power take off 10 10 10
• Cruise control 1000 2000 3000 4000 5000 1000 2000 3000 4000 5000 1000 2000 3000 4000 5000
Engine speed (rpm) Engine speed (rpm) Engine speed (rpm)
2.3CDTi 110PS Power 2.3CDTi 125PS Power 2.3CDTi 163PS Power
*Not all the features and options listed are available on every model.
Please see the Movano Price and Specification Guide for details. 285Nm Torque 310Nm Torque 360Nm Torque
34 | EfficiencyENGINES
Fuel economy (litres/100km)# CO2 emissions
Maximum power Maximum torque
Urban driving Extra-urban driving Combined figure (g/km)#
Diesel
2.3CDTi 110PS 110PS (81kW) @ 3500rpm 285Nm (210 lb.ft) @ 1250rpm 9.1 7.3 – 7.1 8.0 – 7.8 211 – 207
2.3CDTi 125PS 125PS (92kW) @ 3500rpm 310Nm (229 lb.ft) @ 1250-2500rpm 10.7 – 9.1 8.7 – 7.1 9.4 – 7.8 246 – 207
2.3CDTi 163PS BiTurbo Start/Stop 163PS (120kW) @ 3500rpm 360Nm (266 lb.ft) @ 1500rpm 8.6 – 7.2 8.3 – 7.0 8.9 – 6.9 217 – 180
#Official Government Test Environmental Data. Official EU-regulated test data is provided for comparison purposes and actual performance will depend on driving style, road conditions and other non-technical factors.
Efficiency | 35OPTIONS
Our options and option packs allow you
to tailor your equipment package to suit
the individual demands of your business. Combo ladder carrier Combo load flap.** The optional Vivaro load area protection.
Fit these optional bars in your Panel load flap is ideal for accommodating A range of options are available to
Please see the Commercial Vehicle Price Van and you can fix a foldable extra-long or tall items. Simply help protect loads and safeguard
and Specification Guides for full details ladder out of sight under the roof unfasten the latch located the interior:
of option availability and prices for where it won’t get in the way of your underneath the flap and the • Rubber-coated reinforced wooden
other gear. rear section opens, up to an angle load floor covering
each model. of 46°. This provides a handy • Resin-coated laminate plywood
916mm x 503mm aperture. load floor covering
Other individual options* include: • Half-height plastic load lining
**Not available on Crew Van models.
Loadspace panels
• Full-height lightweight plastic
• Window for bulkhead
honeycomb load lining panels
• Offside sliding side-access door
• Resin-coated laminate plywood
Safety and security wheel arch protection
• Additional airbags
• Security alarm
Mechanical
• Engine or gearbox driven PTO
• Tow bar
• Digital tachograph
Facia instruments and controls
• Cruise control
New Vivaro rear door options: CD 35 BT USB NAVI. Movano drivers Full-height load area panelling.
• Satellite navigation system
• Glazed rear doors, 90/165˚ opening can upgrade their audio system to Plywood panels provide maximum
Interior • Unglazed rear doors, 270˚ opening the optional CD 35 BT USB NAVI loadspace protection on Movano
Seating
• Air conditioning • Vinyl seat trim
(L2 H1 models only) featuring two 20-watt speakers, full models.
• Glazed rear doors, 270˚ opening satellite navigation functionality
• Electronic Climate • Comfort driver’s seat
(L2 H1 models only) and an overhead colour display.†
Control • Air-suspended driver’s seat • Glazed tailgate with or without
†The CD 35 BT USB NAVI does not feature digital radio.
*Not all the options listed are available on every model. Please see the wash/wipe (not available on H2
relevant Commercial Vehicle Price and Specification Guides for details. models)
36 | Options • Glazed rear doors mandate glazed
bulkheadACCESSORIES
Opel accessories are all about choice –
selecting your van then personalising it
Combo load area protection. Combo roof rack tray. Ensures all New Vivaro interior roof rack. to suit the way you work. We offer a huge
Load area protection panels are items carried on the roof are kept Utilises the normally unused space
shaped to fit over the floor and side safe and secure. Features a load under the vehicle roof to enable the range of dealer-fit accessories, all
panels to protect the load area. roller to assist in loading heavy and/ loading of bulky items safely inside designed to the same exacting
or long items. the load area. standards as the vehicle itself. For
further information please speak to your
Opel Commercial Vehicle dealer.
Other accessories* include:
Protection
• Floor mats – carpet and rubber
Safety
• Safety Pack
• Rear parking distance sensors
Practical
• Mudflaps
• Fire extinguisher (1kg or 2kg)
• Temporary tyre inflation kit
Towing
New Vivaro roof carrier system. The Rear window protection grilles. Trailer hook. Particularly suited to • Fixed tow bar
base accessory roof carrier system Constructed from 1mm thick epoxy heavier loads, the trailer hook is • Towing electrics (7-pin or 13-pin)
can be fitted with a steel roof rack coated steel, the rear window finished in an anti-corrosive epoxy • Towing electrical adaptors
complete with loading roller. A steel protection grilles help avoid theft powder treatment. (7/13-pin or 13/7-pin or 12S adaptor)
loading ladder and roof walkway are while retaining rearward visibility.
also available.
*Not all the options listed are available on every model. Please see the
relevant Commercial Vehicle Price and Specification Guides for details.
Options | 37COLOURS AND TRIMS
Opel Commercial Vehicles are available in a wide range of colours, including the latest metallics, matched to a variety of hard wearing trims, so you’re sure
to find a combination that best suits you and your business. Not all colours may be available, please check with your Opel dealer for more information.
SOLID TWO-COAT METALLIC*
Arctic White Ink Blue Polar White Spring Green Ambient Blue Jasper Brown
Movano New Vivaro / Movano Combo New Vivaro Movano New Vivaro
Deep Blue Iron Grey Poppy Red Tomato Red Cassiopeia Silver Magnetic Silver
Combo New Vivaro Movano Combo New Vivaro Combo
Copper Brown Marine Blue
Flame Red Mandarin Orange Saffron Yellow
New Vivaro Combo
New Vivaro Movano Movano
Glacier White North Sea Blue Signal Blue Halo Silver Midnight Black
New Vivaro Movano Movano Movano Combo/New Vivaro
38 | Colours and trims *Two-coat metallic paint is optional at extra cost. No cost option on Sportive models.TRIMS
Panorama Blue Ruby Red Cube Black Cloth Grey Vinyl††
New Vivaro Combo
Combo Movano
Pearl Black Twilight Blue
Black Vinyl† Blue Tricess
Movano Combo
Pepperdust
Combo New Vivaro
Combo
Pulse Grey Cloth Black Connect
Platinum Silver
New Vivaro Movano New Vivaro
†Black Vinyl trim optional at extra cost on Combo models. Colours and trims | 39
††Grey Vinyl trim is optional at extra cost on Movano models.Opel Service.
Commercial vehicle dealer network. New Vehicle Warranty. onward transportation, e.g. via rail or air Opel on the Internet.
A network of nationwide Opel Ireland commercial 5-year/150,000km. This warranty applies to any new (please see programme conditions). Need instant information? At www.opel.ie you
vehicle dealers, including dedicated heavy van Opel commercial vehicle for a period of 5 years or can access a wealth of information on all Opel cars,
specialists responsible for Vivaro and Movano, 150,000km (whichever occurs sooner) from the day on 12-year Anti-Perforation Warranty. services, and accessories. Get online for Opel news
offer sales support and the expert service and which it was either registered for the first time or Opel provides you with a reliable long-term and product updates.
maintenance know how to keep your business delivered to the customer by the dealer, depending warranty against perforation, provided you have
moving. on which date comes first. your vehicle serviced and all necessary inspections Recycling.
performed according to the service booklet. Information about Design for Recycling, Take-
Europe-wide Customer Service. Opel Roadside Assistance. Back points for End of Life Vehicles (ELVs) and
Throughout Europe, more than 6,000 Opel repair This free-of-charge mobility service is valid 2-year Warranty for Opel Batteries. the recycling of ELVs can be found on the Opel
workshops are ready to provide professional for all new Opel vehicles during the first year With a 2-year warranty for service-installed Opel website www.opel.ie
and punctual service. As you’d expect, they’ll after the date on which they were first original batteries your starting problems are
repair your vehicle to the highest standards. registered or delivered to the customer by the over – even in the coldest winter. In case of any questions, please ask your
More unusually, perhaps, they’ll tell you exactly dealer, depending on which date comes first. Opel dealer. More information can be found
what’s been done and why, and they will show No matter where you are, the Opel Assistance Parts and Accessories Service. at www.opel.ie
any costs involved clearly and concisely. is there to help. In more than 40 European countries Opel parts and accessories are available at your
– round the clock. Offering services such as local Opel Shop, where you’ll find everything to
breakdown assistance, towing services, rental car, make your vehicle more comfortable or to meet
hotel accommodation or the organisation of your individual needs, as well as expert advice.
www.opel.ie
Every effort has been made to ensure that the contents of this publication were accurate and up-to-date at the time of going to press (January 2015). Opel vehicles are
equipped with components manufactured by various General Motors operating units and outside suppliers. The Company reserves the right to change specifications
and withdraw products from sale without notice. Any such alterations will be notified to Opel dealers at the earliest opportunity; please consult your local dealer for
the latest information. The specifications detailed within this brochure are not necessarily applicable to alternative models such as Special Editions. Details of any such
models will be contained in specific literature or found on the Opel website. The colours reproduced in this brochure may vary slightly from the actual paint colour or
trim material due to the limitations of the printing process. Please note that Opel dealers are not the agents of General Motors Ireland Limited and are not authorised
to bind the Company by any specific or implied undertaking or representation. It is advisable to ensure that your motor insurance policy provides adequate cover for
additional fitted options and accessories. As part of Opel’s policy of environmental care, this brochure is printed on paper manufactured using Elemental Chlorine Free
pulps from specially farmed, sustainable timber resources. All rights reserved. No part of this publication may be reproduced in any form or by any means, without the
prior written permission of General Motors Ireland Limited.
Published February 2015 General Motors Ireland Limited, Fern Road, Sandyford Business Estate, Dublin 18. www.opel.ie OP1400236You can also read
