NICKELM - Nickel Institute
NICKEL

                                                                                  MAGAZINE
                        T HE M AG A ZINE DE VOT ED TO NICK EL A ND I T S A PPLIC ATIONS

                                        NICKEL, VOL. 34, NO. 2, 2019

                       Today and tomorrow
                      Nickel in life and science
       The future of               Detecting cosmic gravitational                            New Champlain Bridge
Carbon Capture and Storage           waves using nickel alloys                                125 years to come
NICKELM - Nickel Institute
CASE STUDY 16                                                                                                                        EDITORIAL:

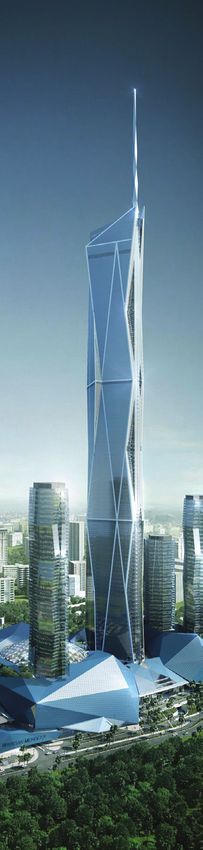

                                                                    MERDEKA PNB 118                                                                                                                      NEW NEW, OLD NEW AND EINSTEIN

                                                                    Vying to be the third tallest building in the world, the 644 metre (2,113 foot)                                                      Our society is fascinated by the new and that’s understandable. But we need
                                                                    megatall skyscraper, Merdeka PNB 118 (Permodalan Nasional Berhad, a                                                                  to be reminded that the materials that got us to where we are, are with us still.
                                                                    government-backed investment company) is taking shape in Kuala Lumpur.                                                               That includes nickel.
                                                                    Situated in the historically significant Merdeka site, where Malaysian inde-
                                                                                                                                                                                                                                     A small example is nickel-containing stainless steel
                                                                    pendence was declared in 1957, the crystalline tower will rise to 118 floors,
                                                                                                                                                                                                                                     in the vehicles that will take humanity beyond
                                                                    topped with a 150 metre high spire.
                                                                                                                                                                                                                                     Earth in the future. That is the quest of Elon Musk,
                                                                     According to Fender Katsalidis            facilitating superior drinking water.
                                                                                                                                                                                                                                     CEO of SpaceX. SpaceX is not alone, however, and

                                                                                                                                                                                                                                                                                                                                            NSF LIGO SONOMA STATE UNIVERSITY A. SIMONNET
                                                                     Architects, who worked with local         Over 70 tonnes of stainless will be
                                                                                                                                                                                                                                     – especially if its Super Heavy rocket is successful –
                                                                     architect RSP Architects, and land-       used for the plumbing system alone.
                                                                     scape architects Sasaki Associates,       Using Type 304 (UNS S30400)                                                                                           will be emulated by other space pioneers.
                                                                    “the building’s faceted design is          stainless steel, the pipes and fittings                                                                               Closer to our everyday reality is infrastructure. A
                                                                     reminiscent of those found in             are sized from 15–60.5 mm. HOTO                                                                                       major bridge, opened with great fanfare in 1962,
                                                                     traditional Malaysian arts and crafts.”   Plumbing system (HOTO Stainless                                                                                       lasted only 50 years. It continued in use until 2019
                                                                    Built to last                              Steel Industries), a Malaysian                                                                                        at a very high cost and inconvenience. Its replace-
                                                                    A structural steel system comprising       manufacturer of stainless steel tubes,
                                                                                                                                                                                                                                     ment, the new Champlain Bridge across the St.
                                                                    six belt truss zones, three outrigger      was chosen to supply the cold and
                                                                                                                                                                                                                                     Lawrence River in Québec, Canada, has a design
                                                                    zones, composite floor decks and           flushing water systems and
                                                                                                                                                                                                                                     life of 125 years. A major difference between the
                                                                    extensive roof framing make up the         Qudotech Std Bhd will provide the
                                                                                                                                                                                                                                     failed bridge and the new bridge is the extensive        A lot is going on in this artist’s
                                                                    main structure. These systems              installation. This ambitous project is
                                                                                                                                                                                                                                     use of nickel-containing stainless steels (see           impression of a cataclysmic space
                                                                    ensure stablity and are designed to        due for completion in 2021.
                                                                                                                                                                                                                                                                                              event: two neutron stars colliding.
                                                                                                                                                                                                                                     page 6). While the consequences of inadequate
                                                                    resist wind and earthquakes. The                                                                                                                                                                                          This is a work of imagination but
                                                                                                                                                                                                                                     material selections through the full life cycle of the
                                                                    superstructure is supported by a                                                                                                                                                                                          there is a growing scientific
                                                                    4 m thick raft foundation slab and                                                                                                                               1962 structure were very costly, the new bridge          understanding on how physics in
                                                                    137 cast-in-place bored piles, each                                                                                         SPACEX                               reflects the lessons learned.                            the Universe probably works.
                                                                    2.2 m in diameter and extending                                                                                                      And Einstein? Increase your knowledge of gravitational waves and find out            One example of that is the recent
                                                                    60 m in length.                                                                                                                                                                                                           detection and measurement of
                                                                                                                                                                                                         how nickel-containing alloys made their detection possible (see page 10).
                                                                                                                                                                                                                                                                                              gravity waves and, yes, nickel is
                                                                                                                                                         HOTO STAINLESS STEEL PLUMBING SYSTEM

                                                                    Plumbed in stainless steel
                                                                                                                                                                                                         Nickel celebrates the continuing contributions of nickel-containing materials to     involved. Turn to page 10 for the
FENDER KATSALIDIS ARCHITECTS

                                                                    With 118 storeys to service, stainless
                                                                                                                                                                                                         engineering, architecture and science. In various forms, nickel is an essential      story on LIGO and Virgo.
                                                                    steel pipes were chosen for the
                                                                                                                                                                                                         part of our future. On and off this planet.
                                                                    plumbing. Stainless steel is ideal for
                                                                    the very high pressures encountered                                                                                                  Clare Richardson
                                                                    in supertall structures as well as                                                                                                   Editor, Nickel Magazine

                               22 || NICKEL,
                                     NICKEL, VOL.
                                             VOL. 34,
                                                  34, NO.
                                                      NO. 2,
                                                          2, 2019
                                                             2019                                                                                                                                                                                                                                        NICKEL, VOL. 34, NO. 2, 2019 | 3
NICKELM - Nickel Institute
NICKEL
                                                                                                                                                                                                                                               Back to

                                                                                                                                              NOTABLES
  CONTENTS

                                                                                                                                                                                         SPACEEX
                                                                                                                                                                                                                                               the future
   02

                                                                                                                                                                                                                                                                                                                                              UNIVERSITY OF PENNSYLVANIA
          Case study no. 16                                                                                                                                                                                                                    Rocket ships were a staple of 1950’s
          Merdeka PNB 118                                                                                                                                                                                                                      science fiction. They were depicted
   03     Editorial                                                                                                                                                                                                                            at that time as shiny, fat cigars
          New, old and Einstein                                                                                                                                                                                                                with windows, fins and legs. The

                                                                                                                                                                                                                                                                                           Metallic wood
                                                                                                                                                                                                                                               spaceships of the future are now
  04      Nickel notables
                                                                                                                                                                                                                                               being designed with the prototypes
  06      New Champlain Bridge                                                                                                                                                                                                                 looking very much like the fictional
          125 years into the future                                                                                                                                                                                                            speculative vessels of 70 years             It’s as strong as aerospace titanium but
                                                                                                                                                                                                                                               ago. And they are being made with           lighter than water. While it is called
  08      Boundary Dam
                                                                                                                                                                                                                                                                                           “metallic wood”, the material contains
                                                                                                                                                                                                                                               nickel-containing stainless steels.
          Five years of carbon capture
                                                                                                                                                                                                                                               SpaceX is developing its Single             no wood whatsoever. Researchers
          and storage
                                                                                                                                                                                                                                               Stage to Orbit (SSTO) vehicle that          at the University of Pennsylvania,

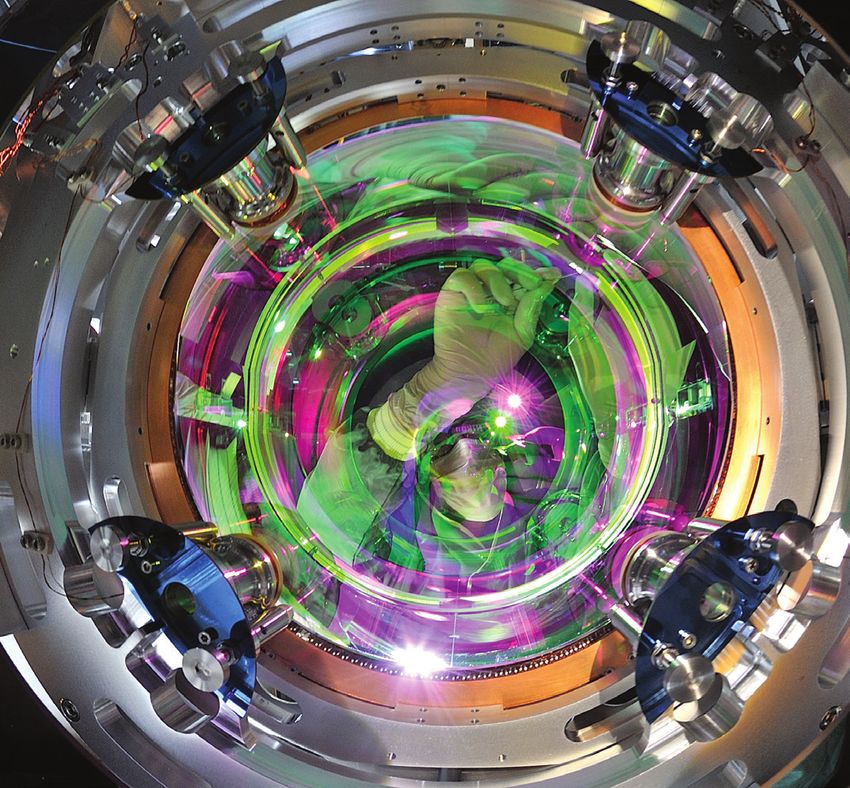

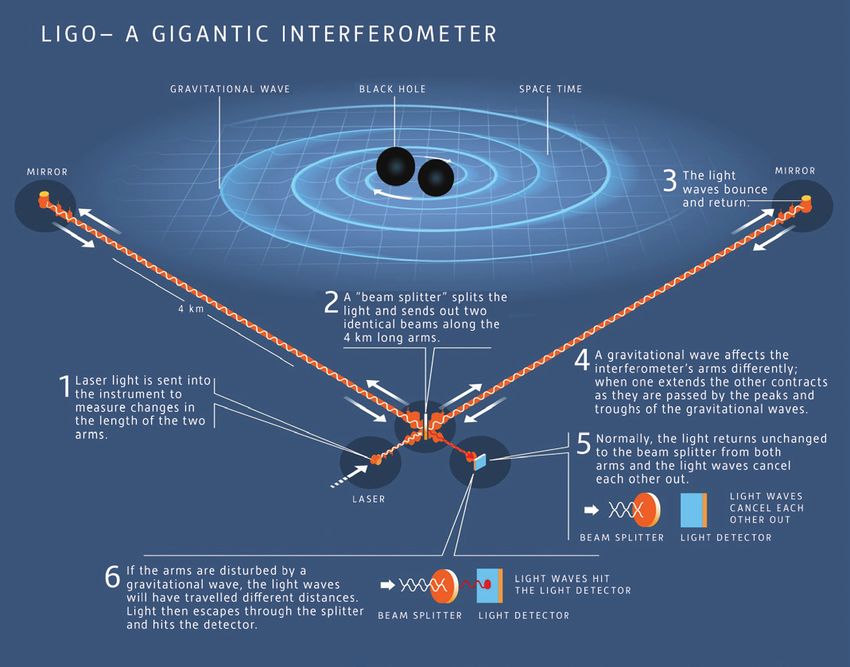

   10     Gravitational waves                                                                                                                                                                                                                  will be powered by its Super Heavy          the University of Illinois, and the
          Detection using nickel                                                                                                                                                                                                               (formerly known as BFR) rocket.             University of Cambridge have built
   13     Hydrogen trains                                                                                                                                                                                                                      For a whole host of reasons, Elon           a sheet of nickel with nanoscale
          Nickel on board                                                                                                                                                                                                                      Musk, SpaceX CEO, says stainless            pores that provides the same strength
                                                                                                                                                                                                                                               steel is the best choice for technical,     as titanium but is four to five times
   14

                                                                                                                                                         EYE OF SCIENCE/SCIENCE SOURCE

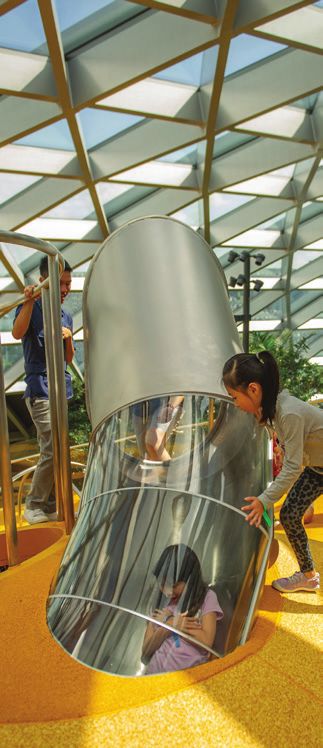

          Discovery slides
                                                                                                                                                                                                                                               performance and economic                    lighter. The pores make it wood-like,
          Jewel Changi Airport
                                                                                                                                                                                                                                               reasons, easily beating out                 with air spaces in between billions of
   15     New publications                                                                                                                                                                                                                     aluminium and carbon composite.             miniature “struts” of nickel. Magnified
                                                                                                                                                                                                                                                                                           thousands of times, the material looks
   15     UNS details
                                                                                                                                                                                                                                                                                           like honeycomb. Next challenge?

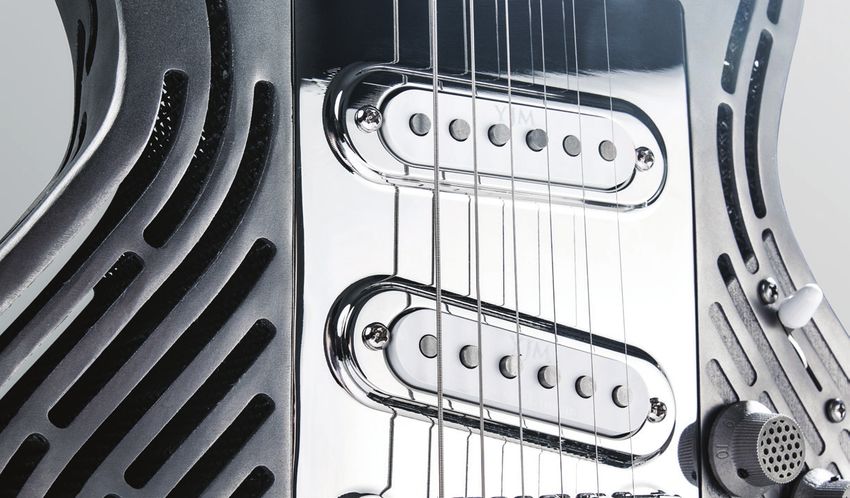

   16     Smash-proof guitar
          Additive manufacturing uses nickel                        Bugs in space                                                                                                                                                                                                          Figuring out how to produce this
                                                                                                                                                                                                                                                                                           material in large quantities. Big
                                                                    Space is hard. It’s a stressful and unnatural environment for human beings.                                                                                                                                            slabs could be revolutionary for the
  Nickel magazine is published by Nickel Institute                  When humans arrive in space they carry with them bacteria from Earth. But                                                                                                                                              building and automotive industries
  www.nickelinstitute.org                                           what is benign or easily managed on Earth, becomes problematic in space.                                                                                                                                               looking for lighter materials able to
  Dr. Hudson Bates, President                                       Prof. Elisabeth Grohmann of Beuth University of Applied Sciences Berlin,                                                                                                                                               shoulder heavy loads relative to
  Clare Richardson, Editor
                                                                    author of a new study, has said ‘Just as stress hormones leave astronauts                                                                                                                                              their weight.

                                                                                                                                                                                         MALVIKA VERMA
  communications@nickelinstitute.org
                                                                    vulnerable to infection, the bacteria they carry become hardier – developing
  Contributors:
  Gary Coates, Rick Huza, Larry Martin, Richard Matheson,
                                                                    thick protective coatings and resistance to antibiotics – and more vigorous,

                                                                                                                                                                                                         A TB treatment that’s easier to stomach
  Bruce McKean, Geir Moe, Kim Oakes, Odette Ziezold                 multiplying and metabolising faster’.
  Design: Constructive Communications
                                                                    A proprietary surface coating of silver and ruthenium has been developed
  Material has been prepared for the general information of         and tested in the toilet area of the International Space Station. Measured
  the reader and should not be used or relied upon for specific
  applications without first securing competent advice. While       bacteria presence after 12 and 19 months was over 80% reduced compared to                                                            A thin coiled wire could provide a big advance in treating tuberculosis (TB), one of the world’s deadliest infectious
  the material is believed to be technically correct, Nickel
                                                                    control surfaces.                                                                                                                    diseases, infecting one-quarter of the population and killing more than one million annually. In rural areas of coun-
  Institute, its members, staff and consultants do not represent
  or warrant its suitability for any general or specific use and                                                                                                                                         tries like India, South Africa and China where rates are high, it has been difficult to administer the required six-month
  assume no liability or responsibility of any kind in connection   The silver/ruthenium is a surface coating. And the surface it coats is nickel-
  with the information herein.                                                                                                                                                                           course of daily antibiotics. The elastic wire, made of Nitinol (UNS N01555), an alloy of nickel and titanium, is inserted
                                                                    containing stainless steel Type 304 (UNS S30400), an alloy well known for its                                                        into the patient. It changes shape once it reaches the higher temperatures of the stomach. Up to 600 “pills” of various
   ISSN 0829-8351
                                                                    ability to accept different surface treatments.                                                                                      antibiotics are strung along the wire, and the drugs are released over a one month period. The coiling prevents it
  Printed in Canada on recycled paper by Hayes Print Group
                                                                    Space will always be hard but nickel-containing materials, in leading and                                                            from passing further through the digestive system. Ensuring full treatment courses is a global challenge solved here
  Image credits:
  Cover: iStockPhoto©cemagraphics                                   secondary roles, will make it possible to sustain human life.                                                                        with the help of nickel.

4 | NICKEL, VOL. 34, NO. 2, 2019                                                                                                                                                                                                                                                                           NICKEL, VOL. 34, NO. 2, 2019 | 5
NICKELM - Nickel Institute

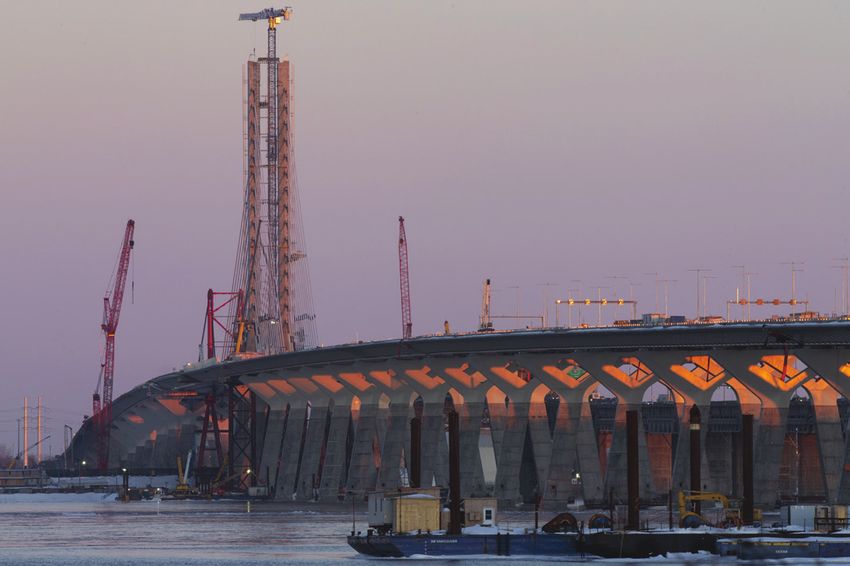

MONTRÉAL’S
                                 NEW CHAMPLAIN BRIDGE:
                                 EXTENDED DURABILITY WITH
                                 STAINLESS STEEL REINFORCEMENT
                                                                      Crossing both the Saint Lawrence River and Saint Lawrence Seaway, the
                                                                      Champlain Bridge is the busiest in Canada carrying over 50 million vehicles
                                                                      annually and about 11 million transit users. It was first opened in 1962 linking

                                                                                                                                                          CHRISTINNE MUSCHI/THE GLOBE AND MAIL
                                                                      Montréal and the South Shore and has served the Québec and eastern Canadian
                                                                      communities for almost 58 years. Now it is slated for demolition.
                                                                      Replacing it is the new Samuel de          Designers were faced with many
                                                                      Champlain Bridge, inaugurated on           service-related challenges. Montréal’s
                                                                      1 July 2019 by Infrastructure Canada.      environment is extremely harsh with
                                                                      The 3.4 km long bridge is a cable-         winter temperatures often as low as
                                                                      stayed structure with three separate      -25 °C. Seasonal temperatures can
                                                                      parallel road decks totalling 60.2 m in    vary as much as 60 °C resulting in
ARUP — INFRASTRUCTURE CANADA

                                                                      width which accommodates six               extreme freeze-thaw cycles. The use
                                                                                                                 of road salt is necessary to keep the
                                                                      highway lanes, two additional
                                                                                                                 bridge open in winter conditions.

                                                                                                                                                                                                                                                                                                                               ARUP — INFRASTRUCTURE CANADA
                                                                      extra-wide shoulder lanes for buses,
                                                                      two mass transit corridor lanes, and a    As the bridge is an essential economic
                                                                      3.5 m wide multi-use path for pedes-      link to eastern Canada, the owner
                                                                      trians and cyclists.                      mandated a 125-year service life for
                                                                                                                the roadway component of the
                                 Three possible stainless steel       The original structure had severely
                                                                                                                structure. The extended durability
                                 alloys were specified – Types 2304   deteriorated mainly due to the            was achieved through design in
                                 (UNS S32304), 2101 (S32101)          corrosive effect of road salt which                                                                                        rather than take a performance-based    pre-cast and cast-in-place sections
                                                                                                                combination with the selection of
                                 and 304 (S30400). All three          was not adequately planned for, and                                                                                        specification approach. This included   of the roadway deck of the entire
                                                                                                                appropriate materials. Extensive life
                                 alloys would provide substantial                                                                                                                                the reinforcement materials (rebar)     span of the bridge including the
                                                                      some design flaws. Inadequate and         cycle cost analyses justified the cost/                                                                                                                          The bottom line is that stainless
                                 corrosion resistance for 125 years
                                                                      faulty drainage caused water ponding      benefits of using more durable                                                   chosen.                                 approaches, the abutments and all       steel reinforcement is a value-
                                 as they all include sufficient
                                                                      and spillage onto critical structural     materials in all the core elements.                                              In the Government’s assessment,         surfaces around the expansion joints.   added feature to the design
                                 levels of chromium and nickel.
                                                                      elements. As well, the approach           Savings will come over the life of the                                                                                                                           with measurable benefits in
                                 Type 2304 (4% Ni) was used for                                                                                                                                  the harsh conditions, the extended      The new Samuel de Champlain Bridge
                                                                      span’s concrete pre-stressed/post-ten-    bridge from avoided repairs and                                                                                                                                  terms of long term cost savings
                                 cost and availability reasons                                                                                                                                   service life for the main components    combines beauty and utility, with
                                                                                                                traffic disruption during roadworks.                                                                                                                             and higher utilisation of the
                                 at the time of bidding. The          sioned girders, which was a new                                                                                            of the structure, and the economic      every possible mode of transportation
                                                                                                                                                                                                                                                                                 network by avoiding roadwork-
                                 reinforcement was produced and       technology in the late 1950s, deterio-    To ensure that the desired durability                                            importance of this link dictated that   provided for. Thanks to its nickel-
                                                                                                                                                                                                                                                                                 induced traffic congestion.
                                 fabricated in North America.         rated significantly. In 2013 it was       and service life would be achieved,                                              the reinforcement steel be stainless.   containing components, neither
                                                                      announced that the bridge was to be       the owner stipulated the use of                                                  A total of 17,000 tonnes of stainless   climate nor changing transportation
                                                                      replaced. Construction started in 2015.   certain “durability-driving” materials                                           steel reinforcement was used in the     patterns will defeat this bridge.

                               6 | NICKEL, VOL. 34, NO. 2, 2019                                                                                                                                                                                                                             NICKEL, VOL. 34, NO. 2, 2019 | 7
NICKELM - Nickel Institute

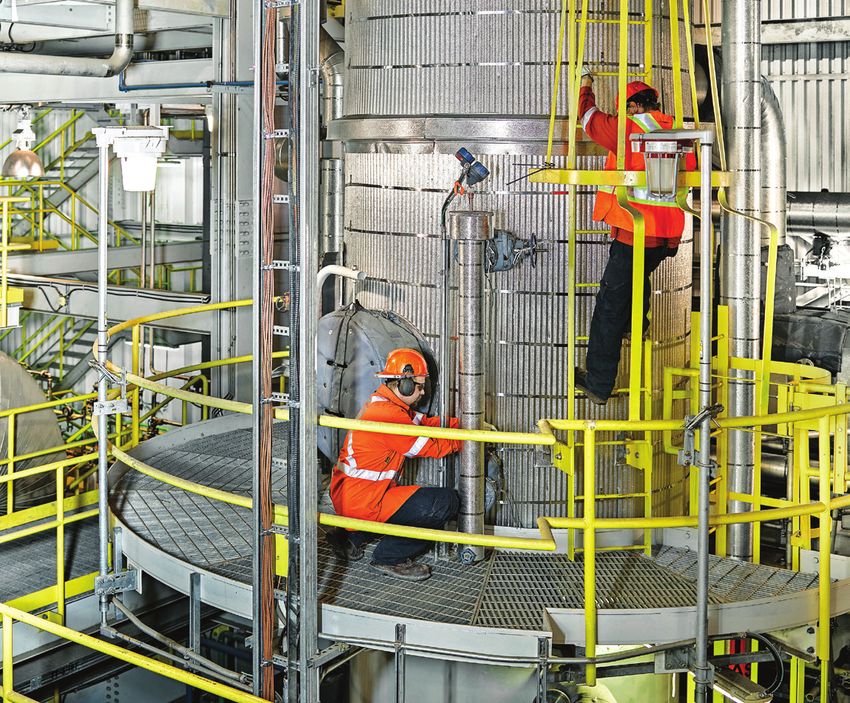

Up to 90% of the CO2 can be removed       shown the nickel-containing alloys
                                                                                                                                    from the flue gas. This gas is            throughout the unit to be in good con-
                                                                                                                                    compressed to 17.2 MPa (2500 psig)        dition. Process system components
                                                                                                                                    pressure into a supercritical state       such as vessels, purification and
                                                                                                                                    or dense phase condition. It is then      filtration units, piping, compressors,    Since 2014, SaskPower’s plant

              FIVE YEARS OF
                                                                                                                                    transported via pipelines to geologi-     and heat exchangers generally show        performance statistics have
                                                                                                                                    cal storage locations: an oil reservoir   no signs of pitting and corrosion. In     shown steady improvement,
                                                                                                                                    approximately 1.4 kilometres deep at                                                with approximately 2.6 million
                                                                                                                                                                              most cases, the metal exposed to

              CARBON CAPTURE AND STORAGE                                                                                            an enhanced oil recovery operation
                                                                                                                                    near Weyburn, Saskatchewan, or
                                                                                                                                    a saline aquifer approximately 3.4
                                                                                                                                                                              the process appears as good as it did
                                                                                                                                                                              when first put in service.
                                                                                                                                                                                                                        tonnes of CO2 processed to date.
                                                                                                                                                                                                                        In 2018, the CCS facility captured
                                                                                                                                                                                                                        a total of 625,996 tonnes of
                                                                                                                                    kilometres deep. To prove that storing    Stainless steel AL-6XN®, a super-         CO2, significantly more than
                                                                                                                                    CO2 deep underground in a layer of        austenitic alloy, is known for its high   2017. Once external reasons for
                                                                                                                                    brine-filled sandstone is a safe way      strength, as well as resistance to        downtime are excluded, CCS
                                                                                                                                    to reduce greenhouse gas emissions,       crevice and pitting corrosion in acidic   unit availability was 94%.
                                                                                                                                    this geological storage site is subject   solutions – just one example of how
                                               There are many innovative paths to reduced carbon emissions. One of those
                                                                                                                                    to measurement, monitoring and            nickel-containing materials enable
                                               is the Boundary Dam carbon capture and storage complex (CCS), also known
                                                                                                                                    verification.                             innovative technologies in providing
                                               as Boundary Dam 3 (BD3). After five years of operation, stainless steels
                                               such as Type 316L (UNS S31603) as well as nickel alloys such as AL-6XN®              Regular in-service inspections have       paths to a reduced carbon future.
                                               (N08367) and 254 SMO® (S31254) continue to perform well in service at what
              Nickel-containing alloys are     many initially considered to be a demonstration project.
              performing well in SaskPower’s   Meeting power and climatic needs          world’s electricity. Saskatchewan
              Boundary Dam CCS complex.        Boundary Dam is a large coal-fired        has more than five billion tonnes of
              In the absorber section,         power generating plant operated           lignite coal reserves - sufficient for
              AL‑6XN® with about 24% nickel    by a Canadian provincial utility,         another 250 years at current rates of
              is utilised to withstand the     Saskatchewan Power Corporation.           consumption.
              corrosiveness of wet flue gas.   Operating since 1955, the BD3 turbine     Sulphur dioxide (SO2) is a significant
                                               unit was retrofitted in 2014 with a       combustion product and presents a
                                               carbon capture and storage facility,      double challenge for CCS: removal
                                               becoming the first coal-fired power       of both SO2 and CO2. Upstream,
                                               station in the world to utilise Post      particulate matter is first removed
                                               Combustion Capture.                       from the flue gas in a precipitator. The
                                               With a nominal 30-year life, the          particulate, marketed as fly ash – is a
                                               original design concept was to            fine powder used in concrete, mining,
                                               capture and store up to one million       oil wells, road bases, as well as for
                                               tonnes of carbon dioxide per year         liquid waste stabilisation. Nitrogen
                                               from the flue gas, with the added         oxide (NOx) is minimised in the flue
                                               benefit of extending turbine life by      gas by the use of low-NOx burners,
                                               decades. With a cost in the order of      and the limiting of overfired air. The
                                               Cdn $1.5 billion and a reduction of       process used to reduce emissions is a
                                               unit power output from 139 MW to          solvent-based CO2 capture technique,
                                               net 115 MW, the economics of this         coupled with a SO2 removal process.
                                               facility has not been without con-        First, SO2 is removed from the flue gas
                                               troversy even as the technology and       and subsequently CO2 is captured in
                                               materials are proving robust.             the same facility. The SaskPower BD3
                                               SO2 and CO2 – a double challenge          CCS unit is capable of removing up
                                               For utility-scale power generation,       to 100% of the SO2, converting it into
SASKPOWER

                                                                                                                                                                                                                                                                      SASKPOWER
                                               coal is still very widely-used, provid-   marketable sulphuric acid at the
                                               ing energy for roughly 40% of the         rate of 16,000 litres per day.

            8 | NICKEL, VOL. 34, NO. 2, 2019                                                                                                                                                                                       NICKEL, VOL. 34, NO. 2, 2019 | 9
NICKELM - Nickel Institute
EINSTEIN CORRECT (AGAIN)
                 PREDICTED GRAVITATIONAL WAVES
                 DETECTED, ENABLED BY NICKEL-
                 CONTAINING ALLOYS

                                                       In 1916, Albert Einstein published the paper that predicted gravitational waves
                                                      – ripples in the fabric of spacetime resulting from the most violent phenomena
                                                       in our distant universe, such as supernovae explosions or colliding black holes.
                                                       For more than a century, this prediction has intrigued scientists: could such
                                                       waves – if they existed – be detected? If so, the implications for fundamental
                                                       physics – the confidence that Einstein’s General Theory of Relativity was
                                                       indeed a workable theoretical framework – would be profound.
                                                      Gravitational-wave astronomy was a        aim of detecting gravitational waves
                                                      theoretical branch of observational       by laser interferometry. This is done
                                                      astronomy which hoped to use              by comparing the travel time of laser
                                                      gravitational waves to collect obser-     beams sent along two perpendicular
LIGO/T. PYLE

                                                      vational data about objects such as       paths 4,000 metres in length and
                                                      neutron stars, black holes and events     reflected back from isolated,

                                                                                                                                                                                                                                                                           EGO/VIRGO COLLABORATION/PERCIBALLI
                                                      such as supernovae. But first their       suspended test bodies.
                 In the above illustration, two       existence had to be proven. Scientific    Initial LIGO operations between
                 black holes are about to merge.      and political support for such a          2002 and 2010 did not detect any
                 Each will have its own rotation      search was found and three coordi-        gravitational waves. In 2008, work
                 and, powered by their mutual         nated efforts, two in the United States   commenced to enhance the original
                 gravitational attraction, are        (LIGO) and one in the European            LIGO detectors. With upgrades that
                 spiraling into each other. These     Union (Virgo) were the result.            resulted in a huge increase in sensi-
                 black holes were detected on 26      Theoretical no more                       tivity, the two 4000 metre paths are        EU too                                 Eleven gravitational events were
                 Dec. 2015, and were respectively,    The Laser Interferometer Gravitational-   now continuously compared with a            Virgo, the European equivalent of      detected during the first two observa-
                 14 and eight times the mass of the
                                                      Wave Observatory (LIGO) is a large-       precision of 10 -19 metre, 1/10,000th the   LIGO, dates back to 2000 when          tional runs between Sept. 2015 and       LIGO has been upgraded for
                 sun. The wave-time dimension
                                                      scale physics experiment and obser-       size of a proton.                           France (Centre nationale de la         Jan. 2016 and Nov. 2016 to Aug. 2017.    what is known as the Third
                 here is represented by the grid
                                                      vatory, operated for the U.S. National  Achieving this degree of sensitivity          recherche scientifique/CNRS) and       Since the third observational run        Observational Run. Here a
                 pattern and is being distorted
                                                      Science Foundation by Caltech           requires a remarkable combination of          Italy (Istituto Nazionale de Fisica    began in Jan. 2019, there have been      technician is working on one
                 by the gravitational waves
                                                      (California Institute of Technology)    technological innovations in preci-           Nucleare/INFC) formed the European     an additional 18 detections yet to be    aspect of that upgrade. The
                 generated by the merger. Such
                                                      and MIT (Massachusetts Institute        sion lasers, vacuum technology, and           Gravitational Observatory (EGO).       confirmed as gravitational events.       use and essentiality of nickel-
                 events are not trivial even at the
                                                      of Technology) to detect cosmic         advanced optical and mechanical               They were later joined by institutes                                            containing materials for strength,
                 scale of the Universe. As LIGO                                                                                                                                    Physics does not get more fundamen-
                                                      gravitational waves and to develop      systems. Two LIGO observatories,              from the Netherlands, Poland,                                                   machinability, rigidity and
                 and Virgo are demonstrating,                                                                                                                                      tal than this and nickel-containing
                                                      gravitational-wave observations as an   in the States of Washington and               Hungary and Spain. It had a similar    alloys have again allowed scientists     thermal stability is apparent.
                 however, they are not rare.
                                                      astronomical tool.                      Louisiana, are operated in unison to          history to LIGO and underwent a        and engineers to push the boundaries.
                                                      Two observatories were built with the   reject terrestrial disturbances.              similar upgrade.                       In this case, into another dimension.

               10 | NICKEL, VOL. 34, NO. 2, 2019                                                                                                                                                                                       NICKEL, VOL. 34, NO. 2, 2019 | 11
NICKELM - Nickel Institute
NICKEL ON BOARD
                                                                                                                                                                                                ALSTOM’S HYDROGEN TRAINS
                                                                                                                                                                                                PROVIDE EMISSION-FREE PASSENGER
                                                                                                                                                                                                SERVICE IN LOWER SAXONY
                                                                                                                                                                                                The Coradia iLint, a hydrogen fuel cell train built by Alstom Transport, took its
                                                                                                                                                                                                first scheduled trip from the station of Bremervörde in Lower Saxony, Germany
                                                                                                                                                                                                on 16 September 2018. The Coradia iLint is the world’s first passenger train
                                                                                                                                                                                                powered by a hydrogen fuel cell, which generates electric power for traction by
JOHAN JARNESTAD THE ROYAL SWEDISH ACADEMY OF SCIENCES

                                                                                                                                                                                                combining stored hydrogen with oxygen in the air. The train is quiet and the
                                                                                                                                                                                                only emission is water vapour.
                                                                                                                                                                                                The kinetic energy recovered during           Managing Director for Alstom in
                                                                                                                                                                                                braking and surplus energy generated          Germany and Austria, states, “Our
                                                                                                                                                                                                by the fuel-cell is stored in nickel-         technology is ready for use. It repre-

                                                                                                                                                                                                                                                                                                                                               CORADIA ILINT
                                                                                                                                                                                                manganese-cobalt (NMC) lithium-ion            sents an existing environment-
                                                                                                                                                                                                batteries. This stored excess energy is       friendly alternative for non-electrified
                                                                                                                                                                                                available for normal operations, and          or partially electrified lines and offers
                                                                                                                                                                                                supplies additional power during the          increased passenger comfort thanks              Two Coradia iLint engines will
                                                                                                                                                                                                acceleration phases of the train.             to a significantly quieter train than a         replace diesel trains on the

                                                                                            Where’s the nickel?                                                                                 The train can carry 150 seated
                                                                                                                                                                                                passengers and 150 standing passen-
                                                                                                                                                                                                                                              conventional diesel multiple unit.”
                                                                                                                                                                                                                                              High-strength nickel-containing stain-
                                                                                                                                                                                                                                                                                              100 km route linking the towns of
                                                                                                                                                                                                                                                                                              Cuxhaven and Buxtehude, with
                                                                                                                                                                                                gers. Its maximum speed is 140 km/h           less steel 410L (UNS S40977) is used            14 other hydrogen trains set to be
                                                                                            Nickel-containing materials were used in the fabrication of many critical                           and can travel 600–800 km on a full           for the car shells as it is corrosion-          introduced across Lower Saxony
CALTECH/MIT/LIGO LAB

                                                                                            components in the LIGO and Virgo observatories which have similar instal-                           tank of hydrogen, with the assist of          resistant and longer lasting than plain         by 2021.
                                                                                            lations. At the LIGO observatories, to prevent air refraction from disturbing                       the NMC battery. Dr. Jörg Nikutta,            carbon steel.
                                                                                            the laser path, each of the LIGO machines is enclosed in one of the largest
                                                                                            ultrahigh-vacuum systems on the planet. Each system is comprised of 8,000 m
                                                                                            of Type 304L (UNS S30403) stainless steel beamtube, 1.2 m in diameter and                                          FUEL CELL                                                                  HYDROGEN

                                                                                                                                                                                                                                                                                                                                               ALSTOM
                                                          “Interferometers merge two or
                                                                                            3.2 mm thick. Beamtubes at both sites therefore include more than 120 tonnes                                       The kinetic energy recovered during braking and                            Stored as gas in holding tanks on the roof,
                                                          more sources of light to create                                                                                                                      surplus energy generated by the fuel-cell is stored in                     hydrogen is the fuel used by the fuel cell.
                                                                                            of nickel; another 15 tonnes or so are included in the vacuum vessels, valves
                                                          an interefence pattern that can                                                                                                                      nickel-containing NMC lithium-ion batteries.
                                                          be measured and analysed. They    and connecting spools that house and protect the optical systems at the vertex
                                                          are often used to make very       and ends of each system.
                                                          small measurements that are       Other internal components are fabricated from Type 304 (S30400), 304L and 316
                                                          not achievable any other way.”    (S31600). Some components are further plated with non-reflective black nickel
                                                          Source: LIGO Caltech              coatings, to control stray light reflections. Critical high-stress isolation springs and
                                                                                            suspension flexures are fabricated from age-hardened Maraging 300 (K93120),
                                                                                                                                                                                       ALSTOM

                                                                                            which are nickel-plated to resist corrosion during processing and assembly.

                                                        12 | NICKEL, VOL. 34, NO. 2, 2019                                                                                                                                                                                                                  NICKEL, VOL. 34, NO. 2, 2019 | 13
NICKELM - Nickel Institute
STUNNING DISCOVERY SLIDES
                                 AT JEWEL, CHANGI AIRPORT                                                                                                                   NEW PUBLICATIONS
                                                                   How do you make an airport more inviting? You create the world’s first                                   The Nickel Institute has published                    Alloy selection for service in
                                                                   art sculpture and slide combined into one unique attraction. Integral to the                             two new technical guides to assist                    hydrogen fluoride, hydrofluoric
                                                                   airport’s strategy to provide an extraordinary visitor experience, the Discovery                         in the effective use of nickel-                       acid and fluorine (10074) exam-
                                                                   Slides are part of this multi-dimensional lifestyle destination where nature                             containing materials.                                 ines the corrosive effect of fluorine,
                                                                   meets engineering under a beautiful glass and steel dome.                                                                                                      hydrogen fluoride and hydrofluoric
                                                                                                                                                                            Alloy selection for service in
                                                                   Located in the Canopy Park on the          It is over 18 m by 16.7 m in area and is                                                                            acid with a range of materials
                                                                                                                                                                            sulphuric acid (10057) reviews
                                                                   highest level of the new development       6.5 m high at the highest point.                                                                                    including steels, stainless steels,
                                                                                                                                                                            the corrosive effect of sulphuric
                                                                   at Singapore’s Changi Airport, four        The project took two years from concept                                                                             nickel-base alloys, copper-base
                                                                                                                                                                            acid at all concentrations, and the
                                                                   slides of various gradients and heights    to completion and was built in three                                                                                alloys, titanium, zirconium and
                                                                                                                                                                            influence of contaminants on its
                                                                   offer different “wow” experiences; a       different parts of the world before being                                                                           tantalum under various conditions.
                                                                                                                                                                            corrosivity with a range of materials
                                                                   family slide, a steep drop slide and       assembled in Changi by Playpoint.                                                                                   These fully revised technical pub-
                                                                                                                                                                            including steels, stainless steels,
                                                                   two glass-covered spiral slides.
                                                                                                              The play-sculpture is quickly becom-                          nickel-base alloys, lead, titanium,                   lications from the Nickel Institute
                                                                   The structure incorporates a double        ing a hit, a social media favourite                           zirconium and tantalum under                          provide a useful guide for materials
                                                                   curved steel surface, curved glass and     and a great reason to book a flight                                                                                 engineers.
                                                                                                                                                                            various conditions. It also briefly
                                                                   fibre optic lights. Plates of Type 316     to Changi. As more of these elevated                          discusses sulphuric acid manufac-                     Available to download free from
                                                                   (UNS S31600) stainless steel were          experiences slide into airports in the
                                                                                                                                                                            ture from three possible feedstocks.                  www.nickelinstitute.org
                                                                   welded, hammered and polished to           future, we hope that nickel continues
                                                                   achieve the smooth mirror finish which     to be along for the ride.
                                                                   forms a continuous and seamless bright

                                                                                                                                                                              UNS DETAILS
                                                                                                                 NICKEL
                                                                   steel skin wrapping around the three                                                                                                                              Chemical compositions (% by weight) of the alloys and stainless steels
                                                                                                                                                                                                                                     mentioned in this issue of Nickel.
IMAGE : JEWEL CHANGI AIRPORT

                                                                   cones holding up the large access

                                                                                                                                                              O N L I N E
                                                                   platform. Designed by Carve, the                                                                          UNS           Al       C      Co      Cr     Cu         Fe      H      Mn      Mo       N       Nb      Ni      O      P       S       Si      Ti
                                                                   sculpture has over 311 m2 of stainless
                                                                                                                                                                             K93120        0.05-   0.03    8.0-    -       -         bal.    -      0.10    4.6-     -       -      18.0-    -     0.010   0.010   0.10    0.55-
                                                                   steel and weighs a total of 70 tonnes of                                                                  p. 12         0.15    max.    9.5                                      max.    5.2                     19.0            max.    max.   max.    0.80

                                                                   which 50 tonnes is stainless steel.           WWW.NICKELINSTITUTE.ORG                                     N01555         -      0.07    0.05   0.01    0.01      0.05    0.005    -       -       -      0.025   54.0-   0.05    -       -       -      bal.
                                                                                                                                                                             p. 5                  max.    max.   max.    max.      max.    max.                            max.    57.0    max

                                                                                                                 SUBSCRIBE to Nickel magazine free of charge and             N08367         -      0.030    -     20.0-   0.75       bal.    -      2.00    6.0-    0.18-    -      23.5-    -     0.040   0.030   1.00     -
                                                                                                                                                                             p. 8                   max.          22.0    max.                      max.    7.0     0.25            25.5            max.    max.   max.
                                                                                                                 receive a printed copy or an e-mail notice when a
                                                                                                                 new issue is published. www.nickelinstitute.org             S30400         -      0.08     -     18.0-    -         bal.    -      2.00     -      0.10     -       8.0-    -     0.045   0.030   1.00     -
                                                                                                                                                                             p. 2,4,6,12           max.           20.0                              max.            max.            10.5           max.     max.   max.
                                                                                                                 READ Nickel magazine online in several languages.           S30403         -      0.03     -     18.0-    -         bal.    -      2.00     -      0.10     -       8.0-    -     0.045   0.030   1.00     -
                                                                                                                 www.nickelinstitute.org/nickel-magazine/                    p. 12                 max.           20.0                              max.            max.            12.0           max.     max.   max.
                                 Jewel is a nature-themed
                                                                                                                                                                             S31254         -      0.020    -     19.5-   0.50-      bal.    -      1.00    6.0-    0.18-    -      17.5-    -     0.030   0.010   0.80     -
                                 entertainment and retail                                                        SEARCH BACK ISSUES of Nickel magazine from our              p. 8                   max.          20.5    1.00                      max.    6.5     0.22            18.5            max.    max.   max.
                                 complex at Singapore’s Changi                                                   online archive, going back to 2009.
                                                                                                                                                                             S31600         -      0.08     -     16.0-    -         bal.    -      2.00    2.00-   0.10     -      10.0-    -     0.045   0.030   1.00     -
                                                                                                                 www.nickelinstitute.org/nickel-magazine/                    p. 12,14              max.           18.0                              max.    3.00    max.            14.0           max.     max.   max.
                                 Airport. Canopy Park is on
                                 the tenth floor and features                                                                                                                S31603         -      0.03     -     16.0-    -         bal.    -      2.00    2.00-   0.10     -      10.0-    -     0.045   0.030   1.00     -
                                                                                                                 FOLLOW US on Twitter @NickelInstitute                       p. 8                  max.           18.0                              max.    3.00    max.            14.0           max.     max.   max.
                                 gardens and leisure facilities.
                                                                                                                 JOIN US on LinkedIn –                                       S32101         -      0.04     -     21.0-   0.10-      bal.    -      4.00-   0.10-   0.20-    -      1.35-    -     0.040   0.030   1.00     -
                                                                                                                                                                             p. 6                  max.           22.0    0.80                      6.00    0.80    0.25            1.70            max.    max.   max.
                                                                                                                 visit the Nickel Institute’s page
                                                                                                                                                                             S32304         -      0.03     -     21.5-   0.05-      bal.    -      2.50    0.05-   0.05-    -      3.0-     -     0.040   0.040   1.00     -
                                                                                                                                                                             p. 6                  max.           24.5    0.60                      max.    0.60    0.20            5.5             max.    max.   max.
                                                                                                                 WATCH nickel-related videos on
                                                                                                                 the Nickel Institute YouTube channel                        S33207         -      0.030    -     29.0-   1.0        bal.    -      1.50    3.0-    0.40-    -      6.0-     -     0.035   0.010   0.80     -
                                                                                                                                                                             p. 16                  max.          33.0    max.                      max.    5.0     0.60            9.0            max.     max.   max.
                                                                                                                 www.youtube.com/user/NickelInstitute
                                                                                                                                                                             S40977         -      0.030    -     10.5-    -         bal.    -      1.50     -      0.030    -      0.30-    -     0.040   0.015   1.00     -
CARVE

                                                                                                                                                                             p. 13                  max.          12.5                              max.             max.           1.00            max.   max.    max.

                               14 | NICKEL, VOL. 34, NO. 2, 2019                                                                                                                                                                                                                                   NICKEL, VOL. 34, NO. 2, 2019 | 15
NICKELM - Nickel Institute
A SMASH HIT!
                                                                         One of the Top Ten electric guitarists in the world according to TIME
                                                                         magazine, Swedish heavy metal musician Yngwie Malmsteen has smashed
                                                                         over 100 guitars in his career. Sandvik Additive Manufacturing, producers of
                                                                         metal powder for additive manufacturing, decided to challenge him by building
                                                                         the world’s first indestructible, 3D printed, all-metal guitar.
                                                                         “Materials technology, precision           of this before. Sandvik’s design part-
COPYRIGHT © SANDVIK AB; (PUBL)

                                                                         machining, additive manufacturing          ner, UK-based guitar designer Andy
                                                                         and data-driven production – these         Holt of Drewman Guitars, had no idea
                                                                         are the kinds of processes it takes        if this was even feasible.
                                                                         to create something as complicated
                                                                                                                    The body was built up using Powder
                                                                         and beautiful as a guitar for a
                                                                                                                    Bed Fusion Laser, an additive technol-
                                                                         master musician,” said Kristian
                                                                                                                    ogy ideal for printing metal compo-
                                                                         Egeberg, president of Sandvik
                                    Hyper-duplex steel is 30% stronger                                              nents with extremely complex geome-
                                                                         Additive Manufacturing. “But we also
                                    than Sandvik’s previous strongest                                               tries. Each layer was 50 microns thick
                                                                         wanted to show that we could make
                                    stainless steel. It was used to                                                 (thinner than a human hair).
                                                                         it unbreakable.”
                                    support the fretboard and join                                                  Confident they had a big hit on their
                                                                         They selected titanium and SAF 3207
                                    it to the guitar body, using an                                                 hand, they let Malmsteen take the stage
                                                                         HD TM hyper-duplex (austenitic-ferritic)
                                    Isotropic Lightweight Structure.                                                and unleash his smashing skills on it.
                                                                         stainless steel (UNS S33207) contain-
                                                                         ing approximately 7% nickel. Nobody        In his words? “It is impossible to
                                                                         had ever printed a guitar body made        break. But it breaks other things!”

                                 16 NICKEL,
                                    | NICKEL,
                                            VOL.VOL.
                                                  34,34,
                                                      NO.NO. 2, 2019
                                                          2, 2019
NICKELM - Nickel Institute
You can also read
