NEVER SETTLE.
RIDING UNDER THE CORNERSTONE
Tire Pressure
Monitoring System
Spartan RV has incorporated
TPMS into the digital dash
to display tire pressure and
temperature while the coach
is in motion. Spartan RV also
has kits available for your
towed vehicle.
Safe Haul™
Spartan RV introduced
Safe HaulTM to the motor
home industry in 2016. This
factory-installed system
ensures that your towed
vehicle air brake system
receives the right amount Torsion Control System
of air whenever the coach Spartan RV was the innovator of
service brakes are applied. this system in 2013. This portion
of the suspension system is
designed to absorb the torque
17° Passive Steer Tag Axle of the engine and keep the drive
Spartan RV has the industry-leading axle square.
wheel cut on the tag axle. This system
is designed to give you optimal turning
radius and minimize tire scrub.
spartanrvchassis.com/entegra
E-Z STEER
MIN MAX
Custom Designed
Digital Dash
Entegra designs safety into the
E-Z Steer dash by allowing the customer
An electronic steer assist that allows the to pull the navigation and
customer to adjust their level of comfort 360-degree camera displays into
in different driving situations. the dash for optimal viewing.
Advanced Protection Systems
Spartan RV’s industry-leading
protection systems provide owners with
comprehensive safety technology that
helps you mitigate collision and keep
you alert to your surroundings.
Premier Foundation
Bilstein® Shocks
With a Spartan RV chassis, you
know you are riding on the most High-performance GAS shock that
robust frame and crossmember will maintain ride quality for the Independent
system in the industry. duration of your trip, vs. an oil bath Front Suspension

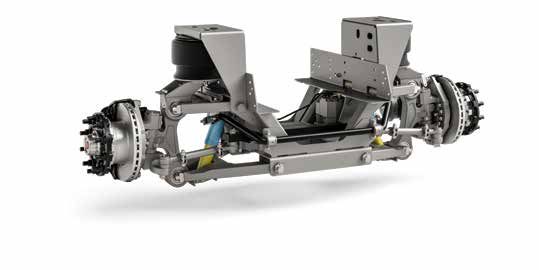

shock that can lose compression as Spartan RV was the innovator
the oil heats up. of the IFS for the motor home
industry in 1996. Drive with
confidence and comfort with
best-in-class 20,000-lb. capacity.
3
THE PREMIER
FOUNDATION.

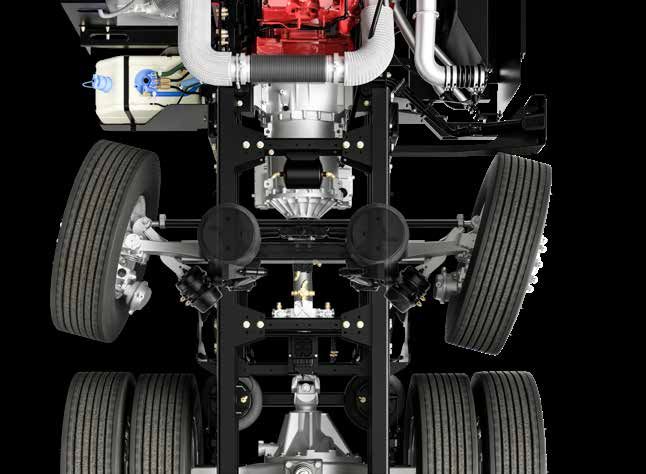

Better Maneuverability.
A tighter turn radius gives superior maneuverability.
The chassis is built to perform through corners and
traverse terrain with stability. Even the on-the-go
adjustable steering wheel is designed to reduce driver
fatigue and improve your ability to maneuver at slow
speeds and park with ease.
— Front: Independent front air suspension
with 20,000-lb. capacity
— Tag: Parallelogram air suspension and integrated
passive steering tag axle with 14,000-lb. capacity
— Bilstein shocks
Better Suspension.
We were the first Class A RV chassis maker to introduce
custom independent front suspension, and have stayed
the leader in ride quality and handling throughout the
years with race-inspired Bilstein shocks for a smoother,
more comfortable ride.
Best-in-class
turning radius.
spartanrvchassis.com/entegra
Torsion Control Rear
Suspension System
— Creates a quieter, smoother ride
— Creates less sway and a more
stable ride
— Offers roll stability for better handling
around curves

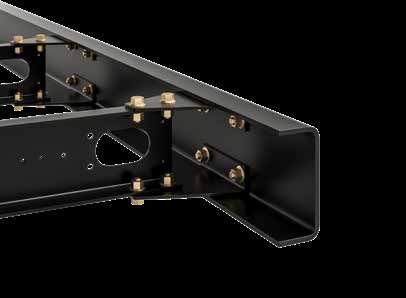

Thicker Frame Rails
— Giving you the strongest foundation
in the industry today
— Increased frame rail stiffness,
providing a more stable ride
— Larger crossmembers for
added support
5
THE INDUSTRY’S
BEST CHASSIS, BUILT
AROUND SAFETY AND
TECHNOLOGY.

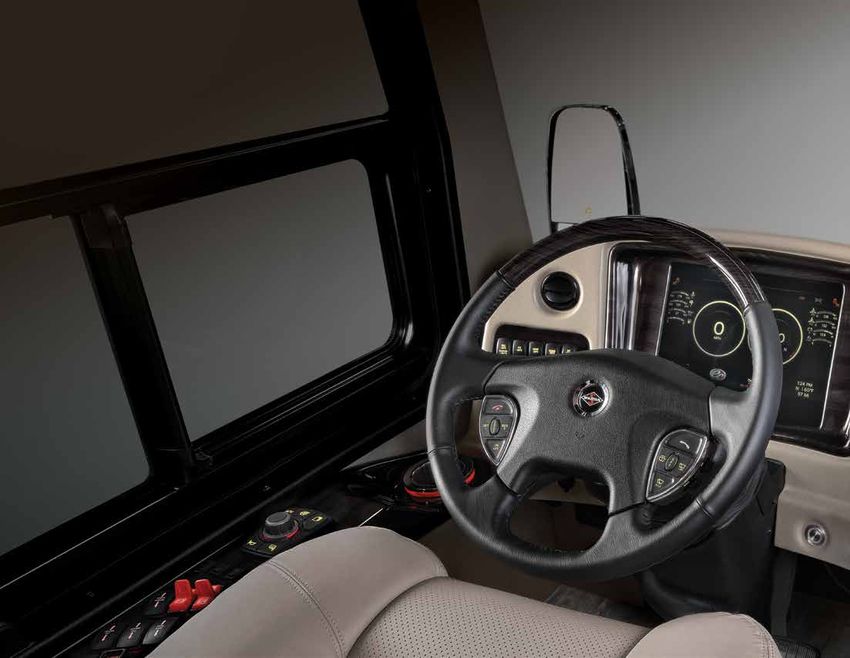

The Spartan Connected CoachTM
The Spartan Connected Coach provides owners with
a customizable digital instrument panel that can be
adjusted to meet your specific display needs.
E-Z Steer
An electronic steer assist
that allows the customer
to adjust their level of
comfort in different
driving situations.
Hands-Free
Phone Controls
spartanrvchassis.com/entegra
Advanced Protection System
— Tire Pressure Monitoring System — Collision Mitigation System
— Automatic Traction Control (ATC) — TPMS
— Adaptive Cruise Control — SafeHaulTM
— Electronic Stability Control — Hands-Free Phone Controls
Systems may vary per model
* The Spartan Connected Coach provides owners
with a customizable digital instrument panel
that can be adjusted to meet your specific
display needs.

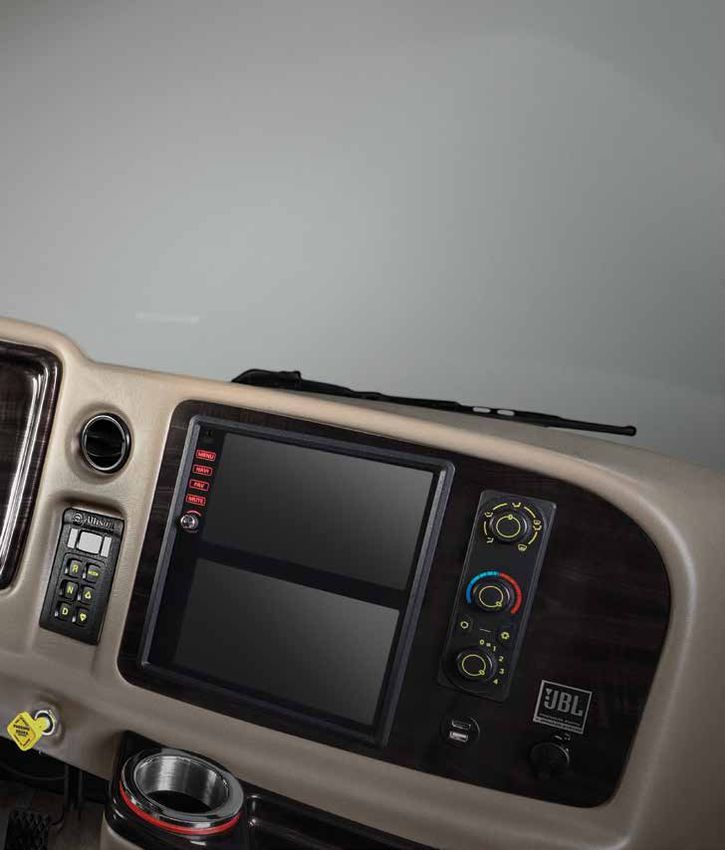

Electronic ride height and air leveling system
integrated into the digital dash.
The back-up camera or navigation can be set to
display on the Spartan Digital Dash, keeping the
camera or map in the driver’s line of sight while
driving. Designed with and for Entegra models.
7
2022 ENTEGRA CORNERSTONE 45'
Spartan Advanced Protection System®: Premium Features:
— Automatic Traction Control (ATC) — E-Z Steer for a smoother driver experience and reduced — Passive steer tag axle
— Adaptive Cruise Control (ACC) driver fatigue — 3-stage engine compression brake
— Electronic Stability Control (ESC) — Power tilt & telescoping steering column — 20,000-lb. towing capacity
— Collision Mitigation System with Adaptive Cruise Control — Independent front suspension — SMART steering wheel
— Tire Pressure Monitoring System (TPMS) — Electronic suspension control system with self-leveling — Steering wheel mounted controls for radio & phone
feature, including air compressor for extended stays
— Spartan Safe Haul™ (The industry’s only factory-chassis — Spartan Passive Keyless Start
integrated air supply for tow vehicle brake systems) — Automatic heated moisture ejectors with color-coded lanyards
— Suspended adjustable pedals
— Side-mounted service center
— Air disc brakes at all wheel positions
— Connected Coach™ digital dash with 15" display
— Hands-free phone controls
Specifications:
Engine Bilstein Shocks Cooling System
Cummins X15 Front: 60mm Side-mounted radiator: parallel airflow system with
18.7 CFM Air Compressor Rear: 46mm low-profile radiator
1500 Watt Block Heater Tag: 46mm
Peak HP: 605 hp @ 1,800 rpm Frame
Peak Torque: 1,950 lb.-ft. @ 1,150 rpm Brakes Raised rail design for frame strength and basement storage
ABS: WABCO 6S/6M with electronic stability control (ESC)
Transmission Front: Air disc Tires
Allison 4000 MH Drive: Air disc Front: Michelin XZA 365/70R22.5 LRL
Tag: Air disc Rear: Michelin X Line Energy Z 315/80R22.5 LRL
Chassis Ratings Tag: Michelin X Line Energy Z 315/80R22.5 LRL
GVWR: 54,000-lb. Steering
Front GAWR: 20,000-lb. E-Z Steer provides smoother, more precise steering, Wheels
Rear GAWR: 20,000-lb. improving driver comfort and reducing fatigue
(6) Aluminum wheels with polished finish and dress kit
Tag GAWR: 14,000-lb. Column: E-Z Steer w/ power tilt & telescope
(2) Steel wheels on inside duals
GCWR: 74,000-lb.
Fuel System
Wheelbase
Suspension Fuel Tank: 150 gallon with dual fill
320"
Front: Independent front air suspension DEF Tank: 15 gallon, dual fill
with 20,000-lb. capacity
Rear: Non-torque reactive parallelogram air Electrical System
suspension with 23,000-lb. capacity 12v electrical system
Tag: Parallelogram air suspension and integrated Batteries: Two 950 cca
passive steering tag axle with 14,000-lb. capacity Alternator: 210 amp
spartanrvchassis.com/entegra2022 ENTEGRA ANTHEM 44'
Spartan Advanced Protection System®:
— Automatic Traction Control (ATC)
Premium Features:
ANTHEM
— E-Z Steer for a smoother driver experience and
reduced driver fatigue
— 12,000-lb. tag axle
— Tire Pressure Monitoring System (TPMS) — 2-stage engine compression brake
— Spartan Safe Haul™ (The industry’s only factory-chassis — Power tilt & telescoping steering column — 15,000-lb. towing capacity
integrated air supply for tow vehicle brake systems) — Independent front suspension — SMART steering wheel
— Electronic suspension control system with self-leveling feature — Steering wheel mounted controls for radio & phone
including air compressor for extended stays
— Spartan Passive Keyless Start
— Automatic heated moisture ejectors with color-coded lanyards
— Suspended adjustable pedals
— Side-mounted service center
— Hands-free phone controls
— Connected Coach™ digital dash with 15" display
Specifications:
Engine Bilstein Shocks Cooling System
Cummins L9 Front: 60mm Side-mounted radiator: parallel airflow system with
18.7 CFM Air Compressor Rear: 46mm low-profile radiator
1000 Watt Block Heater Tag: 46mm
Peak HP: 450 hp @ 2,100 rpm Frame
Peak Torque: 1,250 lb.-ft. @ 1,400 rpm Brakes Raised rail design for increased storage
ABS: WABCO 6S/6M with ATC
Transmission Front: Air disc Tires
Allison 3000 MH Drive: Air drum Front: Michelin XZA 365/70R22.5 LRL
Tag: Air drum Rear: Michelin X Line Energy Z 315/80R22.5 LRL
Chassis Ratings Tag: Michelin X Line Energy Z 315/80R22.5 LRL
GVWR: 52,000-lb. Steering
Front GAWR: 20,000-lb. E-Z Steer provides smoother, more precise steering, Wheels
Rear GAWR: 20,000-lb. improving driver comfort and reducing fatigue
(6) Aluminum wheels with polished finish and dress kit
Tag GAWR: 12,000-lb. Column: E-Z Steer w/ power tilt & telescope
(2) Steel wheels on inside duals
GCWR: 67,000-lb.
Fuel System
Wheelbase
Suspension Fuel Tank: 150 gallon with dual fill
44': 320"
Front: Independent front air suspension DEF Tank: 15 gallon, dual fill
with 20,000-lb. capacity
Rear: Non-torque reactive parallelogram air Electrical System
suspension with 20,000-lb. capacity 12v electrical system
Tag: Trailing beam tag axle air suspension Batteries: Two 950 cca
with 12,000-lb. capacity Alternator: 170 amp
92022 ENTEGRA ASPIRE 44'
Spartan Advanced Protection System®:
— Tire Pressure Monitoring System (TPMS)
Premium Features:
— Independent front suspension
ASPIRE — 15,000-lb. towing capacity
— Spartan Safe Haul™ (The industry’s only factory-chassis — Automatic heated moisture ejectors with color-coded lanyards — SMART steering wheel
integrated air supply for tow vehicle brake systems) — Side-mounted service center — Steering wheel mounted controls for radio & phone
— 12,000-lb. tag axle — Spartan Passive Keyless Start
— E-Z Steer w/ manual tilt & telescope — Suspended adjustable pedals
— Connected Coach™ with digital dash 12.3" display — Tire Pressure Monitoring System
— 2-stage engine compression brake — Hands-free phone controls
Specifications:
Engine Bilstein Shocks Cooling System
Cummins L9 Front: 46mm Side-mounted radiator: parallel airflow system with
18.7 CFM Air Compressor Rear: 46mm low-profile radiator
1000 Watt Block Heater Tag: 46mm
Peak HP: 450 hp @ 2,100 rpm Frame
Peak Torque: 1,250 lb-ft @ 1,400 rpm Brakes Raised rail design for increased storage
ABS: WABCO 6S/6M
Transmission Front: Air disc Tires
Allison 3000 MH Drive: Air drum Front: Michelin X Line Energy Z 315/80R22.5 LRL
Tag: Air drum Rear: Michelin XZA2 295/80R22.5 LRH
Chassis Ratings Tag: Michelin XZA2 295/80R22.5 LRH
GVWR: 49,000-lb. Steering
Front GAWR: 17,000-lb. SMART steering wheel Wheels
Rear GAWR: 20,000-lb. Column: E-Z Steer with manual tilt & telescope
(6) Aluminum wheels with polished finish and dress kit
Tag GAWR: 12,000 -lb.
(2) Steel wheels on inside duals
GCWR: 64,000-lb. Fuel System
Fuel Tank: 150 gallon with dual fill
Wheelbase
Suspension DEF Tank: 15 gallon, dual fill
44': 320"
Front: Independent front air suspension
with 17,000-lb. capacity Electrical System
Rear: Trailing beam air suspension with 12v electrical system
20,000-lb. capacity Batteries: Two 950 cca
Tag: Trailing beam tag axle air suspension Alternator: 170 amp
with 12,000-lb. capacity
spartanrvchassis.com/entegra spartanrvchassis.com/entegra2022 ENTEGRA ASPIRE 40'
Spartan Advanced Protection System:
— Tire Pressure Monitoring System (TPMS)
Premium Features:
— Independent front suspension
ASPIRE — SMART steering wheel
— Spartan Safe Haul™ (The industry’s only factory-chassis — Automatic heated moisture ejectors with color-coded lanyards — Steering wheel mounted controls for radio & phone
integrated air supply for tow vehicle brake systems) — Side-mounted service center — Spartan Passive Keyless Start
— 24,000-lb. rear axle rating — Suspended adjustable pedals
— E-Z Steer w/ manual tilt & telescope — Tire Pressure Monitoring System
— Connected Coach™ with digital dash 12.3" display — Hands-free phone controls
— 10,000 -lb. towing capacity
Specifications:
Engine Bilstein Shocks Cooling System
Cummins L9 Front: 46mm Side-mounted radiator: parallel airflow system with
18.7 CFM Air Compressor Rear: 46mm low-profile radiator
1000 Watt Block Heater
Peak HP: 450 hp @ 2,100 rpm Brakes Frame
Peak Torque: 1,250 lb-ft @ 1,400 rpm ABS: WABCO 4S/4M Raised rail design for increased storage
Front: Air disc
Transmission Drive: Air drum Tires
Allison 3000 MH Front: Michelin X Line Energy Z 315/80R22.5 LRL
Steering Rear: Michelin XZA2 295/80R22.5 LRH
Chassis Ratings SMART steering wheel
GVWR: 41,000-lb. Column: E-Z Steer with manual tilt & telescope Wheels
Front GAWR: 17,000-lb.
(4) Aluminum wheels with polished finish and dress kit
Rear GAWR: 24,000-lb. Fuel System
(2) Steel wheels on inside duals
GCWR: 51,000-lb. Fuel Tank: 100 gallon with dual fill
DEF Tank: 15 gallon, single fill
Wheelbase
Suspension
261"
Front: Independent front air suspension Electrical System
with 17,000 lb capacity 12v electrical system
Rear: Non-torque reactive parallelogram Batteries: Two 950 cca
air suspension with 24,000 lb capacity Alternator: 170 amp
112022 ENTEGRA REATTA XL 37', 39' & 40'
Spartan Advanced Protection System®:
— Tire Pressure Monitoring System (TPMS)
REATTA XL
Premium Features:
— Independent front suspension — Steering wheel mounted controls for radio & phone
— Spartan Safe Haul™ (The industry’s only factory-chassis — Single moisture ejector on wet tank with color-coded lanyards — Connected Coach™ with digital dash 12.3” display
integrated air supply for tow vehicle brake systems) — Side-mounted service center — Suspended adjustable pedals
— 22,000-lb. rear axle rating — Tire Pressure Monitoring System
— 10,000-lb. towing capacity — Hands-free phone controls
— SMART steering wheel
Specifications:
Engine Bilstein Shocks Cooling System
Cummins L9 Front: 46mm Rear-mounted radiator: parallel airflow system
18.7 CFM Air Compressor Rear: 46mm with low-profile radiator
1000 Watt Block Heater
Peak HP: 380 hp @ 2,100 rpm Brakes Frame
Peak Torque: 1,150 lb-ft @ 1,400 rpm ABS: WABCO 4S/4M Raised rail design for increased storage
Front: Air disc
Transmission Drive: Air drum Tires
Allison 3000 MH Front: Michelin X Line Energy Z 275/80R22.5 LRH
Steering Rear: Michelin X Line Energy Z 275/80R22.5 LRH
Chassis Ratings SMART steering wheel
GVWR: 36,320-lb. Column: Power tilt & telescope Wheels
Front GAWR: 14,320-lb.
(4) Aluminum wheels with polished finish and dress kit
Rear GAWR: 22,000-lb. Fuel System
(2) Steel wheels on inside duals
GCWR: 46,320-lb. Fuel Tank: 100 gallon with single fill
DEF Tank: 10 gallon, single fill
Wheelbase
Suspension
37': 230"
Front: Independent front air suspension with Electrical System
39': 255"
14,600-lb. capacity 12v electrical system
39': 267"
Rear: Non-torque reactive parallelogram air Batteries: Two 950 cca
suspension with 22,000 lb capacity Alternator: 170 amp
spartanrvchassis.com/entegra
spartanrvchassis.com/entegra2022 ENTEGRA REATTA 37' & 39'
Spartan Advanced Protection System:
— Tire Pressure Monitoring System (TPMS)
Premium Features:
— Independent front suspension
REATTA — Steering wheel mounted controls for radio & phone
— Spartan Safe Haul™ (The industry’s only factory-chassis — Single moisture ejector on wet tank with color-coded lanyards — Connected Coach™ with digital dash 12.3"display
integrated air supply for tow vehicle brake systems) — Side-mounted service center — Suspended adjustable pedals
— 10,000-lb. towing capacity — Tire Pressure Monitoring System
— SMART steering wheel — Hands-free phone controls
Specifications:
Engine Bilstein Shocks Cooling System
Cummins B6.7 Front: 46mm Rear-mounted radiator: parallel airflow system
18.7 CFM Air Compressor Rear: 46mm with low-profile radiator
750 Watt Block Heater
Peak HP: 360 hp @ 2,600 rpm Brakes Frame
Peak Torque: 800 lb-ft @ 1,800 rpm ABS: WABCO 4S/4M Raised rail design for increased storage
Front: Air disc
Transmission Drive: Air drum Tires
Allison 3000 MH Front: Michelin X Line Energy Z 275/80R22.5 LRH
Steering Rear: Michelin X Line Energy Z 275/80R22.5LRH
Chassis Ratings SMART steering wheel
37' GVWR: 34,320-lb. Column: Manual tilt & telescope Wheels
Front GAWR: 14,320 -lb. (4) Aluminum wheels with polished finish and dress kit
Rear GAWR: 20,000 -lb. Fuel System (2) Steel wheels on inside duals
GCWR: 44,320 -lb. Fuel Tank: 100 gallon with single fill
39' GVWR: 36,320-lb. DEF Tank: 10 gallon, single fill Wheelbase
Front GAWR: 14,320-lb. 37': 236"
Rear GAWR: 22,000-lb. Electrical System 39': 261"
GCWR: 46,320-lb. 12v electrical system
Batteries: Two 950 cca
Suspension Alternator: 170 amp
Front: Independent front air suspension with 14,600-lb. capacity
Rear: Non-torque reactive parallelogram air suspension with
37': 20,000-lb. capacity
39': 22,000-lb. capacity
spartanrvchassis.com/entegra
13SPARTAN RV IS spartanrvchassis.com/service-support
HERE TO MAKE
EVERY ADVENTURE
WORRY-FREE.
Spartan RV Chassis recognizes that a key to RV safety
is keeping your vehicle well maintained. For that
reason, we provide the industry’s best warranty
program while making it as convenient and easy as
possible to conduct regular maintenance.
Best-in-class warranty:
— 3-year/50,000-mile transferable warranty
— 20-year transferable warranty on frame and
cross members
—5
-year/100,000-mile Cummins engine warranty
— 5-year/200,000-mile Allison Transmission warranty
— 3 years of complimentary roadside assistance from
Coach-Net®
24/7 service and support is just
around the corner.
Your adventures on the road don’t always
happen from 9 a.m. to 5 p.m. Spartan RV Service
and Support is just a phone call or click away to
make traveling easy on your mind. Spartan RV Connected Care® App
— access to over 280 Spartan RV authorized
service centers
—m
otor home mobile mechanic services Spartan RV Customer Care
engine warranty Service and Support
— towing, fuel delivery, flat tire, jump start, lockout,
Download from Google Play
and winching
or on the App Store
spartanrvchassis.com/entegraspartanrvchassis.com/

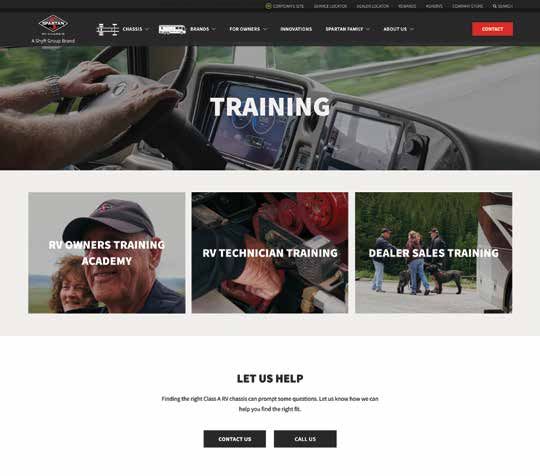

Know the Road: Spartan RV
Owner Training Academy.
To help your coach ownership run safely and smoothly, we
developed The Spartan Academy, a comprehensive training
program that teaches you the ins and outs of:
— Chassis troubleshooting, —O
n-the-road drive time with
including: a certified instructor
— Electrical —W
alk-around of coach with a
— Air systems qualified Spartan RV chassis
technician
— Suspensions
— Factory tour
— Chassis maintenance
—D
iscounts on parts &
— Weighing unit/tire pressure accessories
— Spartan RV customer &
product support/warranty
information
25+
Ongoing trainings
500+
Participants in 2020
youtube.com/c/SpartanSpecialtyVehicles/featured
Survey Rating
15FACTORY SERVICE: 866.383.3695 CUSTOMER SERVICE: 800.543.4277 SPARTANRVCHASSIS.COM PARTS: 800.722.3025
You can also read
