PCMS Information Pack
       PETRONAS Completions Management System
       “Towards Smarter Project Completion and Handover”

       Information Pack (External)
       May 2021

       © 2021 Petroliam Nasional Berhad (PETRONAS)
       All rights reserved. No part of this document may be reproduced in any form possible, stored in a retrieval system, transmitted and/or disseminated
       in any form or by any means (digital, mechanical, hard copy, recording or otherwise) without the permission of the copyright owner.

Open
PCMS Information Pack - PETRONAS Completions Management System
Contents
       01. What is PCMS?
           Overall definition of PCMS

       02. The PCMS Journey
           Background leading up to the inception of PCMS

       03. PCMS Organisation Structure
           Who manages the deployment of PCMS

       04. Way Forward beyond Go-Live
           Current status and future plans

       05. Overview of System Configuration
           Overview of work scope prior to Go-Live and post Go-Live

       06. System Walkthrough
           Screenshots of PCMS

                                                                      © 2021 Petroliam Nasional Berhad (PETRONAS)   |   2

Open
PCMS Information Pack - PETRONAS Completions Management System
What is PCMS?
                                    A PETRONAS-owned cloud-based system accessible via:
                                    • Web browsers at https://pcms.petronas.com
                                    • Mobile applications for Windows, iOS, and Android devices will
                                      be made available soon

                                    A digital system to manage processes and documentation related
                                    to project completion and commissioning activities, such as:
             PCMS                   • Systemisation
                                    • Inspection Test Records (ITR Checksheets)
                                    • Phase Completion / Handover Certificates
         PETRONAS Completions
                                    • Punchlist
          Management System

                                    An enterprise-level platform, allowing:
                                    • Multiple project usage
                                    • Access rights (licences) to be managed on project-by-project
                                      basis
                                    • Long term consolidation and repository of data
                                    • Centralised reporting of commissioning progress across all
                                      projects

                                PCMS Go-Live Date : 5 March 2021

                                                                          © 2021 Petroliam Nasional Berhad (PETRONAS)   |   3

Open
PCMS Information Pack - PETRONAS Completions Management System
The PCMS Journey
                                                                                                     Journey towards:
                                                     PCMS                                            • Sustainability &
                                                                                                         Digitalisation
                                                                                                     • Time & Cost
                         CMS by                                                                          Optimisation
                         Contractors                                                                 • Consistency &
                                                                                                         Standardisation

       Prior to
       CMS
                                                                                            • Digitised checksheet
                                                                                              preparation, verification and
                                                                                              approval process
                                                • Semi automated checksheet                 • Fully automated tracking of
                                                  preparation, verification and               system completion and
                                                  approval process                            handover
                                                • Automated tracking of system              • Digital systemisation and
                                                  completion and handover                     capable of interfacing with
                                                • Manual systemisation                        other platforms e.g. PEDMS
          • Manual checksheet preparation,
                                                • Inconsistent software platform            • Single platform across
            verification and approval process
                                                  across projects                             PETRONAS
          • Manual tracking of system
                                                • Cost embedded in each contract            • Cost saving through economy-
            completion and handover
                                                                                              of-scale
          • Manual systemisation

                                                                                   © 2021 Petroliam Nasional Berhad (PETRONAS)   |   4

Open
PCMS Information Pack - PETRONAS Completions Management System
PCMS Organisational Structure
                                                                                                                •   Custodian of process and
                                                                                                                    governing procedures e.g. PTS /
                                                    HUC (System Custodian)                                          PBTR / CSP
                                                    Construction and Decommissioning Delivery                   •   Management of users and
                                                    (CDD)                                                           licences
             •   Hardware support (Azure server)
                                                    Group Project Delivery (GPD), Project Delivery              •   Project creation and
                 and configuration
                                                    & Technology (PD&T)                                             coordination
             •   Cyber security compliance
                 requirements                                                                                   •   Interfacing and support
             •   Commercial arrangements with                  Subject Matter Expert                            •   Training (internal)
                 software vendor                                   Ir. Akbal Abu

                                                                     Team Leader                            •       Software technical support
                                                                    Ron Yap Kai Ren                         •       Progressive updates
                                                                                                            •       Training (external)

                PETRONAS                                             Focal Person
             Group Digital (GD)                                      Ho Joon Heng

                                                                                                              CMS Vendor
                                                                      CMS Team
                                                                Siti Anis Iylia M Zainal
                                                                                                         (HEXAGON Support Team)
                                                                 Nur Shairah Ahmad
                                                             Farah Shafiqah Mohd Mazny
    Project Management Of The Future                                Mareney Yahya
                 (PMoF)                                               Nora Ismail
                                                               M Jalaluddin Mohamad
                                                               Christopher Hii Yik Bing
                                                                 M Hazwan Ahamad

             •   Coordination with other digital                                                             •      Project-level CMS setup activities
                 solutions                                                                                          e.g. creating WBS, importing
             •   Overall consolidation of digital                                                                   assets, creating ITRs and
                 initiatives                                 Project Teams / Contractors                            certificates
                                                                                                             •      CMS execution e.g. ITR
                                                                                                                    completion, punchlist
                                                                                                                    management, reporting, etc.
                                                     System Users

                                                                                               © 2021 Petroliam Nasional Berhad (PETRONAS)         |     5

      Open
PCMS Information Pack - PETRONAS Completions Management System
Way Forward beyond Go-Live (5 Mar 2021 Onwards)

                   Current Status

        Timeline

                        Q2 - Q4 2021                       Q4 2021 - Q1 2022                            2022 and beyond

                         Pilot Project                Further                  Long Term                     Larger Scale
        Phases
                         Deployment                 Optimisation                Strategy                     Deployment

                   •   Brownfield HUC        •   Monitoring of pilot   •   Finalisation of long-    •    Deployment beyond
                       projects identified       projects                  term licensing                domestic HUC-
                       for pilot                 deployment and            approach with                 managed projects
                       deployment -              user feedback to          vendor and                    e.g. Upstream
                       Integrated Bekok          enhance system            commercial                    EPCC/EPCIC
                       Oil (IBO), Dulang         functionality             agreement                     projects,
        Details        Redev 2.0 Infill      •   Incorporation of      •   Finalisation of               Downstream
                       Drilling, Kumang-E        PTS/CSP updates           project / contractor          projects,
                       Redev, B11 CoCo,      •   Mobile application        back-charging                 International
                       Baram-B Complex           testing and field         mechanism                     projects, etc.
                       Reinstatement             deployment

                                                                                       © 2021 Petroliam Nasional Berhad (PETRONAS)   |   6

Open
PCMS Information Pack - PETRONAS Completions Management System
Overview of System Configuration
               Initial Configuration                                                                Project Deployment
                   (Pre Go-Live)                                                                       (Post Go-Live)
                                                       PCMS                                  i.     Digital / Paper ITR
                                                                                                    Checksheets management
                                                                                                    and tracking
                                                   PETRONAS                                  ii.    Specific Handover / Phase
                                                                                                    Readiness Certificates
                                                  Completions                                       management and tracking
       i.     Software setup and pre-
              configuration as per             Management System                             iii.   Punchlist management and
                                                                                                    tracking
              PETRONAS’ governing                                                            iv.    Reporting and visualisation
              procedures e.g. CSP 20 & PTS                                                          (interface with other tools)
              19.40.02:
                 •     Base ITR Checksheet
                       Templates (~400
                       nos.)
                 •     Default System
                       Definition
                 •     Default Handover                                                      Preparation Timeline
                       Certificates            Project Specific Configuration
       ii.    Customisation of role profiles                                                 2-3 weeks depending on
                                                       (Post Go-Live)                       number of users, including
              e.g. Administrator and User
              from Company and                                                                      training
              Contractors.                     i.     User Account creation
       iii.   Compliance with internal         ii.    Project Information Data               2-3 weeks depending on
              requirements e.g. cyber                 population (interface with                 number of assets
              security requirements                   single source of truth)
                                               iii.   Project Asset Data
                                                      population (interface with            1-2 months for document
                                                      design e.g. P-EDMS)                   generation, depending on
                                               iv.    Project WBS &                        quantity and customisation
                                                      Systemisation Setup                           required
                                                                                   © 2021 Petroliam Nasional Berhad (PETRONAS)     |   7

Open
PCMS Information Pack - PETRONAS Completions Management System
System Login
                      Web browser access

                                           URL – https://pcms.petronas.com

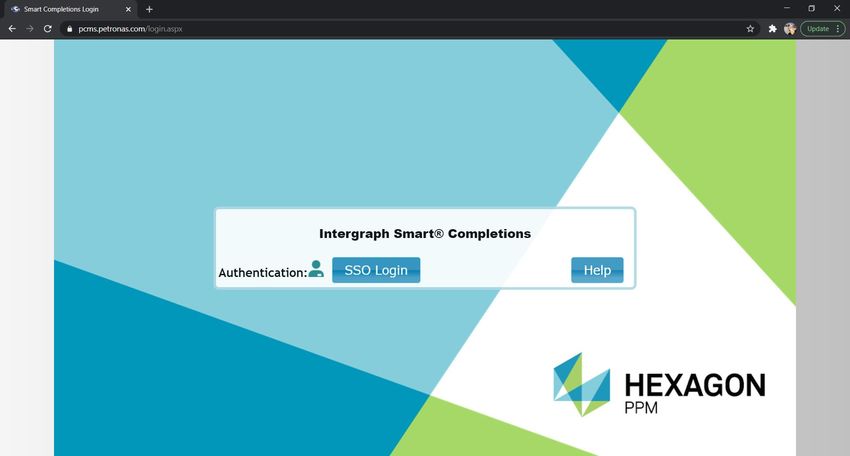

                                                               SSO login (PETRONAS ID)
                                                               © 2021 Petroliam Nasional Berhad (PETRONAS)   |   8

Open
PCMS Information Pack - PETRONAS Completions Management System
Main Interface

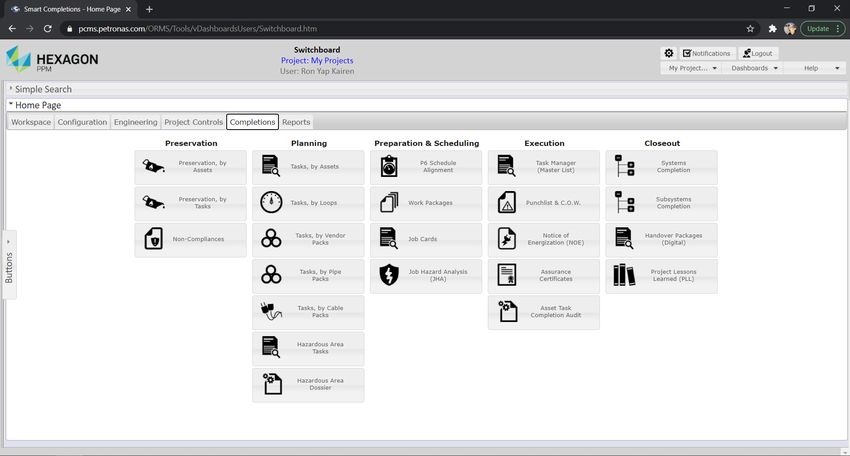

                        Different tabs   Project selection

                                                        Available modules

                                                      © 2021 Petroliam Nasional Berhad (PETRONAS)   |   9

Open
PCMS Information Pack - PETRONAS Completions Management System
Work Breakdown Structure (WBS)
                                Modules open in new tabs

                                                    Pre-Configured systemisation

                                                •    WBS by system has been
                                                     pre-configured according to
                                                     CSP 20 definitions.
                                                •    WBS by physical location
                                                     has to be defined according
                                                     to the project

                                                    © 2021 Petroliam Nasional Berhad (PETRONAS)   |   10

Open
Task Models (Inspection Test Record Templates)

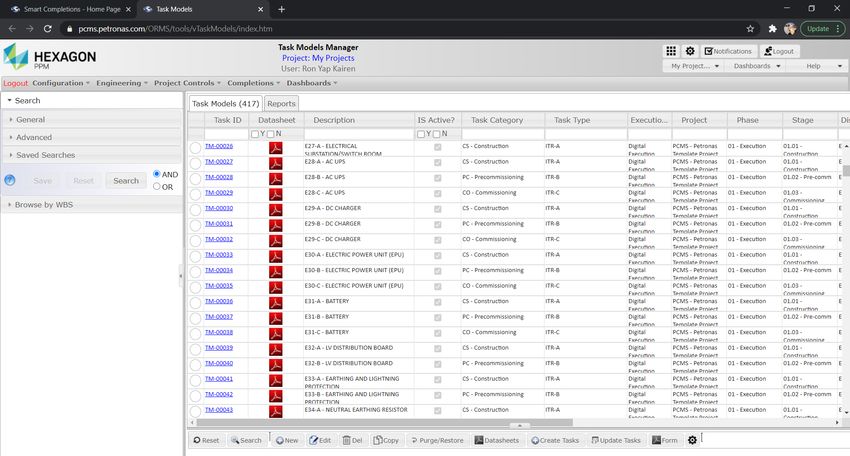

                                           •   ITR base templates as per CSP 20, which can be further modified per
       Pre-configured ITR base templates       project, and linked with project assets to generate the actual ITR
                                               checksheets
                                                                            © 2021 Petroliam Nasional Berhad (PETRONAS)   |   11

Open
Task Models (Inspection Test Record Templates)

          ITR template customisation

                                            © 2021 Petroliam Nasional Berhad (PETRONAS)   |   12

Open
ITR Digital Completion

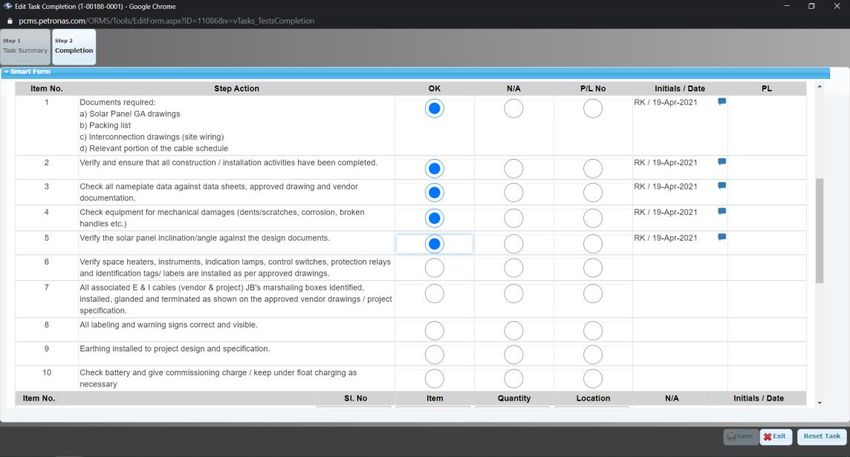

                                                                Digital ITR task completion

                                                     •      Digital ITR can be completed on a
                                                            web browser or via application on a
                                                            mobile device (future)

                  Digital ITR approval

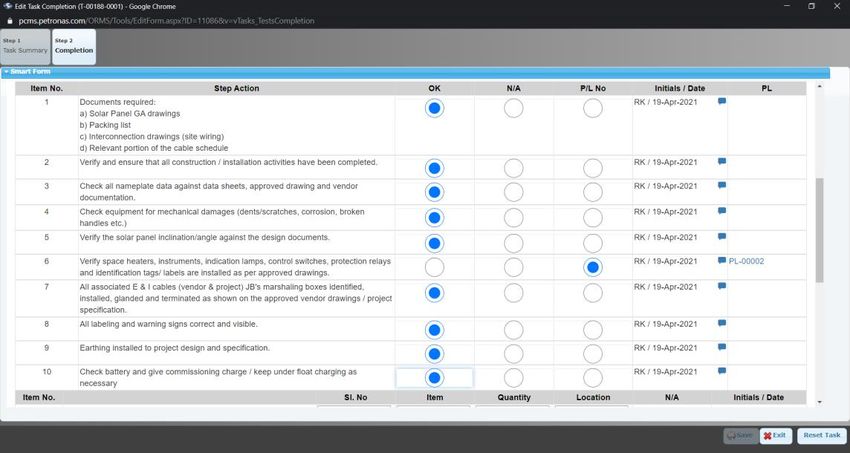

       •   Digital ITR is verified and approved by
           the authorised parties

                                                         © 2021 Petroliam Nasional Berhad (PETRONAS)   |   13

Open
Punchlist Management

                                                               Punchlist capture during ITR

                                                     •      Punchlist items can be captured
                                                            manually or during ITR completion

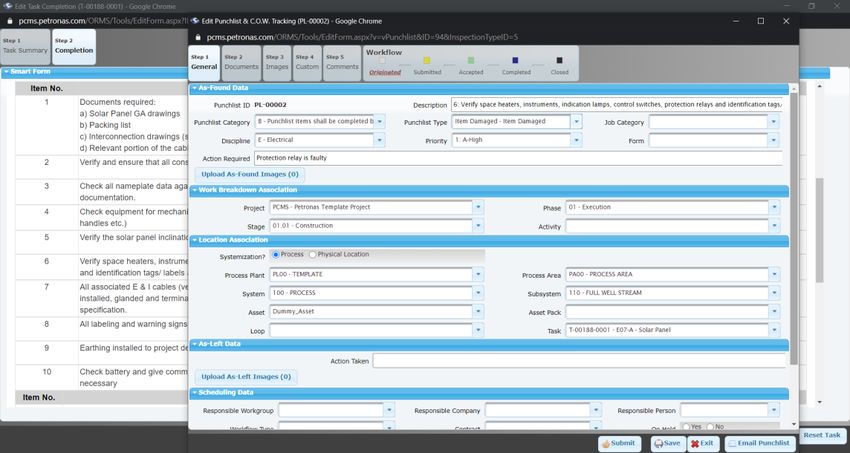

                     Punchlist form

       •   Punchlist items are generated using
           this digital form, tied to the relevant
           ITR / system, and monitored.

                                                         © 2021 Petroliam Nasional Berhad (PETRONAS)   |   14

Open
Semi-Automated ITR Forms (Paper Execution)

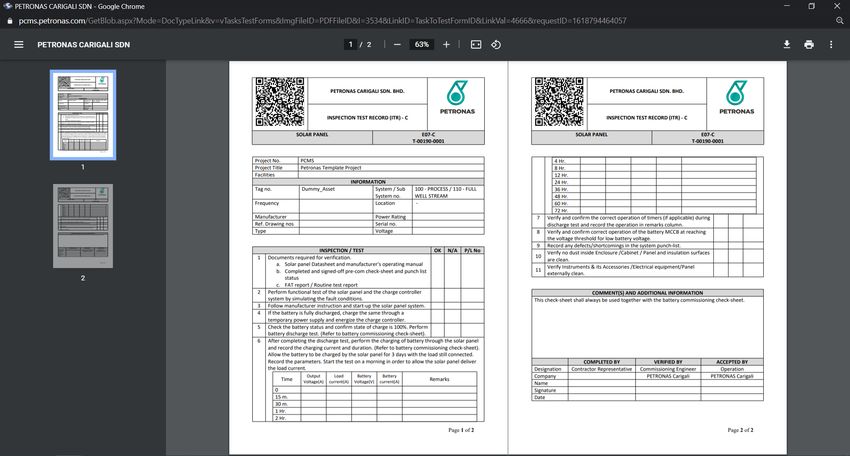

        PDF checksheet for printing   QR code for bulk scanning                Auto-populated details

                                                                  © 2021 Petroliam Nasional Berhad (PETRONAS)   |   15

Open
Reporting and Visualisation

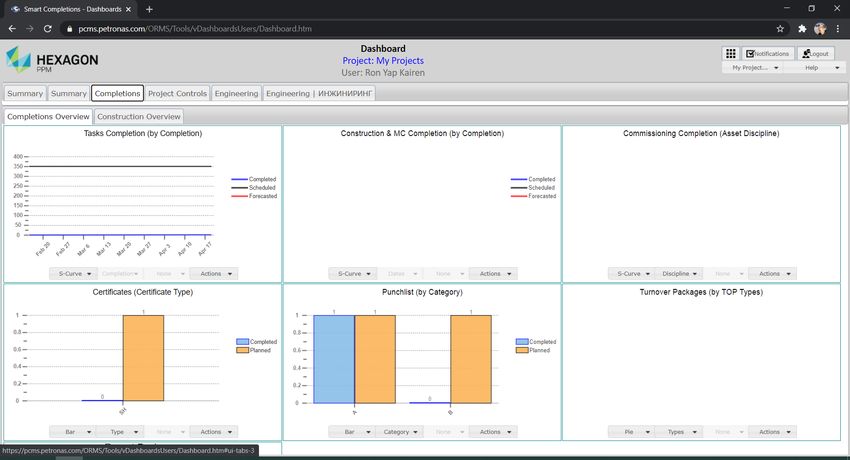

          Dashboard view             Configurable views which can be exported

                                        © 2021 Petroliam Nasional Berhad (PETRONAS)   |   16
