Mini pleats for maximum performance - HEPA and ULPA filter elements for TFP pharmaceutical clean room terminal filters - TROX GmbH
HEPA and ULPA filter
elements for TFP
pharmaceutical clean
room terminal filters

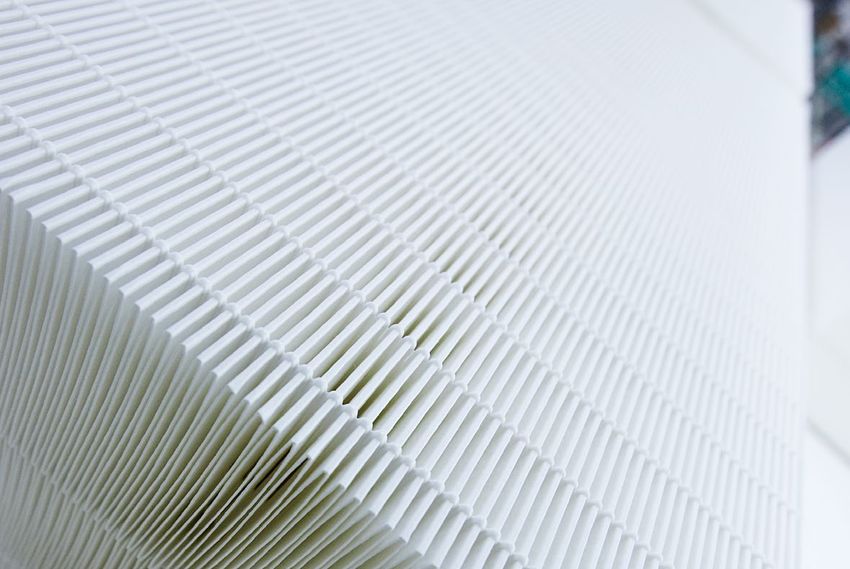

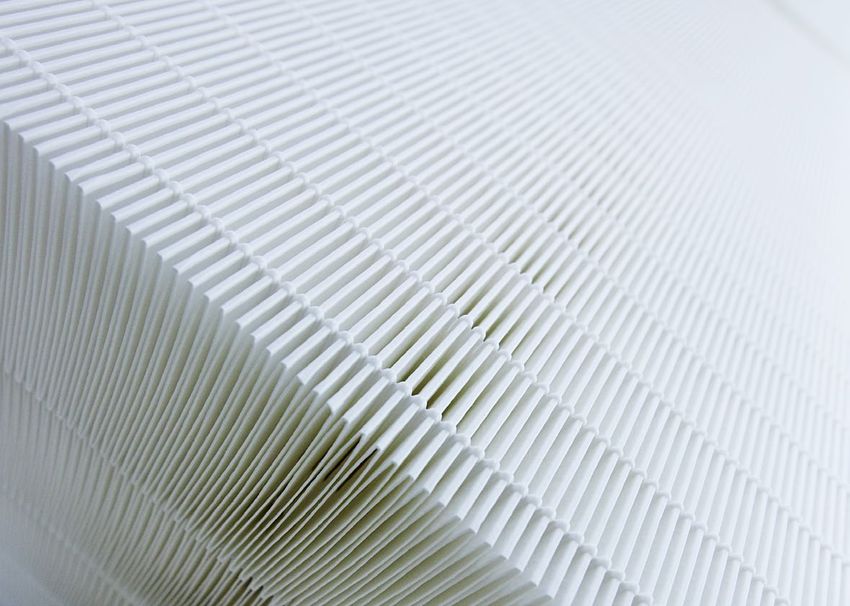

Mini pleats
for maximum
performance
Mini pleats for maximum performance - HEPA and ULPA filter elements for TFP pharmaceutical clean room terminal filters - TROX GmbH
High-efficiency HEPA and ULPA particulate filters

                                                                                                                                                                                                                                 Filter classes H14, U15, U16
Automatic filter scan test

                                                                                                                                                                                                                          Performance tested to EN 1822

Filter media for special requirements –                                                                                                                                                                                   Low initial differential pressure
glass fibre papers with spacers made                                                                                                                                                                                      due to ideal pleat position and
of thermoplastic hot-melt adhesive                                                                                                                                                                                             largest possible filter area

Fitting into filter fan units,
                                                                                                                                                                                         E-
                                                                                                                                                                                      IEN TES                                              Perfect adjustment
clean room workbenches,
                                                                                                                                                                                                                                   to individual requirements
                                                                                                                                                                                HYG

                                                                                                                                                                                               TE
or operating theatre ceilings

                                                                                                                                                                                                 D
                                                                                                                                                                                                                                 due to variable pleat depths

                                                                                                                                                                                     VD
         MFPCR                        7.6 –
                                                                                                                                                                                          I 6022
         X X MFPCRtestregistrierung

                                               Filterplatten für die Rein-                                                        7
                                               raumtechnik
                                               Serie MFPCR

                                               Für höchste Anforderungen an die Reinheit von Raum-
                                               luft, Arbeitsplatz und Arbeitsmedien
                                               HEPA- und ULPA-Filter als Hochleistungsschwebstofffilter für die Abscheidung von
                                               Schwebstoffen in Reinraumanlagen. Für den Einsatz in Industrie, Forschung,
                                               Medizin, Pharmazie und Nukleartechnik
                                                 ■ Filterklassen H14, U15, U16
                                                  ■ Leistungsdaten geprüft nach EN 1822
                                                  ■ Hygienekonform nach VDI 6022
                                                  ■ Auf spezielle Anforderungen abgestimmte Filtermedien aus
                                                    Glasfaserpapieren mit Abstandhaltern aus thermoplastischem Schmelzkleber
                                                  ■ Optimale Anpassung an individuelle Anforderungen durch variable Falttiefen
                                                  ■ Geringe Anfangs-Druckdifferenz durch optimale Faltenstellung und

                                                                                                                                      For more information see our product leaflet
                    H GE
             ISC                 TE                 größtmöglicher Filterfläche
        EN
                                      ST
     I

                                                  ■ Prüfung durch den automatischen Filter-Scan-Test
    G
   HY

                                          ET

                                                  ■ Einbaumöglichkeiten in Filter-Fan-Units, reine Werkbänke oder in OP-Decken
      VD
                 I 60            22

 Geprüft nach VDI 6022

 06/2015 – DE/de                                                                                                  K7 – 7.6 – 1
                                                                                                                                      or visit www.troxtechnik.com/leaflet-mfpcr

TROX clean room solution                                                                                                                                                         1
                                                                                                                                                                                          2

                                                                                                                                                                                                                                                  B
                                                                                                                                                                                                                 3
                                                                                                                                                                                                     A

                                                                                                                                                    4
                                                                                                                                                                                                         4                                            4
                                                                                                                                                                                                                                                               ck
                                                                                                                                                                                                                                                          Airlo

                                         4
                                                                                                                                                                                                                              ck
                                                                                                                                                                  B                                                      Airlo
                                                                                                                                              A
                 D                                                                                                                                  3
                                                                                                                                                                 4

                                                                                                                                                                           ck
                                                                                                                                                                      Airlo                                  5

                                                                                                                                                                                                                     C

                                                                                         4

                                                                                                                                                         ck
                                                                                   D                                                                Airlo
Mini pleats for maximum performance - HEPA and ULPA filter elements for TFP pharmaceutical clean room terminal filters - TROX GmbH
TFP pharmaceutical clean room terminal filter with turn clips

Simplified system                                                                 No negative influences in case
for fitting filter panels                                                               of in situ measurements

Springs facilitate the fitting                                                   Effortlessly simple – filter fitting
of filter panels and                                                                              in no time at all
keep them in place                                                                        with patented turn clips

                                                                                                            TFP                         3.4 –

                                                                                                            X X TFPtestregistrierung

                                                                                                                                                 Pharmazie-
                                                                                                                                                 Reinraumdurchlässe
                                                                                                                                                 Serie TFP

                                                                                                                                                                                                                                      3

                                                                                                    Einfache Reinigung und
                                                                                                    Validierung
                                                                                                                                                 Für hohe Luftreinheit mit sehr hohen hygienischen
                                                                                                                                                 Anforderungen zum Einbau in Decken
                                                                                                                                                 Pharmazie-Reinraumdurchlässe als endständige Filterstufe mit Mini Pleat
                                                                                                                                                 Filterplatten zur Abscheidung von Schwebstoffen. Einsatz in hoch sensitiven
                                                                                                                                                 Bereichen der Pharmazie, Medizin und Biologie
                                                                                                                                                     ■ Mini Pleat Filterplatten mit abströmseitiger Fluid-Dichtung für höchste
                                                                                                                                                        hygienische Anforderungen
                                                                                                                                                    ■ Einfacher, zeitsparender und sicherer Filterwechsel
                                                                                                    Ausführung mit                                  ■ Mit schwenkbarem, durch Magnete sicher gehaltener Luftdurchlass zur
                                                                                                    Steckstutzen                                      einfachen Reinigung und Validierung, Filterwechsel ohne Werkzeug
                                                                                                                                                    ■ Stabile, geschweißte Konstruktion
                                                                                                                                                    ■ Kompakte Bauweise für niedrige Deckenhöhen geeignet

                                                  For more information see our product leaflet
                                                                                                                         H GE
                                                                                                                  ISC                  TE           ■ Verschiedene Frontdurchlässe zur optimalen Anpassung an individuelle
                                                                                                           EN
                                                                                                                                                      Anforderungen

                                                                                                                                       ST
                                                                                                        I
                                                                                                       G
                                                                                                      HY

                                                                                                                                            ET
                                                                                                                                                    ■ Anschlussmöglichkeit horizontal oder vertikal
                                                                                                                                                    ■ Steckstutzen zum Einbau in geschlossene Decken bei horizontalem
                                                                                                         VD
                                                                                                                   I 60                22             Anschluss
                                                                                                                                                    ■ Für Reinheitsklassen 5 – 8 nach EN ISO 14644-1
                                                                                                    Geprüft nach VDI 6022
                                                                                                                                                    ■ Hygienekonform nach VDI 6022

                                                      or visit www.troxtechnik.com/leaflet-tfp      06/2015 – DE/de                                                                                                    K7 – 3.4 – 1

                                 1   Medium filters ePM10 > 55% (previously M5)
                                     are used in ventilation and air conditioning systems
                                     to separate contaminants from the air.

                                 2   Fine dust filters ePM1 > 60% (previously F7)
                                     are used for the separation of fine dust in ventilation
                                     systems that have to meet demanding requirements.
                                     TROX fine dust filters are certified by EUROVENT.

                                 3   Particulate filters H14
                                     with Mini Pleat filter panels are used as final filters
                                     for the separation of suspended particles in industrial,
                                     research, medical, and pharmaceutical applications.

                                 4   Ceiling mounted particulate filters
                                     with Mini Pleat filter panels are used as final filter stage
                                     and are acoustically and aerodynamically optimised;
                                     they are available in many designs and constructions
                                     and provide a solution for all architectural requirements.

                                 5   Wall mounted particulate filters
                                     come with a sealing integrity test facility, a pressure
                                     measurement point, and a clamping mechanism
                                     for fixing Mini Pleat filter panels.
Mini pleats for maximum performance - HEPA and ULPA filter elements for TFP pharmaceutical clean room terminal filters - TROX GmbH
TROX filter strategy
                                                                                                                                       		 Product development: Focus on the development,
                                                                                                                                          production and sale of high-quality, bespoke filter units
                                                                                                                                          and filter elements for ventilation and air conditioning
                                                                                                                                          systems, also those in highly critical areas of application

                                                                                                                                       			Market segment strategy (key areas): Clean rooms
                                                                                                                                          in the pharmaceutical and food industries and in hospitals

                                                                                                                                       		 Filter system strategy: Filter production in Germany with
                                                                                                                                          the most advanced manufacturing equipment, i.e. particulate
                                                                                                                                          filters and fine dust filters are produced in clean room
                                                                                                                                          conditions (ISO 7)

                                                                                                                                       			One-piece-flow production: All filter elements are bespoke
                                                                                                                                          products, tailored to customers' filter class, dimension,
                                                                                                                                          frame and other requirements

                                                                                                                                       			Industry 4.0: Order data is transmitted from the ERP system
                                                                                                                                          to the scanning equipment; use of paper rolls is recorded
                                                                                                                                          with on-board scanners

                                                                                                                                      Made by TROX – Made in Germany
                                                                                                                                      Excellent product quality due to high productivity and safe and
                                                                                                                                      reliable manufacturing processes with 100% quality control.

                                                                                                                                      TROX fine dust filters (previously filter classes M5 to F9 according
                                                                                                                                      to EN 779) are certified by EUROVENT. The EUROVENT certification
                                                                                                                                      programme will be adapted shortly to accommodate the new
                                                                                                                                      ISO 16890 standard.

                                                                                                                                      Each TROX filter of filter class H14, U15 or U16 is tested for leakage
                                                                                                                                      and overall efficiency.

                                                                                                                                      TROX manufactures all parts of filter units in-house, from the casing
                                                                                                                                      and filter elements to the diffusers; the TROX filter production
                                                                                                                                      facilities in Germany are equipped with the most advanced machinery.
