1. OV ERV I EW
1.1 Intr
roo d u ct i o n
Taupiri is a small townsh
township of about 450 people on the eastern bank of the Waikato River in the Waikato District of New Zealand. It is guarded
by Taupiri mountain, the sacred burial ground for the Waikato tribes of the Māori people, located just to the north. It is remembered in the tribal
saying:
Ko Waikato te awa
Ko Taupiri te maunga
Ko Te Wherowhero
Wherow te tangata.
Waikato is th
the river
Taupiri is the mountain
Te Wherowhero
Wherowhe is the man.
Many Waikato ancestors and chiefs are buried on Taupiri, including all the Māori kings, and the late queen, Dame Te Ātairangikahu.

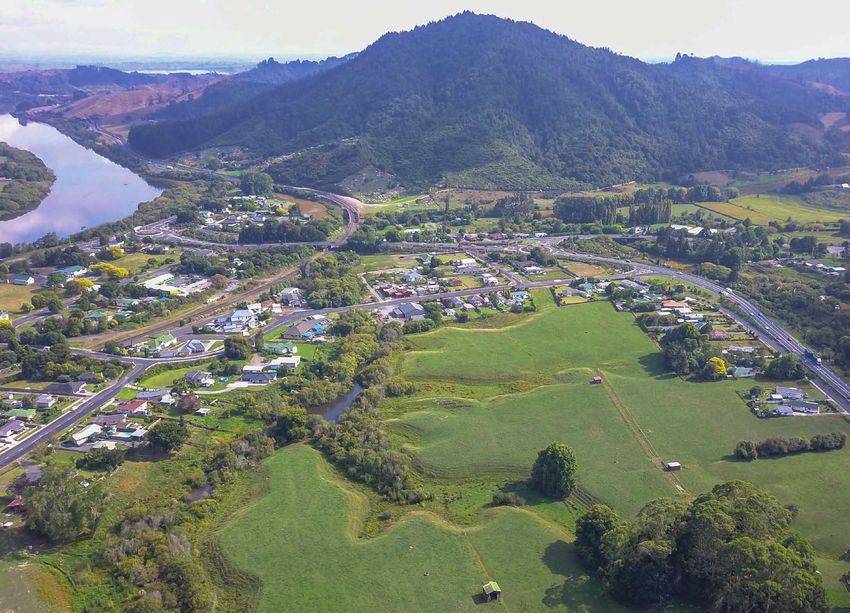

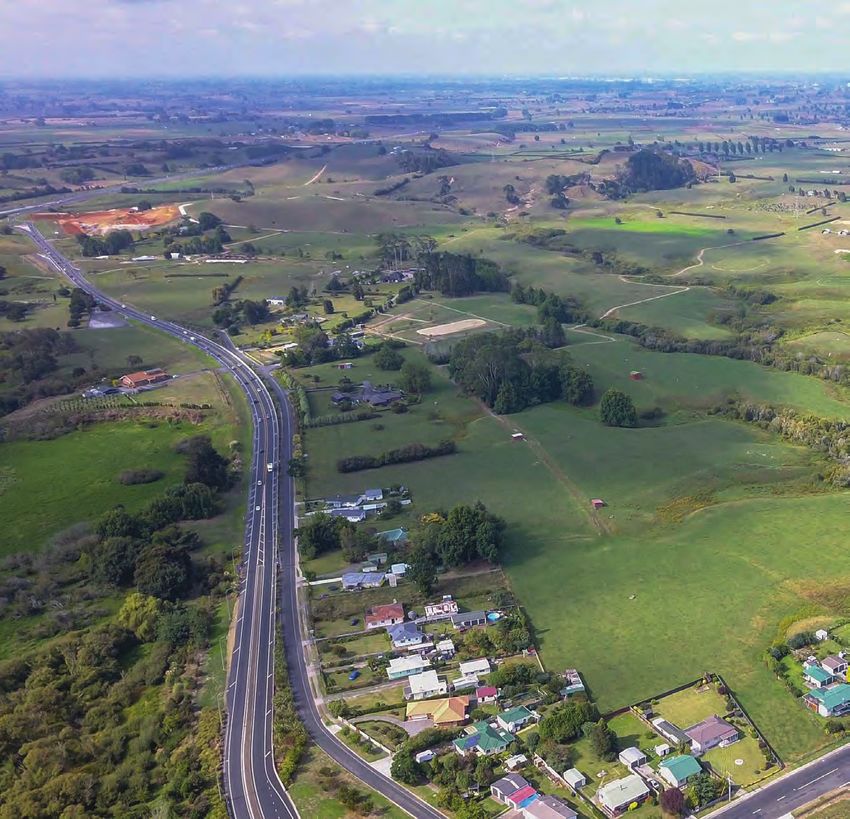

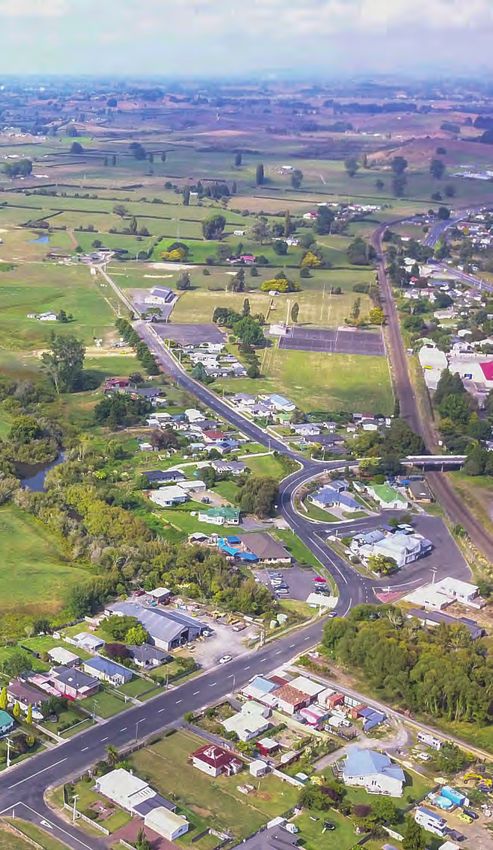

Mountain View Estate is located directly adjacent to the existing Taupiri township. The beautiful rural site is located to the
south of Taupiri Mountain
Moun and to the west of the current State Highway 1 corridor. With the construction of the Waikato
Expressway, further to the east, the current portion of SH1 will revert to local road status and traffic numbers, especially large
trucks and commercial vehicles, are anticipated to substantially reduce. Taupiri Mountain directly to the north of the site, is
a key feature in the landscape,
lands and forms a strong focal point and impressive natural backdrop to the development.
4
1.2 VISION
The design vision for Mountain View Estate is centred on a strong appreciation for the natural environment, and Taupiri settlement’s historic and
cultural narrative.
S pa c e to r el a x a n d en j oy
Mountain View Estate is a place for both young and old. A place where your family will have room to explore and enjoy the environment.
Sustainable design practices are promoted within the estate’s public realm, and active and passive reserve space. Aside from the surrounding
hills and proximity of the Waikato River, the natural gully system running centrally through the site is a key natural landscape feature of the
development. The estate has been carefully designed to protect this valuable natural feature and enhance it, so it is not only visually appealing
for residents, but becomes a functional active recreation spine running throughout the entire development. A shared cycle and walkway network
has been developed linking the gully network to reserve spaces within the estate and the wider open space network. Residents are encouraged
to enjoy the landscape amenity and active recreation opportunities offered within the estate.
A sa fe a n d s ec u r e c o m m u n i t y
It is important your residential environment has a feeling of safety and security. It is important that you feel safe within your home and within
the Mountain View Estate community.
The principles of Crime Prevention through Environmental Design (CPTED) have been embedded within the design of the estate. This is reflected
in the way that the design guidelines control things like lot fencing, boundary treatments, street interfaces and planting. We want to ensure that
we not only create a visually appealing residential community, we also want it to be safe and secure for your family.
5
WA I KATO EX P R ESSWAY
TAU P I R I M AU N GA
WA I KATO T E AWA
S I T E LO CAT I O N
n ga ruawa h i a 7 k m (fro m s i t e)
H o rot i u 1 3 k m
t e awa t h e bas e 1 8 k m
h a m i lto n c i ty c en t r e 23 k m
6
7
A h i g h-qua l i ty en v i ro n m en t
At Mountain View Estate we have created a neighbourhood you will be proud of and look forward to coming home to. Upon arrival at the estate
you will be greeted by lush plantings and well-designed entry feature walls. We have created tree-lined streets, each with their own character,
streetscape features, LED street lighting, and a network of shared paths and footpaths that wind throughout the estate. Mountain View Estate has
been carefully designed to reflect the natural character and heritage of Taupiri. Sensitivity to the environment and a tangible sense of community
will make Mountain View Estate a unique place to live.
1.3 P u r po s e o f t h e G u i d eli n es
It is our intention to develop Mountain View Estate as a modern and well designed residential lifestyle community. To make sure that we achieve
this desired outcome, a level of supervision and control is required to protect the interest of all future residents in relation to the nature and type
of construction that is permitted within the development.
This required level of control will be achieved in the form of design guidelines and covenants which each Purchaser will need to comply to when
building within the estate.
1.4 W h o s h o u ld U s e t h e G u i d eli n es
The guidelines will be used by:
• Property Owners
• Architects and Architectural Designers
• Builders
• Landscape Architects
• Landscapers
8
1.5 A p p rova l P ro c ess
All plans and drawings are to be submitted to the Design Review Panel prior to submitting plans for building consent approval to Council. Plans
'HYHORSPHQW&RQWURO$SSURYDO)RUP
\ and drawings are to be submitted by Wednesday 4pm each week for review by the Design Review Panel every Friday, after which approvals and/
/RW1XPEHU
R QO or review comments will be provided. All feedback will be returned within 7 days of submission.
Submissions can be in hard copy or by email to:
OH
&OLHQW1DPH
6XEPLVVLRQ'DWH
S
6XEPLWWHG3ODQPHHWV'HYHORSPHQW&RQWURO*XLGHOLQHV$33529(' 7LFN
6XEPLWWHG3ODQ'2(61270HHW'HYHORSPHQW&RQWURO*XLGHOLQHV
Boffa Miskell Ltd
D P
6XEPLWWHG3ODQ&203/,(6ZLWKVWUHHWWUHHOLJKWSRVWDQGVWRUPZDWHUGUDLQORFDWLRQV
&RORXU PDWHULDOSDOHWWH+$6%((1VXEPLWWHG &RORXU PDWHULDOSDOHWWH+$6127%((1VXEPLWWHG
+64 7 903 0006
[
'HYHORSPHQW&RQWUROOHU&RPPHQWV Attention:
H Morné Hugo
Level 3, South Bloc, 140 Anglesea Street, Hamilton 3204
PO Box 1094, Hamilton 3240
$SSURYHGE\
1DPH 0+XJR 'DWH 6LJQDWXUH
The Design Review Panel can approve or decline any submitted design at their discretion, if it is deemed to not be in keeping with the intent of
Submitted plans that DO NOT meet Development Control Guidelines are to be resubmitted for approval following
the Design Guidelines.
consideration of the Development Controller’s comments. Colour and material palette must be submitted for
Development Controller approval prior to any ordering of materials or construction works commencing on site. No
plans are to be submitted to Waikato District Council for Building Consent prior to Development Control Approval.
Development Control Approval does not in any way imply compliance with Building Code, Resource Consent or
District Plan requirements. The property owner / builder is responsible for checking with the relevant parties or
authorities regarding statutory requirements and co-ordination with subdivision services, trees and infrastructure.
Please ensure site & driveway layout meets on-site manoeuvring requirements.
y
1 By
y Morne Hugo
H at
at 11:40
:4
40
40 am,
am
am
m, Jan
Ja 29, 2019
nl
o
*(1(5$/127(6
6LWH$UHD P
)ORRU$UHDRYHU)UDPLQJ P
)ORRU$UHDRYHU)RXQGDWLRQ P
e
6LWH&RYHUDJH P
,PSHUYLRXV6XUIDFH$UHD P ([FOXGLQJ'ZHOOLQJ *DUDJH %RXQGDU\+HLJKW PP'D\OLJKW$QJOH
%RXQGDU\+HLJKW PP'D\OLJKW$QJOH
l
([SRVXUH=RQH &
:LQG=RQH $+LJK
(DUWKTXDNH=RQH 2XWGRRU/LYLQJ P
2X
%RXQGDU\+HLJKW PP'D\OLJKW$QJOH
3 ?7DXUDQJD?-REV?7$/RW0DQDZD:DZDL'ULYH 0HG&DSLWDO1$7+$1:21* ?'HVLJQ?&RQFHSW3/1)LOHV?7$/RW0DQDZDYSOQMOLQ
6QRZ=RQH 1R$OWLWXGH/LPLW P[PPLQ
%RXQGDU\+HLJKW PP'D\OLJKW$QJOH
*DWH
p
7HUULWRULDO$XWKRULW\ 7DXUDQJD&LW\&RXQFLO )3/ 3DWLR )3/
([SRVHG$JJ P
3ODQQLQJ=RQH 6SHFLDO+RXVLQJ$UHD 3DWLR
([SRVHG$JJ P
'3 +7 25* '3
*HQHUDO &RQFHSWVXEMHFWWR7$UXOHVDQGUHJXODWLRQV
$OOGLPHQVLRQVWREHFRQILUPHGRQVLWH
%RXQGDU\+HLJKW PP'D\OLJKW$QJOH
WRFODGGLQJ
DGGLQJ +7
P
&RQFHSWPD\EHVXEMHFWWRVXEGLYLVLRQGHYHORSHU VDSSURYDO
P
)RXQGDWLRQ7\SH 7&(1*,1((5('5,%5$)7)281'$7,21
7REHFRQILUPHGZLWK*HRWHFKQLFDO5HSRUW
m
)2273$7+
$,'5,9(
, ' 5 , 9(
%(50
%(50
6LWH,QIRUPDWLRQ 3RVLWLRQRIURDGFURVVLQJVHUYLFHVORFDWLRQVVWUHHWWUHHVODPS
P
SRVWVSDUNLQJED\VSHGHVWULDQLVODQGVHWFLVXQNQRZQWREH )3/
FRQILUPHGZKHQLQIRUPDWLRQEHFRPHVDYDLODEOH
/DQGVFDSLQJ 7KLVSODQLVLQGLFDWLYHRQO\ 352326('
/DQGVFDSLQJWREHFRQILUPHGE\WKHFOLHQW
':(//,1*
a
QWV
$OO)HQFLQJWRFRPSO\ZLWKWKHUHOHYDQW&RYHQDQWV
:$
))/
$:
%RXQGDU\,QIRUPDWLRQ ILFDWHRI7LWOH
7REHFRQILUPHGZLWKUHOHDVHRI&HUWLILFDWHRI7LWOH /HW
/HWWHUER[LQ
3ODVWHUHG3LOODU
3ODVWHUH
:$
x
6LWH/HYHOV YDQWVLWHLQIRUPDWLRQIRUWKLV
KLVVLWHWREH
VLWHWREH
/HYHOVDQGRWKHUUHOHYDQWVLWHLQIRUPDWLRQIRUWKLVVLWHWREH 'ULYHZD\ 3DWK
&HVVSLWRYHUIORZ
&HVVSLWRYHUIOR
RYHUI
RQFHSWXSGDWHGDVUHTXLUHGSULRU
GSULRUWRDFRQWUDFW
WRDFRQWUDFW
REWDLQHGDQGFRQFHSWXSGDWHGDVUHTXLUHGSULRUWRDFRQWUDFW ([SRVHG$JJ P
QHG
EHLQJVLJQHG
25* '3 6RDNKROHVDVSHU
([LVWLQJZDVWHZDWHU 6HUYLFH&RXUW
*HRWHFKQLFDOUHSRU
+LVWRULFDO,QWHUHVW 1$ FRQQHFWLRQ %URRPHG&RQF P
e
&RPPV
0%'%
([LVWLQJ8VH5LJKWV 1$ +7 '3
WRFODGGLQJ
)3/ FORWKHVOLQHZLWKSRVWV
)2273$7+
*DWH
:
)ORRG0DQDJHPHQW$UHD 1$
$
:
%(50
%(50
3
HTXLULQJ5&
1RQ&RPSOLDQFHV5HTXLULQJ5& 1$
P
PSOLDQFHV
&RYHQDQW1RQ&RPSOLDQFHV 5HTXLUHGPERXQGDU\VHWEDFNWRIURQWIDFDGHQRWDFKLHYHG
5HTXLUHGPERXQGDU\VHWEDFNWRIURQWIDFDGHQRWDFKLHYHG %RXQGDU\+HLJKW PP'D\OLJKW$QJOH
([WUDV 6RDNSLWV
6LWH3ODQ
6&$/( #$
6WHSV 3DWKV
EHSURYLGHGLIGURSIURPH[WHUQDOGRRUV
$6WHSVRUDSSURSULDWHODQGVFDSLQJLVWREHSURYLGHGLIGURSIURPH[WHUQDOGRRUVLVJUHDWHUWKDQ PPIURP))/
QVOLSVXUIDFHLQDFFRUGDQFHWR
WR)*/$OODFFHVVURXWHVPXVWSURYLGHDQRQVOLSVXUIDFHLQDFFRUGDQFHWR1=%&'$67DEOH&RQYH\VXUIDFH
RYHGRXWIDOO
ZDWHUIURPVHDOHGGULYHWRDQDSSURSULDWHDSSURYHGRXWIDOO
127( 7+(6&+('8/(2)),;785(6$1'),77,1*67$.(635(&('(1&(29(57+(6('5$:,1*6
-2%7,7/( '5$:,1*7,7/( /(*$/'(6&5,37,21 127(6 '$7(2),668( '(6,*1(5 6&$/( 6+((7
6XEMHFWWRFRXQFLODSSURYDO 6(OOLV
/27 '3 7%&
1$7+$1:21* 6LWH3ODQ $OOPHDVXUHPHQWVWREHFRQILUPHGRQVLWHE\
WKHFRQWUDFWRUSULRUWRWKHFRPPHQFHPHQWRIZRUN 7(&+1,&,$1
$
0LNH*UHHU+RPHV1=/WG
0DQDZD3DSDPRD7DXUDQJD 0LNH*UHHU+RPHV1=/LPLWHG $0(1'0(17'$7( -/ -2%
3+21( O)$;
$''5(66 7RZHU'HDQV$YHQXH͕$GGLQJWRQ&KULVWFKXUFK
$OOULJKWVUHVHUYHG1RSDUWRIWKLVZRUNFRYHUHGE\FRS\ULJKW 9(56,21 &2'(
PD\EHUHSURGXFHGRUFRSLHGLQDQ\IRUPRUE\DQ\PHDQV 7$
:(% ZZZPLNHJUHHUKRPHVFRQ] ZLWKRXWWKHZULWWHQSHUPLVVLRQRI0LNH*UHHU+RPHV1=/LPLWHG
9
d r aw i n g a n d i n fo r m at i o n r eq u i r em en t s
All plans and drawings should be legible and to scale, with a north arrow, Lot / DP number, street name, applicant name and contact
details including, postal address, phone number and email address. The design package submitted for approval must include the
following:
s i t e p la n
The site plan must include the proposed house and garage location, setbacks, contours, driveways, ancillary structures and service
locations.
flo o r p la n s a n d e levat i o n s
A full set of floor plans and elevations are required for the house and garage.
LA N D S CA P E P LA N
The landscape plan must include the proposed lot boundary fencing types and heights, retaining walls, planting areas and selected
species, washing lines, bin and service areas, swimming pool and spa pool, pergola and trellis structures, carports and lawn areas.
M AT ER I A LS, C O LO U RS A N D FI N I S H ES S C H ED U LE
A materials, colours and finishes schedule is required for all external building materials including roofing, walls, doors, windows, garage
doors and fencing.
LI ST O F A LL N O N-C O M P LI A N C ES
It is the designer’s responsibility to provide a list of all non-compliance issues with the Rules and Design Guidelines.
102. La n d s ca p e M AST ER P LA N
2.1 I n t ro d u ct i o n
The landscape master plan has been designed to reflect the natural environment including the on-site gullies, local Taupiri Maunga and
Hakarimata Range, the Waikato River and surrounding rural character.
The master plan creates tree lined streets, reflecting the different neighbourhood character areas, with particular reference to the gullies
and views to Taupiri Maunga. Exotic tree species have been selected to provide interesting form, colour and texture to the streets. The
native street trees provide visual linkages to the gullies and food source for birds.
The landscape master plan will be further developed as each stage of the development progresses into detail design and construction.
2.2 A r r i va l
Sense of arrival will be created by the use of lush native planting at the developments entrances including SH1, Great South Road, Murphy
Lane and Te Putu St. Appropriately scaled entrance signs will be located at each entrance, with design reference to the Taupiri Maunga
and utilising natural materials.
11k ey
G U LLY A R EA
R ES ERV E A R EA
P U B LI C O P EN S PAC E
I D EN T I FI ED PA S I T E
G r eat s o u t h ro a d
Go
rd
STAG E O N E D EV ELO P M EN T
on
to
n
ro
ad
STAG E TWO D EV ELO P M EN T
C O M M U N I TY FAC I LI T I ES A R EA
P RO PO S ED R ES I D EN T I A L A R EA
P RO PO S ED C O U N T RY LI V I N G
fu t u r e d ev elo p m en t a r ea
12 m o u n ta i n V i ew Estat e - M ast er P la nN ei g h b o u r h o o d
c h a r act er
p la n
S p i n e Roa d
The spine road runs east-west through the development, providing strong
connectivity to adjacent roading infrastructure. The proposed street tree planting
of large scale english oak and columnar ornamental pear will help visually reinforce
these connections.
R e s i d e n t i a l A r ea Exot i cs - P r i m a ry St r eet
Exotic street tree planting is typically located at the southern end of the
development, where the more traditional rectilinear lots have been designed not
influenced by the gully system.
R e s i d e n t i a l A r ea Exot i cs - S ec o n da ry St r eet
The secondary residential streets located directly off the primary residential
streets are planted with upright maidenhair trees.
R e s i d e n t i a l A r ea N at i v es - P r i m a ry St r eet
A key natural feature of the development. The primary residential street that
follows the gully network provides opportunity for native street tree planting to
reflect the gully and native planting as well as providing visual connection towards
Taupiri Maunga.
R e s i d e n t i a l A r ea N at i v es - S ec o n da ry St r eet
Secondary native street tree planting includes kowhai and nikau.
M e d i u m D en s i ty R es i d en t i a l A r ea
Smaller scale exotic street trees provide seasonal colour and include persian
ironwood and silver whitebeam.
C o u n t ry L i v i n g A r ea
Larger scale lots are characterised by street tree planting of oriental plane and
flowering cheery, reflecting the rural character.
C o m m e rc i a l A r ea
The commercial area is defined by a mix of native and exotics and includes
upright hornbeam, rewarewa and totara.
132.3 N ei g h b o u r h o o d C h a r act er A r eas
Character Areas are identified within the development to guide the appropriate use of landscape. This helps with way finding, as well as lending
the spaces a sense of character and identity.
S p i n e Roa d
Accessed via either Gordonton Road (SH1 to be replaced by Huntly Expressway in 2020) or Great South Road, the spine road runs east-west
through the development, providing strong connectivity to adjacent roading infrastructure, the wider Taupiri community, including; sports fields,
school, café and local dairy and the Waikato River. The proposed street tree planting of large scale english oak and columnar ornamental pear
will help visually reinforce these connections.
R es i d en t i a l A r ea Exo t i c s - P r i m a ry St r eet
Exotic street tree planting is typically located at the southern end of the development, where the more traditional rectilinear lots have been
designed (not influenced by the gully system).
The primary residential areas for exotic tree planting utilises smaller street tree planting with norway maple. A compact rounded form, with
bright green leaves which turn yellow in autumn.
R es i d en t i a l A r ea Exo t i c s - S ec o n d a ry St r eet
The secondary residential streets located directly off the primary residential streets are planted with upright maidenhair trees. The yellow autumn
colour will complement the yellow of the norway maple trees located in the adjacent streets.
R es i d en t i a l A r ea N at i v es - P r i m a ry St r eet
A key natural feature of the development is the gully system that typically runs in a north south direction. The design of the lots adjacent to gullies
creates varying backdrops and access to the proposed gully walkway. The primary residential street that follows the gully network provides
opportunity for native street tree planting to reflect the gully and native planting as well as providing visual connection towards Taupiri Maunga.
Native street tree planting includes kowhai, rimu and rewarewa. Where appropriate clusters of natives will be located along the streetscape.
14R es i d en t i a l A r ea N at i v es - S ec o n d a ry St r eet
Secondary native street tree planting includes kowhai and nikau. This road is planted with Sophora microphylla, the common small leaved Kowhai
tree. This is a favourite tree of the Tui and other native birds when it is in flower. The nikau also provides nectar for birds will provide a visual
contrast to the more common kowhai tree.
M ed i u m D en s i ty R es i d en t i a l A r ea
Smaller scale exotic street trees provide seasonal colour and include persian ironwood and silver whitebeam.
C o u n t ry L i v i n g A r ea
Larger scale lots are characterised by street tree planting of oriental plane and flowering cheery, reflecting the rural character.
C o m m erc i a l A r ea
The commercial area is defined by a mix of native and exotics and includes upright hornbeam, rewarewa and totara.
2.4 St r eets ca p e
Description to be included with typical cross sections
2.5 G u lli es a n d R es erv es
Reserves and gullies will be planted with eco sourced natives, reflecting the surrounding natural features.
Playground space will be incorporated into either the Pa Site and community faculties area. The reserve area will be predominately retained as
open green space.
15Sophora microphylla (kowhai) Ginkgo biloba ‘Fastigiata’ (upright maidenhair tree) Pyrus calleryana ‘Candelabra’ (columnar ornamental pear)
Quercus robur (english oak) Acer platanoides (norway maple) Podocarpus totara (totara)
'Lo o k A n d Feel' Exa m p les o f i n d i cat i v e st r eet t r ees
16Knightia excelsa (rewarewa)
STREET AND LANDSCAPE
CHARACTER ZONES
I n d i cat i v e st r eet t r ees li st
S P I N E ROA D
Botanical Name Common Name Evergreen Deciduous
Quercus robur english oak •
Pyrus calleryana ‘Candelabra’ columnar ornamental pear •
R ES I D EN T I A L A R EA ( E)
P R I M A RY ST R EET
Botanical Name Common Name Evergreen Deciduous
Acer platanoides norway maple •
s ec o n da ry ST R EET
Botanical Name Common Name Evergreen Deciduous
Ginkgo biloba ‘Fastigiata’ upright maidenhair tree •
R ES I D EN T I A L A R EA ( N )
P R I M A RY ST R EET
Botanical Name Common Name Evergreen Deciduous
Sophora microphylla kowhai •
Rhopalostylis sapida (nikau)
17Knightia excelsa (rewarewa)
S EC O N DA RY ST R EET
Botanical Name Common Name Evergreen Deciduous
Podocarpus totara totara •
Knightia excelsa rewarewa •
M ed i u m-d en s i t y R ES I D EN T I A L A R EA
Botanical Name Common Name Evergreen Deciduous
Parrotia persica persian ironwood •
Sorbus aria ‘Lutescens’ silver whitebeam •
C O U N T RY L I V I N G A R EA
Botanical Name Common Name Evergreen Deciduous
Platanus acerifolia london plane tree •
Prunus yedoensis ‘Awanui’ flowering cherry •
C O M M ERC I A L A R EA
Botanical Name Common Name Evergreen Deciduous
Carpinus betulus ‘Fastigiata’ upright hornbeam •
Rhopalostylis sapida nikau •
Metrosideros robusta northern rata •
Podocarpus totara (totara)
18Carpinus betulus ‘Fastigiata’ (upright hornbeam) Sorbus aria ‘Lutescens’ (silver whitebeam) Platanus acerifolia (london plane tree)
Metrosideros robusta (northern rata) Prunus yedoensis ‘Awanui’ (flowering cherry) Parrotia persica (persian ironwood)
'Lo o k A n d Feel' Exa m p les o f i n d i cat i v e st r eet t r ees
19'Lo o k A n d Feel' Exa m p les o f fro n t ya r d s 20
Front yard
I n d i cat i v e p la n t li st
S p ec i m en t r ees
Botanical Name Common Name Evergreen Deciduous
Acer palmatum japanese maple •
Acer palmatum ‘Bloodgood’ japanese maple •
Betula pendula silver birch •
Cercidiphyllum japonicum katsura tree •
Cercis canadensis ‘Forest Pansy’ redbud •
Cornus contraversa dogwood •
Cornus florida ‘Cloud 9’ dogwood •
Magnolia grandiflora ‘Little Gem’ evergreen magnolia •
Magnolia ‘Cleopatra’ magnolia •
Magnolia ‘Star Wars’ magnolia •
Magnolia ‘Yellow Bird’ magnolia •
Olea europaea olive •
Styrax japonicus japanese snowbell •
Front yard trees to be a minimum grade of Pb 150 and 2+ metres high at time of planting.
21h ed g es
Botanical Name Common Name Evergreen Deciduous
Camellia sasanqua ‘Setsugekka’ camellia •
Carpinus betulus european hornbeam •
Corokia ‘Geenty’s Green’ korokio •
Griselinia littoralis broadleaf •
Michelia figo port wine magnolia •
Laurus nobilis bay tree •
Lonicera nitida box honeysuckle •
Prunus laurocerasus cherry laurel •
Teucrium fruticans tree germander •
Viburnum tinus ‘Eve Price’ laurustinus •
Hedges to be a minimum grade of Pb 12 at time of planting, a single species, and maintained as a maximum 1.2m high
hedge to maintain outlook from the house to the street.
a c c en t p l a n ts
Botanical Name Common Name Evergreen Deciduous
Anemanthele lessoniana wind grass •
Buxus species box •
Cotinus coggygria ‘Royal Purple’ purple smoke bush •
Hydrangea paniculata ‘Levana’ panicle hydrangea •
Hydrangea paniculata ‘Tardiva’ panicle hydrangea •
Malus 'Ballerina Waltz' PVR columnar apple •
Pseudopanax crassifolius lancewood •
Rhopalostylis chathamica pitt island / chatham island nikau •
Syringa ‘Alice Eastwood’ lilac •
Viburnum opulus ‘Sterile’ snowball tree •
Accent plants to be a minimum grade of Pb 12 at time of planting.
22S H RU B S
Botanical Name Common Name Evergreen Deciduous
Arthropodium cirratum nz renga renga •
Brachyglottis species brachyglottis •
Dianella nigra turutu •
Hebe speciosa hebe •
Leptospermum scoparium manuka •
Muehlenbeckia astonii shrubby tororaro •
Pittosporum tenuifolium ‘Golf
Ball’ pittosporum golf ball •
Phormium species phormium •
Rhododendron species
(to 1.2m high max) rhododendron •
Skimmia ‘Kew Green’ skimmia kew green •
Lonicera nitida ‘Honey Hedge
Ruby’ box honeysuckle •
Viburnum davidii david viburnum •
Shrubs to be a minimum grade of Pb 8 at time of planting.
fl ow er i n g p l a n t s
Botanical Name Common Name Evergreen Deciduous
Alstroemeria species peruvian lily •
Anemone x hybrida japanese anemone •
Dietes iridioides wild iris •
Helleborus species winter rose •
Iris germanica bearded iris and hybrids •
Liriope muscari ‘Evergreen Giant’ lily turf •
Liriope muscari ‘Monroe White’ lily turf •
Liriope muscari ‘Samantha lily turf •
Rosmarinus officinalis rosemary •
Flowering plants to be a minimum grade of Pb 5 at time of planting.
23g r ass e s
Botanical Name Common Name Evergreen Deciduous
Anemanthele lessoniana wind grass •
Apodasmia similis oioi •
Carex dipsacea teasel sedge •
Carex testacea orange sedge •
Chionochloa flavicans dwarf toe toe •
Poa cita new zealand silver tussock
Grasses to be a minimum grade of Pb 5 at time of planting.
g ro u n d c ov ers
Botanical Name Common Name Evergreen Deciduous
Acaena inermis ‘Purpurea’ purple bidibid •
Ajuga reptans ‘Catlin’s Giant’ blue bugle •
Dianella nigra turutu •
Farfugium japonicum var.
giganteum tractor seat •
Leptinella squalida 'Platt's Black' brass buttons •
Liriope spicata lily turf •
Ophiopogon planiscapus mondo grass •
Ophiopogon planiscapus ‘Black
Dragon’ mondo grass •
Pachysandra terminalis japanese spurge •
Thymus serpyllum ‘Coccineus’ creeping thyme •
Trachelospermum jasminoides star jasmine •
Groundcovers to be a minimum grade of Pb 5 at time of planting.
2425
back yard
I n d i cat i v e g u lly p la n t li st
fo r w el l d r a i n ed s o i ls
Botanical Name Common Name Evergreen Deciduous
Aristotelia serrata makomako, wineberry •
Beilschmiedia tawa tawa •
Cordyline australis ti kouka, cabbage tree •
Dacrycarpus dacrydioides kahikatea •
Geniostoma rupestre hangehange •
Hoheria populnea houhere, lacebark •
Kunzea ericoides kanuka •
Macropiper excelsum kawakawa •
Melicytus ramiflorus mahoe •
Myrsine australis mapou •
Phormium tenax harakeke •
Phyllocladus trichomanoides tanekaha •
Podocarpus totara totara •
Prumnopitys taxifolia matai •
Pseudopanax crassifolius horoeka, lancewood •
Sophora microphylla kowhai •
26fo r M O I ST s o i ls
Botanical Name Common Name Evergreen Deciduous
Carex secta purei •
Coprosma robusta karamu •
Coprosma tenuicaulis swamp coprosma •
Cordyline australis cabbage tree, ti kouka •
Dacrycarpus dacrydioides kahikatea •
Dacrydium cupressinum rimu •
Dicksonia squarrosa wheki •
Freycinetia banksii kiekie •
Laurelia novae-zelandiae pukatea •
Leptospermum scoparium manuka •
Phormium tenax harakeke •
Plagianthus regius ribbonwood •
Syzygium maire swamp maire •
273. D ES I G N G U I D ELI N ES
3.1 INTR
ROO D U CT I O N
The design guidelines cov
cover the following key topics:
• Site Planning
• Streetscape Interface
I
• Architectural Design
• Landscape Design
D
• Ancillary Structures
Stru
3.2 S i t e P la n n i n g
House Size
The primary building / dw
dwelling must be no less than 120 square meters. This is to exclude garages, carports, decking, breezeways, entry porches, verandas and roof overhang.
B u i l d i n g S et
e t bac k
ks
St
S t r eet S et bac k
The primary residential hhouse is to be located so that it has a maximum 6m façade setback from the front lot boundary and a minimum 3m setback. The 6m maximum setback
is applied to ensure that houses have a good visual and physical relationship with the streetscape environment. This relationship ensures that a consistent streetscape / house
ffrontage
frontage relationship is m
maintained along roadways. It also encourages passive surveillance over the streetscape and enhances the sense of community within the estate.
283m min back yard setback
9m max street setback
3m min street setback
1.5m min side yard setback Ga r ag e S et bac k a n d Po s i t i o n
To ensure that the road frontages within the estate are not visually dominated by garage doors and
parked vehicles, it is a requirement that connected garages are set back a minimum of 1.5m behind the
House
primary building frontage. Free standing garages are to be located at a 6m minimum setback from the
Outdoor primary house frontage. Specific design criteria apply to free standing garages.
Living
Space
Where a side-entry garage layout is used, a 3m setback applies to the garage frontage wall, with the
balance of the house frontage positioned at a 9m maximum setback to allow for on-site manoeuvring.
In this scenario the side wall of the garage facing the street frontage, needs windows and specific
architectural treatment in combination with landscaping to avoid a blank and uninteresting frontage.
Outdoor R ea r S et bac k
Living
Space
Street
House
A 3m minimum rear boundary setback applies to all rear lot boundaries.
S i d e Ya r d s
A 1.5m minimum setback applies to all side lot boundaries not adjacent to a road or laneway. A 3m
minimum setback applies to all road or laneway boundaries.
Outdoor
Living
Space
O u t d o o r Li v i n g S pac es
House
Houses shall be located to ensure that there is a well-proportioned outdoor space at ground level
which is directly accessible from the house. All houses shall have a minimum 100m² outdoor area, with
a minimum dimension of 6m. Private outdoor space shall not be located solely between the house and
1.5m min side yard setback
the primary road boundary.
from primary house frontage
1.5m min garage setback
B U I L D I N G S ET BAC KS
29D i a g r a m 2 ST R EET S CA P E I N T E R FAC E
3.3 St r eets ca p e I n t er fac e
D es i g n o f Fro n t D o o r
Each house shall have a front door that is clearly visible and directly accessible from the street frontage. The front door must be sheltered, and
architectural features shall be incorporated to highlight the front door location.
Fro n t P o rc h es
It is recommended that houses are designed with a front porch to define the entry of the house and be accessible from a primary living area. The
front porch should have a minimum depth of 2.5m and be wide enough to make it is a usable space. The front porch creates a sense of community
and promotes active surveillance over the streetscape.
T r eat m en t o f P u b l i c I n t er fac e
The design, visual quality and character of the public interface between the house and the site’s street frontage is of key importance. It is the
intent of the developer that a high-quality, stylish streetscape character be maintained throughout the estate. In doing so, the investment of
purchasers within the estate will be maintained and enhanced.
To ensure that this outcome is achieved and maintained, it is a requirement of these design guidelines that the street interface be landscaped
in accordance with the design criteria within this document. A Landscape Plan is required to be designed by a suitably qualified person and
submitted for approval by the Design Review Panel.
30The following criteria applies to the treatment of house frontages:
• Houses should be designed to positively address the street — front doors and indoor living areas should have a relationship with the
street. Windows from living areas should be included in the front of each house and should face the street.
• Houses located on corner sites must incorporate similar treatment on all road frontages.
• Appropriate landscape treatments, in accordance with the landscape design guidelines, must be incorporated on all road frontages.
R el at i o n s h i p b e t w een a dj o i n i n g b u i l d i n g s
When designing a new house, there should be a consideration of the relationship with existing neighbouring houses (if applicable). The
relationship between living area, windows, doorways and house frontages should be taken into account. This holistic design approach will ensure
that potential negative design outcomes will be avoided.
Impact on neighbouring properties should be reduced by incorporating design techniques, such as reducing building height near boundaries and
modulating mass and scale.
The Design Review Panel can provide you or your designer with information about neighbouring properties to assist with your design. The Design
Review Panel will also take this design approach into consideration when reviewing plans submitted for approval.
G u l ly Fro n ta g es
The gully network running through the estate is a key natural feature, which is to be protected and enhanced as part of the development of your
lot.
There is a preference for an open frontage facing gully spaces, however where fencing is required a 1.2m maximum height permeable fence is to
be used (Refer Fence Type 4).
31'Lo o k A n d Feel' Exa m p les Fo r a rc h i t ect u r a l d es i g n 32
3.4 A rc h i t ect u r a l D es i g n
Ro o f fo r m
The following roof designs are permitted:
• Gable end roofs
C O M B I N AT I O N • Combination gable and hip roofs
GA B LE A N D H I P
RO O F • Monopitch roofs
• Full hip roofs are permitted, but must incorporate roof feature elements or height variations on key frontages
The following roof designs are not permitted:
• Flat roofs
• Full hip roofs with no feature or height variation
Ro o f m at er i a ls
The following roof materials are permitted:
GA B LE EN D
RO O F
• Corrugated profile pre-painted steel roofing (Colorsteel®, Metalcraft Roofing or similar)
• Tray and trapezoidal profile pre-painted steel roofing (Colorsteel®, Metalcraft Roofing or similar)
• Selected pre-formed steel roof tiles (flat profile only)
• Flat profile concrete roof tiles (Monier Horizon™ or similar)
• Natural quarried slate roof tiles
• Cedar shingles
• Fibre-cement roof tiles
The following roof materials are not permitted:
M O N O P I TC H • All scalloped profile concrete or clay roof tiles
RO O F • Decramastic roof tiles
33Half Concrete
Half Copyrite
Arctic White
Athens Grey
Castle Rock
Alabaster
Charcoal
El Paso
White
White
Black
C o lo u r pa le tt es
Colour palettes within the development are subject to the approval of the Design Review Panel. The preference within the development is the use of natural and muted colour tones which
blend into the surrounding landscape.
Sandstone Grey
Mountain Mist
Triple Delta
Baltic Sea
Eternity
Karaka
Titania
White
White
Ghost
Delta
34Wa ll C la d d i n g m at er i a ls
The following materials are permitted:
• Smooth plastered, concrete panel systems (Celcrete® or similar) or brick only
• Traditional-style pointed and painted brick
• Painted timber or Linea® weatherboard
• Vertical natural cedar timber
• Board and batten (must be stained or painted in approved colours)
• Natural stone
• Large format, light coloured, straight-edged brick (Premier™ Country Brick or similar)
Ironsand
Tao Grey
Detroit
White
• Tray and trapezoidal profile pre-painted steel
The following materials are not permitted:
• All other brick cladding
• All corrugated profile metal wall cladding
• Flat panel cladding systems (Axon™, Stria™, Titan™ or similar)
D o o rs a n d W i n d o ws
Natural timber or pre-coloured aluminium doors and windows are to be used. The following aluminium joinery and door
colours are permitted:
• Matt Black
• Arctic White
• Dark Grey / Charcoal / Ironsand
• Light Grey / Ghost Grey / Sandstone Grey
• Karaka
• Titania
Trainspotter
Hint of Grey
Schooner
White
35M at er i a l c o m b i n at i o n s
Two to three complimentary cladding materials are to be used per house. The front façade cladding shall be applied in a ratio of 1:3, however brick
cladding is not to exceed 50 percent of any publicly visible frontage.
V eh i c l e A c c ess a n d Pa r k i n g
Ca r Pa r k i n g
A minimum of two on-site car parking spaces with at least one garage space shall be provided for each house. Carports are permitted, but are
to be of a high-quality design and be in keeping with the overall design of the house. All timber carports must be of a suitably sturdy design and
must be stained in an approved colour.
Ga r ag es
The architectural style, material and colour of the garage shall be in keeping with the design of the rest of the house. This requirement applies to
connected and free-standing garages.
D r i v eways
All driveways are to be constructed of either exposed aggregate concrete, 8% black oxide concrete or high-quality trafficable
unit pavers (Firth or similar). All vehicle crossings are to be constructed of exposed aggregate concrete (selected aggregate
‘Firth Mountain Burst’). No plain or light-coloured concrete is permitted.

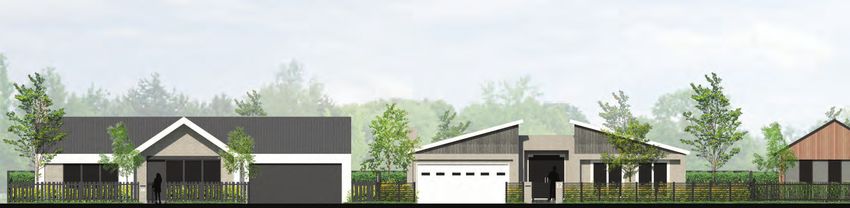

36Windows and specific Side-on Garage Entrance visible from road and
architectural treatments arrangement recessed into the building to protect
to street frontage from the weather
1.2m high hedge
species as fencing
Good mix of materials on the Letter box Good mix of materials on the
facade to break up the form and incorporated into a facade to break up the form and
reduce the appearance of mass column or fence reduce the appearance of mass
Trees in private lots contribute to
the landscaped feel of the street
and the overall character of the site
A variety of front boundary
treatments adds to the visual
richness of the public realm
Front boundary fences and hedges
are restricted to 1.2m high to
ensure passive surveillance of the
street is maintained
Footpath material takes priority
over driveway
B U I LT FO R M EX A M P L ES
37Heartly Design
'Lo o k A n d Feel' Exa m p les Fo r fen c es, wa lls a n d lett er b ox es
38Fen c i n g
Fen c i n g M at er i a ls
The following fencing types and materials are permissible:
• Fencing Type 1: 1.2m high timber post and rail fencing (stained in approved colours)
• Fencing Type 2: 1.2m high pillar and tubular pool fence combination
• Fencing Type 3: 1.2m and 1.8m high neighbour-friendly timber fencing with top capping rail (stained in approved colours)
• Fencing Type 4: 1.2m high permeable fencing
It is required that all fencing within the development is stained using an environmentally friendly exterior waterborne timber stain (Resene®
Waterborne Woodsman or similar approved). The following stain colours are permitted and should be co-ordinated with the colours of the house:
• Sheer Black (WW0801 )
• Riverstone (WW0805)
• Woodsman Whitewash
Fro n t Fen c i n g a n d Gat es
Front boundary fencing (if required) is to be 1.2m maximum height. Front fencing is to be either Fencing Type 1, 2 or 4. As an alternative to a front
boundary fence, a 1.2m high clipped hedge is permitted and can be used on its own or in combination with other approved fencing.
S i d e a n d R ea r Fen c i n g
All side and rear boundary fencing is to be Fencing Type 3 or Boundary Type.
391500
1200
150 x 40mm H3.2 Fence Rail fixed between fen c i n g ty p e 1 - t i m b er po st a n d r a i l
100 x 100mm H4 posts at 1500mm centres
Max. 225mm gap Max. between Rails.
200mm gap Max. from base of fence to ground.
1200
Powder-coated Tubular Aluminium Fence Panels fixed
between
Brick Pillar with a smooth plastered and paint finish. fen c i n g ty p e 2 - p i lla r a n d t u b u la r pa n el fen c e
Colour to match the house.
Two fence panels between pillars recommended.
100mm gap Max from base of fence to ground.
401450
1200
fen c i n g ty p e 3 - n ei g h b o u r-fr i en d ly 150 x 19 H3.2 full and half width Timber Palings fixed to
75 x 50 H3.2 Timber Rails between
100 x 100mm H4 posts at 1450mm centres Max.
Max 100mm gap from base of fence to ground.
1400
1200
45 x 40mm H3.2 Battens fixed to
75 x 50 H3.2 Timber Rails fixed between
fen c i n g ty p e 4a - p er m ea b le 100 x 100mm H4 posts at 1400mm centres Max.
45mm gaps between Battens and flush with posts.
100mm gap Max. from base of fence to ground.
411050
1200
150 x 40mm H3.2 Fence Rail fixed between fen c i n g ty p e 4 B- p er m ea b le
100 x 100mm H4 posts at 1500mm centres
Max. 225mm gap Max. between Rails.
200mm gap Max. from base of fence to ground. 2000
1800
150 x 19 H3.2 Timber Palings fixed to
75 x 50 H3.2 Timber Rails between
100 x 100mm H4 posts at 2000mm centres Max.
100 x 50 H3.2 Timber Capping on top. fen c i n g ty p e - b o u n da ry
Palings to be flush with posts.
Max 100mm gap from base of fence to ground.
42R e ta i n i n g Wa l ls
The following retaining walls types are permitted:
• Type 1: Timber retaining walls with top capping rail (stained in approved colours)
• Type 2: Stone retaining walls of approved local stone
• Type 3: Plastered concrete block retaining walls matching the house design and colour
Where retaining walls need to exceed a height of greater than 1.5m in height, a stepped retaining wall shall be used.
The visual appearance of retaining walls from any public viewpoint is to be enhanced by plant cover using a suitable creeper, shrub or groundcover.
Retaining walls directly on site boundaries shall be avoided. Where possible, retaining wall structures should be incorporated into the house
structure.
No concrete segmental block retaining walls are permitted.
All retaining walls to comply to the New Zealand Building Code and relevant engineering requirements.
L ett er B ox es
Letter boxes are to be of a high-quality and incorporated into the front yard fencing or into a feature post or column. Free standing letter boxes
on thin steel or timber posts are not permitted. Letterboxes should not be made from unrelated materials and not be purchased and ‘plonked’ in
front of the house. They should be considered in the design and the implementation of the front yard landscape plan.
43House
H
H
G F
House
I C C A I
C
A D G A
A G C G F
A F D A F
C A
B B B
I E I E I
St r eet
I n d i cat i v e La n d s ca p e P la n
K EY
A Specimen tree
B 1.2m high hedge
C Shrubs and groundcovers
D Lawn
E Letterbox
F In-situ concrete paving
G Unit pavers
H 1.8m high fence
I 1.2m high fence
443.5 la n d s ca p e d es i g n
L a n d s ca p e p l a n
A landscape plan is required for the front yard of all lots. A landscape plan will also need to be prepared for the side yard if the lot is a corner lot
or adjoins an open space. The landscape plan shall be submitted to the Design Review Panel for approval and include the following:
• The landscape design must include all proposed hard and soft landscaping elements (driveways, paving, decking, retaining walls,
pools, ancillary structures, planting)
• The front yard landscaping must compliment the streetscape and public landscape areas
• The landscape design must consider enhancement of public safety and privacy between adjoining houses
• Locations and mature size of deciduous and evergreen trees should be carefully considered
• A minimum of 1 x PB150 grade specimen tree must be planted in the front yard to enhance the estate’s street tree framework.
• All lot planting must be in accordance to the estate’s approved plant species list.
Fro n t Ya r d
Front yard landscaping must compliment the neighbourhood design character. Front yards are a key transition area between
the public and private realm. This landscaping softens the visual appearance of built form, provides a sense of scale to the
houses and enhances the overall visual amenity of the development.
S i d e Ya r d
The key aim of side yard landscaping is to provide visual privacy between neighbouring properties. When selecting tree and shrub species it is
important to ensure that they will not become overly large and shade out winter sun from your neighbour. The use of small deciduous trees is
preferred to using evergreen species which can block out light in winter.
ba c k Ya r d
It is encouraged that fruit trees are planted in each back yard.
453.6 A n c i lla ry St ru ct u r es
Ancillary structures (e.g. garden sheds, gazebos, shade sails, pergolas) should be located for the enjoyment and amenity of
the residents without negatively detracting from the visual quality of the estate streetscape. It is important that ancillary
structures are well designed and in keeping with the quality and theme of the house.
S erv i c e a r eas
All service areas are to be located at the side or rear of the house and are to be suitably screened from all public viewpoint with either approved
fencing, durable trellising and/or hedging. Service areas should be screened so as not to be visible from primary living areas of neighbouring
houses.
Ga r d en S h ed s
Garden sheds are to be no more than 1.8m in height and located a minimum of 2m from any lot boundary. All galvanised
steel sheds are to be painted in an approved recessive colour. Timber sheds should be stained to match boundary fencing.
Sheds should be screened so as not to be visible from primary living areas of neighbouring houses.
Sw i m m i n g Po o ls
Swimming pools should be indicated on the site or landscape plan submitted for review by the Design Review Panel. All pools and pool fencing
to comply to relevant National and Regional Authority safety requirements.
D ec ks
Decks and balustrades (where required) are to be of a high-quality architectural design and should be in keeping with the
‘look and feel’ of the house design. Deck placement should consider the design of neighbouring properties and not unduly
overlook primary living areas on neighbouring properties. All decks are to comply with the New Zealand Building Code and
relevant engineering requirements.
46P erg o l as
Pergola structures are to be of a high-quality design and should be in keeping with the overall design of the house. All timber pergolas must be
of a suitably sturdy design and must be stained in an approved colour.
Was h i n g L i n es
All washing lines are to be located away from the street frontage and public viewpoints. Washing lines should not be visible
from neighbouring properties.
T r a m po l i n es
All trampolines are to be located away from the street frontage and public viewpoints.
47About Boffa Miskell
Boffa Miskell is a leading New Zealand professional services consultancy
with offices in Auckland, Hamilton, Tauranga, Wellington, Christchurch,
Dunedin and Queenstown. We work with a wide range of local and
international private and public sector clients in the areas of planning,
urban design, landscape architecture, landscape planning, ecology,
biosecurity, cultural heritage, graphics and mapping. Over the past four
decades we have built a reputation for professionalism, innovation and
excellence. During this time we have been associated with a significant
number of projects that have shaped New Zealand’s environment.
www.boffamiskell.co.nz
Auckland Hamilton Tauranga Wellington Christchurch Queenstown Dunedin
09 358 2526 07 960 0006 07 571 5511 04 385 9315 03 366 8891 03 441 1670 03 470 0460You can also read
