Making the Transition to an Effective
     Refrigerant Architecture

            July 30, 2019

                                        13
Industry Is Dealing With
                             Extraordinary Dynamics

                     Cold Chain Challenges                                                Operations Driven

                                                                      Food Safety, Quality
                                                                      FSMA, blockchain
                             End-to-end data,
                              services and                            Technician Shortage
                                insights                              Complexity vs. simplification

                                                                      IoT and Cloud-based Services
                                                                      Simple, sustainable, stable

                                                                      New System Architectures
    Harvest      Processing Transportation Distribution   End Users   Steep learning curve

                                                                      Energy Costs and Incentives
                                                                      Demand peak charge, time of use rates

                                                                      Refrigerant Regulations
                                                                      F-Gas + EPA + CARB + ECCC+ DOE
FSMA: Food Safety Modernization Act
FDA: Food and Drug Administration                                     OSHA Regulations
IoT: Internet of Things                                               Low-charge ammonia, light industrial
F-Gas: Fluorinated gas
EPA: Environmental Protection Agency
CARB: California Air Resources Board
ECCC: Environment and Climate Change Canada
DOE: Department of Energy
OSHA: Occupational Safety and Health Administration                                                           14
Regulations
                                                        ECCC (Canada)
                ►Centralized cond. units
                                                                                                    ►Chiller
CARB Rulemaking #2
                                                                                       = A1 Non-flammable         = A2L Mildly Flammable

                                 CO2
                                                                                       = A3 Flammable             = B2L Toxic, Mildly Flam.
                      Pressure
                                                                                                 AC 2023/24
                                                 R-454B R-32                                      R-410A                     U.S.
                       R-410A
                        Like                                                                                              Climate
                                       R-454C
                                                                                                                          Alliance
                                 NH3 455A
                                                                                                                             may
                       R-404A R-290         R-444B                      R-449/8A              R-407A          R-404A       follow
                                                                                                              (3,922)
                        Like                                                                                             California’s
                                                                                                                             lead
                                 1234yf         R-515A R-513A                R-134a
                       R-134a
                        Like
                                                                                                         GWP Level
                                                     500        1,000              1,500       2,000

                             CARB 2022 (new)                               CARB 2022 (new)
                              >50 lbs charge
End Users/Operators –
 What Do They Want?

                        17
End Users/Operators –
            What Do They Want?

                   Sustainable     Stable
  Simple

Serviceable          Secure        Smart

                                            18
Natural Refrigerant Options
for Commercial Refrigeration
NATURAL REFRIGERANT
OPTIONS
FOR COMMERCIAL
REFRIGERATION                  19
Natural Refrigerant Options
Natural Refrigerants             GWP ODP     Considerations          Refrigeration System Differences

                                                                 ► Very low charge requirements
      R-717                       0   0    ► Potentially toxic   ► Used in the high stage to absorb
    (Ammonia)                              ► Mildly                heat and/or cool R-744 (cascade or
                                             flammable             used as a secondary fluid)
                                                                 ► Far removed from occupied spaces

                                                                 ► Very little danger to occupants in
                                           ► High pressure         the event of small leaks
                                  1   0    ► Low critical        ► Used in medium and low stages
   R-744 (CO2)                               temperature         ► Pumped into the fixtures used in
                                           ► High triple point     occupied spaces, rather than
                                                                   R-717
                                           ► Highly
       R-290                                 flammable
                                                                 ► Very low charge requirements
     (Propane)                    3   0    ► Exempt from           (currently 150 grams is the max)
                                             venting
                                             prohibitions
ODP: Ozone depletion potential                                                                          20
System Architectures Choices
            Centralized                                            De-Centralized
CO2 Booster Transcritical                             Distributed
►   0 ODP, 1 GWP, 1 A1                                 ►   Many refrigerant options
►   Higher pressures                                   ►   Optimize suction press
►   Standing pressures                                 ►   Location flexibility
►   Good low ambient perf.                             ►   Lower charge
►   High ambient strategies                            ►   Small footprint
                                                                                          CO2            A1
                                                                                          HFC/HFO        A1
                                      CO2    A1                                           HFO            A2L

Indirect Chiller With Cascade                         Integral Display Case – Micro Distributed
►   Niche application                                  ►   R-290 150g limit, future?
►   Commercial/industrial                              ►   A2L 500g limit, future?
►   Full natural option                                ►   Water loop for condensing
►   Energy efficient                                   ►   Heat pump integration option
►   Low charge                                         ►   Flexible
►   AHJ approvals             CO2       A1
                                                       ►   AHJ approvals
                                                                                      R-290         A3
                              R-290     A3
                                                                                      HFO           A2L
Propane (R-290)

                  22
Regulations
                                      International                                                U.S.
                                                                                                       CARB 2 (Proposed)
                                     Europe F-Gas                                  CARB 1
                                                                                                      Final Vote March 2020
 Commercial              • 2,500 GWP Jan. 2020                           • EPA SNAP Rules 20 • 1,500 GWP Jan. 2022
 Equipment               • 150 GWP Jan. 2022                               and 21              (50 lbs)
                                                                                                        UL
                                                IEC                                         300g for R-290 (timing TBD)
                                                                                            1.2kg for A2L (timing TBD)
                                          500g for R-290
                                           1.2kg for A2L
                                             (passed)
                                                                                                  EPA SNAP
                                                                                            Application approval for A2L
                                                                                                    (timing TBD)

 Cold        • 2,500 GWP Jan. 2020                                       • EPA SNAP Rules 20 • 1,500 GWP Jan. 2022
 Rooms/Walk-                                                               and 21              (50 lbs)
 Supermarket             • Multi-pack                                    • EPA SNAP Rules 20 • 150 GWP Jan. 2022
 Racks                   • 40 kW (140 kBTU/hr)                             and 21
                         • 150 GWP Jan. 2022
kW: Kilowatt
kBTU: Thousands, British thermal units, IEC: International Electrotechnical Commission                                     23

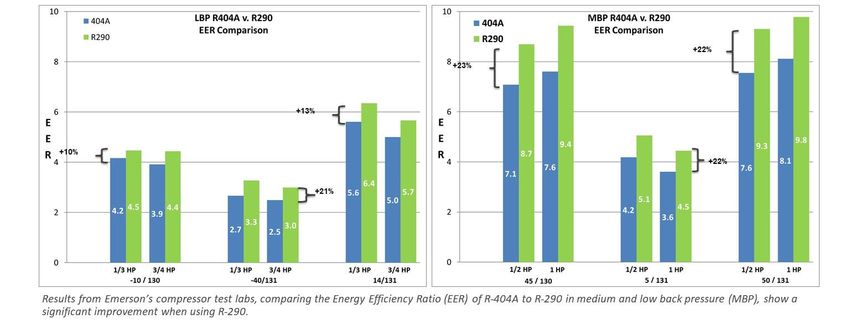

R-404A and R-290 EER Comparison

                                                                 24

     R-290 Yields 20%+ Better EER Efficiency Over R-404A.
                                                            24
U.S. EPA SNAP-Approved End Use
                  Applications for R-290
                                             X = Applications Not Approved by EPA SNAP Final Rule

                      Domestic Refrigerators (53g)                            150g Charge Limit
                                                                                   Current
                                                   UC/Prep
                                                                                                                                         300+ g
                                                        X Mach.
                                                   Vending                                              In Proposal                   Charge Limit
                                                                                                      Larger Units Achievable         in Proposal
                                            Bev. Dispensers                                            With Multiple Systems
                                       Bottle Coolers

                                                                                                Ice

                                                                                      Commercial Reach-ins
                                             1DS          1DG        2DS             2DG               3DS                   3DG

                                                                                                       Walk-insX
                                                                                                               (Remote)            (stand-alone, OK)

      HP           1/8          1/6         1/4           1/3           1/2                            3/4                                1

                                             IEC/UL/ASHRAE/ICC:                        R-290: U.S. Approx. 300 gram charge limit in proposal
                                                                                       A2L: U.S. 1.2 kg charge limit in proposal

IEC: International Electrotechnical Commission                                     ICC: Industrial Cooling Corporation/International Code Council
UL: Underwriters Laboratories
ASHRAE: American Society of Heating, Refrigerating, and Air-Conditioning Engineers

                  ASHRAE/UL Working With Industry on Flammable Research Sub-Cmte.
                  and Completing Charge Limit Increase and Safety Standards Proposal.
     Effectivity of an R-290 Charge Limit Increase Could Be 2019 for Stand-Alone Equipment25
R-290 Stand-Alone
End Use Applications

                       26

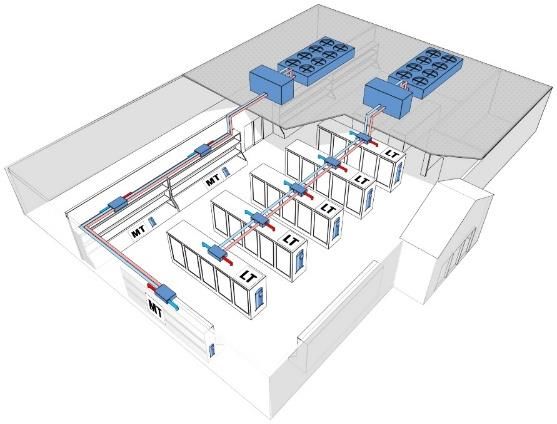

R-290 Micro Distributed Applications

             or                         or

       12 ft. case                12 ft. case
R-290 (3 GWP) 150g limit   R-290 (3 GWP) 500g limit

              Be Sure to Consult Authority Having Jurisdiction (AHJ)
          for Additional Code/Standard Requirements Before Installing.
                                                                         27
Carbon Dioxide (R-744)

                         28

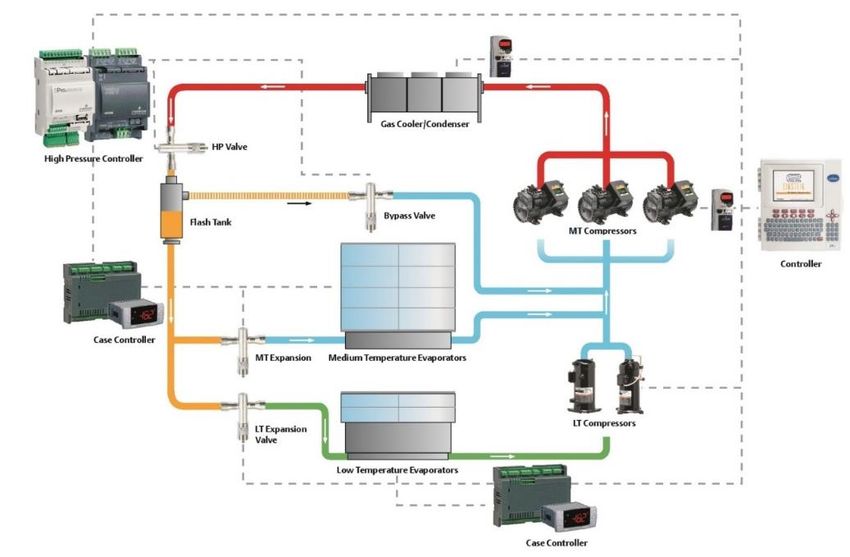

CO2 System Architectures

                 SECONDARY                 CASCADE               TRANSCRITICAL
                                                        R-717,
                                                                   BOOSTER
                              R-717,                    R-290
                                                                               CO2
                              R-290                      HFC
                               HFC

                                                                      CO2 DX

                                               CO2 DX
                                  CO2
                                                                      CO2 DX
                               Secondary
                                 Fluid

                   up to 650               up to 650             up to 1,600+
                     psig                    psig                    psig

Psig: Pound-force per square inch                                                    29
Basic Properties of R-744 vs. Commonly
                   Used Refrigerants
           Refrigerant              R-744 (CO2)     R-404A        R-134a           R-407A              R-407F
                                     -109.3 °F      -50.8 °F      -14.8 °F        -41.8 °F            -45.5 °F
       Temperature at                (-78.5 °C)     (-46 °C)      (-26 °C)        (-41 °C)            (-43 °C)
    atmospheric pressure             (Temp. of    (Saturation   (Saturation      (Mid-point          (Mid-point
                                       dry ice)      temp.)        temp.)     saturation temp.)   saturation temp.)
                                       87.8 °F     161.6 °F      213.8 °F         179.6 °F            181.4 °F
     Critical temperature
                                       (31 °C)       (72 °C)     (101 °C)          (82 °C)             (83 °C)
      Critical pressure             1,056 psig     503 psig      590 psig         641 psig            674 psig
    Triple-point pressure             61 psig      0.44 psia    0.734 psia        0.18 psia             TBC

   Pressure at a saturated
                                     815 psig      144 psig      68 psig          133 psig            139 psig
    temperature of 20 °C

  Global warming potential              1           3,922         1,430            1,990               1,824

Psia: Pound-force per square inch                                                                                30
Pressure-Enthalpy Diagram of CO2
    Subcritical to Supercritical

                    p. 17

                                   31
Typical R-404A System
                                                      Products
                                         162 °F                              Medium-
                                     Critical Point
                                        R-404A
                                                      ►Mechanical TXV      Temperature
                                                                             R-404A
                                                      ►Mechanical EPR
                                                      ►Mechanical CPR
               +25 °F                                  and differential
             Med.-Temp.
                                                       valves
                                                      ►Mechanical
                                                       pressure controls
                                                      ►Typically, on/off      Low-
                                     162 °F                                Temperature
                                 Critical Point
                                                       compressor            R-404A
                                    R-404A             control

                -20 °F
              Low-Temp.

TXV: Thermo expansion valves
EPR: Evaporator pressure regulator
                                                                                         32
CPR: Crankcase pressure regulator
CO2 Refrigeration System Highlights
►    Three Main Differences
     Between
     HFC and R-744 Systems
    1. High pressure
    2. Low critical point
    3. High triple point

►    Dealing With Standstill
     Pressures
    4. Managing power outages
    5. Managing pressure reliefs
    6. How to mitigate risk

►    Peculiarities of R-744
    7. Managing superheat
                                           33
Ammonia (R-717)

                  34
Key Industrial Refrigeration Trends
Safety and Environmental Requirements
 ► OSHA requirements
 ► Low-charge ammonia systems
 ► Moving ammonia out of occupied spaces
 ► Cascade systems using CO2 in the low
   stage
 ► Booster transcritical CO2 architecture for
   MT and LT
 ► Increased use of R-744 (CO2) and a
   volatile secondary fluid

Increased Emphasis on Total Cost of
Ownership
 ► Equipment costs
 ► Maintenance costs
 ► Energy costs (improved performance of
                                                MT: Medium temperature
   CO2 at LT such as -40 °F)                    LT: Low temperature
                                                                               35
                                                TCO: Total cost of ownership
Key Industrial Refrigeration Trends
Safety and Environmental Requirements

► OSHA requirements
  ► Low-charge ammonia systems

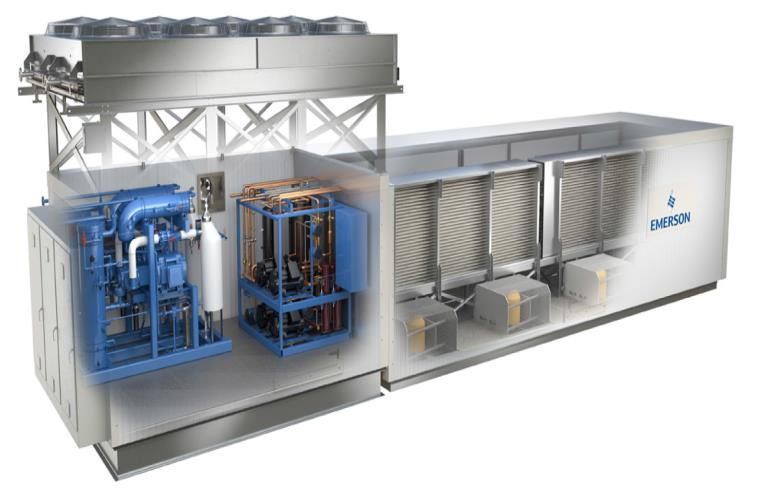

  Modular Refrigeration Unit      Low-charge Central Systems

                                                               36
Natural Refrigerant Options Span
   the Journey From Farm to Fork
     Transportation       Consistent temperature control

           Regulatory requirements        Handling
Food safety

                                      Intermediaries
       Many steps
                       Complexity
             Multiple players
                                                           37
What Are the Key Considerations
          and Tradeoffs From a Controls
   Controls architecture is Perspective?
    “loosely coupled” to the
    systems architecture
 Two basic controls
  architectures
    Centralized
    Distributed
 System architectures vary
  on control requirements
    CO2, cascade-
      centralized control
    Distributed, integral-
      distributed control

                  How Do We Maintain Controls Consistency
                     Across the Different Architectures?
                                                            38
Control System Review: Layers and
  Functions of a Control System
                                         Key Elements
               Architecture
                                       ►Remote user interface
                  Layer                ►Site information
                     Remote            ►Data feed
                                       ►Advanced optimization

                                       ►On-site user interface
                 Supervisory           ►User management
                                       ►Data logging
                                       ►Alarming
                                       ►Cross-system coordination
                                       ►Device integration
                     Control
                                       ►Control algorithms
              Site
                                       ►Inputs and outputs
                Hardware can be        ►Sensors and transducers
              combined or separated.
                                       ►Equipment interface
                                                                39
By Taking Advantage of the Supervisory
        Layer’s Ability to Integrate
    Different Devices, a Common User
        Experience Can Be Created
 Architecture layer

         Remote

                        Supervisory
       Supervisory

         Control

Site

                                           40
Planning for the Future: Newer Systems
Need Flexibility and Advanced Control to
       Create Smarter Buildings
                                                                                      ►   “Traditional” control
                                                                                          architecture expanding to
                                                                                          enable more value
                                                                                      ►   Flexibility provided by add-
                                                                                          on “apps” which facilitate
                                                      Cloud          Transactive          customized solutions
                             Remote
                                                     services         services        ►   Site control provides macro-
                                                                                          level control, coordination of
                                                                                          equipment on a cross-site
                                                                                          basis (i.e., HVACR) and
                                                                                          data aggregation
                                                                                      ►   Transactive services
                                                                                          provide opportunity to utilize
                                                             Transactive                  “smart grid” as well as other
                                     Supervisory
                                                              services                    cloud-based services (i.e.,
                                                                                          renewable integration, etc.)
                                       Apps               Site control             Advanced supervisory systems

                                            Equipment control                      Distributed controllers

                                                                                                                     41
HVACR: Heating, ventilation, air conditioning, and refrigeration
Key Take-Away Messages
1.   Global refrigerant regulations are driving trials and adoption of
     future-proof natural refrigerant architectures.
2.   Propane has regained global popularity as a viable efficient
     refrigerant choice with a GWP of only 3. Its high flammability has
     kept self-contained equipment designs to 150g charge. IEC
     International charge limits have increasing to 500g. UL2-89 still has
     limit set at 150g(but AHJ will still have the final say).
     - Propane is NOT a retrofit refrigerant — new systems only

3.   CO2 has proved very effective in both low- and medium-temperature
     applications. Successfully deployed in commercial and industrial
     applications in Europe for nearly two decades, it has made inroads
     in North America in recent years. Due to its low critical point and
     high operating pressures, the designer must account for its unique
     characteristics.
     - CO2 is NOT a retrofit refrigerant — new systems only
                                                                             42
Key Take-Away Messages

4.   Ammonia’s superior thermodynamic properties make it a logical first
     choice for early refrigeration systems. It is often used in industrial,
     process cooling, cold storage and ice rink applications. However, its
     toxicity demands careful adherence to safe application procedures to
     ensure operator safety and customer well-being.
5.   Most recently, ammonia has been introduced into commercial
     applications via cascade systems that utilize lower refrigerant
     charges and keep the ammonia circuit removed from occupied
     spaces. Conversely, CO2 has been introduced in the industrial
     segment as a natural refrigerant option.
6.   Control systems can vary across the various system architectures.
7.   Supervisory systems can create a common user interface and
     provide familiarity for technicians.

                                                                               43
Thank You!
Learn about the environmental regulations impacting HVACR at:
              Climate.Emerson.com/JulyGreenChill

                                                                44
Contacts and Additional Information
Presenter Contact Information                      GreenChill Contact Information
►   Andre Patenaude, Emerson                       ►   Tom Land, U.S. EPA
    519.717.5282                                       202.343.9185
     andre.patenaude@emerson.com                       Land.Tom@epa.gov

►   John Wallace, Emerson
     770.425.2724
     john.wallace@emerson.com

Upcoming Webinars
Date      Topic
Sept 24   Ozone Layer Update from the National Aeronautics and Space Administration
Oct 8     Benefits of Partnering with GreenChill for Small and Independent Grocers
Nov 12    Retrofit Doors

             ▪ Join our webinar invitation list ▪ Request today’s webinar slides
                                                                                      45
                              ▪ View past GreenChill webinars                              45
You can also read
