PRODUCT CATALOG 2020
WHO WE ARE.
fosera. is a leading manufacturer of high quality Solar Home Systems. The development of
energy efficient appliances takes fosera. beyond its full range of lighting products to include a
number of devices such as fan, radio and television, as well as the possibility of charging exter-
nal accessories such as mobile phones.
GERMAN ENGINEERING
Fosera, founded in 2011, is a German based manufacturer of High Quality
Solar Home Systems. With our German engineering team, we strive to bring
innovative and reliable solar home systems to the off-grid world.
RELIABLE MANUFACTURING
Our systems are manufactured in our own factory in Pathumthani, Thailand,
which is certified according to ISO:9001 (quality), ISO:14001 (environment)
and ISO:45001 (health and safety).
COMMITTED PARTNERSHIPS
We want to build longterm partnerships with our distributors on the ground
through strong service support, reliable products fitted to the needs, enabling
growth together.
LOCAL ASSEMBLY
Apart from our main manufacturing plant in Thailand do we also operate a
local assembly in Bahir Dar, Ethiopia.
2 About Us.
CARRY THE
ENERGY OF
THE SUN
WITH
YOU.
www.fosera.com 3
ARS
YE
A
TY
W
BECOME A
RRAN
PARTNER.
G
G I N E E RI N
fosera. can offer a board portfolio of solutions which can be fit-
EN
ted perfectly to your needs, with co-branding, customized system A
N
GER M
configurations or even co-development of features.
With fosera. you’ll have a strong and reliable technology partner,
which can provide you with outstanding quality systems.
As a pure manufacturer, fosera. prides itself in supporting distributors in their local operations
through effective project support and competitive product offerings.
Reach out to our sales team. We’re excited to learn more about your project and what we can do
for you!
FLEXIBLE SYSTEM
CO-BRANDING CO-DEVELOPMENT
CONFIGURATION
In order to make your Each market is different. In case you have very
offering unique in the We therefore have de- special requirements or
market, we offer a range veloped a tool-box full new ideas, don’t hesitate
of co-branding options of plug & play kit op- to get in contact with us
and levels to support tions which allows you to discuss options of
you building your brand. to build the system you co-development of new
need to make your pro- features or products.
ject successful.
4 About Us.
OUR PRODUCTS.
Modular and flexible sys- LiFePO4 - long system life-
tem design, allowing vari- time up to 10 years, non-tox-
ous configurations and ex- ic materials and safe to use
tensions
High quality with 3 years PAYG enabled with solid
warranty anti- tampering measures
Superior battery protection
Innovative features and ap-
against short-circuit, over
pliances
current and ESD
Not just a fixed kit - We give you the ability to create a configuration based
on our market's unique demands. Choose the amount of lamps, number
of phones to charge and which appliances to run with the system. We rec-
ommend the product line, battery size and solar panel size to fit.
www.fosera.com 5
OUR PRODUCT FAMILIES.
POWER LINE.
12V SYSTEMS
BLUE LINE.
3.2V SYSTEMS
CAPACITY RANGES AND AVIABLE APPLIANCES
System capacity FOR FOSERA SYSTEMS
EVO
* *
IGNITE
SPARK
PSHS
0 50 100 150 200 250 300 350 400
* Appliance recommended just for some models Wh
6 About Us.
SOLAR HOME
SYSTEMS.
www.fosera.com 7
fosera® SPARK
2 LIGHTS & USB FOR PHONE CHARGING
lights phone PAYG radio
charging *optional
PAYG ENABLED WITH INTEGRATED KEYPAD
SIMPLE AND POWERFUL
The fosera® SPARK is the perfect entry level solar home system, designed to be cost effective and
ultra-efficient while maintaining the same high quality standards that fosera. is known for.
MAIN FEATURES
SUPERIOR BATTERY RUNTIME
Charge more phones and have longer SUPERIOR BATTERY PROTECTION
x2 hours of light Short-circuit, over-current and ESD
protection, providing a maintenance-free
ARS QUALITY lifespan of up to 10 years
YE
Outstanding quality allowing us to offer
TY
A
W
RRAN
the longest warranty in the market: 3 PAYG WITH SOLID ANTI- TAMPERING
years. MEASURES
Prevention from unlocking PAYG, anti-
HIGHLY EFFICIENT BATTERY theft screws, warranty seal
fosera. uses LiFePO4-batteries, highly
efficient and resistant to capacity losses
8 Solar Home Systems
BLUE LINE
Rev05
fosera® SPARK 10 20 30 units
Nominal System Voltage 3.2 V
System capacity 3.8 7.6 11.4 Ah
Energy capacity 12.16 24.32 36.48 Wh
Battery type LiFePO4
Protection features Overcharge, overcurrent, deep discharge, short circuit
Appliance outlets 2x Regular outlets max. 3A
USB outputs 1x 1A USB output
Input 1x Solar input max. 2.75A
Weight 216 302 338 g
Dimensions 130 x 95 x 51 mm
PAYG (optional) PAYG enabled
SOLAR PANEL
Module peak power 4 6 10 Wp
Module current (Impp) 0.90 1.33 1.90 A
Module technology Polycrystalline silicon
Cable length panel to box 6 m
Module dimensions 180x180x15 270x192x17 340x230x17 mm
Module weight 580 200 1250 g
LAMP MINI
Brightness 100 lm
Power 0.76 W
Cable lenght 6 m
OPERATION TIME
Solar runtime*
6:30 hrs 11:20 hrs 16:15 hrs
With 2x Lamp mini 100%
*additional phone charging will reduce the runtime
www.fosera.com 9

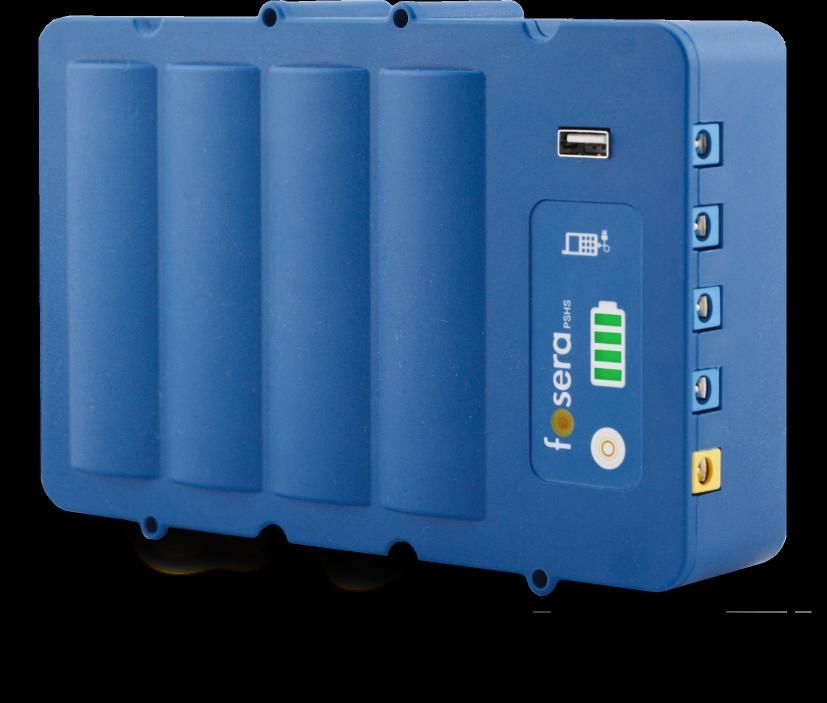

fosera® PSHS
VERSATILE SOLAR HOME SYSTEM
FOR LIGHTING, RADIO AND PHONE
CHARGING
The fosera. PSHS is a flexible solar home
NIGHT LIGHT FEATURES TO INCREASE
system for lighting, radio or phone SECURITY AT NIGHT
charging. With its four outlets, one with
night-light function, houses can be easily
electrified. 4 OUTLETS TO CONNECT DIFFERENT
DEVICES
x4 phone
outputs
charging
flexible PAYG
design
torch radio
optional optional
QUALITY IN DESIGN AND COMPONENTS
INNOVATIVE TOUCH-SWITCH
Outstanding quality, allowing us to offer the
With 3 dimming levels and comfortable to
longest warranty in the market, which is 3
use
years
NIGHT LIGHT MODE EXTRA LONG BATTERY RUNTIME
Special outlet which turns on automatically Designed to charge phones and still give
at night as a security light several hours of light
10 Solar Home SystemsBLUE LINE
Rev09
fosera® PSHS
TECHNICAL SPECIFICATIONS
fosera® PSHS 3000 4500 7500 10500 units
Nominal system voltage 3.2 V
Battery capacity 3.0 4.5 7.6 10.5 Ah
Battery energy capacity 9.6 14.4 24.3 33.6 Wh
Battery type LiFePO4
Protection features Overcharge, deep discharge, overcurrent, short circuit
3x 3A regular
Appliance outlets
1x 3A configurable
Appliance outlets total current 3 A
USB outputs 1x 0.5A USB
Max. input current 1.5 2.25 2.5 2.5 A
Weight 0.33 0.37 0.46 0.53 kg
Dimensions 192 x 131 x 45 mm
PAYG (optional) PAYG Available
RECOMMENDED SOLAR PANEL
Module peak power 2.5 6.0 10.0 Wp
Module current Impp 0.58 1.33 1.90 A
Module technology Polycrystalline silicon
Cable length panel to box 6 m
Module dimensions 150 x 192 x 17 192 x 270 x 17 340 x 230 x 17 mm
Module weight 0.45 0.8 1.25 kg
OPERATION TIME
Solar runtime*
5:40 5:40 13:05 18:45 hrs
With 1x Blue Line Lamp 200
*additional phone charging will reduce the runtime

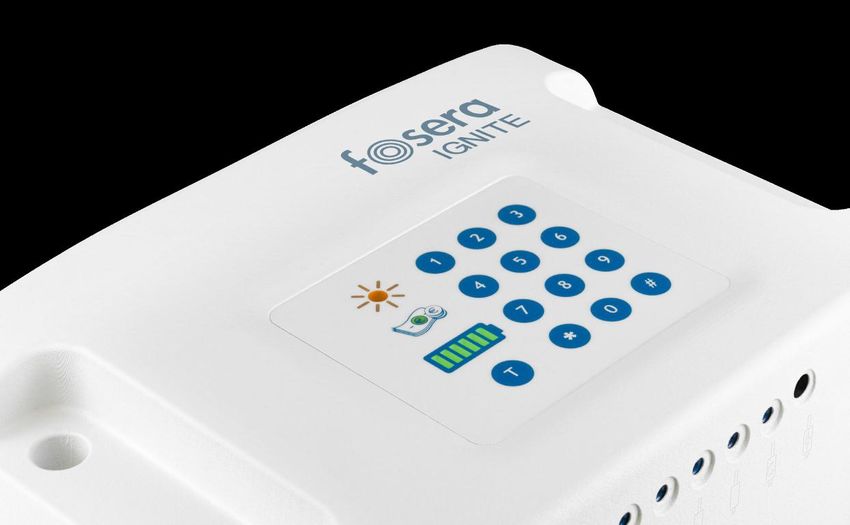

www.fosera.com 11fosera® IGNITE
POWERFUL, HIGH QUALITY SOLAR
HOME SYSTEM
MULTIPLE APPLIANCES AVAILABLE,
LIKE TV, COOLER OR FAN
UP TO 243 Wh STORAGE AND 150
Wp OF SOLAR POWER
The fosera. IGNITE can meet all needs of an Off-Grid household, ranging from light to TV, fan to
food cooling.
PAYG WITH ENHANCED FLEXIBILITY RELIABLE LITHIUM-IRON-PHOSPHATE
Flexibility to change PAYG provider - BATTERY
even during field operations, without any Significantly longer battery lifetime
hardware swap compared to Lithium NMC and safer to use
SUPERIOR SYSTEM QUALITY AND PAYG WITH SOLID ANTI- TAMPERING
PROTECTION MEASURES
short-circuit, over-current and ESD Prevention from unlocking PAYG, security
protection, allowing maintenance-free screws, warranty seal
operation and a 3-year warranty
SMART ENERGY MANAGEMENT ENHANCED LAMPS
Programmable outlets and load With touch switch, 3 dimming levels and
communication to optimize the daily up to 400 lumens with an efficiency of 145
runtime lm/W
12 Solar Home SystemsPOWER LINE
Rev01
fosera® IGNITE
x7
phone TV standing fan cooler radio torch flexible
outputs PAYG
charging optional optional coming soon optional optional design
TECHNICAL SPECIFICATIONS
fosera® IGNITE 50 100 150 200 250 units
Nominal system voltage 12.8 V
Battery capacity 3.8 7.6 11.4 15.2 19.0 Ah
Battery energy capacity 48.6 97.3 145.9 194.6 243.2 Wh
Battery type LiFePO4
Protection features Overcharge, deep discharge, overcurrent, short circuit
5x 3A regular 5x 3A regular
Appliance outlets 1x 3A configurable 1x 3A configurable
1x 4A high power 1x 8A high power
Appliance outlets total current 3.8 8.0 A
USB outputs 2x 2A USB / Max. 2A total
Max. input current 3.8 8.0 A
Weight 1.00 1.41 1.78 2.17 2.53 kg
Dimensions 233.0 x 172.5 x 90.0 mm
PAYG (optional) OpenPAYGO Token
RECOMMENDED SOLAR PANEL
Module peak power 15 30 50 75 Wp
Module current Impp 0.8 1.6 2.8 4.0 A
Module technology 36 cells polycrystalline silicon
Cable length panel to box 6 m
Module dimensions 350 x 250 x 17 650 x 340 x 20 670 x 530 x 25 770 x 670 x 30 mm
Module weight 0.9 2.6 4.2 5.4 kg
OPERATION TIME
Solar runtime*
7:20 15:00 25:30 25:30 37:00 hrs
With 4x Power Line Lamp 200
*additional phone charging will reduce the runtime

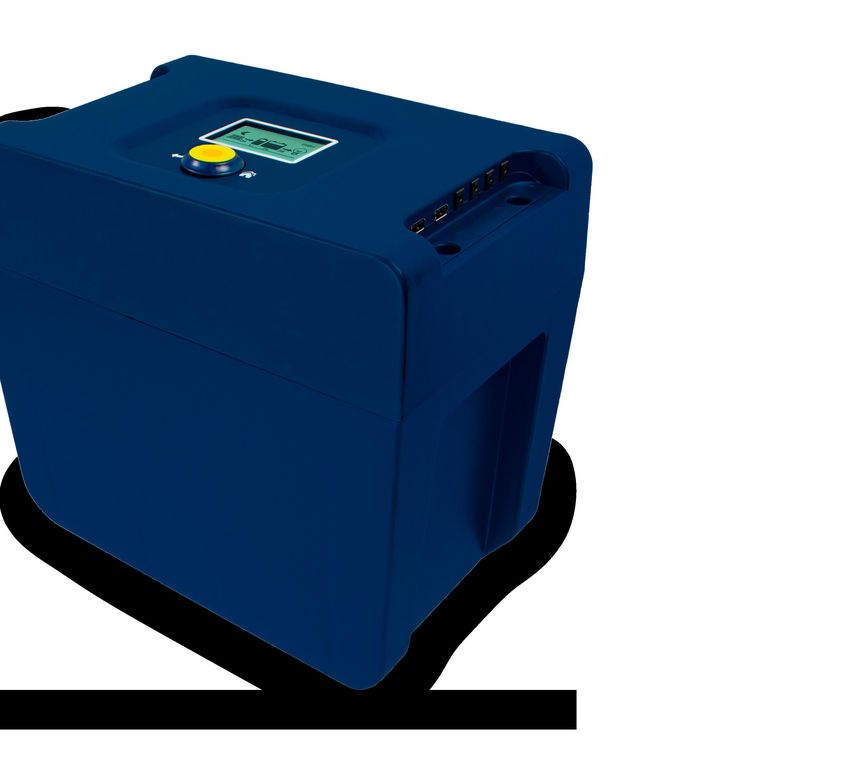

www.fosera.com 13fosera® EVO
POWERFUL SOLAR HOME SYSTEM
WITH UP TO 1kWh OF STORAGE
EXPANDABLE CONCEPT WHICH
CAN GROW IN SEVERAL STEPS
INNOVATIVE HYBRID BATTERY
COMBINING LONG LIFETIME WITH
LOW STORAGE COSTS
MULTIPLE OPTIONS TO EXPAND AND UPSELL The fosera. EVO is our largest solar
Designed to grow by adding appliances, home system, designed for extended
additional battery and solar capacity energy needs or productive use. The
innovative hybrid battery management
system can either run as pure Lithium
INNOVATIVE HYBRID BATTERY
system or extended with a lead acid
Decreasing energy storage costs without
battery, without compromising in
compromising in quality or battery lifetime
system reliability or lifetime.
SMART ENERGY MANAGEMENT
Optimising energy consumption allowing to The fosera. EVO has as well the ability
program outlets and optimize the daily runtime to grow: once the energy demand
of the system increases, the fosera. EVO can be
extended by adding an additional solar
panel and battery, as well as the fosera.
POWERFUL AND VERSATILE smartSHS appliances.
High battery capacity and various outlets
allowing diverse system configurations
RELIABLE LITHIUM PHOSPHATE BATTERY
Significantly longer battery lifetime compared to
Lithium NMC and safer to use
14 Solar Home SystemsPOWER LINE
Rev11
fosera® EVO
x7
phone TV standing fan cooler radio torch flexible
outputs expandable PAYG
charging optional optional coming soon optional optional design
TECHNICAL SPECIFICATIONS
fosera® EVO 80 160 240 320 units
Nominal system voltage 12.8 V
Lithium battery capacity (Built in) 7.6 15.2 22.8 30.4 Ah
Lithium battery energy (Built in) 97.3 194.6 291.8 389.1 Wh
Built in battery type LiFePO4
Recommended lead acid capacity 10 - 20 15 - 35 30 - 50 40 - 60 Ah
Protection features Overcharge, deep discharge, overcurrent, short circuit, overload
fosera. jack appliance outlets 4x 3A configurable
1x 6 A regular 2x 10 A confiurable 2x 10 A confiurable 2x 10 A confiurable
Screw terminal outlets
2x 6 A configurable 1x 12 A high power 1x 15 A high power 1x 15 A high power
USB outputs 2x 1A USB
Max. load total output current 6 12 15 15 A
Solar input 2x Screw Terminal Solar input
Max. total input current 6 12 15 15 A
External lead battery connector** 1x Screw terminal load
Every 12V Lead acid battery: AGM (recommended), Gel, Open, Sealed
Compatible external lead batteries**
max. dimensions: 270 x 180 x 180mm
Max screw terminal cable surface 16 mm²
Dimensions pure lithium system 336.5 x 216.5 x 90 mm
Dimensions hybrid system 336.5 x 216.5 x 323 mm
PAYG (optional) PAYG aviable
RECOMMENDED SOLAR PANEL
Module peak power 50 100 150* 200 (2x100)* Wp
Module current Impp 2.69 5.38 8.06 10.76 A
Cable length panel to box 6 m
Module dimensions 670 x 530 x 25 1000 x 670 x 30 1482 x 670 x 35 2x (1000x670x30) mm
Module weight 3.9 8.0 10.8 2x 8.0 kg
* Alternative solar panel configurations are possible adding up the recommended module peak power between two modules
** Available only for Hybrid EVO models
www.fosera.com 15fosera® COMMLIGHT
The fosera. COMMLIGHT brings light SIMPLE AND POWERFUL
everywhere. It’s available in two version:
all-night, giving continues light at the
INTEGRATED SOLAR PANEL AND BATTERY
highest brightness level and the smart-
version which detects with a motion
sensor all movements and increase the SMART-VERSION WITH MOTION SENSOR OR
brightness level when it is really needed. ALL-NIGHT
fosera® COMMLIGHT SUNBEAM SUNRISE SUNSHINE
LED lumens output (configurable) 800 - 1000 lm 1600 - 2000 lm 3200 - 4000 lm
LED efficiency 150-170 lm/W
LED Color temperature CCT range available from 4000 – 6500 K
LED light distribution Asymmetric Batwing¹; other options based on order volume
LED operation Constant current controlled
LED Life-time Minimum of 70,000 hours
Motion sensing technology options Infra-red sensor**
Battery capacity all-night brightness 12.8 Ah 27 Ah 50 Ah***
@13.2V smart brightness 6.4 Ah 12.8 Ah 27 Ah
Battery technology Lithium-Iron-Phosphate (LiFePO4) with MPPT charge control
Enclosure IP65 rated with aluminium structure & passive-cooled battery box
Operation range -20°C to +55°C ambient; Wind-speed up-to 120 km/h; RH up-to 95%
Mounting method Easy vertical clamp-on to poles with anti-theft screws
Recommended mounting height 4-5 m 4-6 m 5-7 m
Warranty 3 years; extendable to 5 years**
SOLAR PANEL
all-night brightness 20 + 20* W 20 + 40* W 20 + 80* W
Solar-PV
smart brightness 20 W 20 + 20* W 20 + 40* W
capacity
All lamps contain a 20W integrated PV module inclined at 10°. Additional modules can be tilted
OPERATION TIME
Daily operation hours 12 hours with automatic dusk till dawn control
Autonomy days 2-3 days with minimum solar insolation of 3.5 kWh/m²
* Refers to additional external module that can be tilted. ** Additional cost apply *** Subject to change
16 Solar Home SystemsAPPLIANCES.
www.fosera.com 17fosera® TV’s
fosera® TV 240 V2
fosera® TV 320
The fosera. POWER LINE TV 240 V2 and TV 320 are solar powered TVs that consumes only 12W
and 16 W respectively. They’re designed with inputs to accommodate modern entertainment,
such as a USB port for flash memory sticks to watch your favorite shows and movies. It is the
perfect product extension for the fosera. IGNITE or fosera. EVO solar home system.
fosera. TV 240 V2 TV 320
LARGE SCREEN SIZES AVAILABLE
Supply voltage 12 V +/- 3 V 12 V +/- 3 V
Choose from a 24” or 32” TV
Power consumption 12 W 16 W
Standby consumptionPOWER LINE
Rev08
fosera. TV 240 V2 fosera. TV 320
SIGNALS
Inputs DC in, RF in, S2 in, HDMI, USB, VGA, Earphone out, DC, HDMI, USB, VGA, Earphone, PC Audio, AV in,
Audio in, AV, Mini YPbPr, CI+, Coaxial, PC audio DVB-S/S2, DVB-C/T/T2, Coaxial, CI, mini YPBPR
Input Impedance 75 Ω 75 Ω
ANALOG
Receiving range 48.25 MHz - 863.25 MHz 200channel 48.25 MHz - 863.25 MHz 200channel
Video system PAL / SECAM / NTSC PAL / SECAM / NTSC
DIGITAL
Receiving range VHF (50 MHz - 230 MHz) VHF (50 MHz - 230 MHz)
UHF (474 MHz - 862 MHz) UHF (474 MHz - 862 MHz)
DVB-T: 500 channel DVB-C: 500 channel
DVB-S/S2: 4000 channel DVB-T/T2: 500 channel
DVB-S/S2: 4000 channel
Bandwidth 6 MHz / 7 MHz / 8 MHz 6 MHz / 7 MHz / 8 MHz
Modulation DVB-T: COFDM 2K/8K QPSK, 16QAM, 64QAM DVB-T: COFDM 2K/8K QPSK, 16QAM, 64QAM
DVB-T2: QPSK,16QAM, 64QAM, 256QAM DVB-T2: QPSK,16QAM, 64QAM, 256QAM
DVB-C: 16QAM, 32QAM, 64QAM, 128QAM, DVB-C: 16QAM, 32QAM, 64QAM, 128QAM,
256QAM 256QAM
Video system MPEG-2, 4 AVC/H.264, HEVC/H.265 MPEG-2, 4 AVC/H.264, HEVC/H.265
Sound system MPEG-1,2 (layer 1/2), MP3 MPEG-1,2 (layer 1/2), MP3, DD*
USB Video: AVI, ASF, MPEG, MKV, MP4, 3GPP, FLV, WMV, Video: AVI, ASF, MPEG, MKV, MP4, 3GPP, FLV, WMV,
SWF, WebM SWF, WebM, DIVX*, RN*
Music: MP3, MP4, WAV, AAC, ASF, FLAC Music: MP3, MP4, WAV, AAC, ASF, FLAC,
Picture: JPEG, BMP, PNG AC3*, EAC3*
Picture: JPEG, BMP, PNG
HDMI & Component 480i, 480p, 576i, 576p, 720p, 1080i, 1080p 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Basic Functions EPG, Subtitle, LCN, Teletext (Europe) EPG, Teletext, Subtitle
MISCELLANEOUS
Accessories Remote control, 2 x AAA battery, cable for fosera Remote control, 2 x AAA battery, cable for fosera
POWER LINE, User Manual POWER LINE, Mini YPBPR cable, User Manual
TV dimension 552 x 371 x 154 mm 732 x 211.5 x 512.5 mm
TV weight 2.0 kg 4.2 kg
Box dimension 606 x 125 x 385 mm 795 x 140 x 535 mm
Box weight 2.7 kg 5,7 kg
*License needed
www.fosera.com 19BLUE LINE
Rev06
fosera® Blue Line LAMPS
The fosera. Blue Line LAMPS use highly-efficient LED
technology with a very long lifetime. They come in two
versatile styles: Ceiling Lamp and
Lamp mini to fit any solar home
system size. With an efficiency of
up to 137 lm/W they provide
powerful lighting options for
Blue Line SPARK and PSHS
Solar Home System kits. The
fosera. Blue Line Lamp mini
is distinguished by its mo-
dern touch switch with three
diming levels: 15, 50 & 100%.
BRIGHT VERSATILE LIGHT RANGE TOUCH SWITCH
Offered in 100 to 200 lumen strength, solid Modern touch switch more resistant to wear
bright light for any room and tear provides three dimming levels
PLUG & PLAY HIGHLY EFFICIENT
Simply plug the lamp into a fosera. battery Up to 137 lm/W for a long lifetime of regular
box and flip the switch for instant light use
fosera® CEILING LAMP LAMP mini
Blue Line 100 200 100 150 units
Nominal Lamp Voltage 3.2 3.2 V
Lamp current 228 456 237 356 mA
Nominal power 0.73 1.46 0.76 1.14 W
Light Source 3 6 2 3 LEDs
Color temperature 5000 5000 K
Illuminance 100 200 100 150 lm
Efficiency 137 132 lm/W
Cable length 6 6 m
Mechanical switch Capacitive touch switch
Switch
2 dimming modes 3 dimming modes
Weight 0.33 0.15 kg
20 AppliancesPOWER LINE
Rev08
fosera® Power Line LAMPS
The fosera. Power Line LAMPS use highly-efficient LED
technology with a very long lifetime. They come in three
versatile styles: Ceiling Lamp, Tube Light and Mini to fit
any solar home system size. With an efficiency of up to
145 lm/W they provide powerful lighting options for Po-
wer Line IGNITE and EVO Solar Home System kits.
BRIGHT VERSATILE LIGHT RANGE TOUCH SWITCH
Offered in 100 to 400 lumen strength, solid Modern touch switch more resistant to wear
bright light for any room and tear provides three dimming levels
PLUG & PLAY HIGHLY EFFICIENT
Simply plug the lamp into a fosera. battery Up to 145 lm / W for a long lifetime of regular
box and flip the switch for instant light use
fosera® CEILING LAMP LAMP mini TUBE LIGHT
Power Line 100 200 400 100 400 700 units
Nominal Lamp Voltage 12.8 12.8 12.8 V
Lamp current 61 122 244 54 244 450 mA
Nominal power 0.78 1.56 3.12 0.69 3.12 5.76 W
Light Source 4 4 8 4 12 LEDs
Color temperature 5000 5000 5000 K
Illuminance 110 220 420 100 400 700 lm
Efficiency 141 141 134 145 128 121 lm/W
Cable length 6 6 6 m
Mechanical switch Capacitive touch switch Mechanical switch
Switch
2 dimming modes 3 dimming modes 2 dimming modes
Weight 0.31 0.15 0.35 kg
www.fosera.com 21BLUE LINE & POWER LINE
Rev05
fosera® RADIO 100
PORTABLE AND RUGGED, ENJOY ON THE GO
VERSATILE OPTIONS FOR CONNECTING YOUR OWN
ENTERTAINMENT
PERFECT MATCH FOR ALL FOSERA. SYSTEMS
ENERGY EFFICIENT
Consumes only 2.5W for easy charging fosera® RADIO 100
Power supply Mini USB, DC 5V
FM/AM/SW RADIO FORMAT Power consumption 2.5 W
Multiple options for receiving different Speaker unit 2.5“ 4 Ω
signals
Function USB + TF + AUX + RADIO
Radio format FM / AM / SW
LISTEN TO YOUR OWN CONTENT FM radio freq. range 88 - 108 MHz
Includes AUX IN and can be used as a
AM radio freq. range 530 - 1600 KHz
loudspeaker for USB memory sticks, SD
cards and cell phones. SW 1-2 radio freq. range 8 - 18 MHz
The fosera. Radio 100 is optimized for low energy consumption without compromising the
sound quality. The RADIO comes with an AUX IN and can be used as a loudspeaker for cell
phones or MP3 storages such as USB flash memory sticks or SD cards.
22 AppliancesPOWER LINE
Rev05
fosera® STANDING FAN
ENERGY EFFICIENT COMFORT FOR HOT CLIMATES
LIGHT AND EASY TO MOVE AROUND AT HOME OR AT WORK Oscillates
automatically
PERFECT MATCH FOR 12 V FOSERA. SOLAR HOME SYSTEMS
Timer
(up to 120 min)
3 speed settings
fosera® STANDING FAN On / Off
Nominal voltage 12.8 V
Voltage range 12 ± 3 V Adjustable height
Power 8.5 W
Current 0.65 A
Airflow 1 824 m³/h
Speed settings 3 (High, Med, Low)
Blade diameter 16”
Cable lenght 6m
Height (max. height) 1.25 m
Weight (net) 3.93 kg
Weight (gross) 4.50 kg
The fosera. POWER LINE Standing Fan 12V adds efficient cooling and improved air circulation
to any indoor space. Designed for use at home, it’s easy to move and adjust for focusing
cool air wherever needed. The fan is Plug & Play and can be easily connected to the Fosera
IGNITE or EVO solar home system.
www.fosera.com 23BLUE LINE & POWER LINE
Rev06
foser
fosera® Torches
a . mobileO
NE
The fosera. Torches have the functions of a solar
home system and the flexibility of a portable torch.
The Torches can be charged using a solar panel
or any other USB port, found on the PSHS, IGNITE
and EVO systems. Connect additional appliances
like a mobile phone or radio for extra power.
fosera® Torches mobileMINI mobileONE units
Nominal System Voltage 3.2 V
BRIGHT INTEGRATED LIGHT
System capacity 0.4 3.8 Ah
Ranges from 17 / 70 / 210
lumens for the right light level Energy capacity 1.28 12.16 Wh
needed Battery type LiFePO4
Overcharge, overcurrent, deep discharge,
Protection features
FLEXIBLE RECHARGING short circuit
Charge from a solar panel, Charge indicator No Yes
USB port of the SPARK, PSHS,
SOC indicator No 6 stages
IGNITE or EVO and with a USB
adapter Energy saving mode No Yes
Appliance outlets 1x 0.55A regular 1x 2.7A regular
PROTECTION FEATURES USB outputs No 1x 0.75A USB
Overcharge, overcurrent, 1x Solar input 1x Solar input
deep discharge and short Solar input
max. 0.4A max. 2.2A
circuit protection for added
Weight 51 173 g
safety
Dimensions 110 x 45 x 45 135 x 60 x 60 mm
SLEEK DESIGN RECOMMENDED SOLAR PANEL
Lightweight for comfortable
Module peak power 1.5 2.5 Wp
transportation, ergonomic
design for steady handling Module current (Impp) 0.34 0.58 A
Module technology Polycrystalline silicon
Cable length panel to box 6 m
I
IN Module dimensions 150 x 192 x 17 150 x 192 x 17 mm
leM
bi
. mo Module weight 450 450 g
era
fos
INTEGRATED LIGHT
Brightness (Mode 1/2/3) 40 / - / - 17 / 70 / 210 lm
OPERATION TIME
Full battery runtime* 4:35 hrs 5:30 hrs
Integrated light 100%
*additional phone charging will reduce the runtime
24 AppliancesSUGGESTED
SYSTEM
CONFIGURATIONS.
www.fosera.com 25SPARK 20
SPARK 20
6Wp SOLAR PANEL
LAMP mini 100
x2
11:20 hrs*
Solar runtime
PSHS 7500 KIT
PSHS 7500
10Wp SOLAR PANEL
CEILING LAMP 100
x3
12:30 hrs*
Solar runtime
IGNITE 100 KIT
IGNITE 100
30Wp SOLAR PANEL
CEILING LAMP 200
x4
15:00 hrs*
Solar runtime
*additional phone charging will reduce the runtime
26 System configurationsIGNITE 100 TV KIT
IGNITE 100
30Wp SOLAR PANEL
TV 240
CEILING LAMP 200
x4
5:10 hrs*
Solar runtime
IGNITE 150 KIT
IGNITE 150
50Wp SOLAR PANEL
TV 320
CEILING LAMP 200
x2
CEILING LAMP 400
x2
6:00 hrs*
Solar runtime
EVO 320 KIT
EVO 320
250Wp SOLAR PANEL
CEILING LAMP 200
x4
TV 320
FRIDGE
5:00 hrs*
Solar runtime
For more information, contact our sales team at sales@fosera.com
www.fosera.com 27www.fosera info@fosera.com
fosera +49 7346 9246973
foseraWorld Fosera Solarsystems GmbH & Co KGaA
Beim Mühlbach 3
@enjoyFosera 89171 Illerkirchberg
GermanyYou can also read
