Heatstrip heaters...
Outdoor heating never
looked so good
heatstrip.com.au
ADDRESS CONTACT
17 Johnston Court Thermofilm Australia Pty Ltd
Dandenong South, t: (03) 9562 3455
VIC, 3175, Australia e: sales@thermofilm.com.au
Take This Brochure to the Special Orders Desk to place an order
Which product do I need?
Application: Mounting Heights: Application: Mounting Heights:
• Pergola Ideal mounting height: • High ceilings Ideal mounting height:
• Protected alfresco 2.1m - 2.3m • Exposed alfresco 2.2m - 2.8m
• Difficult to heat Maximum mounting • Balconies Maximum mounting
indoor areas height: 2.5m height: 3m
• Cafe, Garage/shed
Electric heater RH180 Electric heater Max DC with remote
Application: Mounting Heights: Application: Indoor heating
• Pergola Ideal mounting height: • Portable spot heating
area:
2.1m - 2.5m 9sqm2
• Protected alfresco • Dining/Entertaining
• Cafe Maximum mounting • Work stations Outdoor heating
• Difficult to heat height: 2.7m • Suitable for Indoor area:
indoor areas and outdoor areas 5sqm2
Electric heater Classic with remote Electric heater Portable Intense
Application: Mounting Heights: Application: Heating area:
• Protected alfresco Ideal mounting height: • Portable spot heating 16sqm2
• Difficult to heat 2.1m - 2.5m • Outdoor dining/kitchen
indoor areas Maximum mounting • Patios & courtyard
height: 2.7m • Balconies & Verandas
• Hospitality
Electric heater Elegance with remote & App control Gas heater Portable LPG heater
Application: Mounting Heights: Application: Mounting Heights:
• Undercover Ideal mounting height: • Alfresco areas Ideal mounting height:
protected and 2.1m - 2.5m • Outdoor dining/kitchen 2m - 2.7m
semi-exposed Maximum mounting • Patios & courtyard Maximum mounting
outdoor locations height: 2.8m • Balconies & Verandas height: 3.5m
• Hospitality
Electric heater Intense “Black” Gas heater LPG heater
Application: Mounting Heights: Application: Mounting Heights:
Ideal mounting height: • Alfresco areas Ideal mounting height:
• Undercover
2.1m - 2.5m • Outdoor dining/kitchen 2m - 2.7m
protected and
semi-exposed Maximum mounting • Patios & courtyard Maximum mounting
outdoor locations height: 2.8m • Balconies & Verandas height: 3.5m
• Hospitality
Electric heater Intense “Off-white” Gas heater Wall Mounted Natural Gas heater
Heatstrip | page 2
Heatstrip Australia
World Class Products & Quality
Heatstrip (Thermofilm Australia Pty Ltd) has In 2014 Thermofilm was inducted into the
been manufacturing innovative, stylish and Victorian Manufacturing Hall of Fame.
energy efficient products for more than 30
In 2017 HEATSTRIP Portable LPG heater
years. The full range of Heatstrip products is
TGH34PL won a Good Design Award in
currently supplied to residential and commercial
Consumer Products.
markets, both in Australia and around the world.
In 2018 CROSSRAY BBQ was also recognised
Heatstrip provides Award-winning outdoor
with a Good Design Award in Australia.
heating solutions for some of Australia’s
best-known venues and residential homes
across the country.
2018 CROSSRAY BBQ 2017 HEATSTRIP LPG 2013 HEATSTRIP CLASSIC Thermofilm Australia Pty Ltd
Heatstrip | page 3
WI T H R EM O T E & A P P
HEATSTRIP® Elegance with Remote
– Electric Radiant Heater.
– 2 Models available: THE2400RA (2400W)
(0261162) & THE3200RA (3200W) (0261163).
– Control the heater operation (WiFi &
Bluetooth) via a smart phone APP (iPhone
and Android). Also compatible with smart
home voice-controls systems such as
Google Hub & Amazon Alexa.
– Suitable for protected outdoor alfresco or
indoor area, such as pergola, veranda, café.
– DIY & hard-wired options available.
NEW remote
with app control
Seamlessly blends into your
alfresco ceiling
Slimline “Off-White” heater NEW control panel and remote Brackets can be used for ceiling Optional Mounting accessories
with unique material coating control included. With low/high & wall mounting, or can be available, including flush mount
technology. temperature settings & 1/2/4 suspended by chains & wires. kits extension poles. See page
hour timer. 12 for suitable part numbers.
For more information on dimensions, part numbers and technical information please refer to page 12.
Heatstrip | page 4 If you require more information please visit www.heatstrip.com.au or you can send us an email at sales@thermofilm.com.au
WITH REMOTE

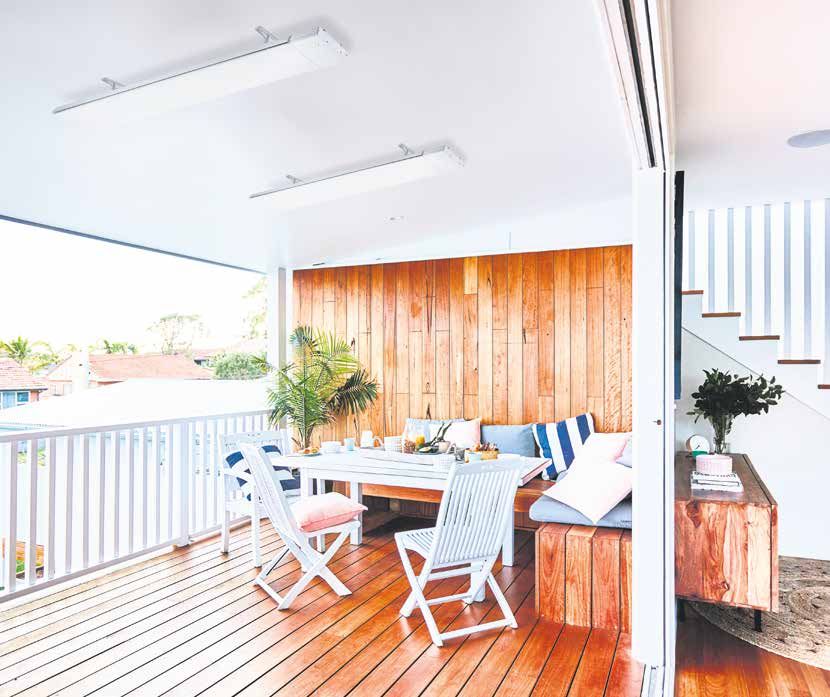

HEATSTRIP® Classic with Remote
– Electric Radiant Heater.
–2
Models available THH2400AR (2400W)
(0261160) & THH3200AR (3200W) (0261161).
–S
uitable for protected outdoor alfresco
or indoor areas including; patios, balconies,
bathrooms, verandas etc.
–E
asy DIY installation for model THH2400AR
(2400W), THH3200AR (3200W) heater must
be installed by a licensed electrician.
NEW remote
control included
Stylish, sleek and slimline
Make your heater a feature
Stylish, sleek, unobtrusive design NEW control panel and remote Brackets can be used for ceiling Optional mounting accessories
with unique HEATSTRIP front control included. With three & wall mounting, or can be available, including flush mount
profile and coating technology. temperature settings and suspended by chains or wires. kits and extension poles.
0-24 hour timer. See page 12 for suitable part
numbers.
For more information on dimensions, part numbers and technical information please refer to page 12.
If you require more information please visit www.heatstrip.com.au or you can send us an email at sales@thermofilm.com.au Heatstrip | page 5
HEATSTRIP® Intense
–E
lectric Infrared instant high
temperature Heater.
–4
Models available:
Black THY2200 (0027423) THY3200
(0098300) & White THY2200W
(0098298) THY3200W (0098299).
uitable for undercover protected
–S
and semi-exposed outdoor locations.
The perfect heating solution
for higher ceilings
High performance carbon “Black” and “Off White” models Easy installation with brackets Optional accessories available to
filament electric infra-red available with hexagonal styled included. Suitable for ceiling or purchase such as extension poles
element, providing instantaneous grille. 2200W (DIY) or 3200W. wall mounting. 3200W model and flush mount enclosures.
heat. must be hard-wired.
For more information on dimensions, part numbers and technical information please refer to page 12.
Heatstrip | page 6 If you require more information please visit www.heatstrip.com.au or you can send us an email at sales@thermofilm.com.au
Dual Carbon Element
HEATSTRIP® MAX DC
– Electric Infrared Heater.
Models available: THX2400DCR (2400W)
–2
(0261165) & THX3600DCR (3600W) (0261166).
– Ideal for tough outdoor and indoor heating
applications. Perfect for outdoor alfresco
areas, balconies, courtyards, warehouses.
Hard to heat outdoor area?
Take it to the MAX
Dual heat infra-red carbon New Remote and control panel Commercial quality and Easy installation with brackets
element technology and that provides 3 heat levels of construction. With a stylish included. Suitable for ceiling or
upgraded heat reflector design heat control. Adjustable timer hexagonal grille and black finish. wall mounting. 3600W model
that delivers maximum, world options from 0-24 hours with the must be hard wired. Accessories
class heating performance. touch of a button. available.
For more information on dimensions, part numbers and technical information please refer to page 12.
If you require more information please visit www.heatstrip.com.au or you can send us an email at sales@thermofilm.com.au Heatstrip | page 7
HEATSTRIP® RH180
– 1800 Watts heater (3171295).
– Gentle heat output, slimline design.
– Non glowing element.
–S
uitable for ceiling and wall mounting
using the provided DIY brackets.
Unobtrusive DIY product.
Built to last
Optional Controllers
DIY (TT-MTR-PLUG) 3171309 HARDWIRED (TT-MTM) 3170737
TT-MTR-PLUG timer switch provides an easy DIY TT-MTM wall mounted controller and remote control provides
installation and remote control of plug-in heaters. ON/OFF control, 3 heat options and timer settings.
• Plug-in DIY timer switch • On/Off function with LED indicators
• Suitable for operation of single or multiple heaters
• On/Off function with LED indicators
• 3 Heat settings - High / Medium / Low
• Automatic timer – 1 / 2 / 4 hour options
• Automatic timer control - 1/2/4 hour options
• Remote control included • Must be hard-wired. Maximum 16 amps
• Max. 10 amps, can be used • Remote control included
with all heaters 2400W or • Suitable to be used with all electric heaters
less that do not include remote that do not have remote control included
control as standard. as standard.
Mounting Options Accessories
Standard Bracket
Flush Mount
Enclosure
Ceiling Mounts
Extension Mount
Bracket
Standard brackets can Extension poles can Flush mount
Chain/Wire be used for ceiling be used to lower enclosures are
Suspension* and wall mounting, or Heatstrip Heaters to available to recess
Wall Mount
can be suspended by the Ideal mounting heaters seamlessly
chains or wires. heights. into your ceiling.
For more information on dimensions, part numbers and technical information please refer to page 12.
Heatstrip | page 8 If you require more information please visit www.heatstrip.com.au or you can send us an email at sales@thermofilm.com.au

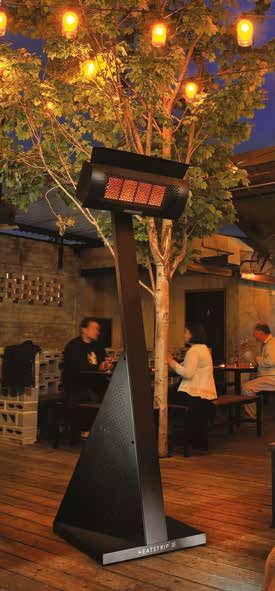

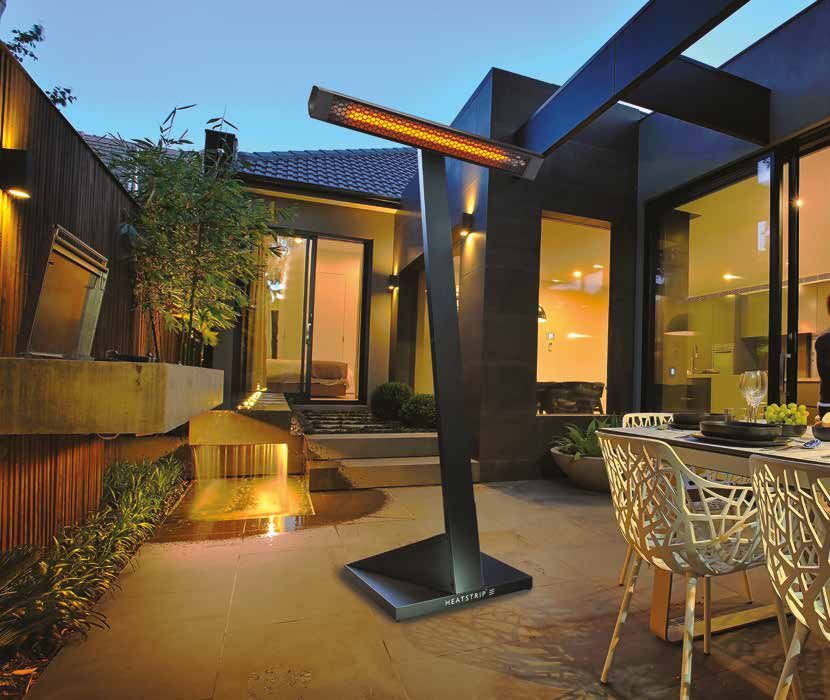

HEATSTRIP® Portable Intense
– Electric Infrared Portable Heater.
– THY2200P (2200W) (0027424).
–S
uitable for spot heating tables,
lounges, entertaining areas and
work stations.
The fully portable electric
heating solution
High quality, robust, all black 2200W heater includes a high Ideal for indoor and outdoor TT-MTR-PLUG, Optional
construction. Components are performance carbon filament use. In-built wheels for easy controller is available for
sub-assembled for easy final DIY electric infra-red element, portability and storage. easy DIY functions with LED
installation. providing instantaneous heat. indicators, 1/2/4 hour timer and
remote control On/Off.
For more information on dimensions, part numbers and technical information please refer to page 12.
If you require more information please visit www.heatstrip.com.au or you can send us an email at sales@thermofilm.com.au Heatstrip | page 9
HEATSTRIP® Portable LPG model
– Portable LPG heater.
– TGH34PL-2 (34MJ, 4 tile) (0098307).
–S
uitable for alfresco outdoor dining
areas, patios, outdoor kitchens,
courtyards, verandas and hospitality.
Your party moved outside?
Not a problem with World Class
Design and Performance
34MJ, 4 tile commercial grade Electronic, battery-operated Fully concealed gas pipes and TGHCOVER: Optional heater
ceramic burner, with market finger pull On/Off controls, bottle. In-built wheels for easy cover also available for your
leading wind protection rating makes operation so easy and portability and storage. heater.
of 16km/hr. effortless.
For more information on dimensions, part numbers and technical information please refer to page 12.
Heatstrip | page 10 If you require more information please visit www.heatstrip.com.au or you can send us an email at sales@thermofilm.com.auHEATSTRIP® Wall Mounted NG

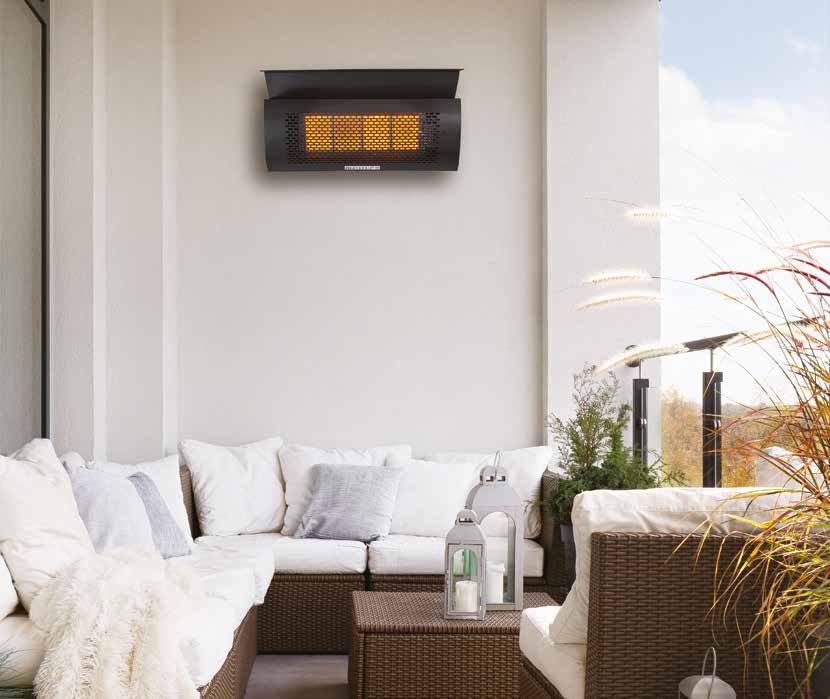

– Natural Gas Wall Mounted heater.
– TGH34WN-2 (3171571)
(Natural Gas model, 34MJ).
– TGH34WL-2 (0098308)
(LPG model, 34MJ).
– Suitable for alfresco outdoor
dining areas, patios,
outdoor kitchens,
courtyards and verandas.
When the convenience of
Natural Gas is preferred
4 tile, 34MJ commercial ceramic Electronic, battery-operated Heater built from Stainless The standard heat reflector
burner, with world class wind finger pull On/Off controls, Steel with high temperature ensures only 500mm overhead
protection rating of 16km/hr. makes operation so easy paint coating. clearance is required. The optional
and effortless. HeatShield (TGHAC-003) 0098304
reduces this to 300mm clearance.
For more information on dimensions, part numbers and technical information please refer to page 12.
If you require more information please visit www.heatstrip.com.au or you can send us an email at sales@thermofilm.com.au Heatstrip | page 11Technical Specifications
Bunnings Lead Heating Standard
Running Power Current Dimensions Weight Flush Extension
MODEL Item Length Plug Area Mounting
Cost (Watts) (amps) (LxWxD)mm (kgs) Mount Kit Poles
Number (mm) (m2) Bracket
RH180 | Materials of Construction: Anodise alloy construction. Profiled black front panel. IPX4 Rated.
0098309 (300mm)
0098310 (600mm)
RH180 3171295 45c/hr 1800 7.5 1104x165x48 6 1000 Yes 3-4 3171584 3170740
0098311 (900mm )
0098312 (1200mm)
CLASSIC WITH REMOTE | Materials of Construction: High temperature ceramic coated extruded alloy. IP55 Rated.
THH2400RA 0261160 60c/hr 2400 10 1364x160x50 7 1000 Yes 4-5 ZBRAK-113B THHAC-013 0098309 (300mm)
0098310 (600mm)
0098311 (900mm )
THH3200AR 0261161 90c/hr 3200 13.5 1774x160x50 9 1000 No 5-6 ZBRAK-113B THHAC-014 0098312 (1200mm)
ELEGANCE WITH REMOTE & APP | Materials of Construction: High temperature off-white ceramic coated extruded alloy. IP55 Rated.
THE2400R 0261162 60c/hr 2400 10 1204x170x48.5 7 1000 Yes 4-5 3171585 0177027 3171579 (300mm)
3171580 (600mm)
3171582 (900mm)
THE3200R 0261163 80c/hr 3200 15 1804x170x48.5 9 1000 No 5-6 3171585 0177028 3171583 (1200mm)
INTENSE | Materials of Construction: High temperature Black /off-White ceramic coated extruded alloy. IPX5 Rated.
THY2200 0027423 55c/hr 2200 9.2 1068x120x90 6 1000 Yes 5-9 0098313 0098301 BLACK:
0098309 (300MM )
0098310 (600MM )
THY3200 0098300 80c/hr 3200 13 1270x120x90 7 1000 No 8-13 0098313 0177023 0098311 (900MM )
0098312 (1200MM)
WHITE:
THY2200W 0098298 55c/hr 2200 9.2 1068x120x90 6 1000 Yes 5-9 ZBRAK-132W 0177024 3171579 (300MM )
3171580 (600MM )
3171582 (900MM )
THY3200W 0098299 80c/hr 3200 13 1270x120x90 7 1000 No 8-13 ZBRAK-132W 0177025 3171583 (1200MM)
MAX DC WITH REMOTE | Materials of Construction: Anodised alloy casing and end caps, with a powder coated grill (Black) IPX5
THX2400DCR 0261165 60c/hr 2400 10 983x170x80 6 1000 Yes 7-12 0098313 THXAC-034 0098309 (300mm)
0098310 (600mm)
0098311 (900mm)
THX3600DCR 0261166 90c/hr 3600 15 1180x170x80 8 1000 No 11-18 0098313 THXAC-035 0098312 (1200mm)
INTENSE PORTABLE | Materials of Construction: Heater: Black anodized alloy casing & end-caps, powder coated grille Stand: Powder coated mild steel. IPX5 Rated
THY2200P 0027424 55c/hr 2200 9.2 1068x2050x500 20 3000 Yes 5-9 NA NA NA
Bunnings Running Weight Heating Area
MODEL Tiles MJ Ignition Dimensions Gas Type Accessories
Item Number Cost* (Kg) (sqm2)
PORTABLE Materials of Construction: Head: Stainless steel (430ss) with high temperature paint coating.
LPG Stand: E-coated mild steel with powder coated finish
0098304
Electronic
TGH34PL-2 0098307 4 34 650x670x2118 $2.00/Hr 31.5 16 LPG Cover
finger pull
3171575
WALL MOUNTED GAS HEATERS | Materials of Construction: Head: Stainless steel (430ss) with high temperature paint coating.
Electronic Natural Heat Shield
TGH34WN-2 3171571 4 34 650x190x380 68c/Hr 11.5 16 TGHAC-003
finger pull Gas (0098304)
Electronic Extension Pole
TGH34WL-2* 0098308 4 34 650x190x380 $2.00/Hr 11.5 16 LPG TGHAC-004
finger pull (0098305)
*For direct connection to an LPG bottle. For reticulated LPG connection, please contact Heatstrip
Heatstrip | page 12 www.heatstrip.com.auYou can also read
