Grinding with Superabrasives Tools - COMEGUI
Grinding with
Superabrasives
Tools
Grinding with Superabrasives Tools - COMEGUI
Influences on grinding processes

                        workpiece          material

        grinding tool                                   process
                                vR
   dressing                                                       machine

                                                                    lubricant
dressing tool                        vcc
                                                                cooling
      environment
                              vfa
                                           processing results
                    safety aspects
Grinding with Superabrasives Tools - COMEGUI

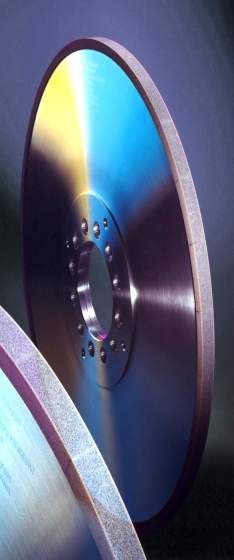

Design of diamond and CBN tools

 relatively thin layer

 attached to bodies made out of
      aluminium
      steel
      resin
      ceramic
      composite materials

 adhered by
      glueing
      sintering
      shrinkage
      electro plating
Grinding with Superabrasives Tools - COMEGUI
Contents of grinding layers
    all                    sintered               electro
 bond types        resin              vitrified
 bond types                 metal                 plated

abrasives
- natural dt.
- synthetic dt.
- CBN

filler
- SiC, TiC, B4C,
- Al2O3, SiO2 ,
- metals
- lubricants
Grinding with Superabrasives Tools - COMEGUI
Abrasives are a grinding tool best friends

                                      Most
                                      important
                                      factor in
                                      a layer
                                      are ...
                                             ... the .
                                       abrasives !

                                      And not
                                      the bond !
Grinding with Superabrasives Tools - COMEGUI
Lattice structures of graphite and boron nitride,
diamond and cubic boron nitride

                                       HIGH
                                     PRESSURE
                                         –
                                       HIGH
                                   TEMPERATURE
                                    SYNTHESIS

           C - graphite                                C - diamond
         BN - boron nitride                      cBN - cubic boron nitride
     hexagonal lattice structure                  cubic lattice structure
Grinding with Superabrasives Tools - COMEGUI
How a High-Pressure - High-Temperature
Synthesis works ...
                                   synthesis
                                   parameters
                                   diamonds:
                                   ϑ ≈ 1.750 K
                                   p ≈ 5,4 M Pa
            ϑ                      t ≈ 4 .. 8 h
                         t         preliminary
                                   condition:
        p          p               catalysators like
                                   Fe, Ni, Co, Mn
                                   in order to get
                                   carbon out of
                                   the graphite
Grinding with Superabrasives Tools - COMEGUI
Features of diamond and CBN crystals

To use abrasives at their best it is
necessary to know details about

       grit size and mean distribution
       grit shape
       surface roughness
       coating
       inclusions
       fracture strength
       toughness index
       heat diversion
Grinding with Superabrasives Tools - COMEGUI
International standardization of
grit sizes for diamond and CBN
           International standardization of grit sizes for diamond and cubic boron nitrid
            Nomenclature of sieved grit sizes                                         fine grit sizes *)

  DIAMOND               CBN              DIAMOND + CBN     mesh width      diamond          CBN            grit
FEPA - Standard     FEPA - Standard       US - Standard    acc. ISO6106,   marking         marking         size
narrow   | wide    narrow    | wide      narrow   | wide    1DIN848-11          SGA         SGA            µm

                                                                                  grit sizes recommended
                                                                                  by SGA

                                                                           *)     similar to FEPA Standard

                                                                           FEPA: Federation Europeenne
                                                                                 des Fabricants de
                                                                                 Produits Abrasifs
Grinding with Superabrasives Tools - COMEGUI
Mean distribution of grit sizes
As closer the size of crystals
per grit size is as better the
grinding result will be                                         superfines, low quality

                                   main
                                distribution
                                    peak

                        fines                  coarse
                         tail                    tail            on size, high quality
            super                                       over-
occurence

            fines                                       size

            grit size                                            oversize, low quality
cBN and diamond crystals
Mean distribution of grit sizes – example
Exemplary for grit size B151

                                                                          superfines, low quality

                                           B151
                            7 % < 127 µm          7% > 165 µm

                0,5% < 90 µm                              0,1% > 227 µm

                                                                           on size, high quality
accumulation

                                       main
               super       fines                        coarse    over-
                                    distribution
               fines        tail                          tail    size
                                        peak

               grit size                                                   oversize, low quality

                                                                                         © Saint-Gobain 2007
Geometrical shapes of
diamond and CBN crystals
            octahedral   tetrahedral

           cubic
           octo-
           hedral

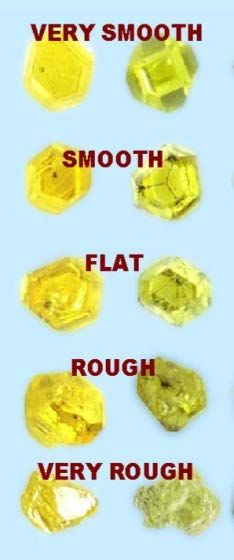

Surface roughness of
diamond and CBN crystals
The surface roughness of diamond
or CBN grits is an indicator for
    the retaining behaviour inside
    the bond and/or the coating

    the breakdown behaviour

    the shaping of cutting edges
    and the cutting behaviour
Coatings for diamond and CBN crystals
   tasks of coatings are
         increase of mechanical clamping
         heat diversion

   coatings can be made out of
         Ag – coating
         Cr – spikes
         Cu – coating
         Ni – coating
         Ni/P – coating
         Ti – coating
         glass – coating

   guarantor for best use is the adaption of
         bond
         coating
         grit shape
         grit toughness
Inclusions inside of
diamond and CBN crystals
          moderate     very little   Inclusions
         inclusions   inclusions
                                     may cause
                                     the break-
                                     down of
    hardly                           abrasives
  inclusions                         during a
    little                           grinding
 inclusions
                                     process

         very much      much
         inclusions   inclusions
Breakdown behaviour of
diamond and CBN crystals

 monocrystalline breakdown

 microcrystalline breakdown
Properties of abrasives

                                              thermal conductivity
                                    diamond             500 - 2.000 W / (mK)
                                    CBN                 200 -   700 W / (mK)
                                    Cu                          393 W / (mK)
                                    X12 Cr Ni Mo 18 8            10 W / (mK)

                     hardness                                                 thermal stability
          diamond           7.000   N/mm2                             diamond            600 ... 700 °C
          CBN               4.600   N/mm2                             CBN                  > 1.000 °C
          SiC              2.580 N/mm2                                SiC                      700 °C
          Al2O3            2.000 N/mm2                                Al2O3                   2.050 °C

           density                                                                  modulus of elasticity
diamond           3,52 kg / dm3                                                  diamond         890 kN / mm2
CBN             3,48 kg / dm3                                                    CBN              590 kN / mm2
SiC               3,22 kg / dm3                                                  SiC             470 kN / mm2
Al2O3             3,90 kg / dm3                                                  Al2O3            390 kN / mm2
Where to use CBN and diamonds

                  metals                               non metals

   iron metals         nonferrous metals          inorganic        organic
                                                  materials        materials
  unalloyed (soft)        aluminium alloy           ceramics       rubber (soft)
 low-alloyed (soft)         copper alloy            cermets        rubber (hard)
 high-alloyed (soft)   magnesium based alloy         ferrites        plastics
                         nickel based alloy           glass           wood
 low-alloyed (hard)
                           titanium alloy        semi cond. mat.
 high-alloyed (hard)
                               carbide               stones
  chilled cast iron

      CBN                                      DIAMOND
Contents of grinding layers
    all                               sintered                            electro
                        resin                         vitrified
 bond types                            metal                              plated

abrasives          powder          powder          powder             powder
- natural dt.      - epoxy resin   - Ag, Co, Cu,   - vitreous frits   - Ag salt
- synthetic dt.    - melanin       - Fe, Ni, Sn,   - ceramics         - Au salt
- CBN              - phenolics     - bronzes       - metal oxyds      - Co salt
                   - polyimides    - etc. ...      - nitrate          - Cu salt
                                                   - waxes            - Ni salt

filler             liquids                         liquids            liquids
- SiC, TiC, B4C,   - epoxy resin                   -binder            - acids
- Al2O3, SiO2 ,    - glues                                            - leaches
- metals           - phenolics                                        - additives
- lubricants
Bond systems for grinding wheels
     resin           sinter metal      vitrified       electro plated

• phenolic resin    • bronze        • basis silicate   • chemical
• polyimide         • brass           - vitreous       • electrolytical
                                      - cristaline
                    • carbide

             multiple resp. volume layer                single layer
Tasks of bonds
 retaining of the abrasives,
 as long as grit edges are sharp               abrasives

 releasing of the abrasives,
 after the grit edges become dull or flaten

 resistance against abrasion,
 to ensure a high profile accuracy

 warranty of „own“ wear,                         bond
 to get the necessary grit protrusion

 heat transfer,
 to avoid grit damages                           body

 good properties for easy profiling,
 to avoid needless secondary processing time
Knowledge about bond components

Bonds and their properties
will be influenced strongly by the
                                     bronze powder (89:11) -- 50 µm --

     structure
     purity
     surface                         copper powder            -- 10 µm --

     grit size
     particle size distribution
    of each single component         silver powder            -- 10 µm --
