REFRIGERATOR
USER INSTRUCTIONS
GKN 27930 FXP
GKN 27930 FXR
ENG DE
www.grundig.com
Contents
1. Safety and environment
instructions 3 5.18 Moisture controlled
vegetable bin................................28
2. Your Refrigerator 7 (This feature is optional)............28
3 Installation 8 5.19 Automatic ice machine .......29 DE
3.1 Appropriate installation (This feature is optional)............29
location..........................................8 5.20 Icematic and ice storage
3.2 Installing the plastic wedges..8 container......................................30
3.3 Adjusting the feet.....................8 5.21 Using the water dispenser..30
3.4 Electrical connection...............9 5.22 Filling the water
3.5 Reversing the doors..............10 dispenser's tank..........................31
3.6 Reversing the doors..............11 5.23 Cleaning the water tank ....31
4 Preparation 12 5.24 Drip tray...............................32
4.1 Things to be done for energy 5.25 HerbBox/HerbFresh............33
saving...........................................12 5.26 Deodoriser Module..............33
4.2 Initial use...............................13 5.27Freezing fresh food...............34
5 Operating the product 14 5.28 Recommendations for
5.1 Temperature setting button..14 preserving the frozen food..........35
5.2 Fast freeze ............................14 5.29 Deep-freeze information.....35
5.3 Vacation function...................15 5.30 Placing the food...................35
5.4 Thermostat setting button....16 5.31 Door open warning..............36
5.5 Thermostat setting button....16 5.32 Illumination lamp................36
5.6 Defrost...................................17 6. Maintenance and cleaning 37
5.7 Indicator panel.......................18 6.1 Avoiding bad odours..........37
5.8 Indicator panel.......................20 6.2 Protecting the plastic
5.9 Indicator panel.......................23 surfaces ......................................38
5.10 Ice bucket.............................26 6.3 Door Glasses . ......................38
(This feature is optional)............26 7. Troubleshooting 39
5.11 Egg holder............................26
5.12 Fan........................................26
5.13 Vegetable bin.......................26
(This feature is optional)............26
5.14 Zero degree compartment..26
(This feature is optional)............26
5.15 Using the second crisper of
the product..................................27
5.16Moving door rack..................28
5.17 Sliding storage box .............28
(This feature is optional)............28
1
Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants
and checked under the most meticulous quality control procedures, will
provide you an effective service
For this, we recommend you to carefully read the entire manual of your
product before using it and keep it at hand for future references.
The user manual will help you use the product in a fast and safe way.
Will help you use your appliance in a fast and safe way.
Read the manual before installing and operating your product.
Follow the instructions, especially those for safety.
Keep the manual in an easily accessible place as you may need it later.
Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
C Important information
or useful usage tips.
Warning against
A dangerous conditions
for life and property.
B Warning against
electric voltage.
Packaging materials
of the product are
manufactured from
recyclable materials
in accordance with our
National Environment
Regulations.
2
1. Safety and environment
instructions – farm houses and by clients
This section provides the safety in hotels, motels and other
instructions necessary to residential type environments;
prevent the risk of injury and – bed and breakfast type
environments; DE
material damage. Failure to
observe these instructions will – catering and similar non-retail
invalidate all types of product applications.
warranty.
Intended use 1.1. General safety
WARNING: • This product should not
Keep ventilation be used by persons with
A openings, in the appliance physical, sensory and mental
enclosure or in the built- disabilities, without sufficient
instructure, clear of knowledge and experience
obstruction. or by children. The device
can only be used by such
WARNING: persons under supervision
Do not use mechanical and instruction of a person
devices or other means
A
responsible for their safety.
to accelerate the Children should not be allowed
defrosting process, to play with this device.
other than those
recommended by the • In case of malfunction, unplug
manufacturer. the device.
A
WARNING: • After unplugging, wait at least
Do not damage the 5 minutes before plugging in
refrigerant circuit. again.
WARNING: • Unplug the product when not
Do not use electrical in use.
appliances inside
A
the food storage • Do not touch the plug with wet
compartments of the hands! Do not pull the cable to
appliance, unless plug off, always hold the plug.
they are of the type • Do not plug in the refrigerator
recommended by the if the socket is loose.
manufacturer.
• Unplug the product during
This appliance is intended to be installation, maintenance,
used in household and similar cleaning and repair.
applications such as • If the product will not be used
– staff kitchen areas in shops, for a while, unplug the product
offices and other working and remove any food inside.
environments;
3• Do not use the product when • Do not touch frozen food with
the compartment with circuit wet hands! It may adhere to
cards located on the upper your hands!
back part of the product
(electrical card box cover) (1) • Do not place liquids in bottles
is open. and cans into the freezer
compartment. They may
explode.
1
• Place liquids in upright
position after tightly closing
the lid.
• Do not spray flammable
substances near the product,
as it may burn or explode.
1 • Do not keep flammable
materials and products with
flammable gas (sprays, etc.)
• Do not use steam or steamed in the refrigerator.
cleaning materials for
cleaning the refrigerator and • Do not place containers
melting the ice inside. Steam holding liquids on top of the
may contact the electrified product. Splashing water on
areas and cause short circuit an electrified part may cause
or electric shock! electric shock and risk of fire.
• Do not wash the product by • Exposing the product to rain,
spraying or pouring water on snow, sunlight and wind
it! Danger of electric shock! will cause electrical danger.
When relocating the product,
• In case of malfunction, do not do not pull by holding the
use the product, as it may door handle. The handle may
cause electric shock. Contact come off.
the authorised service before
doing anything. • Take care to avoid trapping
any part of your hands or
• Plug the product into an body in any of the moving
earthed socket. Earthing parts inside the product.
must be done by a qualified
electrician. • Do not step or lean on the
door, drawers and similar
• If the product has LED parts of the refrigerator. This
type lighting, contact the will cause the product to fall
authorised service for down and cause damage to
replacing or in case of any the parts.
problem.
• Take care not to trap the
power cable.
4your installation. Consult
Professional plumbers if you
are not sure that there is no
water hammer effect in your
installation.
DE
• Do not install on the hot
water inlet. Take precautions
against of the risk of
freezing of the hoses. Water
temperature operating
interval shall be 33°F (0.6°C)
1.1.1 HC warning minimum and 100°F (38°C)
If the product comprises a maximum.
cooling system using R600a gas, • Use drinking water only.
take care to avoid damaging
the cooling system and its pipe
while using and moving the 1.2. Intended use
product. This gas is flammable.
If the cooling system is • This product is designed for
damaged, keep the product home use. It is not intended
away from sources of fire and for commercial use.
ventilate the room immediately. • The product should be used
to store food and beverages
C
The label on the inner left
side indicates the type of only.
gas used in the product. • Do not keep sensitive
products requiring controlled
1.1.2 For models with temperatures (vaccines,
water dispenser heat sensitive medication,
medical supplies, etc.) in the
• Pressure for cold water inlet refrigerator.
shall be maximum 90 psi (620
kPa). If your water pressure • The manufacturer assumes
exceeds 80 psi (550 kPa), use no responsibility for any
a pressure limiting valve in damage due to misuse or
your mains system. If you mishandling.
do not know how to check • Original spare parts will
your water pressure, ask for be provided for 10 years,
the help of a professional following the product
plumber. purchasing date.
• If there is risk of water
hammer effect in your 1.3. Child safety
installation, always
use a water hammer • Keep packaging materials
prevention equipment in out of children’s reach.
5• Do not allow the children to 1.6. Package information
play with the product. Packaging materials of the product
• If the product’s door are manufactured from recyclable
comprises a lock, keep the materials in accordance with our
key out of children’s reach. National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
1.4. Compliance with WEEE wastes. Take them to the packaging
Directive and Disposing material collection points designated
of the Waste Product .by the local authorities
This product complies with
EU WEEE Directive (2012/19/EU).
This product bears a classification
symbol for waste electrical and
electronic equipment (WEEE).
This product has been
manufactured with high
quality parts and
materials which can be
reused and are suitable
for recycling. Do not
dispose of the waste
product with normal domestic and
other wastes at the end of its
service life. Take it to the collection
center for the recycling of electrical
and electronic equipment. Please
consult your local authorities to
learn about these collection
centers.
1.5. Compliance with
RoHS Directive
• This product complies with EU
WEEE Directive (2011/65/EU).
It does not contain harmful
and prohibited materials
specified in the Directive.
62. Your Refrigerator
*1 DE
*15 *2
*14 *3
*5 *4 *4
16
13
*12 *5
*6
*11
*9
*10
17
*8
7 7
1. Cooler compartment door 9. Quick freeze compartment
shelf 10. Ice cube tray & Ice bank
2. Water dispenser filling tank 11. Vegetable bin
3. Egg section 12. Zero degree compartment
4. Water dispenser reservoir 13. Interior light
5. Bottle shelf 14. Cooler compartment glass shelf
6. Sliding storage containers 15. Temperature adjustment button
7. Adjustable legs 16. Cooler compartment
8. Deep freezer compartment 17. Freezer compartment
* optional:Figures in this user manual are schematic and
C
may not match the product exactly. If the subject parts are not
included in the product you have purchased, then those parts
are valid for other models.
73 Installation • Product must not be subjected to
direct sun light and kept in humid
places.
3.1 Appropriate installation • Appropriate air ventilation must
location be provided around your product
Contact an Authorized Service for in order to achieve an efficient
operation. If the product is to be
the installation of the product. In
placed in a recess in the wall, pay
order to prepare the product for use, attention to leave at least 5 cm
refer the information in the user distance with the ceiling and side
manual and ensure that electrical walls.
installation and water installation • Do not install the product in places
are appropriate. If not, call a qualified where the temperature falls below
electrician and technician to have any -5°C.
.necessary arrangements carried out
WARNING: 3.2 Installing the
Manufacturer shall not be plastic wedges
B held liable for damages
that may arise from
procedures carried out by
Plastic wedges supplied with the
product are used to create the
distance for the air circulation
unauthorized persons.
between the product and the rear
WARNING: Product wall.
must not be plugged 1. To install the wedges, remove the
B in during installation.
Otherwise, there is the
risk of death or serious
screws on the product and use the
screws supplied together with the
wedges.
injury! 2. Insert the 2 plastic wedges onto
WARNING: If the door the rear ventilation cover as
clearance of the room illustrated in the figure.
where the product shall be
place is so tight to prevent
A
passing of the product, 3.3 Adjusting the feet
remove the door of the
room and pass the product If the product stands unbalanced
through the door by after installation, adjust the feet
turning it to its side; if this on the front by rotating them to the
does not work, contact the right or left.
authorized service.
• Place the product on an even floor
surface to prevent jolts.
• Install the product at least 30 cm
away from heat sources such as
hobs, heater cores and stoves and
at least 5 cm away from electrical
ovens.
83.4 Electrical connection
A
WARNING:Do not make
connections via extension
cables or multi-plugs.
DE
WARNING: Damaged
B power cable must
be replaced by the
Authorized Service Agent.
If two coolers are to be
C
installed side by side,
there should be at least
4 cm distance between
them.
• Our company shall not be
liable for any damages that will
arise when the product is used
without grounding and electrical
connection in accordance with
the national regulations.
• Power cable plug must be within
easy reach after installation.
• Do not extension cords or
cordless multiple outlets
between your product and the
wall outlet.
Hot Surface Warning!
Side walls of your product
is equipped with refrigerant
pipes to improve the cooling
system. Refrigerant with
high temperatures may
C flow through these areas,
resulting in hot surfaces
on the side walls. This is
normal and does not need
any servicing. Please pay
attention while touching
these areas.
93.5 Reversing the doors
Proceed in numerical order .
1 9
9
3
2
6 10
5 11 12
4
45
8
7
13
21
16
19
20
18
20
17
15
14
103.6 Reversing the doors
Proceed in numerical order .
(8) (13)
DE
7 20
1
1 1
6
2
5
14
11
45 ° 13 9
4
3
10
20
12 8
180° 15
20
16
18
17
19
114 Preparation • Food should be stored using
the drawers in the cooler
4.1 Things to be done for compartment in order to ensure
energy saving and protect food
energy saving in better conditions.
• Food packages should not be
Connecting the product to
A
in direct contact with the heat
electronic energy-saving sensor located in the cooler
systems is harmful, as it compartment. If they are in
may damage the product. contact with the sensor, energy
• Do not keep the refrigerator consumption of the appliance
doors open for long periods. might increase.
• Do not place hot food or • Make sure the foods are not
beverages into the refrigerator. in contact with the cooler
• Do not overfill the refrigerator; compartment temperature
blocking the internal air flow sensor described below.
will reduce cooling capacity.
• In order to store the maximum
amount of food into the
cooler compartment of your
refrigerator, you should take
out the upper drawers and
place it onto the glass rack. The
declared energy consumption
of your refrigerator was
determined by taking out the
cooler, ice tray and upper
drawers in a way that will
enable maximum storage. Using
the below drawer when storing
is strongly recommended.
Energy saving function should
be activated for best energy
consumption.
• You should not block the airflow
by putting food in front of the
cooler fan. A space of minimum
3cm must be left in front of the
protective fan wire when placing
food.
• Depending on the product’s
features; defrosting frozen foods
in the cooler compartment
will ensure energy saving and
preserve food quality.
124.2 Initial use
C
Front edges of the
Before using your refrigerator, product might heat up.
make sure the necessary This is normal. These
preparations are made in line with areas are designed to
the instructions in “Safety and warm up in order to DE
environment instructions” and prevent condensation.
“Installation” sections.
C
In some models indicator
• Keep the product running with
panel turns off automatically
no food inside for 6 and do not
5 minutes after the door
open the door, unless absolutely
closes. It will be reactivated
necessary.
when the door is open or any
C
A sound will be heard button is pressed.
when the compressor is
engaged. It is normal to
hear sound even when the
compressor is inactive,
due to the compressed
liquids and gasses in the
cooling system.
135 Operating the product
5.1 Temperature setting button
5.2 Fast freeze
The interior temperature of your
refrigerator changes for the following If large amounts of fresh food
reasons; are going to be frozen, adjust the
• Seasonal temperatures, temperature control knob to
• Frequent opening of the door ( ) max. 24 hours before putting
and leaving the door open for the fresh food in the fast freeze
long periods, compartment.
• Food put into the refrigerator It is strongly recommended to
without cooling down to the keep the knob at this position at least
room temperature, 24 hours to freeze maximum amount
• The location of the refrigerator of fresh food declared as freezing
in the room (e.g. exposing to capacity. Take special care not to mix
sunlight). frozen food and fresh food.
• You may adjust the varying Remember to turn the temperature
interior temperature due to control knob back to its previous
such reasons by using the position once food has frozen.
setting button.
• The numbers around the control
knob indicate the temperature
values in “°C”.
• If the ambient temperature is
25°C, we recommend you to
use the temperature control
knob of your refrigerator at 4°C.
This value may be increased or
decreased as required in other
ambient temperatures.
May not be available in all models
145.3 Vacation function • When the setting operation is
completed, you may press the
If the doors of the product are
temperature control knob and
not opened for 12 hours after the
have it hidden.
temperature control knob is switched
to the hottest position, then the DE
vacation function will be activated
automatically.
To cancel the function, change the
knob setting.
It is not recommended to store food
in cooler compartment when the
vacation function is active.
155.4 Thermostat setting button For this reason, it is recommended
to close the door again as soon as
possible after use.
5.5 Thermostat setting button
The interior temperature of your
refrigerator changes for the following
reasons;
Seasonal temperatures,
Frequent opening of the door and
leaving the door open for long
periods,
Food put into the refrigerator
The operating temperature is
regulated by the temperature without cooling down to the room
control. temperature,
The location of the refrigerator
W C in the room (e.g. exposing to
5
sunlight).
1=Lowest cooling setting (Warmest You may adjust the varying interior
setting). temperature due to such reasons
by using the thermostat. Numbers
around the thermostat button
4=Highest cooling setting (Coldest indicates the cooling degrees.
setting). If the ambient temperature
The average temperature inside the is higher than 32°C, turn the
fridge should be around +5°C. thermostat button to maximum
Please choose the setting according position.
to the desired temperature. If the ambient temperature
Please note that there will be is lower than 25°C, turn the
different temperatures in the cooling thermostat button to minimum
area. position.
The coldest region is immediately
above the vegetable compartment.
The interior temperature also
depends on ambient temperature,
the frequency with which the door is
opened and the amount of foods kept
inside.
Frequently opening the door causes
the interior temperature to rise.
May not be available in all models
165.6 Defrost
Fridge compartment
Fridge compartment performs full-
automatic defrosting. Water drops
and a frosting up to 7-8 mm can occur DE
on the inner rear wall of the fridge
compartment while your refrigerator
cools down. Such formation is normal
as a result of the cooling system.
The frost formation is defrosted by
performing automatic defrosting
with certain intervals thanks to the
automatic defrosting system of the
rear wall. User is not required to
scrape the frost or remove the water
drops.
Water resulting from the defrosting
passes from the water collection
groove and flows into the evaporator
through the drain pipe and evaporates
here by itself.
Deep freezer compartment does
not perform automatic defrosting
in order to prevent decaying of the
frozen food.
The freezer compartment defrosts
automatically.
Check regularly to see if the drain
pipe is clogged or not and clear it with
the stick in the hole when necessary.
175.7 Indicator panel
Indicator panels may vary according to the product model.
Audio – visual functions on the indicator panel helps you in using your
product.
8 1 2 3
9
7 6 5 4
1. Fridge Compartment Indicator
2. Error status indicator
3. Temperature indicator
4. Vacation function button
5. Temperature setting button
6. Compartment selection button
7. Freezer compartment indicator
8. Economy mode indicator
9. Vacation function indicator
*optional
May not be available in all models
Figures in this user manual are schematic and may not match
C
the product exactly. If the subject parts are not included in the
product you have purchased, then those parts are valid for other
models.
181. Fridge compartment indicator 6. Compartment selection button
Fridge compartment light Selection button: Press
is illuminated while the fridge compartment selection button to
compartment temperature is set. switch between fridge and freezer
2. Error status indicator compartments.
DE
If your refrigerator does not perform 7. Freezer compartment indicator
enough cooling or in case of a sensor Fridge compartment light is
fault, this indicator is activated. illuminated while the freezer
When this indicator is activated, compartment temperature is set.
“E” is displayed on the freezer 8. Economy mode indicator
compartment temperature indicator, Indicates that the refrigerator
and numbers such as “1,2,3...” are operates in energy saving mode.
displayed on the fridge compartment This display shall be activated if the
temperature indicator. These freezer compartment temperature is
numbers on the indicator inform set to -18°C.
service personnel about the error.
9. Vacation function indicator
3. Temperature indicator Indicates that vacation is activated.
Indicates freezer, fridge
compartment temperature.
4. Vacation function button
Press on Vacation Button for 3
seconds to activate this function.
When the vacation function is
activated, “- -” is displayed on the
fridge compartment temperature
indicator and no active cooling
is performed on the fridge
compartment. It is not suitable
to keep the food in the fridge
compartment when this function is
activated. Other compartments shall
be continued to be cooled as per their
set temperature.
To cancel this function press
Vacation button again.
5. Temperature setting button
Changes the temperature of the
relevant compartment between
-24°C... -18°C and 8°C...1°C.
195.8 Indicator panel
Indicator panel allows you to set the temperature and control the other
functions related to the product without opening the door of the product.
Just press the inscriptions on relevant buttons for function settings.
1 2
12
11 *10 9 8 7 6 5 4 3
1. Power failure/High saving symbol is illuminated. ( )
temperature / error warning When energy saving function is
indicator activated, all symbols on the display
This indicator ( ) illuminates during other than energy saving symbol will
power failure, high temperature turn off. When the Energy Saving
failures and error warnings. During function is activated, if any button is
sustained power failures, the pressed or the door is opened, energy
highest temperature that the freezer saving function will be canceled and
compartment reaches will flash on the symbols on display will return to
the digital display. After checking normal.
the food located in the freezer Energy saving function is activated
compartment ( ) press the alarm off during delivery from factory and
button to clear the warning. cannot be canceled.
2. Energy saving function (display 3.Quick fridge function
off) The button has two functions. To
If the product doors are kept closed activate or deactivate the quick
for a long time energy saving function cool function press it briefly. Quick
is automatically activated and energy Cool indicator will turn off and the
May not be available in all models
Figures in this user manual are schematic and may not match
C
the product exactly. If the subject parts are not included in the
product you have purchased, then those parts are valid for other
models.
20product will return to its normal the vacation function is activated,
settings. ( ) “- -” is displayed on the fridge
C
Use quick cooling compartment temperature indicator
function when you want and no active cooling is performed
to quickly cool the food on the fridge compartment. It is not
suitable to keep the food in the fridge DE
placed in the fridge
compartment. If you want compartment when this function is
to cool large amounts of activated. Other compartments shall
fresh food, activate this be continued to be cooled as per their
function before putting set temperature.
the food into the product. To cancel this function press
Vacation function button again.
C
If you do not cancel it,
quick cooling will cancel 6. Alarm off warning
itself automatically after 8 In case of power failure/high
hours or when the fridge temperature alarm, after checking
compartment reaches to the food located in the freezer
the required temperature. compartment press the alarm off
button ( ) to clear the warning.
C
If you press the
quick cooling button 7. Key lock
repeatedly with short Press key lock button ( )
intervals, the electronic simultaneously for 3 seconds. Key
circuit protection will lock symbol
be activated and the ( ) will light up and key lock mode
compressor will not start will be activated. Buttons will
up immediately. not function if the Key lock mode
is active. Press key lock button
C
This function is not simultaneously for 3 seconds again.
recalled when power Key lock symbol will turn off and the
restores after a power key lock mode will be exited.
failure. Press the key lock button if
4. Fridge compartment you want to prevent changing of
temperature setting button the temperature setting of the
Press this button to set the refrigerator ( ).
temperature of the fridge
8. Eco fuzzy
compartment to 8, 7,6, 5,4,3, 2, 8...
Press and hold eco fuzzy button for 1
respectively. Press this button to set
seconds to activate eco fuzzy function.
the fridge compartment temperature
Refrigerator will start operating in
to the desired value. ( )
the most economic mode at least
6 hours later and the economic
5.Vacation Function usage indicator will turn on when
In order to activate vacation the function is active ( ). Press
function, press the this button ( ) and hold eco fuzzy function button
for 3 seconds, and the vacation mode for 3 seconds to deactivate eco fuzzy
indicator ( ) will be activated. When function.
21C
This indicator is illuminated after 6 If you do not cancel it,
hours when eco fuzzy is activated. Quick Freeze will cancel
9. Freezer compartment itself automatically after 4
temperature setting button hours or when the fridge
Press this button to set the compartment reaches to
temperature of the freezer the required temperature.
C
compartment to -18,-19,-20,-21, This function is not
-22, -23,-24, -18... respectively. recalled when power
Press this button to set the freezer restores after a power
compartment temperature to the failure.
desired value.( )
12. Economic usage indicator
10. Icematic off indicator
Indicates that the product is running
Indicates whether the icematic is on
in energy-efficient mode. ( )This
or off. ( )If On, then the icematic is
indicator will be active if the Freezer
not operating. To operate the icematic
Compartment temperature is set to
again press and hold the On-Off
-18 or the energy efficient cooling is
button for 3 seconds.
being performed due to Eco-Extra
C
Water flow from water function.
tank will stop when this
C
Economic usage indicator
function is selected. is turned off when quick
However, ice made cooling or quick freeze
previously can be taken functions are selected.
from the icematic.
11. Quick freeze function button/
icematic on-off button
Press this button to activate or
deactivate the quick freezing function.
When you activate the function, the
freezer compartment will be cooled
to a temperature lower than the set
value. ( )
To turn on and off the icematic press
and hold it for 3 seconds.
C
Use the quick freeze
function when you want
to quickly freeze the
food placed in fridge
compartment. If you want
to freeze large amounts
of fresh food, activate this
function before putting
the food into the product.
225.9 Indicator panel
Indicator panel allows you to set the temperature and control the other
functions related to the product without opening the door of the product.
Just press the inscriptions on relevant buttons for function settings.
DE
1 2
3
11 10 9 8 7.1 7.2 6 5 4
1. Economy reaches will flash on the digital
This symbol is illuminated when display. After checking the food
the freezer compartment is set to located in the freezer compartment
-18°C’ye as the most economical ( ) press the alarm off button to
setting value ( ). Economy clear the warning.
indicator is turned off when quick 3. Energy saving function (display
cooling or quick freeze functions off)
are selected. If the product doors are kept
2. Power failure/High closed for a long time energy
temperature / error warning saving function is automatically
indicator activated and energy saving symbol
This indicator ( ) illuminates is illuminated.When energy saving
during power failure, high function is activated, all symbols
temperature failures and error on the display other than energy
warnings. During sustained power saving symbol will turn off. When
failures, the highest temperature the Energy Saving function is
that the freezer compartment
May not be available in all models
Figures in this user manual are schematic and may not match
C
the product exactly. If the subject parts are not included in the
product you have purchased, then those parts are valid for other
models.
23activated, if any button is pressed 6. Fridge compartment tempera-
or the door is opened, energy ture setting
saving function will be canceled When the button no. (6) is pressed,
and the symbols on display will you may set the temperature of the
return to normal. fridge compartment to 8,7,6,5,4,3,2
4. Quick cool and 1 respectively ( ).
Quick cooling indicator 7.1. Energy saving function (disp-
( ) is illuminated when quick lay off):
cooling function is activated and Energy saving symbol ( ) is
fridge compartment temperature illuminated and Energy saving
indicator value is displayed as function is activated when you
1. To cancel this function press press this button ( ). When energy
Quick cooling button again. Quick saving function is activated, all
cooling indicator will turn off symbols on the display other than
and refrigerator will return to its energy saving symbol will turn off.
normal settings. Quick cooling When the Energy Saving function is
function is canceled automatically activated, if any button is pressed
in 1 hour if you do not cancel it or the door is opened, energy
before. If you want to cool large saving function will be canceled
amounts of fresh food, press and the symbols on display will
the Quick cooling button before return to normal. Energy saving
putting the food into the fridge symbol is turned off and energy
compartment. saving function is deactivated when
5. Vacation function you press this button ( ) again.
In order to activate vacation 7.2.Alarm off warning:
function, press the button no. In case of power failure/high
(5) ( ) for 3 seconds, and the temperature alarm, after checking
vacation mode indicator activates. the food located in the freezer
When the vacation function is compartment press the alarm off
activated, “- -” is displayed on the button to clear the warning.
fridge compartment temperature 8. Key lock
indicator and no active cooling Press key lock button ( )
is performed on the fridge simultaneously for 3 seconds. Key
compartment. It is not suitable lock symbol ( ) will light up and
to keep the food in the fridge key lock mode will be activated.
compartment when this function Buttons will not function if the
is activated. Other compartments Key lock mode is active. Press key
shall be continued to be cooled as lock button simultaneously for 3
per their set temperature.To cancel seconds again. Key lock symbol
this function press Vacation will turn off and the key lock mode
function button again. will be exited.
24Press the key lock button if Quick freeze indicator will turn
you want to prevent changing of off and refrigerator will return to
the temperature setting of the its normal settings. Quick freeze
refrigerator ( ). function is canceled automatically
9. Eco fuzzy in 24 hour if you do not cancel it
before. If you want to freeze large
DE
Press and hold eco fuzzy button
for 1 seconds to activate eco fuzzy amounts of fresh food, press
function. Refrigerator will start the quick freeze button before
operating in the most economic putting the food into the freezer
mode at least 6 hours later and the compartment.
economic usage indicator will turn
on when the function is active (
). Press and hold eco fuzzy function
button for 3 seconds to deactivate
eco fuzzy function.
This indicator is illuminated after 6
hours when eco fuzzy is activated.
10. Freezer compartment tempe-
rature setting
Temperature setting for freezer
compartment is performed here.
When button no. 9 is pressed,
you may set the temperature of
the freezer compartment to -18,
-19, -20, -21, -22, -23 and -24
respectively.
11. Fast freeze
Press button no. (11) for fast
freeze operation, quick freeze
indicator
( ) shall be activated.
Quick freeze indicator is
illuminated when quick freeze
function is activated and fridge
compartment temperature
indicator is displayed as -27. To
cancel this function press quick
freeze button ( ) again.
255.10 Ice bucket 5.12 Fan
Fan was designed to distribute circu-
(This feature is optional) late the cold air inside your refrigera-
tor homogeneously. Operating time of
• Take the ice bucket from the
the fan might vary depending the fea-
freezer compartment. tures of your product.
• Fill the ice bucket with water. While in some products fan only op-
• Place the ice bucket into the erates with compressor, in others con-
freezer compartment. trol system determines the operating
• The ice will be ready after time based on the need for cooling.
approximately two hours. Take
the ice bucket from the freezer
compartment and bend in
sightly over the holder that you
are going to serve. Ice will easily
pour into the serving holder.
5.13 Vegetable bin
(This feature is optional)
• Product’s vegetable bin is
designed to keep vegetables
fresh by preserving humidity.
For this purpose, the overall
cold air circulation is intensified
in the vegetable bin.
5.14 Zero degree compartment
(This feature is optional)
5.11 Egg holder
Use this compartment to
You can put the eggholder on the
keep delicatessen at lower
door or body rack of your choice. If you
temperatures or meat products for
decide to put it on the body rack, it is
immediate consumption.
recommended to prefer the shelves
Zero degree compartment is the
.below as they are colder
coolest place where foods such
A
Do not put the eggholder as dairy products, meat, fish and
into the freezer chicken can be stored in ideal
compartment. storage conditions. Vegetables
and/or fruits should not be stored
in this compartment.

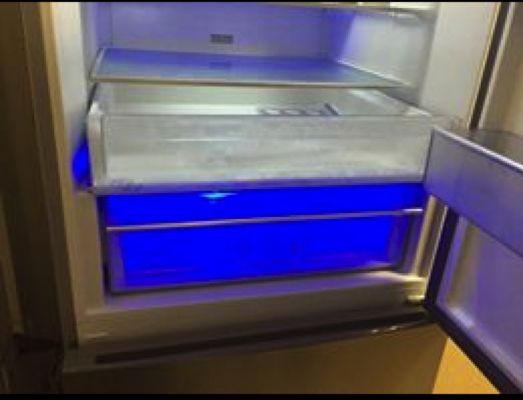

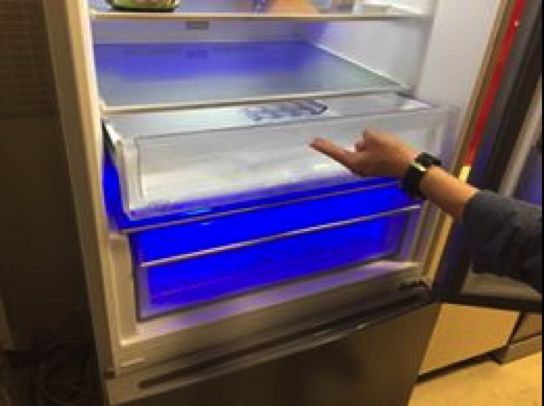

265.15 Using the second Figure 3.
crisper of the product With the door is open 90°, pull the
second crisper up to the first stopper
as shown in Figure 3.
In the case that the drawer is more DE
open, first of all, open the door by
at least 135° degrees. After that, as
Figure 1.
shown in Figure 4, lift the second
As shown in the figure, there are
crisper for about 5 mm so that it is
2 stoppers in the second crisper of
freed from the first stopper.
K70560 model product.
Figure 4.
Figure 2. After lifting, pull the second drawer
The second crisper looks like Figure up to the second stopper as shown in
2 when closed.
Figure 5.
275.16Moving door rack 5.17 Sliding storage box
(This feature is optional)
Moving door rack can be fixed in 3 (This feature is optional)
different positions.
This accessory has been designed
In order to move the rack, push the
to increase the usage volume of the
buttons on the side evenly. Rack will
door racks.
be movable.
Thanks to its ability to move
Move the rack up or down.
sideways, it enables you to easily
When the rack is in the position that
place long bottle, jar or boxes that you
you want, release the buttons. Rack
put in the bottle rack below.
will be fixed again in the position
where you have released the buttons.
5.18 Moisture controlled
vegetable bin
(This feature is optional)
With moisture control feature,
moisture rates of vegetables and
fruits are kept under control and
ensures a longer freshness period for
foods.
It is recommended to store leafed
vegetables such as lettuce and
spinach and similar vegetables prone
to moisture loss not on their roots
but in horizontal position into the
vegetable bin as much as possible.
When placing the vegetables, place
heavy and hard vegetables at the
bottom and light and soft ones on the
top, taking into account the specific
weights of vegetables.
Do not leave vegetables in the
vegetable bin in plastic bags.
28C
Leaving them in plastic bags causes In products with automatic
vegetables to rot in a short time. In ice machine, you might hear
situations where contact with other a sound when pouring the ice.
vegetables is not preferred, use This sound is normal and is not
a sign of failure.
packaging materials such as paper DE
that has a certain porosity in terms of
hygiene.
Do not put fruits that have a high
ethylene gas production such as pear,
apricot, peach and particularly apple
in the same vegetable bin with other
vegetables and fruits. The ethylene
gas coming out of these fruits might
cause other vegetables and fruits to
mature faster and rot in a shorter
period of time.
5.19 Automatic ice machine
(This feature is optional)
Automatic ice machine enables you
to easily make ice in your refrigerator.
In order to obtain ice from the ice
machine, take out the water tank in
the cooler compartment, fill it with
water and fix it back.
First ice will be ready in about 2
hours in the ice machine drawer in
the cooler compartment.
After placing the full water tank, you
can obtain about 60-70 cubes of ice
until it is fully empty.
If the water in the tank has waited
for 2-3 weeks, it should be changed.
295.20 Icematic and ice 5.21 Using the water dispenser
storage container *optional
C
*optional It is normal for the first
Using the Icematic few glasses of water taken
Fill the Icematic with water and from the dispenser to be
place it into its seat. Your ice will be warm.
C
ready approximately in two hours. If the water dispenser is
Do not remove the Icematic from its not used for a long period
seating to take ice. of time, dispose of first few
Turn the knobs on the ice reservoirs glasses of water to obtain
clockwise by 90 degrees. fresh water.
Ice cubes in the reservoirs will fall 1. Push in the lever of the water dis-
down into the ice storage container penser with your glass. If you are
using a soft plastic cup, pushing
below.
the lever with your hand will be ea-
You may take out the ice storage sier.
container and serve the ice cubes. 2. After filling the cup up to the level
If you wish, you may keep the ice you want, release the lever.
cubes in the ice storage container.
C
Please note, how much
Ice storage container water flows from the
Ice storage container is only dispenser depends on
intended for accumulating the how far you depress the
ice cubes. Do not put water in it. lever. As the level of water
Otherwise, it will break. in your cup / glass rises,
gently reduce the amount
of pressure on the lever
to avoid overflow. If you
slightly press the arm, the
water will drip; this is quite
normal and not a failure.
305.22 Filling the water
dispenser's tank
Water tank filling reservoir is
located inside the door rack.
1. Open the cover of the tank. DE
2. Fill the tank with fresh drinking
water.
3. Close the cover.
C
Do not fill the water
tank with any other liquid
except for water such as
fruit juices, carbonated
beverages or alcoholic
drinks which are not
suitable to use in the water
dispenser. Water dispenser
will be irreparably damaged
if these kinds of liquids are
used. Warranty does not
cover such usages. Some
chemical substances and 5.23 Cleaning the water tank
additives contained in these 1. Remove the water filling reservoir
kinds of drinks/liquids may inside the door rack.
damage the water tank. 2. Remove the door rack by holding
from both sides.
C Use clean drinking water 3. Grab the water tank from both si-
only. des and remove it with an angle of
45°C.
C Capacity of the water tank
is 3 litres; do not overfill.
314. Remove the cover of the water tank
and clean the tank.
C
Components of the water
tank and water dispenser
should not be washed in
dishwasher.
5.24 Drip tray
Water that dripped while using the
water dispenser accumulates in the
spillage tray.
Remove the plastic filter as shown
in the figure.
With a clean and dry cloth, remove
the water that has accumulated.
325.25 HerbBox/HerbFresh bad odours dissolve while the air is
Remove the film container from actively being passed on the odour
HerbBox/HerbFresh+ filter, then the air that has been
Take the film out of the bag and put cleaned by the filter is re-emitted to
it into the film container as shown in the fresh food compartment. This DE
the image. way, the unwanted odours that may
Seal the container again and replace emerge during the storage of foods in
it into HerbBox/HerbFresh+ unit. the refrigerator are eliminated before
HerbBox-HerbFresh+ sections are they permeate the surfaces.
especially ideal for storage of various This is achieved thanks to the fan,
herbs that are supposed to be kept LED and the odour filter integrated
in delicate conditions. You can store into the module. In daily use, the
your unbagged herbs (parsley, dill, deodorising module will turn on
etc.) in this section horizontally and automatically on a periodic basis. To
keep them fresh for a much longer maintain efficient performance, it is
period. recommended to have the filter in the
The film shall be replaced in every deodorising module by the authorised
six months. service provider every 5 years. Due
to the fan integrated into the module,
the noise you will hear during
operation is normal. If you open the
door of the fresh food compartment
while the module is active, the fan
will pause temporarily and resume
where it has left off after some time
the door is closed again. In case of
power failure, the deodoriser module
will resume where it has left off in
the total operation duration once the
power is back.
Info: It is recommended to store
aromatic foods (such as cheese,
olives and delicatessen foods) in their
packaging and sealed to avoid bad
odours that may result when smells
5.26 Deodoriser Module of various foods get mixed. Besides,
it is recommended to take spoiled
(OdourFresh +) foods out of the refrigerator quickly to
(This feature is optional) prevent the other foods from getting
The deodoriser module quickly spoiled and avoid bad odours.
eliminates the bad smells in your
refrigerator before they permeate
the surfaces. Thanks to this module,
which is placed on the ceiling of
the fresh food compartment, the
335.27Freezing fresh food • Label each pack of food by
adding the date before freezing.
• In order to preserve the quality You may distinguish the
of the food, it shall be frozen
freshness of each food pack in
as quickly as possible when
this way when you open your
it is placed in the freezer
freezer each time. Store the
compartment, use the fast
food frozen before in the front
freezing feature for this
side of compartment to ensure
purpose.
that they are used first.
• You may store the food longer
C
in freezer compartment when The freezer compartment
you freeze them while they are defrosts automatically.
fresh.
• Pack the food to be frozen and • Frozen food must be used
close the packing so that it immediately after they are
would not allow entrance of air. thawed and they should not be
• Ensure that you pack your food re-frozen.
before putting them in the • Do not freeze too large
freezer. Use freezer containers, quantities of food at one time.
foils and moisture-proof papers,
plastic bags and other packing
materials instead of traditional
packing papers.
34Freezer Fridge
Compartment compartment Remarks
Setting Setting
-18°C 4°C This is the normal recommended setting.
These settings are recommended when the
-20,-22 or -24°C 4°C DE
ambient temperature exceeds 30°C.
Use when you wish to freeze your food in a short
Quick Freeze 4°C time. Your product will return to its previous
mode when the process is over.
Use these settings if you think that your fridge
compartment is not cold enough because of the
-18°C or colder 2°C
hot ambient conditions or frequent opening and
closing of the door.
5.28 Recommendations for Foods to be frozen should not be
allowed to come in contact with the
preserving the frozen food previously frozen items to prevent
Compartment shall be set to -18°C at them from getting thawed partially.
least. Boil the vegetables and drain their
1. Put packages in the freezer water in order to store vegetables
as quickly as possible after for a longer time as frozen. After
purchase without allowing draining their water, put them
the to thaw. in air-proof packages and place
2. Check whether the “Use them inside the freezer. Food such
By” and “Best Before” da- as bananas, tomatoes, lettuce,
tes on the packaging are celery, boiled eggs, potatoes are
expired or not before free- not suitable for freezing. When
zing it. these foods are frozen, only their
3. Ensure that the package of nutritional value and taste shall
the food is not damaged. be affected negatively. They shall
not be spoiled so that they would
5.29 Deep-freeze information create a risk for human health.
According to IEC 62552 standards,
the product shall freeze at least 5.30 Placing the food
4.5 kg of food at 25°C ambient Various frozen
temperature to -18°C or lower food such as
within 24 hours for every 100-litres Freezer
meat, fish,
of freezer volume. compartment
ice cream,
It is possible to preserve the food shelves
vegetables and
for a long time only at -18°C or etc.
lower temperatures.
You can keep the freshness of
food for many months (at -18°C or
lower temperatures in the deep
freeze).
35Food in pans, 5.32 Illumination lamp
covered plates
Refrigerator LED lamps are used as
and closed
compartment illumination lamps. Contact
containers,
shelves authorized service in case of any
eggs (in closed
container) problem with this type of light.
The lamp(s) used in this appliance
Door shelves Small and is not suitable for household room
of fridge packaged food illumination. The intended purpose
compartment or beverage of this lamp is to assist the user to
Vegetables and place foodstuffs in the refrigerator/
Crisper
fruits freezer in a safe and comfortable
Delicatessen way.
(breakfast food,
Fresh zone meat products
compartment that shall be
consumed in a
short time)
5.31 Door open warning
(This feature is optional)
Door open warning is given to user
both visually and acoustically. If the
warning continues for 10 minutes,
interior lights will be turned off.
366. Maintenance and cleaning clean the outer surfaces and
Service life of the product extends chromium coated parts of
and frequently faced problems the product. Chlorine causes
decrease if cleaned at regular corrosion on such metal
intervals. surfaces
• Do not use sharp, abrasive DE
B WARNING: Unplug the
product before cleaning it.
tools, soap, household cleaning
agents, detergents, kerosene,
fuel oil, varnish etc. to prevent
• Never use gasoline, benzene or removal and deformation of the
similar substances for cleaning prints on the plastic part. Use
purposes. lukewarm water and a soft cloth
• Never use any sharp and for cleaning and then wipe it dry.
abrasive tools, soap, household
cleaners, detergent and wax 6.1 Avoiding bad odours
polish for cleaning.
• Dissolve one teaspoon of Materials that may cause odour
carbonate in half litre of water. are not used in the production of
Soak a cloth with the solution our refrigerators. However, due
and wrung it thoroughly. Wipe to inappropriate food preserving
the interior of the refrigerator conditions and not cleaning the
with this cloth and the dry inner surface of the refrigerator
thoroughly. as required can bring forth the
• Make sure that no water enters problem of odour. Pay attention to
the lamp housing and other following to avoid this problem:
electrical items. • Keeping the refrigerator clean
• If you will not use the is important. Food residuals,
refrigerator for a long period of stains, etc. can cause odour.
time, unplug it, remove all food Therefore, clean the refrigerator
inside, clean it and leave the with carbonate dissolved in
door ajar. water every 15 days.Never use
• Check regularly that the door detergents or soap.
gaskets are clean. If not, clean • Keep the food in closed
them. containers.Microorganisms
• To remove door and body spreading out from uncovered
shelves, remove all of its containers can cause
contents. unpleasant odours.
• Remove the door shelves by • Never keep the food that have
pulling them up. After cleaning, expired best before dates and
slide them from top to bottom to spoiled in the refrigerator.
install.
• Never use cleaning agents or
water that contain chlorine to
376.2 Protecting the These glasses are tempered to
plastic surfaces increase their durability against
impacts and breaking.
Do not put liquid oils or oil- A safety film is also applied to
cooked meals in your refrigerator their rear surfaces as an extra
in unsealed containers as they safety measure in order to prevent
damage the plastic surfaces of them from causing damage to their
the refrigerator. If oil is spilled or surrounding in case of a breakage.
smeared onto the plastic surfaces, *Alkali is a base that forms
clean and rinse the relevant part hydroxide ions (OH¯) when it is
of the surface at once with warm dissolved in water.
water. Li (Lithium), Na (Sodium), K
(Potassium) Rb (Rubidium), Cs
6.3 Door Glasses (Cesium) and artificial and radioactive
Remove the protective foil on the Fr (Fan-sium) metals are called
glasses. ALKALI METALS.
There is a coating on the surface of
the glasses.This coating minimizes
the stain build-up and helps to
remove the possible stains and dirt
easily.Glasses that are not protected
with such a coating may be subject
to persistent binding of air or water
based organic or inorganic dirt such
as limescale, mineral salts, unburned
hydrocarbons, metal oxides and
silicones that can easily and quickly
cause stains or material damage.
Keeping the glass clean becomes too
difficult despite the regular cleaning.
Consequently, the appearance
and the transparency of the glass
deteriorates. Harsh and corrosive
cleaning methods and compounds will
intensify these defects and speed up
the deterioration process.
Water-based cleaning products that
are not alkaline and corrosive must be
used for regular cleaning purposes.
Non-alkaline and non-corrosive
materials must be used for cleaning
so that the service life of this coating
lasts for a long time.
387. Troubleshooting cooling system is not balanced,
Check this list before contacting which triggers the compressor
the service. Doing so will save you thermic safeguard. The product
time and money. This list includes will restart after approximately 6
frequent complaints that are not minutes. If the product does not
restart after this period, contact
DE
related to faulty workmanship
or materials. Certain features the service.
mentioned herein may not apply to • Defrosting is active. >>>
your product. This is normal for a fully-
The refrigerator is not working. automatic defrosting product.
• The power plug is not fully The defrosting is carried out
settled. >>> Plug it in to settle periodically.
completely into the socket. • The product is not plugged in.
• The fuse connected to the >>> Make sure the power cord is
socket powering the product plugged in.
or the main fuse is blown. >>> • The temperature setting
Check the fuses. is incorrect. >>> Select the
appropriate temperature
Condensation on the side wall of setting.
the cooler compartment (MULTI • The power is out. >>> The
ZONE, COOL, CONTROL and FLEXI product will continue to operate
ZONE). normally once the power is
• The door is opened too restored.
frequently >>> Take care not
to open the product’s door too The refrigerator’s operating noise
frequently. is increasing while in use.
• The environment is too humid. • The product’s operating
>>> Do not install the product in performance may vary
humid environments. depending on the ambient
• Foods containing liquids are temperature variations. This is
kept in unsealed holders. >>> normal and not a malfunction.
Keep the foods containing The refrigerator runs too often or
liquids in sealed holders. for too long.
• The product’s door is left open. • The new product may be larger
>>> Do not keep the product’s than the previous one. Larger
door open for long periods. products will run for longer
• The thermostat is set to too periods.
low temperature. >>> Set the • The room temperature may
thermostat to appropriate be high. >>> The product will
temperature. normally run for long periods in
Compressor is not working. higher room temperature.
• In case of sudden power failure • The product may have been
or pulling the power plug recently plugged in or a new
off and putting back on, the food item is placed inside. >>>
gas pressure in the product’s The product will take longer to
reach the set temperature when 39recently plugged in or a new The food items kept in cooler
food item is placed inside. This compartment drawers are frozen.
is normal. • The cooler compartment
• Large quantities of hot food may temperature is set to a very
have been recently placed into low degree. >>> Set the freezer
the product. >>> Do not place compartment temperature to a
hot food into the product. higher degree and check again.
• The doors were opened The temperature in the cooler or
frequently or kept open for the freezer is too high.
long periods. >>> The warm air • The cooler compartment
moving inside will cause the temperature is set to a very high
product to run longer. Do not degree. >>> Temperature setting
open the doors too frequently. of the cooler compartment has
• The freezer or cooler door may an effect on the temperature in
be ajar. >>> Check that the the freezer compartment. Wait
doors are fully closed. until the temperature of relevant
• The product may be set to parts reach the sufficient level
temperature too low. >>> Set the by changing the temperature of
temperature to a higher degree cooler or freezer compartments.
and wait for the product to reach • The doors were opened
the adjusted temperature. frequently or kept open for long
• The cooler or freezer door periods. >>> Do not open the
washer may be dirty, worn out, doors too frequently.
broken or not properly settled. • The door may be ajar. >>> Fully
>>> Clean or replace the washer. close the door.
Damaged / torn door washer • The product may have been
will cause the product to run for recently plugged in or a new
longer periods to preserve the food item is placed inside. >>>
current temperature. This is normal. The product
The freezer temperature is very will take longer to reach the
low, but the cooler temperature is set temperature when recently
adequate. plugged in or a new food item is
• The freezer compartment placed inside.
temperature is set to a very • Large quantities of hot food may
low degree. >>> Set the freezer have been recently placed into
compartment temperature to a the product. >>> Do not place
higher degree and check again. hot food into the product.
The cooler temperature is very Shaking or noise.
low, but the freezer temperature • The ground is not level or
is adequate. durable. >>> If the product is
• The cooler compartment shaking when moved slowly,
temperature is set to a very adjust the stands to balance the
low degree. >>> Set the freezer product. Also make sure the
compartment temperature to a ground is sufficiently durable to
40 higher degree and check again. bear the product.You can also read
