Geology Field Investigation - Parent Training Wellesley Elementary Schools - Wellesley Public Schools
Geology Field Investigation
       Parent Training

    Wellesley Elementary Schools

                                   Fall 2016
                                         1
Geology Field Investigation - Parent Training Wellesley Elementary Schools - Wellesley Public Schools
Training Objectives
• To provide background information for the
  fourth grade geology field investigation

• To familiarize parent volunteers with
  important geological sites in Wellesley

                                              2
Geology Field Investigation - Parent Training Wellesley Elementary Schools - Wellesley Public Schools
Presentation Outline
• Geology 101: Structure of the Earth

• Changes to the Earth’s Surface

• Wellesley’s geological sites

• Geology of Wellesley video

                                        3
Geology Field Investigation - Parent Training Wellesley Elementary Schools - Wellesley Public Schools

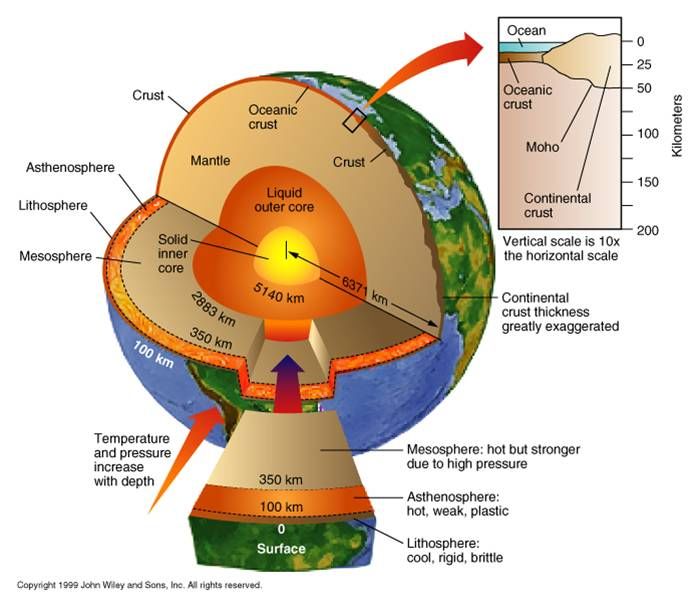

The Structure of the Earth
                 Crust:   relatively cold, thin, brittle solid
                          fractures with earthquakes
                          made of calcium, sodium, and
                                aluminum silicate minerals
                          5-20 miles (8-32km) thick
                          thickest at mountains
                          thinnest at ocean floor

                 Mantle: an elastic solid
                         most of the earth’s mass.
                         made of iron, magnesium
                           aluminum, silicon, and oxygen
                         convection currents cause
                            crustal plates to move
                         1832° F (1000° C)
                         1800 miles (2896km) thick

                 Liquid outer core:
                        made of iron and sulfur
                        6692° F (3700° C)
                        1400 miles (2252km) thick

                 Solid inner core:
                         made of iron
                         remains solid due to immense
                         pressure and high heat
                         9000° F (5000° C)
                         800 miles (1287km) to center

                                                                 4
Geology Field Investigation - Parent Training Wellesley Elementary Schools - Wellesley Public Schools
Plate Tectonics

•   Plate tectonics is the movement of the earth’s crustal plates due to convection currents in
    the mantle

•   As plates move they may collide, pull apart or rub past each other

•   The earth’s land masses sit atop these crustal plates and are deformed by crustal motion

                                                                                                  5
Geology Field Investigation - Parent Training Wellesley Elementary Schools - Wellesley Public Schools
Stories in Stone
   Every rock tells a story:
    how it formed and
what has happened to it since

                                6
Geology Field Investigation - Parent Training Wellesley Elementary Schools - Wellesley Public Schools
Changing Earth

• How do mountains shrink?
• How do boulders become small pebbles?
• How do sharp rocks become smooth and
  rounded?
• What makes sand?

 Answer?

                                          7
Geology Field Investigation - Parent Training Wellesley Elementary Schools - Wellesley Public Schools
Weathering
• Weathering: “breaking down” forces – things that break
                 rocks & minerals into smaller particles

                 • Physical
                 • Chemical
                 • Biological

                                                       8
Geology Field Investigation - Parent Training Wellesley Elementary Schools - Wellesley Public Schools
Physical Weathering
                  rain, rivers, waves
                  and storms -
   moving water   greatest cause of
                  physical weathering

                  wind carrying pieces
   wind           of debris can sand-
                  blast surfaces

                  freezing/melting
   temperature    cycles-
   (ice)          water expands when it
                  freezes
                                    9
Geology Field Investigation - Parent Training Wellesley Elementary Schools - Wellesley Public Schools
Chemical Weathering

                          when oxygen reacts with
              oxidation   iron-rich minerals - rust

                          gases in the air (from
1908   1969               pollution or natural causes
              acid rain   such as volcanoes) mix
                          with rain, snow or other
                          precipitation

                                                 10
Biological Weathering
                   organisms growing
      lichens,     on rocks produce
      bacteria,    acids and enzymes
                   that break down and
      fungi        dissolve the rock

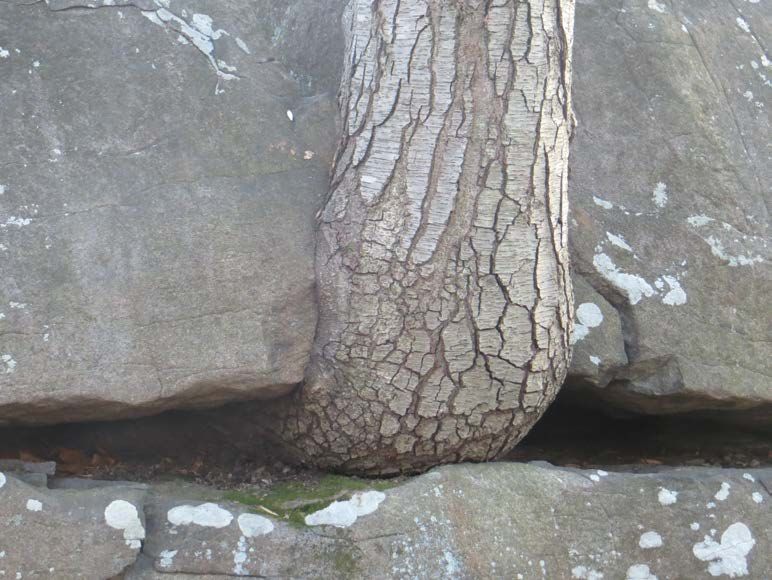

       trees
                  tree roots can break
       and        apart huge boulders
       plants

                                     11
Photos courtesy of Irene Gruenfeld
                                     12
Erosion
• Erosion: “carrying away” forces – things that take the
             broken off pieces and move them elsewhere

                                                       13
Deposition
• Deposition: “leaving behind”–rock material is laid down
               (volcanoes also leave new rock)

                                                      14

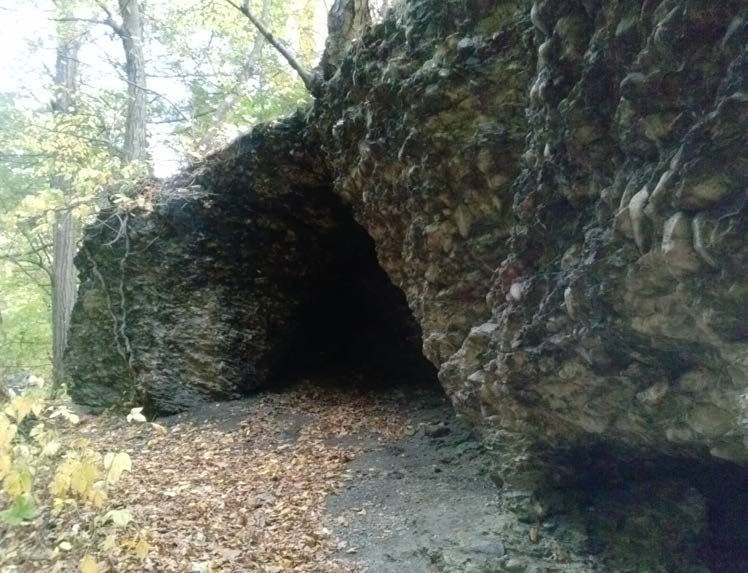

Hemlock Gorge

• cave – rock material has
  been worn away

                                15
Sedimentary rock
• Made from sediments: bits and pieces of rock and organic
  matter cemented and compacted together
• Rocks break apart and form sediments - weathering
• Sediments transported by wind, water, and glaciers - erosion
• Heavier material drops out first - deposition
• Layer upon layers, flat and parallel
• Weight of water compresses the layers

                                                            16
Hemlock Gorge
• Around 580,000,000 years old
• Sedimentary – Roxbury
  Puddingstone
• Large rounded rocks
  embedded in sandstone
• Embedded rocks resembled
  raisins in “pudding”

           Similar rock is found in Africa!

                                              17
Hemlock Gorge
          Roxbury Puddingstone

Is this an example of weathering, erosion or
deposition?
                                          18
Shaping New England

 Glaciers

                      19
Glacial Formations
• 22,000 years ago – peak of the Ice Age
• Glaciers covered New England
• Glaciers move – push rocks and earth aside
• Rocks get frozen in the ice and carried long
  distances
• Receding glaciers and melting ice create
  new landforms

                                             20
Abrasion and Plucking
• Glacier came from NW passing slowly over
  bedrock
  – Polishing the surface
  – Scraping in the rock – glacial striations
  – Plucking the backside

                                                21
Devil’s Slide   St Mary’s Cemetery

                                     22

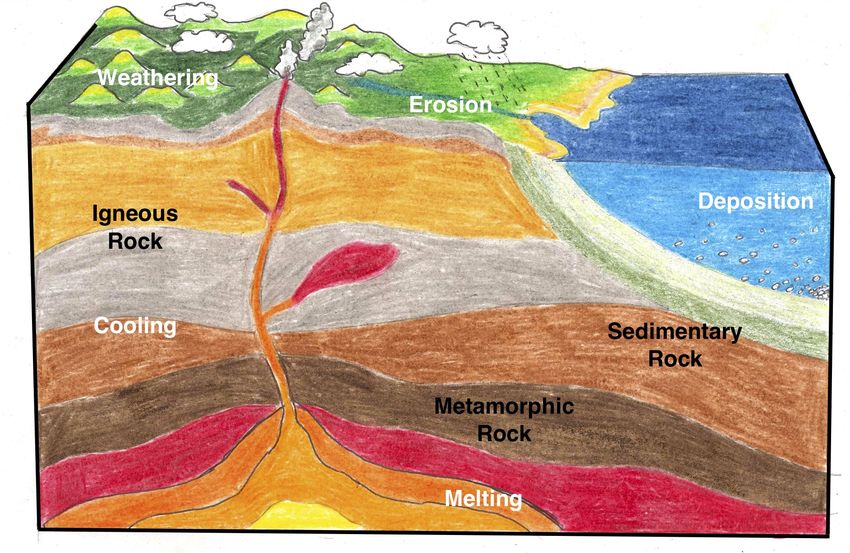

Different Types of Rock

                          23
Intrusions

• Magma under the surface
  is pushed up into any
  available cracks and
  spaces in existing rock

• Can vary from mountain-
  range-size to vein-like
  fracture fillings

                                 24
Devil’s Slide
• 600,000,000 years old
• Oldest rocks in Wellesley
• Formed deep below the surface
• Diorite intrusion into surrounding
  granite
• Millions of years of weathering for
  our granite and diorite to become
  exposed at the surface

                                        25
A Volcano?

 in Wellesley?

                 26

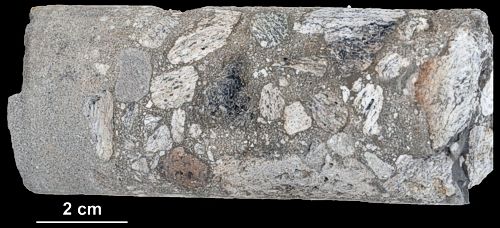

Volcanic Breccia
• As lava moves up through cracks
  in bedrock, pieces of bedrock
  break off
• Bedrock pieces show signs of
  stretching from the heat
• Some lava never reaches the
  surface - cools slowly, hardening
  underground with pieces of
  bedrock embedded in it
• Over time, the volcano has
  eroded away – only plug remains

                                      27
St. Mary’s Cemetery

• 580,000,000 years old

• Igneous – volcanic breccia

• Hardened lava that never
  made it to the surface

• More breccia is found near the school in nearby
  Needham – it was a large volcano

                                                    28
Devil’s Slide      St Mary’s Cemetery

Are these examples of weathering, erosion
or deposition?
                                          29
Eskers
• Ridges of gravel and sand
• Rivers and streams flowed on, in and beneath
  glaciers
• Can be over 100 ft. high, hundreds of feet
  wide, and several miles long

                                                 30
Longfellow Pond – Esker Trail

                                31

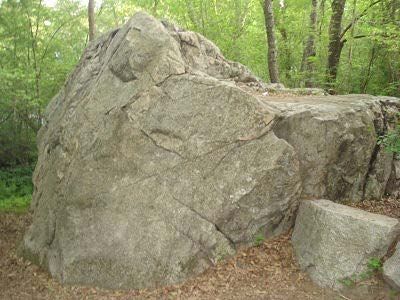

Glacial Erratic
                 Kelly Memorial Park
• Erratic: a rock that differs
  from native rock in size and
  type

• Carried by glacial ice, often
  hundreds of miles

Note: Fairy Rock has very large pink feldspar crystals
(this tells us it cooled very slowly below the surface)

                                                          32
Longfellow Pond        Kelly Memorial Park
  Esker Trail             Glacial Erratic

Are these examples of weathering, erosion
or deposition?
                                         33
Kelly Field: Kettle Hole
• Formed by a retreating (melting) glacier
• Blocks of ice break off, getting surrounded by sand,
  gravel and rocks from the melting glacier
• Blocks eventually melt leaving a depression

                                                     34
Weathering & Erosion

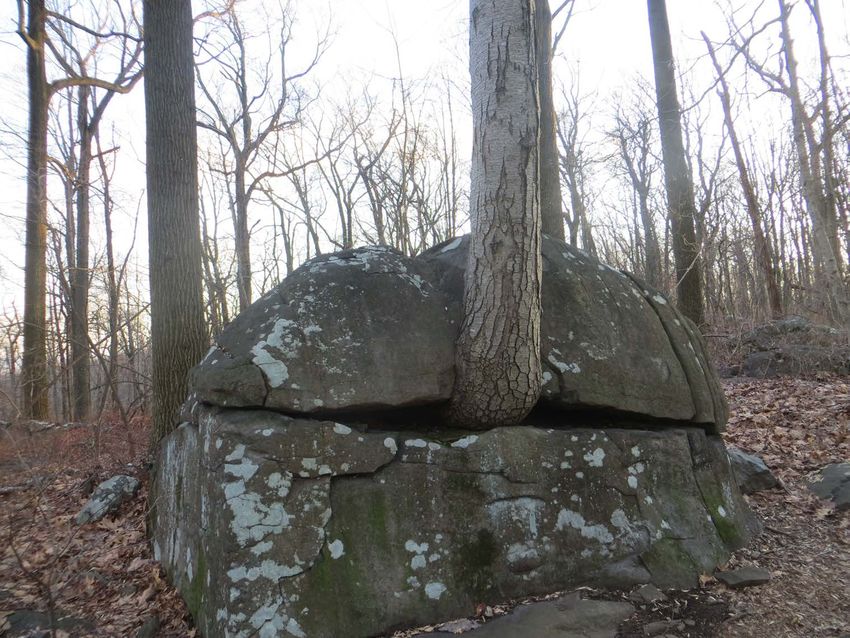

• Devil’s Slide
  – trees growing into the rock
  - lichen growing on the rock
  - rocks broken off the backside

• St.   Mary’s Cemetery
  - channel cutting across the rock
  - signs of rocks eroding at different rates

• Hemlock     Gorge
  - the cave formed by water
  - rocks falling out

                                                35
Glaciers
• Devil’s Slide          • St.   Mary’s Cemetery
  - smoothing on front     - smoothing on front
  - glacial striations     - glacial striations
  - plucking on back       - plucking on back

• Longfellow   Pond      • Kelly   Field
  - esker                  - glacial erratic
                           - kettle hole

                                                  36
The Geologic Time Scale
a trip through Wellesley’s geologic history

                                              37
Final thoughts:
• Stories in Stone: every rock tells a story of how it formed
  and what has happened to it since
• Understand what a rock, or rock formations, tell you about
  the geologic history of the area (i.e. glacial activity,
  volcanic activity, crustal motion, water action)
• Don’t worry about specific rock names but perhaps look for
  identifying traits for each type of rock:
      igneous – visible crystals
      sedimentary – layers, fossils, rounded particles
• Generate excitement and curiosity as you learn about
  Wellesley’s history through its rocks, exploring it’s
  volcanic past, glacial past and present day geology

                                                                38
