FA ST M O U N T P R O D U CT C ATA LO G
®
Pa n e l M o u n t i n g S y s t e m s
CONTENTS
Product Applications 2 Very Low Profile Range 6
Architectural Clip Selection Guide 2
Standard Profile Range 3, 4 VL-03: CLIP SET
Female Clips
PC-F1A: SELF TAPPING VL-03H: HEAVY DUTY CLIP SET
VL-03FR: FIRE RATED CLIP SET
PC-SF1: SURFACE MOUNT
Stratlock™ Range 7
PC-RF1-B: SIDE SURFACE MOUNT
Female Clips
PC-AF1: AUTO FIT SL-SFA
Male Clip
PC-DC1: MASONRY AND DRYWALL SL-M18
ADAPTER FOR PC-F1A
Metal Range 8
Male Clips
Female Clips
PC-M1B: SELF TAPPING
MC-F5: SELF TAPPING MAXI METAL
PC-M2H: SELF TAPPING
HEAVY DUTY
PC-VM1: VARIO SELF TAPPING MC-F10: SELF TAPPING MAXI METAL
HEAVY DUTY
PC-VMX: VARIO SELF TAPPING
HEAVY DUTY
Male Clips
PC-SM2: SURFACE MOUNT MC-M5: MAXI METAL SELF TAPPING
PC-SM2H: SURFACE MOUNT
HEAVY DUTY Textile Range 9
Female Clips
PC-SM1AC: SURFACE MOUNT
ACOUSTIC PANEL LIGHTWEIGHT TC-F6H: TEXTILE CLIP QUICK RELEASE TYPE
HEAVY DUTY
PC-SVMX: SCREW FIX
HEAVY DUTY Male Clips
TC-M6: TEXTILE CLIP SCREW-IN TYPE
Low Profile Range 5
Female Clips
TC-SM6: TEXTILE CLIP SELF-ADHESIVE TYPE
LP-F8: SELF TAPPING
LP-DF8: SELF TAPPING
COARSE DRYWALL THREAD Panel Control 10
LP-AF8A: AUTO FIT PS-150E: SELF TAPPING
Male Clips
LP-M8A: SELF TAPPING
PS-S150E: SURFACE MOUNT
LP-SM8AS: SURFACE MOUNT
Technical Notes 11, 12
LP-SMX: SURFACE MOUNT Installation Tools 13
1 | FASTMOUNT® PRODUCT CATALOG
www.sugatsune.com

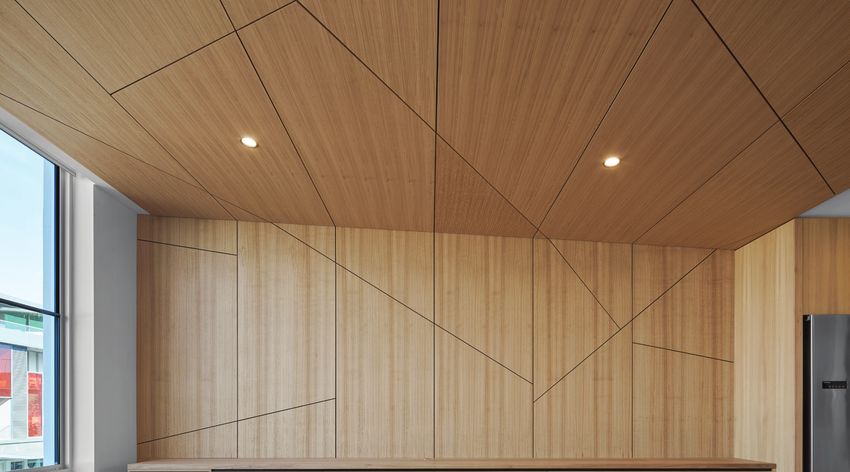

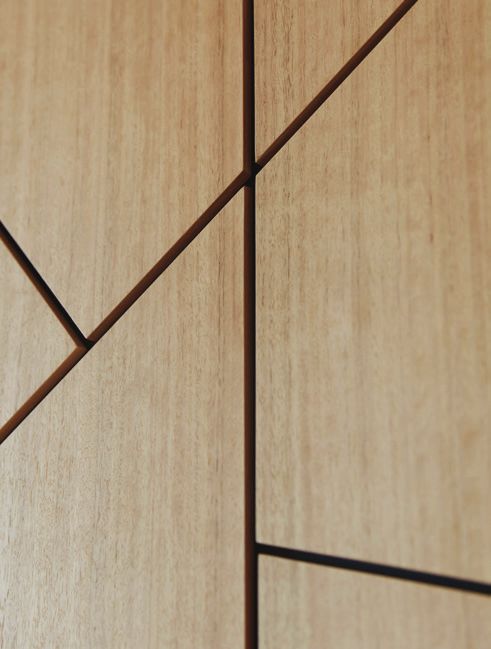

Product Applications
4

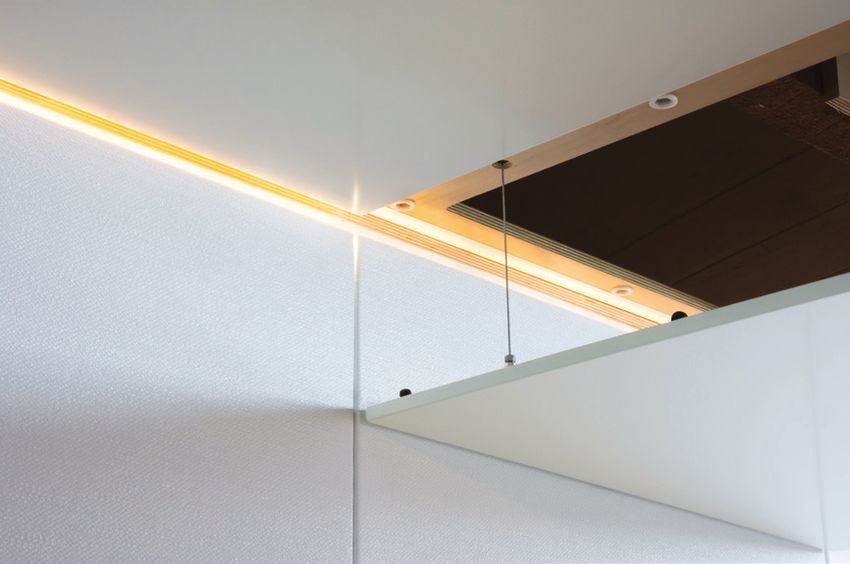

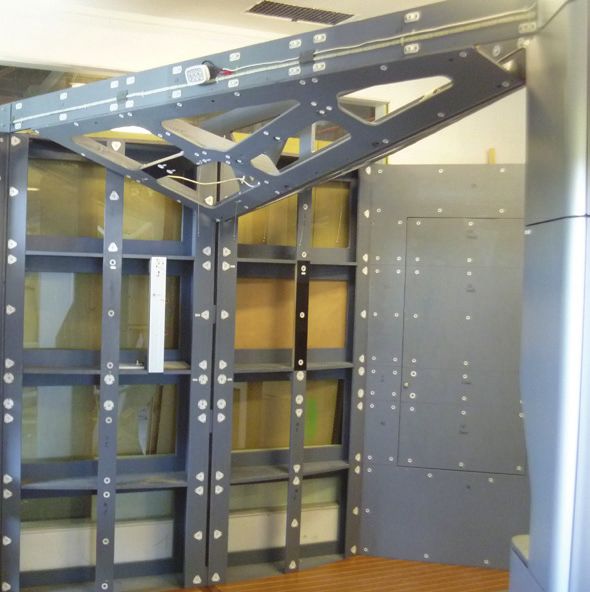

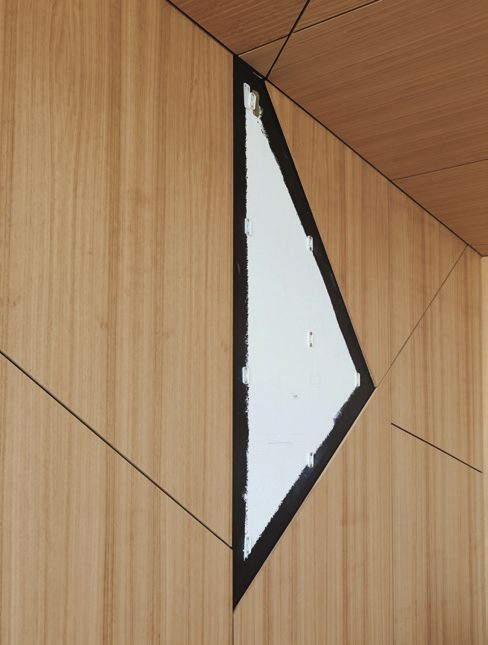

Wall Panel Installation Removal Indirect Lighting Breakdown Furniture Retail Seating Trim
PC-1
s045d14 s045d02.eps s045d12 s045d13
Which Clips Should I Use? s045d11
Fastmount® clips vary in size, shape, and function for use in various applications. “Profile” refers to the thickness of the support substrate;
the thickness and material of the support substrate will determine the type of clips best suited to your application:
Standard Profile Clips Low Profile Clips Metal Clips
• Self-tapping clips can be used in • For applications with support • Metal clip to withstand high
applications with support substrate substrate 3/8” or thicker. temperatures.
spe.80d540s
9/16” or thicker; surface mount clips
can be used with thinner support
• LP-DF8 clip option for drywall
mounting available (wall panels only).
• Allows for tolerance and panel flex
(self-centering).
materials such as steel frames. • Provides acoustic and vibration
isolation.
• Self-tapping, surface mount, and
side surface mount clip options available.
• For use with wall and ceiling panels.
• PC-AF1 clip option for curved panels available.

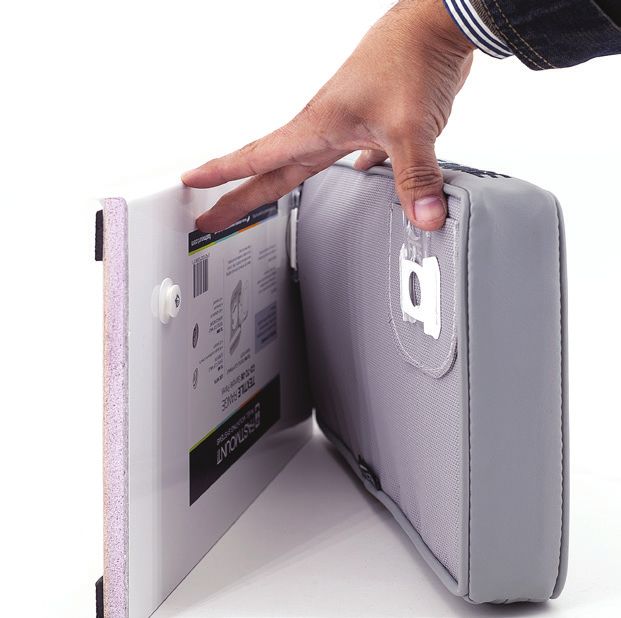

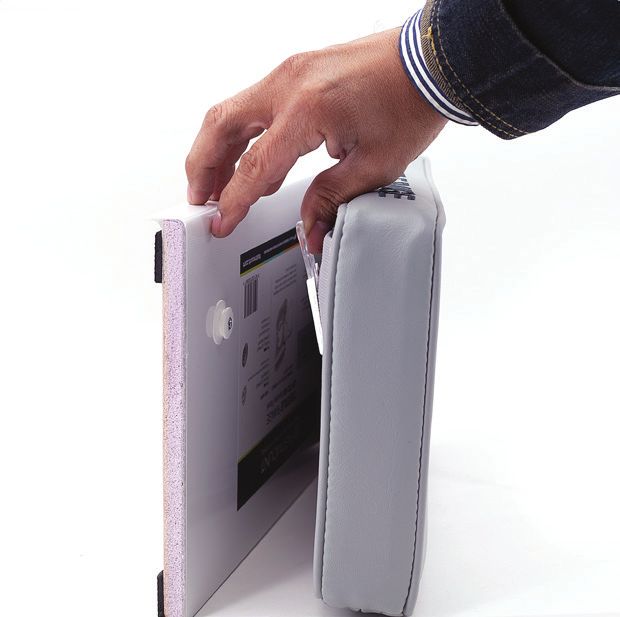

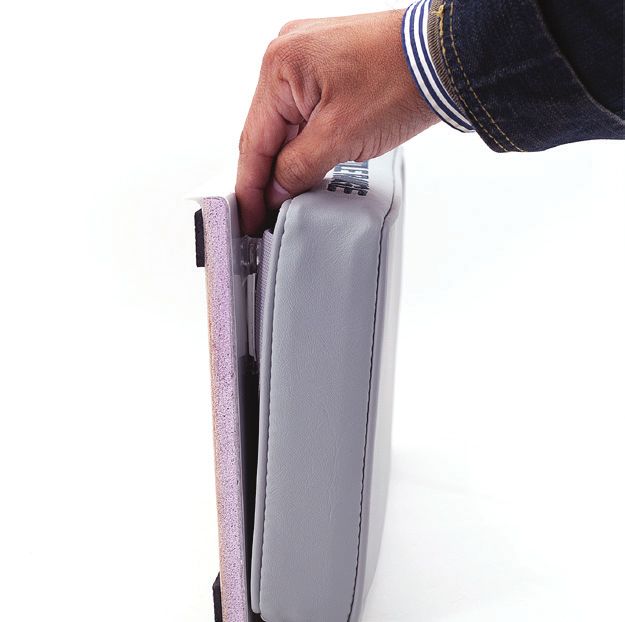

Very Low Profile Clips Textile Clips
• PC-DC1 masonry adapter for PC-F1A
available for brick, concrete, and drywall • Can be surface or recessed • Enables quick installation and easy
(Wall panel only). mounted – no minimum removal of cushions.
substrate thickness. • Replaces hook-and-loop tapes,
• No specialized tools required snaps, and straps for cushions
for installation. on outdoor furniture and marine
• VL clips can be used with a two part applications.
unt.com epoxy appropriate for the material of Setting the standard for panel mounting
your substrate and panel.
• Fire resistant model available.
• For light weight panels.
ECTION GUIDE - ARCHITECTURAL
Architectural Clip Selection Guide
SUBSTRATE PLYWOOD PANEL MDF PANEL PARTICLE BOARD ACOUSTIC PANEL HONEYCOMB PANEL
WOOD PC-F1A + PC-VM1 PC-F1A + PC-VM1 PC-F1A + PC-VM1 LP-F8 + LP-SM8AS LP-F8 + LP-SM8AS
PC-F1A + PC-M2H PC-F1A + PC-M2H PC-F1A + PC-M2H
FRAMES PC-F1A + PC-SM2H
STEEL PC-SF1 + PC-M1B PC-SF1 + PC-M1B PC-SF1 + PC-M1B PC-SF1 + PC-SM2 PC-SF1 + PC-SM2
PC-SF1 + PC-M2H PC-SF1 + PC-SM2H PC-SF1 + PC-SM2H
FRAMES PC-SF1 + PC-SM2 + glue thread
PC-SF1 + PC-SM2H
CONCRETE PC-DC1 + PC-F1A + PC-VM1 PC-DC1 + PC-F1A + PC-VM1 PC-DC1 + PC-F1A + PC-VM1 PC-DC1 + PC-F1A + PC-SM1AC PC-DC1 + PC-F1A + PC-SM2
PC-DC1 + PC-F1A + PC-M2H PC-DC1 + PC-F1A + PC-M2H PC-DC1 + PC-F1A + PC-M2H PC-DC1 + PC-F1A + PC-SM2H
PC-DC1 + PC-F1A + PC-SM2H
CONCRETE PC-F1A + PC-M2H PC-F1A + PC-M2H PC-F1A + PC-M2H Must use Must use
PC-F1A + PC-SM2 PC-F1A + PC-SM2 PC-F1A + PC-SM2 Wood Frames Wood Frames
+ WOOD PC-F1A + PC-SM2H PC-F1A + PC-SM2H PC-F1A + PC-SM2H + LP-F8 + LP-SM8AS + LP-F8 + LP-SM8AS
FRAMES
DRYWALL LP-DF8 + LP-M8A LP-DF8 + LP-M8A LP-DF8 + LP-M8A LP-DF8 + LP-SM8AS with HMA (hot glue) LP-DF8 + LP-SM8AS
LP-DF8 + LP-SM8AS LP-DF8 + LP-SM8AS LP-DF8 + LP-SM8AS PC-DC1 + PC-F1A + PC-SM1AC - with epoxy glue
PC-DC1 + PC-F1A + PC-VM1 PC-DC1 + PC-F1A + PC-VM1 PC-DC1 + PC-F1A + PC-VM1 PC-DC1 + PC-F1A + PC-SM2
PC-DC1 + PC-F1A + PC-M2H PC-DC1 + PC-F1A + PC-M2H PC-DC1 + PC-F1A + PC-M2H PC-DC1 + PC-F1A + PC-SM2H
PC-DC1 + PC-F1A + PC-SM2H
PLYWOOD, PC-F1A + PC-M1B PC-F1A + PC-M1B PC-F1A + PC-M1B LP-F8 + LP-SM8AS LP-F8 + LP-SM8AS
PC-F1A + PC-M2H PC-F1A + PC-M2H PC-F1A + PC-M2H - with epoxy glue
MDF PC-F1A + PC-SM2 PC-F1A + PC-SM2 PC-F1A + PC-SM2
PC-F1A + PC-SM2H PC-F1A + PC-SM2H PC-F1A + PC-SM2H
This Clip Selection Guide should be used as a general guide only. Please contact customer service for more detailed advice if required. For overhead panels, a trial installation is strongly recommended to prove compatibility of
Fastmount® systems with the panels and substrates in your project.
FASTMOUNT® PRODUCT CATALOG | 2
Standard Profile Range
The Standard Profile Clips offer the greatest variety of installation options
P C -01 Self tapping clip set = PC-M1A + PC-F1A
and can be used for both wall and ceiling panels. Self-tapping clips can be
used in applications with support substrate 9/16” or thicker; surface mount clips
can be used with thinner support materials such as steel frames.
(4 mm)
1/8"
PC-SF1 Surface mount female screw fix
Female Clips
Item No. Dimensions Diagram Description
PC-F1A "
PC
PC -R-R
F1F1Side
Side mount
mount female
female screw
screw fixfix SELF TAPPING
3/4 mm)
(4 mm)
.8
(19 Mounts into:
1/8"
(4 mm)
1/8"
0.66” (16.8mm) hole drill with CT-01, CT-07
(14.8 mm) (2 mm)
Install with: CT-03
1/16"
P C -AF1 Autofit female
P C -R F1 Side mount female screw fix
Compatible with Standard Profile Male Clips:
9/16"
SPECIFICATION: PC-M1B, PC-M2H, PC-VM1, PC-VMX, PC-SM1AC
PC-SM2, PC-SM2H
Box: 100 Carton: 500
1-12 P C -AF1 Autofit female
PC-SF1 SURFACE MOUNT
1-7/8" (48 mm)
SPECIFICATION:
(4 mm)
1-7/16" (36 mm)
1/8"
Affix with #6 screws.
1" (25 mm)
Compatible with Standard Profile Male Clips:
2×ϕ4 PC-M1B, PC-M2H, PC-VM1, PC-VMX, PC-SM1AC
11/16" (16.5 mm)
PC-SM2, PC-SM2H
(15.5 mm)
5/8"
PRODUCT SHEET / A5 / PC-DC1
3/16" (4.5 mm)
Box: 100 Carton: 700
PC-RF1-B SIDE SURFACE MOUNT
1/4" (6 mm)
4×ϕ4.5
(2 mm)
1/16"
(2 mm)
mm)
PRODUCT SHEET
(21/16"
1/16"
Setting the standard for panel mounting PC-M2H
Affix with #6 screws.
(19 mm)
3/4"
PC-DC1 Female Anchor INDUSTRY FIT:
Compatible with Standard Profile Male Clips:
(8 mm)
5/16"
1-1/8" SPECIFICATIONS: STANDARD PC RANGE
(28 mm) PC-SM2 PC-M1B, PC-M2H, PC-VM1, PC-VMX, PC-SM1AC
The PC-DC1 is an adjustable female anchor which houses the PC-F1A to
3/8" (10 mm)
BENEFITS
enable efficient mounting into drywall or concrete substrates. Features a self-
PC-SM2, PC-SM2H
3/4" (19 mm)
tapping installation for drywall and the option to hammer-set into pre-drilled • Quick to install
hole in concrete or brick. Allows transverse adjustment on uneven substrates to • No framework required when
create a level-mounting surface. Once PC-F1A is installed into the PC-DC1, the
PC-M2H
mounting to concrete walls
set can be used with any male clip in the Standard Range.
• Adjustable gap between wall and
Box: 100 Carton: 1,000
PC-SM2H
1-1/2" (38 mm) panel (4.5mm - 10.5mm) depending
PC-DC1 USE WITH:
on PC-F1A adjustment
PC-M1B PC-VM1 PC-SM2 • Minimal standoff of 4.5mm between
PC-AF1 PC-SM2
wall and panel PC-RF1
AUTO FIT
• Transverse adjustment allows ability
3xϕ4, ϕ6
1-3/8" to level wall quickly
(Ø351-11/16"
mm) (40 mm) 1-3/8" Lateral adjustment for use with curved panels.
• Allows flexibility of use of 6 male
(4 mm) (16 mm)
(Ø35 mm) PC-M2H PC-VMX PC-SM2H PC-SM1AC options depending on panel weight
Affix with #6 screws.
PC-SF1
and size (2kg - 15kg pull out load)
5/8"
(4 mm) (16 mm)
1-15/16" PAIRS WITH: • Remove and refit panels in any
5/8"
)
(49.9 mm
PC-SM2H
PC-F1A sequence time after time
APPLICATIONS
Mounts into: 1-3/8” (35mm) hole
Compatible with Standard Profile Male Clips:
1/8"
MATERIAL: • Stone/ concrete/ brick walls
1/8"
(16 mm) (2 mm)
1/16"
White acetal copolymer • Drywall/ plasterboard
PC-RF1
PC-M1B, PC-M2H, PC-VM1, PC-VMX, PC-SM1AC
• Interior refurbishment of existing
MORE INFO: blockwall TC-F6H
Installation Guide IG_PC-DC1 • Applying acoustic panels to blockwall
PC-SM2, PC-SM2H
5/8"
Clip Layout Guide FM TD-09 PC-SF1
• Applying various panel types to
concrete or drywall
INSTALLATION: Partially exploded through section showing typical installation method
Box: 25 Carton: 100
PC-DC1 PC-DC1 self-tapped into
PC-DC1 installed into 26mm
hole in concrete wall
SELF TAPPING
24mm hole in drywall
1-1/4"
(33 mm) TC-F6H
Masonry Drywall Adapter for PC-F1A
Mounts into: 15/16”~1” (24~26mm) hole
1-3/16"
(30 mm)
PC-F1A installed
Use
PC-F1A
installed
with: PC-F1A
1/16"
into PC-DC1
showing Install
into PC-DC1
showing with: rubber mallet (not provided).
11/16"
(2 mm) (17.3 mm) transverse transverse
adjustment adjustment
TC-F6H
1-1/16"
(27.5 mm)
PC-M1B self-tapped
into decorative panel
PC-M1B self-tapped
into decorative panel
Box: 100 Carton: 600
1-18 The Fastmount multi-award winning system has revolutionized the mounting of panels. Panels can easily be removed and refitted
Accessories
®
in any sequence time after time. For further information or technical support contact: info@fastmount.com
Installation Tools: Standard Profile
www.fastmount.com
*Specification subject to change without notice, see website for updates.
CP-01-ST STAINLESS STEEL TIP
PROUDLY DESIGNED & MANUFACTURED IN NEW ZEALAND
PRODUCT SHEET PC-DC1 / DATE 0718. Copyright © Fastmount Ltd.
CT-08 YARD KIT 6 TOOLS
TC-F6H
Stainless Steel tip for marking panels made of hard materials. Fits into the One each CT-01, CT-03, CT-05,
PC-F1A, PC-SF1, PC-RF1 and PC-AF1 female clips. Use to mark hole CT-07, CT-09, and CT-10 in plastic box.
center in panel for correct clip alignment. Use to install self-tapping standard profile
clips.
3 | FASTMOUNT® PRODUCT CATALOG
www.sugatsune.com
(4 mm)
1/8"
Standard Profile Range
Male Clips
Item No. Dimensions Diagram Description
(5.5 mm) (17.5 mm)
PC-M1B SELF TAPPING
17.5"
Mounts into:
(2 mm)
(4 mm)
1/16"
1/8"
3/8” (10mm) hole drilled with CT-01 or CT-09
P C -VM1 Vario Clip self tapping male Fits into: PC-F1A, PC-SF1, PC-RF1, PC-AF1
3/16"
Install with: CT-10
6"
13/1 m)
m
Pull Out Force: 11 lbs (5kg)
(20
Box: 100 Carton: 2,000
PC-M2H P C -VM1 Vario Clip self tapping male SELF TAPPING HEAVY DUTY
(7.5 mm) (17.3 mm)
1-02 Mounts into:
11/16"
(2 mm)
1/16"
3/8” (10mm) drilled with CT-01 or CT-09
(4 mm)
1/8"
Fits into: PC-F1A, PC-SF1, PC-RF1, PC-AF1
5/16"
Install with: CT-10
6"
13/1 m)
Minimum panel thickness: 11/32” (9mm)
(9 mm)
3/8"
m
(20 Pull Out Force: 22 lbs (10kg)
P C -S M2 S urface mount male adhesive fix Box: 100 Carton: 500
PC-VM1 VARIO SELF TAPPING
1-04
(7.5 mm) (17.3 mm)
11/16"
Variable gap, high shear strength.
(2 mm)
1/16"
Mounts into:
ø
3/8” (10mm) drilled with CT-01 or CT-09
5/16"
Fits into: PC-F1A, PC-SF1, PC-RF1, PC-AF1
Install with: CT-10
"
13/16 )
P C -S M2H S urface mount male adhesive fix Minimum panel thickness: 11/32” (9mm)
m
(20 m 1/8" Pull Out Force: 11lbs (5kg)
(4 mm)
1/8" Box: 100 Carton: 2,000
(4 mm)
PC-VMX
1-06 VARIO SELF TAPPING HEAVY DUTY
(7.5 mm) (17.3 mm)
Variable gap, high shear strength.
11/16"
Mounts into:
(2 mm)
1/16"
1/4"
1/4" 3/8” (10mm) drilled with CT-01 or CT-09
ø
(7(7mm)
5/16"
mm)
Fits into: PC-F1A, PC-SF1, PC-RF1, PC-AF1
Install with: CT-10
"
13/16 ) Minimum panel thickness: 11/32” (9mm)
m
(20 m
Pull Out Force: 33 lbs (15kg)
Box: 100 Carton: 500
1-06
(2.2 mm)
PC-SM2 SURFACE MOUNT
1/16"
(17.6 mm)
(15.5 mm)
11/16"
Adhesive fix super-groove base.
5/8"
Fits into: PC-F1A, PC-SF1, PC-RF1, PC-AF1
"
1-3/16 )
(30 mm
Pull Out Force: 11lbs (5kg)
Box: 100 Carton: 1500
(3.2 mm)
PC-SM2H SURFACE MOUNT HEAVY DUTY Adhesive fix
1/8"
(18.7 mm)
(15.5 mm)
3/4"
super-groove base.
5/8"
"
Fits into: PC-F1A, PC-SF1, PC-RF1, PC-AF1
/16
1-3 mm)
(30
Pull Out Force: 22 lbs (10kg)
Box: 100 Carton: 500
PC-F1A clip screwed into support frame
PC-F1A clip screwed into support frame
PC-SM1AC SURFACE MOUNT ACOUSTIC FABRIC
1-7/16" PANEL LIGHTWEIGHT
Adhesive fix directly onto panel.
(36 mm) 15
A Fits into: PC-F1A, PC-SF1, PC-RF1, PC-AF1
Pull Out Force: 4.4 lbs (2kg)
11/16"
(17.6 mm)
1-3/8" Box: 100 Carton: 1,000
(35 mm)
1-3/8"
PC-SVMX (35 mm) SURFACE MOUNT HEAVY DUTY Screw fix
installation.
Fits into: PC-F1A, PC-RF1, PC-SF1, PC-AF1
Pull Out Force: 33 lbs (15kg)
5/8"
(16 mm)
5/8" Box: 100 Carton: 500
(16 mm)
FASTMOUNT® PRODUCT CATALOG | 4
LP-F8 Low Profile self tapping female
Low Profile Range
LP-F8withLow
For applications
LP-DF8 Self tapping coarse thread female
Profilesubstrates,
thin support self tapping female
3/8” (10mm) or thicker. LP-DF8 option available for wall panel
applications on drywall.
Female Clips
25.4
Item No. Dimensions Diagram Description
LP-F8 "
16 ) SELF TAPPING
3/ m
1- 0 m Mounts into: 1” (25-25.4mm) hole
(3
1" (25.4mm)
Fits into: Plywood and MDF boards.
3/8" (1.8 mm) Install tool: CT-19, CT-20
1/16"
Compatible with Low Profile Male Clips: LP-M8A, LP-SM8AS
(9.5 mm)
3/8"
(9.5 mm) Box: 100 Carton: 500
12
1/8"
(4 mm)
1/2" (12 mm)
LP-DF8 SELF TAPPING DRYWALL COARSE THREAD (Wall
2C "
/16 )
1-3 mm
1/8" (4 mm)
Panels Only)
( 3 0 Mounts into: 15/16”~1” (25-25.4mm) hole
Fits into: Drywall (sheetrock) and soft core materials 1/2” (12mm)
1/2" (1.8 mm)
or thicker.
1/16"
Install tool: CT-19, CT-20 in battery drill with correct clutch setting
(13 mm)
Compatible with Low Profile Male Clips: LP-M8A, LP-SM8AS
Box: 100 Carton: 900
1/2" (13 mm)
LP-AF8A 2D AUTO FIT
Lateral adjustment for use with curved panels. Affix with #6
3xϕ4, ϕ6 1-9/16" 7/16" 7/16"
(40 mm) Ø1-3/8" Ø1-3/8" (10.5 mm)(10.5 mm)
(35 mm) (35 mm)
1/8"
countersunk screws.
(42.9 mm)
1/8"
(4 mm) (4 mm)
1-11/16"
Mounts into: 1 3/8” (35mm) pre-drilled hole in substrate
(30 mm)
1-3/16"
(30 mm)
1-3/16"
Fits into: Plywood, MDF, fiberglass, etc., 7/16” (10.5mm) or
thicker.
1.8
(10.5 mm)
6
7/16"
Compatible with Low Profile Male Clips: LP-M8A, LP-SM8AS
10 Box: 25 Carton: 250
Male Clips
Item No. Dimensions Diagram Description
16"
LP-M8A 15/ mm) SELF TAPPING (Wall Panels Only)
(24
7/16" Mounts into: Plywood & MDF type boards with 3/8” (10mm) hole
(11.3 mm
) Fits into: LP-F8, LP-DF8, LP-AF8A
Install with: CT-10
1/4"mm)
(5.5 mm)
Pull Out Force: 11 lbs (5kg)
11/16"
2
(17.5
Box: 100 Carton: 2,000
7/16" (11.1)
(6 mm)
1/4"
LP-SM8AS 6" SURFACE MOUNT (Wall Panels Only)
1-3/1 m)
(30 m Can be glued or screwed into place with a self-tapping 3/4” #4
2A 7
(11 /16"
.3 m
screw.
Mounts onto: Plywood or MDF panels.
1/2" (12.7 mm)
m)
Fits into: LP-F8, LP-DF8, LP-AF8A
(2.2 mm)
1/16"
Pull Out Force: 11 lbs (5kg)
Box: 100 Carton: 500
LP-SMX SURFACE MOUNT (Wall and Ceiling Panels)
Mounts into: Steel, aluminum or fiberglass.
2B Fits into: LP-F8, LP-AF8A
Install with: 3x#6 countersink screws.
Pull Out Force: 33 lbs (15kg)
Box: 100 Carton: 500
Accessories Installation Tools: Low Profile Series
CP-08ST LOW PROFILE CLIP CENTER POINT – STEEL TIP LP-08Y YARD KIT LOW PROFILE
Stainless steel tip for marking panels made of hard materials. Fits into the Contains tools for installing Low Profile Range
LP-F8, LP-DF8 and LP-AF8A female clips. Use to mark hole center in panel clips and panel removal tool. Plastic box with
for correct clip alignment. CT-05, CT-09, CT-10, CT-19.
5 | FASTMOUNT® PRODUCT CATALOG
www.sugatsune.com
VL-03 Very Low Profile clip set
Very Low Profile Range
VL-03 Very Low Profile clip set #6g ss wafer head
tek screw (or similiar)
Perfect for mounting removable thin wall lightweight panels and facings. This clip set requires less depth compared to other
#6g ss wafer head
VL-CP3
Fastmount® ranges. No special installation tools are required; can be used with a two part epoxy
tek screw appropriate for the material of
(or similiar)
VL-CP3
your substrate and panel and/or
VL-03screw fixed.
Very Low Ideal
Profile clip for
set mounting panels where no drilling is preferred. Typical applications include
GLUE
wall panels, headboards and inspection panels. VL-03FR clips are made of flame #6g
GLUE
retardant
ss wafer head plastic, rated at UL94 V-0
tek screw (or similiar)
for applications requiring fire rated materials. VL-CP3
GLUE
VL-03/VL03H
Item No. Dimensions Diagram Spacing Options Description
VL-03 Female Clip 3/8" (9.8 mm)
CLIP SET
(Standard) Surface Mount
3/8" (9.8 mm) 3/8" (9.8 mm) For surface or recessed mounting.
Can be screw or glue fixed.
No special tools needed.
Ø15/16"
(24.5 mm)
1/16" (2.2 mm)
Supplied with:
5/16" (7.6 mm)
Ø 1-1/8"
(28 mm)
Stainless steel screw (VL-SS3).
1 screw included with VL-03
VL-03H
(Heavy Duty) and VL03H.
2 screws included with VL03FR.
Pull Out Force:
Male Clip 5/16" (8 mm)
VL-03: 11 lbs (5kg) per clip
1/8" (3.3 mm)
Recessed Mount 5/16" (8 mm) VL-03H: 22 lbs (10kg) per clip
VL-03FR: 22 lbs (10kg) per clip
1/4" (7.1 mm)
1/16" (2.2 mm)
1/8" (3.3 mm)
5/16" (8 mm)
Ø 1" (25 mm)
VL-03FR Ø 15/16" 1/8" (3.3 mm)
(Fire Rated) (24mm) For VL-03 & VL-03H:
Ø 1" (25 mm)
Box: 100 Carton: 500
5/16" (7 mm)
For VL-03FR:
Ø 1" (25 mm)
Box: 100 Carton: 1,000
5/16" (7 mm)
5/16" (7 mm)
Accessories
VL-CP3 VERY LOW PROFILE CENTER POINT
Use to mark hole center in panel for correct clip alignment. Has
stainless steel tip for marking panel or frame.
Tip: Push fits into either side of nylon molding.
p set
Installation: Female & Male Clips
#6g ss wafer head
tek screw (or similiar)
VL-CP3
GLUE
GLUE
When fixed with adhesive two part epoxy (glue), use in accordance with
manufacturer’s instructions. Z516d03.eps
VL-SS3 STAINLESS STEEL SCREW
Custom type 303 stainless steel screw for fixing VL-M3 into panels
3/8" (9.8 mm)
down to 1/4” (5.5mm) thick.
5/16" (8 mm)
1/8" (3.3 mm)
Ø 1" (25 mm)
FASTMOUNT® PRODUCT CATALOG | 6
5/16" (7 mm)
Stratlock Range
The SL-SFA provides rapid installation of heavy panels to timber, steel or aluminum framework. Designed specifically
for contract interior fit-out applications to reduce on-site installation time. Female installs onto side of framework with
2 x #8 panhead screws (20mm) in timber frames, and #8 tek screws (20mm) into steel or aluminum framework. Used with
the SL-M18 male clip, the new solid internal load chassis creates 4mm supported movement of the panel in any direction
at the first engagement before locking into place with an 39.7 lb (18kg) pull out load. The distance between the panel and
substrate when installed is 10.5mm at the first click, and 5mm when pressed into final position. Patent Pending.
SL-SFA/SL-M18
Item No. Diagram Description
SL-SFA CLIP SET
7/8" (21.72 mm)
• Strongest available fixing from
Fastmount.
(40.60 mm)
• Side movement of the panel 4mm
1-5/8"
in any direction before locking into
final position.
3-1/8" (80 mm) • No special tools required for
13/16" (20mm)
installation.
• Acousticisolation between panel
SL-M18 13/16" and frame.
(20.82 mm)
• 39.7
lb (18kg) pull out load with
SL-M18
• 5mm clearance between panel and
frame.
7/8" 1-9/16" (39 mm) Box: 100 Carton: 400
(22.12 mm)
Installation Steps: Screw Fix Method
1 2 2 Screw into position 3 4 Drill out mark created by
using 2 x #8 pan head CP-01ST with 3mm drill bit
20mm screws
(timber) OR Press CP-01ST centrepoint
Position SL-SFA #8 tek 20mm screws into SL-SFA, press panel
along frame (steel/alum.) onto point
5 Install SL-M18 6 5 Engage panel to first 7 Adjust panel to find 8 Once panel is in correct location,
with #8 screw click of SL-M18 into correct position engage second click by
SL-SFA pressing panel into final position.
8
Accessories
CP-01-ST STAINLESS STEEL TIP
Stainless Steel tip for marking panels made of hard materials. Fits into
the PC-F1A, PC-SF1, PC-RF1, PC-AF1, and SL-SFA female clips.
Use to mark hole center in panel for correct clip alignment.
7 | FASTMOUNT® PRODUCT CATALOG
MC-F5
H:
MC-M5H
#5 gauge ss csk screw www.sugatsune.com
Metal Clip Range
For applications where resistance toMC-05 &required.
high heat is MC-10These Maxipatent
Metalpending
Clip Setmetal(page
based
1 of 2) clips
are specifically designed to withstand high temperatures and to provide acoustic and vibration isolation.
The self-centering design allows for tolerance and panel flexing as well as the ability to be heavy load bearing.
Female Clips
Item No. Diagram Description
MC-05 MaxiMC-F5
Metal Clip Set (page 2 of 2) Ø13/16" (20 mm)
SELF TAPPING MAXI METAL
H: Affix with #6 screws.
1/2" (13 mm)
Install with: MC-IT5
(4 mm)
3/16"
Compatible with Maxi Metal Male Clip: MC-M5
MC-05 & MC-10 Maxi
#5 gauge
MetalssClip
csk Set
screw (page 1 of 2)
Pull out force: 11 lbs (5kg)
(10 mm)
3/8"
MC-05 & MC-10 Maxi Metal Clip Set (page 1 of 2)
Box: 10 Carton: 100
MC-F10 20
SELF TAPPING MAXI METAL HEAVY DUTY
Affix with #6 screws.
MC-05 & MC-10 Maxi Metal Clip Set (page 1 of 2)
Install with: MC-IT5
5.5
Compatible with Maxi Metal Male Clip: MC-M5
10
Pull out force: 22 lbs (10kg)
Box: 10 Carton: 100
Male Clips
Item No. Diagram Description
MC-M5 SELF TAPPING
Affix with #6 screws.
20 Mounts into: 3/8” (10mm) hole
Fits into: MC-F5, MC-F10
Install with: MC-IT5
Pull Out Force:
5.5
11 lbs (5kg) using with MC-F5
10
22 lbs (10kg) using with MC-F10
Box: 10 Carton: 100
Accessories Installation Tools: Metal Clip Series
MC-CP5 METAL CLIP CENTER POINT CT-09 PANEL DRILL 10MM FORSTNER TYPE
Center point fits MC-F5 metal clip. Use to mark hole center in panel, Use with Standard Profile, Low Profile and Maxi Metal Range. To
for correct clip alignment. Has stainless steel tip for marking panel. drill blind holes in the back of panels.
MC-IT5 INSTALL TOOL FOR MC-F5 & MC-M5
For installation of self tapping male MC-M5 and female
MC-F5 or MC-F10 into plywood or similar. Use battery drill with
correct torque setting.
CT-05 PANEL REMOVAL TOOL
Stainless steel tool for removing covered (upholstered)
panels. Do not use with painted panels.
FASTMOUNT® PRODUCT CATALOG | 8
Textile Clip Range
The Textile Range has been specifically designed for the mounting of soft textiles to hard surfaces. The hidden system locks into
place, and can only be removed by unlocking the clip, providing added security under high winds and seas. Makes cushions
simple to install, remove and replace. Typical applications include sun loungers, exterior and interior cushions, seat bases and
backs.
Female Clips
Item No. Diagram Description
TC-F6H QUICK RELEASE TEXTILE FEMALE CLIP HEAVY DUTY
Affix by sewing TC-F6H onto cushion with needle size 110/18 and V92
TC-F6H
or T90 Bonded Outdoor Polyester Thread.
Compatible with Male Textile Clip: TC-M6, TC-SM6
Box: 100 Carton: 500
Fabric Cushion
Male Clips
Item No. Diagram Description
TC-M6 Cushion
TEXTILE MALE CLIP - SCREW-IN TYPE
Cushion
Affix with #6 screw.
TC-F6H sewn
TC-F6 Sewn
onto cushion
onto cushion
Compatible with Female Textile Clip: TC-F6H
#6 gauge CSK screw Break out load: 22 lbs (10kg)
TC-M6
Deck moulding
Box: 100 Carton: 500
TC-SM6 Cushion
Cushion
TEXTILE MALE CLIP - SELF ADHESIVE TYPE
Affix with adhesive backing - clips supplied with VHB tape backing.
TC-F6H sewn
onto cushion
Compatible with Female Textile Clip: TC-F6H
Typical section
through
TC-SM6 with (unlocked, NTS)
adhesive backing Break out load: 22 lbs (10kg)
Typical section
Deck moulding through
/seat base (locked, NTS)
Box: 100 Carton: 500
Deck moulding
Accessories
TC-CP6H
Textile Range centerpoint with stainless steel tip to mark hole center
in panel for correct clip alignment. See install guide.
9 | FASTMOUNT® PRODUCT CATALOGPS-150E + PS-S150E PanelSafe Easy fit restraint system
www.sugatsune.com
Panel Control
Use in conjunction with standard or low-profile options like LP-SMX to provide additional security and control. Especially
well suited for ceiling panels, exit corridors and heavy panels which must be accessed often.
Item No. Dimensions Diagram PS-150EDescription
+ PS-S150E PanelSafe
PS-150E SELF TAPPING 150MM USE WITH:
PS-150E PS-S150E
Install with: CT-10
Standard drop length: 5 7/8” (150mm)
Ø11/16"
(16.8 mm)
PS-150E + PS-S150E PanelSafe Easy fit restraint system
Box: 4 Carton: 40
USE WITH:
(8 mm) 1/2" (12 mm)
Ø1-1/4" PS-150E PS-S150E
(32mm) Ø3/8"
1/16" (2 mm)
(10 mm)
15/16"
Ø13/16"
(20 mm)
PS-3
PS-S150E SURFACE MOUNT 150MM
Affix with #6 screw or adhesive.
Standard drop length: 5 7/8” (150mm)
Ø11/16" 50 225 225
(16.8 mm)
Box: 4 Carton: 40
1-51
3/4" (19 mm)
48
1/8" (3 mm)
Ø1-1/4"
284
400
(32 mm)
284
Ø1-1/2"
(38)
PS-4
1000400
Sample Layout using Panel Control Hardware
400 1000 400
1000
284 284 48
50
225
225
1000
1800
s045d16 FASTMOUNT® PRODUCT CATALOG | 10Technical Notes
Pull-out force
The pull-out force will vary depending on the clip type and are specified on each
product sheet. They are generally minimum 11 lb. (5kg) for typical standard range clips
and 22 lb. (10kg) for heavy duty clips.
The shock load is less and can be as low as 4.4 lb (2kg), depending on the type of
shock load. Clips never load simultaneously on a panel, so if a panel has 10 clips it
does not mean the force required to remove the panel (or the force the panel will take)
is 10x 11 lb. (5kg).
Clip spacing and panel loads
Panels need to be supported evenly around the perimeter to eliminate sagging. The
clip spacing requirements will vary depending on the application.
Although many of the Fastmount® clip sets will hold more than your theoretical panel
load, the reality of unknown conditions means panels and clips could be subjected to
shock loads (g-forces) from seismic shocks.
Fastmount® with different materials
You can mount Fastmount® clips into or onto most panel products such as plywood,
MDF, plastic, fiberglass, HPL, sandwich panels and composite panels. It is not
recommended to use very heavy materials. The LP-DF8 coarse thread female clip is
designed to work with drywall, for wall panels only. Installation with the standard profile
series should use 2-4 PC-VM1 or PC-VMX clips to relief shear tension and support
panel weight.
Drill setting and self tapping clips
The clutch setting on battery drills when fitting clips varies from drill to drill. It will
depend on the battery charge condition and on the material you are screwing into.
Once 2 or 3 test clips have been fitted, you will have a good feel for a setting that
screws the clips home, but does not over tighten them. If the clips are breaking, the
drill setting is too powerful. Some hard materials require a chamfer at the hole edge.
Adhesives for surface mount clips
The patent pending super-groove design means the Fastmount® surface mount clips
use a mechanical engagement to secure the clip, so adhesive selection is mostly
dependent on panel material. We recommend two-part epoxies that are suitable
for panel materials. A typical two-part epoxy will hold the clip at over three times the
clipping load 66-88 lb (30-40kg) per clip.
Layout for Wall Panels Maximum recommended panel weight: Layout for Large or Heavy Ceiling Panels Maximum recommended panel weight:
88 lbs (40kg). 66 lbs (30kg).
(Standard or Low Profile) (Standard Profile or Metal)
Maximum recommended panel size: Maximum recommended panel size:
94-1/2" x 47-1/4" (2.4mx1.2m) 94-1/2" x 47-1/4" (2.4mx1.2m)
1200
[3'-11 1/4"]
100 250 250 250 250
[4"] [9 3/4"] [9 3/4"] [9 3/4"] [9 3/4"]
[4"]
100
Heavy wall panels should be supported to
[1'-5 1/4"]
relieve the shear load. Installations with
440
standard Profile Series should use 2-4 PC-VM1
or PC-VMX clips to support panel weight.
Panel Clip
Outline of support frame
[1'-5 1/4"]
440
max 600
Make allowance for differential
movement of materials due
[7'-10 1/2"]
[1'-5 1/4"]
to thermal & other effects.
2400
440
Read with Fastmount installation
instructions.
See product sheets and drawing
TD-02 for more information.
25 to 50 For Standard Profile and
Metal ranges.
[1'-5 1/4"]
440
[1'-5 1/4"]
440
[4"]
100
11 | FASTMOUNT® PRODUCT CATALOGwww.sugatsune.com
Technical Notes Continued
Layout for large wall panel for SL-SFA Maximum recommended panel weight: Layout for Small or Lightweight Ceiling Panels
(Stratlock Range) 110.2 lbs (50kg) per m2. (Less than 1.1 lbs (-5 kg)
Maximum recommended panel size:
94-1/2” x 47-1/4” (2.4mx1.2m)
1200 1200
[3’ -11 1/4”] Fitting panel mounted (eg downlight >0.5kg)
[3’ -11 1/4”]
600 600 600 600
[1’ -11 1/2”] [1’ -11 1/2”] [1’such
heavy fitting -11 1/2”]
as speaker [1’ -11 1/2”]
supported seperately. Speaker
cover only fixed to panel
[1’ -11 1/8”]
[1’ -10 3/4”]
587.5
577.5
max 600
Panel clip
max 600
[2"]
300 max 50
Panel clip
Outline of Edge of covered or
support frame prefinished panel
[1’ -10 3/4”]
[1’ -11 1/8”]
[1’ -10 3/4”]
[9 3/4"]
577.5
587.5
250
577.5
Outline of panel support frame
(deck heads / grounds) shown
dashed. 90mm wide at panel to
[9 3/4"]
25
[7’ -10 1/2”]
[7’ -10 1/2”]
panel junction.
250
300 max. 20
2400
2400
[ ]
1"
3/4"
[2"]
50
100
[1’ -10 3/4”]
[1’ -11 1/8”]
[4"]
577.5
587.5
500
[1'-7 3/4"] 900
[2'-11 1/2"]
For panels wider than 600
add centre row of clips
Reflected plan view of ceiling panels
and support grid showing guidelines
[1’ -10 3/4”]
[1’ -11 1/8”]
for panel clip placement.
577.5
587.5
Reflected plan view of ceiling panels & support
grid. Read with Fastmount installation instructions.
ref:
Clip layout guide for small / lightweight ceiling panels TD-02
Standard, Low, Very Low, Metal ranges
scale: date:
for inserting into catalog border - not for external use nts 0415
www.fastmount.com Copyright ©Fastmount Limited
Notes
FASTMOUNT® PRODUCT CATALOG | 12Installation Tools
For installation quality and performance, the following tools are available for use.
CT-01 3/8” (10MM) DRILL CARBIDE TIPPED CT-12 1-1/4” (31MM) HSS COUNTERSINK DRILL
For use with the Standard Profile and BIT WITH 3/8” (10MM) SHANK
Low Profile ranges. For drilling through High speed steel (HSS) bit with 3/8” (10mm)
panel and creating pilot hole for CT-07. shank used to countersink the edge of holes
in hard materials. Designed for use with MDF,
plywood, fiberglass, and plastics when
preparing the material for self-tapping clips.
CT-03 INSTALL TOOL FOR PC-F1A CT-13A 11/16” (16.8MM) ONE STEP DRILL CARBIDE
For use with Standard Profile clip TIPPED
PC-F1A. Use to install self tapping For use with Standard Profile clip PC-F1A.
female PC-F1A with battery drill on Carbide tip drill with 16.8 diameter for drilling
correct torque setting. holes into fiberglass, carbon fiber and kevlar
laminates.
CT-05 PANEL REMOVAL TOOL CT-15 THREAD TAP FOR PC-F1A
Stainless steel tool for removing For use with Standard Profile clip
upholstered panels. Not for use with PC-F1A. Tap tool for tapping thread to fit PC-
painted panels. F1A into fibreglass, aluminum or similar. Either
drill hole with CT-13A or drill out
10mm hole with CT-07 then tap with CT-15.
CT-05H PANEL REMOVAL TOOL WITH HOOK CT-18DG DRILL GUIDE INSTALLATION JIG FOR
Dual purpose reinforced stainless steel PC-RF1
tool with fold down hook for use with Adjustable drill guide for use with the
lacquered and/or textured panels. Standard Profile Clip, PC-RF1.
CT-07 STEP DRILL CARBIDE TIPPED CT-19 INSTALL TOOL LOW PROFILE RANGE
For use with Standard Profile clip (Aluminum)
PC-F1A. Tungsten tip drill with For use with Low Profile range.
16.8mm diameter for drilling 10mm Aluminum install tool for female clips
hole in frame. LP-F8 and LP-DF8 with battery drill on
correct torque setting. Ideal for large
quantity installations.
CT-09 3/8” (10MM) FORSTNER TYPE DRILL CT-20 INSTALL TOOL LOW PROFILE RANGE
CARBIDE TIPPED (PLASTIC)
For use with Standard Profile, Low For use with Low Profile range. Plastic
Profile and Metal ranges. For drilling moulded install tool for female clips LP-F8
blind holes into the back of panels. and LP-DF8 with battery drill on correct
torque setting. For standard use. See install
guides and video for correct use.
CT-09DG DRILL GAUGE FOR CT-09 DRILL BIT CT-22 TAP FOR MALE CLIPS IN STANDARD AND
For use with CT-09 Forstner drill bit. LOW PROFILE RANGES
Designed for depth control when blind New product for tapping thread into hard
drilling for Standard and Low Profile materials for male clips, PC-M1B, PC-M2H,
range male clips. Incorporates a sealed PC-VM1, PC-VMX, LP-M8A, MC-M5, PS-150,
roller bearing for smooth operation, and PS-150E (self tapping male end).
is easily adjustable with an Allen wrench.
Made of machined aluminum housing
with an anodized red finish. (CT-09 bit
sold separately.)
CT-10 INSTALL TOOL SELF TAPPING MALE
CLIPS (Aluminum)
For use with Standard Profile, Low Profile
and Panel Control range. Use to install self
tapping male PC-M1B, PC-M2H, PC-VM1,
PC-VMX, PS-150 and LP-M8 with battery
drill on correct torque setting.0 1 2 3 4 5 6 7
Inches
Measurement Conversions
LENGTH FORCE
cm mm inch feet N kgf lbf
1 10 0.394 0.0328 1 0.10197 0.225
0.1 1 0.0394 0.00328 9.807 1 2.205
2.54 25.4 1 0.083 4.448 0.454 1
30.48 304.8 12 1 = kgf x 2.205 N = kgf x 9.807
kgf = lbf ÷ 2.205 kgf = N ÷ 9.807
inch = mm ÷ 25.4
mm = inch x 25.4
WEIGHT MOMENT
g kg oz lb N•m kgf • cm lbs • in
1 0.001 0.0353 0.0022 1 10.197 8.85
1000 1 35.27 2.205 0.0981 1 0.868
28.4 0.0284 1 0.0625 0.113 1.152 1
453.6 0.454 16 1 lbs • in = kgf • cm x 0.868 N • m = kgf • cm x 0.0981
kgf • cm = lbs • in ÷ 0.868 kgf • cm = N • m ÷ 0.0981
lb = kg x 2.205
kg = lb ÷ 2.205
TEMPERATURE
°C °F
0 32
-17.77 0
°C = ( °F - 32 ) x 5 ÷ 9
°F = °C ÷ 5 x 9 + 32
*All tools and figures are for reference only.
DISCLAIMER:
Specifications, features, illustrations, certifications and materials shown in this catalog are based upon the latest available information at the time of publication. Although descriptions are believed
to be correct, accuracy cannot be guaranteed. Sugatsune reserves the right to make changes at any time, without notice or obligation, in finishes, materials, sizes, specifications and availability
and disclaims any and all liability for typographical, printing or production errors or changes affecting the products and/or specifications contained herein.
Actual performance of products may vary based upon many factors and may be less than stated. Differences in construction and build materials, designs or configurations may affect product
performance and therefore, the customer is solely responsible for making the final selection of the product(s) to be used and to assure that all performance, safety and warning requirements
of the application are satisfied.
Centimeters
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18Distributed by:
Sugatsune America, Inc.
18101 Savarona Way
Carson, CA 90746
Phone: 310-329-6373
Toll Free: 800-562-5267
Fax: 310-329-0819
E-mail: sales@sugatsune.com
Chicago Showroom
121 West Wacker Drive #1007
Chicago, IL 60601
Phone: 312-461-1081
Fax: 312-461-1082
Sugatsune Canada, Inc.
3775 Boulevard du Tricentenaire
Montreal, Quebec
H1B 5W3
Phone: 514-312-5267
E-mail: support@sugatsune.ca
www.sugatsune.com
www.sugatsune.ca (for Canada)
LIT-Fastmount-B6You can also read
