EQUIPMENT TRAILERS
ENHANCED INNOVATION IN
EQUIPMENT TRANSPORTATION
EZ Load Drop Deck & Tilt Deck Systems
All Aluminum Construction
08/2021
ABOUT US / WARRANTY INFO
About Us
Timpte has been serving the transportation industry since 1884; longer than any other trailer manufacturer. Headquartered in David
City, NE since 1980 on over 60 acres of campus, Timpte is well known for our Super Hopper line of aluminum dry bulk commodity
trailers and we’re proud to be the #1 selling dry bulk commodity trailer in North America. As the recognized market leader, Timpte has
leveraged our in-depth engineering and manufacturing experience with aluminum – along with our economies of scale – to offer the
equipment trailer market a very unique and highly differentiated product-line. Timpte’s equipment trailers offer the versatility to haul
a wide variety of equipment without compromising our high standards for quality and durability. Compared to their steel counterparts,
aluminum provides a much lighter empty weight making our trailers easier to pull and providing higher payload capacity.
The same aftermarket parts supply & warranty support that enabled Timpte to become the #1 selling dry bulk commodity trailer in
North America is utilized to support our equipment trailer business. The Timpte Parts Center can quickly process parts orders to ensure
timely delivery to our Dealer’s facilities and our experienced Warranty Team will work closely with the Dealers to diagnose problems
and quickly implement the necessary repairs.
Timpte represents American craftsmanship and innovation at its finest. From initial investment through the entire life-cycle ownership
experience, Timpte looks forward to working with our distribution partners to ensure our valued end customers enjoy the best
transportation solutions available.
Warranty Claims
Final end customer must register their equipment trailer online by filling out the form at:
Timpte.com/equipment-trailer-registration
For all warranty claims please contact our warranty department at 402-367-3056 or email warranty@timpte.com.
2 Timpte Equipment Trailers
MODELS
312 Model 314 Model
2,990 GVW 2,990 GVW
12 feet x 81” deck 14 feet x 81” deck
718 Model 720 Model
7,000 GVW 7,000 GVW
18 feet x 81” deck 20 feet x 81” deck
1018 Model 1020 Model
10,000 GVW 10,000 GVW
18 feet x 78” deck 20 feet x 78” deck
1420 Model 1424 Model
14,000 GVW 14,000 GVW
20 feet x 82” deck 24 feet x 82” deck
www.timpte.com 3
3K, 7K, 10K MODELS
Powered EZ Load Deck Lowering System
Raise and lower your deck bed, featuring four degree approach angle, with one push of a button on your wireless
remote or main switch. Trailer can be loaded or unloaded without being hooked to tow vehicle and does not
require ramps. Save space by storing equipment on trailer in its lowered position while not in use.
All Aluminum Construction
The empty weight you want and the strength you need! Easy to use and operate with no structural aluminum
welds. From main c-channel frame, to side rails and deck material, this lightweight trailer delivers reliable and
smooth performance that is easy to use and operate with minimal clearance.
Wireless Remote Operation
Raise the trailer from inside or outside loaded equipment.
Theft Prevention
No longer will theft be an issue. Eliminate the need for chains and padlocks for securing your trailer in place
when not in use. Lower trailer, lock it, and leave it.
4 Timpte Equipment Trailers
3K EQUIPMENT TRAILER
312 / 314 Model
312
GVW
2,990
Bed Size
12’ x 81”
Empty Weight
1,040 lbs
Models 314 2,990 14’ x 81” 1,180 lbs
312 314
Overall Width 102” 102”
Overall Length 17’ 1” 19’ 1”
Tongue Length 61” 61”
Specifications
Deck Height 18” 18”
Loading Angle 40 40
Wheel Size 14” 14”
Tire Size ST205/75R14 ST205/75R14
Standard
Axle Hub Assembly Hub Assembly
Suspension Leaf Spring Leaf Spring
Brakes N/A N/A
Coupler Demco 2” Demco 2”
Coupler Position Fixed Fixed
Jack Style Fulton Side Crank Fulton Side Crank
Jack Rating 2,000 lbs. 2,000 lbs.
Stake Pockets 6 6
Tie-Downs Four L-Track D-Rings Four L-Track D-Rings
Lighting LED LED
www.timpte.com 5

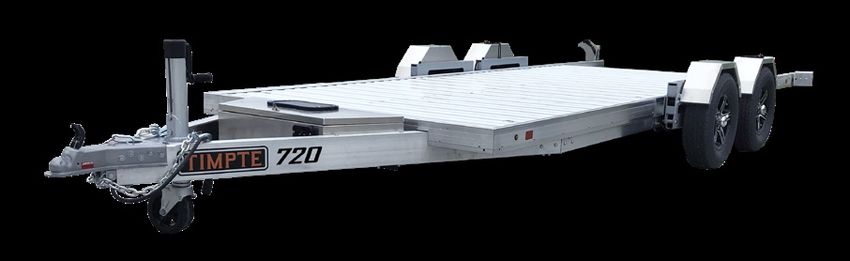

7K EQUIPMENT TRAILER
718 / 720 Model
718
GVW
7,000
Bed Size
18’ x 81”
Empty Weight
1640 lbs
Models 720 7,000 20’ x 81” 1780 lbs
718 720
Overall Width 102” 102”
Overall Length 23’ 1” 25’ 1”
Tongue Length 61” 61”
Specifications
Deck Height 18” 18”
Loading Angle 40 40
Wheel Size 14” 14”
Tire Size ST205/75R14 ST205/75R14
Standard
Axle Hub Assembly Hub Assembly
Suspension Leaf Spring Leaf Spring
Brakes Electric Self-Adjusting Electric Self-Adjusting
Coupler Demco 2-5/16” Demco 2-5/16”
Coupler Position Fixed Fixed
Jack Style Fulton Side Crank Fulton Side Crank
Jack Rating 2,000 lbs. 2,000 lbs.
Stake Pockets 8 8
Tie-Downs Four L-Track D-Rings Four L-Track D-Rings
Lighting LED LED
6 Timpte Equipment Trailers
10K EQUIPMENT TRAILER
1018 / 1020 Model
1018
GVW
10,000
Bed Size
18’ x 78”
Empty Weight
2,120 lbs
Models 1020 10,000 20’ x 78” 2,240 lbs
1018 1020
Overall Width 102” 102”
Overall Length 23’ 1” 25’ 1”
Tongue Length 61” 61”
Specifications
Deck Height 21” 21”
Loading Angle 40 40
Wheel Size 16” 16”
Tire Size ST235/80R16 ST235/80R16
Standard
Axle Hub Assembly Hub Assembly
Suspension Leaf Spring Leaf Spring
Brakes Electric Self-Adjusting Electric Self-Adjusting
Coupler Demco 2-5/16” Demco 2-5/16”
Coupler Position Fixed Fixed
Jack Style Fulton Side Crank Fulton Side Crank
Jack Rating 2,000 lbs. 2,000 lbs.
Stake Pockets 8 8
Tie-Downs Four L-Track D-Rings Four L-Track D-Rings
Lighting LED LED
www.timpte.com 7
14K EQUIPMENT TRAILER

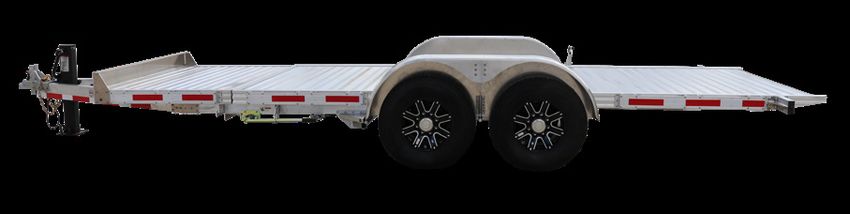

Split Tilt Deck System
Deck is able to be raised and lowered by optimizing an adjustable hydraulic cylinder system to allow for ease
of use and safety when loading and unloading equipment, without requiring ramps, and gives more control
to the operator. Each trailer features a stationary deck for the ability of loading attachments or other forms of
equipment.
All Aluminum Construction
The empty weight you want and the strength you need! Easy to use and operate with no structural aluminum
welds. From main c-channel frame, to side rails and deck material, this lightweight trailer delivers reliable and
smooth performance that is easy to use and operate with minimal clearance.
Manual Lock System
Located on the side rail, the locking system will latch when equipment is loaded. Trailer will not be able to lower
until system has been unlatched and hydraulic valves been released.
8 Timpte Equipment Trailers
14K EQUIPMENT TRAILER
1420 / 1424 Model
1420
GVW
14,000
Bed Size
16’ + 4’
Empty Weight
2,620 lbs
Models 1424 14,000 18’ + 6’ Est. 2,990 lbs
1420 1424
Overall Width 102” 102”
Overall Length 24’ 6” 28’ 6”
Stationary Deck Length 4’ 6’
Specifications
Tilt Deck Length 16’ 18’
Tongue Length 56” 56”
Deck Height 22” 22”
Loading Angle 120 11.50
Wheel Size 16” 16”
Standard
Tire Size ST235/85R16 ST235/85R16
Axle Fixed Fixed
Suspension Rubber Torsion Rubber Torsion
Brakes Electric Self-Adjusting Electric Self-Adjusting
Coupler 2-5/16” 2-5/16”
Coupler Position Adjustable Adjustable
Jack Style Side Crank Side Crank
Jack Rating 12,000 lbs. 12,000 lbs.
Stake Pockets 18 18
Lighting LED LED
www.timpte.com 9
OPTIONS
Tire Rack Rock Guard
PART NO. DESCRIPTION PART NO. DESCRIPTION UNIT
577-301007 3K, 7K, 10K Options 577-300393 3K & 7K Rockguard EA
577-300454 10K Rockguard EA
*4 Stake Pockets
Required
*Hardware Included
Spare Tire
Spare Tire Mount (Includes Hardware)
PART NO. DESCRIPTION UNIT
035-300298 3K & 7K Tire Option EA PART NO. DESCRIPTION UNIT
035-300357 10K Tire Option EA 577-300387 3K, 7K, 10K Options EA
035-301038 14K Tire Option EA 035-301609 Universal Stake Pocket Tire Mount EA
Universal Mount
3K, 7K, 10K
Mount
Motorcycle Bracket Tie-Downs
PART NO. UNIT PART NO. DESCRIPTION UNIT
575-300697 EA 035-301453 L-Track D-Ring Tie Down EA
575-300527 Swivel Tie Down - Full Assemble EA
D-Ring Swivel
*Mounting Hardware Included
Solar Panel Warn Loading Winch - 4,500 lb.
PART NO. UNIT PART NO. UNIT
575-300504 EA 575-300627 EA
All pricing for options are for the part only. Install not included.
10 TimpteOPTIONS
Stake Pockets Sideboard Kits
PART NO. UNIT PART NO. DESCRIPTION UNIT
577-300562 One Pair 577-301574 Sideboard Kit - 312/314 Trailer EA
577-301575 Sideboard Kit - 718/1018 Trailer EA
577-301576 Sideboard Kit - 720/1020 Trailer EA
577-300669 Front Board Kit - 3K/7K/10K EA
*For complete trailer coverage
sideboard kit & front board kit must
Logistics E-Track both be ordered
PART NO. UNIT
035-300698 EA Removable Fender
PART NO. DESCRIPTION UNIT
577-301229 Installation Hardware Kit EA
*Hardware NOT
Included
Snowmobile Clamp
PART NO. UNIT Snowmobile Runner
035-300970 EA
PART NO. DESCRIPTION UNIT
*Hardware NOT
035-300969 93-3/4” x 6-5/16” EA
Included
*Hardware NOT Included
Toolbox Extension Wheel Ratchet Strap
PART NO. UNIT PART NO. UNIT
577-300702 EA 035-300569 EA
All pricing for options are for the part only. Install not included.
www.timpte.com 11All prices are subject to change without prior notice at the discretion of Timpte, Inc.
