CSAH 12 (TH 244 Turnback)
Improvements
Mahtomedi City Council Workshop
February 16, 2021
Overview
•Project Introduction
•Roadway History
•Turnback Process/History
•Community Driven Project Goals
•Public Engagement Summary
•Recommended Improvements
•City Council Feedback
2

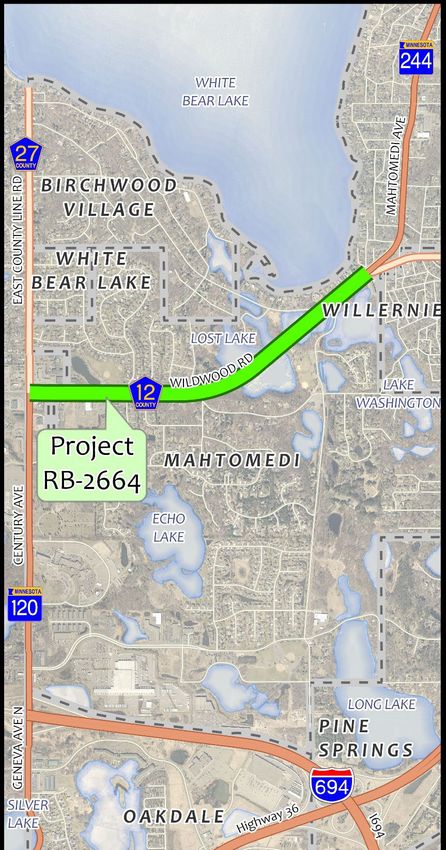

Project Introduction
•1.3 miles
•Pavement Condition is Yellow/Red
•12,100 vpd @ Century
•11,800 vpd @ CSAH 12
•Arterial Classification
•40/45 MPH
3
WHITE BEAR LAKE Roadway History
•1957 – Reconstruction
WARNER ROAD
• Realignment
•1963 – Shoulder Construction
LOST LAKE •1973 – 1” Bit Overlay
•1985 – 1.5” Mill and Overlay
CENTURY AVE
•2003 – 3” Mill and Overlay
•2010 – Microsurface/Seal Coat
1947 4
5
6
7
8
9
10
Turnback Process/History
•Washington County is best suited to efficiently and
effectively manage this roadway
• Freight/Bus/Truck/Commuter Route
• High volume route allowing Washington County to thrive
•MnDOT would focus only on pavement quality/longevity
• NO Pedestrian Facilities
• NO Safety Improvements
11Turnback Process/History

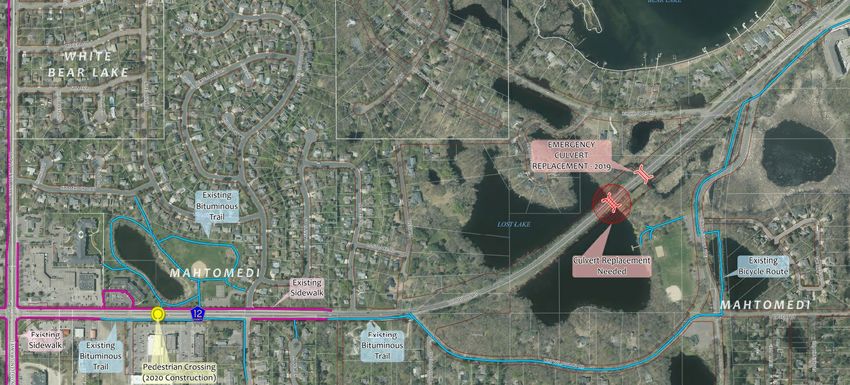

•$4,000,000 to Washington County
• Pavement Improvement
• Replacement of Bridge #90754
• 123” x 81” Steel Arch Culvert
• Pedestrian Crossing near East Shore Place / ALDI
• Turn Lanes to Ridge Way/Old Wildwood
• Turn Lanes to Birchwood/Lincolntown
12Public Engagement
•Project Website
•Open House #1
• March 5, 2020
• Promotion:
• 3000 mailed postcards
• News Release
• Social Media Promotion
• 50 attendees
• 17 Comments
• 244 Online Open House Views
13Community Driven Goals
• Replace Failing Infrastructure
• Construct a Comprehensive Transportation
Network
• Improve Safety for All Users
• Develop Infrastructure Improvements that are
Compatible with the Natural Environment
• Fiscal Responsibility
• Responsible Construction Schedule
14Public Engagement
•Project Website
•Open House #2
• December 15-31, 2020
• Promotion:
• 3000 mailed postcards
• News Release
• Social Media Promotion
• 1164 Online Engagement Visits
• 192 Comments
15Theme #1
Speed
•“Would recommend speed reduction at Ridgeway and Old
Wildwood Rd. highway section. Better maintenance of
brush control for visiability (sic) purposed off of Ridgeway
and Old Wildwood Rd.”
•“I never understood why the speed limit changes from 30
to 45 as one approaches Stillwater Road from the east.
Drives hit the gas and go high speed up the hill to
Wedgewood Road where it changes to 40. Maintain 40
from Century Avenue to Stillwater Rd.”
16Theme #2
Wedgewood Drive Intersection
•“Wedgewood Drive - Traffic Light and Improved
Crosswalk”
•“Great opportunity for great improvements! No
stoplight. Reduce speeds. Traffic calming efforts:
bump outs, warning lights, landscaping, narrow lanes.
Roundabouts where allowed. Greening/beautification.
Business development friendly designs.”
17Theme #3
Left Turn Lanes
•“I am in support of a left hand turn lane on to Old
Wildwood Road from 244 west. I have been almost
rear-ended too many times to count. Vehicles often
travel on the shoulder in order to pass a car that is
trying to turn left on to Old Wildwood Road.”
•“The Left Hand Lane on Birchwood Rd is much
needed. I was rear-ended turning left back in 2004.”
18Theme #4
Pedestrian Crossings
•“There needs to be a pedestrian crossing here with center
refuge and flashing lights (as per Mahtomedi Ave crossing
400 yards to the East and Neptune crossing) . There are a
lot of pedestrians who use the lincolntown streetcar trl to
get to Lake Links”
•“Prefer to have pedestrian crossing here (ridge way), don't
need another one at view rd. When driving north on
Wildwood and wanting to take a right on Old Wildwood, it
wouldn't make sense to have to stop for pedestrians in that
exact spot.”
19Theme #5
Causeway
•“Please provide design options and costs
for current and future investment in the
corridor for bike, runners, commuters and
micro-mobility, for the city council and
advocates to include: … Moving Guard
Rails, narrowing car lanes and placing bike
paths to north and south, outside of guard
rails.”

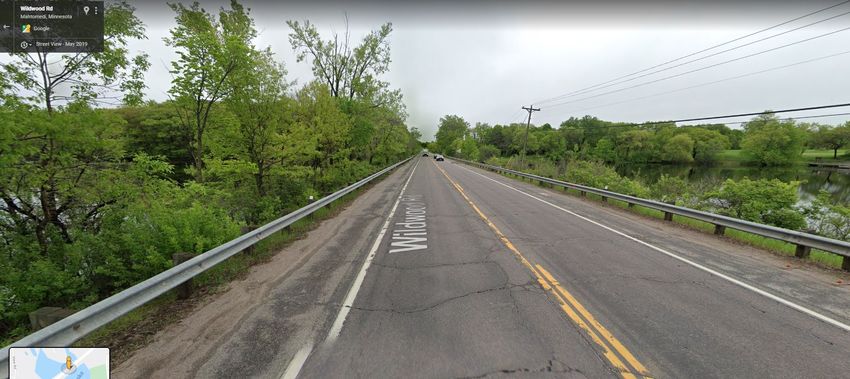

20Theme #5
Causeway
REMOVED FROM
CONSIDERATION
21Theme #5
Causeway
REMOVED FROM
CONSIDERATION
22Recommend Improvements
Recommended Improvements
•MnDOT Project:
• Pavement Improvement
• Replacement of 123” x 81” Steel Arch Culvert
• Pedestrian Crossing near East Shore Place / ALDI – COMPLETE!
24Recommended Improvements
•Turnback Project:
• Pavement Improvement – Full-Depth Pavement Reclamation
• Replacement of 123” x 81” Steel Arch Culvert
• Pedestrian Refuge near East Shore Place / ALDI – COMPLETE!
• Turn Lanes to Ridge Way/Old Wildwood
• Turn Lanes to Birchwood/Lincolntown
25Recommended Improvements (cont.)
•Community Driven Additions:
• 11-foot lanes
• Continuous off-road trail from Century Avenue to city trail on Old
Wildwood Road – South Side
26Recommended Improvements (cont.)
•Community Driven Additions (continued):
• South curb modifications to reduce ALDI crossing distance

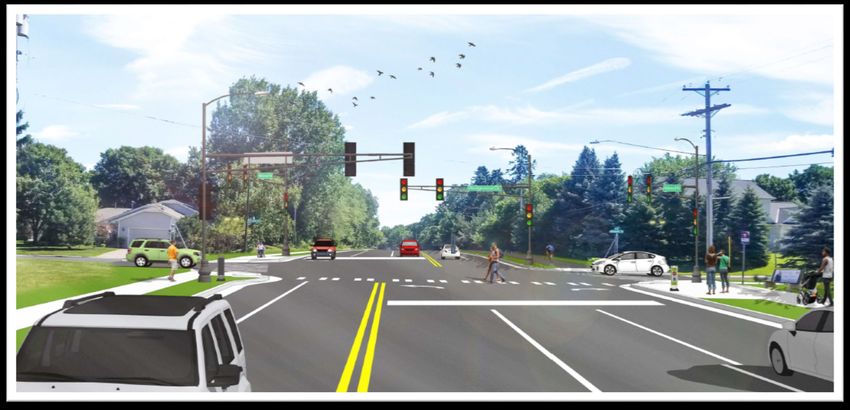

• Traffic Signal (stoplight) at Wedgewood Drive
27Recommended Improvements (cont.)
•Community Driven Additions (continued):

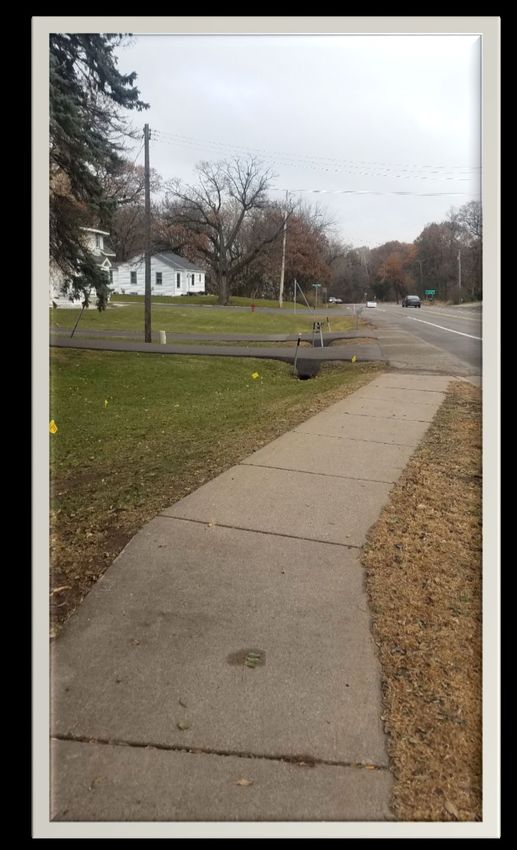

• Extend sidewalk to Ridge Way – North Side
• Pedestrian Crossing Refuge Median at Ridge Way
• Causeway 11-lane width
• Causeway paved shoulder
• Pedestrian Crossing Refuge Median at Lincolntown Avenue
28County Mahtomedi Total
Grading, Drainage, Pavement, and
$2.7M to $2.9M $0 $2.7M to $2.9M
Guardrail
Curb $200k - $300k $10k - $20k $260k - $370k
Pedestrian Crossing Islands $60k - $70k $60k - $70k $120k - $140k
Sidewalk/Trail $150k - $180k $100k - $120k $160k - $200k
Retaining Wall/Right-of-Way $330k $330k $660k
Traffic Signal $150k $150k $300k
Box Culvert $800k $0 $800k
Wedgewood Drive Improvements $0 $75k - $100k $100k - $200k
Erosion Control and Turf $300k - $400k $10k - $20k $350k - $470k
Streetscaping tbd tbd tbd
Other Misc. $450k - $500k $40k - $50k $520k - $580k
SUBTOTAL $5.1M - $5.6M $750k - $850k $5.9M - $6.5M
City Utilities $20k - $40k $20k - $40k
Preliminary Engineering $0 $0 $0
Final Engineering (3%) $180k $60k $240k
Construction Engineering (8%) $450k $100k $550k
SUBTOTAL $5.8M - $6.3M $950k - $1.1M $6.8M - $7.4M
Turnback Funds $3.2M $400k $3.6M
TOTAL $2.6M - $3.1M $550k - $700k $3.2M - $3.8M 29Next Steps
•City Council Resolution of Support
•Final Engineering and ROW Acquisition
•Cooperative Agreements
•Contractor Bids
•Construction
30Questions?
