Copernicus Land Monitoring Service products around tree cover and forest -Status and - REDDCopernicus
C o p e r n i c u s L a n d M o n i to r i n g
S e r v i c e p ro d u c t s a ro u n d t re e
c o ve r a n d fo re st – S tat u s a n d
outlook

Land Monitoring
                  EO for European Sustainable Forest Management –
                  webinar. 24th September 2020
                  Tobias Langanke: tobias.Langanke@eea.Europa.eu
Copernicus Land Monitoring Service products around tree cover and forest -Status and - REDDCopernicus
Copernicus Land Monitoring service – context
  Land       •   CLMS (Copernicus Land Monitoring Service) implemented by the European Environment Agency
Monitoring
                 (EEA) and the Joint Research Centre (JRC)
             •   CLMS provides operational products and services, derived from satellite imagery and produced
                 by industry
             •   Products and services are made available, free and open through the Copernicus land portal
                 https://land.copernicus.eu/ both as view service, web map services and for download.
Copernicus Land Monitoring Service products around tree cover and forest -Status and - REDDCopernicus
CLMS products with tree cover/forest relevance
  Land
Monitoring   1.   High Resolution Layer (HRL) Forest (2012, 2015, 2018), 20m
                  resolution until 2015, 10m since 2018
             2.   Small Woody Features (SWF) 2015 (2018 in planning) (Vector, 5m
                  raster and 100m raster)
             3.   Components of Riparian Zone products (available only for riparian
                  zones)
             4.   Components of future CLC+ Backbone vector and raster products (in
                  production for 2018 reference year) and CLC+ Core database
             5.   Future High Resolution Phenology and Productivity products
Copernicus Land Monitoring Service products around tree cover and forest -Status and - REDDCopernicus
1. HRL Forest
  Land
Monitoring   • Tree cover products as part of the High Resolution Layer (HRL)
               “Forest” exist for 2012, 2015 and 2018 reference years
             • 2018 reference year partly available, Change products, 100m
               products and national projection products October/November
             • “Forest HRL” in reality a “Tree Cover HRL” with ONE approximation
               to FAO forest definition (10% TCD and 0.5 ha MMU filter, and trees
               agricultural and urban context (from CLC) removed)
Copernicus Land Monitoring Service products around tree cover and forest -Status and - REDDCopernicus
HRL Forest Products
  Land
Monitoring
                                   Available now
                                   Available end
                                   September
                                   Available mid
                                   October
Copernicus Land Monitoring Service products around tree cover and forest -Status and - REDDCopernicus
Land
Monitoring
Copernicus Land Monitoring Service products around tree cover and forest -Status and - REDDCopernicus

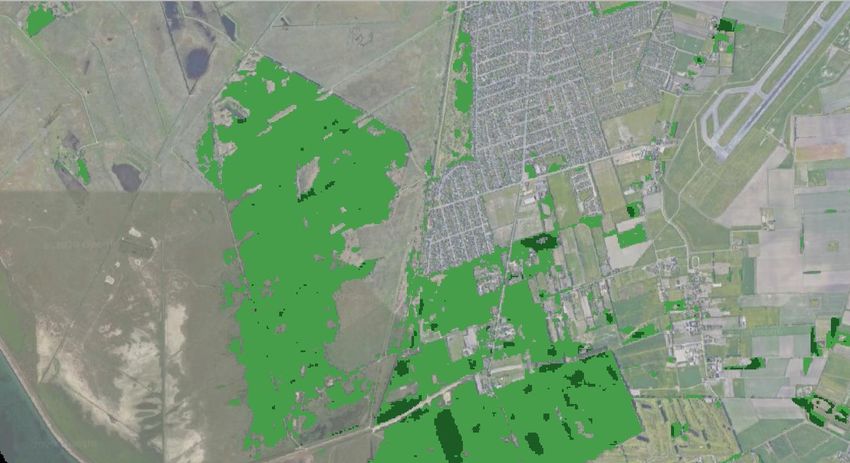

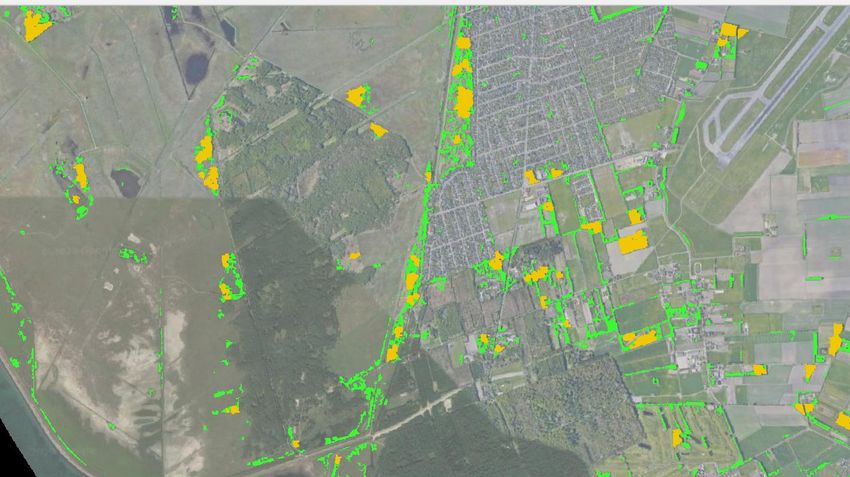

2018 tree cover and Forest products example
  Land
Monitoring
Copernicus Land Monitoring Service products around tree cover and forest -Status and - REDDCopernicus
2018 Dominant Leaf Type
  Land
Monitoring
Copernicus Land Monitoring Service products around tree cover and forest -Status and - REDDCopernicus

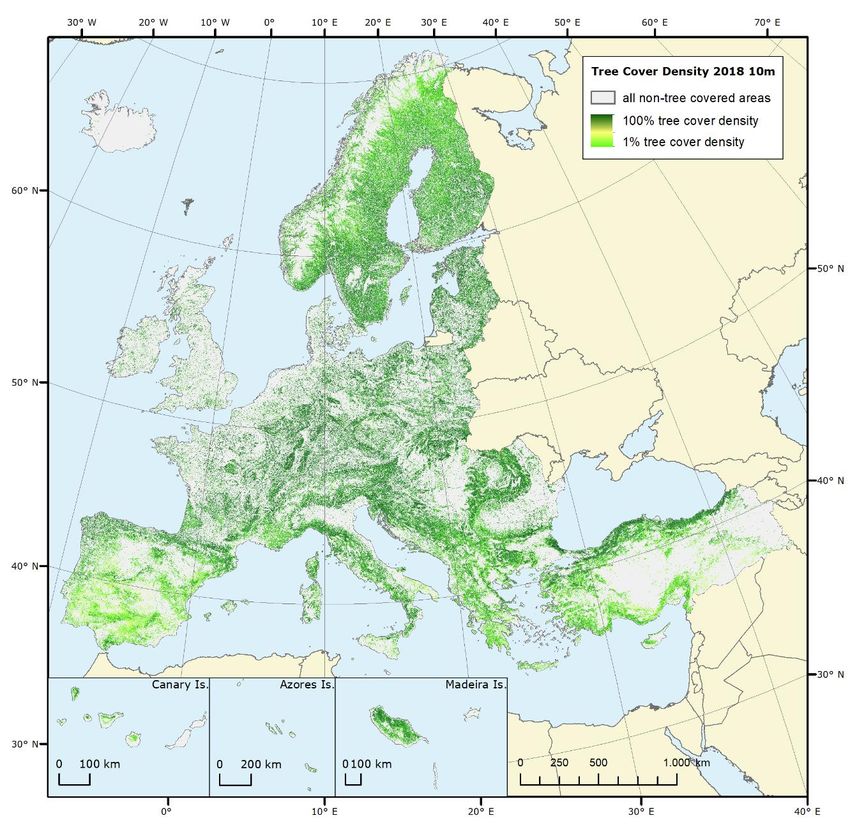

2 0 1 8 Tre e C o v e r D e n s i t y
  Land
Monitoring
Copernicus Land Monitoring Service products around tree cover and forest -Status and - REDDCopernicus
2015 Small woody featues (SWF)
  Land
Monitoring
High level concept comparison 2015-2018
  Land
 HRL 2015
Monitoring                                                                     HRL 2018
Based on optical data following a multi-temporal “best-of” scene               Combined SAR/optic approach at 10m resolution using S-1/S-2 times
approach at 20m resolution (Sentinel-2, Landsat 8, ResourceSat-2, SPOT-5)      series in order to exploit the strength of both EO data systems
Semi-automatic sampling approach using HRLs 2012, CLC 2012, JTC                Fully automatic sampling approach (incl. outlier detection) using HRLs
FTYMAP 2006                                                                    2015, CLC 2018, local component products & other ancillary/in-situ data

Set-up of a Forest Reference Database (RDB) for validation and calibration     Revision and densification of the RDB (2012-2015-2018) + set-up of a
(2012-2015)                                                                    Change Calibration Database

Multi-temporal classification approach of satellite data on tile level         Innovative classification approach using time features on region level
(supervised SVM classification)                                                (supervised, RF classification with active learning)
Rule-based data integration of all classification results (data stacks) to a   Automated feature selection of all input data, already combined to one
thematic raster                                                                classification result, accompanied by Confidence Layers

Partial use of other HRLs for optimization and harmonization                   Intended full use of other HRLs and local component products for
                                                                               optimization and harmonization

Semi-automatic processing in a private cloud environment incl. manual          DIAS-based processing (automated and scalable, Big Data production) incl.
enhancements                                                                   semi-automatic enhancements
Evolution of CLMS tree cover and forest products
                                                       TCD: Tree Cover Density
  Land
                                                       DLT: Dominant Leaf Type
Monitoring   2012      2015            2018            FTY: Forest Type
                                                       FADSL: Forest Additional Support Layer
         TCD 20m     TCD 20m          TCD 10m          DLTC: Dominant Leaf Type Change
                                                       TCDC: Tree Cover Density Change
         TCD 100m    TCD 100m         TCD 100m         CCD: Coniferous Cover Density
                                                       BCD: Broadleave Cover Density
         DLT 20m     DLT 20m          DLT 10m          TCCM: Tree Cover Change Mask
                                                       DCL: Derived Correction layers
                                                       RD: Reference database layers (absolute calibration and
         FTY 20m     FTY 20m          FTY 10m          change calibration)
                                                       PUL: Production Unit Layer
         FTY 100m    FTY 100m         FTY 100m         TF: Time Features
                                                       DSL: Data Score Layer
                                                       CL: Classification confidence layers
         FADSL 20m   FADSL 20m        FADSL 10m
                                                                                   DCL       PUL       TF
                     DLTC 2012-2015   DLTC 2015-2018      TCCM 2015-2018
                     20m              20m                 20m                      DSL       RD       CL

                     TCDC 2012-2015   CCD 100m            BCD 100m
                     100m             2015&2018           2015&2018

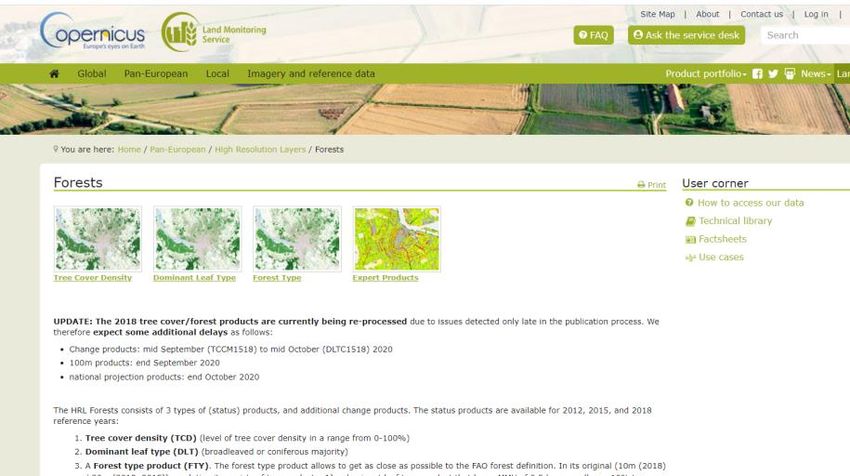

HRL Forest – where to get the data and more info
  Land
Monitoring   • https://land.copernicus.eu/pan-european/high-resolution-
               layers/forests
2. Small Woody Features (SWF
  Land
         • Contains woody linear
Monitoring
           and small patchy
           elements, limited on
           basis of geometric
           characteristics
         • derived by combination
           of (semi-automated)
           image segmentation,
           feature extraction and
           classification and/or
           morphological analysis,
           or manual editing

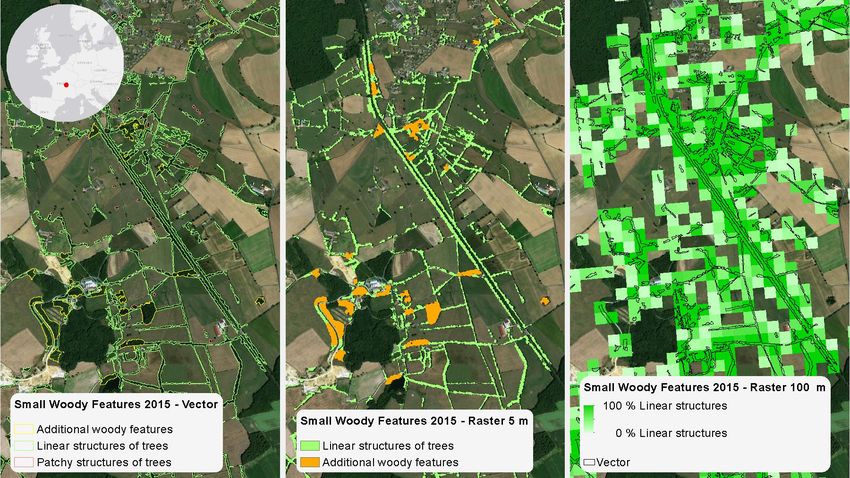

E xa m p l e LU / LC m a p p i n g : S m a l l Wo o d y Fe a t u re s ( S W F )
  Land
Monitoring
3. Riparian Zones
  Land
Monitoring   • Local component product that contains a detailed LC/LU mapping
               along rivers
             • Some more detailed forest classes mapped

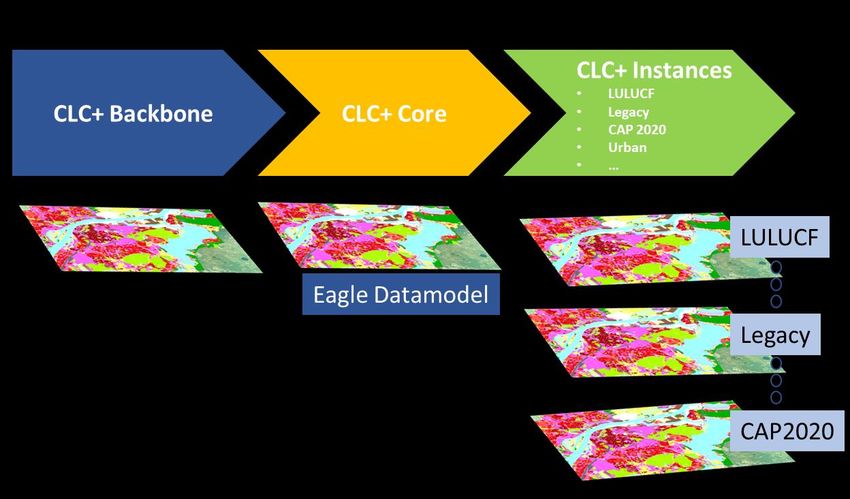

4. CLC+ product suite –under development
  Land
Monitoring   • CLC+ is the suite of products under development of the CLC 2nd
               Generation approach.
4. CLC+ Backbone (in production)Class Nomenclature
  Land                Domain
Monitoring                                                                         Ref.: Barbara Kosztra,
                                                                      CLC          Gebhard Banko 23.04.2020
                                    Land Cover
                                                                   backbone

                                                               Raster     Vector
             ID        RASTER-classes
                   1   Sealed (buildings and flat sealed surfaces)
                   2   Woody – needle leaved trees
                   3   Woody – broadleaved, deciduous trees
                   4   Woody – broadleaved, evergreen trees
                   5   Woody – shrubs
                   6   Permanent herbaceous (i.e. grasslands)
                   7   Periodically herbaceous (i.e. arable land)
                   8   Lichens and mosses
                   9   Sparsely vegetated
                  10   Non-vegetated (i.e. rock, screes, sand, lichen,
                       permanent bare soil)
                  11   Water
                  12   Snow and ice
CLC+ Core – Overview
  Land
Monitoring
                                    CLC+ CORE: consistent
                                    multi-use grid database
                                    repository populated with
                                    a broad range of land
                                    cover, land use and
                                    ancillary data from the
                                    CLMS and other sources,
                                    forming the information
                                    engine to deliver and
                                    support tailored thematic
                                    information
                                    requirements.
The EAGLE ontology
  Land
Monitoring
5. Future High Resolution Vegetation Phenology and Productivity
  Land
Monitoring   High Resolution Phenology products with two main
             products:
             • Seasonal trajectories: The reconstructed vegetation
                index time-series, which are input to the phenology
                detection. e.g. daily, 10-day, monthly, and yearly upon
                                                                               HR Phenology
                user’s request.
             • Phenology parameters: Dates and values at Start of
                Season (SOS), End of Season (EOS) and seasonal
                maximum, length of the growing season (LOS),
                amplitude, base value, and seasonal integral values.
                                                                                    © Markus Probeck
For comprehensive overview of CLMS products see
             https://land.copernicus.eu/product-portfolio/overview
  Land
Monitoring
Wa n t t o k n o w m o r e ? L i n k s a n d r e s o u r c e s
  Land
             Copernicus portal (for the whole programme)                       https://www.copernicus.eu
Monitoring
             Copernicus Land portal: Current main portal for information and   https://land.copernicus.eu
             data view/download from the Land Service
             Copernicus product search engine at EC - product search across    https://services-portfolios.copernicus.eu/
             all services
             Search for data and information at EEA (European Environment      http://search.apps.eea.europa.eu
             Agency)
             EEA data and maps. Includes dashboards (interactive data          https://www.eea.europa.eu/data-and-
             viewers) with links to maps and indicators (under development;    maps/dashboards
             land-take already published)
             GEOSS portal: online map-based user interface (discover and       http://www.geoportal.org/
             access EO data) with global focus
             EU open Data portal                                               https://data.europa.eu/euodp/data/
             Information on DIAS (Data and Information Access Services).       https://www.copernicus.eu/en/access-
             DIAS will provide centralised access to Copernicus data,          data/dias
             information, and processing tools.
Land
Monitoring

             Thank you
