CMM-25-20-84-600873xx
Component Maintenance Manual
Rescue Sling Strop P/N 600873xx series
23 July 2021 - Revision: 2.5
NOTICE
Proprietary and intellectual rights of Lite Flite, Denmark, are involved in the subject-matter of this material and all manufacturing, reproduction, use,
disclosure, and sales rights pertaining to such subject-matter are expressly reserved. This material is submitted for a specific purpose as agreed in writing, and
the recipient by accepting this material agrees that this material will not be used, copied, or reproduced in whole or in part nor its contents (or any part
thereof) revealed in any manner or to any third party, except own staff, to meet the purpose for which it was submitted and subject to the terms of the
written agreement.
Lite Flite ApS Tel +45 7558 3737
Lufthavnsvej 8 Fax +45 7558 3758
6580 Vamdrup Mail post@lite-flite.aero
Denmark Web www.lite-flite.aero
Record of Changes Description Rev Prepared by Approved by Date Initial revision 1.0 JTK JCK 05 Jul 2012 Updated revision with list of current part numbers 2.0 TK JCK 03 Nov 2013 Updated graphics 2.1 TK JCH 04 Nov 2013 Updated P/N list 2.2 JCH TK 17 Sep 2018 Updated P/N list 2.4 TK MNL 15 Mar 2021 Minor typographic updates 2.5 TK MNL 23 Jul 2021 Page 2 of 10 Rev. 2.5 – 23 July 2021 CMM-25-20-84-600873xx
Table of Contents
1. Description .................................................................................................................................................................4
2. Examples of variants ..................................................................................................................................................4
2.1 List of variants ..................................................................................................................................................5
3. Definitions ..................................................................................................................................................................6
4. Cleaning and drying ....................................................................................................................................................6
4.1 Sewn parts........................................................................................................................................................6
4.2 Hardware .........................................................................................................................................................6
5. Annual inspection and functional tests ......................................................................................................................7
5.1 Webbing ...........................................................................................................................................................7
5.2 Stitch Patterns ..................................................................................................................................................7
5.3 Hardware .........................................................................................................................................................7
5.4 Product label ....................................................................................................................................................7
6. Inspection Check List ..................................................................................................................................................8
6.1 Notes for Inspection Check List........................................................................................................................9
7. Reporting ..................................................................................................................................................................10
8. Storage .....................................................................................................................................................................10
9. Release to service .....................................................................................................................................................10
10. Life time....................................................................................................................................................................10
Page 3 of 10 Rev. 2.5 – 23 July 2021 CMM-25-20-84-600873xx
1. Description
The rescue sling strop is an orange buoyant rescue device intended for hoist rescue operations.
The rescue sling strop comes in different configurations, depending on operational needs.
The padded section is fluorescent orange with 3 silver SOLAS reflex stripes for easy night spotting,
4 anti slip friction stripes and equipped with a rear towing grip.
Lite Flite rescue sling strops are split in two groups: Open sling strops, and closed sling strops.

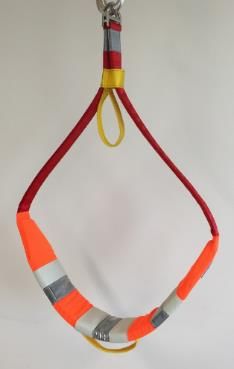

Open strop
Primary security are two 45mm webbing risers, with A-rings to fit into the hoist hook. Secondary
security is a yellow webbing slider with a red webbing handle for the casualty to pull downwards
to minimize the distance between the lift straps. The webbing slider forms a double channel,
where one channel is sewn tight enough to ensure the slider cannot be removed from the sling
strop, and the other channel loose enough for the end of the other riser and D-Ring to pass
through in order for the sling to be opened.

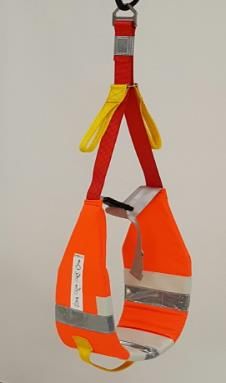

Closed strop
Primary security is the 45 mm webbing risers assembled in a A-ring to fit into the hoist hook.
Secondary security is a stainless steel 3-bar slide with 2 webbing toggles for the casualty to pull downwards to
minimize the distance between the lift straps. This is called "TRIPLE-S" = Self Securing System.
For "Man over board" situations the maritime sling strop P/N 60087317 features an extra
internal safety strap assembled with a 50 mm click-in snap for easy fastening.
P/N 60087342 is a special variant of the closed strop, featuring two slings in one. The outer sling
is designed to support the victims legs, giving a sitting position to prevent damages caused by
hypothermia.
1.1 Materials used
Webbing: 45mm polyester webbing, with a tensile strength of 6000 lbs.
Hoist point: One or two stainless steel A-rings, with a tensile strength of 4400 lbs.
2. Examples of variants

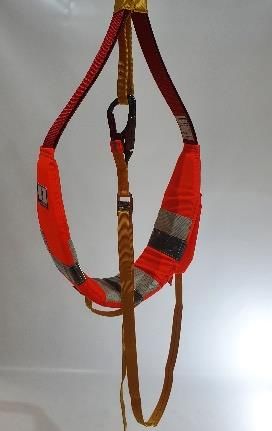

P/N 60087367 P/N 60087340
Rescue Sling Strop, open, 200cm (6.6ft), w. crotch strap Rescue Sling Wrap, 3-point suspension
Page 4 of 10 Rev. 2.5 – 23 July 2021 CMM-25-20-84-600873xx
2.1 List of variants P/N 60087369 Rescue Sling Strop, open, 190cm (6.2ft), stiff, quad web, red risers w. blue insert P/N 60087368 Rescue Sling Strop, open, 190cm (6.2ft), stiff, quad web, w. crotch strap P/N 60087364 Rescue Sling Strop, open, 200cm (6.6ft), stiff, quad web, red risers w. black insert P/N 60087367 Rescue Sling Strop, open, 200cm (6.6ft), stiff, quad web, w. crotch strap P/N 60087366 Rescue Sling Strop, open, 210cm (7ft), stiff, quad web, red risers w. red insert P/N 60087365 Rescue Sling Strop, open, 210cm (7ft), stiff, quad web, w. crotch strap P/N 60087363 Rescue Sling Strop, open, 240cm (8ft), stiff, quad web, red risers w. yellow insert P/N 60087362 Rescue Sling Strop, open, 240cm (8ft), stiff, quad web, w. crotch strap P/N 60087316 Rescue Sling Strop, closed, 180 cm, 1.8 kg P/N 60087321 Rescue Sling Strop, closed, 170 cm, 1.7 kg P/N 60087323 Rescue Sling Strop, reinforced, open, 210 cm, yellow risers P/N 60087326 Rescue Sling Strop, reinforced , open, 190 cm, red risers P/N 60087328 Rescue Sling Strop, closed, 190 cm, dual web, red risers P/N 60087348 Rescue Sling Strop, closed, 190 cm, crotch strap, dual web, red risers P/N 60087331 Rescue Sling Strop, open, 210 cm, 1.9 kg P/N 60087332 Rescue Sling Strop, open, 190 cm, 1.8 kg P/N 60087314 Junior Rescue Sling Strop, 140 cm, L/W buoyant, w. chest strap P/N 60087317 Personal Rescue Sling Strop, 180 cm, L/W buoyant, w. chest strap P/N 60087360 Sea Pilot Sling Strop, closed, w. crotch strap P/N 60087340 Rescue Sling Wrap, 3-point suspension, size M/L P/N 60087340I Rescue Sling Wrap, 3 point suspension, w/o reflex P/N 60087346 Rescue Sling Wrap XL, 3 point suspension P/N 60087342 Double Rescue Sling Strop, closed, w. integrated leg strop P/N 60087381 Child/Animal Rescue Bag, Ø50x70cm P/N 60087382 Child/animal Rescue Bag, Ø50x60cm, transparent zipped top, drained bottom 1730226285132 Nato Stock Number corresponding to P/N 60087314 1730226155593 Nato Stock Number corresponding to P/N 60087316 1730226155590 Nato Stock Number corresponding to P/N 60087321 4240223001501 Nato Stock Number corresponding to P/N 60087331 1670226276028 Nato Stock Number corresponding to P/N 60087381 Page 5 of 10 Rev. 2.5 – 23 July 2021 CMM-25-20-84-600873xx
3. Definitions Maintenance tasks are often referred to in numerous ways. The definition of terms used in this manual are explained, in short, below. Daily inspection: Rescue sling strops are to be functionally checked by the user prior to each use. Daily maintenance: Rescue sling strops must be cleaned and dried by the user after each use. Annual inspection: Every 12 months, rescue sling strops must be carefully inspected by a qualified technician. Rescue sling strops used in adverse and/or dirty conditions may require more frequent inspection. Qualification can be obtained by participating in a Lite Flite maintenance course. By passing such course, a diploma will be issued. Re- qualification must be performed every 36 months. Maintenance: Maintenance is limited to functional cleaning, drying and functional tests. This will be explained in details in the following paragraphs. Repair: Repair is to be carried out by Lite Flite, or a repair station specifically approved by Lite Flite. Rescue sling strops in the P/N 600873xx series contain no user repairable parts. Overhaul: There is no fixed overhaul cycle for Lite Flite rescue sling strops. 4. Cleaning and drying 4.1 Sewn parts Webbing and all other fabric can be spot cleaned with a mild solution of dish soap and lukewarm (max 30°C) tap water, using a small soft brush. To remove salt deposits, let the rescue sling strop stay in a bath of lukewarm tap water (max. 30°C) for 30-60 minutes, then carefully flush it with cold tap water (max. 20°C) for a minimum of 5 minutes. Rinse until the water from the webbing does not taste salty any more, shake it and allow to dry at room temperature. Buckles, adjusters etc. must be left in open position to allow as much free flowing air around as possible. Do not wring, compress or machine dry the rescue sling strop as this will damage the fibres. 4.2 Hardware Hardware may be cleaned with lint free cotton cloths. Do NOT use abrasives, solvents, acid or caustic liquids as they may damage the anti-corrosion treatment of the hardware. If small stains of oxidation (pre-stage of corrotion) is found, they may be “rubbed” away using a small soft brush and tooth paste. Do not use steel wool and/or chemicals, as this may be harmfull to the surface treatment. Remember to rinse carefully with cold tap water. After rinsing, shake well and allow to dry at room temperature. Page 6 of 10 Rev. 2.5 – 23 July 2021 CMM-25-20-84-600873xx
5. Annual inspection and functional tests Lite Flite rescue sling strops are to be inspected and functionally tested after thorough cleaning. All parts must be inspected visually, following the check list in section 7. Always be methodical when inspecting the assembly and work your way from one “end” of the assembly to the other. Check the Product Log Card for any remarks. 5.1 Webbing Repair or replacement is necessary if your webbing shows any signs of beneath damages: • Damaged or cut edges. Heavy wear and exposed single fibers. • Partial stiffness from UV radiation • Spots from acid (or other aggressive chemicals), rust or mildew. • Excessive soiling • Missing stitches or damaged sewing. • Deformation due to wear or hardware interface. 5.2 Stitch Patterns Repair or replacement is necessary if stitch patterns have broken, cut, worn or missing stitches or threads. Where possible, remember to check all stitch patterns from both sides of the webbing. 5.3 Hardware Repair or replacement is necessary if hardware shows any sign of beneath damages: • Nicks, burrs and sharp edges. • Deformities, cracks and breaks • Missing parts, malfunction, rust or corrosion. • Severe wear and tear. • Scoring, or uneven wear. • Broken or missing components Attention has to be given to: holes, cavities from pitting, and worn surfaces. 5.4 Product label After inspection, check that the product label is readable. If the maintenance is performed by Lite Flite, the label will be replaced by a new label with a new “Next inspection date” printed. Page 7 of 10 Rev. 2.5 – 23 July 2021 CMM-25-20-84-600873xx
6. Inspection Check List
Part No. Serial No. Inspected by Date Signature
Check # Description Pass / Fail Note #
1 Assembly is clean, dry and free from rust and mildew
2 Stitches in stitch patterns are intact and no stitches are missing for:
- Stitch patterns at ends of main straps, securing V rings to the assembly
- Stitch patterns at buckle end of webbing inside sling strop
- Stitching of end fold, securing tang to the webbing inside the sling strop
- Stitching of rear towing handles’ anchor points
3 Webbing edges are intact and without cuts or severe wear
4 Webbing fibres are intact and not broken
5 Webbing surfaces is intact (Slightly frayed or woolen appearance is allowed)
6 Webbing shows no signs of stiffness due to UV-radiation
7 Hardware is fully functional
- Engage buckles and connectors and pull webbing to check function
- Test that slider with red handle(s) can move freely along the straps
8 Hardware is free from nicks, burrs and sharp/ cracked edges
9 Hardware has no corroded or scored surfaces and edges
10 Hardware is not deformed or broken in any way
11 Labels are stitched properly to the assembly and are fully legible
12 The orange cover is securely stitched to the foam cushion and webbing straps,
and does not slide
13 Reflex stripes are stitched to the orange cover and are intact
14 Anti skid stripes are stitched to the orange cover and are intact
If the sling strop has passed all inspections, it can be released to service
If a sling strop fails inspection, it is to be removed from service, and may not re-enter service until all errors have
been corrected and a new inspection has been performed with a positive result.
Page 8 of 10 Rev. 2.5 – 23 July 2021 CMM-25-20-84-600873xx6.1 Notes for Inspection Check List Part No. Serial No. Inspected by Date Signature Note # Comment (The inspection checklist pages may be copied as necessary) Page 9 of 10 Rev. 2.5 – 23 July 2021 CMM-25-20-84-600873xx
7. Reporting Rescue sling strops that do not pass final inspection may not re-enter into service. Withdraw the equipment from service, and report to Lite Flite who will advise further action. Lite Flite can be reached by phone +45 7558 3737 or by email to info@lite-flite.aero. If sending email, please include as many details as possible and be prepared to send close-up pictures. 8. Storage All repairs and overhauls must appear clearly from the product log card for each rescue sling strop. Storage dates must be entered into the log card. The rescue sling strop may be stored dry and clean in a closed cardboard box, under normal warehouse conditions: The recommended storage temperature range is from +10 oC to +30 oC It is, however, authorized to store at temperatures from -18 oC to +45 oC Rescue sling strops are not to be stored in the same room as lead-acid batteries, other damaging acids or corrosive compounds, and must be stored away from direct sunlight and UV radiation. 9. Release to service By release to service from storage, the rescue sling strop is to be inspected before re-entering service. 10. Life time Lifetime of sewn products are according to conditions and intensity of use. Manufacturers recommendations: Shelf life: Maximum 5 years from date of manufacture Life time: Maximum 10 years from date of initial use. CAUTION! FAILURE TO OBSERVE THESE INSTRUCTIONS MAY CAUSE THE RESCUE SLING STROP TO MALFUNCTION, WITH SUBSEQUENT RISK OF SERIOUS INJURY OR DEATH. Page 10 of 10 Rev. 2.5 – 23 July 2021 CMM-25-20-84-600873xx
