Christian Gahl - Berlin Convention Office
© Christian Gahl
Christian Gahl - Berlin Convention Office
CONTENTS

LAYOUT                                                                                                  3

AREAS – DESCRIPTION AND TECHNICAL INFORMATION

          A       Big Arena                                                                             4
                              Description
                  Technical equipment                                                                   5
                              Rigging points                                                            6
                              Seating options
                                        Option   A1        –   Full seating                          7
                                        Option   A2        –   Standing room only                    7
                                        Option   A3 & A4   –   Gala dinner                           8
                                        Option   A5 & A6   –   Conference                            9
                                        Option   A7        –   Reception                            10
                                        Option   A8        –   Sport with special stands            10
                                        Option   A9        –   Boxing, wrestling                    11
                                        Option   A10       –   Circus seating                       11
                              Block overview full seating/ standing room options                    12

          B       Small Arena                                                                       13
                              Description
                  Technical equipment/ Rigging points                                               14
                              Seating options
                                        Option B1          – Full seating                           15
                                        Option B2          – Standing room                          15
          C       Foyer                                                                             16
                              Description/ Technical equipment
          D       Lounge                                                                            17
                              Description/ Technical equipment

          E       Forecourt / outdoor area                                                          18
                            Description/ Technical equipment
          F       Roof terrace                                                                      19
                            Description/ Technical equipment
          G       Backstage East                                                                    20
                           Description/ Technical equipment
          H       Backstage West – Dressing Room 1                                                  21
                           Description/ Technical equipment
          I       Backstage West - Catering, Dressing Room 2                                        22
                           Description/ Technical equipment

SERVICE PARTNERS                                                                                    23
        Catering Sarah Wiener / TSE AG / B.E.S.T. Veranstaltungsdienste GmbH
        Brandschutzbüro und Dienstleistungen Behring GmbH / GRG Services Berlin
INFORMATION FOR EVENT ORGANISERS                                                                    24
INFRASTRUCTURE                                                                                      26
TRANSPORT ACCESS                                                                                    27
CONTACT                                                                                             28
LAYOUT AND OVERVIEWS                                                                                29

                                                                                           CONTENTS 2
Christian Gahl - Berlin Convention Office
A   BIG ARENA      H   BACKSTAGE EAST
B   SMALL ARENA    I   DRESSING ROOM 1
C   FOYER          J   DRESSING ROOM 2          The Liquidrom does not
D   LOUNGE         K   CATERING                 belong to Tempodrom
E   RESTAURANT     L   FOYER SMALL ARENA        premises.
F   FORECOURT      M   BACKSTAGE SMALL ARENA
G   ROOF TERRACE

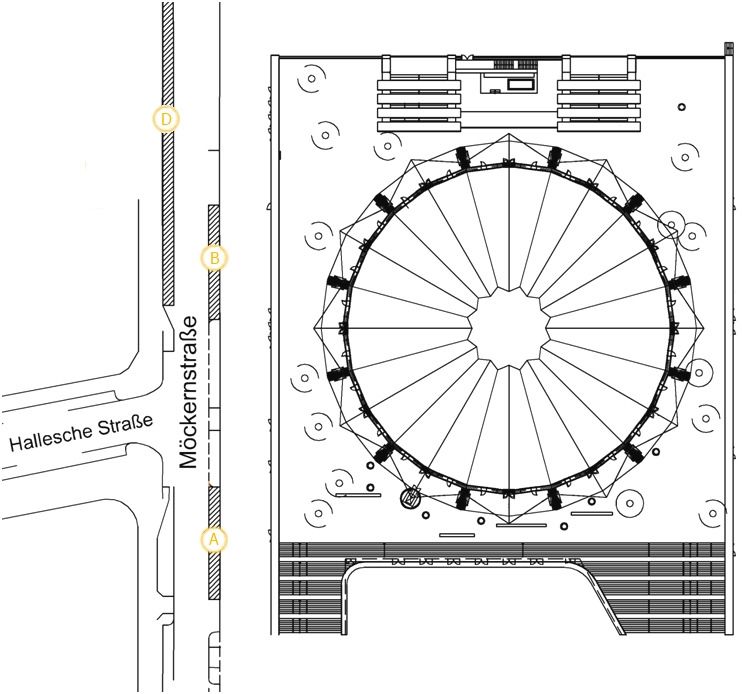

                                               GENERAL PLAN 3
Christian Gahl - Berlin Convention Office
A         BIG ARENA

DESCRIPTION
                                                                             WALLS
The focus of the Tempodrom is the Big Arena. This can be entered             The Big Arena entrance area walls are of
from both ground and basement levels and is connected to the                 exposed concrete.
outdoor area via the roof terrace.                                           The backstage area behind the Scene
The circus ring with a diameter of 25 m can be enlarged through              area can be divided as required by a black
retraction of the stands by 8.5 m to 33.5 m.                                 curtain. The glass façade running behind
Due to its adjustable size, the Big Arena is the ideal venue for a variety   the upper circle can be darkened through
of events. The spectacular roof construction of the Big Arena rises          automatically powered curtains.
from the upper circles to a height of 30 m.
                                                                             CEILINGS
The backstage area of the Big Arena is accessed via a ramp. Access for       The ceiling suspended below the roof is
lorries (max. 40t) is possible upon clearing the parking zone in front of    constructed of sound absorbing light
the delivery bay.                                                            timber boards. A steel-glass construction is
                                                                             the foundation of the skylights at the
Backstage East on the basement floor consists of three dressing              centre of the roof, which are equipped
rooms, showers, WCs, VIP dressing room, two production offices and a         with a blind system.
tea kitchen. On the opposite side are the electrical operating rooms
with sub-distribution for the stage.                                         FLOOR
                                                                             The floor of the Big Arena consists of
Backstage West is located on the ground floor on the west side. This         anthracite coloured mastic asphalt
consists of an artist dressing room, a generously sized production           (SLW30-suitable). In addition there are
office, a large fully equipped kitchen with adjoining crew catering room     also diverse floor anchoring points.
and a separate sanitary facility including showers.
                                                                             EQUIPMENT
                                                                             The individual seats are manufactured of
                                                                             dark grey veneered wood.
                                                                             The lower circle is constructed as a mobile
                                                                             stand. Through the retraction of this
                                                                             mobile stand, the arena can be enlarged
                                                                             by a diameter of approx. 8.5m.
                                                                             Traverses for lighting and acoustic
                                                                             elements or similar can be installed using
                                                                             the rigging points distributed across the
                                                                             entire roof.
                                                                             At the centre of the approx. 30 m high
                                                                             room is a ring-formed, height-adjustable
                                                                             traverse for the installation of event
                                                                             technology with the corresponding
                                                                             junction boxes.

                                                                             The capacity of your event may deviate
                                                                             from the options provided here. The
                                                                             specific capacity can be determined in
                                                                             cooperation with the Tempodrom
                                                                             Technical Management.

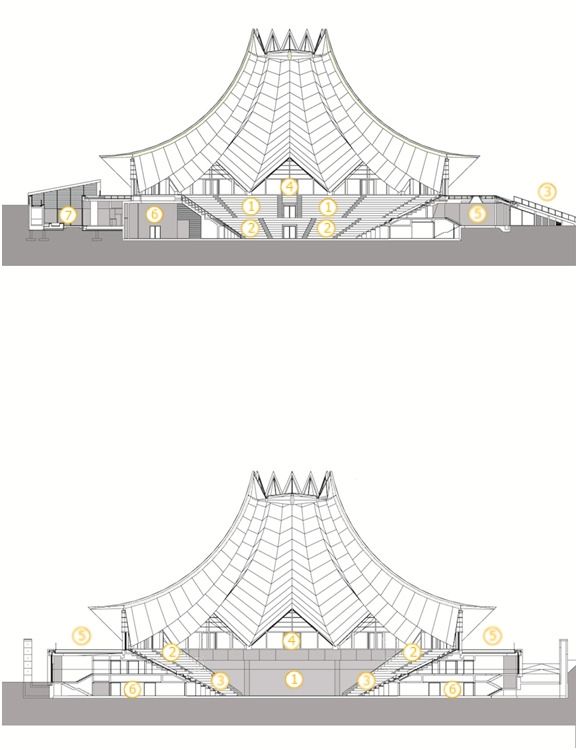

                                                                             1   circus ring
                                                                             2   Scene rear area
                                                                             3   upper circle
                                                                             4   lower circle
                                                                             5   entry backstage
                                                                             6   operating room access
                                                                             7   access loading ramp
                                                                             8   access lower circle
                                                                             9   access upper circle

                                                                                               BIG ARENA 4
Christian Gahl - Berlin Convention Office
TECHNICHAL EQUIPMENT                                                POWER CONNECTIONS

4      mobile stands (lower circle, rows 1-6)                       Scene area distributed between six
       under the mobile stands:                                     junction boxes: (scene left , right , rear ;
       - 2 x double schuko                                          separate light /sound)
       - 2 x 16 A CEE 5-pol 6h                                                • 4 x 63 A CEE 5-pol 6h
                                                                              • 7 x 32 A CEE 5-pol 6h
                                                                              • 5 x 16 A CEE 5-pol 6h
88     rigging points in the roof construction:                               • 21 x Schuko
                 load capacity per 1 t (linear order )                        • DMX
                 load capacity per 2.5 t (ring-formed order)
                 load capacity per 5 t (for ring)                   Operating rooms for external productions

                 Additional use of anchor points in circus ring               •    2 x 400 A 3P/N/PE on M12
                 floor and entrances to the Big Arena is possible                  stay bolts
                 upon consultation with the Technical                         • 2 x 125 A CEE 5-pol 6h
                 Management.                                                  • DMX
                                                                    Distributed for Scene lighting in the upper
1      1 Eurotruss system ring traverse,                            circle:
       anchored under the crown of the roof:                                  • 9 x Harting junction boxes,
       Eurotruss ST                             50 x 50 cm                         HAN 16
       External diameter                        14,40 m
       Chain hoists BGV C1                      6 pcs.              Feed- in power operating room
                 load capacity:                 per 1,3t                      • 9 x Schuko 16 A
                 load capacity Ring:            108 kg/m                      • 1 x 63 A CEE 5-pol 6h
                                                                              • 1 x 32 A CEE 5-pol 6h
       highest position                         +20,00 m                      • DMX
       lowest position                          +1,0 m
       Connections:
       - 120 x 2 kW (18 x HAN 16)                                   The available total capacity is to be
       - 9 x 32 A CEE 3-pol (4 x Han 6)                             coordinated with the Tempodrom
                                                                    Technical Management.
       Feed- in power operating room
       - 3 x 16 A CEE 5-pol 6h
       - 2 x 32 A CEE 5-pol 6h                                      DELIVERIES
       - 4 x lines DMX                          4 x XLR
       - 2 x video cable                        RGB-AV              Access to the Arena / stage level via a
                                                                    ramp
1      PreRigg                                                      (width 3.25 m, height 4.4 m, gradient
       Front truss folding truss 16,25 m                            12.5%)
                 load capacity:                 100Kg/m
       on 2 x 1,0 t BGV C1-Motor
                 load capacity:                 per 1 t             TELECOMMUNICATIONS
                                                                    • WLAN
                                                                    • Connection option for analogue
       Back truss folding truss 29,25 m
                                                                        telephones
       on 3 x 1,0 t BGV C1-Motor
                                                                    1 ISDN-connection over S0-Bus of the
                 load capacity:                 per 1 t
                                                                    house-internal network is available
                                                                    • Fibre optic connection
                                                                    • PA system(alarm, announcements,
       2 x PA-Truss folding truss 6,5m
                                                                        gong)
                 load capacity:                 max. 1,3 t
                                                distributed load

                                                                                         BIG ARENA 5
Christian Gahl - Berlin Convention Office
GENERAL PLAN RIGGING POINTS

see also overview diagrams on the last pages

                                               BIG ARENA   6
Christian Gahl - Berlin Convention Office
SEATING OPTIONS

OPTION A 1 - FULL SEATING
With partially extended mobile stand

Scene

Scene diameter circus ring                  25 m
Scene rear area                           160 m2
Scene area                                470 m2
clear height                        9,3 – 29,4 m

Audience capacity

Upper circle                          1718 Seats
Lower circle                           660 Seats
Circus ring                            744 Seats

Total                                 3122 Seats

                             plus 11 wheelchair users
                             with attendant

                                                        1         Scene rear area
                                                        2         Standard stage (16 x 10 x 1.20 m)
                                                        3         Lower circle
                                                        4         Upper circle
                                                        5         Access to roof terrace
                                                        6         Foyer entrance
                                                        7         Circus ring
                                                        8         Wheelchair Podest
                                                        9         Bar

                                                        OPTION A 2 - STANDING ROOM
                                                        With retracted mobile stand

                                                        Scene

                                                        Scene diameter circus                  33,5 m
                                                        ring
                                                        Scene rear area                        160 m2
                                                        Backstage area                         470 m2
                                                        Clear height                     9,3 – 29,4 m

                                                        Audience capacity

                                                        Upper circle                      1718 Seats
                                                        Lower circle                       308 Seats
                                                        Circus ring               1450 Standing room

                                                        Total                             3476 Places

                                                                            plus 35 wheelchair users
                                                                            with attendant; 1% in acc.
                                                                            with BetrVO § 26

                                                                                BIG ARENA 7
Christian Gahl - Berlin Convention Office

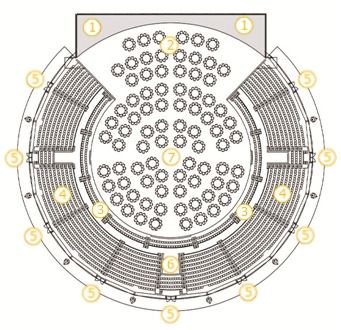

OPTION A 3 - GALA DINNER
                                                                  Round tables, diameter 1.80 m

                                                                  Scene

                                                                  Diameter circus ring                  33,5 m
                                                                  Scene rear area                       160 m2
                                                                  Clear height                    9,3 – 29,4 m

                                                                  Number of seats
                                                                  Without upper circle

                                                                  Circus ring                       820 Seats

                                                                  Total                             820 Seats

                                               1   Scene rear area
                                               2   Scene area
                                               3   Lower circle
                                               4   Upper circle
                                               5   Access to roof terrace
                                               6   Foyer entrance
                                               7   Table seating

OPTION A 4 - GALA DINNER
Long tables (1.20 m x 0.80 m)

Scene

Diameter circus ring                  33,5 m
Scene rear area                       160 m2
Clear height                    9,3 – 29,4 m

Number of seats
Without upper circle

Circus ring                      1024 Seats

Total                            1024 Seats

                                                                                         BIG ARENA 8
Christian Gahl - Berlin Convention Office
OPTION A 5 - CONFERENCE
PARLIAMENTARY
 (1,20 m x 0,40 m / 1,20 m x 0,80 m)

Scene

Diameter circus ring                   33,5 m
Scene rear area                        160 m2
Backstage area                         470 m2
Clear height                     9,3 – 29,4 m

Number of seats
Without upper circle

1,20 m x 0,40 m
Circus ring                        672 Seats

Total                              672 Seats

1,20 m x 0,80 m
Circus ring                        524 Seats

Total                              524 Seats

                                                1   Scene rear area
                                                2   Scene area / standard stage 16 x 10 x 1.20 m
                                                3   Lower circle
                                                4   Upper circle
                                                5   Access to roof terrace
                                                6   Foyer entrance
                                                7   Table seating
                                                8   Rowed seating

                                                    OPTION A 6 - CONFERENCE
                                                    ROWED SEATING

                                                    Scene

                                                    Diameter circus ring                   33,5 m
                                                    Scene rear area                        160 m2
                                                    Scene area                             470 m2
                                                    Clear height                     9,3 – 29,4 m

                                                    Number of seats
                                                    Without upper circle

                                                    Circus ring              1052 Seats

                                                    Total                    1052 Seats

                                                                              BIG ARENA 9
Christian Gahl - Berlin Convention Office
OPTION A 7 - RECEPTION

                                                            without upper circle

                                                            Scene

                                                            Diameter circus ring            33,5 m
                                                            Scene rear area                 160 m2
                                                            Clear height              9,3 – 29,4 m

                                                            Number of seats

                                                            Circus ring              1300 Standing
                                                                                         466 Seats

                                                            Total                     1766 Spaces

                                 1    Scene rear area
                                 2    Scene area / action space
                                 3    Lower circle
                                 4    Upper circle
                                 5    Access to roof terrace
                                 6    Foyer entrance
                                 7    Gastronomy area

OPTION A 8 - SPORT
With special stands

Scene

Diameter circus ring         33,5 m
Scene rear area              160 m2
Scene area                   550 m2
Clear height           9,3 – 29,4 m

Audience capacity

Upper circle            1691 Seats
Lower circle             308 Seats
Circus ring              528 Seats

Total                   2527 Seats

                                                                          BIG ARENA 10
OPTION A 9 - BOXING / WRESTLING

                                                                       Scene

                                                                       Diameter circus ring                   25 m
                                                                       Scene rear area                      160 m2
                                                                       Scene area / Ring                     55 m2
                                                                       Clear height                   9,3 – 29,4 m

                                                                       Audience capacity

                                                                       Upper circle                     1718 Seats
                                                                       Lower circle                      856 Seats
                                                                       Circus ring                       302 Seats

                                                                       Total                            2876 Seats

                                                                                        Plus 29 wheelchair users
                                                                                        with attendant; 1% in acc.
                                                                                        with BetrVO § 26

                                          1      Scene rear area
                                          2      Scene area / action area
                                          3      Lower circle
                                          4      Upper circle
                                          5      Access to roof terrace
                                          6      Foyer entrance
                                          7      Stage trolley

OPTION A 10 – CIRUS SEATING
With extended mobile stand

Scene

Diameter circus ring                      25 m
Scene rear area                         160 m2
Scene area / Arena                       85 m2
Clear height                      9,3 – 29,4 m

Audience capacity

Upper circle                       1718 Seats
Lower circle                        856 Seats
Circus ring                         262 Seats

Total                              2836 Seats

                    Including 29 wheelchair
                    users with attendant; 1%
                    in acc. with BetrVO § 26

                                                                                      BIG ARENA 11
Capacity reduction
BLOCK OVERVIEW BIG ARENA     e.g. through FOH, follow spots and space for wheelchair
                             users; in acc. with BetrVO § 26 (4) 1% of the total capacity
                             plus attendants.
                             Please determine the exact capacity for your event in
                             cooperation with the Tempodrom Technical Management!

SEATING CAPACITIES               SEATING CAPACITIES

BLOCK NO.            SEATS       BLOCK NO.                            SEATS

UPPER CIRCLE         1718        UPPER CIRCLE                       1718
1                     105        1                                  105
2                     177        2                                  177
3                     15         3                                   15
4                     177        4                                  177
5                     208        5                                  208
6                     164        6                                  164
7                     27         7                                   27
8                     163        8                                  163
9                     208        9                                  208
10                    177        10                                 177
11                    15         11                                  15
12                    177        12                                 177
13                    105        13                                 105

LOWER CIRCLE         660         LOWER CIRCLE (ROWS 7&8)             308
14                   31          14                                  31
15                   53          15                                  35
16                   114         16                                  35
17                   114         17                                  35
18                   36          18                                  36
19                   114         19                                  35
20                   114         20                                  35
21                   53          21                                  35
22                   31          22                                  31

CIRCUS RING          744         TOTAL SEATS                        2026
23                   195
24                   123         CIRCUS RING STANDING                1450
25                   123         ROOM
26                   195
27                   54          TOTALCAPACITY                      3476
28                   54

TOTAL SEATS          3122

                                                 BIG ARENA 12
B         SMALL ARENA
DESCRIPTION                                                         EQUIPMENT
The circular Small Arena is located in the western part of the      The round form of the Small Arena can be used
building. The room is ideal for smaller scale product               for circus and for stage performances with an
presentations, press conferences, parties and concerts.             individually designed stage. The inventory
The basic area of the Small Arena is 1.32 m below foyer level       includes a permanently installed red velvet
and can be transformed into a closed event area through             curtain on the inside of the walls that can be
mobile partitions with its own foyer, backstage area, bars and      completely closed. To install the event
public toilets. Clear height at the centre of the room is 5.50 m,   technology, a ring traverse with corresponding
with a total diameter of 18.82 m.                                   junction boxes is available.
WALLS                                                               To the rear of the Small Foyer is a fully-
The walls are of decorated exposed concrete. Through mobile         equipped bar.
partitions on ceiling rails, the Small Arena can be opened into     In the backstage area are the connections for
the main foyer. This creates a generously-sized event venue         event technology as well as a WC with basin.
that includes the circus ring of the Small Arena.                   The Small Arena area has its own public toilet
                                                                    facilities.

CEILING
The circular suspended ceiling is formed like a cascade
extending upwards. Lighting elements, various anchor points
for traverses, a ring traverse and junction boxes for power
connections are integrated.

FLOOR
The flooring of the Small Arena is smoothed mastic asphalt.
The surrounding curved seating steps are equipped with
cushions as required.

    1       Small Arena (250m²)
    2       Foyer Small Arena (115m²)
    3       Bar
    4       Backstage Small Arena (35m²)
    5       Entry Small Arena
    6       Ticket booth
    7       WC Gentlemen
    8       WC Ladies
    9       Mobile partitions
    10      Foyer Big Arena

                                                                              SMALL ARENA 13
TECHNICAL EQUIPMENT                                                     BASIC PACKAGE AUDIO – SOUND

24        rigging points
          Load capacity per 250 kg
                                                                        Standard sound system for small to medium
          max. ceiling load 2.000 kg

1         ring   truss with transverse cross bar                        volume, particularly suited for voice and
          •       four belt traverse system 29 x 29 cm                  music applications. For all
          •       external radius 10 m                                  other applications additional packages
          •       max. load capacity: 800 kg                            must/can be added.
                                                                        Permanently installed technical devices included (as of
                                                                        2015)
BASIC PACKAGE LIGHT
                                                                                  •   4 x top EAW KF 300 in flying bracket
This package is suited for the basic areal lighting of the
Small Arena with LED floodlights, for creating accents with                       •   4 x bass EAW SB 330
LED spotlights and lighting the stage with Fresnel-lense and
profile spotlights. A scenic control of the lighting equipment                    •    4 x small loudspeakers EAW UB 12S in
is not provided for, only the calling-up of presets in the                            flying bracket
backstage area of the Small Arena. In addition, 6
unmounted small LED spotlights are included, which may be
used as up-lights in stand-alone operation.                                       •    1 x amping, crossover and cable PA
                                                                                      system
Permanently installed technical devices included (as of 2014)
                                                                                  •   1 x CD / MP3 player in the Small Arena’s
                                                                                      backstage area
          •      16 x LED PAR

          •      4 x LED floodlights                                    POWER CONNECTIONS

          •      8 x Fresnel-lense spotlights 1kW                       Foyer area

                                                                                  •   4 floor tanks with 2 Schuko each
          •      4 x ETC S4 Junior profile spotlights
                                                                        Small Arena
          •      6 x LED PAR (unmounted)                                         • 2 x 16 A CEE 5-pol 6h
                                                                                 • 4 x Schuko
          Further standard equipment for diverse event
                                                                        Backstage Small Arena (separate light /sound)
          formats may be booked in addition.
                                                                                 • 1 x 125 A CEE 5-pol 6h
                                                                                 • 1 x 63 A CEE 5-pol 6h
                                                                                 • 2 x 32 A CEE 5-pol 6h
                                                                                 • 1 x 16 A CEE 5-pol 6h
GENERAL PLAN RIGGING POINTS                                                      • 6 x Schuko
                                                                                 • DMX

                                                                        The maximum available capacity is to be agreed with
                                                                        the Tempodrom Technical Management.

                                                                        TELECOMMUNICATIONS

                                                                             •    WLAN
                                                                             •    Connection option for analogue telephones
                                                                             •    1 ISDN-connection via S0-Bus of the house-
                                                                                  internal connection
                                                                             •    Fibre optic connection for Small Arena &
                                                                                  backstage
                                                                             •    PA system (alarm, announcements, gong)

                                                         1 ring truss

                                                                                         SMALL ARENA 14
SEATING OPTIONS
                                                      OPTION B 1 – FULL SEATING

                                                      Scene

                                                      Diameter circus ring                 11,50 m
                                                      Standard stage                        8x4m
                                                      Clear height                          5,50 m
                                                                   max. load capacity per 250 kg

                                                      Audience space

                                                      Spaces on seating steps           228 Seats
                                                      Seating circus ring               111 Seats
                                                      Wheelchair users                   4 Spaces

                                                      Total                           343 Spaces

                                                                        Including 4 wheelchair
                                                                        users with attendant; 1%
                                                                        in acc. with BetrVO § 26

                                                      1        Standard stage 8 x 4 m
                                                      2        Circus ring seating
                                                      3        Scene area circus ring
                                                      4        Seating steps
                                                      5        Wheelchair platforms
                                                      6        Access to Foyer Big Arena
                                                      7        Access to Small Arena foyer
                                                      8        Access backstage

OPTION B 2 – STANDING ROOM

Scene

Diameter circus ring             11,50 m
Stage                             8x4m
Scene area circus ring             90 m2
Clear height                      5,50 m

Audience space

Spaces on seating              228 Seats
steps
Spaces in circus ring         172 Spaces
Wheelchair users                4 Spaces

Total                        403 Spaces

               Including 4 wheelchair
               users with attendant; 1%
               in acc. with BetrVO § 26

The seats and capacity of your events can deviate
from the variants presented here.
You determine specific numbers in co-operation with
the technical management of the Tempodrom.

                                                                       SMALL ARENA 15
C         FOYER
                                                                     EQUIPMENT
DESCRIPTION                                                          The bar counters with power connections,
                                                                     water supply and drains, sinks, fridges and
The 1,000 m² Foyer extends over three floors and offers              work areas as well as merchandising
sufficient space for use as exhibition, reception or gastronomy      stands with power and telephone
area for approx. 1,200 visitors                                      connections are grouped in a semi-circle
Via a free-standing semi-circular staircase, visitors can access     around the Big Arena. The bar counters
the centre entry to the Big Arena.                                   and wall niches with seating are
The cloakroom area, toilets and the circus ring of the Big Arena     manufactured from wood.
are located on the basement floor. All public facilities in the      All levels of the building are suitable for
building are accessed from the Foyer and are suitable for            wheelchair access through a centrally
wheelchair access.                                                   accessed lift.
The total of six min entry doors to the Foyer each have a width
of 2.18m.                                                            TECHNISCHE AUSSTATTUNG

CEILINGS
                                                                     •   8 rigging points per 250 kg load
The Foyer ceilings are partially of exposed concrete and partially
painted dark red. Lighting elements, anchor points for traverses,        capacity
PA system speakers and sprinklers are integrated. All skylights
in the ceiling are connected to the roof terrace and include         POWER CONNECTION &
integrated lighting elements. The ceiling has a height of 4.21 m.    TELECOMMUNICATIONS
                                                                     Distributed between 12 floor tanks:
FLOOR
The floor is smoothed mastic asphalt with integrated floor tanks,
                                                                          •        WLAN
which are equipped with power telecommunication connections.
                                                                          •        connections for analogue
The stairs running around the Big Arena are constructed of
                                                                                   telephones
exposed concrete blocks.
                                                                          •        1 ISDN-connection via S0- Bus
                                                                                   in-house network available
                                                                          •        Fibre optic connection
                                                                          •        12 x Schuko
                                                                          •        PA system (alarms,
                                                                                   announcements, gong)

                                                                              1          Forecourt
                                                                              2          Visitor entrances
                                                                              3          Foyer ground floor (1000m²)
                                                                              4          Foyer Small Arena (115m²)
                                                                              5          Ticket desk
                                                                              6          Fire alarm centre
                                                                              7          Restaurant / Staff entrance
                                                                              8          Entrance Small Arena
                                                                              9          Lift
                                                                              10         Access to public cloakroom
                                                                                         basement/ lower circle/circus
                                                                                         ring
                                                                              11         Entrance upper circle
                                                                              12         Gastronomy11
                                                                              13         Kiosks for merchandising
                                                                              14         Additional merchandising area

                                                                                       FOYER 16
D         LOUNGE

DESCRIPTION

Linked to the western side of the foyer area and Backstage
West is the Lounge. The unique architecture of this room, the
curved layout, the cascade-formed rising ceiling as well as
dimmable lighting lend the Lounge its special character.

WALLS

The walls are painted dark red in part and partially left in an
exposed concrete optic.

6,56 cm
CEILINGS

The stepped-form ceiling of the room is of decorated exposed
concrete. The PA-system speakers are integrated in this.

FLOOR

The floor is of smoothed mastic asphalt.

                                                                  EQUIPMENT

                                                                  The Lounge inventory includes a high-quality bar
                                                                  counter, bar stools and tables, 10 luxurious
                                                                  armchairs and 2 double sofas of black leather. In
                                                                  addition there are 2 round stainless steel and milk
                                                                  glass tables, as well as a variety of dark wooden
                                                                  tables.
                                                                  The Lounge has a fully-equipped bar area with
                                                                  water supply and drainage, power, sinks and two
                                                                  fridges.

                                                                       •    WLAN
                                                                       •    1 ISDN-connection available via the S0-
                                                                            Bus of the house-intern network
                                                                       •    dimmable lighting
                                                                       •    PA-system (alarms, announcements,
                                                                            gong)
                                                                       •    2 active speakers with 3.5 mm jack
                                                                            (behind the bar)

                                                                  1         Bar
                                                                  2         Lounge (100m²)
                                                                  3         Foyer entrance
                                                                  4         Backstage West entrance
                                                                  5         House technology

                                                                                              LOUNGE 17
E         FORECOURT/ OUTDOOR AREA
                                                                          TECHNICAL EQUIPMENT
DESCRIPTION                                                               ELECTRICITY CONNECTIONS &
                                                                          TELECOMMUNICATIONS
With its 1,500 m² Tempodrom offers an outdoor area which
offers space to the most varied of event concepts. The forecourt          Forecourt:
can be used as for VIP arrivals, for a cloakroom tent or as a                  •    1 x 63 A CEE 5-pol 6h
catering area.                                                                 •    1 x 32 A CEE 5-pol 6h
As parts of the forecourt and the western drive serve as                       •    2 x 16 A CEE 5-pol 6h
emergency service access, these may not be used for parking.                   •    2 x Schuko
Power connections are located on both sides of the forecourt on                •    Connection for analogue
the building facade. A further power supply is located next to the                  telephones available
entrance to the Big Arena on the eastern side of the building.                 •    1 ISDN- connection available via
This also serves as a media connection for OB vans or tour                          the S0-Bus of the house-internal
busses.                                                                             network
                                                                               •    Fibre optic connection
FLOOR
The forecourt and surrounding areas are sealed with an asphalt            West side:
surface.                                                                      •     1 x 63 A CEE 5-pol 6h

                                                                          Access Big Arena/ east side
                                                                              •     1 x 125 A CEE 5-pol 6h
                                                                              •     1 x 63 A CEE 5-pol 6h
                                                                              •     1 x 32 A CEE 5-pol 6h
                                                                              •     1 x Schuko
                                                                              •     Connection for analogue
                                                                                    telephones available
                                                                              •     1 ISDN connection via S0-Bus of
                                                                                    the house-intern network

                                                                     1      Tempodrom
                                                                     2      Forecourt (1500m²)
                                                                     3      Emergency services manoeuvring
                                                                            area
                                                                     4      Velo paths
                                                                     5      Disabled parking spaces
                                                                     6      Lawn
                                                                     7      Sport ground
                                                                     8      City wood
                                                                     9      Patio Liquidrom
                                                                     10     loading ramp access
                                                                     11     Möckernstraße
                                                                     12     Parking for OB vans / tour busses
                                                                     13     Forecourt junction boxes

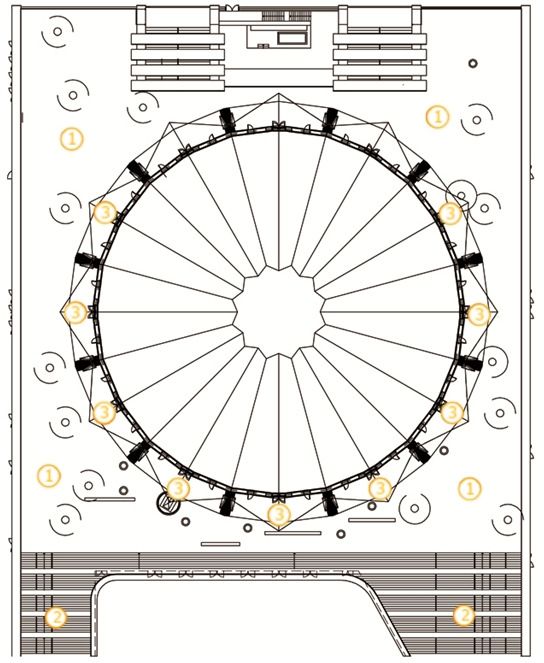

F        ROOF TERRACE

DESCRIPTION

As ideal addition to the venues inside the Tempodrom there is
also a roof terrace with over 3,000 m².
This open-air space surrounds the impressive roof and is
entirely covered in wooden flooring (surface load 500 kg/m²).
From the upper circle of the Big Arena the roof terrace can be
directly accessed via nine fully glazed double-winged doors.
The area is also accessed from the building forecourt by a wide
open-air staircase.
From spring to autumn, Tempodrom provides the ideal location
for combined indoor and outdoor events.

                                                                  TECHNICAL EQUIPMENT

                                                                  Distributed between 10 floor
                                                                  tanks:

                                                                  •   6   x water supply
                                                                  •   5   x waste water drains
                                                                  •   8   x Schuko
                                                                  •   3   x 32 A CEE 5-pol 6h
                                                                  •   1   x 16 A CEE

                                                                  1          roof terrace (3000m²)
                                                                  2          outdoor staircase/roof terrace access
                                                                  3          access to the Big Arena /roof terrace

                                                                      ROOF TERRACE 19
G         BACKSTAGE EAST

DESCRIPTION

The backstage area located to the east of the Scene store
consists of three dressing rooms, showers, WCs, a VIP dressing
room, two production offices and a tea kitchen.
A generous central area with flexible, production-related use is
available, for example as a crew area.
Offices 1 & 2 are provided with telephone and data connections;
the VIP dressing room also has its own bathroom with shower
and WC. Dressing Rooms 4 and 6 have direct access to the
respective WC and shower rooms. Furniture such as tables,
chairs, sofas and mirror are available in sufficient quantities. A
corresponding inventory list is available upon request.

                                                                     TECHNICAL EQUIPMENT

                                                                      WLAN

                                                                     Production office east 1 & 2:
                                                                      2 telephone connections
                                                                      various Schuko
                                                                      TV & radio connections

                                                                     VIP dressing room:
                                                                      2 telephone connections
                                                                      various Schuko
                                                                      TV & radio connections

                                                                     Cloakrooms 1, 2, 3:
                                                                      various Schuko

                                                                     Crew area:
                                                                      2 telephone connections
                                                                      various Schuko
                                                                      TV & radio connections
                                                                      Fibre optic lines

                                                                     Tea kitchen:
                                                                      various Schuko
                                                                      1 refrigerator

 1         Office 2 (6m²)
 2         Office 1 (6m²)
 3         Dressing Room 3 (12m²)
 4         Toilets Ladies
 5         Dressing Room 4 (6m²)
 6         Dressing Room 5 (8m²)
 7         Dressing Room 6 (6m²)
 8         Toilets Gentlemen
 9         Crew area (100m²)
 10        Tea kitchen
 11        Access to the Big Arena

                                                                      BACKSTAGE EAST 20
H        BACKSTAGE WEST – DRESSING ROOM 1

DESCRIPTION

There is an additional dressing room in the western area of the
building with direct access backstage on the basement level.
The 35m2 room in red is fitted with comfortable sofas and seating
cubes, two illuminated make-up mirrors and tables and two
oversized wall mirrors.
WCs and showers are in direct proximity

                                                                    TECHNICAL EQUIPMENT

                                                                     3 x double wall mounted
                                                                    schukos
                                                                     WLAN
                                                                     2 telephone/data
                                                                    connections
                                                                     TV/radio connection

                                                                    FURNITURE
                                                                     2 sofas
                                                                     couch table
                                                                     various cube seats
                                                                     2 make-up mirrors with
                                                                    table
                                                                     2 wall mirrors 1 x 2 m
                                                                     further furniture available
                                                                    upon request

                                                                    1         Dressing Room 1 (35m²)
                                                                    2         Bathroom Women
                                                                    3         Bathroom Men
                                                                    4         Entrance Big Arena lower circle
                                                                    5         Entrance Big Arena upper circle
                                                                    6         Entrance Lounge
                                                                    7         Entrance backstage
                                                                    8         Dressing Romm 1b (12 m²)

                                                                                   BACKSTAGE WEST 21
IJ        NEBENRÄUME
          BACKSTAGE WEST – CATERING, DRESSING ROOM 2

DESCRIPTION                                                                TECHNICAL EQUIPMENT

The kitchen located on the west side with connected crew                   CATERING
catering room, as well as Dressing Room 2 have an expansive
window front. Due to their proximity to the Big Arena, Small                  Cooker (4 hotplates & oven)
Arena and the lounge, as well as equipment with                               Roasting pan
telecommunications technology, these are predestined for use                  Double sink
as workshops or production offices for large events. They offer               dishwasher
room for 40 to 100 people. In the kitchen, a fully-equipped                   2 Fridges
kitchenette is available. The catering area, equipped with
                                                                              2 Stainless steel workbenches
marquee fittings can be separated from the kitchen with
                                                                              Partition elements
suspended partitions.
                                                                            WLAN
                                                                            1 ISDN connection available via the
                                                                           S0-Bus of the house-internal network
                                                                            dimmable lighting
                                                                            PA system (alarm, announcements,
                                                                           gong)
                                                                            several Schuko sockets
                                                                            1 x 32 A CEE 5-pol 6h

                                                                           Distributed between 4 floor tanks:
                                                                            2 x double schuko
                                                                            4 telephone/data connections
                                                                            Fibre optic connection
                                                                           

                                                                           DRESSING ROOM 2
                                                                            1 x Schuko 16 A, wall-mounted

                                                                           Distributed between 3 floor tanks:
                                                                            2 x double schuko
                                                                            WLAN
                                                                            4 telephone/data connections
                                                                            Fibre optic connection

                                                                  1    Catering (50m²)
                                                                  2    Kitchen (35m²)
                                                                  3    Dressing Room 2(50m²)
                                                                  4    Dressing Room 1 (35m²)
                                                                  5    Bathrooms/ Dressing Room 1b (12m²)
                                                                  6    Access to backstage area
                                                                  7    Lounge entrance
                                                                  8    Entry to Big Arena lower circle
                                                                  9    Entry to Big Arena upper circle
                                                                  10   Foyer entrance
                                                                  11   Mobile partition

                                                                         BACKSTAGE WEST 22
SERVICEPARTNER
CATERING
                                                    FIRE PREVENTION / PARAMEDICS
      Sarah Wiener Berlin GmbH
                                                            Brandschutzbüro und Dienstleistungen
      Charlottenstraße 13
                                                            Behring GmbH
      10969 Berlin                                          Geflügelsteig 78
                                                            12355 Berlin
      Fon        +49 (0)30 707180-0
      Fax        +49 (0)30 707180-229                       Fon      +49 (0)30 66 46 02 - 05
                                                            Fax      +49 (0)30 66 06 84 - 60

      E-mail     info@sarahwiener.de                        E-mail   kontakt@behring.biz
      Internet   www.sarahwiener.de                         Internet www.behring.biz

EVENT ENGENEERING + RIGGING + SHOW ELECTRONICS      CLEANING

       TSE AG · Technik und Service für Events AG           GRG Services Berlin
       Sound-, Light-, Stage- engeneering,                  Markstraße 35-37
       Video- and Conference-engeneering                    13409 Berlin
       Bergiusstrasse 52
       12057 Berlin                                         Fon      +49 30 49009-200
                                                            Fax      +49 30 49009-299
       Fon       +49 (0)30 39 06 1 - 0
       Fax       +49 (0)30 39 06 1 - 199                    E-Mail   berlin@grg.de
                                                            Internet www.grg.de
       E-mail   info@tse-ag.com
       Internet www.tse-ag.com

SECURITY

       B.E.S.T. Veranstaltungsdienste GmbH
       Stieffring 6
       D-13627 Berlin

       Fon       +49 (0)30 34 34 67 - 0
       Fax       +49 (0)30 34 34 67 - 67

       E-mail   info@bestvd.de
       Internet www.bestvd.de

                                                               SERVICE PARTNER 23
INFORMATION FOR EVENT ORGANISERS

FIRE BRIGADE / PARAMEDICS                                   CAPACITY & TICKET SALES
For events in the Tempodrom Big Arena it is mandatory       In accordance with BetrVO Berlin §26, para. 4 1% of
that from opening of the event to the public, the           audience space is to be reserved for wheelchair users,
presence of 3 fire prevention officers from the fire        however with a minimum of 2 spaces. These are to
brigade is required. Block 8, row 1, seat 1 is reserved     each be allocated a seat for attendants. For this reason
for fire prevention monitoring in the audience area. This   and through the event technology installation (FOH,
seat is to be omitted from ticket sales!                    follow spots, camera spaces etc.) as well as further
Furthermore, the presence of 2 paramedics is also           seats blocked fort eh event organiser, there is an
required for events in the Big Arena.                       individual total capacity for each individual event.
                                                            Therefore please assess the total capacity for ticket
SHOW ELECTRICIANS                                           sales in cooperation with the Tempodrom Technical
For reasons of operating safety, the show electrician       Management.
must be present at least 1 hour prior to the show
commencing and remain present until the end of the          PARKING PERMISSION
event.                                                      Parking permission for tour busses, lorries and OB vans
The requirement for the electrician during the technical    must be applied for from Tempodrom at least two
set-up work is oriented on the type of event and is to      weeks prior to the start of use. With special permission,
be decided upon consultation with Tempodrom.                a maximum of 110 m may be applied for. (Park zones
                                                            A, B, D see page 37)
HALL INSPPECTOR
The present of the Tempodrom hall inspector is              DECORATION & FITTINGS
essentially required for the duration of the event          All decorations, fittings, furnishings as well as stands
(admission to the end) as well as for set-up and            and info boxes must have at least B1 certification in
disassembly in accordance with BetrVO §32. The              accordance with DIN 4102.
instructions of the Hall Inspector are to be complied       This certificate must be issued to the Tempodrom
with.                                                       Technical Management 4 weeks prior to the start of the
                                                            event.
SECURITY STAFF
Tempodrom has concluded an exclusivity contract with        FORECOURT
B.E.S.T. Veranstaltungsdienste GmbH Berlin. The             Sections of the forecourt and the western vehicle
number of staff is orientated on the type of event, the     access to the Tempodrom serve as emergency service
anticipated number of visitors and is to be determined      access or manoeuvring areas.
upon consultation with B.E.S.T. and Tempodrom               It is therefore not possible to use the forecourt for
Technical Management.                                       parking. Exceptions from this parking prohibition are
                                                            possible for delivery traffic for the Small Arena and the
CLOAKROOM ATTENDANTS                                        foyer, however only up until one hour prior to the start
Tempodrom has its own staff to provide cloakroom            of admission to the events.
services. The number of employees is based on the           In cooperation with the Tempodrom Technical
type of event and is determined by Tempodrom.               Management vehicle access during special events is
                                                            possible.
POWER CONTROL ROOM
The power operating room is located stage left in the       PREPARATION, PERMITS & IMPLEMENTATION
Big Arena for the power connections and event               The Tempodrom team are at your disposal for the
technology.                                                 professional planning, preparation, authorisation and
This is required in accordance with building regulations    implementation of your event. We advise that the
and serves to house the dimmer control panel during         permit procedure for corporate events with the building
the eve. Through a firewall closable with a fire            authority must be applied for at least 4 weeks prior to
retardant block, cable lines can be set-up for              the respective event. Please coordinate all requirements
installation. All cable lengths, multicore and extensions   with the Tempodrom Technical Management.
must be measured in a manner that the dimmer control
cupboards in the power control room can be adjusted.
A wiring plan for the Big Arena can be obtained from
the Tempodrom Technical Management.

                                          INFORMATION FOR EVENT ORGANISERS 24
PUBLIC AUTHORITY

BUILDING AUTHORITY                                 POLICE
Bezirksamt Friedrichshain-Kreuzberg von Berlin     Direktion 5 – Abschnitt 53
Amt für Stadtplanung, Vermessung und Bauaufsicht   Friedrichstraße 219, 10969 Berlin
Yorckstraße 4 - 11, 10965 Berlin                   Fon        +49 (0)30 466 45 53 - 700 / 701 (Wache)
                                                   Fax        +49 (0)30 466 45 53 - 799
Contact person                                     Internet www.polizei.berlin.de
Herr Becker
Fon      +49 (0) 30 902 98 - 3311                  ROAD TREFFIC AUTHORITY
Fax      +49 (0) 30 902 98 - 2958                  Frankfurter Allee 35 - 37
E-Mail   reinhard.becker@ba-fk.verwalt-berlin.de   10245 Berlin

ENVIRONMENTAL OFFICE                               Contact person
Bezirksamt Friedrichshain-Kreuzberg von Berlin     Herr Hoffleit
Abt. Stadtentwicklung und Bauen                    Fon       +49 (0)30 902 98 - 8078
Amt für Umwelt und Natur                           Fax       +49 (0)30 902 98 - 8019
Fachbereich Umwelt
Yorckstraße 4 - 11, 10965 Berlin

Fon      +49 (0) 30 902 98 - 4411                  MEDICAL SERVIES
Fax      +49 (0) 30 902 98 - 2727
                                                   HOSPITALS
PARKS AUTHORITY
                                                   Krankenhaus am Urban
Bezirksamt Friedrichshain-Kreuzberg von Berlin     Krankenhausbetrieb von Berlin-Kreuzberg
Abt. Stadtentwicklung und Bauen                    Dieffenbachstr. 1, 10967 Berlin
Amt für Umwelt und Natur                           Fon      +49 (0) 30 130 21 - 0                  1,7 km
Fachbereich Naturschutz und Grünflächen
Yorckstraße 4 - 11, 10965 Berlin                   Charité Universitätsklinikum
Postfach 350701, 10216 Berlin                      Schumannstraße 20 - 21, 10117 Berlin
                                                   Fon       +49 (0) 30 450 - 50                   3,4 km
Contact person
Frau Keller
Fon       +49 (0) 30 902 98 - 8024
Fax       +49 (0) 30 902 98 - 8033
E-Mail    natur@ba-fk.verwalt-berlin.de

LAGETSI
Landesamt für Arbeitsschutz, Gesundheitsschutz
und technische Sicherheit Berlin
Alt-Friedrichsfelde 60, 10315 Berlin

Contact person
Herr Reich
Fon       +49 (0) 30 902 545 - 572
Fax       +49 (0) 30 902 545 - 315

FIRE BRIGADE
Direktion Süd
Vorbeugender Brandschutz
- Veranstaltungsabnahmen -
Kirchhofstraße 20, 12051 Berlin

Contact person
Herr Wehner
Fon      +49 (0) 30 387 502 - 37
Fax      +49 (0) 30 387 502 - 97

Feuerwache Kreuzberg
Wiener Straße 64, 10999 Berlin
Fon      +49 (0) 30 617 871 - 11

                                                                PUBLIC AUTHORITY 25
INFRASTRUCTURE

AIRPORTS                                                   HOTELS
• Berliner Flughafen GmbH
Flughafen Berlin-Schönefeld, 12521 Berlin
                                                           •   Wyndham Grand Berlin
Fax     +49 (0) 180 5000186               17,0 km
                                                               Potsdamer Platz Hotel****
                                                               Hallesche Straße 10-14, 10963 Berlin
Directions Schönefeld Airport – Tempodrom:
                                                               Fon 030 80 10 66 0, Fax 030 80 10 66 66 0
From Schönefeld Airport continue straight on from the
                                                               www.wyndhamgrandberlin.com
B179/Waltersdorfer Chaussee, to B179/Neuköllner
Straße, Rudower Straße, Buschkrugallee, Karl-Marx-
                                                           •   Mövenpick Hotel ****
Straße, Hasenheide, Gneisenaustraße.
                                                               Schönebergerstraße 3,10963 Berlin
Turn right onto Mehringdamm, left onto Hallesches
                                                               Fon 030 23 00 60, Fax 030 30 23 00 61 99
Ufer. Second turning on the right into Möckernstraße.
                                                               www.moevenpick-berlin.com

STATIONS                                                   •   Scandic Berlin **** am Potsdamer Platz
•   Berlin Hauptbahnhof                                        Gabiriele-Tergit-Promenade 19, 10963 Berlin
    Invalidenstraße 53, 10557 Berlin              3,9 km       Fon 030 700 779 0, Fax 030 700 779 2211
                                                               www.scandichotels.com/berlin
Directions Hauptbahnhof – Tempodrom:
From Invalidenstraße turn left into the                    •   Relexa Hotel Stuttgarter Hof ****
Tiergartentunnel. Turn left onto Schöneberger Ufer.            Anhalterstraße 8-9, 10963 Berlin
Continue along Tempelhofer Ufer. Turn left into                Fon 030 26 48 30, Fax 030 26 48 39 00
Möckernstraße.                                                 www.relexa-hotels.de

•   Bahnhof Berlin-Ostbahnhof                              •   NH Hotel Potsdamer Platz ***
    Am Ostbahnhof, 10243 Berlin          5,0 km                Stresemannstraße 47, 10963 Berlin
                                                               Fon 030 20 62 07 33, Fax 030 22 50 71 90 0
Directions Ostbahnhof – Tempodrom:                              www.nh-hotels.com
From the station into Holzmarktstraße. Left across the
Jannowitzbrücke onto Brückenstraße, Heinrich-Heine-        •   Suitehotel *** am Potsdamer Platz
Straße. at Moritzplatz 1/4 turn onto the Oranienstraße,        Anhalter Straße 2, 10963 Berlin
Kochstraße, left into Wilhelmstraße, right into Anhalter       Fon 030 20 05 60, Fax 030 20 05 62 00
Straße. Left into Stresemannstraße.                            www.suite-hotel.com
Right into Möckernstraße.
                                                           •   Express by Holiday Inn ***
•   Bahnhof Berlin-Zoologischer Garten                         Stresemannstraße 49, 10963 Berlin
    Hardenbergplatz, 10623 Berlin 4,9 km                       Fon 030 26 48 30, Fax 030 26 48 39 00
                                                               www.hiexpress.de
From Hardenbergplatz turn left into Budapester Straße,
Kurfürstenstraße. Left into Schillstraße. Right into       •   Ibis Hotel ** am Potsdamer Platz
Lützowufer, Schöneberger Ufer, Tempelhofer Ufer. Left          Anhalter Straße 4, 10963 Berlin
into Möckernstraße.                                            Fon 030 26 10 50, Fax 030 26 10 52 22
                                                               www.ibishotel.de
TAXI CENTRALS
                                                           •   Hotel am Anhalter Bahnhof **
Funktaxi Berlin: 0800 02 61 02 6 oder 030 26 10 26
                                                               Stresemannstraße 36, 10963 Berlin
City Funk: 030 21 02 02
                                                               Fon 030 25 80 07 0, Fax 030 25 14 89 7
Spreefunk: 030 44 33 22
                                                               www.hotel-anhalter-bahnhof.de
Würfelfunk: 0800 22 22 2 55 oder 030 21 01 01
Rufsäule am Anhalter Bahnhof: 030 26 231 47
                                                           •   Etap Hotel * am Potsdamer Platz
                                                               Anhalter Straße 6, 10963 Berlin
                                                               Fon 030 25 76 77 0
                                                               www.etaphotel.com
PARKING
•   Parkhaus Gleisdreieck
    Schöneberger Ufer 5-9,
    10785 Berlin  0,5 km

•   Parkhaus Excelsior Haus
    Stresemannstr. 68-76
    10963 Berlin 0,3 km

                                                                    INFRASTRUCTURE 26
HOW TO FIND TEMPODROM

ADDRESS                                                                     PARKING
Tempodrom, Möckernstraße 10, 10963 Berlin                                   Only limited public parking is available
Tel +49 (0) 30 74 73 7 - 0                                                  in the direct vicinity of the Tempodrom.
Fax +49 (0) 30-74 73 7 – 210                                                In Parkhaus Gleisdreieck multi-storey
                                                                            carpark (Schöneberger Ufer), only 8
CAR & LORRY                                                                 minutes’ walk away are over 2,000 car
From the city Autobahn A100 towards Dresden, to exit B96-Tempelhofer        parking spaces available for a fee.
Damm. Turn left onto the Tempelhofer Damm. Straight on to
Mehringdamm. Turn left onto Hallesches Ufer.
Second turning on the right onto Möckernstraße. Tempodrom is located
approx. 200 m on the left-hand side. Access road to the stage is directly
on Möckernstraße.
                                                                            1         Tempodrom
Public transport                                                            2         Tiergarten
 S-Bahn: line S1/ S2/ S25/ S26 to station Anhalter Bahnhof                 3         Siegessäule
 U-Bahn: line U1/ U7 to Möckernbrücke station, line U2 to                  4         Brandenburger Tor
Mendelssohn-Bartholdy Park station                                          5         Potsdamer Platz
 Bus:                                                                      6         Towards Airfield
                                                                                      Schönefeld
Bus route 129 to Anhalter Bahnhof                                           7         Autobahn access
Bus route 248 to Möckernstraße                                                        100,103, 102
Bus route M41 to Anhalter Bahnhof                                           8         multi-storey car park
                                                                                      Gleisdreieck
                                                                            9         Car park
                                                                                      Excelsiorhaus
                                                                            10        Car park
                                                                                      Martin-Gropius-Bau

                                                                            TRANSPORT ACCESS 27
CONTACT PERSONS

OPERATOR                                   SALES MANAGER
Tempodrom                                  PUBLIC EVENTS
Betriebsgesellschaft mbH & Co. KG          Moritz Vasek
Möckernstraße 10                           Fon       +49 (0) 30 74 73 7 - 215
10963 Berlin                               Fax       +49 (0) 30 74 73 7 - 210
                                           E-Mail    moritz.vasek@tempodrom.de
Fon      +49 (0) 30 74 73 7 - 0
Fax      +49 (0) 30 74 73 7 - 210
                                           SALES MANAGER
E-mail   info@tempodrom.de                 CORPORATE EVENTS
Internet www.tempodrom.de                  Marko Schilp
                                           Fon      +49 (0) 30 74 73 7 - 218
VENUE MANAGER                              Fax      +49 (0) 30 74 73 7 - 210
Karolin Gramsch                            E-Mail   marko.schilp@tempodrom.de
Fon       +49 (0) 30 74 73 7 - 213
Fax       +49 (0) 30 74 73 7 - 210
E-Mail    karolin.gramsch@tempodrom.de     TECHNICAL DIRECTOR
                                           Steve Thiede
                                           Fon       +49 (0) 30 74 73 7 - 249
COMMUNICATION, PR & MARKETING              Fax       +49 (0) 30 74 73 7 - 250
Jessica Paul, Fränze Drescher              E-mail    steve.thiede@tempodrom.de
Fon       +49 (0) 30 74 73 7 - 214
Fax       +49 (0) 30 74 73 7 - 210
E-Mail    jessica.paul@tempodrom.de        TECHNICAL PROJECT MANAGER
                                           Mike Groß
                                           Fon      +49 (0) 30 74 73 7 - 248
ACCOUNTANCY                                Fax      +49 (0) 30 74 73 7 - 250
Stephanie Warnecke                         E-mail   produktion@tempodrom.de
Fon      +49 (0) 30 74 73 7 - 228
Fax      +49 (0) 30 74 73 7 - 210
E-Mail   stephanie.warnecke@tempodrom.de   FOOD AND BEVERAGE
                                           Mario Treugut
                                           Fon      +49 (0) 30 74 73 7 - 216
                                           Fax      +49 (0) 30 74 73 7 - 210
                                           E-Mail   mario.treugut@tempodrom.de

                                                                 CONTACT 28
NORTH VIEW
                      1       Foyer entrance
                      2       Roof terrace access
                      3       Roof terrace

SOUTH VIEW

                          1      Roof terrace
                          2      Park
                          3      Roof terrace
                          4      Solar plant
                          5      Photovoltaic plant

             LAYOUT AND OVERVIEWS 29
EAST VIEW

                    1       Roof terrace north
                    2       Roof terrace south
                    3       Access loading ramp
                    4       Liquidrom entrance
                    5       Restaurant entrance

WEST VIEW

                        1     Roof terrace north
                        2     Roof terrace south
                        3     Access loading ramp
                        4     Liquidrom entrance
                        5     Restaurant entrance

            LAYOUT AND OVERVIEWS 30
SECTIONAL VIEW NORTH - SOUTH

                                      1       Permanent stand Big Arena
                                      2       Mobile stand Big Arena
                                      3       Roof terrace access
                                      4       Glass façade Big Arena
                                              and roof terrace access
                                      5       Foyer
                                      6       Backstage area Big Arena
                                      7       Liquidrom

SECTIONAL VIEW EAST - WEST

                                          1    Circus ring Big Arena
                                          2    Permanent stand Big Arena
                                          3    Mobile stand Big Arena
                                          4    Glass façade Big Arena
                                               and roof terrace access
                                          5    Roof terrace
                                          6    Cloakrooms/ WCs

                               LAYOUT AND OVERVIEWS 31
1    Circus Ring
                        2    Scene area
                        3    Scene rear area
                        4    Cloakrooms
                        5    Public Toilets
                        6    Backstage East
                        7    Big Arena loading ramp

   LAYOUT BASEMENT

                       1    Entrance
                       2    Foyer
                       3    Big Arena
                       4    Scene Arena
                       5    Small Arena
                       6    Catering
                       7    Dressing Room 2
                       8    Dressing Room 1
                       9    Lounge
                       10   Restaurant
                       11   Kitchen
                       12   Administration
                       13   Big Arena loading ramp
                            access

LAYOUT GROUNDFLOOR

            LAYOUT AND OVERVIEWS 32
LAYOUT ROOF TERRACE
                           1   Roof terrace
                           2   Outdoor stairs and
                               roof terrace entrance
                           3   Access from Big Arena to
                               roof terrace

                      LAYOUT AND OVERVIEWS 33
BLOCKABLE PARKING ZONES

 A     Parking zone A ca. 20 m
 B     Parking zone B ca. 20 m
 D     Parking zone D ca. 70 m

                                 LAYOUT AND OVERVIEWS 34
Ton:
                                                                                                                                                                                                                                 1x 32A CEE
                                                                                                                           Licht:                                                                                                1x 16A CEE
                                                                                                                           1x 63A CEE                                                                                            6x Schuko
                                                                                                                           1x 32A CEE
                                                                           1x 16 A CEE                                     1x Schuko                                                                                                                                                                                          1x 16 A CEE
                                                                           1x Schuko 1 Phase                               1x Harting                                                                                                                                                                                         1x Schuko 1 Phase

                                                                                                                                                                                                                                                                                                                                                      Licht:
                                                       Licht:                                                                                                                                                                                                                                                                                         1x Schuko
                                                       1x Schuko                                                                                                                                                                                                                                                                                      1x Harting
                                                       1x Harting

                                                                                                                                                                              (94) Last: 2,5t                                        (95) Last: 2,5t
                                                                                                                                                                              Höhe: 14,81m                                           Höhe: 14,83m
                                                                                                                                                                              lichte Höhe: 11,70m                                    lichte Höhe: 11,72

                                                                                                                                                                                            (91) Last: 2,5t                                (92) Last: 2,5t
                                                                                                                            (90) Last: 2,5t                                                                                                                                       (93) Last: 2,5t
                                                                                                                                                                                            Höhe: 19,90m                                   Höhe: 19,90m
                                                                                                                            Höhe: 14,83m                                                                                                                                          Höhe: 14,82m
                                                                                                                                                                                            Höhe Seil: 15,70m                              Höhe Seil: 15,70m                                                                                                                  Licht:
                                                                                                                            lichte Höhe: 11,85m                                                                                                                                   licht Höhe: 11,84m
                                                                                                                                                                                                                                                                                                                                                                              1x Schuko max. 10A
                                        Licht:                                                                                                                                                                                                                                                                                                                                1x Harting
                                        1x Schuko
                                        1x Harting
                                                                                                                                                    (88) Last: 2,5t                                                                                                              (89) Last: 2,5t

                                                                                                                                                                                       FOH
                                                                                                                                                    Höhe: 19,90m                                                                                                                 Höhe: 19,90m
                                                                                                                                                    Höhe Seil: 15,70m                                                                                                            Höhe Seil: 15,70m

                                                                                                                                                                                                       (85) Last: 5t
                                                                                                                                                                                                       Höhe: 30,70m                                (87) Last: 5t       Licht:
                                                                                             (75) Last: 2,5t
                                                                                                                                        Licht:
                                                                                                                                                                                                                                                   Höhe: 30,70m

                                                                                                                                                                                     Große Arena
                                                                                                                                                                                                                                                                       1x 32 A CEE                           (83) Last: 2,5t
                                                                                             Höhe: 14,82m                               1x 32 A CEE
                                                                                                                                                                                                                                                                       1x 16 A CEE                           Höhe: 14,81m
                                                                                             lichte Höhe: 11,71m                        1x 16 A CEE                                                                                                                                                          lichte Höhe: 11,84
                                                                                                                            (76) Last: 2,5t
                                                                                                                            Höhe: 19,90m
                                                                                                                            Höhe Seil: 15,70m                                                                                                                                               (82) Last: 2,5t
                                                                                                                                                                                          (78) Last: 2,5t              (80) Last: 2,5t                                                      Höhe: 19,90m
                                                                                                                                                                                          Höhe: 30,80m                 Höhe: 30,90m                                                         Höhe Seil: 15,70m
                                                                                                                                                                                          Höhe Seil: 20,60m            Höhe Seil: 20,72m
                                                                                                                                                                       (77) Last: 5t
                                                                                                                                                                       Höhe: 30,70m
                                                                                                                                                                                                                  (79) Last: 2,5t
                                                                                                                                                                                                                  Höhe: 30,70m
                                                                                                                                                                                                                  Höhe Seil: 20,35m

                                                                                                                                                                                          (72) Last: 2,5t              (73) Last: 2,5t
                                                                                                                                                                                                                                                               (74) Last: 5t
                                                                                                                                                                                          Höhe: 30,90m                 Höhe: 30,90m
                                                                                                                                                                                                                                                               Höhe: 30,65m                        (69) Last: 2,5t
                                                                                                                                                                                          Höhe Seil: 20,72m            Höhe Seil: 20,68m
                                                                                                                                                                                                                                                                                                   Höhe: 19,90m
                                                                                                                            (66) Last: 2,5t                                                                                                                                                                                                                                      Licht:
                                        Licht:                                                                                                                                                                                                                                                     Höhe Seil: 15,70m
                                                                                                                            Höhe: 19,90m                                                                                                                                                                                                                                         1x Schuko max. 10A
                                        2x Schuko                                                                           Höhe Seil: 15,71m                                     (67) Last: 5t               Ton:                                                                                                                                                               1x Harting
                                        2x Harting                                                (65) Last: 2,5t                                                                                                                                                                                               (70) Last: 2,5t
                                                                                                                                                                                  Höhe: 30,70m                1x 32 A CEE
                                                                                                  Höhe: 14,80m                                                                                                                                                                                                  Höhe: 14,81m
                                                                                                                                                                                                              1x 16 A CEE                                                                                       lichte Höhe: 11,70m
                                                                                                  lichte Höhe: 11,69m
                                                                                                                                                                                                                (64) Last: 5t
                                                                                                                                                                                                                Höhe: 30,70m

                                                                                                                                                               (58) Last: 1t                                                                                         (61) Last: 1t
                                                                                                                          (57) Last: 1t                        Höhe: 23,00m                                                                                                                               (62) Last: 1t
                                                                                                                                                                                                    (59) Last: 1t              (60) Last: 1t                         Höhe: 23,50m
                                                                                                                          Höhe: 21,30m                         Höhe Seil:15,93m                                                                                                                           Höhe: 19,40m
                                                                                                                                                                                                    Höhe: 27,80m               Höhe: 27,80m                          Höhe Seil:15,94m
                                                                                                                          Höhe Seil: 17,18m                                                                                                                                                               Höhe Seil: 15,28m
                                                                                                                                                                                                    Höhe Seil:15,70m           Höhe Seil:15,70m
                                                                                                                                                                                                                                                                                                                                (56) Last: 1t
                                                                                                                                                    (49) Last: 2,5t                                                                                                              (55) Last: 2,5t                                Höhe: 17,88m
                                                                                                                                                    Höhe: 19,96m                                                                                                                 Höhe: 19,90m                                   lichte Höhe: 14,05m
                                                                                                                                                    Höhe Seil: 15,70m                                                                                                            Höhe Seil: 15,69m
                                                                                   (48) Last: 2,5t                                                                  (50) Last: 1t    (51) Last: 1t     (52) Last: 1t    (53) Last: 1t     (54) Last: 1t
                                                                                                                                         (38) BGV C1 Motor          Höhe: 22,80m     Höhe: 22,90m      Höhe: 23,00m     Höhe: 23,40m      Höhe: 22,60m      (44) BGV C1 Motor (45) Last: 1t
                                                                                   Höhe: 17,89m                          (37) Last: 1t   UK Haken: 13,00m           Höhe Seil:20,73m Höhe Seil: 15,80m Höhe Seil:15,92m Höhe Seil: 15,58m Höhe Seil: 20,45m UK Haken: 13,00m
                                                                                   lichte Höhe: 14,06m                                                                                                                                                                          Höhe: 14,62m                                                          (47) Last: 1t
                                                                                                                         Höhe: 14,62m Tragfähigkeit: 1,3t
                                                                                                                                                                                                                                                            Tragfähigkeit: 1,3t lichte Höhe: 12,83m

                                                                                                                                                                                                                                                                                                                                                                                              Die Positionen der Hängepunkte können
                                                                    (35) Last: 1t                                                                                                                                                                                                                                                                     Höhe: 15,59m
                                                                                                                         lichte Höhe: 12,83m
                                                                                                                                                                                                                                                                                                                                                      lichte Höhe: 9,35m
                                                                    Höhe: 15,59m
                                                                    lichte Höhe:9,31m                                                    fest              (39) Last: 1t                                   (41) Last: 1t                                    (43) Last: 1t   0-Linie
                                                                                                                                                                                                                                                                               fest

                                                                                                                                                                                                                                                                                                                                                                                              aufgrund von Bautoleranzen leicht
                                                                                                                           (36) Last: 2,5t                 Höhe: 22,02m              (40) Last: 2,5t       Höhe: 24,00m          (42) Last: 2,5t            Höhe: 22,03m                                  (46) Last: 2,5t
                                                                                                                           Höhe:14,56m                     Höhe Seil: 14,70m         Höhe: 19,94m          Höhe Seil: 15,50m     Höhe: 19,99m               Höhe Seil: 14,74m                             Höhe: 14,66m
                                                                                                                           lichte Höhe: 11,67m                                       Höhe Seil: 15,70m                           Höhe Seil: 15,70m
                                                                                                                                                                                                                                                                                                          lichte Höhe: 11,71m
                                                                                                              (28) Last: 1t

                                                                                                                                                                                                                                                                                                                                                                                              abweichen. Bei Bedarf vor Ort prüfen.
                                                                                                                                                        (29) Last: 1t                                                                                                       (33) Last: 1t
                                                                                                                                                                                       (30) Last: 1t             (31) Last: 1t                (32) Last: 1t
                                                                                                              Höhe: 12,75m                              Höhe: 19,30m                                                                                                        Höhe: 19,30m
                                                                                                                                                                                       Höhe: 17,42m              Höhe: 21,10m                 Höhe: 17,34m
                                                                                                              lichte Höhe: 8,60m                        Höhe Seil:16,17m                                                                                                    Höhe Seil: 16,21m
                                                                                                                                                                                                                 Höhe Seil: 17,00m                                                                     (34) Last: 1t

                                                                                                                                                                                                                                                                                                                                                                                              Die Nutzung der Hängepunkte &
                                                                                                                                                                                                                                                                                                       Höhe: 12,74m
                                                                                                                                                                                                      Stage                                                                                            lichte Höhe: 8,66m

                                                                                            (21) Last: 1t
                                                                                                                                                                                                16m x 10m, h=1,2m

                                                                                                                                                                                                                                                                                                                                                                                              Haustraversen ist mit der Technischen
                                                                                                                                                (22) Last: 1t                                                    (24) Last: 1t                                                        (26) Last: 1t
                                                                                            Höhe: 10,73m                                                                          (23) Last: 2,5t                                                                                                               (27) Last: 1t
                                                                                                                                                Höhe: 17,40m                                                     Höhe: 19,30m                      (25) Last: 2,5t                    Höhe: 17,50m
                                                                                            lichte Höhe: 4,37m                                                                                                                                                                                                  Höhe: 10,70m
                                                                                                                                                Höhe Seil: 14,30m                 Höhe: 14,60m                   Höhe Seil: 16,20m                 Höhe: 14,66m                       Höhe Seil: 14,40m         lichte Höhe: 6,39m
  Elektrische Betriebsraum (UG)
  Hausintern
  I max = 800 A                                                              (14) Last: 1t
                                                                                                                                   (15) Last: 1t                               (16) Last: 1t                     (17) Last: 1t                        (18) Last: 1t                             (19) Last: 1t
                                                                                                                                                                                                                                                                                                                                                                                              Leitung abzustimmen.
  4x 125 A CEE                                                               Höhe: 9,07m                                                                                                                                                                                                                                        (20) Last: 1t
                                                                                                                                   Höhe: 16,24m                                Höhe: 13,00m                      Höhe: 17,80m                         Höhe: 13,08m                              Höhe: 16,11m
  4x 63 A CEE                                                                lichte Höhe: 0,99m                                                                                                                                                                                                                                 Höhe: 9,08m
                                                                                                                                                                                                                                                                                                                                lichte Höhe: 0,99m
                                                                                                                                                                                                                                                                                                                                                          Licht:
  2x 32 A CEE                                                                                                                                                                                                                                                                                                                                             1x 63A
  3x Schuko                                                                                                                                                                                                                                                                                                                                               2x 32A
                                                                                                                                                                                                                                                                                                                                                          16A auf 6x Schuko
Elektrische Betriebsraum (UG)                                                                                                                                                                                                                                                                                                                             UV gesamt max 63A
                                                                                                                          (9) Last: 1t                                    (10) Last: 1t                          (11) Last: 1t                             (12) Last: 1t                                  (13) Last: 1t
Fremdproduktion                                                                                                           Höhe: 15,20m                                                                           Höhe: 16,50m
                                                                                                                                                                          Höhe: 11,40m                                                                     Höhe: 11,40m                                   Höhe: 15,15m

I max = 800 A                                                                                                      (4) Last: 1t                                                                                                                                                                                  (8) Last: 1t
                                                     Licht:                                                        Höhe: 14,40m                                                                                                                                                                                  Höhe: 14,40m                             Ton:
2x 125 A CEE                                                                                                                                                          (5) Last: 1t                               (6) Last: 1t                                   (7) Last: 1t                                                                              1x 32A CEE
                                                     1x 63A                                                        lichte Höhe: 6,55m                                                                                                                                                                            lichte Höhe: 6,54m
2x NH2 - 400 A                                                                                                                                                        Höhe: 9,96m                                Höhe: 15,35m                                   Höhe: 9,99m
                                                     1x 32A                                                                                                                                                                                                                                                                                               1x 16A CEE
UV Licht inkl. Dimmerraum max 800 A                                                                                                                                                                                                                                                                                                                       3x Schuko
                                                     1x 16A
                                                     3x Schuko
                   Licht:
                                                                                                                                                               (1) Last: 1t                                                                                          (3) Last: 1t
                   1x 63A                                                                                                                                      Höhe: 9m
                                                                                                                                                                                                                 (2) Last: 1t
                                                                                                                                                                                                                                                                     Höhe: 8,99m
                   1x 32A                                                                                                                                                                                        Höhe: 14,70m
                                                                                                                                                               lichte Höhe: 0,91m                                                                                    lichte Höhe: 0,91m
                   1x 16A
                                                     Ton:
                                                     1x 32A CEE                           = 1t BGV C1 Motoren                                                                                                                                                                                                                                             Licht:
                                                                                                                                                                                                                                                                                                                                                          1x 63A
                   16 A auf 3x Schuko
                                                     1x 16A CEE                                                                                                                                                                                                                                                                                           1x 32A
                                                     3x Schuko                                                                                                                                                                                                                                                                                            1x 16A
                                                                                                                                                                                                                                                                                                                                                          3x Schuko

                                                                                                                                                                                                                                                                                              Maßstab:
                                                                                                                                                                                                                                                                                                1:200
                                                                                                                                                                                                                                                                                               DIN A3
                                                                                                                                                                                                                                                                                                                                                      Hängepunkte
                                                                                                                                                                                                                                                                                                                                                                                                      Technische Leitung, Tempodrom Betriebsgesellschaft mbH & Co. KG,
                                                                                                                                                                                                                                                                                                                                                                                                      Möckernstrasse 10, 10963 Berlin, Fon +49 (0)30 74 73 7 -248, Fax -250
                                                                                                                                                                                                                                                                               
                                                                                                                                                                                                                                                                                                                                                                      Bearb von:             Stand:                   Kapazität:              Version:
                                                                                                                                                                                                                                                                               
                                                                                                                                                                                                                                                                               
                                                                                                                                                                                                                                                                                                                                                                                                      P.Flagmeier            12.12.2014               -                       1.0
Treppen zum Foyer

                                                                                                                                                                                                            WC                                                                                                                                                                   WC / Duschen Damen (13m²)
                                                                                                                                                                                                                    Ro
                                                                                                                                                                                                                       lls     tuh
                                                                                                                                                                                                                                   lfah
                                                                                                                                                                                                                                        r  er
                                                                     en
                                                             H   err
                                                    WC
                                                                          UG Garderobengang inkl. WCs (538m²)                                                                                                                                                            W
                                                                                                                                                                                                                                                                             C
                                                                                                                                                                                                                                                                                 He
                                                                                                                                                                                                                                                                                   rre
                                                                                                                                                                                                                                                                                        n
                                                                                                                                                                                                                                                                                                                                                                                                     Dressingroom 4 (5m²)

                                                                                           Bar                                                                                                        Bar                                                                                                                                                                                            Dressingroom 5 (6m²)
                                                                                                                                                                                                                                                                                                                                                                                                     Dressingroom 6 (5m²)

       en
       m
                                                                                                                    (94) Last: 2,5t                                           (95) Last: 2,5t

    Da
                                                                                                                    Höhe: 14,81m                                              Höhe: 14,83m
                                                                                                                    lichte Höhe: 11,70m                                       lichte Höhe: 11,72
   C                                                                                                                                       1x 16 A CEE

                                     n

                                                                                                                                                                                                                                                         Ga
   W

                                                                                                                                                                                                                                                                                                                                                                                                    Dressingroom 3 (6m²)
                                                                                                                                           1x Schuko 1 Phase

                                be

                                                                                                                                                                                                                                                                                                             W
                                                                                                                                                                                                                                                           rd
                           ro
                                                                                                                                                                                                                                                                                                                                                                                                    +Dusche/WC 6m²

                                                                                                                                                                                                                                                                                                               C
                                                                                                                                                                                                                                                                                                                 Da
                                                                                                                                  (91) Last: 2,5t                                 (92) Last: 2,5t

                                                                                                                                                                                                                                                             er
                                                                     (90) Last: 2,5t                                                                                                                                       (93) Last: 2,5t

                     de
                                                                                                                                  Höhe: 19,90m                                    Höhe: 19,90m
                                                                     Höhe: 14,83m

                                                                                                                                                                                                                                                                                                                    m
                                                                                                                                  Höhe Seil: 15,70m                               Höhe Seil: 15,70m                        Höhe: 14,82m

                                                                                                                                                                                                                                                                            ob
                                                                     lichte Höhe: 11,85m                                                                                                                                   licht Höhe: 11,84m

                                                                                                                                                                                                                                                                                                                       en
                r
             Ga

                                                                                                                                                                                                                                                                              en
                                                                                           (88) Last: 2,5t
                                                                                           Höhe: 19,90m
                                                                                           Höhe Seil: 15,70m
                                                                                                                           FOH
                                                                                                                                                                                                                          (89) Last: 2,5t
                                                                                                                                                                                                                          Höhe: 19,90m
                                                                                                                                                                                                                          Höhe Seil: 15,70m
                                                                                                                                                                                                                                                                                                                                                                                                     Office 1 (6m²)

                                                                                                                                              (85) Last: 5t
                                                                                                                                              Höhe: 30,70m                                (87) Last: 5t       Licht:
                                                                                                                                                                                                                                                                                                                                                                                                     Office 2 (6m²)
                                                                                 Licht:

                                                                                                                           Große Arena
                                      (75) Last: 2,5t                                                                                                                                     Höhe: 30,70m        1x 32 A CEE                              (83) Last: 2,5t
                                                                                 1x 32 A CEE
                                      Höhe: 14,82m                                                                                                                                                                                                     Höhe: 14,81m
                                                                                 1x 16 A CEE                                                                                                                  1x 16 A CEE
                                      lichte Höhe: 11,71m                                                                                                                                                                                              lichte Höhe: 11,84
                                                                     (76) Last: 2,5t
                                                                     Höhe: 19,90m
                                                                                                                                                                                                                                      (82) Last: 2,5t

                                                                                                                                                                                                                                                                                                                                                                                WC / Duschen Herren (17m²)
                                                                     Höhe Seil: 15,70m                                          (78) Last: 2,5t               (80) Last: 2,5t                                                         Höhe: 19,90m
                                                                                                                                Höhe: 30,80m                  Höhe: 30,90m
                                                                                                                                                                                                                                      Höhe Seil: 15,70m
                                                                                                                                Höhe Seil: 20,60m             Höhe Seil: 20,72m
                                                                                                           (77) Last: 5t
                                                                                                           Höhe: 30,70m
                                                                                                                                                          (79) Last: 2,5t
                                                                                                                                                          Höhe: 30,70m
                                                                                                                                                          Höhe Seil: 20,35m

                                                                                                                               (72) Last: 2,5t                (73) Last: 2,5t
                                                                                                                                                                                                       (74) Last: 5t
                                                                                                                               Höhe: 30,90m                   Höhe: 30,90m
                                                                                                                                                                                                       Höhe: 30,65m                           (69) Last: 2,5t
                                                                                                                               Höhe Seil: 20,72m              Höhe Seil: 20,68m
                                                                                                                                                                                                                                              Höhe: 19,90m
                                                                     (66) Last: 2,5t                                                                                                                                                          Höhe Seil: 15,70m                                               1x Schuko
                                                                     Höhe: 19,90m
                                                                     Höhe Seil: 15,71m                                   (67) Last: 5t              Ton:                                                                                                                                       1x Schuko
                                       (65) Last: 2,5t                                                                   Höhe: 30,70m               1x 32 A CEE                                                                                          (70) Last: 2,5t
                                       Höhe: 14,80m                                                                                                                                                                                                      Höhe: 14,81m
                                                                                                                                                    1x 16 A CEE
                                       lichte Höhe: 11,69m                                                                                                                                                                                               lichte Höhe: 11,70m
                                                                                                                                                       (64) Last: 5t                                                                                                               1x Schuko
                                                                                                                                                       Höhe: 30,70m
                                                                                                                                                                                                                                                                                                           2x Schuko 6x Schuko
                                                                                                      (58) Last: 1t                                                                                           (61) Last: 1t
                                                                   (57) Last: 1t                      Höhe: 23,00m                                                                                                                                 (62) Last: 1t
                                                                                                                                            (59) Last: 1t              (60) Last: 1t                          Höhe: 23,50m
                                                                   Höhe: 21,30m
                                                                                                      Höhe Seil:15,93m                                                 Höhe: 27,80m
                                                                                                                                                                                                                                                   Höhe: 19,40m                      1x Schuko
                                                                                                                                            Höhe: 27,80m                                                      Höhe Seil:15,94m

Bühnen-
                                                                   Höhe Seil: 17,18m                                                                                                                                                               Höhe Seil: 15,28m
                                                                                                                                            Höhe Seil:15,70m           Höhe Seil:15,70m
                                                                                                                                                                                                                                                                         (56) Last: 1t                                      1x Schuko
                                                                                           (49) Last: 2,5t                                                                                              (55) Last: 2,5t                                                  Höhe: 17,88m                       2x Schuko
                                                                                           Höhe: 19,96m                                                                                                 Höhe: 19,90m                                                     lichte Höhe: 14,05m
                                                                                                                                                                                                                                                                         1x Schuko
 lager
                                                                                           Höhe Seil: 15,70m                                                                                            Höhe Seil: 15,69m
                           (48) Last: 2,5t                                                             (50) Last: 1t    (51) Last: 1t     (52) Last: 1t    (53) Last: 1t     (54) Last: 1t
                                                                                  (38) BGV C1 Motor                                                                                           (44) BGV C1 Motor
                                                                                                       Höhe: 22,80m     Höhe: 22,90m      Höhe: 23,00m     Höhe: 23,40m      Höhe: 22,60m
                           Höhe: 17,89m                           (37) Last: 1t   UK Haken: 13,00m                                                                                                                 (45) Last: 1t
                           lichte Höhe: 14,06m                                                         Höhe Seil:20,73m Höhe Seil: 15,80m Höhe Seil:15,92m Höhe Seil: 15,58m Höhe Seil: 20,45mUK Haken: 13,00m                                                                                    (47) Last: 1t
                                                                  Höhe: 14,62m Tragfähigkeit: 1,3t                                                                                                                 Höhe: 14,62m
                                                                                                                                                                                              Tragfähigkeit: 1,3t                                                                                 Höhe: 15,59m              3x Schuko
            (35) Last: 1t                                         lichte Höhe: 12,83m                                                                                                                              lichte Höhe: 12,83m
                                                                                                                                                                                                                                                                                                  lichte Höhe: 9,35m
            Höhe: 15,59m

                                                                                                                                                                                                                                                                                          Backstage
            lichte Höhe:9,31m                                                      fest        (39) Last: 1t                                      (41) Last: 1t                                    (43) Last: 1t        fest

                                                                   (36) Last: 2,5t             Höhe: 22,02m                (40) Last: 2,5t        Höhe: 24,00m           (42) Last: 2,5t           Höhe: 22,03m                                                          2x Schuko
                                                                                                                                                                                                                                                   (46) Last: 2,5t
                                                                   Höhe:14,56m                 Höhe Seil:  14,70m          Höhe: 19,94m           Höhe Seil: 15,50m      Höhe: 19,99m              Höhe Seil: 14,74m
                                                                         Elektrische Betriebsraum      (UG)                                                                                                                                        Höhe: 14,66m
                                                                   lichte Höhe: 11,67m                                     Höhe Seil: 15,70m                             Höhe Seil: 15,70m                                                         lichte Höhe: 11,71m

                                                                                                                                                                                                                                                                                       East
                                                     (28) Last: 1t       Hausintern         (29) Last: 1t                                                                                                             (33) Last: 1t
                                                                                                                              (30) Last: 1t             (31) Last: 1t                (32) Last: 1t
                                                     Höhe: 12,75m I max = 800 A             Höhe: 19,30m                                                                                                              Höhe: 19,30m
                                                                                                                              Höhe: 17,42m              Höhe: 21,10m                 Höhe: 17,34m
                                                     lichte Höhe: 8,60m  4x 125 A CEE       Höhe Seil:16,17m
                                                                                                                                                        Höhe Seil: 17,00m
                                                                                                                                                                                                                      Höhe Seil: 16,21m         (34) Last: 1t                                                               3x Schuko
                                                                                                                                                                                                                                                Höhe: 12,74m

                                                                                                                                                                                                                                                                                     (112m²)
                                                                       4x 63 A CEE
                                                                       2x 32 A CEE                                                                                                                                                              lichte Höhe: 8,66m               2x Schuko
                                     (21) Last: 1t                     3x Schuko                                                                                                                                                                                                                                            3x Schuko
                                                                                  (22) Last: 1t                                                         (24) Last: 1t                                                          (26) Last: 1t
                                     Höhe: 10,73m                                                                        (23) Last: 2,5t                                                                                                                  (27) Last: 1t
                                                                                  Höhe: 17,40m                                                          Höhe: 19,30m                      (25) Last: 2,5t                      Höhe: 17,50m
                                     lichte Höhe: 4,37m                                                                                                                                                                                                   Höhe: 10,70m
                                                                                  Höhe Seil: 14,30m
                                                                    Elektrische Betriebsraum      (UG)                   Höhe: 14,60m                   Höhe Seil: 16,20m                 Höhe: 14,66m                         Höhe Seil: 14,40m                                                            2x Schuko
                                                                                                                                                                                                                                                          lichte Höhe: 6,39m
                                                                    Fremdproduktion

                     (14) Last: 1t                                  I max =  800
                                                                          (15) Last:A1t               (16) Last: 1t
                                                                                                                                  Stage
                                                                                                                                      (17) Last: 1t                                           (18) Last: 1t
                                                                                                                                                                                                                                      Licht:
                     Höhe: 9,07m        Licht:                                                                                                                                                                                        1x(19)
                                                                                                                                                                                                                                          63ALast: 1t

                                                                                                                            16m x 10m,Höhe:
                                                                                                                                        h=1,2m
                                                                    2x 125Höhe:
                                                                           A CEE16,24m                Höhe: 13,00m                          17,80m                                            Höhe: 13,08m                                                               (20) Last: 1t
                                                                                                                                                                                                                                        Höhe: 16,11m
                     lichte Höhe: 0,99m 1x 63A                                                                                                                                                                                        2x  32A                            Höhe: 9,08m
                                                                    2x NH2 - 400 A
                                       1x 32A                                                                                                                                                                                         16A auf 6x Schuko                  lichte Höhe: 0,99m
                                                                    UV Licht inkl. Dimmerraum max 800 A
                                       1x 16A                                                                                                                                                                                         UV gesamt max 63A
                                       16 A auf 3x Schuko

                                                                   (9) Last: 1t                                (10) Last: 1t                            (11) Last: 1t                              (12) Last: 1t                                   (13) Last: 1t
                                                                   Höhe: 15,20m                                Höhe: 11,40m                             Höhe: 16,50m                               Höhe: 11,40m                                    Höhe: 15,15m
                         Licht:

                                                                                                                                                                                                                                                                                                  LKW
                         1x 63A                             (4) Last: 1t                                                                                                                                                              Ton:                (8) Last: 1t

                                                                                                                                           Szene
                         1x 32A                             Höhe: 14,40m                                                                                                                                                              1x 32A CEE          Höhe: 14,40m
                                                            lichte Höhe: 6,55m                            (5) Last: 1t                                  (6) Last: 1t                                   (7) Last: 1t                   1x 16A CEE          lichte Höhe: 6,54m
                         1x 16A                                                                           Höhe: 9,96m                                   Höhe: 15,35m                                   Höhe: 9,99m
                                                                                                                                                                                                                                      3x Schuko

                                                                                                                                                                                                                                                                                                 Rampe
                         3x Schuko

                         Ton:                                                                         (1) Last: 1t                                                                                          (3) Last: 1t
                                                                                                                                                        (2) Last: 1t
                                                                                                      Höhe: 9m                                                                                              Höhe: 8,99m
                         1x 32A CEE                                                                   lichte Höhe: 0,91m
                                                                                                                                                        Höhe: 14,70m                                                                  Licht:
                                                                                                                                                                                                            lichte Höhe: 0,91m
                                  = 1t BGV C1 Motoren
                         1x 16A CEE                                                                                                                                                                                                   1x 63A
                                                                                                                                                                                                                                      1x 32A
                         3x Schuko
                                                                                                                                                                                                                                      1x 16A
                                                                                                                                                                                                                                      3x Schuko

                      Die Positionen der Hängepunkte können aufgrund von Bautoleranzen leicht abweichen. Bei Bedarf vor Ort prüfen.
               Die Nutzung der Hängepunkte & Haustraversen ist mit der Technischen Leitung abzustimmen.

                                                                                                               Maßstab:
                                                                                                                 1:500
                                                                                                                DIN A4
                                                                                                                                                                                                                                          Untergeschoss
                                                                                                                                                                                                                                                                                                                                        Technische Leitung, Tempodrom Betriebsgesellschaft mbH & Co. KG,
                                                                                                                                                                                                                                                                                                                                        Möckernstrasse 10, 10963 Berlin, Fon +49 (0)30 74737 - 248, Fax -250
                                                                                 Änderungen vorbehalten.
                                                                                 Alle Maße sind am Bau zu prüfen.                                                                                                                                                                                                                       Bearb von:              Stand:                  Kapazität:                Version:
                                                                                 Unter Vorbehalt bis zur Genehmigung
                                                                                 durch die zuständigen Behörden.
                                                                                                                                                                                                                                                                                                                                        P.Flagmeier             10.12.2014              je nach Bestuhlung        1.0
1x 32A CEE

                                                                                                                                                                        Vorplatz
                                                                                                   1x 16A CEE
                                                                                                   2x Schuko                                                                                                                                               1x 63A CEE
                                                                                                   max. 16A 3-ph.                                                                                                                                          1x 32A CEE
                                                                                                   nur eins von beiden!                                                                                                                                    1x 16A CEE
                                                                                                                                                                                                                                                           3x Schuko 16A

                                                                                                                             WC Herren (23m²)
WC Damen
(23m²)                      1 x Schuko
                                         Foyer Kleine Arena (129m²)
                                              1 x Schuko        1 x Schuko   1 x Schuko
                                                                                                                                                Kasse 2 (4m²)                                                                         Kasse 1 (4m²)

                                                                                                                                                                                                                                                                                BMZ

                                                                                                                                                                                                                            HP: je 250 Kg max.
                                                                                                                                                                                                                                                                                                Restaurant (100m²)
           Bar
                                              Kleine Arena
                                                                                                Tank 10, F23
                                                                                                1 x Schuko                                                    Foyer (ca. 1000m²)
                                                                                                                                                      Tank 11, F7
                                                                                                                                                      1 x Schuko
                                                                                                                                                                                        Tank 12, F8
                                                                                                                                                                                        1 x Schuko                                           Personen-
                                                                                                                                                                                                                                             Tank 6, F19
                                                                                                                                                                                                                                             1 x Schuko
                                                                                                                                                                                                                                                                  Tank 5, F18    Tank 3, F16

                                                                                                                                                                                                                                             fahrstuhl
                                                                                                                                                                                                                                                                  1 x Schuko     1 x Schuko

                                                (280m²)                                    2x Schuko                                  Kiosk
                                                                                                                                      Tank 9, F22
                                                                                                                                      1 x Schuko
                                                                                                                                                                    Tank 8, F21
                                                                                                                                                                    1 x Schuko
                                                                                                                                                                                                                        Tank 7, F20
                                                                                                                                                                                                                        1 x Schuko

Backstage 1x 63A CEE
                                                                                                                                                                                                                                                              1x 32A CEE
                                                   1x 16A CEE
                                                   2x Schuko
                                                                                          Bars                                                                                                                                                                1x 16A CEE

Kleine Arena
                                                                                                                                                                                                                                                              3x Schuko
                                                                                                                                                                                                                                                                                 Tank 2, F15
                                                                                                                                                                                                                                                               Tank 4, F17       1 x Schuko
                                                                                                                                                                                                                                                               1 x Schuko

(30m²)
             1x 125A CEE                                                                                                   1x 32A CEE                                                   1x 32A CEE
             1x 63A CEE
             1x 32A CEE
             1x 16A CEE
             6x Schuko
                                                                                                                                                                                                                                                                                 Tank 1, F14
             gesamt max.                                                                                                                                                                                                                                                         4 x Schuko

                                                                                                                                                                                                                                                                                        2,092
             160A 3-ph.

Catering 1
(50m²)
             5x Schuko
             3 Phasen

Catering 2
(35m²)       1x 32A CEE

                                                                                                                                                      Große Arena
Dressing Room 2                                                                                                                                                                                                                                                                                                      Lasten-
(50m²)                                                                                                                                                                                                                                                                                                               fahrstuhl
                                                                                                                                       Variable
                                                                                                                                       Unterrang-
                                                                                                                                       Tribünen

                                                                                                                            Manege inkl. Unterrängen 848m²
Dressing Room 1                                                                                                             Oberränge (1006m²)
(35m²)

Dressing Room 1b                                                                                                                                                                                 0-Linie

(12m²)                                                                                                     Hängt fest in der Decke!                                                          Hängt fest in der Decke!

Bathrooms                                                                                                                                                Stage
(2x23m²)                                                                                                                                            16 x 10 x 1,2m

                                                                                                                                                                                                                                                                                                                     Künstlereingang
                                                                               Lounge (93m²)                                                                                           Laderampe
                                                                                                                                                     Szene (474m²)

                           1m            5m        10m

                                                                                                                                                                                                Maßstab:
                                                                                                                                                                                                  K.A.
                                                                                                                                                                                                 DIN A3
                                                                                                                                                                                                                                                                             Erdgeschoss
                                                                                                                                                                                                                                                                                                                       Technische Leitung, Tempodrom Betriebsgesellschaft mbH & Co. KG,
                                                                                                                                                                                                                                                                                                                       Möckernstrasse 10, 10963 Berlin, Fon +49 (0)30 74 73 7 -248, Fax -250
                                                                                                                                                                                  
                                                                                                                                                                                                                                                                                       Bearb von:             Stand:                   Kapazität:              Version:
                                                                                                                                                                                  
                                                                                                                                                                                  
                                                                                                                                                                                                                                                                                                                       P.Flagmeier            11.12.2014               je nach Bestuhlung      1.0
1x 63A CEE
                                                                        1x 32A CEE                                                                                                                                                                                       1x 32A CEE
                                                                                                                                                                                                                                                                         1x 16A CEE
                                                                                                                               1x 16A CEE                                                                                                                                3x Schuko 16A
                                                                                                                               2x Schuko
                            WC Damen                                                        WC Herren
                                                                                                                               max. 16A 3-ph.
                                                                                                                               nur eins von beiden!

               1 x Schuko                        1 x Schuko                    1 x Schuko               1 x Schuko

                                                                                                  Foyer KA

                                                                                                                                           Kasse 2                                                                                                                                 Kasse 1    BMZ
                              +1,32m

                                 +99cm
                                       +66cm

                                         +33cm
                                                                                                                                                                                                                                      HP: je 250 Kg max.

                                                       HP: je 250 Kg max.

                                                                                                                            Tank 10, F23                               Tank 11, F7                                   Tank 12, F8                           Tank 6, F19
                                                                                                                            1 x Schuko                                 1 x Schuko                                    1 x Schuko                            1 x Schuko
                                                                                                                                                                                                                                                                                Tank 5, F18    Tank 3, F16
                                                              Kleine                                                                                                                 Foyer GA                                                                                   1 x Schuko     1 x Schuko

                                                              Arena                                                  2x Schuko
                                                                                                                                                 Tank 9, F22                                   Tank 8, F21                         Tank 7, F20
                                                                                                                                                 1 x Schuko                                    1 x Schuko                          1 x Schuko
                                                                                                                                                                                                                                                                            1x 32A CEE
                                                  1x 16A CEE                                                                                                                                                                                                                1x 16A CEE
1x 63A CEE
                                                  2x Schuko
                                           8m x4,1m                                                                                                                                                                                                                         3x Schuko
                                                                                                                                                                                                                                                                                               Tank 2, F15
                                           h= 0,99m                                                                                                                                                                                                                          Tank 4, F17       1 x Schuko
                                                                                                                                                                                                                                                                             1 x Schuko

1x 125A CEE                                                                                                                                 1x 32A CEE                                                               1x 32A CEE
1x 63A CEE    Backstage
1x 32A CEE                                                                                                                                                                            25

1x 16A CEE                                                                                                                                                     Kiosk                               Kiosk
6x Schuko
                                                                                                                                                                                                                                                                                               Tank 1, F14
gesamt max.                                                                                                                                                                                                                                                                                    4 x Schuko
                                                                                                                                           Bar                                                                              Bar
160A 3-ph.

                                                                                                                      Bar                                                                                                                    Bar

                                                                                                  Bar                                                                                                                                                              Bar

                                                                                Bar | Kiosk                                                                                                                                                                                 Bar | Kiosk

                                                                            Bar | Kiosk                                                                                                                                                                                            Bar | Kiosk

                                                                                                                                                                                                Maßstab:
                                                                                                                                                                                                  1:200
                                                                                                                                                                                                 DIN A3
                                                                                                                                                                                                                             Kleine Arena & Foyer
                                                                                                                                                                                                                                                                                               Technische Leitung, Tempodrom Betriebsgesellschaft mbH & Co. KG,
                                                                                                                                                                                                                                                                                               Möckernstrasse 10, 10963 Berlin, Fon +49 (0)30 74 73 7 -248, Fax -250
                                                                                                                                                                                     
                                                                                                                                                                                                                                                               Bearb von:             Stand:                   Kapazität:              Version:
                                                                                                                                                                                     
                                                                                                                                                                                     
                                                                                                                                                                                                                                                                                               P.Flagmeier            12.12.2014               je nach Bestuhlung      1.0
You can also read
