Chicago O’Hare International Airport
2021 Construction Update
O’Hare Noise Compatibility Commission
September 10, 2021
Runway 9R/27L Extension Status Update

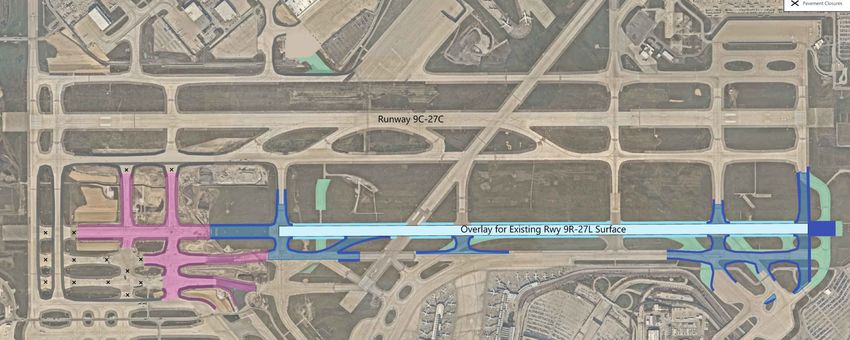

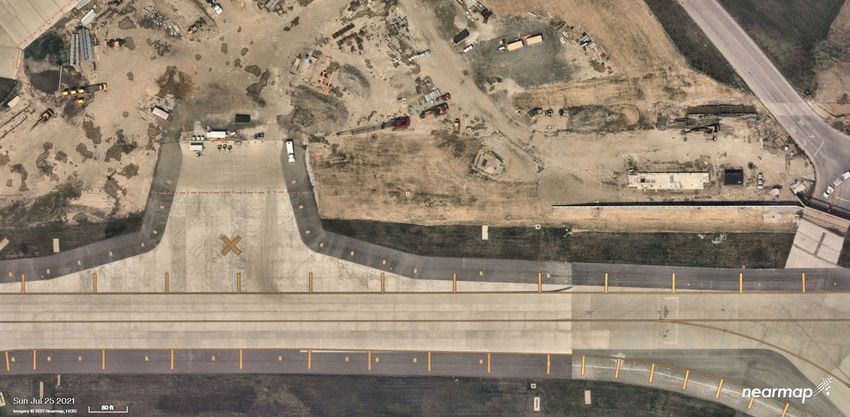

RUNWAY 9R EXTENSION – PAVEMENT CONSTRUCTION OVERVIEW
Pavement Demolition-
2020 Pavement Scope
2021 Pavement Scope
Z KK BB FF R A1 M TT PP
Z KK BB FF R G1 A1 M TT PP
G G
G
UA G2
H
Source: Chicago Department of Aviation, O'Hare International Airport, Draft Airport Layout Plan (March 2020); Ricondo (December 15, 2020)
3
2021 CONSTRUCTION PHASING MILESTONES
• August 12, 2021 - Runway 22R Localizer (LOC) – CDA Work Completed. FAA Flight checks
completed June 1 – Procedures for runway 22R ILS completed on August 12, 2021 charting date
• October 1, 2021 – Opening of Taxiway PP
• December 2, 2021 – Reopening of Runway 9R/27L – Primarily Departures
• Summer 2022 – Commissioning of Runway 9R/27L NAVAIDs
4

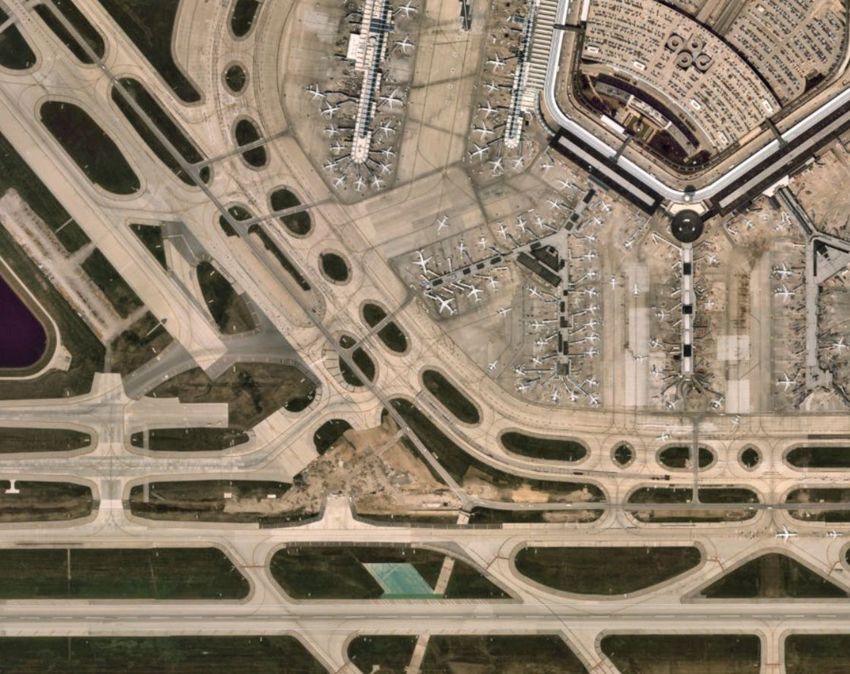

Taxiways A & B Relocation
TAXIWAYS A & B RELOCATION – ADVANCE WORK
SCOPE OF WORK:
Phased site preparation and construction of utility infrastructure in
preparation for the connection of Taxiways K & L to Taxiways A & B. Work
includes construction of airfield pavements, airfield lighting and signage,
pavement removal, underground utilities, grading and drainage, cargo
tunnel strengthening and pump station relocation. Project site is located in
the Air Operations Area (AOA).
Completion Date: August 23, 2021
6
Taxiway Y Rehabilitation

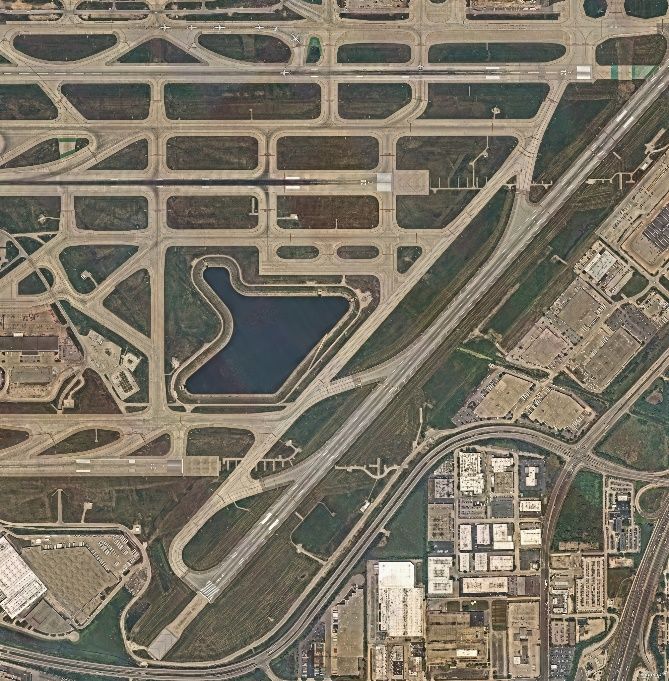

REHABILITATION FOR TAXIWAYS Y, Y1, Y2, Y3 & Y4
H6237.21-00 Rehabilitation for
Taxiways Y, Y1, Y2, Y3 & Y4 CONSTRUCTION
Rehabilitation for Taxiway Y and associated
taxiways includes the following work: mill and
overlay taxiway mainline and shoulder
pavement, including deep crack repair;
construction of full-depth pavement, including
demolition, grading, and utilities at the Taxiway
Y3 fillet; and airfield electrical upgrades of
lighting and signage. FAA lighting adjustments,
pavement markings, and in-pavement weather
sensor are also included.
Work starts September 2021
Work complete January 2022
8
Terminal 5 Expansion

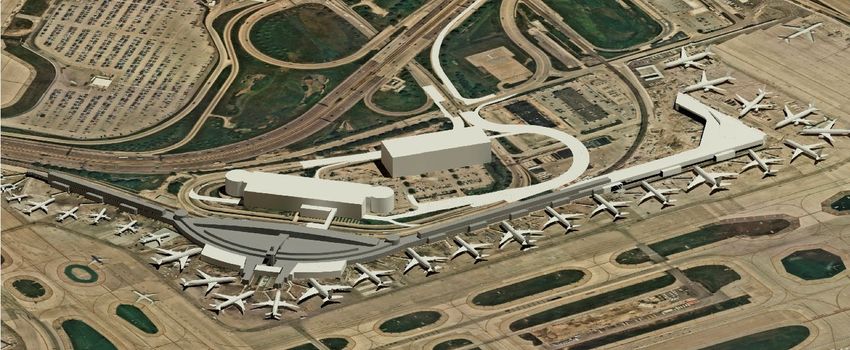

TERMINAL 5 EXPANSION -- $1.2 BILLION IN TOTAL INVESTMENT NOW
UNDERWAY
CONCOURSE
EXPANSION
ROADWAY
NEW T5
KEY HIGHLIGHTS:
EXPANSION
TERMINAL 5 PARKING HOTEL
EXPANDED GATE GARAGE AND
HOLDROOMS AND PEDESTRIAN BRIDGE
AMENITIES
CURBSIDE
10 additional gates
EXPANSION
NEW SKYTEAM
LOUNGE
(2 will be A380 compatible)
Reconfigured international arrivals
NEW BAGGAGE
HANDLING SYSTEM
facility and security checkpoint
KEY OPENING DATES:
New airline lounges (consolidated
SkyTeam lounge) and expanded
Mid 2022 Sept. 2022 Mid 2023 After 2024 commercial offerings
First Gates in Delta Air Lines Parking Garage opens Curbside roadway
New Concourse relocates to Terminal 5 expansion and new hotel
10TERMNAL 5 CONCOURSE M EXTENSION

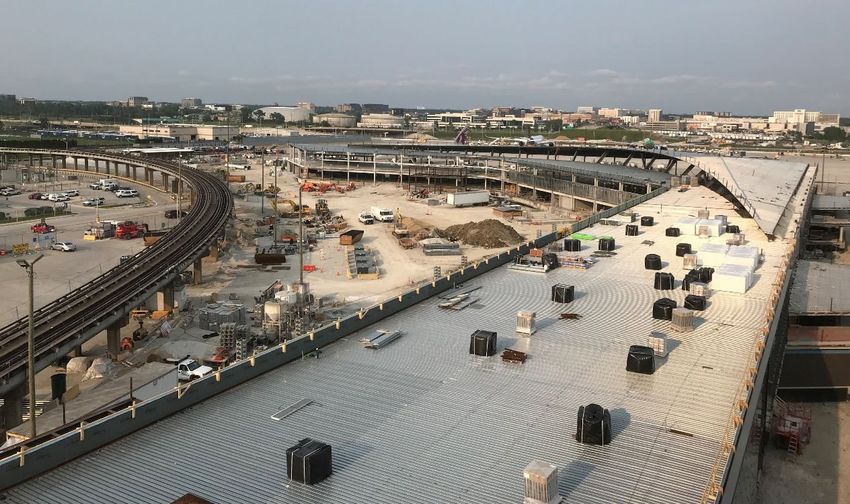

CONSTRUCTION
Superstructure completed in mid-
2021. Glazing, roofing, and curtain
wall installation ongoing for the
270,000 SF concourse extension.
Work also includes loading dock,
airfield operations and break
rooms, restrooms, and systems for
future concessions.
11TERMNAL 5 REPURPOSING
CONSTRUCTION
Superstructure completed in mid-
2021. Glazing, roofing, and curtain
wall installation ongoing.
Development of new checked
baggage inspection system and
build-out of future airline lounges
to begin in fall 2021.

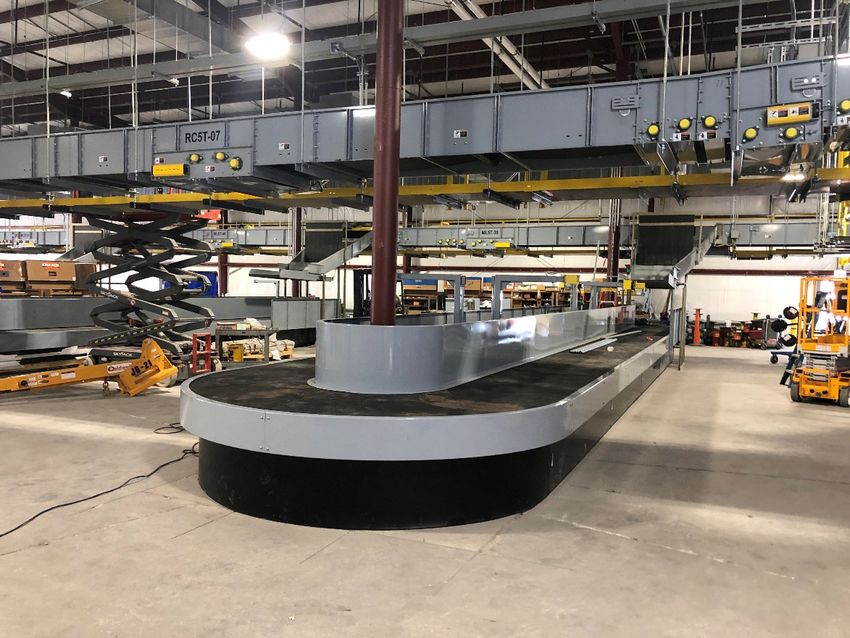

12TERMNAL 5 BAGGAGE HANDLING SYSTEM REPLACEMENT
CONSTRUCTION
Replacement of the Terminal 5
baggage handling system with
new control system, baggage
make-up carousels, conveyors,
early bag storage system and
TSA checked baggage inspection
system. Current construction
includes a temporary make-up
building to allow phased
closures of the existing baggage
make-up.

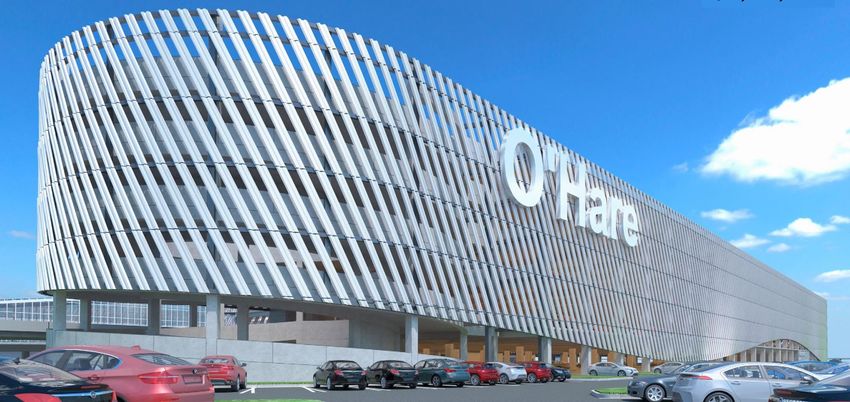

13TERMNAL 5 GARAGE
CONSTRUCTION
Construction of a 1,750 stall
public parking garage and
reconfiguration of existing
surface parking. Current
construction includes
advanced ComEd and water
main relocation work
throughout the site.
NOTE: RENDERING IS ILLUSTRATIVE ONLY. ACTUAL DEVELOPMENT SUBJECT TO CHANGE.
14Other O’Hare Capital Projects
TERMINAL INFRASTRUCTURE IMPROVEMENTS
LOWER LEVEL MAIN TERMINALS
PEDESTRIAN TUNNELS
UTILITY REPAIR AND ELEVATED PARKING STRUCTURE
RENOVATION
PAVEMENT REPLACEMENT REPAIRS
GRAPHICS RENDERING
