Bryophyte Ex Situ Conservation at the Royal Botanic Gardens,Kew: Past, Present and Future - Margaret M Ramsay, Dr Jennifer K Rowntree, Paul
Bryophyte Ex Situ
Conservation at the Royal
 Botanic Gardens,Kew:
Past, Present and Future
Margaret M Ramsay, Dr Jennifer K Rowntree, Paul
  P. Smith, Dr Sylvia Pressel, Dr David G. Long
Bryophyte Ex Situ Conservation at the Royal Botanic Gardens,Kew: Past, Present and Future - Margaret M Ramsay, Dr Jennifer K Rowntree, Paul
Global Strategy for Plant
   Conservation 2011-2020
• Target 8: At least 75 per cent of
  threatened plant species in ex situ
  collections, preferably in the country of
  origin, and at least 20 per cent available
  for recovery and restoration
  programmes.
Bryophyte Ex Situ Conservation at the Royal Botanic Gardens,Kew: Past, Present and Future - Margaret M Ramsay, Dr Jennifer K Rowntree, Paul
Ex situ Conservation
                                    • Ex situ & in vitro
                                      collections important
                                      part of integrated
                                      conservation
                                      programmes
                                    • BUT in general focus
Millennium Seedbank Partnership       on vascular , seed-
holds largest and most diverse        bearing plants
collection of wild species in the
world
Bryophyte Ex Situ Conservation at the Royal Botanic Gardens,Kew: Past, Present and Future - Margaret M Ramsay, Dr Jennifer K Rowntree, Paul
Advantages of ex situ
  conservation for bryophytes
• Maintain basal storage ‘insurance’
  collection representing genetic diversity
• Supply material for re-establishment
  trials minimising sampling from wild
• Resource for auto-ecological research
  and underlying biological processes
• Provide source of uncontaminated DNA
  for molecular screening
Bryophyte Ex Situ Conservation at the Royal Botanic Gardens,Kew: Past, Present and Future - Margaret M Ramsay, Dr Jennifer K Rowntree, Paul
UK Bryophytes
  The UK has an
  exceptional
  bryophyte flora (c.
  1000 species)
- 53% of European
  bryophyte flora
- Atlantic bryophyte
  communities of        Rhynchostegium rotundifolium -
  global importance     Critically endangered
Bryophyte Ex Situ Conservation at the Royal Botanic Gardens,Kew: Past, Present and Future - Margaret M Ramsay, Dr Jennifer K Rowntree, Paul

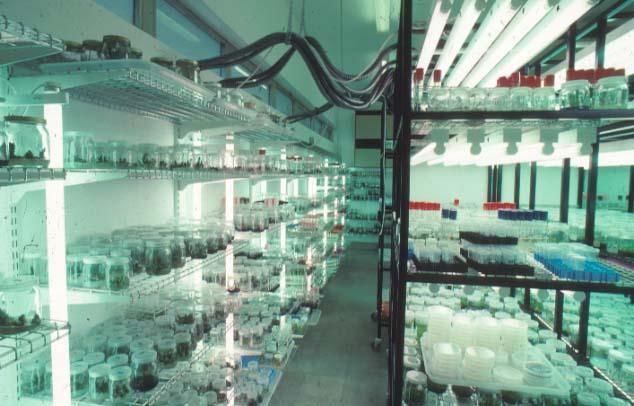

Conservation
Biotechnology at RBGKew
Bryophyte Ex Situ Conservation at the Royal Botanic Gardens,Kew: Past, Present and Future - Margaret M Ramsay, Dr Jennifer K Rowntree, Paul
Ex Situ Conservation Project
  for UK Bryophytes: Phase 1
             and 2
A collaborative project
with UK statutory
conservation agencies to
develop and evaluate
experimental protocols for
the collection, in vitro
propagation, cryogenic
storage and re-
establishment of
threatened UK bryophytes
                             Bartramia stricta
Bryophyte Ex Situ Conservation at the Royal Botanic Gardens,Kew: Past, Present and Future - Margaret M Ramsay, Dr Jennifer K Rowntree, Paul
Outputs of Ex Situ Project
•   21 Priority species in cryo-storage
•   Material deposited in DNA bank
•   Re-introduction trial initiated
•   Peer-reviewed scientific papers
•   Techniques developed for:
    – Initiation & propagation in aseptic culture
    – ‘weaning’ of ex situ material
    – cryopreservation protocols
Bryophyte Ex Situ Conservation at the Royal Botanic Gardens,Kew: Past, Present and Future - Margaret M Ramsay, Dr Jennifer K Rowntree, Paul
Phase 3
• Funding from Natural England for 3 years to
  apply propagation and cryopreservation
  techniques to secure addition priority taxa in
  the existing ex situ collection.
• 111 UK BAP priority bryophytes (majority
  with ex situ conservation a priority action

http://www.ukbap.org.uk/PrioritySpecies.aspx?g
  roup=6 )
Bryophyte Ex Situ Conservation at the Royal Botanic Gardens,Kew: Past, Present and Future - Margaret M Ramsay, Dr Jennifer K Rowntree, Paul

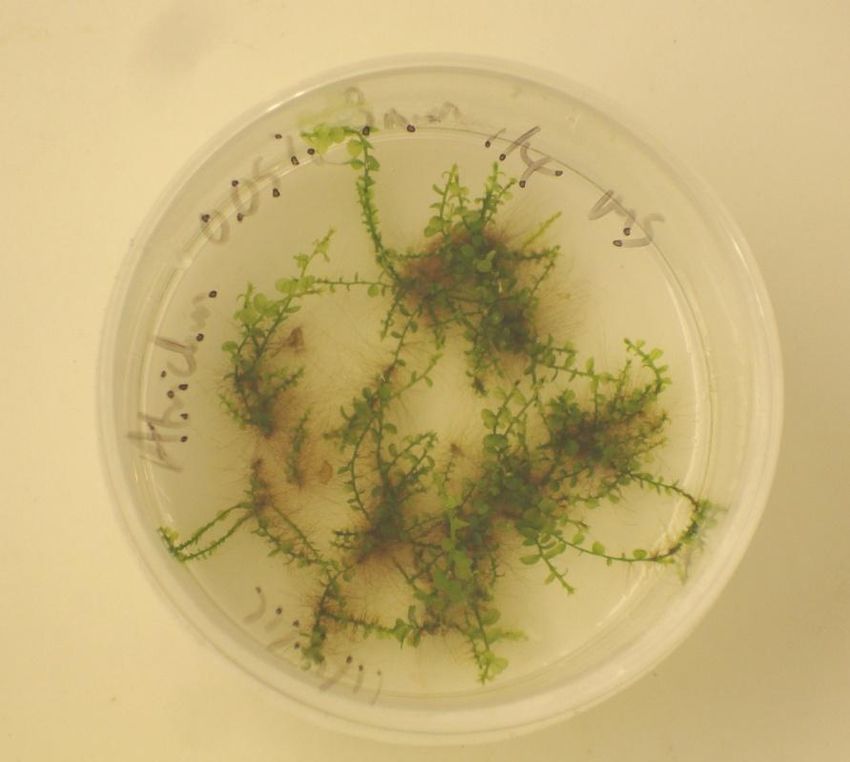

Photo-autotrophic Culture
         • Bryophytes are autotrophic in
           culture
         • Grown on ½ or ¼ MS , Knops
           no sucrose
         • Gelrite used as a gelling
           agent for species susceptible
           to agar impurities.

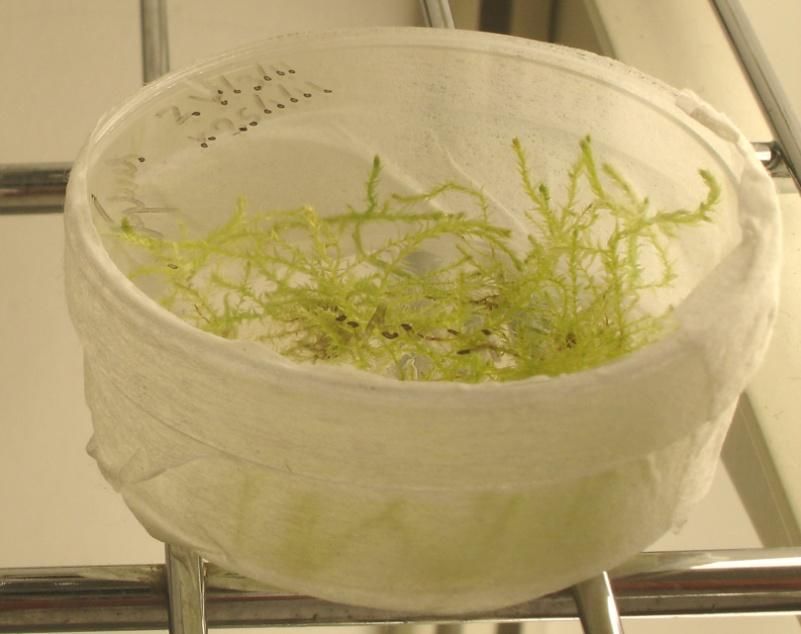

         • Sealing Petri dishes with
           micropore tape allows air
           exchange
Culture Initiation: Sporophytes
                    •Initiation from sporophytes
                    generally more successful than
                    leafy gametophores
                    •Sporophyte availability depends
                    on fruiting season and for some
                    species has yet to be recorded.
                    •Sterilising agent Sodium
                    dichloroisocyanurate effective at
                    low concentrations

Buxbaumia viridis
Wiessia levieri
  (Endangered)
Culture Initiation: gametophoric
              tissue
             • Gametophoric tissue much more
             delicate than sporophytes and often
             directly contaminated
             •0.05% SDICN for 3 minutes,or
             0.1% for 2 minutes. NO TWEEN
             •Vacuum filtration effective
             •Preculturing gametophore material
             enhances success rate (2nd
             sterilisation step )
Entosthodon pulchellus
    (Near Threatened)
Splachnum vasculosum
     ( Vulnerable )
Cryopreservation
• Storage in liquid
  nitrogen (-196°C)
  secures conservation
  collections on a long
  term basis
• Suspension of cellular
  metabolic activities
  minimises genetic drift
• Cost and space efficient
Cryopreservation of
                           Bryophytes

       Sphagnum re - growing after                                        O.gracile re-growing after
       cryopreservation                                                   cryopreservation

Rowntree J. K., and Ramsay M.M. (2009) How bryophytes came out of the cold: successful cryopreservation of
threatened species. Biodivers Conserv 18:1413-1420
Encapsulation/dehydration

Encapsulation in alginate-coated              2 weeks pretreatment with
filter paper strips                           5% sucrose 10 µM ABA

6 hrs dehydration in laminar flow bench   Rapid direct freezing in Liquid Nitrogen,

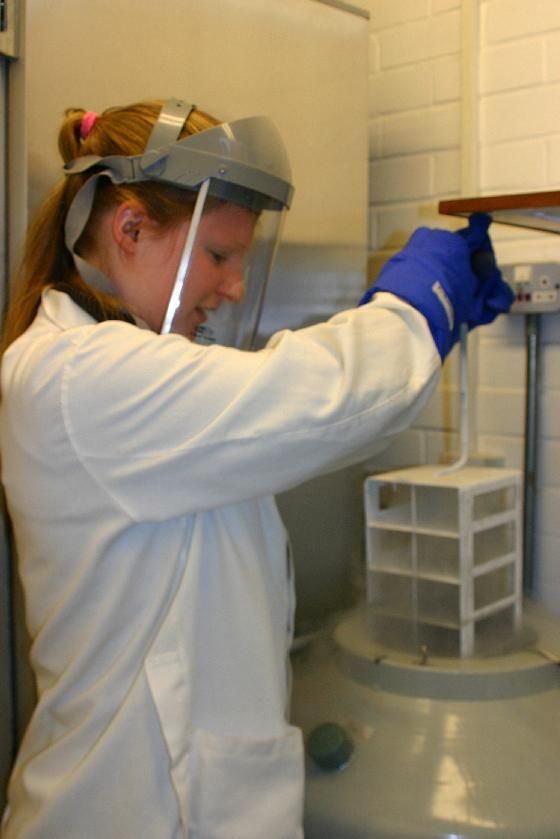

                                          vials stored in boxes in Dewar
Thawing and Recovery

Regeneration rates from
frozen> 68 % of all species
tested; half had regeneration
rates of 100%
European red list   Revised British red
                               Species                    World red list
                                                                                  ECCB (1995)         list (Hodgetts 2011)
UK priority species in         Aplodon wormskjoldii                                                   Critically Endangered

cryostorage post               Bartramia stricta
                               Bryum calophyllum
                                                                                                      Critically Endangered
                                                                                                      Vulnerable
Phase 1 & 2 of Ex              Bryum schleicheri                                                      Critically Endangered

situ Project                   Bryum uliginosum
                                                                                                      Extinct/Regionally
                                                                                                      extinct
                               Bryum warneum                                                          Near Threatened

                               Buxbaumia viridis                                  Vulnerable          Near Threatened

                               Cyclodictyon laetevirens                                               Endangered
                               Ditrichum cornubicum       Critically Endangered   Endangered          Endangered
                               Ditrichum plumbicola                               Vulnerable          Near threatened ?
                               Jamesoniella undulifolia   Vulnerable              Endangered          Vulnerable
                               Leptodontium gemmascens                                                Near Threatened
                               Micromitrium tenerum                               Vulnerable          Endangered
                               Orthodontium gracile                               Endangered          Vulnerable
                               Orthotrichum pallens                                                   Endangered
                               Rhynchostegium
                                                                                                      Critically Endangered
                               rotundifolium
                               Seligeria carnicolica                                                  Critically Endangered

                               Sematophyllum demissum                                                 Vulnerable

                               Tortula cernua                                                         Endangered
                               Weissia multicapsularis                            Endangered          Critically Endangered

21 species , 29 collections.   Weissia rostellata                                                     Near threatened?
Desiccation Tolerance
                                   •Many bryophytes exhibit
                                   desiccation tolerance
                                   •Survival post-cryopreservation
                                   enhanced with pre-treatment with
                                   ABA and sucrose.
                                   •Cytological studies of pioneer
                                   moss Ditrichum plumbicola provided
                                   insights into its reproductive biology
Ditrichum plumbicola

Rowntree JK, Duckett JG ,Mortimer CL, Ramsay MM , Pressel S ( 2007) Formation of specialized
propagules resistant to desiccation and cryopreservation in the threatened moss Ditrichum
plumbicola ditrichales, bryopsida)
Orthodontium gracile

Rowntree J.K., Cowan R.S., Leggett M., Ramsay M.M. and Fay M.F. (2010) Which
moss is which? Identification of the threatened moss Orthodontium gracile using
molecular and morphological techniques . Conservation Genetics 11(3): 1033-1042
Genetic Diversity
•   Maintaining genetic diversity
•   Sampling protocols
•   Genetic Changes, Somaclonal Variation
•   Effect of life cycle?
•   Impact of vegetative reproduction
European Network
   • Dissemination and development of
     protocols including training of personnel
   • Co-ordinate collection of priority species
     across Europe
   • Collections duplicated at multiple
     locations and include components of
     tissue culture , cryopreservation and
     spore collections
Rowntree ,J.,K. Pressel,S., Ramsay,M.M., Sabovljevic,A., Sabovljevic,M. (2011) In vitro
conservation of European bryophytes. In Vitro Cell.Dev.Biol.—Plant (2011) 47:55–64

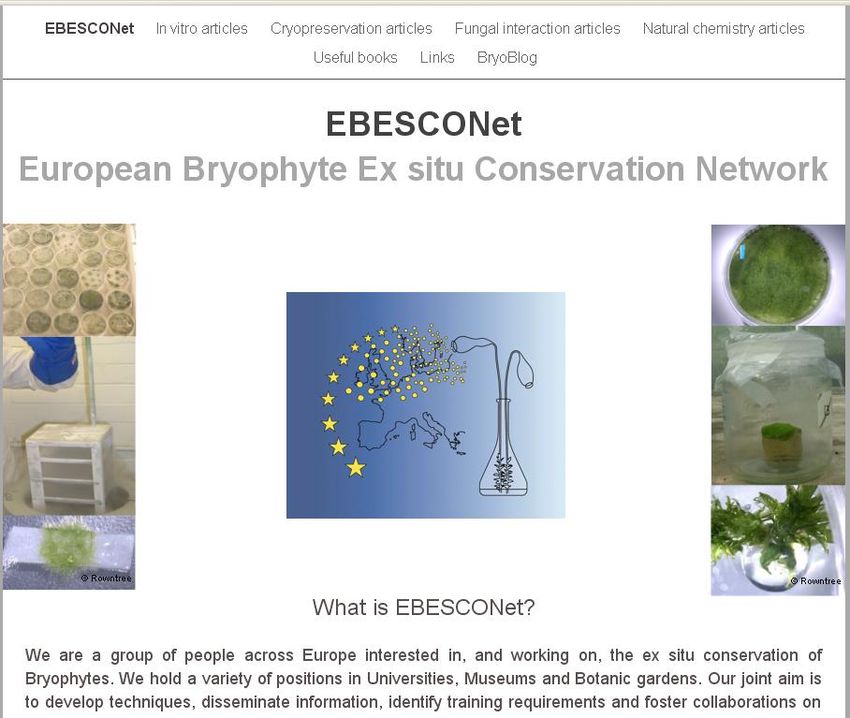

EBEsCoNet

http://www.ebesconet.org
UK Bryophyte Genebank
• Feasibility planning with NHM, RBGE
  and BBS for a comprehensive ex situ
  programme for UK bryophytes
• Aim to systematically collect and store
  at least half of the UK bryophyte flora
• To carry out research to improve
  storage protocols and to enable the use
  of bryophyte collections in restoration
  and reintroduction programmes
Collection Programme
• Use of amateur networks ‘citizen
  science’
• Expertise needed for species selection
  and co-ordination of collecting
• Implications of bryophyte reproductive
  biology
• Genetic diversity sampling
Implications of Bryophyte
  Reproductive Biology
 Breeding System                                 No of Species % of Species

 Dioecious                                       609           57.6
 Normally dioecious, rarely monoecious           4             0.4
 Normally monoecious, rarely dioecious           8             0.8
 Monoecious or dioecious                         25            2.3
 Monoecious                                      395           37.4
 Gametangia not known                            16            1.5

 Sporophyte Frequency                            No of Species % of Species

 Abundant                                        265           25.1
 Frequent                                        189           17.9
 Occasional                                      140           13.2
 Rare                                            248           23.5
 Not in Britain or Ireland but found elsewhere   151           14.3
 Sporophytes not known                           64            6.0
Research Questions
• Spore storage methods ( -20°C and
  Cryopreservation)
• Axenic culture/cryopreservation of
  liverworts
• Liverwort/fungal symbioses
• DNA banking/barcoding
• Dessication Biology

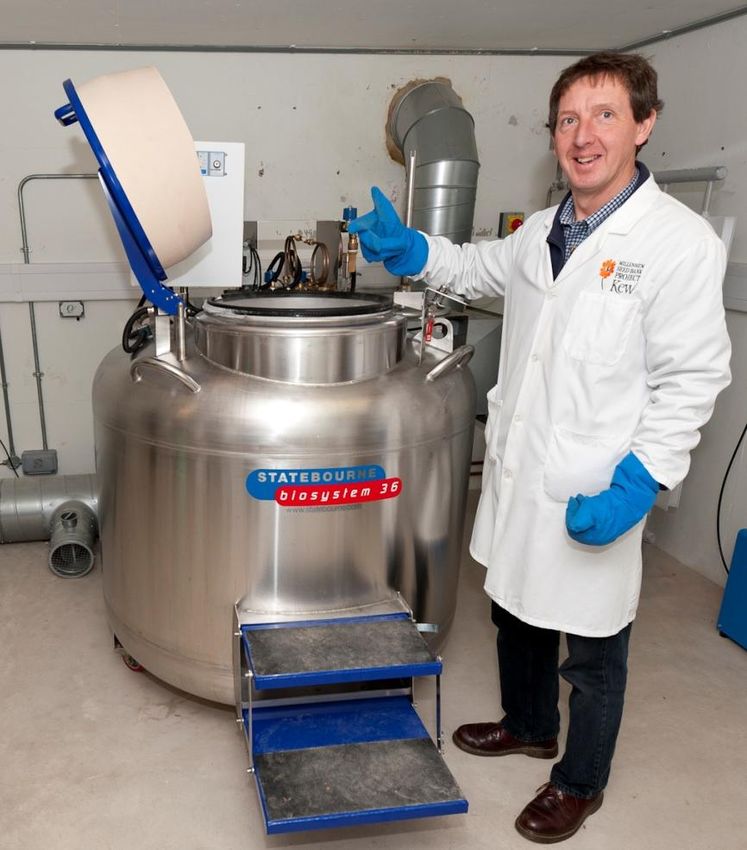

Archive Cryostorage

New facilities at MSB –
one vessel can store
37400 cryovials in
long-term archival
storage
THANK YOU !
Acknowledgements
• Natural England for funding Phase 1, 2 & 3
• Scottish Natural Heritage, Countryside
  Council for Wales for funding Phases 1& 2
• Staff and students of CBU past and present ,
  especially Dr Jane Burch and Carla Mortimer
