ALUMINIUM DOOR SUITE & ACCESSORIES 45mm SINGLE GLAZE | NARROW & WIDE STILE
WELCOME TO ALUFORM
Leading the industry in quality and innovation, Aluform Interior Supplies provides a
comprehensive range of aluminium partitioning systems and complete interior
solutions to the commercial office fit-out industry. Whether you are an architect,
designer, builder, or contractor, here at Aluform we have the professional capacity to
guide the largest projects through to completion ensuring superior and high-quality
results. Our innovative products, rigorous quality control and excellent customer
service have built our reputation as an industry leader.
We have become the go-to point for the creation of new concepts, problem-solving
and R&D, offering a comprehensive consulting service to architects and designers in
which we provide customised CAD drawings of wall partition details and elevations to
insert straight into project plans. Our vast knowledge of acoustics, section design and
details, office partition wall types and Australian Standards ensure projects are
completed to the highest possible standard.
Most importantly, we are committed to building rewarding and lasting relationships
with our clients. We believe in turning our customer satisfaction into customer loyalty
and hence excellent customer service is always our main priority. The team at Aluform
strives to ensure that all our customers are provided with efficient and responsive
support and extensive product expertise needed to accomplish any project.
Leaders in supplying the commercial
office fit-out industry in Australia.
A L U M I N I U M D O O R S U I T E & A C C E S S O R I E S 6
CONTENTS Section Details 8
Narrow Stile Assembly Overview 14
Wide Stile Assembly Overview 16
Order Forms 18

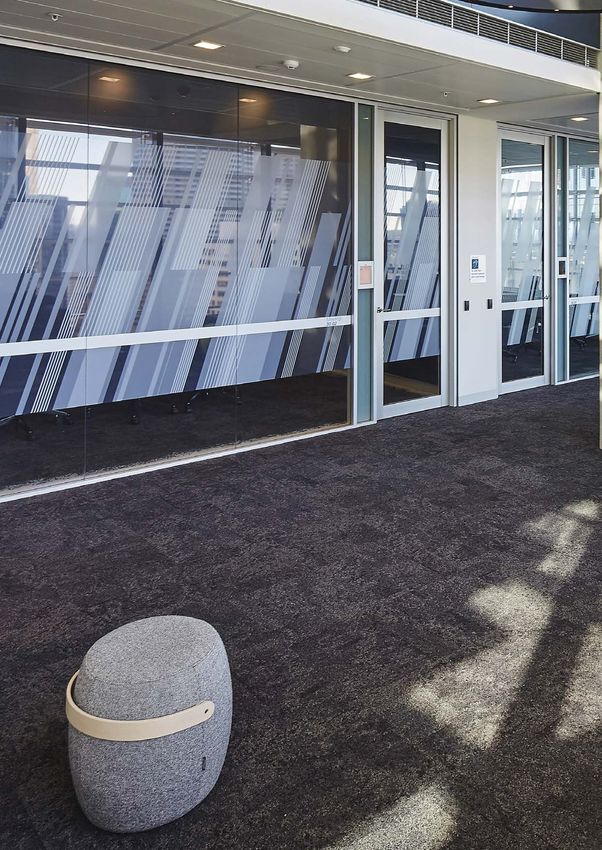

ALUMINIUM DOOR SUITE & ACCESSORIES
45mm SINGLE GLAZE | NARROW & WIDE STILE
Designed to offer a contemporary f inish, Aluform’s 45mm Single Glaze
Aluminium Door Suite can be used for a variety of commercial applications and
includes narrow (73mm) and wide (114mm) stile options. Aluform provides an
in-house manufacturing service for the fabrication of custom aluminium doors.
This service includes the machining and f itting of common hardware components
such as mortice locks, bottom door seals, rollers, flush bolts and flush pulls.
F E ATU R E S
+ Narrow and wide stile options
+ Used for single and double hinge doors, and sliding doors
+ Can be easily machined to accommodate most standard hardware components
+ Suits a wide range of acoustic door seals
+ Glazing pocket suits 6.38, 8.38, 10.38 and 12.38mm glass
+ Custom made aluminium doors can easily integrate with Aluform’s aluminium
partition and sliding systems

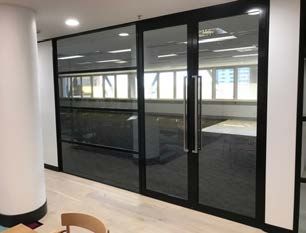

SINGLE LEAF DOOR DOUBLE LEAF DOOR
SLIDING DOOR
6 © ALUFORM INTERIOR SUPPLIES 2021 W W W. A L U F O R M I N T E R I O R S . C O M . A U 7
ALUMINIUM DOOR SUITE & ACCESSORIES
45mm SINGLE GLAZE | NARROW & WIDE STILE
S ECT I O N D E TA I LS
AL001 114mm SLIDING DOOR STILE AL907 73mm PLAIN STILE
Available Finish: Mill, Natural Anodised, Powdercoat Available Finish: Mill, Natural Anodised, Powdercoat
Available Length: 2.800m, 3.250m Available Length: 2.800m, 3.250m
AL002 114mm HINGE STILE AL908 73mm SLIDING DOOR STILE
Available Finish: Mill, Natural Anodised, Powdercoat Available Finish: Mill, Natural Anodised, Powdercoat
Available Length: 2.800m, 3.250m Available Length: 2.800m, 3.250m
AL003 114mm LOCK STILE AL909 73mm HINGE STILE
Available Finish: Mill, Natural Anodised, Powdercoat Available Finish: Mill, Natural Anodised, Powdercoat
Available Length: 2.800m, 3.250m Available Length: 2.800m, 3.250m
AL004 114mm PIVOT STILE AL910 73mm LOCK STILE
Available Finish: Mill, Natural Anodised, Powdercoat Available Finish: Mill, Natural Anodised, Powdercoat
Available Length: 2.800m, 3.250m Available Length: 2.800m, 3.250m
AL005 114mm PLAIN STILE AL912 73mm PIVOT STILE
Available Finish: Mill, Natural Anodised, Powdercoat Available Finish: Mill, Natural Anodised, Powdercoat
Available Length: 2.800m, 3.250m Available Length: 2.800m, 3.250m
8 © ALUFORM INTERIOR SUPPLIES 2021 W W W. A L U F O R M I N T E R I O R S . C O M . A U 9
ALUMINIUM DOOR SUITE & ACCESSORIES
45mm SINGLE GLAZE | NARROW & WIDE STILE
S ECT I O N D E TA I LS
AL411 83mm RAIL AL426 45mm MID RAIL
Available Finish: Mill, Natural Anodised, Powdercoat Available Finish: Mill, Natural Anodised, Powdercoat
Available Length: 3.250m, 6.500m Available Length: 6.500m
AL412 114mm RAIL
Available Finish: Mill, Natural Anodised, Powdercoat AL414 DOOR BEAD
Available Length: 3.250m, 6.500m
Available Finish: Mill, Natural Anodised, Powdercoat
Available Length: 3.250m, 6.500m
AL413 123mm MID RAIL
Available Finish: Mill, Natural Anodised, Powdercoat
Available Length: 6.500m
AL455 MEETING STILE ADAPTOR
Available Finish: Mill, Natural Anodised, Powdercoat
Available Length: 6.500m
1 0 © ALUFORM INTERIOR SUPPLIES 2021 W W W. A L U F O R M I N T E R I O R S . C O M . A U 11
ALUMINIUM DOOR SUITE & ACCESSORIES
45mm SINGLE GLAZE | NARROW & WIDE STILE
S ECT I O N D E TA I LS
ALH6 SPIGGOT
+ Sold as a pack of 4 (incl. Bolts).
45
ALMRB123 MID RAIL BRACKET
35
+ Mid rail bracket to suit AL413, 123mm Mid Rail.
ALMRB45 MID RAIL BRACKET
+ Mid rail bracket to suit AL426, 45mm Mid Rail.
DJALUDOOR
+ Aluminium Door Drilling Jig.
1 2 © ALUFORM INTERIOR SUPPLIES 2021 W W W. A L U F O R M I N T E R I O R S . C O M . A U 13
ALUMINIUM DOOR SUITE & ACCESSORIES
45mm SINGLE GLAZE | NARROW & WIDE STILE
N A R R O W S T I L E H I N G E D O O R A S S E M B LY - W I T H M I D R A I L N A R R O W S T I L E H I N G E D O O R A S S E M B LY - W I T H O U T M I D R A I L
AL412 AL412
(or alternatively AL411 can be used) (or alternatively AL411 can be used)
AL414 AL414
AL909
AL909
AL910
AL910
AL414
AL413
(or alternatively AL426
can be used)
AL414
AL414
AL414
AL412 AL412
1 4 © ALUFORM INTERIOR SUPPLIES 2021 W W W. A L U F O R M I N T E R I O R S . C O M . A U 15
ALUMINIUM DOOR SUITE & ACCESSORIES
45mm SINGLE GLAZE | NARROW & WIDE STILE
W I D E S T I L E H I N G E D O O R A S S E M B LY - W I T H M I D R A I L W I D E S T I L E H I N G E D O O R A S S E M B LY - W I T H O U T M I D R A I L
AL412 AL412
AL414 AL414
AL002
AL002
AL003
AL003
AL414
AL413
AL414
AL414
AL414
AL412
AL412
1 6 © ALUFORM INTERIOR SUPPLIES 2021 W W W. A L U F O R M I N T E R I O R S . C O M . A U 17
ALUFORM’S IN-HOUSE MANUFACTURING FACILITIES
SINGLE OR DOUBLE HINGE DOORS & SLIDING DOORS
Aluform provides an in-house manufacturing service for the fabrication of custom aluminium doors. This service
includes the machining and f itting of common hardware components such as mortice locks, bottom door seals,
rollers, flush bolts and flush pulls. Scan the QR codes below to download our aluminium door order forms.
ALUMINIUM SINGLE HINGE DOOR ORDER FORM
DATE REQUIRED COMPANY NAME CONTACT NAME CONTACT NUMBER ORDER NO. HANDING OPTIONS
RESET FORM
(111mm top rail if using a closer.) (Measurement from bottom of door to centre of mid rail.) OPTION 1 Inside
STILE WIDTH TOP RAIL MID RAIL MID RAIL HEIGHT (mm) GLAZING FINISH COLOUR BRAND CODE LH Hinged,
Opening IN Outside
(Measurement from bottom of door to centre of tongue.) OPTION 2 Inside
RH Hinged,
LOCK
DOOR FINISHED FINISHED HANDING LOCK Opening IN
QTY SUPPLY HEIGHT FURNITURE TYPE / CUTOUT DETAILS BOTTOM SEAL Outside
NO. HEIGHT (mm) WIDTH (mm) (REFER DETAIL) MACHINING
(mm)
OPTION 3 Inside
RH Hinged,
Opening OUT
ALUMINIUM
Outside
OPTION 4 Inside
LH Hinged,
Opening OUT
Outside
SINGLE HINGE DOOR SIZE DETAIL
DOOR ORDER FORM
Frame Width - 8mm = Finished Door Width
Frame Width
Frame Height -
Floor Covering -
14mm =
Frame Height
Finished Door
Height
Aluminium
Frame
Floor Covering
NOTES
Concrete
Office Use Only… For any assistance in completing this form, please call 1800 995 817 or email us at sales@aluforminteriors.com.au
SALES PERSON By checking the box I agree to all the
CUSTOMER INITIALS below mentioned terms & conditions. SUBMIT ORDER
SALES REFERENCE
Terms & Conditions
In these conditions “The Company” means H.D. & K.M. BREWER ABN 93 249 846 401 trading as Aluform Interior Supplies. “The Customer” means that person, firm or organization to whom the goods and services are supplied. It is The Customer’s ultimate responsibility to ensure that the details submitted on this
order form are accurate in every aspect. The Company does not accept any responsibility for incorrect or inaccurate ordering. The Company accepts no liability for faulty installation or for doors/frames manufactured if sizes or specifications change. The Company will not accept anychanges to the order after 24 hours
of acceptance of The Company’s order confirmation in the case of an account holding customer or receipt of payment in the case of a nonaccount holding customer. All variations to the order after 24 hours of acceptance will incur additional costs and there will be delays in delivery of the goods. Products on this
order form are custom made and therefore non-returnable or refundable if The Customer changes their mind or if sizes or specifications change.
ALUMINIUM DOUBLE HINGE DOOR ORDER FORM
DATE REQUIRED COMPANY NAME CONTACT NAME CONTACT NUMBER ORDER NO. For any assistance in completing this form, please call
RESET FORM 1800 995 817 or email us at sales@aluforminteriors.com.au
(111mm top rail if using a closer.) (Measurement from bottom of door to centre of mid rail.)
STILE WIDTH TOP RAIL MID RAIL MID RAIL HEIGHT (mm) GLAZING FINISH COLOUR BRAND CODE
(Measurement from bottom of door to centre of tongue.)
DOOR FINISHED FINISHED HANDING LOCK LOCK BOTTOM
LEAF (REFER DETAIL) MACHINING SUPPLY HEIGHT (mm) FURNITURE TYPE / CUTOUT DETAILS STRIKE PLATE FLUSH BOLTS SEAL
NO. HEIGHT (mm) WIDTH (mm)
ALUMINIUM
DOUBLE HINGE NOTES
DOOR ORDER FORM
HANDING OPTIONS DOOR SIZE DETAIL
Inside Inside (Frame Width - 12mm) / 2 = Finished Door Width
(if equal leaves)
OPTION 1 OPTION 3
Frame Width
Active Inactive Active Inactive
Outside Outside Frame Height -
Floor Covering -
Frame Height
14mm =
Inside Inside
OPTION 2 OPTION 4 Finished Door
Aluminium Frame Height
Inactive Active Inactive Active Floor Covering
Outside Outside
Office Use Only…
Concrete
SALES PERSON
By checking the box I agree to all the
CUSTOMER INITIALS
below mentioned terms & conditions. SUBMIT ORDER
SALES REFERENCE
Terms & Conditions
In these conditions “The Company” means H.D. & K.M. BREWER ABN 93 249 846 401 trading as Aluform Interior Supplies. “The Customer” means that person, firm or organization to whom the goods and services are supplied. It is The Customer’s ultimate responsibility to ensure that the details submitted on this order form are
accurate in every aspect. The Company does not accept any responsibility for incorrect or inaccurate ordering. The Company accepts no liability for faulty installation or for doors/frames manufactured if sizes or specifications change. The Company will not accept any changes to the order after 24 hours of acceptance of The
Company’s order confirmation in the case of an account holding customer or receipt of payment in the case of a nonaccount holding customer. All variations to the order after 24 hours of acceptance will incur additional costs and there will be delays in delivery of the goods. Products on this order form are custom made and
therefore non-returnable or refundable if The Customer changes their mind or if sizes or specifications change.
ALUMINIUM SLIDING DOOR ORDER FORM
HANDING OPTIONS
DATE REQUIRED COMPANY NAME CONTACT NAME CONTACT NUMBER ORDER NO.
RESET FORM
OPTION 1
(111mm top rail if using a closer.) (Measurement from bottom of door to centre of mid rail.)
External Side
STILE WIDTH TOP RAIL MID RAIL MID RAIL HEIGHT (mm) GLAZING FINISH COLOUR BRAND CODE OPTION 2
External Side
(Measurement from bottom of door to centre of tongue.) OPTION 3
HANDING
DOOR FINISHED FINISHED (REFER LOCK LOCK FURNITURE / MACHINING FOR SLIDING External Side
QTY SUPPLY
NO. HEIGHT (mm) WIDTH (mm) DETAIL) MACHINING HEIGHT CUTOUT DETAILS DOOR SYSTEM
OPTION 4
External Side
ALUMINIUM OPTION 5
External Side
SLIDING
OPTION 6
External Side
OPTION 7
DOOR ORDER FORM
External Side
OPTION 8*
a External Side b External Side
OPTION 9
External Side
OPTION 10*
a External Side b External Side
OPTION 11
NOTES External Side
For double sliding door pairs, use Option 8a and 8b, or Option 10a an 10b.
*
Office Use Only… For any assistance in completing this form, please call 1800 995 817 or email us at sales@aluforminteriors.com.au
SALES PERSON By checking the box I agree to all the
CUSTOMER INITIALS
below mentioned terms & conditions. SUBMIT ORDER
SALES REFERENCE
Terms & Conditions
In these conditions “The Company” means H.D. & K.M. BREWER ABN 93 249 846 401 trading as Aluform Interior Supplies. “The Customer” means that person, firm or organization to whom the goods and services are supplied. It is The Customer’s ultimate responsibility to ensure that the details submitted on this
order form are accurate in every aspect. The Company does not accept any responsibility for incorrect or inaccurate ordering. The Company accepts no liability for faulty installation or for doors/frames manufactured if sizes or specifications change. The Company will not accept anychanges to the order after 24 hours
of acceptance of The Company’s order confirmation in the case of an account holding customer or receipt of payment in the case of a nonaccount holding customer. All variations to the order after 24 hours of acceptance will incur additional costs and there will be delays in delivery of the goods. Products on this
order form are custom made and therefore non-returnable or refundable if The Customer changes their mind or if sizes or specifications change.
