HUME DOORS & TIMBER
100% Australian Owned
2021
PRODUCT CATALOGUE Version 1.00
WELCOME TO HUME DOORS & TIMBER
“When you are designing a space it is the
attention to every detail that elevates a space
from every day to an experience. The doors
you select can have a huge impact on how
people transition from one space to another,
as well as how the spaces integrate.
They consolidate the style of your home and
provide a quality experience both in touch
and sight.”
- Naomi Findlay
HUME’S VALUES
■ To innovate and make a difference in your home
■ To continue to build valued relationships with staff, suppliers and distributors
■ To continue to improve on our environmental sustainability and recycling
Hume Doors & Timber is the nation’s largest 100% Australian owned timber door manufacturer
with over 60 years of proud history. Hume Doors will always stand by its family based values
and exceptional customer service.
Whether leading the way in sustainability, innovation or design, Hume Doors & Timber remains
committed to developing outstanding products for the Australian market.
Hume Doors & Timber complies with Australian Standard AS 2688-2017 for the manufacture
and importation of timber doors.
Scan QR code to view our
60 year history video
100% Australian Owned 2 www.humedoors.com.au
CONTENTS
ENTRANCE DOORS FLUSH DOORS
6 Savoy 1200 47 Internal Honeycomb core
7 Verve 47 External Honeycomb core
8 Savoy 820 47 Solicore (SCX1)
10 Linear 47 Blockboard (STPC)
12 Joinery
14 Illusion INTERNAL SYSTEMS
15 Vaucluse 48 Cavity Units
16 Newington 49 Cavity Units Additional Extras
18 Regency 49 Evolution Premium
19 Vaucluse Premier 50 Smartrobe
20 Carringbush 52 Bi-Fold
21 Nexus 53 Multi-Fold
22 Glass Opening 54 Pre-Hung
ENTRANCE SYSTEMS COMMERCIAL
23 Pivot Frames 56 Fire Doors
24 Standard Frames 56 Commercial Products
25 Weatherguard Frames 57 Steel Door Frames
26 Alfresco Multifold
GLASS
BUSHFIRE RESISTANT DOORS & FRAMES 58 Glazing Options
27 BAL (Bushfire Attack Level)
28 BAL19 & 29 Doors TIMBER
29 BAL19 & 29 BAL Merbau Weatherguard Frames 60 Fibre-Cement Products
30 BAL40 Doors 61 Timber Mouldings Profiles
31 BAL40 Merbau Weatherguard Frames
EXTRAS
INTERNAL BARN DOORS 4 Environmental Commitment
32 Frontier Standard Barn Doors 5 Construction Types
33 Frontier Ultimate Barn Doors 55 How to Hang a Door
34 Frontier Rustic Barn Doors 62 Guarantee Doors
35 Frontier Track System 62 Steel Door Frame Warranty
63 Overhead Protection
INTERNAL DOORS 63 Care & Maintenance
36 Hampton 64 Contact Details
37 Strata
38 Humecraft
40 Sorrento
41 Joinery
42 Linear
44 Moulded Panel Woodgrain Skin
45 Moulded Panel Smooth Skin
46 Accent
Key for Specifications tables
DOOR CONSTRUCTION TYPE Denotes the type of door construction. For more information go to page 5
Door sound rating. Refer to our website for further information:
DOOR SOUND RATING
www.humedoors.com.au/downloads
BUSHFIRE ATTACK LEVEL Bushfire Attack Level Rating. For more information go to page 27
WEIGHT Door weight in kg
100% Australian Owned 3 www.humedoors.com.au
ENVIRONMENTAL COMMITMENT
Hume Doors & Timber is committed to operating its entire business processes in an environmentally sustainable manner at all
times. Our goal is to be regarded as an environmentally responsible corporate citizen that practices environmental stewardship and
provides our valued customer base with complete confidence that our products have been produced in accordance with applicable
independent environmental standards.
■ Reusing and recycling by-products, packaging and waste material
■ Reducing the level of packaging and consumables used
■ Capturing, storing and using rainwater for our water needs
■ Maximise transport loads, thus reducing energy requirements
We embrace environmental awareness, protection and enhancement.
Timber is a fully sustainable resource that is non-toxic, reusable and versatile. The continued growth and planting of forests aid in the
reduction of carbon dioxide. The future of our products, business, industry and customer satisfaction is directly linked to the sustainable
management of the world’s forests.
Our manufacturing and distribution processes have been designed to minimise our environmental footprint by, among other things:
■ Utilising energy to its maximum efficiency
■ Subscribing to renewal energy sources (where possible)
■ Utilising recycled product (where possible)
■ Organising our transportation routes to minimise energy requirements of our vehicle fleet
■ Providing reliable, long lasting products that are backed by a 5 year guarantee
■ Ensuring our suppliers of raw material products are accredited by appropriate independent, third party environmental
stewardship programs including FSC (Forest Stewardship Council), PEFC (Programme for the Endorsement of Forest Certification
Schemes), AFS (Australian Forestry Standard), etc and hold to the principles of and guidelines contained within these programs.
FSC® CERTIFICATION FSC® CERTIFICATION PEFC™ CERTIFICATION
Hume Doors & Timber (Aust) Pty Ltd Hume Doors & Timber (Qld) Pty Ltd Hume Doors & Timber (Aust) Pty Ltd is
is a certified member of the Forest is a certified member of the Forest a member of the Programme for the
Stewardship Council® (SGS-CoC-009377) Stewardship Council® (SGS-CoC-009405) Endorsement of Forest Certification
Schemes (AU17/05236)
100% Australian Owned 4 www.humedoors.com.au
CONSTRUCTION TYPES
Honeycomb Core Solicore Particleboard Core
Engineered Joinery Solid HMR MDF Core (DB)
(Hollowcore X1) (SCX1)
Frontier Premium Hollow Frontier Ultimate Solid Infill
BAL 40 Construction Frontier Rustic Solid Infill Core
Core (SG) Core
Honeycomb Core Honeycomb Core
Hampton Construction Solid HMR MDF Core (HV)
(Hollow Core H1) (Hollowcore SG) 6mm Skin
Honeycomb Core Large Cell Solicore Particleboard Core Solicore Particleboard Core Solid Timber Pine Core
(Hollow Core Moulded Panel) (SCX1 Moulded Panel) (SCX1 PCMDF) (STPC Blockboard)
100% Australian Owned 5 www.humedoors.com.au
ENTRANCE DOORS Grand, King-sized & Stunning
SAVOY 1200 The Savoy 1200 range is engineered using joinery construction techniques,
featuring veneered laminated timber stiles and rails. Crafted from select
timbers and available with a range of glass options to suit your style.
XS24 XS26 XS28 XS45
Face Options Specifications
Engineered Joinery
Rw:29 STC:30
SPM (standard) Tassie Oak Merbau Blackbutt
BAL12.5
Glass Options 48kg
■ Standard Door Size:
2040x1200x40, 2340x1200x40
■ Check with your Hume state office
Clear Cathedral Grey Tint Translucent Africana Low E Geostep Rice Paper for made to order
100% Australian Owned 6 www.humedoors.com.au
ENTRANCE DOORS Sophisticated, Crisp & Neat
VERVE The Verve range has been designed with sleek glass panels, making for the finest
in contemporary design. An extensive range of glass options creates endless
possibilities in style.
VER1 VER4 VER6 VER11
Face Options Specifications
Solid HMR MDF Core (DB)
Rw:31 STC:31
DuraXP SPM Tassie Oak Merbau Blackbutt
(standard) BAL12.5
Glass Options 40kg
■ Standard Door Size: 2040x820x40
■ Check with your Hume state office
for made to order
Clear Cathedral Grey Tint Translucent Geostep Low E Rice Paper
100% Australian Owned 7 www.humedoors.com.au
ENTRANCE DOORS
SAVOY 820 Stunningly Eye Catching
The Savoy 820 range is engineered using joinery construction techniques featuring veneered laminated
timber stiles and rails. Crafted from select timbers and available with a range of glass options to suit your
style.
100% Australian Owned 8 www.humedoors.com.au
ENTRANCE DOORS
SAVOY 820
Optional raised panel
and moulding to suit:
XS2, XS3, XS4
XS2 XS3 XS4 XS11
Specifications
Engineered Joinery
Rw:29 STC:30
BAL12.5
30kg
■ Standard Door Size: 2040x820x40
■ Standard Sidelite Size: 2040x400x40
■ Check with your Hume state office
for made to order
XS24 XS26 XS28 XS45
Face Options
SPM (standard) Tassie Oak Merbau Blackbutt
(XS11, 24, 26, 28, 45) (XS11, 24, 26, 28, 45) (XS11, 24, 26, 28, 45)
Glass Options
Clear Cathedral Grey Tint Translucent Africana Low E Geostep Rice Paper
For more glass designs refer to Glazing Options table on page 58
100% Australian Owned 9 www.humedoors.com.au
ENTRANCE DOORS
LINEAR Striking, Unique & Stylish
Our designers have been inspired by modern European trends which have shaped the Linear Range of
doors. This unique range can showcase the natural beauty of timber with the innovation of contrasting
grains or can be painted, for that fresh & stylish feel.
100% Australian Owned 10 www.humedoors.com.auENTRANCE DOORS
LINEAR
XLR120 XLR130 XLR140 XLR150 XLR160 XLR170
XLR300 XLR310 XLR500 XLR600 XLR500 (1200)
Face Options Specifications
Solid HMR MDF Core (DB)
Rw:30 STC:29
BAL12.5
DuraXP (standard) SPM (standard)
XLR120, 130,140,170 XLR150,160, 300, 310, 500, 600
40kg 58kg
(820mm) (1200mm)
Glass Options
■ Standard Door Size: 2040x820x40
■ Routed: Both sides
■ Not suitable for rebated pairs
■ Alignment of horizontal rout is not
guaranteed for pairs
Clear Cathedral Grey Tint Translucent Africana
■ Check with your Hume state office
for made to order
100% Australian Owned 11 www.humedoors.com.auENTRANCE DOORS
JOINERY Class & Charm
The Joinery range is the ideal match to traditional architecture. Crafted from select timbers and available
with a range of glass options to suit your style. This range features an engineered joinery construction
system, which utilises traditional joinery methods as well as incorporating modern techniques.
Note: JST1 doors with clear glass includes a safety decal strip centre of the glass panel.
100% Australian Owned 12 www.humedoors.com.auENTRANCE DOORS
JOINERY
JST1 JST11 JST4 JST12 JST2
JST6 JST10 JST5 XL10
Face Options Specifications
Engineered Design Code Standard Size (mm)
Joinery JST1,10 2040x620/720/770/820x40
Rw:29 STC:30 JST4, 6 2040x720x40, 2040x820x40
JST2, XL10 2040x820x40
SPM Tassie Oak Merbau Blackbutt BAL12.5 JST5, 11, 12 2040x400x40
(standard) JST1, 11, 2 JST1,11, 2 JST1, 11, 2
30kg ■ Check with your Hume state office for
Glass Options made to order
Clear Clear Laminate Cathedral Double Glaze Clear Grey Tint Translucent Africana Double Glaze Frost Low E Geostep Rice Paper
100% Australian Owned 13 www.humedoors.com.auENTRANCE DOORS Bold, Individual & Dreamy
ILLUSION The Illusion range has inserts that appear to float, these doors make for a stunning
impression, all the while allowing for an abundance of light to enter into your
home. Choose from Clear, Frost, Grey or Africana glass to complete the illusion.
XIL1 XIL6 XIL21 XIL26
Face Options Glass Options Specifications
Engineered Joinery
Rw:29 STC:30
SPM Clear Grey Tint Frost Africana Translucent
BAL12.5
■ Standard Door Size: 2040x820x40 30kg 48kg
■ Standard Door Size: 2040x1200x40 (820mm) (1200mm)
■ Check with your Hume state office for made to order
■ Chrome bolts are visible to inside of timber floating panels for standard doors
■ Timber floating panels remain the same size and are glued to glass for made to order doors
■ Sidelite option refer to Joinery Range(JST11) page 12
100% Australian Owned 14 www.humedoors.com.auENTRANCE DOORS Craftsmanship & Simplicity
VAUCLUSE The Vaucluse Range is of the highest quality with a variety of designs to
match any architectural frontage. Detailed carved patterns to the external
faces and smooth internal faces make for simplicity in design.
XV1 XV4 XV9 XV10 XV14 XV18 XV20
Face Options Specifications
Solid HMR MDF Core (DB)
Rw:30 STC:29
DuraXP SPM
(standard) BAL12.5
■ Standard Door Size: 2040x820x40 40kg
■ Routed: One side
■ Double sided rout available as an optional extra
■ Sidelite option refer Newington (XN9 & XN14) page 16
■ Check with your Hume state office for made to order
100% Australian Owned 15 www.humedoors.com.auENTRANCE DOORS
NEWINGTON Popular, Attractive & Versatile
The Newington range has a popularity that is a testament to its everlasting appeal and unmatched
adaptability. The choice of dazzling designs, an array of glass options and matching sidelites provide
limitless choices for you to create the look.
100% Australian Owned 16 www.humedoors.com.auENTRANCE DOORS
NEWINGTON
XN1 XN2 XN5 XN11 XN6 XN12
Specifications
Solid HMR MDF Core (DB)
Rw:31 STC:31
BAL12.5
40kg
■ Standard Door Size: 2040x820x40
■ Standard Sidelite Size:
2040x200x40 (XN14),
2040x400x40 (XN9, XN11, XN12)
■ Check with your Hume state office for
made to order
XN7 XN9 XN14 XN16
Face Options
DuraXP (standard) SPM Tassie Oak Merbau Blackbutt
Glass Options
Clear Cathedral Grey Tint Translucent Millenium Africana Low E Geostep Rice Paper
Slumped
100% Australian Owned 17 www.humedoors.com.auENTRANCE DOORS Supreme & Classic
REGENCY The Regency range offers timeless designs with substantial timber mouldings to
the exterior face plus deep routed designs to both door faces. Solid construction
with several glazing options available, including triple-glaze leadlight designs to
complement any classically-styled home.
Specifications
Solid HMR MDF Core (DB)
Unglazed Rw:30 STC:29
Glazed Rw:31 STC:31
BAL12.5
40kg 58kg
(820mm) (1200mm)
■ Standard Door Size: 2040x820x40
■ Standard Sidelite Size: 2040x400x40
■ Routed: Both sides
■ Moulding: One side
XR4 XR4 (1200) XR5 XR6 ■ Check with your Hume state office
for made to order
Face Options
DuraXP SPM
(standard)
Glass Options
Clear Cathedral Grey Tint Translucent Africana Low E
For more glass designs refer to Glazing Options table on page 58
100% Australian Owned 18 www.humedoors.com.auENTRANCE DOORS Premium & Superior by Design
VAUCLUSE PREMIER Vaucluse Premier doors have deeply carved patterns on
both sides of the door together with attractive moulding
to the external side. A wide range of glass options are also
available to match any decor.
Image supplied by Maine House Interiors
Optional Raised
Panel to suit:
XVP11, 12, 13
XVP11 XVP12 XVP13 XVP20 XVP22 XVP22 (1200)
Face Options Specifications
■ Standard Door Size: 2040x820x40
■ Standard Sidelite Size: 2040x400x40 Solid HMR MDF Core (DB)
■ Routed: Both sides
Unglazed Rw:30 STC:29
■ Moulding: One side
DuraXP SPM ■ Check with your Hume state office for made to order Glazed Rw:31 STC:31
(standard)
BAL12.5
Glass Options 40kg 58kg
(820mm) (1200mm)
Clear Cathedral Grey Tint Translucent Africana Low E Geostep Rice Paper
For more glass designs refer to Glazing Options table on page 58
100% Australian Owned 19 www.humedoors.com.auENTRANCE DOORS Classic & Timeless
CARRINGBUSH The Carringbush is a recreation of doors from the Victorian era.
These doors incorporate routed designs each side and have the
warmth of detailed timber mouldings, strong cricket bat panels,
ledge and scroll on the exterior door face.
Specifications
Solid HMR MDF Core (DB)
Rw:31 STC:31
BAL12.5
40kg
■ Standard Door Size: 2040x820x40
■ Standard Sidelite Size: 2040x400x40
■ Routed: Both sides
■ Moulding: One side
■ Check with your Hume state office
XCB1 XCB2 for made to order
Face Options
DuraXP SPM
(standard)
Glass Options Triple Glazed Leadlight Glass Frost Coloured Design Glass
Clear Cathedral Grey Tint Translucent Triple Glaze Argyle Triple Glaze Crystal Blue Wysteria Frost
Leadlight Leadlight
100% Australian Owned 20 www.humedoors.com.auENTRANCE DOORS Subtle & Stylish
NEXUS The Nexus range is designed with urban architecture in mind. These smart
designs are the perfect link between the cityscape and your home. The array
of glass options provide limitless choices for you to create the urban look.
Specifications
Solid HMR MDF Core (DB)
Rw:31 STC:31
BAL12.5
40kg 58kg
(820mm) (1200mm)
■ Standard Door Size: 2040x820x40,
2040x1200x40 (NEX40)
■ Check with your Hume state
office for made to order
NEX30 NEX35 NEX36 NEX38 NEX40
Face Options
DuraXP (standard) SPM Merbau Tassie Oak Blackbutt
Glass Options
Clear Cathedral Grey Tint Translucent Africana Millenium Low E Geostep Rice Paper
Slumped
100% Australian Owned 21 www.humedoors.com.auENTRANCE DOORS Minimalistic & Functional
GLASS OPENING A classic back door design with three different styles. Available
in honeycomb core or the option of solid construction. Crafted
from tempered hardboard or select timbers and offered with a
range of glass options to suit your style.
Specifications
Solid HMR MDF Core (DB)/
Honeycomb (X1)
Solicore (SCX1)
Rw:25 STC:25 Rw:31 STC:31
Nil BAL12.5
18kg 40kg
■ Standard Door Size: 2040x820x35, 2040x820x40
■ Routed: One side (XF8 only)
■ XF8 is Solid HMR MDF Core (DB) construction only
■ Check with your Hume state office for made to order
XF1 XF3 XF8
Face Options
DuraXP (standard) SPM Paint Grade Ply Merbau Tassie Oak
XF1, 3 XF1, 3 XF1, 3
Glass Options
Clear Cathedral Grey Tint Translucent Africana Geostep Low E Rice Paper
100% Australian Owned 22 www.humedoors.com.auENTRANCE SYSTEMS Make a bold statement and increase your homes street
appeal with a Hume Pivot System. This assembled entry frame
PIVOT FRAMES incorporates a heavy-duty pivot with quality fittings that allow
the door to be adjusted during installation. Everything you need
to make your grand entrance, perimeter seals included.
■ Head
Made of premium timber and
designed to incorporate the
pivot operating system
■ Door Adjustment Hole
Easily adjust your pivot without
removing the door, so it is plumb ■ Optional glazed
and square sidelite/s or hilite
■ Concealed Hydraulic
Self Closer
Adjustable closing speed
control and soft-close allow
for safe closing speeds and no
slamming of your door. Hold
open function at 90 degrees
■ Factory Assembled
to create a generous entrance Frame
Fully assembled and packaged
ready for your home. Simply
■ Perfect for Large Doors install and enjoy
Heavy-duty pivot fittings to
suit any oversized door from
our extensive range of large
doors
■ Stop Bead
Fitted with perimeter seal,
improves energy efficiency
■ Full Perimeter Seal
Pivot systems have a full ■ Bottom Seal
perimeter seal which improves
A sleek aluminium bottom A
energy efficiency and reduces outside
seal, designed with energy
noise
efficiency in mind
■ Bottom Sill B
outside
Solid timber sill looks sleek &
elegant due to a top-mounted
pivot mechanism
A A CG
outside
outside outside
GLASS
B B DG
outside
outside outside
HANDING OF PIVOT FRAME
AA CG CG EG
outside
outside *PIV1LH outside
outside *PIV2RH outside *PIV3RH
GLASS
GLASS
GLASS
GLASS
B B DG DG FG
outside
outside *PIV1RH outside
outside *PIV2LH outside *PIV3LH
*Victoria Configuration Codes
CGCG EG EG
outside
outside outside
outside Specifications
GLASS
GLASS
GLASS
GLASS
GLASS
GLASS
DOORS NOT INCLUDED
■ Allow for up to 1200 wide door BAL12.5
■ DGDG range
Choose from any oversize door in our entrance FG FG (Meranti frames only)
outside
outside outside
outside
■ Door cost is additional
■ We recommend ordering door and frame together to ensure perfect fit
Scan QR code to view
EGEG
outside
outside Pivot installation video
GLASS
GLASS
GLASS
GLASS
100% Australian Owned FGFG 23 www.humedoors.com.au
outside
outsideENTRANCE SYSTEMS ■ Factory Assembled Frame
STANDARD FRAMES Fully assembled, factory fitted
hinges and packaged ready for
your home. Our frames have been
designed to suit most openings
■ Timber Jambs & Head
Made of premium timber and designed to suit Australian conditions.
Choose from primed pine, meranti or merbau to best suit your
situation and door choice
HANDING OF FRAME
A
outside *HEF5LH
B
■ Factory Fitted Hinges outside *HEF5RH
Frame supplied with hinges
C
outside
D
outside
CG
outside *HEF6RH
GLASS
DG
outside *HEF7LH
E
outside
F
outside
EG
outside
*HEF8RH
GLASS
GLASS
FG
outside *HEF8LH
■ Durable Hardwood outside
G
*HEF11
Bottom Sill
Made from solid timber H
outside *HEF11
and slanted in design. The
hardwood sill is a sleek *Victoria Configuration Codes
and elegant threshold that
improves moisture control
■ Durable Anodised
Aluminium Plate
A strong and sleek bottom seal.
Designed with energy efficiency and
weather protection in mind
■ Multiblade Rubber Seal
Provides maximum weather protection
REBATED
DOORS NOT INCLUDED
For pairs of doors to eliminate draughts, noise, etc.
■ Door cost is additional
Reduces the width of a pair of doors by 12mm.
■ Choose from any door in our entrance range
■ Order door and frame together to ensure perfect fit
MUSHROOM STOP (Recommended)
Mushroom stop is an alternative to rebated doors ■ Door is supplied with machine cut outs for hinges
for pairs of doors to eliminate draughts, noise etc. when ordered with frame
Increases the width of a pair of doors by 12mm. ■ Hinges are additional cost in Victoria
■ Multiblade Rubber Seal is an additional cost in Victoria
100% Australian Owned 24 www.humedoors.com.auENTRANCE SYSTEMS ■ Factory Assembled Frame
WEATHERGUARD FRAMES Fully assembled, factory fitted
hinges and packaged ready for
your home. Our frames have been
designed to suit most openings
■ Timber Jambs & Head
Made of premium timber and designed to suit Australian conditions.
Choose from primed pine, meranti or merbau to best suit your
situation and door choice
HANDING OF FRAME
A
■ Perimeter Seals for outside *WGE5LH
Energy Efficiency B
outside *WGE5RH
Weatherguard systems have
a full perimeter seal which
improves energy efficiency C
outside
and reduces noise
D
outside
CG
■ Factory Fitted Hinges outside
*WGE6RH
GLASS
Frame supplied with hinges
DG
outside
*WGE7LH
E
outside
F
outside
EG
outside *WGE8RH
GLASS
GLASS
FG
outside *WGE8LH
■ Self-draining
G
aluminium sill outside *WGE11
A sleek & durable anodised
H
aluminium bottom sill, outside *WGE11
designed to improve moisture
control, energy efficiency and *Victoria Configuration Codes
helps to reduce noise. A tread
pattern on sill reduces slip
Specifications
Rw:31 STC:31
BAL12.5
(Meranti frames only)
REBATED
DOORS NOT INCLUDED
For pairs of doors to eliminate draughts, noise, etc.
■ Door cost is additional
Reduces the width of a pair of doors by 12mm.
■ Choose from any door in our entrance range
■ Order door and frame together to ensure perfect
MUSHROOM STOP fit (Recommended)
Mushroom stop is an alternative to rebated doors ■ Door is supplied with machine cut outs for hinges
for pairs of doors to eliminate draughts, noise etc. when ordered with frame
Increases the width of a pair of doors by 12mm. ■ Hinges are additional cost in Victoria
100% Australian Owned 25 www.humedoors.com.auENTRANCE SYSTEMS
ALFRESCO MULTIFOLD
■ Secure & lockable
Keyed drop bolts fitted
as standard
■ Adjustable Door Height
Easy door adjustments without
having to remove the door panels
■ Perimeter Seals ■ The warmth and natural beauty of timber doors
■ Moisture draining system for excellent weather performance
Full perimeter seal which improves
■ Durable roller system for smooth panel operation
energy efficiency and reduces noise
■ Preassembled for ease of installation
■ Sealed Gaskets ■ Low E glazing option for increased energy efficiency
High-quality gaskets at frame
joints for superior sealing
2Doors 3Doors
4Doors
Scan QR-code for Alfresco
installation video
5Doors
6Doors
■ All options shown above are also available in reverse
100% Australian Owned 26 www.humedoors.com.auBUSHFIRE RESISTANT DOORS & FRAMES
BAL (BUSHFIRE ATTACK LEVEL)
Hume Doors & Timber has extensively tested our comprehensive range of doors and door frame systems to meet the
AS1530.8.1 criteria set for buildings in Bushfire Attack Level (BAL) zoned areas. All our BAL tests are conducted in
Australia by an independent third-party fire testing consultancy firm.
Doors must be installed as per AS3959 to conform to BAL compliance. Refer to our website for further information:
www.humedoors.com.au
Bushfire Attack Level (BAL) measured in increments of radiant heat expressed in kilowatts /m2. This defines your BAL Rating
requirement. The diagram below shows the BAL ratings along with the radiant heat flux for each zone.
12.5
19.0
29.0
40.0
BAL-LOW BAL12.5 BAL19 BAL29 BAL40 BAL-FZ
LOW MODERATE HIGH VERY HIGH EXTREME
Very low risk Heat flux: Up to Heat flux: Up to Heat flux: Up to Heat flux: Up to Direct exposure to
to bushfire 12.5kW/m2 19kW/m2 29kW/m2 40kW/m2. flames from the fire
Increased risk of front in addition to
exposure to flames heat flux of greater
than 40kW/m2
INCREASING LEVELS OF EMBER ATTACK & IGNITION OF DEBRIS
Check specifications tables for each range to see BAL ratings
100% Australian Owned 27 www.humedoors.com.auBUSHFIRE RESISTANT DOORS & FRAMES
BAL19 & BAL29 DOORS
BFR1 BFR2 BFR3 BFR4 BFR5 BFR6 BFR7
BFR8 BFR9 BFR13 BFR14 BFR15 BFR30
Face Options Specifications
Solid HMR MDF Core (DB)
Unglazed Rw:30 STC:29
Glazed Rw:31 STC:31
DuraXP (standard) SPM Merbau
BAL19 & 29
6mm Toughened Glass Options 40kg
■ Door thickness is 40mm
■ We recommend ordering Door & Frame together to ensure
compliance with BAL
■ A minimum of 3 x 100mm square butt hinges for doors up to
Clear (6mm) Grey Tint (6mm) Africana (6mm) Frost (6mm)
2040x820mm. For doors over this size 4 x 100mm square butt
hinges are required
BAL19 & 29 Glazing Profile ■ BFR9 only Routed: Both sides
■ BFR13 only Moulding: One side
GLASS
HARDWOOD
BEADING
DOOR
100% Australian Owned 28 www.humedoors.com.auBUSHFIRE RESISTANT DOORS & FRAMES
BAL19 & 29 MERBAU WEATHERGUARD FRAMES
■ Factory Assembled Frame ■ Timber Jambs & Head
Fully assembled with an intumescent fire & smoke Made of premium hardwood. BAL19 & 29 Weatherguard
perimeter seal compliant to BAL19 & 29, the seal is entrance frames are suited for bushfire zones BAL12.5, 19 &
removable for painting and is easily reinstalled. 29 when installed as per AS3959
Frame has factory fitted hinges
HANDING OF FRAME ■ Perimeter Seal
BAL19 & 29 Weatherguard
A systems have a full intumescent
outside fire & smoke perimeter seal that
*WGE5LH
is BAL compliant
B
outside
*WGE5RH
C ■ Factory Fitted Hinges
outside
Frame supplied with hinges
D
outside
CG
outside
GLASS
*WGE6RH
DG
outside
*WGE7LH
E
outside
F
outside
■ Self-draining
aluminium sill
EG
outside Non-combustible aluminium
*WGE8RH
GLASS
GLASS
sill with a generous tread
FG pattern that helps to reduce
outside
*WGE8LH slips. Self-draining and
supplied with protective
tape for protection during
G/H the construction/installation
outside process
*WGE11
(To suit Mushroom Mould or T-Bar)
*Victoria Configuration Codes
■ BAL19 & 29 Merbau Weatherguard entrance frames are suited for bushfire zones BAL12.5, 19 & 29 Specifications
when installed as per AS3959
■ We recommend ordering Door & Frame together to ensure compliance with BAL. Choose from any Rw:31 STC:31
door within the BAL19 & 29 door range
■ Hinges supplied with frame BAL19 & 29
■ Door is supplied with machine cut outs for hinges when ordered with frame
■ CG\DG & EG\FG frames are glazed using 6mm toughened glass and must be screened with a BAL
compliant screen as per AS3959 (screen not included)
100% Australian Owned 29 www.humedoors.com.auBUSHFIRE RESISTANT DOORS & FRAMES
BAL40 DOORS
BFR400 BFR401 BFR402 BFR405 BFR407 BFR409 BFR4013 BFR4017
Face Options BAL40 Glazing Profile Specifications
BAL40 Construction
GLASS
Rw:32 STC:30
HARDWOOD
BEADING
DuraXP (standard) SPM Merbau BAL40
45kg
6mm Toughened Glass Options DOOR
Clear (6mm) Grey Tint (6mm) Africana (6mm) Frost (6mm)
BFR4018 BFR4019 BFR4020 BFR4021 BFR4022 BFR4023 BFR4024
Face Options Specifications
■ Merbau not available for BFR4017
BAL40 Construction ■ Door & Frame must be supplied together to
comply to BAL40 as tested to AS1530.8.1
Rw:32 STC:30 ■ Door thickness is 45mm
■ Door systems supplied with a minimum
DuraXP BAL40 4x100mm square butt hinges as tested to
(standard)
AS1530.8.1 and compliant to BAL40
45kg ■ 6mm Toughened safety glass and double
sided fire-resistant hardwood glazing bead
as tested to AS1530.8.1
BFR4025 BFR4026
100% Australian Owned 30 www.humedoors.com.auBUSHFIRE RESISTANT DOORS & FRAMES
BAL40 MERBAU WEATHERGUARD FRAMES
■ Factory Assembled Frame ■ Timber Jambs & Head
Tested to AS1530.8.1 and compliant to BAL40. Made of premium hardwood. BAL40 Weatherguard entrance
Our fully assembled BAL40 frames are factory frames are tested to AS1530.8.1 and compliant to BAL40
fitted with 4 hinges. Frames are fitted with an
intumescent fire & smoke perimeter seal
■ Perimeter Seal
BAL40 Weatherguard systems
have a full intumescent fire &
smoke perimeter seal that is
HANDING OF FRAME
BAL compliant and tested to
BAL40
A
outside *WGE5LH
B ■ Factory fitted with
outside *WGE5RH 4 Hinges
Frame supplied with
hinges
C
outside
D
outside
*Victoria Configuration Codes
■ Self-draining
aluminium sill
Non-combustible aluminium
sill with a generous tread
pattern that helps to reduce
slips. Self-draining and
supplied with protective
tape for protection during
the construction/installation
process
Watch our BAL40 burn test video.
Specifications
■ Door & Frame must be supplied together to ensure compliance with BAL40
■ Choose from any door within the BAL40 door range Rw:31 STC:31
■ Door is supplied with machine cut outs for hinges
■ BAL40 Merbau Weatherguard entrance frames have been tested to comply with BAL40 and are BAL40
manufactured as per AS1530.8.1
100% Australian Owned 31 www.humedoors.com.auINTERNAL BARN DOORS

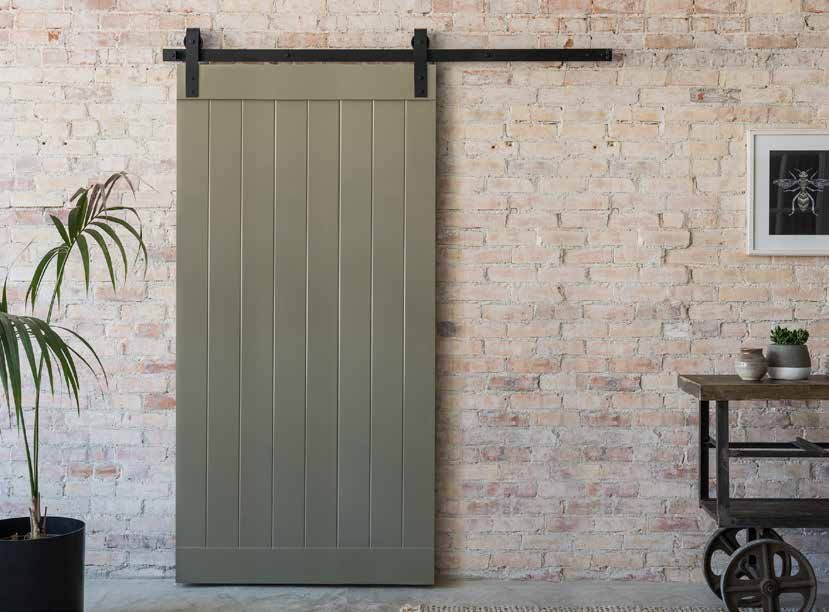

FRONTIER STANDARD BARN DOORS
FBDS1 FBDS2 FBDS3 FBDS4 FBDS5
Specifications
Frontier Premium Hollow Core (SG)
Frontier
Standard 30kg
Profile
■ Deep linear rout designs
■ Available in PCMDF for paint or SPM for Stain
■ Made to measure customised designs and sizing available
100% Australian Owned 32 www.humedoors.com.auINTERNAL BARN DOORS
ULTIMATE BARN DOORS
FRONTIER ULTIMATE
FBDU1 FBDU2 FBDU3 FBDU4 FBDU5
Specifications
Frontier Ultimate Solid Infill Core
Frontier
Ultimate 48kg
Profile
■ Frame and Infill constructed shaker style door
■ Available in PCMDF for paint
100% Australian Owned 33 www.humedoors.com.auINTERNAL BARN DOORS

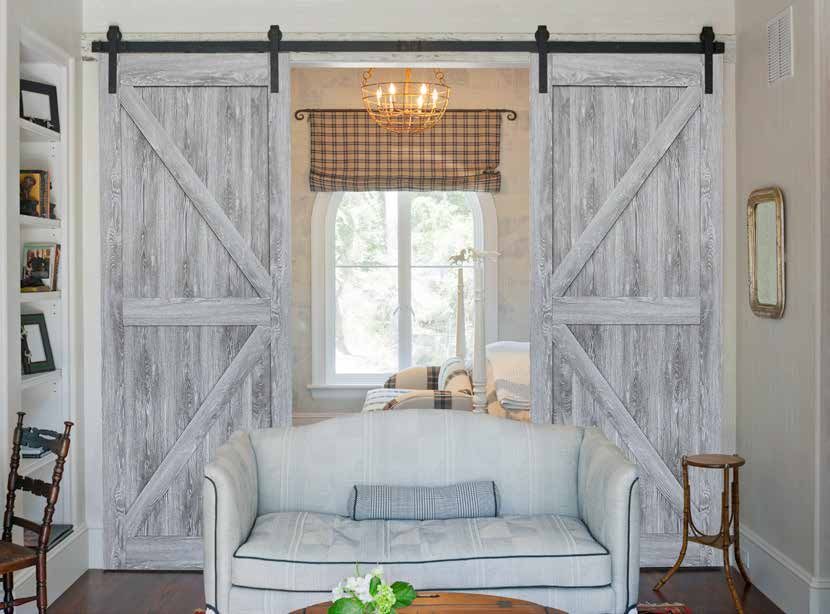

RUSTIC BARN DOORS
FRONTIER RUSTIC
Frontier Rustic
Profile
Specifications
Frontier Rustic Solid Infill Core
FBDRG4 FBDRB2 FBDRW4 48kg
(GREY) (BROWN) (WHITE)
■ PVC wrapped shaker style door
■ Pre-finished
■ Pre-Drilled roller holes & Grooved bottom rail
■ Alignment of design on door is not guaranteed for pairs
100% Australian Owned 34 www.humedoors.com.auINTERNAL BARN DOORS
FRONTIER TRACK SYSTEM
■ Powder Coated Track
Architecturally designed premium track system with a powder coated finish
■ Smooth & Quiet
Nylon wheels allow for smooth and quiet rolling along a flat bar track
■ Classic Barn Door Look
Exposed steel straps
■ Easy to Install
Perfect for DIY
Scan QR code to see Frontier
Barn Door Sliding System
installation video
100% Australian Owned 35 www.humedoors.com.auINTERNAL DOORS Coastal, Raw & Elegant
HAMPTON Inspired by the elegant, coastal calm of the Hamptons. The Hampton
Collection of doors is relaxed, coastal and quaint. Raw and natural lines
conspire to give a “permanently on holiday” feel.
HAM1 HAM4 HAM5 HAM6 HAM10 HAM12 HAM16
Face Options Specifications
All Hampton Hampton Construction
door designs (Internal)
are available
20kg
with Translucent
Primed MDF
(standard) and Clear glass ■ Standard Door Size:
options 2040x520/620/720/770/820x35
Glass Options ■ Check with your Hume state office
for made to order
Clear Translucent HAM1 HAM4
(TRANSLUCENT) (CLEAR)
100% Australian Owned 36 www.humedoors.com.auINTERNAL DOORS Classy, Modern & Innovative
STRATA The Strata is unique and up to the minute in design, featuring eye-catching vertical
and horizontal textured patterns. Complement your personality with a splash of
creativity by adding a metallic strip. Strata doors are primed ready for painting.
All Strata
Design doors
are available
in 2340mm
high option
HST1 HST4 HST5 HST1M HST4M
HST1
2340mm High
Face Options
Specifications
Honeycomb Core (Hollow Core H1)
Details of
HST1 HST4 HST5 Rw:25 STC:25
Strata textured
surface
15kg
■ Standard Door Size:
HST1M HST4M 2040x520/620/720/770/820x35
■ Check with your Hume state office for
made to order
100% Australian Owned 37 www.humedoors.com.auINTERNAL DOORS
HUMECRAFT Discreet & Tasteful
The Humecraft is a range of high quality internal solid doors featuring broad square carved designs on both
sides. Matching bi-folds add to their versatility. All models are solid construction.
100% Australian Owned 38 www.humedoors.com.auINTERNAL DOORS
HUMECRAFT
HMC1 HMC2 HMC4 HMC7 HMC8
Specifications
Solid HMR MDF Core (HV Internal)
Rw:29 STC:29
30kg
■ Standard Door Size: 2040x520/620/720/770/820x35
■ Routed: Both sides (Excluding HMC11)
■ For Bi-fold option refer to page 52
■ Check with your Hume state office for made
to order
HMC9 HMC10 HMC11
Face Options
Primed MDF SPM
(standard)
Glass Options
Clear Cathedral Grey Tint Translucent Africana Rice Paper
100% Australian Owned 39 www.humedoors.com.auINTERNAL DOORS Modern & Luxurious
SORRENTO The Sorrento brings that fresh contemporary feel to your home. The
beautifully carved door designs feature on both sides and are produced on a
deluxe primed door face.
SOR1 SOR2 SOR5 SOR6 SOR7 SOR8
Face Options Specifications
Honeycomb Core
(Hollow Core SG) - 6mm Skin
Rw:27 STC:27
Primed MDF
(6mm thick)
18kg
■ Standard Door Size:
2040x520/620/720/770/820x35
■ Routed: Both sides
■ For Bi-fold option refer to page 52
■ Check with your Hume state office for
made to order
SOR11 SOR12 SOR22
100% Australian Owned 40 www.humedoors.com.auINTERNAL DOORS Class & Charm
JOINERY Crafted from select timbers and available with a range of glass options to suit your
style. The Joinery range features an engineered joinery construction system, which
utilises traditional joinery methods as well as incorporating modern techniques.
Note: LIN1 doors with clear glass include a safety decal strip centre of the glass panel.
LIN1 LIN2 LIN10 SAV2 SAV3
Face Options Specifications
Engineered Joinery Design Code Standard Size (mm)
LIN1, LIN2, LIN10 2040x620/720/770/820x35
30kg SAV2 2040x720/770/820x35
SPM Merbau Tassie Oak SAV3 2040x820x35
(standard) LIN1 LIN1
■ Check with your Hume state office for made to order
Glass Options
Clear Clear Laminate Cathedral Double Glaze Clear Grey Tint Translucent Africana Double Glaze Frost Geostep Rice Paper
For more glass designs refer to Glazing Options table on page 58
100% Australian Owned 41 www.humedoors.com.auINTERNAL DOORS
LINEAR Striking, Unique & Stylish
Our designers have been inspired by modern European trends which have shaped the Linear Range of
doors. This unique range can showcase the natural beauty of timber with the innovation of contrasting
grains or can be painted for that fresh & stylish feel.
100% Australian Owned 42 www.humedoors.com.auINTERNAL DOORS
LINEAR
HLR210 HLR230 HLR240 HLR250 HLR270
HLR400 HLR410 HLR500 HLR600
Face Options Specifications
Honeycomb Core Design Code Standard Size (mm)
(Hollow Core SG) - 6mm Skin HLR230 ,240, 250, 270,
2040x520/620/720/770/820x35
400, 410, 500, 600
Rw:27 STC:27
HLR210 2040x620/720/770/820x35
Primed MDF SPM 18kg ■ Routed: Both sides
HLR210, 230, 240 270 HLR250, 400, 410, 500, 600 ■ Not suitable for rebated pairs
(standard) (standard)
■ Alignment of horizontal rout is not guaranteed
for pairs
Glass Options ■ Check with your Hume state office for made to
order
Clear Cathedral Grey Tint Translucent Africana
100% Australian Owned 43 www.humedoors.com.auINTERNAL DOORS Classical & Timeless
MOULDED PANEL These beautiful doors feature woodgrain embossed pre-primed
faces to both sides and with so many different styles to choose
WOODGRAIN SKIN from the Moulded Panel range has it all.
OAKFIELD CAPRICE PACIFIC DENMARK Face Options
Moulded Panel
OAK-G OAK (HONEYCOMB) CAP (HONEYCOMB) PAC (HONEYCOMB) DEN (HONEYCOMB) Woodgrain Skin
(HONEYCOMB) XB2 (SOLICORE) XB11 (SOLICORE) XB1 (SOLICORE) XB6 (SOLICORE)
Glass Options Specifications
Honeycomb Core
Solicore Particle Board Core
(Hollow Core H1)
Rw:25 STC:25 Rw:30 STC:29
Clear Cathedral Grey Tint Translucent
For more glass designs refer to Glazing Options table on page 58 15kg 30kg
■ Standard Door Size:
2040x410/420/460/520/620/720/770/820x35
2040x720/770/820x35 (OAK-G)
■ For Bi-fold options refer to page 52
■ Check with your Hume state office for made to order
100% Australian Owned 44 www.humedoors.com.auINTERNAL DOORS Traditional & Refreshing
MOULDED PANEL These beautiful doors feature embossed smooth faces both sides in a
range of refreshing designs plus the benefit of 2340 high doors with
our Ascot model. With so many different styles to choose from the
SMOOTH SKIN Moulded Panel range has it all.
ASCOT HAYMAN Face Options
Moulded Panel
Smooth Skin
ASC-G ASC (HONEYCOMB) HAY (HONEYCOMB)
(HONEYCOMB)
XB8 (SOLICORE) XB12 (SOLICORE)
ASC
2340mm High
Glass Options Specifications
Honeycomb Core
Solicore Particle Board Core
(Hollow Core H1)
Rw:25 STC:25 Rw:30 STC:29
Clear Cathedral Grey Tint Translucent
For more glass designs refer to Glazing Options table on page 58 15kg 30kg
■ Standard Door Size: 2040x720/770/820x35 (ASC-G),
2040x410/420/460/520/620/720/770/820x35,
2340x620/720/770/820x35 (ASC)
■ For Bi-fold options refer to page 52
■ Check with your Hume state office for made to order
100% Australian Owned 45 www.humedoors.com.auINTERNAL DOORS Elegant & Fashionable
ACCENT The Accent internal door has trendy horizontal and vertical designs which
creates a straight forward style to suit any architectural theme.
HAG9 HAG11 HAG12 HAG14 HAG18 HA4
PRE9 PRE11 PRE12 PRE14 PRE18 PRE4
Face Options Specifications
Honeycomb Core Honeycomb Core
(Hollow Core H1) (Hollow Core SG)
6mm Skin
Rw:25 STC:25
Primed MDF DuraXP Rw:27 STC:27
(standard) 14kg
18kg
■ Honeycomb Core (H1): HAG9, 11, 12, 14, 18, HA4, 5, 40
■ Solicore
Honeycomb Core (SG) 6mm skin: PRE9, 11, 12, 14, 18, 4, 5, 40
■ Particleboard Core
Standard Door Size: 2040x520/620/720/770/820x35
■ (SCX1 PCMDF)
Routed: Both sides
■ Check with your Hume state office for made to order Rw:29 STC:29
■ Alignment of horizontal rout is not guaranteed for pairs.
HA5 HA40 ■ Not suitable for rebated pairs. 30kg
PRE5 PRE40
100% Australian Owned 46 www.humedoors.com.auFLUSH DOORS
HONEYCOMB CORE
■ Timber frame with light weight honeycomb core.
■ Variety of face materials.
Commercial Primecoat Honeycomb Core Honeycomb Core
(PCSG) - 6mm Skin (Hollow Core X1) (Hollow Core H1)
Rw: 27 STC: 27 Rw: 25 STC: 25 Rw: 25 STC: 25
18kg 14kg 14kg
(2040x820x40mm) (2040x820x40mm) (2040x820x40mm)
FLUSH DOORS FLUSH DOORS
SOLICORE (SCX1) BLOCKBOARD (STPC)
Solicore Particleboard Core Solid Timber Pine Core
(SCX1) (STPC Blockboard)
35mm Rw: 29 STC: 29 35mm Rw:29 STC:29
40mm Rw: 30 STC: 29 40mm Rw:30 STC:29
45kg 35kg
(2040x820x40mm) (2040x820x40mm)
■ Timber frame with water resistant ■ Pine block core.
particle/flax board core. ■ Variety of face materials.
■ Variety of face materials.
IMPORTANT NOTE
■ STPC doors are not recommended for exposed situations. Consider metal clad doors instead.
■ Due to open ended core plate all surfaces must be sealed - OTHERWISE GUARANTEE VOID.
■ Blockboard (STPC) are not recommended for high gloss paints due to potential core show-through.
Solicore (SCX1) doors are recommended as an alternative.
100% Australian Owned 47 www.humedoors.com.auINTERNAL SYSTEMS
CAVITY UNITS
■ Recommended for 35mm doors only
B
Scan QR-code for Cavity
installation video
A
EVOLUTION TIMBER CAVITY UNIT OPENING SIZES
A = Door height + 70mm (QLD, WA)
A = Door height + 80mm (NSW, VIC, ACT, SA, TAS)
Flush Pull opening width:
B = 2 x Door + 10mm (Flush pull* the door
protrudes 50mm)
Flush Jamb opening width:
B = 2 x Door + 60mm (Flush jamb the door is
flush with split jamb)
■ NOTE: Unit size is tight, allow extra space
for packing when preparing the opening.
■ Flush pull not available in QLD
EVOLUTION EVOLUTION STEEL EVOLUTION STEEL
Features EVOLUTION TIMBER COMPLETE CAVITY (ASPIRE) COMPLETE (ASPIRE)
Available in plain or treated timber
Same architrave height as a hinged door
Smooth 4 Wheel Ball Bearing Carriages
Jump free U track - Smooth operation
Maximum door mass 70kg
Quick release mechanism
One Touch Release System
Soft Closer Technology
Tough Composite Split Jambs
Galvanised steel back posts slats & track -
Termite resistant
100% Australian Owned 48 www.humedoors.com.auINTERNAL SYSTEMS
CAVITY UNITS ADDITIONAL EXTRAS
■ Add on options for Evolution Timber & Evolution Steel
SOFT CLOSER CAVITY TRACK DOOR STOP
(For double cavity application)
Scan QR-code for Soft
Closer installation video
ONE TOUCH RELEASE
INTERNAL SYSTEMS
EVOLUTION PREMIUM
Floor to ceiling zero clearance
Cavity Unit
■ Floor to Ceiling Zero Clearance
■ Creates large open living spaces
■ Impressive large door openings
■ Virtually invisible - hidden track system
■ Soft closer - prevents door slamming
■ One touch operation - push to release door
IMPORTANT INFORMATION FOR PREMIUM CAVITY UNIT Made to order
MAXIMUM DOOR SIZE 3000x1300mm Evolution Premium is a fully customised
MAXIMUM DOOR WEIGHT 100kg solution.
STUD THICKNESS 90mm Download the order form at:
SOFT CLOSER Included as standard www.humedoors.com.au/door-systems
Floor level (slab/sheet) to underside of
OVERALL UNIT HEIGHT
ceiling + 50mm
OVERALL UNIT WIDTH Door Width x 2 + 50mm
Finished floor to underside of ceiling
DOOR HEIGHT CALCULATION
less 15mm for clearances
Under Door =10mm
CLEARANCES Above Door = 5mm (Standard)
(Can be adjusted to minimum 3mm)
100% Australian Owned 49 www.humedoors.com.auINTERNAL SYSTEMS
SMARTROBE
PRIMECOAT SPM ACCENT LINEAR SORRENTO HAMPTON
(PAGE 46) (PAGE 42) (PAGE 40) (PAGE 36)
HUMECRAFT STRATA MIRROR ARCH TOP FULL MIRROR MOULDED PANEL MOULDED PANEL
(PAGE 38) (PAGE 37) WOODGRAIN SMOOTHSKIN
(PAGE 44) (PAGE 45)
100% Australian Owned 50 www.humedoors.com.auINTERNAL SYSTEMS
SMARTROBE
■ Space Saving Solution ■ Mirrored Doors Available
Smartrobe sliding doors require very little space to open and Choosing a mirrored finish makes your room appear larger while
convert your walls into a practical storage solution. giving the room a lighter feel.
■ Stylish & Sturdy ■ Smooth & Quiet
We use our sturdy 35mm thick internal doors. This allows us to Each Smartrobe door includes two nylon wheels encased in
offer our full Internal Range of doors for sliding doors that fit steel assemblies
perfectly into your home design.
Track Colour Options
White Chrome
WHEEL ASSEMBLY TOP TRACK BOTTOM TRACK
■ Smartrobe doors and Smartrobe Track &
SMARTROBE CALCULATION TABLE Fittings should be ordered together for
Door Height = Unit Height
2040mm = 2115mm
system operational purposes
■ Doors are reversible (except mirror)
2340mm = 2415mm
■ Easy height adjustment. Access located at the
No finger Grips Two Finger Grips per door
Door Width Number of bottom edge of the door.
(mm) doors Unit Size Width Stud Size Width Unit Size Width Stud Size Width
(mm) (mm) (mm) (mm)
4 3460 3465 3670 3675
870 3 2610 2615 2770 2775
2 1760 1765 1870 1875
4 3260 3265 3470 3475
820 3 2460 2465 2620 2625
2 1660 1665 1770 1775
4 3060 3065 3270 3275
770 3 2310 2315 2470 2475
2 1560 1565 1670 1675
4 2860 2865 3070 3075
720 3 2160 2165 2320 2325
2 1460 1465 1570 1575
4 2460 2465 2670 2675
620 3 1860 1865 2020 2025
2 1260 1265 1370 1375
4 2060 2065 2270 2275
520 3 1560 1565 1720 1725 Scan QR-code for Smartrobe
2 1060 1065 1170 1175 installation video
100% Australian Owned 51 www.humedoors.com.auINTERNAL SYSTEMS
BI-FOLD
Flush Accent Sorrento Strata
(Page 46) (Page 40) (Page 37)
■ All designs in Accent, Sorrento
& Strata ranges can be used for
bi-folding solutions. Refer to
relevant page.
■ Refer to page number for
matching doors.
BF1 PCMDF BF1 SPM BF HAG9 BF SOR1 BF HST1
Humecraft Moulded Panel Smooth
(See page 38 for matching door designs) (See page 45 for matching door designs)
Scan QR-code for Bi-fold
installation video
BF29 BF30 BF35 ASCOT ASCOT-G HAYMAN
(BF27) (BF28) (BF6)
Moulded Panel Woodgrain
(See page 44 for matching door designs)
BI-FOLD CONFIGURATION
Single Bi-fold
Double Bi-fold
CALCULATE OPENING HEIGHT FOR BI-FOLD
CAPRICE PACIFIC OAKFIELD OAKFIELD-G DENMARK Leaf Height 2015mm
(BF34) (BF15) (BF18) (BF19) (BF26)
Allowance for track and fittings 23mm
Glass Options Clearance under leaf for pivot
22mm
(add extra clearance for floor coverings)
Total opening height 2060mm
CALCULATE OPENING WIDTH FOR BI-FOLD
Leaf width x number of leaves
Clear Cathedral Grey Tint Translucent 810mm
(eg 405 leaf x 2)
For more glass designs refer to Glazing Options table on page 58
Clearance for each gap 3mm x 3 9mm
■ OPENING SIZES: Bi-folds are supplied to suit opening sizes of 2040x720/770/820 Total width
819mm for
■ BI-FOLD SIZES: Bi-folds are supplied in sizes of 2015x712/762/812 820mm opening
■ All Bi-folds are supplied with track and fittings
100% Australian Owned 52 www.humedoors.com.auINTERNAL SYSTEMS
MULTI-FOLD
OPENING HEIGHT FOR MULTI-FOLD SETS (mm)
Leaf Height 2015
Allowance for track & fittings and under door clearance 60
Total Height for Standard opening 2075
OPENING WIDTH FOR MULTI-FOLD SETS (mm)
■ Multi-folds have same design (This example uses a four door application using 405mm leaves)
options as Bi-folds. Refer to Bi-folds Leaf width x number of leaves (eg 405mm leaf x 4 leaves) 1620
for more designs
Add 2mm between each leaf (eg 4 leaves is 3x2mm) 6
Allow 6mm clearance at each jamb (eg 2x6mm) 12
Total width 1638
■ Standard Multi-fold leaf size: 2015x355/380/405x35
■ Standard opening height: 2075mm
MF1 PCMDF MF1 SPM ■ Opening width: Refer to table below
MULTI-FOLD CONFIGURATION
4 LEAF SET: (2.0m track plus pack/s) 6 LEAF SET : (2.5m track plus pack/s) 8 LEAF SET: (3.4m track plus pack/s)
1 Starter, 1 Add On Pack 1 Starter, 2 Add On Packs 1 Starter, 3 Add On Packs
A C E
B 2 Starter Packs D 2 Starter, 1 Add On Packs F
2 Starter, 2 Add On Packs
2 Starter, 2 Add On Packs
G
100% Australian Owned 53 www.humedoors.com.auINTERNAL SYSTEMS ■ Factory Pre-Assembled Frame
PRE-HUNG Factory Assembled System supplied in kit form with hinges already fitted.
Made of premium materials and designed to suit Australian conditions.
■ Saves Time & Money
Quick & easy install. Recommended by Australia’s
leading builders.
■ Suits All Door Designs
Choose from any door in our Internal Range
■ Multiple Configurations
Single, Double, Triple & Four-door units available
PRE-HUNG HANDING OPTIONS
How How
to identify
to identify
handing?
handing?
Left hand
Leftinged
How hand door
inged door
to identify handing? Right hand
Righthinged
hand hinged
door door
SingleSingle
Door Door
Jamb
Left hand ingedJamb
Set PRE-HUNG
door Set Double
Double
RightDoor
CONFIGURATIONS hand Door
Jambdoor
hinged Jamb
Set Set
Single Door Jamb Set Double Door Jamb Set
ThreeThree
DoorDoor
JambJamb
Set Set Four Four
DoorDoor
JambJamb
Set Set
A AThree Door Jamb Set Four Door Jamb Set
B BA
B
■ Doors and jambs sold separately.
■ We recommend ordering door and jamb together to ensure a perfect fit
■ Choose from any door in the Internal Range
■ Doors supplied hinged only or hinged with pre-drilled face hole to take a handle. Available face hole sizes are 50/32/22mm
■ Door is supplied with 2 knuckle half hinge. Jamb supplied with 3 knuckle half hinge plus pin
Pre-hung Hinge Options
■ 89mm radius corner loose pin butt hinges
■ Choose from chrome, satin chrome, stainless
steel or black coloured hinges
■ Liftoff hinges are available for water closets at
no extra cost. Meets the Australian building
Chrome or Matt Black Stainless Steel code Scan QR-code for Pre-hung
Satin Chrome installation video
100% Australian Owned 54 www.humedoors.com.auHOW TO HANG A DOOR
ss
ne
Width Top
ick
■ Tools required – drill, screwdriver, chisel (25mm), hole saws
Th
(54mm and 25mm) tape measure, hammer, small wedges (2) FIGURE 1:
■ If replacing an existing door, use this door as a template to locate hinges Measure existing door
and face hole/s onto your new door. To measure a door, see Figure 1. • Check measure the height on both
Height Two
Height One
sides of the door.
■ Should a new frame be required, this may be purchased in either knock Middle • Then measure the width at the top,
down or assembled from your Hume Doors & Timber stockist. If making middle and the bottom of the door.
your own frame, allow clearance for your door of 3mm at top and each • Also measure the door thickness.
side plus 5mm under door allowing for floor coverings, tiles, etc. It is
important to ensure that your frame is square and plumb.
■ Your new door may require planing to fit the opening. A maximum 3mm
may be trimmed from any edge of the door. Width Bottom
■ Hinges required – 2 hinges for internal doors (non solid), 3 or 4 hinges
for solid and entrance doors, depending on door size. Locate and install
hinges to jamb in desired locations. Measure hinge locations from jamb
1 2 FIGURE 2
onto door (remember to allow clearance between top of door and frame).
Chisel hinge cut outs into edge of door. • Is the door frame square?
• Check by measuring diagonally as
■ Stand door into frame to check hinge locations are correct. Use wedges to illustrated.
adjust door height, locate other hinge leaf into door and screw into place • If the frame is out of square, you
with 2 screws per hinge. may require a slightly larger door
and trim it to size.
■ Your door should now swing freely. If any final adjustment is required, • A trimming allowance of up to
make these, fit remaining screws, and your door is ready to have door 3mm is allowed on all doors.
furniture installed. Fit door furniture as per manufacturers instructions.
■ Door should now be removed, fully painted on all six surfaces as well
as behind hinges (refer Care and Maintenance information) and then
reinstalled into the opening and the door furniture refitted. 3mm
3mm
FIGURE 3
Important:
• Approximately 3mm clearance is
required at the top and sides of the
door.
• 5mm at the bottom (above the
floor covering).
5mm
Scan QR code to watch video
on how to hang a door
100% Australian Owned 55 www.humedoors.com.auHUME COMMERCIAL
DOORS & FRAMES
COMMERCIAL
■ 2 Year Guarantee
FIRE DOORS
■ TVC Firecore available in 1, 2, 3 & 4 hour rating
■ Metal Inner Plates for Hinges, Lock & Closer
■ Face Materials: MDF, PLY or Tempered Hardboard ROBAX VISION PANEL
■ Vision Panels, Cladding & Air Grilles Available
■ Fire rated Steel Door Frames Available
COMMERCIAL
COMMERCIAL PRODUCTS
AIR GRILLS ALUMINIUM T-BARS
METAL CLAD DOORS
100% Australian Owned 56 www.humedoors.com.auCOMMERCIAL
■ 1 Year Guarantee
STEEL DOOR FRAME
■ Includes 3 hinges (Required to meet door
guarantee for solid doors)
■ Hinges screw fixed to frame to allow
removal if required for easy door hanging
■ Zinc finish, ready for priming or painting
STEEL FRAME STANDARD HINGE AND
LOCK POSITIONS NON RATED FRAMES DOOR HANDINGS
Reveal width Left hand Double doors Right hand
HEAD
250mm
STEEL FRAME PROFILE
Door stop
(width varies)
HINGE STILE
LOCK STILE
Rebate size:
41/47/51mm
Door stop height
(Non rated = 15mm)
Reveal height
Overall height
Architrave: (Fire rated = 25mm)
Centre 38mm
of frame
Lock height (std) = 1042mm
Return: Throat size
12mm (size varies)
ADDITIONAL EXTRAS
300mm
Overall width
Strap Fix Tube Fix
PROFILE DETAILS
Corner detail Jamb brick Jamb gyprock Jamb steel Stud clips
100% Australian Owned 57 www.humedoors.com.auGLASS
GLAZING OPTIONS
FROST COLOURED DESIGN GLASS OPTIONS
■ Square ( ) denotes the glass
available for this door or sidelight.
■ Clear glass available for ALL doors
and sidelites.
■ Availability varies for each state.
Kookaburra
Frosted Frosted Frosted
Green Wysteria Rice Translucent
Door Range Design Code Black Rose Kookaburra Africana Cathedral Slumped
Leaves (Cathedral) Paper or Frost
Orchid Bud Jewel
(Cathedral)
Savoy1200 XS24, XS26, XS28, XS45
Verve VER1, VER4, VER6, VER11
Linear (Entrance) XLR120, XLR160
XIL1, XIL6
Illusion
XIL21, XIL26
XN6, XN12
XN1, XN2, XN9, XN5, XN11,
Newington
XN14, XN16
XN7
ENTRANCE
NEX30, NEX40
Nexus
NEX35, NEX36, NEX38
XS3, XS4
Savoy 820 XS11
XS24, XS26, XS28, XS45
JST1, JST2, JST11, JST12,
Joinery
JST4, JST5, JST6, JST10
Regency XR5, XR6
XVP12, XVP13
Vaucluse Premier
XVP22
Carringbush XCB1, XCB2
Glass Opening XF1, XF3, XF8
LIN1, LIN10
Joinery/ Lincoln
SAV3
INTERNAL
BF30
Humecraft BF35
HMC11
Moulded Panel OAK-G, BF19, ASC-G, BF28
Linear (Internal) HLR210
■ Glass colours are as accurate as modern photographic and printing processes allow.
■ Glass images are not to scale.
■ Factory glazed doors comply with glazing standards AS 1288-2006
100% Australian Owned 58 www.humedoors.com.auGLASS
GLAZING OPTIONS
GLASS OPTIONS PANAMA TRIPLE GLAZE LEADLIGHT BUDGET LEADLIGHT
Triple Glaze Triple Glaze Triple Glaze
Triple Glaze Triple Glaze
Triple Glaze Triple Glaze Triple Glaze Triple Glaze Budget 3 Budget Budget
Geostep Panama Bevelled Bevelled
Classique Tear Drop Argyle Crystal Blue Diamond Bevel Diamond
Jewel Flower
Bevel Flower Cluster
100% Australian Owned 59 www.humedoors.com.auTIMBER
FIBRE-CEMENT PRODUCTS
PRODUCT RANGE Profile Applications Standard Width (mm) Standard Length (mm)
Suitable for gable end 450/600 2400
Arrised Edge on all 4 sides
cladding and eaves, carport 900 1800,2400,2700,3000
4.5MM PRIMA FLEX and verandah linings 1200 1800,2100,2400,2700,3000
Multi-purpose building boards
Arrised Edge on all 4 sides for external cladding and 900 1800,2400,2700,3000
6.0MM PRIMA FLEX heavy-duty eaves and ceiling 1200 1800,2400,2700,3000
linings.
Square Edge Siding board that comes
230 4200
7.5MM PRIMA PLANK with a choice of smooth and
300 4200
traditional woodgrain finish.
Square rebate on 2 long sides and 1 edge
Premium substrate for external 900 2400,2725,3000
7.5MM PRIMA BASE texture coating system. 1200 2400,2725,3000
Water resistant internal linings
Square rebate on 2 long sides and sanded 900 2400,3000,3600
and eaves lining board for
6.0MM PRIMA AQUA perfect seamless and flush
1200 1800,2400,2700,3000,3600,4200
1350 2400,3000,3600
finish.
For use on gable ends, screens,
Arrised Edge on all 4 sides pergolas and fences. Available 900 1800,2400,3000
6.0MM PRIMA LATTICE in both square and diamond 1200 1800,2400,3000
pattern.
6.0MM PRIMA CERAMIC Square Edge Underlay sheet with preprinted 900 1800
TILE UNDERLAY (optional) fixing points. 1200 1800
■ Check with your nearest PRIMA stockist for availability
■ For more information visit www.humedoors.com.au/fibre-cement
100% Australian Owned 60 www.humedoors.com.auTIMBER
TIMBER MOULDINGS PROFILES
PINETRIM PLUS - PRIMED
■ Clear of defects
■ Great workability
■ Pre-primed and ready for painting
PINETRIMXT
H3 L.O.S.P. PRIMED TREATED PINE
■ Pest Resistant
■ Rot & Fungal Resistant
■ Above ground external use
MERANTI
■ Natural warmth of solid timber
■ Designed for staining
■ Traditional and modern designs
SILKTRIM
■ Highly moisture resistant medium density fibreboard
(HMR MDF)
■ Safe to you and the environment (low formaldehyde
levels) (E0)
■ Innovative priming system - The very best formulations
to provide the greatest pre finishing coat in the market
■ To view the full range of available profiles visit www.humedoors.com.au/timber
100% Australian Owned 61 www.humedoors.com.auGUARANTEE DOORS
Our products come with guarantees that cannot be excluded external paint systems and use the one appropriate to where you Company will not be liable to the customer for the Company’s
under the Australian Consumer Law. You are entitled to a are hanging the door. This includes doors that are supplied raw or failure to comply with its obligations to the customer due to
replacement or refund for a major failure and for compensation factory primed. If staining, must use exterior grade varnish/sealer any cause beyond the Company’s reasonable control and the
for any other reasonably foreseeable loss or damage. You are also to prevent absorption of moisture. Always follow the varnish/ Company’s obligations affected by such cause are suspended
entitled to have the goods repaired or replaced if the goods fail sealer manufacturer’s advice. while the cause continues to prevent or hinder the Company’s
to be of acceptable quality and the failure does not amount to a SEMI GLOSS OR SATIN FINISHES ARE RECOMMENDED FOR ALL performance.
major failure. DOORS TO REDUCE “SHOW-THROUGH”.
Exterior finishes to be applied strictly in accordance with paint ADVISORY NOTE
Subject to terms and conditions set forth herein, doors manufacturers instructions. Entrance and exterior doors should Considerable damage can occur during the delivery of doors
manufactured by: Hume Doors & Timber (Aust) Pty. Ltd., Hume be finished in light reflective colours to reduce the risk of heat particularly to country areas. “Special Packaging” is recommended
Doors & Timber (Qld) Pty. Ltd., Hume Doors & Timber (Vic) absorption which may cause warping. DARK COLOURS MAY VOID (optional extra cost) in an attempt to prevent transit damage. The
Pty. Ltd., Hume Doors & Timber (SA) Pty. Ltd. or Hume Doors & WARRANTY. Regular maintenance should be provided to prevent Company is not responsible for any transit damage.
Timber (WA) Pty. Ltd. (hereinafter referred to as “the Company”) deterioration. Where any legislation provides for remedies for the
are guaranteed by the manufacturer for five years from the date Company’s breach of a condition or warranty whether statutory INTERPRETATION OF WARP
of shipment by the manufacturer to be of good material and or otherwise, then, at the Company’s option, the customer’s sole Warp shall be interpreted as meaning the cupping/bowing or
workmanship, free from defects which render them unserviceable remedy for such breach except a breach of Section 69 of the Trade twisting of doors. It refers to distortion within the door itself and
or unfit for the use for which they were manufactured. Practices Act will be limited to: such remedy, or the repair of the not its relationship to the jambs or frame in which it is hung.
products, or the replacement of the products or the re-supply of Warp of 4mm or less for doors up to 2150mm high and 6mm or
TERMS AND CONDITIONS the products; or the payment of the cost of replacing the products; less for door heights between 2150mm and 2400mm shall not be
Natural variations in the colour, texture or grain pattern of the or the cost of having the services supplied again; or the re- considered a defect. Doors over 2400mm high or 1020mm wide
wood or MDF are not to be considered defects. Doors must be provision of the services. No claim will be accepted unless notified are not guaranteed against warp.
accorded reasonable treatment by the purchaser and should be in writing to the Company within seven (7) days of the date of
stored or hung in dry buildings and not in damp, moist or freshly delivery of the products or the supply of the services. EXCLUSIONS
plastered areas. The utility or structural strength must not be The Company will not be held responsible for additional charges of The guarantee against warp does not apply to the following:
impaired in the fitting of the door, the application of hardware, or hanging, painting or other charges arising from the replacement a. Doors with face veneers of different species.
cutting and altering of the door for lights, louvres, panels or any of doors. Any such defects must be brought to the attention of the b. Doors that are improperly hung or do not swing freely.
special details. A maximum of 3mm may be trimmed from any manufacturer when discovered and in any event within five years c. External flush doors which have been painted or stained dark
edge of the door. This must be done evenly. Normal “show- from the date of shipment by the Company. The Company is not colours, or different colours each face.
through” of frame components in doors shall not be considered a liable to reimburse any purchaser for doors repaired or replaced Experience has demonstrated that when warp occurs after doors
defect. Entrance/solid doors up to 2040 x 820 require three hinges, without the prior written consent of the Company to such repair have been delivered to storage or building sites, it is usually
larger doors require four hinges or pivot system. ENTRANCE DOORS or replacement. The Company will not assume responsibility for due to improper storage or adverse moisture conditions after
& ENTRANCE SYSTEMS SHOULD BE HUNG IN WEATHER PROTECTED doors which become defective because of failure to follow these hanging and not to faulty manufacture. The Company will accept
AREAS. conditions or hazards of shipment or storage, after doors leave no responsibility for doors when moisture content of the timber
Doors and door systems including pivot systems that are installed the control of the Company. The Company will not be liable for falls below 12% or exceeds 18%. The Company will not accept
in a fully exposed situation including opening out doors will not any costs, claims, damages or demands arising from the personal responsibility for conditions wholly beyond its control. However,
be warranted. Immediately after fitting and prior to hanging, the injury, loss or damage whatsoever occurring to the customer or the Company should be consulted promptly if excessive warping
entire door including the top and bottom edges must be painted. its agents, servants as a result of either acts or omissions of the occurs to provide assistance in overcoming the difficulty.
Use a good quality paint or coating system and always follow the customer. The Company will not be liable for any consequential
paint manufacturer’s advice. Pay particular attention to internal vs loss or damage, whether due to its negligence or otherwise. The
STEEL DOOR FRAME WARRANTY
Subject to terms and conditions set forth herein, steel door frames manufactured and/or supplied 3.1 Frames not accorded reasonable treatment by the customer.
by: Hume Doors & Timber (Aust) Pty. Ltd., Hume Doors & Timber (Qld) Pty. Ltd., Hume Doors & 3.2 Damage or defects arising out of, or in connection with, shipment or storage after frames leave the
Timber (Vic) Pty. Ltd., Hume Doors & Timber (SA) Pty. Ltd. or Hume Doors & Timber (WA) Pty. Ltd. control of the company (i.e. delivered to site or handed over to a carrier). Frames must be inspected
(hereinafter referred to as “the Company”) are warranted by the manufacturer and/or supplier for by the customer for visible defects immediately upon delivery.
one year from the date of shipment by the manufacturer and/or supplier to be of good material and 3.3 Claims for non conforming deliveries (incomplete defective or incorrectly supplied) will only be
workmanship, free from defects which render them unserviceable or unfit for the use for which they considered if made within 3 working days of receipt or delivery of frames. All delivery checks are the
were manufactured. responsibility of the customer.
3.4 Under NO circumstance will the company be liable if frames are installed before checking that they
THE COMPANY WARRANTS: are supplied correctly and are free from defects.
1. Goods manufactured and/or supplied for a period of one (1) year as from the date of shipment, to 3.5 Factory priming is only to protect frames in transport and general handling it is the responsibility of
be free from defects in material and workmanship which would render them unserviceable or unfit the customer to immediately on delivery of all frames apply 2 coats of compatible sealing priming to
for normal use. ensure corrosion or the like does not occur.
2. To the extent permitted by law or the express provision of any stature or otherwise hereby expressly 3.6 It is the responsibility of the installer to ensure that the frames are installed plumb, square and
excluded and in respect warranties that cannot be so excluded, these terms and conditions shall be suitably anchored using the correct fixing points.
read such that those statutory warranties are read as being in additional to the warranties hereby 3.7 Storage and security of the frames is not the responsibility of the company.
given. 3.8 Stainless steel hinges are required to be maintained every 2 months to ensure prevention of
3. Subject to Clause 2, the warranty in Clause 1 shall be read subject to the following matters being tarnishing and corrosion.
excluded as defects:
100% Australian Owned 62 www.humedoors.com.auYou can also read
