Trilogy T2: Electronic cylindrical digital locks
                                                      Trilogy® T2 standalone digital
                                                      cylindrical lock : #1 in its class
                                                      DL2700 Series                                                           ADA-compliant        Curved regal
                                                                                                                              levers               handle option
                                                      More powerful & More T2 models
                                                      • More codes: up to 100 3-6 digit codes: 1 master, 10                    Lever sets feature clutch
                                                        managers, 90 basic users, 3 one time service codes                     mechanism ensuring
                                                      • Uses 5AA batteries; 5 years battery life or 200,000 cycles, typ.       longer life and complies
                                                                                                                               with ADA specs providing
                                                      • For outdoors, specify WP weatherproof models -31˚ to                   barrier-free access to the
                                                        +151˚F (-35˚ to +66˚C)                                                 disabled.
                                                      • DL5200 Dual-sided option, see pg 5

                                                      Trilogy® T2 Lockdown: Ideal for School
                                                      & Campus Security
                                                      DL2700LD Series
                                                      Classroom Lockdown Indicator & Keyfob-Activation
                                                      • Lockdown up to four locks with one compact remote keyfob,
                                                        supplied (up to 50 RR-4KEYFOB keyfobs supported per lock)
                                                      • Bright visual lockdown indicator bar on inner door; Outside
                                                        small indicator light flashes and/or beeps when in lockdown
                                                      • Up to 100 different user codes (3-6 digits)

                                                      • Uses 5AA batteries; 3 to 4 years battery life or
                                                        100,000 cycles, typ.
                                                      • Grade 1 Durability; Weather-Resistant, Standard
                                                                                                                  2” Remote Keyfob controls up to 4 locks and
                                                                                                                      works up to 75’ away (RR-4KEYFOB)

      More Trilogy T2 Models: Field-proven electronic standalone pushbutton locks available in
      cylindrical, mortise, dual sided and exit trim models to retrofit with panic exit bars or narrow
      stile aluminum/glass doors’ latch locks
      Trilogys feature:
      • In an hour, add dependable wireless access control, one door at a time—easily retrofit standard knobsets
      • Support 100 to 2000 PIN codes (3-6 digits); some with built-in HID prox readers for use with access ID cards/fobs
      • Multi-level user codes & one-time service codes. Free passage, group- or total lock-out modes, too
      • All are fingertip programmable at vandalproof all-metal keypad
      • PC programmable models also feature printable audit trail, auto-lock/unlock scheduling saving guard/manpower costs
      • Longer-life battery operation – 200,000 cycles typical (cylindrical models use 5AA off-the-shelf batteries); low battery alert
      • Key override, standard core (supplied) or interchangeable core prep
      • Durable BHMA Grade 1 cylindrical Lockset; Non-handed. Curved Regal handle option.
      • Programmable relay functions
      • Weatherproof models -31˚ to +151˚F (-35˚ to +66˚C)

    DL2700CR/DB Mortise T2 Trilogy                             ETDL2700 T2 Trilogy Exit trim for                       DL1200 Narrow stile T2 Trilogy
    standalone digital lock for high security                  use with exit device, see also pg 8                     for glass or exit doors, see also
    locking. Choice of classroom or deadbolt                                                                           pg 9, 10
    functions, see also pg 7
2
Wireless & standalone access control door solutions trusted by more schools & universities, offices, retail chains & healthcare providers - Alarm Lock
Trilogy T3: Choice of audit trail pushbutton locks
T3 advanced digital lock with audit trail
DL3200 Series

High Capacity Audit Trail Lock                                                                Add Remote-Release
Enhanced version of the original DL3000                                                       convenience to any
                                                                                              cylindrical Trilogy               Remote
• 2000 user codes (3-6 digits)                                                                                                  Release
                                                                                              installation with keyfobs
• Multilevel security - Master; manager; supervisor; basic users                              or desk-mounted button
• Program at keypad or with PC-and/or data-transfer module                                    • Easy & Cost Effective
• 40,000 event audit trail logs with time-/date-stamp of access
                                                                                              • Retrofits Cylindrical Trilogy
  by user; create PC reports or at hand-held wireless printer                                   Locks dating all the way back
• 500 scheduled lock/unlock events                                                              to 2000 (with a serviceable
• Quick passage mode (without being in program mode)                                            battery pack) :RR-TrilogyKit

• Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)                                                 • For Networx Locks, too! Just
                                                                                                purchase either the keyfob
• 5AA Battery operated; 80,000 cycles, typical                                                  (shown above left) or desk-
                                                                                                mount release button (pg 8)
DL3000
Original Audit Trail Trilogy, similar to above
• 300 multilevel user codes; 1600 event log
• 150 scheduled lock/unlock events
• For outdoors, specify WP weatherproof models -31˚ to
  +151˚F (-35˚ to +66˚C)

                                                                                            Ideal for receptionists.

Trilogy economical audit trail lock
DL2800

Cylindrical Lock
• 1000 event audit trail log, time-stamped by day, date, time and user
• 150 scheduled automatic lock/unlock events, etc.
• 200 user codes: Master, manager, supervisor and basic users. Also one-
  time service code (3-6 digits)
• Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
• 5AA Battery operated; 80,000 cycles, typical

Trilogy cylindrical locks retrofit
standard knobsets simply, in about
an hour

  Turn Standalone Trilogy Locks into Wireless Networked Networx Locks with Field Upgrade Kits for Standalone PIN or PIN/Prox
  Cylindrical or Mortise Models. P/DL6100 and P/DL6500 upgrade kits available. iClass available – PDL8200 upgrade kit.

                                                                                                                                     3
Wireless & standalone access control door solutions trusted by more schools & universities, offices, retail chains & healthcare providers - Alarm Lock
Prox ID card support: With Trilogy durability

    Trilogy prox lock with audit trail                                          • Quick passage mode
                                                                                • 5AA battery operation; 60,000 cycles, typical
    PDL3000
                                                                                For iClass Prox Locks with 13.56 MHz support for one-card
    PIN/Prox Cylindrical                                                        solutions - also see PDL8200 pg 16
    • Use the same ID cards as hardwired access systems & install in an         PDL8200 – Model also logs mechanical key override use
      hour
    • Save all the downtime and 1/2 the cost of hardwired systems               Trilogy prox only defeats vandals
    • Provide access for up to 2000 users, with prox ID-cards or 3 to 6 digit
                                                                                PL3000
      codes including: Master, manager, supervisor and basic user. Users
      are individually programmed to use a card only, code only, or, for the    Prox Only Cylindrical
      highest security, both card and code.                                     • Keypad-less version of above for ultimate vandal-proofness in
    • Built-in HID Prox reader for entry with HID125KZ prox ID cards and          harshest environments
      keyfob credentials                                                        • Accepts HID prox cards and keyfobs for access
    • Grade 1 BHMA Certified durability and rugged clutch mechanism             • Easy Tap & Add batch ID card enrollment mode allows many cards
      ensure long dependable life                                                 to be quickly added without PC –also- downloadable from PC or
    • Weatherproof performance for indoor and outdoor applications,               enroller tool
      wide operating temperature range of -31°F to +151°F (-35°C to             • 40,000 event audit trail log, 500 scheduled events
      +66°C)                                                                    • PC programming/reporting
    • Electronic master key system with access customized to each
                                                                                                                                                                  INSIDE INSIDE OUTSIDEOUTSIDE
      user’s hours - Give each user access to common areas and/or their                                OUTSIDEOUTSIDE
                                                                                                      3 1/4 in.   3 1/4 in.
                                                                                                                                           INSIDE INSIDE
                                                                                                                                            3 1/4 in.3 1/4 in.   1 11/16 in.   1 11/16 in.    2 3/8 in.     2 3/8 in.

      individual area(s) and do so defined by the actual times they are                               2 1/8 in.   2 1/8 in.

      permitted entry there.                                                             2 1/4
                                                                                          in.
                                                                                                     2 1/4
                                                                                                      in.

    • Tap and Add batch ID card enrollment mode at lock or download
      from a PC                                                                                                      8 in.
                                                                                                                              8 1/48 in.
                                                                                                                               in.
                                                                                                                                           8 1/4
                                                                                                                                            in.

    • 40,000 event audit trail; 500 scheduled events
    • PC programming/reporting

                                                                                     4 3/4 in.   4 3/4 in.                                                                                     2 9/16 in.    2 9/16 in.

4                                                                                                                                                                              1 3/4 in.     1 3/4 in.
Wireless & standalone access control door solutions trusted by more schools & universities, offices, retail chains & healthcare providers - Alarm Lock
Double Sided: Access on both sides of the door

A favorite solution for airport jetways!

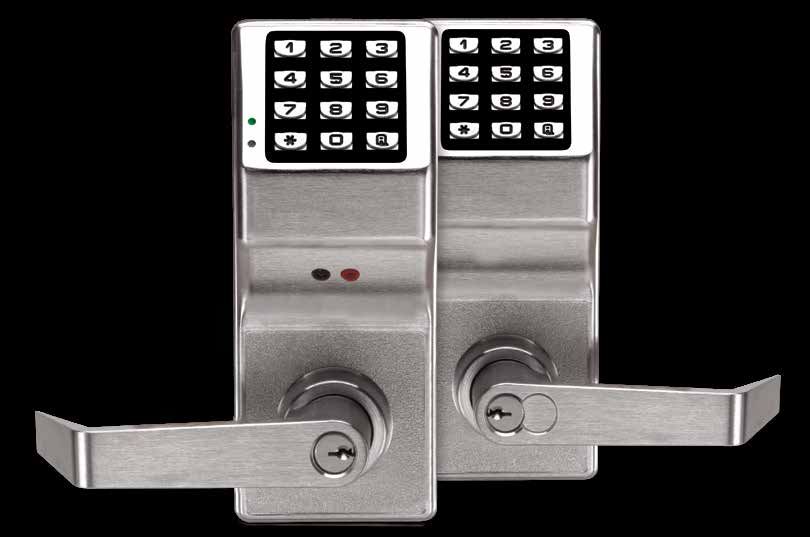

DL5200
• Incorporates all of the important features of DL2700 (T2) into a double-sided lock
• Easy to add, delete, change users at the keypad
• Programming user codes on one side of the door works both sides, cutting your
  time & labor in half
• Ideal for community pool gates, courtyard gates, airport jetway doors,
  interrogation rooms, psych wards
• Comes with LED & audible entry indicators
• 100 user codes (3-6 digit codes)
• Standard prep & IC models available
• Weatherproof -31˚ to 151˚F (-35˚ to +66˚C)
• 5AA batteries operated, 80,000 cycles, typical

DL5300/PDL5300
• 2000 user codes (3-6 digits) and/or accepts HID prox cards and keyfobs (prox
  model PDL5300)
• Direction-specific access assignable per user programmable access for each user
  for one or both sides of the door
• Up to 40,000 event audit trail log, time-stamped by day, date, time and user (PC
  or data module reportable)
                                                                                                        PDL5300 model
• 500 scheduled events, including 4 quick schedules
                                                                                                        features 2 built-
• Data port for programming lock and querying audit trail is on primary side of        Note: Key        in HID prox card
  door, along with functioning mechanical key override                                 override         ID readers on
• 4 programming levels, 4 user groups                                                  operates latch   both sides.
                                                                                       only from
• 5AA battery operated; 60,000 cycles, typical
                                                                                       primary side.

                                                                                                                        5
Wireless & standalone access control door solutions trusted by more schools & universities, offices, retail chains & healthcare providers - Alarm Lock
Trilogy 4100/4500: Privacy or lock down features

                                                                                                                                        Flashing LED
                                                                                                                                     inside and outside
                                                                                                                                     indicates the room
                                                                                                                                       is occupied or
                                                                                                                                           locked

                                                                Standard
                                                       Cylindrical Model
                                             with privacy button (center,                                                            Also available in
                                                            top) featured                                                             mortise model

    Standalone Trilogy® locks with privacy/lock                                School Lock-Down Applications:
    down pushbutton on inner door (mortise &                                   remain safely inside until the coast is clear
    cylindrical pin or pin/prox models)                                        – no need to open the door
    DL4100 and Prox PDL4100                                                    At the first sign of trouble
                                                                               outside, with just one but-
    Similar to the DL3200 features plus:                                       ton and virtually no special
    • Interior LED on the inside housing indicates when the privacy session    training or knowledge
      is active                                                                required, faculty and/or
    • Rest assured knowing that you are safe within the room, while locking    students of all ages can
      out unauthorized users.                                                  simply press Trilogy’s inside
    • 2000 PIN or PIN/Prox user codes; 500 scheduled events; 40,000 audit      ‘privacy’ button to lock
      trail                                                                    out unauthorized access,
                                                                               instantly locking-down a
    • Privacy Pushbutton – Push button on inside door to temporarily lock-
      out keypad codes (programmable option)                                   classroom or area, all while
                                                                               remaining safely within
    • Occupied and multi-status LED indicator, flashes when privacy session
      is active                                                                the room. There is no need to open the door, nor use a special key,
                                                                               since the fingertip-activated button is located on the inside door, i.e.,
    • Self-stick instructional signage, supplied (bilingual)                   the same side as classroom occupants. Trilogy’s lockdown function
    • Keypad or PC programming/reporting                                       automatically disables free passage through the door and even locks
    • Right- or left-hand, classroom or deadbolt function models, only with    out general PIN user codes, since routine Trilogy keypad access
      4500 Series                                                              is temporarily suspended whenever the privacy button is activated
    • 1-3/8” mortise cylinder & ASA strike, matching function supplied, only   (even when the lock is time-scheduled for free-access mode). Instant
      with 4500 Series                                                         lock-down override code, will reactivate the pushbutton keypad and
    • 5AA battery-pak operated; 60,000 cycles, typical                         enable authorized teachers/staff, outside the classroom.
    • 3 Architectural finishes (US3 polished brass, 26D satin chrome,          For Keyfob Lockdown Trilogy, see DL2700LD pg. 2
      10B duronodic)
    • Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)                              For Global Lockdown from Server or any lock, see Trilogy Networx
                                                                               pg 12-17
    Mortise DL4500, Prox Mortise PDL4500 and Prox Networx
    PDLN4100/4500 also available
6
Wireless & standalone access control door solutions trusted by more schools & universities, offices, retail chains & healthcare providers - Alarm Lock
Trilogy Mortise: High security digital locks

Trilogy® high security mortise locks with and without prox ID readers
DL2700CR/DB T2 Series Mortise Locks                                        • Program data transferred to lock via AL-PCI2 or AL-DTMIII
• Trilogy T2 Keyless Access Lock for mortise door prep                     • 5AA battery-pak operated; 75,000 cycles, typical
•   High security mortise locking                                          • 3 Architectural finishes (US3 polished brass, 26D satin chrome,
                                                                             10B duronodic)
•   Fingertip access and programming flexibility
                                                                           • Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
•   Weatherproof for use inside or out
•   1-3/8” mortise cylinder included
•   Choice of classroom or deadbolt functions & finishes                   PDL3500 Series
•   Long battery life                                                      PDL3500 Series mortise lock with built in HID prox reader, similar
                                                                           to DL3500 Series, but with:
DL3500 Series Mortise Locks                                                • 2000 user codes (3-6 digits) and/or HID prox cards/fobs
• 300 User codes: Master, manager, supervisor & basic users                • 500 scheduled events, e.g., lock or unlock
• Fingertip or Windows PC-programmable                                     • Multilevel security - Master; manager; supervisor; basic users
• Real time clock enables up to 150 scheduled events and holiday           • Easy Tap & Add batch prox ID card enrollment mode allows many
  schedules                                                                  cards to be quickly added without PC –also– downloadable from PC
                                                                             or prox enroller tool
• 40,000 Event audit trail provides a printed time/date- stamped log
  of all electronic activity                                               • PC programming/reporting
• Long-life battery pak for 80,000 cycles, typical and low-battery alert   • Quick passage mode (without being in program mode)
• Choose either classroom or deadbolt versions and left or right hand-     • Program data transferred to lock via AL-PCI2 or AL-DTMIII
  ing (If reverse hand is required, lock is field reversible.)             • 5AA battery-pak operated; 75,000 cycles, typical
• 1 3/8” (3.5 cm) mortise cylinder supplied card enrollment mode al-       • 3 Architectural finishes (US3 polished brass, 26D satin chrome,
  lows many cards to be quickly added without PC –also– download-            10B duronodic)
  able from PC or prox enroller tool                                       • Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
• 40,000 event audit trail log                                              Turn Standalone Trilogy Locks into Wireless Networked
• 150 scheduled events, e.g., lock or unlock                                Networx Locks with Field Upgrade Kits for Standalone PIN
                                                                            or PIN/Prox Cylindrical or Mortise Models. P/DL6100 and P/
• PC programming/reporting                                                  DL6500 upgrade kits available. iClass available – PDL8200
• Quick passage mode (without being in program mode)                        upgrade kit.

                                                                                                                                                7
Wireless & standalone access control door solutions trusted by more schools & universities, offices, retail chains & healthcare providers - Alarm Lock
Trilogy Exit: Add audit trail to panic exits
                                  Add Trilogy convenience, programming, flexibility and audit trail to exit
                                  devices from most major manufacturers

                                                           OUTSIDE:
                                                           Rugged, field-proven Trilogy
                                                           digital lock.

                                                                                      INSIDE:
                                                                                      Existing exit device –
                                                                                      Most major brands
                                                                                      supported

     Add Trilogy convenience, programming, flexibility and audit trail to exit devices from
     most major manufacturers
     Trilogy Exit – ETDL, ETPDL
     • Clutch Mechanism insures long life and durability
     • Fingertip and/or Windows Programmable
     • 2000 User Codes: Master, manager, supervisor and users
     • Real Time Clock for up to 40,000 Event Time/Date-Stamped Audit Trail
     • Up to 500 Lock/Unlock Schedules (with Time Zone Support)
     • Rugged 12-Button Metal Keypad
     • Non-Handed; Fully Field Reversible
     • Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders
     • Supports most push in style panic exit devices including: Von Duprin 99, Marks USA M9900, Corbin ED5000 & Yale, Dorma 9300, Arrow
       3800, Hager 4500, Old Style Sargent, New Style Sargent, Precision 1100, Cal Royal 9800, etc. (Consult factory for full list)
     • Battery operated; uses 5 AA batteries

     Also available in prox model for added convenience and security. Includes all of the features above plus:
     • Accepts most HID Proximity cards and keyfobs
     • Users are individually programmed to use a card only, code only, or for highest security – both card and code
     • Prox card data can be added to software by uploading from lock, by using AL-PRE or entering directly from computer using DL-WINDOWS
       software.

     Also available in prox only model (ETPL)

     ETDL2700 T2 Exit Trim
     • As above but with T2 Trilogy features

8
Trilogy Narrow Stile: Glass door retrofit

Now get convenient
keyless PIN code or
Prox access anywhere
there’s a glass door.
Trilogy Narrow Stile lever models
(left and right) designed to work
with Adams Rite® latch series;
Thumbturn models (shown at
center) support swing & hook bolt
products .

Plus, PC-programmable 1300 Series
models provide audit trail log of
door users.

Pushbutton aluminum door trim retrofit                                                Narrow stile prox ID card
glass doors with latch locks                                                          PC-programmable model with audit trail
DL1200, DL1300                                                                        PDL1300

• Add keyless convenience to mechanical latch locks from Trilogy’s all-               Includes all of the 1300 Series features, at left:
  metal, vandal-resistant 12-button keypad and/or automatic timed-                    • Built-in HID prox reader, supports up to 2000 users with HID Prox ID
  scheduled locking/unlocking and audit trail with 1300 Series                          cards or/fobs or 3-6 digit PIN codes
• Aluminum door retrofit outside trim for Adams Rite® 1850, 1950,                     • Easy Tap & Add batch prox ID card enrollment mode allows many
  4710, 4070*, 4730, 4900 Series and MS1850S* and MS1950S* Series                       cards to be quickly added without PC –also– downloadable from PC
  latch locks                                                                           or prox enroller tool
• DL1200 supports 100 3-5 digit PIN user codes, fingertip                             • 40,000 event time-/date-
  programmable                                                                          stamped audit trail by user
• DL1300 (and Prox PDL1300, right) support 2000 users, PC                             • 500 event schedule/real time
  programming/reporting and features 40,000 event audit trail by user                   clock (e.g. lock/unlock by time)
  and 500 event schedule/real time clock (e.g. lock/unlock by time)                   • Long-life, battery-operated
• Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)                                           for 65,000 cycles, typical on 2
• Long-life, battery-operated for 100,000 and 80,000 cycles                             lithium 3V batteries, supplied;
  respectively, typical on 2 lithium 3V batteries, supplied; low battery                low battery alert
  alert
• Compact styling 14-3/8”H x 1-5/8”D x 1-3/4”W
• Key override mortise cylinder, 1-1/4” supplied. (Supports 1-1/8”,
  1-1/4” and 1-3/8”). Also interchangeable cores supported (Corbin/
  Russwin, Yale, Schlage, Medeco.)
• Backsets 31/32”,1-1/8” and 1-1/2”; Stile thickness 1-3/4”
• Non-handed; fully field-reversible
• Two finishes US26D satin & 10B Durondic
                                                                                        Ideal for universities, hospitals,
*The 4070, MS1850S, and MS1950S only work with knob (50) or thumb turn (25) models.
                                                                                        laboratories, airports, office buildings & retailers                   9
Narrow Stile Exit: For aluminum door retrofits
      Alarm Lock’s Trilogy narrow stile exit device                           Exit Devices TP Kits (Must order TP Kit Separately)

      trim locks                                                              • Marks USA M8800
                                                                              • Jackson 1095
      DL1200ET Trilogy T2-platform                                            • Dor-O-Matic - 2090
      • Adds vandal-resistant keyless access to panic exit doors              • Von Duprin 22
      • Protects storefronts and managed properties 24/7                      • Von Duprin 33 LH (RHR) only
      • 100 users supported (3-5 digit codes)                                 • Dorma - 5300
      • Designed with all-metal, vandal-resistant 12-button keypads           • Arrow - 51200/51250
      • Supports 3-6 digit PIN codes and multilevel user hierarchy            • DCI - 1200/1300
      • Easily installs on most aluminum glass doors                          • Corbin - ED8200
      • Works with Marks USA M8800, Jackson, Dor-O-Matic, Von Duprin
        (Von 33 LH (RHR) only), Dorma, Arrow, DCI & Corbin panic devices      Note - Certain manufactures’ exit devices such as Jackson, Dor-O-Matic, DCI and
        (Dor-O-Matic, Jackson and Dorma devices require thumb-turn or         others require a greater degree of rotation so a knob (50) or Thumb Turn (25) is required
                                                                              to retract and project the latch. In this function, the latch will remain retracted until
        knob Note: Must purchase separate TP assembly – See price book).      a PIN or Prox Card is represented to project the latch creating a hold back feature.
                                                                              please contact your local Alarm Lock representative for additional information.
      DL/PDL1300ET

      As above but also equipped with ID card prox reader (PDL version),
      PC programming and automatic lock/unlock scheduling and time
      zone support
      • 2000 Users (PIN code or prox ID on PDL model)
      • Two finishes 2 Architectural finishes (26D satin chrome,10B
        duronodic)

     Trilogy® Weatherproof Keypads:                                          Digital access keypad with prox reader
     12/24VAC/DC digital access keypads with                                 Trilogy PDK3000 (shown, right)
     PC programming & audit trail                                            Same features as DK3000 above, plus
     Trilogy DK3000 (shown,left)                                             • Built-in HID proximity reader
                                                                             • Accepts up to 2000 PIN codes and/or HID cards and keyfobs
     • 2000 PIN user codes, multilevel security
     • Ideal for use with 12V or 24V (AC or DC) electric door strikes, mag
       locks or Alarm Lock Remote Release Mag Lock Kit (adjacent page)
     • Wall mount or single gang box
     • 2 High-Current Rated 8A Relays for entry, alarm zone shunting or
       lock release by real-time schedule
     • Vandal-resistant, all metal 12-button keypad
     • Keypad or PC programmable
     • 40,000 Event audit trail report/print to PC or hand held printer or
       DTMIII Data Module
     • Timed Egress Input – Selectable door open times 3, 10 or 15
       seconds
     • 500 Scheduled events & real time clock
     • Tamper supervised (reportable to alarm system)
     • Remote release feature; request-to-exit input
     • Weatherproof -31˚ to 151˚F (-35˚ to +66˚C)                             For Wireless Keypad Solution, Ideal for use with Mags,
                                                                              Strikes and Electrified Exit Devices - Please also see
                                                                              Networx Keypad & NetPanel pgs 12-13
     Ideal for elevators and gate applications
10
Trilogy Ordering Information
                                                                                                        Cylindrical Trilogys
Choice of three standard Trilogy finishes                                                      DL 27 00 WP IC /26D -Y

                                                                             Model/Series:                                      Cylinder:
                                                                               DL27 = DL2700 Series                             IC = Standard Interchangeable
          US3                US26D                    US10B                    DL28 = DL2800 Series                             Core Prep for Best, Falcon, Arrow,
     Polished Brass       Satin Chrome               Duronodic                 DL30 = DL3000 Series                             KSP
                                                                               DL32 = DL3200 Series                             (Note: No “IC” indicates standard K.O.

                                                                               DL52 = DL5300 Series                             cylinder.)

                                                                             PDL30 = PDL3000 Series                             Finish:
U.S. Handing options                                                         PDL53 = PDL5300 Series                             /3    = US3 Polished Brass
                                                                             Networx Wireless:                                  /26D = US26D Satin Chrome
                                                                             DL6100 PIN Series;                                 /10B = Duronodic (Special Order)
                                                                             PDL6100, 8200 PIN/Prox                             Special Order IC Prep:
                                                                             Trim:                                              -Y = Yale
                                                                             00 = Lever                                         -M = Medeco
                                                                             75 = Regal Curved Lever                            -R = Sargent
                                                                             Exterior/Interior Use:                             -C = Corbin/Russwin
   00 Straight Lever       75 Regal Curved Lever       25 Turnpiece          For Exterior use of DL2700 & DL3000                -S = Schlage
                                                   50 Knob available on      only, order WP for weatherproof use.
                                                      DL1250/1350            All other models are weatherproof as
                                                                             standard.

DL-WINDOWS Trilogy Software
                                                                                                             Mortise Trilogys
Free Alarm Lock Trilogy Microsoft Windows-based software
application, for programming, entering users, receiving                                    DL       35       00     DB        R        /26D            EX
audit trail from lock or used with ALDTMs to transfer data.
Version.4.177 or higher, supports Trilogy Networx, Wireless                 Model & Series:			                                    Finish:
Keypads, Locks and ArchiTech series, and Trilogy standalone                 DL35 = Trilogy T3 Mortise Series                      /3    = US3 Polished Brass
locks, with single database. Downloadable free at www.alarmlock.com. For    Networx Wireless:
                                                                                                                                  /26D = US26D Satin Chrome
                                                                                                                                  /10B = Duronodic (Special Order)
enterprise network software options, and real-time performance, see pg.15   DL6500 PIN; PDL6500 PIN/Prox
                                                                                                                                  European Model Suffix
                                                                            Trim:
                                                                            00 = Standard Lever		                                 Not Used For U.S. Models
Trilogy audit trail and programming                                         75 = Regal Curved Lever (U.S. Option Only)            *Note: Standard Lever for U.S.
                                                                                                                                  Models is Straight Lever.
                                                                            Lock Body:
                                                                                                                                  Standard Lever for European
AL-IR1 Infrared Printer                                                     DB = Dead Bolt
                                                                                                                                  Models is Curved Tubular Lever
                                                                            CR = Class Room (U.S. Only)
Prints the event log and user code with hand-held                           Handing:
convenience.                                                                Your Door -                  Order -

AL-DTMIII Data Transfer Module                                              Left Handed                    L
                                                                            Right Handed                   R
Module used to transfer program data from the PC                            Left Hand Reverse Bevel        R
to the lock and receive Audit Trail from the lock. Can                      Right Hand Reverse Bevel       L         (Note: Trim is non-handed. Lock body is field reversible.)
transfer program data for up to 200 locks.
AL-PRE2 Dual Function Reader/Enroller for Smart Cards or                                                 Trilogy Narrow Stile
Prox IDs
Just tap the Smart Card or Prox ID device to the unit’s faceplate to                                          DL1200/26D1
automatically enroll in DL-WINDOWS software database. (USB)
AL-PCI2U Lock / PC Interface (shown)                                        Model Type                                                  Mechanical Dead Latch
                                                                            PDL – Prox/PIN                                              1 – Supports Adams Rite:
Interface cable interconnects lock and PC for data                          DL – Digital PIN                                                4710, 4730, 4900 Series
                                                                            Trilogy Series
transfer with USB interface cable. (AL-PCI also includes                    12 – 2700 Series                                            2 – Supports Adams Rite:
DL-WINDOWS CD). Also available AL-PCI2 w/o USB.                             13 – 3000 Series                                                4070, MS1850S,
                                                                            Trim                                                            MS1850S-050, MS1950,
                                                                            00 = Lever
                                                                            25 = Turnpiece                                                  MS1950-050
Remote Release Kit                                                          50 = Knob
                                                                            75 = Regal lever
                                                                            Finish
RR-TRILOGYKIT                                                               /26D Satin Chrome
                                                                            /10B Duronodic
Remote release kit for all Trilogy Cylindrical models includes              /MS Metallic Silver
the RR-1BUTTON for desk mount applications and                              /MB Metallic Bronze
RR-RECEIVER for installation inside the battery compartment
of any cylindrical Trilogy lock (Simply connects to the 2 white
remote release wires inside. Retrofits any existing cylindrical Trilogy                                       Trilogy Exit
manufactured since 2000.                                                                          ETPDL- 1 R/               26D V99
Also available for Mortise and Exit Trim models, RR-MORTISEKIT
                                                                             Type:                                               Finish:
and RR-EXITTRIMKIT, respectively. (Note: individual kit components,          PDL = Digital with Prox                             /3    = US3 Polished Brass
in blue, are also separately available.) Retrofits units with serviceable      PL = Prox Only                                    /26D = US26D Satin Chrome
battery pack (2000 and up year built)                                         DL = No Prox                                       /10B = Duronodic (Special Order)
                                                                             N = (suffix) Networx Wireless                       OEM Trim
                                                                             Door Thickness:                                     M99 = Marks USA M9900
                                                                               1 = 1 3/4” + 1/8”                                 V99 = Von Duprin 99
                                                                               2 = 2” to 2 3/4”                                  C50 = Corbin ED5000 & Yale
                                                                               3 = 3” to 4”                                      D93 = Dorma 9300
                                                                             Handle:                                             A38 = Arrow 3800
                                                                               R = Regal                                         S88 = Old Style Sargent
                                                                               S = Straight                                      N58 = New Style Sargent
                                                                                                                                 P11 = Precision 1100
                                                                                                                                 CR8 = Cal Royal 9800
                                                                                                                                                                                  11
Wireless Networx Keypad Solution: Trilogy

                                       EASY NETWORX WIRELESS KEYPAD SYSTEM

                                                                                                                                                                                                                                                                     Existing
                                                                                                                                                                                                                                                           5)
                                                                                                                                                                                                                                                                    Corporate
                                                                                                                                                                                                                                                    -4
                                                                                                                                                                                                                                                (RJ                  Ethernet
                                                                                                                                                                                                                                           ed
                                                                                                                                                                                                                                     Wir                   02.1
                                                                                                                                                                                                                                                                1
                                                                                                                                                                                                                                                                     Network
                                                                                                                                                                                                                                                     ss 8
                                                                                                                                                                                                                                            irele
                                                                                                                                                                                                                                      or W

                                                                                                                                                                                                                                      Wir
                                                                                                                                                                                                                                            ed
                                                                                                                                                                                                                                                 (RJ
                                                                                                                                                                                                                                    or W                -45
                                                                                                                                                                                                                                        irele                   )
                                                                                                                                                                                                                                                ss
                              NETPDK                                     NETDK                                                                                                                                         GATEWAY                       802
                                                                                                                                                                                                                                                        .11

                                                       Wire up to                                                                                                                                                                                                   Router
                                                       2 Wiegand
                                                        Devices
                                                                                                                                                                                        NETWORX NETPANEL

                             NETDK and/or NETPDK keypads (and/or Wiegand devices) wired to a dedicated NETWORXPANEL control panel

                                                                                                                               controlling up to 126 Networx                                                              Features
                                                                                                                               Keypads (or Wiegand devices), can
                                                                                                                                                                                                                          • Networx NetPanel supports up to
                                                                                                                               communicate to as little as one                                                              2 Networx wireless keypads and/
                                                                                                                               Alarm Lock Gateway. Two starter                                                              or Wiegand-output readers and
                                                                                                                                                                                                                            communicates wirelessly via Ethernet or
                                                                                                                               kits are available, NET-DKPAK &                                                              802.11B/G for a comprehensive wireless
                                                                                                                               NET-PDKPAK, each with a controller                                                           networked door access control system,
                                                                                                                                                                                                                            eliminating door-to-door programming
                                                                                                                               and keypad (Digital PIN or Prox,
                                                                                                                                                                                                                            and audit trail retrieval and providing all
                                                                                                                               respectively). Additional keypads                                                            standalone Trilogy lock functionality plus
                                                                                                                               and NetPanels may also be                                                                    new network-wide global emergency
                                                                                                                                                                                                                            lockdown/unlock commands
                                                                                                                               purchased individually.
           NET-DKPAK & NET-PDKPAK                                                                                                                                                                                         • Networx Keypads support up to 5000
                                                                                                                                                                                                                            users with 3-6 digit numeric PIN codes and
                                                                                                                               Advantages                                                                                   NETPDK-Series also support prox ID card
     Trilogy Networx Wireless Keypads                                     • Wireless Keypad solution - networked                                                                                                            users (virtually all HID format proximity
     and NetPanel combine to provide                                          versions of popular Trilogy DK/PDK3000                                                                                                        technology ID cards, fobs, credentials.)
                                                                                 PRIMARY
                                                                              Keypads
     the ideal wireless keypad solution                                           NETDK                                                         • System-wide free-passage enable or
                                                                          • Ideal for use with strikes, mags,                                      disable, can be activated from the keypad
     for use with mag locks, strikes            SECONDARY
                                                 WIEGAND**
                                                                   PRIMARY
                                                                  WIEGAND** electrified exit devices                                               or the Networx PC
                                                                                                  SECONDARY
     and electrified exit devices in a                                                             NETPDK
                                                                          • 5000 users with 3-6 digit PINs or HID ID           ®                •  On demand, in seconds, wirelessly change
                                                                                                                                             MAG keypad
                                                                                                                                                    LOCK
     smart access system with advanced                                        cards                                                              (OR
                                                                                                                                                               users, schedules,
                                                                                                                                                                        ELECTRIC DOOR     features or retrieve
                                                                                                                                                   35,000 events fromSTRIKE     any networked PC.
     features & functions, like automatic                                 • Save manpower - Bidirectional 128 AES                            FAIL-SAFE
                                                                                                                                              ELECTRIC
                                                                                                                                                                            (FAIL-SECURE)
                                                                                                                           N/C
                                                                              encrypted network communications      Emergency Exit              • Ideal for use with
                                                                                                                                                DOOR
                                                                                                                                                                        NOT FOR FIRE EXITS
                                                                                                                                                                               mag locks, strikes and
     schedules, event logs and support                                        updates, users, time-schedules            and(or
                                                                                                                     Switch   audit
                                                                                                                                 Fire          STRIKE)
                                                                                                                                                   electrified exit       /panic     devices (EL-devices/
                                                                                                                      Panel Relay)                                    TSD*        Door
     for 2000 doors and 5000 existing                                         trail queries — without ever going             to the                electrified latch retraction Position devices.)
                                                                                                                                                                                                 N/O
                                                                              keypads                                                                                            Contact      Momentary
     Prox. ID Cards/Badges. The                                                                                                                 • Free Alarm Lock DL-WINDOWS                        software
                                                                                                                                                                                               Switch
                                                                          Versatile for indoors and outside; ideal TSD*                            doesn’t require a dedicated computer
                                                                                                                                                 Orange (Green LED)

     Networx Panel communicates via a                                     for education, healthcare, government,
                                                                                                                               Brown (Red LED)
                                                                                                            Black (- Ground)

                                                                                                                                                   or a special computer network or costly
                                                                                                                                                                      Yellow (Beeper)
                                            Green (Data 0)

                                                             Green (Data 0)

                                                                              White (Data 1)

     Networx Gateway networked to any                                     airports, courts, municipalities, & retail                       Jumper
                                                                                               Red (+ DC)

                                                                                                                                              Wire server software licenses, it simply runs
                                                                                                                                                                                                      Yellow

                                                                          • Familiar Trilogy operation,
                                                                                                                                                                                                               Green

                                                                                                                                                   as a secure Microsoft Windows-based
                                                                                                                                                                                              Black

     Windows-based PC. Networx keypads
                                                                                                                                                                                        Red

                                                                              programming, software and ruggedness                                 application, on any computer system (as
     seamlessly share one common                                                                                                                   basic as a desktop or laptop PC), a wired
                                                                          • NetPanel Controller supports 2
     database hosted on free Alarm Lock                                       Networx        keypads and/or        2 Wiegand                       or wireless router, and a gateway module
                   EGND       AC IN        WOA    WO     W1   PWR GND     RED    GRN SNDR (+)        (–)    TX    RX    N/O    N/C    COM LOCK COM or on  N/Ca an      LOCK
                                                                                                                                                                 N/Ointernal      DOOR
                                                                                                                                                                                 LAN           REMOTE
                                                                                                                                                                                         with RELEASE
                                                                                                                                                                                               static  IP
     free software (along with Networx             WIEGAND INPUT
                                                                          LED output
                                                                                 LED    readers
                                                                                       DRIVE        /devices
                                                                                               KYPD PWR
                                                                                                          (YEL) (GRN)
                                                                                                                            AUX RELAY
                                                                                                                                          PWR
                                                                                                                                           (+)        MAIN RELAY
                                                                                                                                                                       PWR
                                                                                                                                                                        (–)
                                                                                                                                                                                 POSITION
                                                                                                                                                                                 CONTACT        INPUT
                                                                                                                                                   address      (recommended).
                    T1     T2       T3      T4    T5     T6    T7    T8                 T11
                                                                          •T9 KeyT10features:  T12
                                                                                                 Global    T14
                                                                                                     T13 lockdownT15 andT16    T17    T18  T19    T20    T21    T22     T23     T24     T25   T26    T27
     locks and standalone               Trilogys      too.).                                                                                    • Up to 2000 NetPanels can be used
                                                                              passage from keypad or PC, schedules,
     This cost   effective
           The system  is capablesystem        is very
                                       of controlling  two doors using up to 35K
                                                                              two ofevent
                                                                                     any combination
                                                                                             log, doorofposition
                                                                                                          NETDK orstatus
                                                                                                                      NETPDK keypads, PLUS up      pertoaccount
                                                                                                                                                          two Wiegand to further
                                                                                                                                                                            devices. expand       system
                                                                                                                                                                                        Two auxiliary
           Form-C relays are available for up to two of any combination of magnetic locks and/or electric door strikes.                            capabilities.
     scalable, and up to 63 NetPanels,                                        indicator,    request-to-exit,    door   ajar/kick-in,
                                                                                                                                       remote release options.

12
Networx Keypads & NetPanel
                NETWORX KEYPADS use with Mag Lock, Electric Strike or
                     Wiegand Devices – Control up to 2 Doors

                                                                                                                                                         PRIMARY
                                                                                                                                                         NETDK

                                                              SECONDARY                                   PRIMARY
                                                               WIEGAND**                                 WIEGAND**
                                                                                                                                                                                                     SECONDARY
                                                                                                                                                                                                      NETPDK
                                                                                                                                                                                                                                                                  MAG LOCK
                                                                                                                                                                                                                                                                     (OR                         ELECTRIC DOOR
                                                                                                                                                                                                                                                                  FAIL-SAFE                          STRIKE
                                                                                                                                                                                                                                                                                                  (FAIL-SECURE)
                                                                                                                                                                                                                                      N/C                         ELECTRIC                      NOT FOR FIRE EXITS
                                                                                                                                                                                                                                 Emergency Exit                     DOOR
                                                                                                                                                                                                                                 Switch (or Fire                   STRIKE)
                                                                                                                                                                                                                                  Panel Relay)                                                  TSD*    Door
                                                                                                                                                                                                                                                                                                       Position      N/O
                                                                                                                                                                                                                                                                                                       Contact     Momentary
                                                                                                                                                                                                                                                                                                                    Switch
                                                                                                                                                                                                                                                       TSD*

                                                                                                                                                          Orange (Green LED)
                                                                                                                                       Brown (Red LED)
                                                                                                                  Black (- Ground)

                                                                                                                                                                                 Yellow (Beeper)
                                             Green (Data 0)

                                                                Green (Data 0)

                                                                                  White (Data 1)

                                                                                                                                                                                                                                                                 Jumper
                                                                                                    Red (+ DC)

                                                                                                                                                                                                                                                                   Wire

                                                                                                                                                                                                                     Yellow

                                                                                                                                                                                                                                Green
                                                                                                                                                                                                           Black
                                                                                                                                                                                                    Red

                   EGND        AC IN        WOA                WO                W1                PWR           GND                  RED                GRN                   SNDR                (+)    (–)        TX         RX      N/O      N/C      COM   LOCK   COM      N/C       N/O   LOCK    DOOR         REMOTE
                                                                                                                                      LED                LED                   DRIVE                               (YEL)      (GRN)                             PWR                             PWR    POSITION      RELEASE
                                                                WIEGAND INPUT                                                                                                                      KYPD PWR                                   AUX RELAY          (+)         MAIN RELAY          (–)   CONTACT        INPUT
                    T1    T2           T3   T4                 T5                T6                T7            T8                    T9                T10                   T11                 T12    T13      T14        T15       T16      T17      T18   T19    T20      T21   T22       T23    T24   T25   T26    T27

            The system is capable of controlling two doors using up to two of any combination of NETDK or NETPDK keypads, PLUS up to two Wiegand devices. Two auxiliary
            Form-C relays are available for up to two of any combination of magnetic locks and/or electric door strikes.

                    NETPANEL                                                                                                         Examples of Wiegand Devices
                                                                                                                                     Supported:
                                                                                                                                                                                                                                                                               NETDK26D DK Wireless keypad only, 26D
                                                                                                                                                                                                                                                                               finish.
                    dedicated                                                                                                        • HID Classic Swipe Wiegand Reader Model                                                                                                  ****Note: Special keypad finishes may also be available – ask
                    access panel                                                                                                       310 (36-bit card format compatible).                                                                                                    your Alarm Lock Rep.

                    Includes                                                                                                         • HID ProxPro with Keypad Model 5355                                                                                                      NETHIDNSPAK Networx Narrowstile Prox
                                                                                                                                                                                                                                                                               point reader, control panel w/door position
• Circuit board with onboard flash                                                                                                   • HES model RF5910 Hybrid Electric Strike
                                                                                                                                                                                                                                                                               switch with RX, remote release and battery
  memory;12V power supply, with                                                                                                        with HID125k reader
                                                                                                                                                                                                                                                                               backup plus plug-in transformer.
  transformer and rechargeable backup                                                                                                *** Other formats may be accommodated for special orders.
  battery                                                                                                                            Ask you Alarm Lock Representative.                                                                                                        NETWORXPANEL Access Control Panel
                                                                                                                                                                                                                                                                               to be used with other approved Wiegand
• Inputs supporting two of any combination                                                                                                                                                                                                                                     output readers. Includes 12 volt power sup-
  of NETDK or NETPDK keypads, PLUS up
  to two Wiegand devices                                                                                                             Ordering Info.                                                                                                                            ply, onboard bidirectional radio, 4Ah/12V
                                                                                                                                                                                                                                                                               rechargeable backup battery and plug in AC
• Special “Two Door Mode” allows two                                                                                                 NETPDKPAK26D Complete 2-Door Net-                                                                                                         transformer.
  keypads and/or two Wiegand devices to                                                                                              Panel System with 1 PDK wireless keypad
  separately control two doors                                                                                                       with built in HID Prox Reader, 26D finish.                                                                                                Networx Series Accessories
• Two Form-C relays
                                                                                                                                     ****
                                                                                                                                          Includes 12 volt power supply, onboard
                                                                                                                                     bidirectional radio, 4Ah/12V rechargeable                                                                                                 AL-NSG Gateway Simulator
• Inputs for door position contact to                                                                                                backup battery and plug in AC transformer.                                                                                                A portable battery powered
  indicate the status of the door, open or                                                                                           (System requires use of one of the AL-IM                                                                                                  Networx Gateway simulation
  closed;                                                                                                                            Series Gateway Modules, separately pur-                                                                                                   device that generates
• Inputs for a remote release button or                                                                                              chased.)                                                                                                                                  continuous Gateway radio
  sensor                                                                                                                                                                                                                                                                       signals to a Networx Signal
                                                                                                                                     NETDKPAK26D Complete 2-Door Net-                                                                                                          Meter.
• Onboard bi-directional Networx radio                                                                                               Panel System with 1 DK wireless keypad,                                                                                                   AL-NSM Site Survey Tool for Networx
• Wiegand interface, red LED, green LED,                                                                                             26D finish. **** Includes 12 volt power supply,                                                                                           Gateways
  and sounder.                                                                                                                       onboard bidirectional radio, 4Ah/12V
                                                                                                                                                                                                                                                                               Performs a site survey test of
                                                                                                                                     rechargeable backup battery and plug in
Wiegand Device Support                                                                                                               AC transformer. (System requires use of
                                                                                                                                                                                                                                                                               the premises to find optimum
                                                                                                                                                                                                                                                                               location of Networx gateways
• The NetPanel’s Wiegand inputs                                                                                                      one of the AL-IM Series Gateway Modules,
                                                                                                                                                                                                                                                                               and locks. Also helps to
  currently support all Wiegand output                                                                                               separately purchased.)                                                                                                                    determine the number of
  devices, that support the Data 0/Data
  1 communications protocol and are                                                                                                  NETPDK26D PDK Wireless Keypad with                                                                                                        gateways required to cover
  compatible with HID Prox credentials                                                                                               built in HID Prox Reader only, 26D finish. ****                                                                                           the signal area of the Networx
  (including Wiegand keypads and                                                                                                                                                                                                                                               locks you plan to install.
  combination units.)

                                                                                                                                                                                                                                                                                                                                               13
Wireless Networx Locks: Easily-networked access locks

     Networked Wireless Access Control that’s ½ the cost of                             new network-wide and emergency lockdown features
     a hardwired system, now for every door & application                             • Unsurpassed 5-year+ battery life, typical, (Automatic battery status
                                                                                        reports at the PC; visual and audible low-battery status indicators at
     Based on Trilogy®, the #1 electronic standalone access locks, Networx™             lock(s).
     Locking Products are networked to save staff labor, eliminating door-to-
     door programming and audit trail retrieval, by communicating wirelessly          • Trilogy Networx and gateway modules have an integral transceiver
     via Ethernet or 802.11B/G, all while providing the ultra dependability,            for highly-efficient 900MHz bidirectional communications, for
     functionality & long battery life, original Trilogys are known for. The            longer range and less interference than with more common 2.4GHz
     expanded Networx line, for every type of door, combines to provide a               spread spectrum devices. Alarm Lock devices require NO wiring; NO
     quick, easy, economical access system for up to 2000 doors and 5000                splitters or repeaters; NO hardwiring to the host/server; NO extra
     users, with advanced features & functions, e.g., automatic schedules, event        power supplies; and NO access controller/panels.
     logs. But, with no wires to run, and no access panels or power supplies          • In 10 seconds, activate emergency global lockdown from the
     to buy or install, it can be a great time and budget saver for buildings,          Networx PC, any Networx lock or Keyfob (RR-4BKEYFOB). (This
     campuses or office suites. At its simplest, it’s one Grade 1 wireless lock per     priority emergency command is lightning-fast system-wide and
     door, installed in about an hour, all communicating to a single Gateway            supercedes all scheduled programs or updates, etc. However, if
     (your choice of gateways controls up to 63 locks), networked to any non-           desired, locks may be selectively programmed to be excluded
     dedicated Windows-based PC. In addition to Wireless Trilogy Networx’               from emergency global lockdown function, i.e., they will ignore the
     unsurpassed battery-life, exceeding 5 years, they feature new network-
                                                                                        command. )
     wide capabilities, executed from any lock or the network’s PC, including
     emergency priority global lockdown deployed in seconds, and you can              • System-wide free-passage enable or disable, can likewise be
     activate (non-priority) system-wide free-passage or locking modes from the         activated from the Networx PC
     PC. For existing Trilogy installations, original standalone and new Trilogy      • Locks easily retrofit standard or any Networx locks and support
     Networx locks can seamlessly share one common database hosted on free              up to 5000 users with 3-6 digit numeric PIN codes and PDL-Series
     Alarm Lock DL-WINDOWS software. For real-time access applications,                 also support prox ID card users (virtually all HID™ format proximity
     Networx Locks offer enterprise network integration with several leading            technology ID cards, fobs, credentials.)
     platforms.                                                                       • On demand, in seconds, wirelessly change users, schedules, lock
     • Trilogy Networx Locks communicate wirelessly via Ethernet or                     features or retrieve audit trails of up to 40,000 events/lock from
       802.11B/G for a comprehensive wireless networked door access                     any networked PC. (Note: Transaction processing time is dependent
       control system, eliminating door-to-door programming and audit trail             upon system capacity, the more locks/gateways and the more data to
       retrieval and providing all standalone Trilogy lock functionality plus           be up/downloaded, the longer the time.)

14
Wireless Networx Locks: Easily-networked access locks
• Unattended programming updates or
  event log retrievals can be scheduled to
  run automatically, saving manpower and
  productive time.
• Seamless upgrade path for original
  Trilogy users: Intermix with existing Trilogy
  standalone lock installations and share
  one database and familiar Trilogy lock
  and software functions: Trilogy Wireless
  Networx Locks seamlessly integrate in an
  existing Alarm Lock Trilogy standalone door
  access system and share the same single
  DL-WINDOWS database (requires v4.1.x
  or higher). Existing Trilogy users can easily
  add one wireless Networx Lock, or as many
  as two thousand, to an existing system
  seamlessly with no downtime.
                                                        Up to 2000 locks and a PC
• Secure 128bit AES PC encryption and                   communicate wirelessly through
  proprietary RF-link lock communication                bidirectional Gateways – eliminating
  encryption protects the system from                   the need for door-to-door
  interference or tampering (WEP or WPA                 programming and audit trail
  compatible with wireless modem).                      retrieval.
• Remote System Management:
                                                        In seconds, global lockdown can be
  VPN-connection /remote capability                     implemented from any Trilogy lock
  for accessing the Networx System and                  or the DL-WINDOWS computer.
  controlling up to all 2000 locks, with all
  the security and peace-of-mind of your IT
  network. (No special modems required.)
• Wireless locks are fully keypad                    gateway, so you can select it and optimize          Network Interface
  programmable and can be up and                     reliable communications and eliminate
                                                                                                         INTERFACE: Ethernet 10Base-T or 100Base-TX (using
  functioning even before their wireless             guesswork.                                          RJ45 Jack)
  network is configured, so IT departments         • Lock programming, user- and usage-data              PROTOCOLS: TCP/IP, UDP/IP, DHCP 802.11 Wireless
  don’t have to coordinate with physical             are stored locally at the battery-powered           Specifications
  security departments or locksmiths                 lock for uninterrupted door access usage in         WIRELESS STANDARDS: º 802.11b; 802.11g
• Free Alarm Lock DL-WINDOWS software                a power outage or server offline situation.         FREQUENCY RANGE: 2.412 - 2.484 GHz
  doesn’t require a dedicated computer or          Enterprise Networks, Real-Time                        OUTPUT POWER: 14 dBm + 1.5 dBm/-1.0 dBm
  a special computer network or costly server      Performance                                           MAXIMUM RECEIVE LEVEL: -10dBm (with PER < 8%)
  software licenses, it simply runs as a secure
                                                   • Networx locks can be used as wireless, single-      DATA RATES WITH AUTOMATIC FALLBACK: 54Mbps
  Microsoft Windows-based application, on
                                                     door controllers in real time too                   - 1Mbps
  any computer system (as basic as a desktop
                                                   • Use with Continental Access®, CA4K®, Lenel          RANGE: Up to 328 feet indoors
  or laptop PC), a wired or wireless router, and
                                                     OnGuard® Integrated Access Control & Video          MODULATION TECHNIQUES: OFDM, DSSS, CCK,
  a gateway module or on an internal LAN with
                                                     Security or Software House Connect Partner®         DQPSK, DBPSK, 64 QAM, 16 QAM
  static IP address (recommended).                   Program Platforms ‡‡
  (v4.1.x or higher).                                                                                    INTERFACE: Wireless 802.11b, 802.11g and 10/100
                                                                                                         Ethernet
• Minimizing hardware & installation costs,
                                                                                                         PROTOCOLS: TCP/IP, UDP/IP, DHCP
  a single gateway module can interface
  between the PC network and up to 63              Trilogy Networx Lock Specifications:                  SECURITY
  Networx locks , with a clear field range         • Weatherproof locks for indoor/outdoor use           • IEEE 802.11 - PSK with AES Encryption 128-bit
                                                                                                         Encryption
  of up to 500 feet and 150 feet in buildings.         with wide operating temperature range (-31 to
  At its maximum, a Trilogy Networx system             151˚ degrees F).                                  • 128-bit AES Rijndael encryption
  can comprise up to 50 gateways for the           •   Cylindrical models boast industrial strength      AL Radio Link
  networking of up to 2000 locks or access             BHMA Grade 1 durability and all models            • 900 MHz GFSK, 50 channels, 10mW power output
  controlled doors. New Gen 2 Gateways &               feature vandal-resistant all-metal keypad for
                                                                                                         VOLTAGE: 5 - 6 volts AC/DC
  Expanders for easiest networking                     PIN codes.
                                                                                                         OPERATING TEMPERATURE: -20˚ to 60˚C (-4˚ to 140˚F)
  (see pg 17 )                                     •   PDL versions, HID Prox. Reader.
                                                                                                         STORAGE: -40˚ to 85˚C (-40˚ to 185˚F)
• Wall- or ceiling-mountable, compact              •   ADA-compliant leversets.
                                                                                                         AVERAGE POWER CONSUMPTION:
  gateway modules are available in                 •   Easy-to-install modified ANSI A115 Series
  wireless/hardwired and wired-only                    door prep; easily and neatly retrofit standard    • 1300 mW (WLAN mode; maximum data rate)
  versions (with Power Over Ethernet (POE)             cylindrical knobsets and mechanical standalone    • 300 mW (WLAN mode; idle)
                                                       locks, in under an hour. Non-handed
  option). The hybrid model connects using                                                               • 750 mW (Ethernet Mode)
  either 802.11, Ethernet cable or 100Base-        •   3 hour UL fire-rated deadlatch.
                                                                                                         PEAK SUPPLY CURRENT: 650 mA
  TX (using RJ45 Jack); the wired versions         •   Supports 1-5/8 to 1-7/8” door thickness; 2-3/4”
                                                       backset (2-3/8” available.)                       INPUT VOLTAGE: 5 - 6 volts AC/DC
  use an RJ-45 Ethernet cable. Networx
                                                   •   Manual key override standard; most IC cores       OPERATING TEMPERATURE: -31 to 151˚ degrees F
  communications support both wired
  Ethernet 10BaseT and wireless 802.11.                also supported on interchangeable core            STORAGE TEMPERATURE: -40˚ to 85˚C (-40˚ to 185˚F)
                                                       models.
• For the fastest most reliable networked
                                                   •   Wide choice of 3 Architectural finishes (US3      ‡‡
                                                                                                            Important: For enterprise integration consult
  system, in discovery setup mode, the system
                                                       polished brass, 26D satin chrome,10B              technical documentation to match proper AL hardware
  will locate and DL-WINDOWS will display                                                                (Gateways, Expanders,etc.) with enterprise software
                                                       duronodic) and IC core preps (6-7pin).
  each lock’s signal strength at each installed                                                          Versions supported.

                                                                                                                                                               15
Trilogy Networx: Wireless networked access for every application

     More Networx Models & Options:
     PDL6100 Cylindrical Trilogy Networx PIN/Prox. wireless access
     control lock with built in HID proximity ID card reader
     PDLN4100 As above, with privacy button on inner door
     DL6100 As above PDL6100, with full-metal digital keypad only
     PDL6200 Cylindrical Trilogy Networx PIN/Prox. wireless access
     control lock with built in HID proximity ID card reader and Door
     Position Switch/Request to Exit feature
     PDL8200 As above, with HID iClass support
     PDL6500 Mortise Trilogy Networx PIN/Prox. wireless access
     control lock with built in HID proximity ID card reader
     PDLN4500 As above but with privacy function via thumb turn on
     inner door (deadbolt only)
     DL6500 As above PDL6500, with full-metal digital keypad only
     PDL6600 Mortise Trilogy Networx PIN/Prox. wireless access             Add Networx Trilogy convenience, programming, flexibility,
     control lock with built in HID proximity ID card reader and Door      audit trail and wireless connectivity to panic exit devices
     Position Switch/Request to Exit feature                               from most major manufacturers
     PDL8600 As above, with HID iClass support
                                                                        ETPDN Trilogy Networx wireless access lock trim with built-in HID
     PDL6300 Cylindrical Trilogy Networx double-sided PIN/Prox.         proximity ID card reader
     wireless access control lock with built in HID proximity ID
     card reader                                                        ETDLN As above, with full-metal digital keypad only

     PDL1300NW Networx narrow stile wireless access prox lock trim      ETPDN-RX Trilogy Networx wireless access lock trim with built-in
     with built in HID proximity ID card reader                         HID proximity ID card reader with Request to Exit feature

     DL1300NW As above, with full-metal digital keypad only             ETPDNI-RX As above, with HID iClass support

     PDL1300NWET Networx narrow stile exit trim with built in HID       NETWXSTARTER Trilogy Networx Wireless Access Control
     proximity ID card reader                                           Starter Kit, contains 1 each PDL610026D, ALIME-2 Gateway,
                                                                        DL-WINDOWS and 30 HID cards
     DL1300NWET As above, with full-metal digital keypad only
                                                                        For a list of compatible exit trims, see page 8; for compatible wireless keypads see page 10

16
Trilogy Networx: Gen.2 Gateways & Expanders                                                                                                  ‡‡

                                 AL-IME2 Gen. 2 Gateway                                                       AL-IME2-POE Gen. 2 Gateway
                            The Trilogy Networx AL Generation                                               The Trilogy Networx AL-IME2-POE
                            Gateway, interfaces Networx locks                                               (Power Over Ethernet) Hardwired
                            with a PC network via a hardwire                                                Gateway interfaces Networx locks
                            Ethernet connection. It is very similar                                         with a PC network with hardwire
                                                                                                            Power-Over-Ethernet. It is very similar
                            in function to the original hardwired
                                                                                                            in function to the original hardwired
Networx Gateway Modules, but is enhanced with additional
                                                                                                            Networx Gateway Modules, but
extended potential range, supporting up to seven (7) Expanders
                                                                               is enhanced with alternative power, and additional extended
(model AL-IME2-EXP Expanders). Each Expander can extend the                    potential range, supporting up to seven (7) Expanders (model AL-
AL-IME2 Gateway’s coverage area by approximately 100 feet.                     IME2-EXP Expanders).
Also both Gen. 2 Gateways and matching Expanders have a new
modern styling, and three LED indicators, blending into any décor.                                            AL-IME2-EXP Expander
                                                                                                              Trilogy® Networx™ Expander
                                 AL-IM2-80211                                                                 extends the coverage area of a Gen
                                 Gen. 2 802.11 Gateway                                                        2 Series Gateways to Trilogy Networx
                            Similar to model above, but this                                                  Locks within a PC network, allowing
                            802.11 Gateway Module includes a                                                  greater distances for the placement
                            bi-directional radio, and interfaces                                              of up to a maximum rated capacity
                                                                                                              of 63 Networx locks per Version 2
                            Networx locks with a PC network
                                                                                                              Gateway.
                            with hardwire Ethernet and wireless
                            802.11. It is very similar in function to
                                                                                                       AL-IME2-PIE Plug-in Expander
                            the original 802.11 Networx Gateway
                                                                                                       The Trilogy® Networx™ Plug-In Expander
                            Modules, but is enhanced with
                                                                                                       extends the coverage area of a Generation 2
                            additional extended potential range,
                                                                                                       Series AL-IME2 Gateway to Trilogy Networx
                            supporting up to seven (7) Expanders                                       Locks within a PC network, allowing greater
                            (model AL-IME2-EXP Expanders).                                             900mHz distances for the placement of up
Each Expander can extend the AL-IM2-80211 Gateway’s coverage                                           to a maximum rated capacity of 63 networx
area by approximately 100 feet.                                                                        locks per Version 2 Gateway.

iLock® App: Unlocks ArchiTech™ Bluetooth® Series Door Locks in seconds!
                                 Introducing iLock®, the easy                                                    supplying its portion of stored
                                 smartphone mobile solution for                                                  encrypted data to provide secure
      Verizon   12:55 PM   79%
                                 unlocking your ArchiTech™ Series                                                access without a key, fuss or worry,
                                 Designer Access Control Locks from                                              ensuring user identities. A unique
                                 any smart device without the need                                               combination of convenience
                                 to carry cumbersome ID cards or                                                 and cloneproof peace of mind,
                                 keys. Password protected access is                                              the ArchiTech platform uses
                                 secure through the use of Bluetooth                                             universally-compatible Bluetooth
                                 LE™ and proprietary encryption.                                                 LE technology, so they can use any
                                 Additionally, an optional feature can                                           smart device to unlock ArchiTech on
                                 be utilized, requiring a password for                                           your door(s); and do so from afar, at
                                 each unlock request.                                                            a comfortable, customizable range
                                                                                                                 of up to 30 feet away. For even
                                 The Key is Your Smartphone &                                                    greater security users can add an
                                 More Secure Technology                                                          optional passcode, entered on their
                                                                                                                 phone App. Coming soon: emailable
                                 Any Smart Device can be the             smartphone, for your security,
                                                                                                                 digital eKeys for guests or service
                                 Access Key: Much more than              ArchiTech & its iLock App are
                                                                                                                 temporary access, too.
                                 an ID card displayed on your            wirelessly linked together, each

                           iLock App is available from both iTunes and the Google Play Store
                                                                                                                                                         17
Networx ArchiTech: Designer Wireless Access Control Platform
                                         ArchiTech Series Networx Locks are an ideal access control solution; elegantly blending
                                         advanced wireless access control convenience within any décor, in an attractive, infi-
                                         nitely customizable designer locking form factor, in choice of trims and finishes. Ideal for
                                         educational, commercial office or multi-dwelling residential settings, these stylish, durable locks,
                                         leveraging proven Networx access control technology, offer a choice of ID credential technology,
       and can be used to control access a door at a time; across a wireless network; or as an integral part of a new or existing enterprise
       security system—spanning a few, or thousands of doors, in one building, a campus or multiple sites around the world.

                                                                                                                                                                                                        Performance Overview
                                                                                                                                                                                                        • All Applications and Doors - Cylindrical and
                                                                                                                                                                                                          Mortise models for wood and metal doors, for new
                                                                                                                                                                                                          and existing applications, with wireless surface
                                                                                                                                                                                                          mount or mortised-in electronics and
                                                                                                                                                                                                          batteries.
                                                                                                                                                                                                        • Customize To Match Any Aesthetic Look, For
                                                                                                                                                                                                          Every Décor - Over 300 locks, levers, roses and
                                                                                                                                                                                                          finishes to choose from, durable ANSI/BHMA Grade
                                                                                                                                                                                                          1 hardware over 300 locks, levers, roses and finishes
                                                                                                                                                                                                        • Future-Proof Multi-Technology Access ID
                                                                                                                                                                                                          Credentials Replace Cumbersome Keys – HID®
                                                                                                                                                                                                          Prox, Mag Stripe, Smart Cards, PIV, keyfobs and
                                                                                                                                                                                                          remote buttons
                                                                                                                                                                                                        • Emergency Lock-Down option via lock, button,
                                                                                                                                                                                                          keyfob or server (where networked). (Global Unlock
                                                                                                                                                                                                          via server too.)
                                                                                                                                                                                                        • Proven, Low Maintenance, Wireless Installation
                                                                                                                                                                                                          And Unsurpassed Battery-Life with Advanced
                                                                                                                                                                                                          Power-Saver circuit, with years of use in even high-
                                                                                                                                                                                                          traffic areas, using off-the-shelf AA batteries.
                                                                                                                                                                                                        • Flexible System Programming Locally using a
                                                                                                                                                                                                          USB Gateway or remotely across a wireless network
                                                                                                                                                                                                          (using free Alarm Lock DL-WINDOWS Windows-
                                                                                                                                                                                                          based software) or integrated on an enterprise class
                                                                                                                                                                                                          IT environment, in realtime, using LENEL
                                                                                                                                                                                                        • Networking Choices – Choose 802.11 or Ethernet
                                                                                                                                                                                                          network, with wireless encrypted bi-directional
       Standard Configurations                                                                                                                                                                            gateways, in which many locks communicate to a
                                                                                                                                                                                                          single gateway, expander, or use a wireless RF USB
                                                                                                                                                                                                          Gateway equivalent. For entry door applications and
                                                                                                                                                                                                          the like, used in conjunction with strikes and mags,
                                                                                                                                                                                                          use with Networx NetPanels. Or, use as a single-
                                                                                                                                                                                                          door control, in real time, as part of the IT-Network
          MORTISED       PROXIMITY    SURFACE-MOUNTED               PROXIMITY
                                                                                 SURFACE-MOUNTED
                                                                                     NETWORX             DOOR
                                                                                                                             PROXIMITY
                                                                                                                              READER
                                                                                                                                           SURFACE-MOUNTED
                                                                                                                                               NETWORX            DOOR
                                                                                                                                                                                      PROXIMITY
                                                                                                                                                                                       READER             environment, with Continental Access CA4K®, Lenel
          NETWORX         READER                         DOOR        READER        CONTROL UNIT         CONTACT                              CONTROL UNIT        CONTACT              (OVAL AND
        CONTROL UNIT     (OVAL AND
                       RECTANGULAR)
                                          NETWORX
                                        CONTROL UNIT
                                                        CONTACT
                                                        SENSOR
                                                                    (OVAL AND
                                                                  RECTANGULAR)
                                                                                                        SENSOR
                                                                                                                             (OVAL AND
                                                                                                                           RECTANGULAR)                          SENSOR             RECTANGULAR)          OnGuard® Integrated Access Control & Video
                                                                                                                                                                                                          Security or Software House Connected Partner
                                                                                                                                                                                                          Program® Platforms.‡

                       DOOR CONTACT                           DOOR CONTACT
                          MAGNET                                 MAGNET
                        (TWO TYPES)                            (TWO TYPES)

                                                                                                                                                  DOOR CONTACT
                                                                                         DOOR CONTACT        (fro             (re                    MAGNET
                                                                                            MAGNET                n   t)            a r)                             (out               (in
                                                                                                                                                   (TWO TYPES)           side               s   ide
                                                                                          (TWO TYPES)                                                                           )                   )

     Features:                                                                                          Continental Access® CA4K®, Lenel OnGuard®                                                                • Includes standard lever rose hardware design
      • 5000 Users, 500 Scheduled Events & 40,000                                                       Integrated Access Control & Video Security or                                                            • Mortise version compatible with all 300+
        Event Audit Trail                                                                               Software House Connected Partner Program®                                                                  optional architectural trim / lever or knob
                                                                                                        Platforms                                                                                                  designs
      • Surface-Mount or Mortised-in Electronics and
        Battery Pack                                                                              •     USB Radio Gateway Method or Via Networx                                                                 • Stainless steel latch, 2-3/4” backset
                                                                                                        Gateways (Ethernet, 802.11 or POE)
      • Lock available in Mortise and Cylindrical                                                                                                                                                                • Auto-Reverse lock body tested to 6 million
        versions                                                                                  •     Manual Card Enrollment Option for Quick                                                                    cycles
                                                                                                        Installation
      • Real Time Clock                                                                                                                                                                                          • Lock Body - Self cleaning long life motor
                                                                                                  •     Wireless programming range: up to 100 ft.
      • Uses 4 AA Batteries – 3 year battery life, typ.                                                                                                                                                          • Door closure monitor / electronic deadbolt
        using advanced Power-Saver circuit                                                        •     ANSI / BHMA Grade 1 Certified, UL Listed 3                                                                 monitor
                                                                                                        Hours
      • Operated via access card, keyfob or bluetooth                                                                                                                                                            • Key override standard or high-security
        enabled iLock® App.                                                                       •     Auto-Deadbolt option for automatic keyless
                                                                                                        locking of deadbolt upon exiting, ideal for                                                              • Optional integrated door position indicator
      • DL-Windows Software for programming Or                                                          residential applications                                                                                   switch
        in enterprise networx, in real time, use with

18
You can also read
