AC2100 Wireless
MU-MIMO VDSL/ADSL
Telephony Modem Router
AC2100 W i- Fi a n d Be a mfo rmi ng
for a Comple te Ho me N e t wo r k
VR2100v Super VDSL Up to 350
Mbps VDSL Access
1733 Mbps + 300 Mbps
AC2100 Dual Band Wi-Fi
MU-MIMO for
Higher Efficiency Full Gigabit Ports
USB 3.0 Port
Rapidly Media Sharing
Highlights
Smart and Convenient Telephony Versatile Connectivity
Make landline calls through two phone ports, enabling connection of As a powerful DSL modem router, the Archer VR2100v supports super fast
up to 2 analog phones and 6 DECT VDSL broadband of up to 350 Mbps, as well a variety of other connection
Handsets. With 256MB internal storage, Archer VR2100v can types. The LAN/WAN port accepts connections from Cable Modem or Fiber
records over 300+ minutes of voicemail. Modem, and the USB 3.0 port supports 3G/4G dongle connections for a
perfect main or backup internet connection.
3G/4G Dongle
Back-up 1 DSL Port
Fiber/Cable Modem
6 2
DSL Cable
Up to 6 DECT 300 minutes of voice-Up to 2 analog tele-
handsets mail storage phones Back-up 2 Ethernet Cable
TP-Link AC2100 Wireless MU-MIMO VDSL/ADSL Telephony Modem Router VR2100v
Highlights
Super VDSL Technology MU-MIMO: Efficient Wi-Fi for Every Device
Super VDSL (VDSL2 Profile 35b) is the next generation of VDSL MU-MIMO technology serves up to four devices at once, reducing wait time,
technology with download speeds up to 350 Mbps. The Archer increasing Wi-Fi throughput for every device, and making each stream more
VR2100v is also backward compatible with the VDSL /ADSL standard efficient.
and always provides the highest possible speed.
s 350
bp M bps
0 0M
1
3.5x
Faster
VDSL Super VDSL
Traditional MU-MIMO
Router Router
TP-Link AC2100 Wireless MU-MIMO VDSL/ADSL Telephony Modem Router VR2100v
Highlights
Media Sharing Support TP-Link OneMeshTM
One USB 3.0 port provides data transfers up to 10× faster than a Co-work with TP-Link OneMesh products, to provide a more flexible and
traditional USB 2.0 port. Connect external storage devices and share cost-effective Mesh network with a single Wi-Fi name for seamless
files, photos, and videos at high-speed. whole-home coverage.
Whole-Home
Mesh Wi-Fi
Range Extender Archer VR2100v
USB Sharing
TP-Link AC2100 Wireless MU-MIMO VDSL/ADSL Telephony Modem Router VR2100v
Features
Speed Telephony Reliability
· Ultimate Wireless Speed – Combined wireless speeds of up to · Integrated DECT – Connects up to 6 DECT cordless phones · Simultaneous Dual Band – Separate Wi-Fi bands enable more
300 Mbps (over 2.4GHz) and 1733 Mbps (over 5GHz) devices to connect to your network without a drop in
· FXS Ports – Two FXS ports to connect analog phones, performance
· 802.11 ac – Provides a data transfer rate 3 times faster than answering machines and faxes
802.11n for each stream · Ultimate Range Wi-Fi – 3 dual band detachable antennas ensure
· Integrated Answering Machine – Stores 300 minutes long voice widespread Wi-Fi coverage and a stable connection
messages internally on the modem router or stores the voice
messages externally on the USB storage device
· Numerous Telefony Functions – Internal calls, three-way
conference, call list, speed dial, call blocking and call rules
· Support CAT-iq 2.0 – Provides telephone book, call list and full
compatibility with CAT-iq phones
TP-Link AC2100 Wireless MU-MIMO VDSL/ADSL Telephony Modem Router VR2100v
Features
Ease of Use Security Easy Sharing
· Intuitive Web UI– Ensures quick and simple installation without · Guest Network – Keep your main network secure by creating a · USB Port for Fast Sharing – With a USB port, you can access and
hassle separate network for friends and visitors share your files and media locally. Through the modem router's
FTP / HTTPS server, you can also access your files and media
· DECT Button – Add new cordless phones with the push of DECT · Access Control – Establish a whitelist or blacklist to allow or from network devices remotely
button block certain devices from accessing the internet
· Built-in Media Server – Allows you to play music, watch videos
· Easy On/Off – Turn On/Off power, wireless radio and LEDs · Parental Controls – Manage when and how connected devices and view photos from any device on your network
separately using the Power On/Off, WLAN and LED On/Off can access the internet
buttons
· VPN Server – OpenVPN, PPTP VPN and IPSec VPN are
· Remote Management with TP-Link ID – Manage your home supported, making it easy to set up a secure connection
network from your smartphone or tablet via a single TP-Link ID, between your private network and the internet
no matter where you find yourself
· Encryptions for Secure Network – WPA-PSK/WPA2- PSK
· Hassle-free Management with Tether App – Network encryptions provide active protection against security threats
management is made easy with the TP-Link Tether App,
available on any Android or iOS device
· Online Upgrade – Keeps you informed of the latest firmware and
allows online updating TP-Link AC2100 Wireless MU-MIMO VDSL/ADSL Telephony Modem Router VR2100v
Specifications

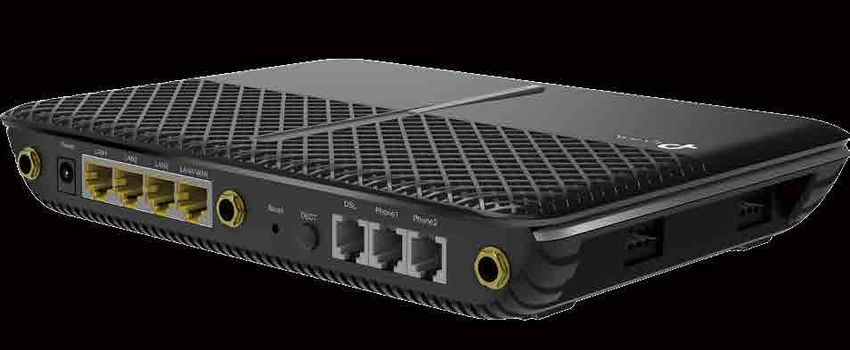

Hardware Telephony

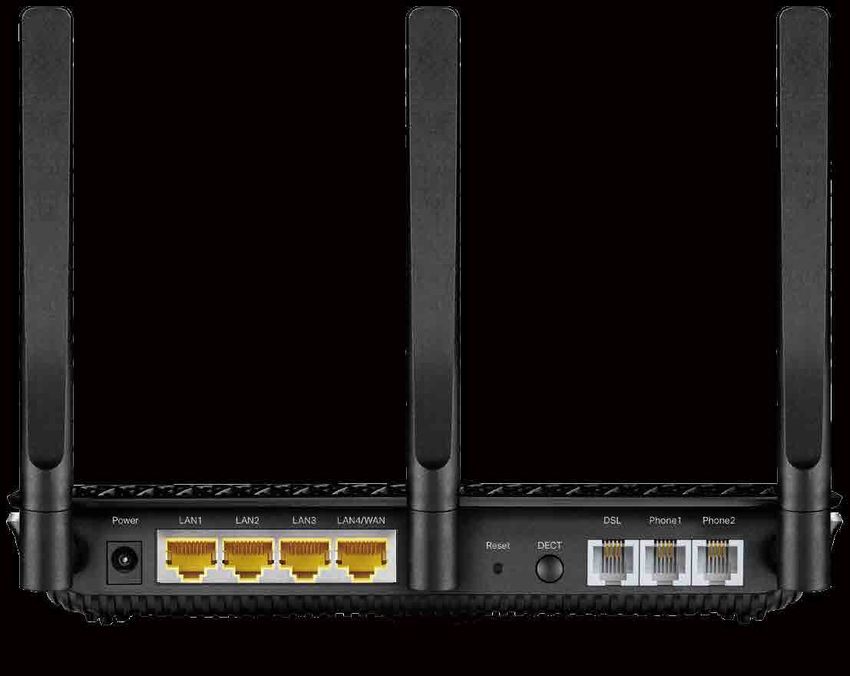

· Ethernet Ports: 1 10/100/1000Mbit/s RJ45 WAN/LAN Port, 3 · VoIP Standards: SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.722,
10/100/1000Mbit/s RJ45 LAN Ports, 3 RJ11 Ports (DSL, Phone1/2), 1 USB 3.0 G.729AB, G.726
Port
· DECT Function: DECT base station for up to 6 cordless phones,
· Button: WPS, Wi-Fi On/Off , Reset, LED, Power On/Off, DECT Compatible with CAT-iq and GAP, Supports paging function
· External Power Supply: 12V/2A · Integrated Answering Machine: Stores 300 minutes long voice messages
internally on the modem router or store voice messages externally on
· Dimensions (L × B × H): 216 × 163.7 × 36.8 mm USB storage devices
· IEEE Standards: IEEE 802.3, IEEE 802.3u, 802.3ab · Advanced Telephone Functions: Call Forwarding, Call Transfer, Call Back
on Busy, Call Blocking, Anonymous Call Blocks, Speed Dial, Emergency
· VDSL2 Standards: ITU-T G.993.2, ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP)
Number
· ADSL2+Standards: ITU-T G.992.5(Annex A/L/M) · tpPhone: Make internet calls via smartphones or tablets
· ADSL2 Standards: ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis)
· ADSL Standards: Full-rate-ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT),
ITU-TG.992.2 (G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.11
· Antenna: 3 external antennas + 1 Internal antenna
Wireless

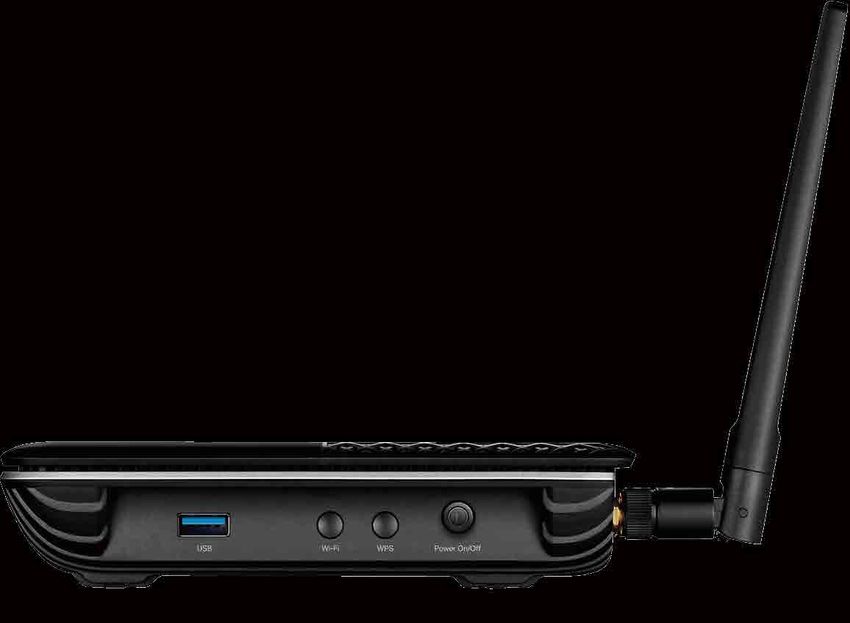

USB Port Wi-Fi WPS Power On/Off
· Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
· Frequency: 2.4GHz and 5GHz
1 LAN/WAN Port DECT
· Signal Rate: 1733Mbps at 5GHz, 300Mbps at 2.4GHz
· Transmit Power:
Specifications
Software Others
· Operation Modes: VDSL/ADSL Modem Router, Wireless Router · Certification: CE, RoHS
· DHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay · System Requirements:
· Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP Microsoft Windows 98SE, NT, 2000, XP, VistaTM or Windows 7, 8, 8.1, 10,
Mac OS, NetWare, UNIX or Linux
· Dynamic DNS: TP-Link / Dyndns / noip
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
· VPN: OpenVPN, PPTP VPN, IPSec VPN Java-enabled browser
· ATM/PPP Protocols: ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over · Environment
Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge Operating Temperature: 0℃~40℃ (32℉ ~104℉)
(RFC1483 Bridge), PVC – Up to 8 PVCs
Operating Humidity: 10%~90% nicht kondensierend
· Security: NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service · Package Contents
(DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
AC2100 Wireless MU-MIMO VDSL/ADSL Telephony Modem Router
· Advanced Functions: IP TV, Parental Controls, Network Address Translation (NAT), Port
RJ11 Cable
Mapping (Grouping), Static Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP
V1/V2/V3 RJ45 Ethernet Cable
· USB Sharing: Support Samba (Storage) / FTP Server / Media Server / 3G/4G Modem / Power Adapter
SFTP Server / Web Storage Quick Installation Guide
· Management: Web Based Configuration (HTTP / HTTPS ), Remote management, Telephony Feature Guide
Command Line Interface, SSL for TR-069, SNMP v1/2c, Firmware Upgrade, Diagnostic
Tools, Free Online Firmware Update
· Guest Network: 2.4GHz guest network, 5GHz guest network
· IPSec VPN: Support up to 10 IPSec VPN tunnels
· Protocols: Support IPv4 and IPv6
For more information, please visit
http://www.tp-link.com/en/products/details/Archer-VR2100v.html
or scan the QR code left
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and
quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building w w w.tp-link.com
materials, obstacles, volume and density of traffic, and client location.
*Use of MU-MIMO requires clients to also support MU-MIMO. TP-Link AC2100 Wireless MU-MIMO VDSL/ADSL Telephony Modem Router VR2100v
