INSIDE ATMOSPHERIC WATER GENERATOR
1. Air Intake 2. Water Extrac on 3. Water Filtra on
Atmospheric Water Next, the air is drawn through a series of condensing coils, Collected water is purified
Generators (AWGs) extract where water vapor is cooled down sufficiently to reach the dew through a mul -stage filtra on
water from humidity in the point. This converts water vapor into droplets. Addi onally, all system, where all the possible
air. Moist ambient air is Tsunami® units use Tsunami Core Technology™ — a special impuri es and pathogens are
pulled into the Tsunami® patented extrac on chamber with a range of features that force removed. At this point water is
unit by fans. A mul -layer water condensa on — resul ng in greater output. Water is then completely pure & safe to drink.
air filter removes dust, extracted and collected into a storage tank. What’s more: unlike tap water,
pollen, and other airborne it’s chemical-free.
par cles. Tsunami Core Technology™ and other proprietary improvements
drama cally enhance the process of water extrac on, allowing
Tsunami® units to achieve great energy efficiency.
Condensingcoils
Tsunami CoreTechnology ™
(extractionchamber)
Multi-layerairfilter Multi-stage
filtrationsystem
Internal
waterstoragetank
© 2022 All Rights Reserved. U.S. Patent Pending
Tsunami® units are designed to produce
supreme quality drinking water,
that is available on demand.
Tsunami-500
Medium-scale atmospheric water generator.
Perfect for homes, offices, schools, hospitals, gymnasiums,
cafés & restaurants, hotels, and other facili es.
Tsunami-500 delivers water right to your own storage reservoir, fridge and/or
integrated ice-maker, on-sink dispenser, or another dispenser of your choice.
Water produc on rate:
204
Physical dimensions: 42" x 42" x 90" / 1 x 1 x 2.3 m (W x L x H)
Power source: Power Grid (Single phase) / Solar system (8000 wa s).
*
OR + + + +
up to 220 people up to 7 people
*This calculation is based on the assumption that on daily basis an average person uses about 0.9 gal (3.5 L)
of drinking water, 10 gal (38 L) of water for showering, 10 gal (38 L) for food preparation and basic cleaning, © 2022 All Rights Reserved.
8 gal (30 L) for flushing the toilet. Numbers will vary depending on local climate conditions & actual water usage. U.S. Patent Pending
Tsunami-500 Poten al Water Yields
These graphs give a representa on of the expected water yields based on temperature and rela ve humidity.
These are merely guidelines as humidity and temperature vary constantly throughout the day.
Gallons per day
t°C/°F & RH 30% 35% 40% 45% 50% 55% 60% 65% 70% 75% 80% 85% 90%
+35°C
63 79 94 111 128 164 198 216 234 253 271 291 309
95°F
+30°C
48 59 71 86 105 135 148 162 176 190 203 221 234
86°F
+25°C
35 44 52 64 72 100 110 121 131 141 151 162 173
77°F
+20°C
26 33 39 47 53 73 81 89 96 103 111 118 127
68°F
Liters per day
t°C/°F & RH 30% 35% 40% 45% 50% 55% 60% 65% 70% 75% 80% 85% 90%
+35°C
238 298 355 422 486 620 748 818 884 957 1024 1101 1170
95°F
+30°C
180 224 267 326 398 511 562 615 668 720 768 837 884
86°F
+25°C
134 167 198 242 271 378 417 457 495 533 573 613 655
77°F
+20°C
100 124 146 178 200 278 307 335 362 391 420 447 482
68°F
Tsunami-500 Specifications
Potential: 204 US Gal / 773 L PER DAY*
Water Production
*Estimated at 85°F / 29.4°C and relative humidity (RH) of 80%.
As ambient temperature and RH change, so does water production.
Internal Water Storage Capacity 30 US Gallons
Air Filtration High-efficiency multilayer Poly-fiber — washable & reusable
Water Filtration Multi stage: polypropylene, charcoal, Ultra Violet light
Refrigeration System
Compressor Scroll
Rated Voltage AC 230 Volts ±10%
Frequency Hz 50/60 Hz
Phase 1 PH
Amperage Range @ rated voltage Run current range: 20 to 25 Amps (dependent on ambient temperature)
Min Breaker: 50 Amps
Weights and Measurements
Physical dimensions, W x L x H 42" x 42" x 90" (1 x 1 x 2.3 m)
Weight (when empty) 850 lb (385 kg)
© 2022 All Rights Reserved. Water produc on rates and other characteris cs are subject to change
U.S. Patent Pending as we make improvements in the design.
Tsunami-750
Medium-scale atmospheric water generator. This mul -purpose unit is as
efficient as it gets! The unit works off of a 3-phase power source.
Perfect for homes, offices, schools, hospitals, gymnasiums,
cafés & restaurants, hotels, and other facili es.
Tsunami-750 delivers water right to your own storage reservoir, fridge and/or
integrated ice-maker, on-sink dispenser, or another dispenser of your choice.
Water produc on rate:
329
Physical dimensions: 42" x 42" x 102" / 1 x 1 x 2.6 m (W x L x H)
Power source: Power Grid (3-phase) / Solar system.
*
OR + + + +
up to 355 people up to 11 people
*This calculation is based on the assumption that on daily basis an average person uses about 0.9 gal (3.5 L)
of drinking water, 10 gal (38 L) of water for showering, 10 gal (38 L) for food preparation and basic cleaning, © 2022 All Rights Reserved.
8 gal (30 L) for flushing the toilet. Numbers will vary depending on local climate conditions & actual water usage. U.S. Patent Pending
Tsunami-750 Poten al Water Yields
These graphs give a representa on of the expected water yields based on temperature and rela ve humidity.
These are merely guidelines as humidity and temperature vary constantly throughout the day.
Gallons per day
t°C/°F & RH 30% 35% 40% 45% 50% 55% 60% 65% 70% 75% 80% 85% 90%
+35°C
100 126 150 177 204 262 316 345 374 404 433 465 494
95°F
+30°C
76 94 113 137 168 216 236 259 281 304 324 353 374
86°F
+25°C
56 70 83 102 115 160 176 193 209 225 241 259 276
77°F
+20°C
41 52 62 75 84 116 129 142 153 164 177 188 203
68°F
Liters per day
t°C/°F & RH 30% 35% 40% 45% 50% 55% 60% 65% 70% 75% 80% 85% 90%
+35°C
380 476 568 675 777 992 1196 1308 1414 1531 1638 1761 1872
95°F
+30°C
288 358 427 521 636 817 899 984 1068 1152 1228 1339 1414
86°F
+25°C
214 267 316 387 433 604 667 731 792 852 916 980 1048
77°F
+20°C
160 198 233 284 320 444 491 536 579 625 672 715 771
68°F
Tsunami-750 Specifications
Potential: 329 US Gal / 1242 L PER DAY*
Water Production
*Estimated at 85°F / 29.4°C and relative humidity (RH) of 80%.
As ambient temperature and RH change, so does water production.
Internal Water Storage Capacity No onboard storage
Air Filtration High-efficiency multilayer Poly-fiber — washable & reusable
Water Filtration Multi stage (custom-designed for specific installation)
Refrigeration System
Compressor Scroll
Rated Voltage AC 230 Volts ±10%
Frequency Hz 50/60 Hz
Phase 3 PH
Amperage Range @ rated voltage Run current range: 35 to 50 Amps (dependent on ambient temperature)
Min Breaker: 60 Amps
Weights and Measurements
Physical dimensions, W x L x H 42" x 42" x 102" (1 x 1 x 2.6 m)
Weight (when empty) 1100 lb (500 kg)
© 2022 All Rights Reserved. Water produc on rates and other characteris cs are subject to change
U.S. Patent Pending as we make improvements in the design.
Renewable & Eco-friendly Ultra-pure & Delicious Water Scalable
Atmospheric water genera on The mul -stage filtra on process The system can be scaled
taps into nature's water cycle, produces supreme quality to meet the needs
mimicking condi ons drinking water. of any facility.
inside a cloud.
Plug & Use Self-contained & 1-year Standard 20+ Years Lifespan
Weatherproof Warranty
No assembly is required. Only high-quality parts
All single container units Custom-designed shelter Condi ons apply. and materials are used.
are 100% turnkey protects from exposure An extended warranty is The units are built to last
and delivered ready-for-use. to ambient condi ons available upon request. and require extremely
and unauthorized access. low maintenance.Tsunami-2000
Large-scale atmospheric water generator, yet compact and highly
efficient. Easy deployment — non-complex opera on.
Suitable for con nual or backup water supply for homes and
various other facili es; disaster relief projects; farms & ranches;
marine environment: military ships, cruise ships; construc on
sites; remote armed forces camps; remote oil, gas and mineral
explora on camps; water bo ling plants, etc.
gal
( )
Physical dimensions: 6' x 9' x 90" or 1.8 x 2.8 x 2.3 m (W x L x H)
Power source: Power Grid (1- or 3-phase, 200-230V AC / 380V AC /
400-480V AC) / 30KW generator with insulated enclosure,
fueled by diesel.
*
OR + + + +
up to 1029 people up to 33 people
*This calculation is based on the assumption that on daily basis an average person uses about 0.9 gal (3.5 L)
of drinking water, 10 gal (38 L) of water for showering, 10 gal (38 L) for food preparation and basic cleaning, © 2022 All Rights Reserved.
8 gal (30 L) for flushing the toilet. Numbers will vary depending on local climate conditions & actual water usage. U.S. Patent PendingTsunami-2000 Poten al Water Yields
This graph gives a representa on of the expected water yields based on temperature and rela ve humidity. These
are merely guidelines as humidity and temperature vary constantly throughout the day.
Produc on rate of the unit shown in this brochure is based on the yield at 86°F / 30°C and 85% rela ve humidity.
Gallons per day
t°C/°F & RH 30% 35% 40% 45% 50% 55% 60% 65% 70% 75% 80% 85%
+30°C
206 257 306 374 420 585 646 705 767 827 888 960
86°F
+25°C
154 192 227 277 312 434 479 523 568 612 657 703
77°F
+20°C
114 142 168 204 230 320 352 384 416 449 482 514
68°F
Liters per day
t°C/°F & RH 30% 35% 40% 45% 50% 55% 60% 65% 70% 75% 80% 85%
+30°C
782 974 1156 1414 1592 2216 2444 2672 2902 3130 3360 3634
86°F
+25°C
584 726 860 1048 1180 1644 1812 1980 2148 2318 2488 2660
77°F
+20°C
434 536 634 772 868 1210 1334 1454 1576 1700 1824 1946
68°FTsunami-2000 Specifications
Average: 20 US Gal/Hr (75 L/Hr)*
Water Production
Maximum: 40+ US Gal (150+ L) pe r hour potential in higher ambient
temperature and RH.
*Estimated at 70°F (21°C) and a relative humidity (RH) of 65%.
As ambient temperature and RH increase, so doe s water production.
Internal Water Storage Capacity 80 US Gal (300 L)
Air Filtration High efficiency multi layer Poly-fiber – washable & reusable
Water Filtration Multi stage: polypropylene, charcoal, Ultra Violet light
Refrigeration System
Refrigerant R410 (Standard)
(various options available for special requirements)
Compressors (4) x 5 ton, Scroll
Optional Power Generator
Rated Voltage AC 230/(380) Volts ±10%
Engine Driven Perkins Liquid Cooled
Frequency Hz 50/60 Hz (or similar)
Phase 1 PH (3 PH optional) Fuel Type Diesel
Amperage Range @ rated voltage Startup current: 125 Amps (for 2-3 seconds) KW Output 30
Run current range: 60 to 100 Amps (depe ndent on ambient temperature) Phase 1 PH or 3 PH
Voltage AC 380 VAC
Min Breaker: (4) @ 40 Amp (2-pole or 3-pole — depending on 1- or 3-phase)
Frequency Hz 50/60Hz
Weights and Measurements
Fuel Consumption Average 2.5 US Gal/Hr
Physical dimensions, W x L x H 6' x 9' x 90" (1.8 x 2.8 x 2.3 m) (Based on 75% Load) (9.3 L/Hr)
Weight (when empty) 6200 lb (2800 kg) Fuel Tank Capacity 200 US Gal (740 L)
© 2022 All Rights Reserved. Water produc on rates and other characteris cs are subject to change
U.S. Patent Pending as we make improvements in the design.Renewable & Eco-friendly Ultra-pure & Delicious Water Plug & Use
Atmospheric water genera on The mul -stage filtra on process No assembly is required.
taps into nature's water cycle, produces supreme quality All single container units
mimicking condi ons drinking water. are 100% turnkey
inside a cloud. and delivered ready-for-use.
Self-contained & Transportable 1-year Standard 20+ Years Lifespan
Weatherproof Warranty
Moved around with a forkli Only high-quality
Custom-designed shelter or crane truck. Can be towed Condi ons apply. parts and materials used.
protects from exposure (with op onal plug axles An extended warranty The units are built to last
to ambient condi ons & tow hitch) or airli ed, is available upon request. and require extremely
and unauthorized access. and set at any loca on. low maintenance.There are mul ple applica ons to atmospheric water genera on technology. We u lized it to create other products...

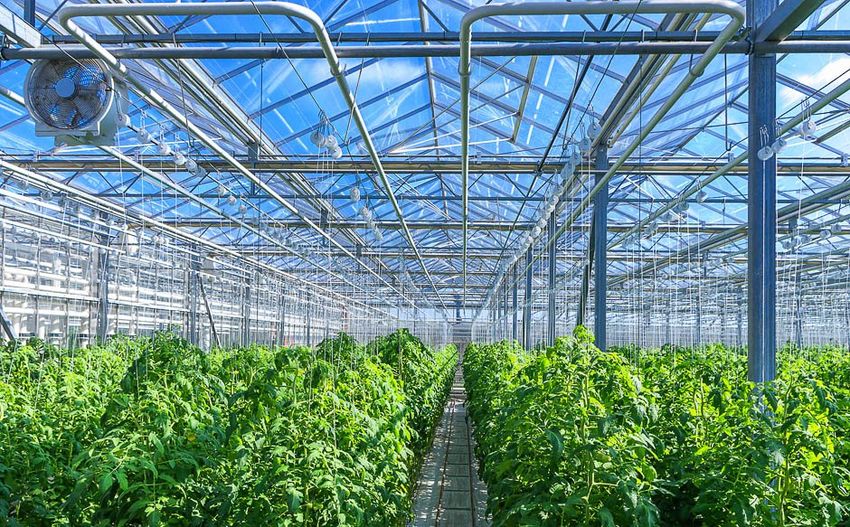

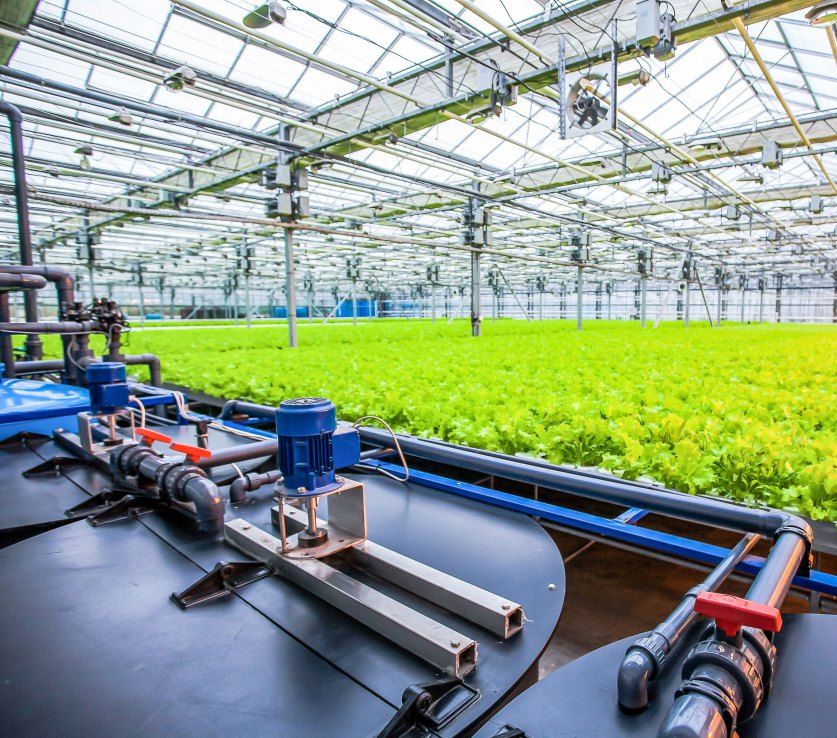

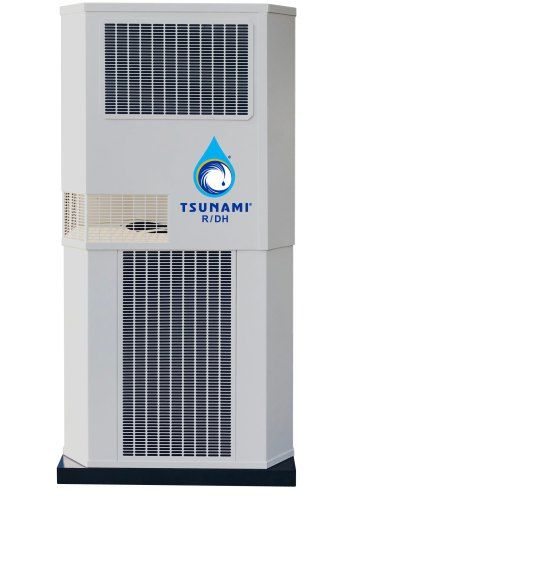

Tsunami-R/DH – greenhouse climate control
Tsunami-R/DH — regenera ve dehumidifica on unit — is designed to
control the temperature inside a greenhouse, and at the same me
collect excessive humidity which is condensed into reusable water.
Water produc on rate:
gal
( )
Use this unit for mul -faceted greenhouse climate control.
Reduce excessive humidity that can lead to fungus growth and cell
damage of plants.
Add hot or cold air (both airstreams are a by-product of water
extrac on), thus increasing or decreasing temperature, as needed.
Clean greenhouse air in the process.

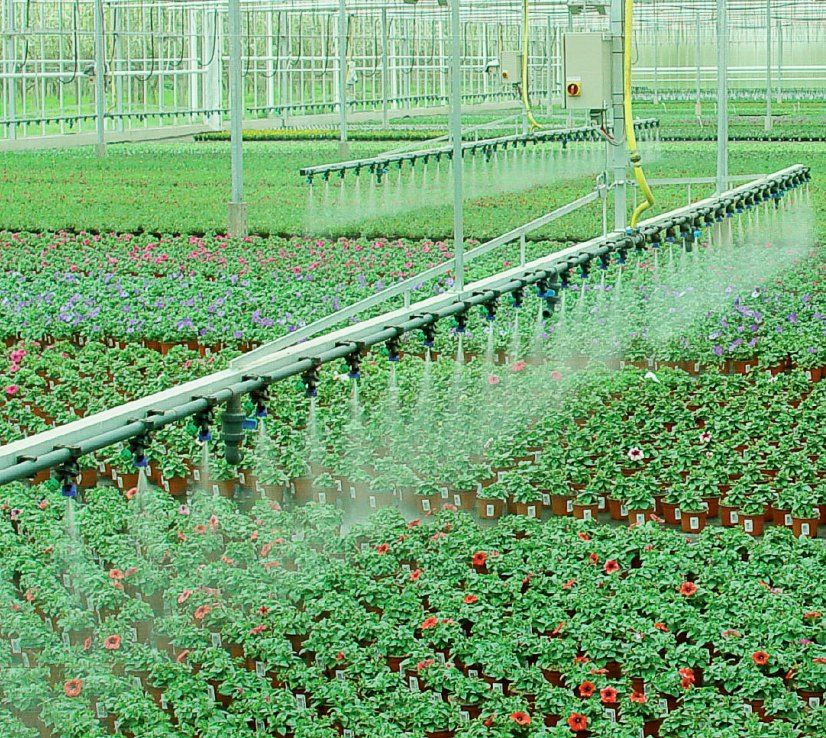

Reu lize collected water for irriga on.
Physical dimensions: 6' x 9' x 90" / 1.8 x 2.8 x 2.3 m (W x L x H)
Power source: Power Grid / Generator / Solar system.
© 2022 All Rights Reserved.
U.S. Patent PendingUnique Technology Easy Integra on Scalable Plug & Use Transportable 1-year Standard 20+ Years Lifespan
Warranty
Greenhouse This unit can be The system can No assembly Moved around with Only high-quality
climate control integrated into be scaled to meet is required. All single a forkli or crane Condi ons apply. parts and materials
combined with exis ng the needs container units are truck. Can be towed An extended warranty used. The unit is
atmospheric water greenhouse control of any on-farm 100% turnkey (with op onal plug is available built to last &
genera on. system to make it opera on. and delivered axles & tow hitch) upon request. requires extremely
more efficient. ready-for-use. or airli ed, and set low maintenance.
at any loca on.MADE IN THE USA
Tsunami Products, Inc. is proud to be an American manufacturing
company. We strive to offer innova ve and quality products.
Address: P.O. Box 566
1711 N. Madson St.
Liberty Lake, WA. 99019, USA
Phone: +1 800 680 4039
Email: info@tsunamiproducts.com
Web-site: www.tsunamiproducts.com
© 2022 All Rights Reserved. U.S. Patent Pending.
The contents of this brochure are subject to change without prior no ce.You can also read
