Standard Structures
Vol. IV
We Build Lean
Index
|Índice | Indice | Índice | Index
Volume 4
Part Straight Workstation
Quality Control Workstation
Quality Workstation
Box Tilt Rolls Rack
Box Straight Plate Wagon System
Tool Cart
Box Tilt Plate Rack
Panel Cart
Part Straight Packaging Workstation
E-Commerce Carts
Chair
Box Base Wagon
Container Base Wagon
Base Multishelve Wagon
Maxi Pallet
Trolley Tall Ramp Wagon
Box Straight Plate Wagon Plus
Quality Label for Structure Specifications
Revision nº.020 19-07-2022
| Revisão | Rivisione | Revisión | Révision |
About us
4Lean is a company dedicated to the creation and implementation of Lean
solutions. We have a vast knowledge in Lean, we are able to implement a full supply
chain with our vast portfolio that is developed in our Lean Lab.
All organization practice Lean everyday. We have regular training in Lean and we
participate in Kaizen Events to understand customer needs.
We believe our gemba is at customer site, we are a natural extension of your
organization.
4Lean é uma empresa dedicada à criação e implementação de soluções Lean. Temos um vasto conhecimento em Lean,
somos capazes de implementar uma cadeia de fornecimento completa com o nosso vasto portfólio que é desenvolvido no
nosso Laboratório Lean.
Todos na organização praticam Lean diariamente. Temos uma formação regular em Lean e participamos em eventos
Kaizen para entender as necessidades dos clientes.
Acreditamos que o nosso gemba está à vista do cliente, somos uma extensão natural da sua organização.
4Lean è una società dedicata alla creazione e implementazione di soluzioni di Lean. Abbiamo una vasta conoscenza in
Lean e siamo in grado di implementare una catena di approvvigionamento grazie alla nostra vasta gamma sviluppata nel nostro
Lean Lab.
Tutta la nostra organizzazione, pratica Lean tutti giorni . Abbiamo formazione regolare in Lean e partecipiamo a cantieri
Kaizen, eventi per capire al meglio i nostri clienti.
Crediamo che il nostro gemba è presso il cliente, siamo una naturale estensione della vostra organizzazione.
4Lean es una empresa dedicada a la creación e implementación de soluciones de Lean. Contamos con un amplio
conocimiento en Lean, somos capaces de implementar una cadena de suministro completa con nuestro amplio catalogo que se
desarrolla en nuestro Laboratorio de Lean.
Todos en la organización practicam Lean diariamente. Tenemos una formación regular en Lean y participamos en Kaizen
Eventos para entender las necesidades del cliente.
Creemos que nuestra gemba está en el sitio del cliente, somos una extensión natural de su organización.
4Lean est une société dédiée à la création et la mise en œuvre de solutions Lean. Nous avons une vaste connaissance
dans Lean, nous sommes capable de construire une chaîne d'approvisionnement complète avec notre vaste portefeuille qui est
développée dans notre Lean Lab.
Tout l’organisation pratique Lean quotidienne. Nous avons régulièrement des formations Lean, nous participons à chantier
Kaizen pour comprendre les besoins des clients.
Nous croyons que notre gemba est le site du client, nous sommes un prolongement naturel de votre organisation
We Build Lean !

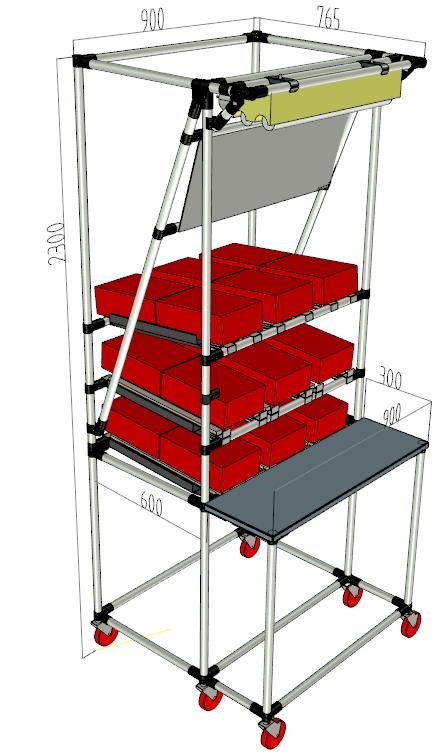

Part Straight Workstation Flow
Max Load per Level 1mm pipe: 150kg
Max Load per Level 2mm pipe:270kg
Box Dimensions (mm)
Width (Front): 200
Box Depth: 300
Height: 100
Part Straight Workstation Border of the line Part Straight Workstation
Boxes not included
Structure Components
Componentes da estrutura / Componenti della struttura / Componenti della struttura/ Composants de structure
Reference Type Pipe Dimensions Pipe Colour Description Components
PW01BL** Kit JR-35BM JR-35AM RO4-105RT2
B
Plain
C Workstation
PW02BL** Assembled
Border of the
line C-354BE
G
Bulk
PW03BL** LED-A120
Material 1 - ᴓ 28*1.0 Y
2 - ᴓ 28*2.0
PW01W** Kit A
M Plain
CHGALV15
PW02W** Assembled
Workstation
I ***
Bulk
PW03W** AL****
Material
****Aluminum 2mm pipe ***Stainless Steel 1mm pipe
Reference Pipe Dimensions Pipe Colour Alumínio/ Alluminio / Aço inoxidável / Acciaio inossidabile /
Aluminio / Aluminium Acero inoxidable / Acier inoxydable
Ex.: PW01BL2B
4

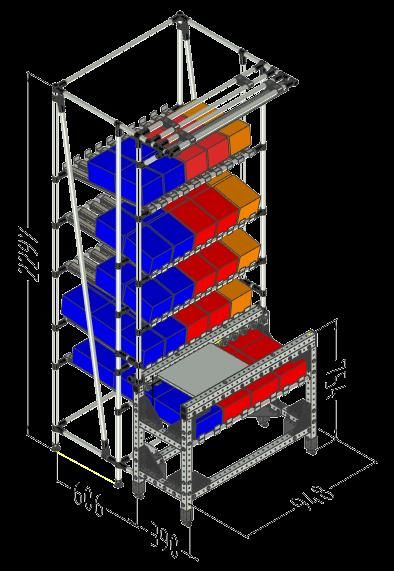

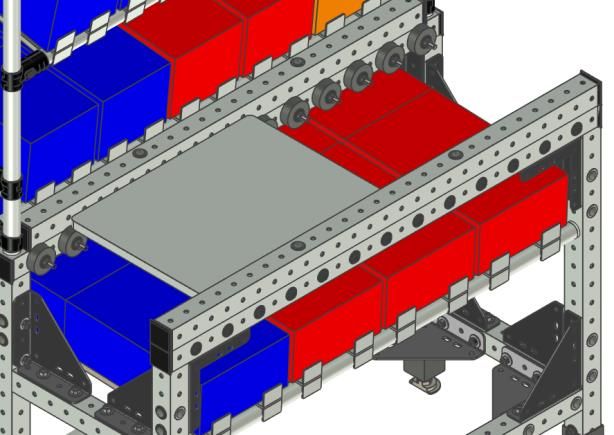

Part Straight Workstation Border of the Line Flow
Max Load per Level 1mm pipe: 300kg
Max Load per Level 2mm pipe: 360kg
Box Dimensions (mm)
Width (Front): 200
Box Depth: 300
Height: 100
Part Straight Workstation Border of the line Boxes not included
Structure Components
Componentes da estrutura / Componenti della struttura / Componenti della struttura/ Composants de structure
Reference Type Pipe Dimensions Pipe Colour Description Components
PE-C3M
T-2810C** C-354BE R-35B
PWBAL01 Kit
Plain LED-A060
Workstation
PWBAL02 Assembled 45mm x 45mm ALUMINUM Border of the JR-35DM
JR-35AM
line
CHGALV15
Bulk
PWBAL03
Material*
*LED-A060 not included **Available in other colors
Não incluido/ Non incluso / Disponível em outra cores /
No incluido/ Non inclus Disponible en otros colores /
Disponibile in altri colori /
Disponible dans d'autres couleurs
5

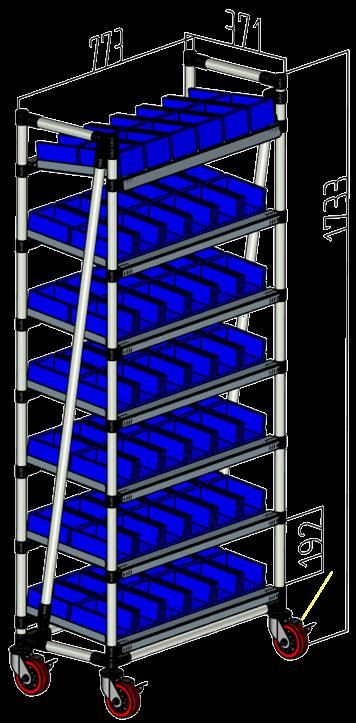

Box-Tilt-Shelve-Multi-Tall-Rolls-Front-Rack Flow
Max Load per Level 1mm pipe: 120kg
Max Load per Level 2mm pipe: 200kg
Box Dimensions (mm)
Width (Front): 150
Box Depth: 200
Height: 120
Lateral Movement
JA-1RR
Box-Tilt-Shelve-Multi-Base-Rolls-Front-Rack Boxes not included
Structure Components
Componentes da estrutura / Componenti della struttura / Componenti della struttura/ Composants de structure
Reference Type Pipe Dimensions Description Components
PE-C2M
BRRA01 Kit T-2810C** R-35B
Box-Tilt- LED-A060
JR-35AM JR-35BM
Shelve-Multi-
BRRA02 Assembled 40mm x 40mm
Tall-Rolls-
Front-Rack
RL-48A
JR-35HM
Bulk
BRRA03
Material*
*LED-A060 not included **Available in other colors
Não incluido/ Non incluso / Disponível em outra cores /
No incluido/ Non inclus Disponible en otros colores /
Disponibile in altri colori /
Disponible dans d'autres couleurs
6

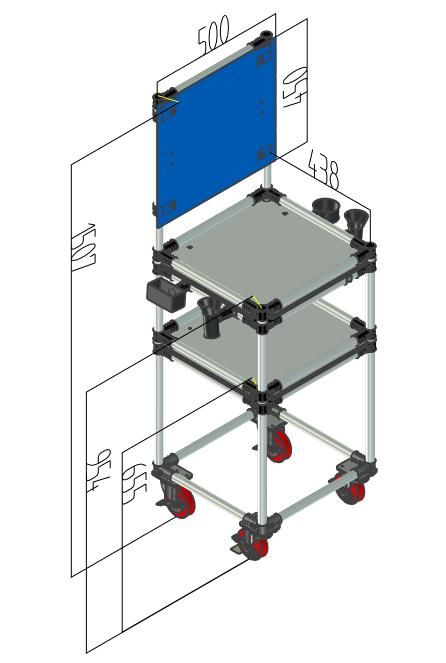

Quality Control Workstation TQM
Max Load per Level 1mm pipe: 400kg
Max Load per Level 2mm pipe: 800kg
Structure Components
Componentes da estrutura / Componenti della struttura / Componenti della struttura/ Composants de structure
Reference Type Pipe Dimensions Pipe Colour Description Components
B MDFLA16B
QCW01** Kit
C
G
B-QM1
1 - ᴓ 28*1.0 Y Quality Control
QCW02** Assembled 2 - ᴓ 28*2.0
Workstation
A
M PE-C2M
QCW03** Bulk Material I ***
AL****
****Aluminum 2mm pipe ***Stainless Steel 1mm pipe
Reference Pipe Dimensions Pipe Colour Alumínio/ Alluminio / Aço inoxidável / Acciaio inossidabile /
Aluminio / Aluminium Acero inoxidable / Acier inoxydable
Ex.: QCW012B
7

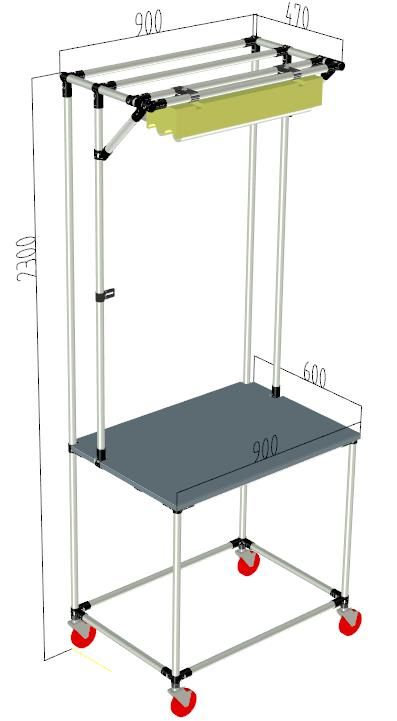

Quality Workstation TQM
Max Load per Level pipe: 250kg
Structure Components
Componentes da estrutura / Componenti della struttura / Componenti della struttura/ Composants de structure
Reference Type Pipe Dimensions Pipe Colour Description Components
QWAL01 Kit Bended metal PE-C3M
sheet
45mm x 45mm B-QM1
QWAL02 Assembled Quality Workstation
AL
QWAL03 Bulk Material* LED-A060
*LED-A060 not included
Não incluido/ Non incluso /
No incluido/ Non inclus
8

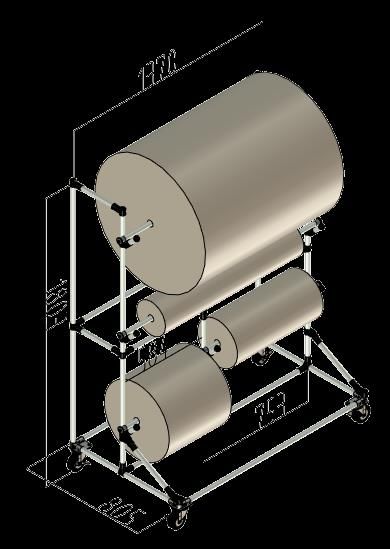

Box Tilt Rolls Rack Flow
Max Load per Level 1mm pipe: 186kg
Max Load per Level 2mm pipe: 339kg
Box Dimensions (mm)
Width (Front): 200
Box Depth: 300
Height: 200
Box Tilt Rolls Rack Box Tilt Rolls Cart
Boxes not included
Structure Components
Componentes da estrutura / Componenti della struttura / Componenti della struttura/ Composants de structure
Reference Type Pipe Dimensions Pipe Colour Description Components
BTR01R** Kit
B
PE-C2M C-354BE R-35B
C Box Tilt
BTR02R** Assembled
Rolls Rack
G
Bulk
BTR03R** 1 - ᴓ 28*1.0
Material
2 - ᴓ 28*2.0
Y
BTR01C** Kit A JR-35AM JR-35BM
M Box Tilt RO4-105RT2
BTR02C** Assembled
Rolls Cart
I ***
Bulk
BTR03C**
Material AL***
****Aluminum 2mm pipe ***Stainless Steel 1mm pipe
Alumínio/ Alluminio / Aço inoxidável / Acciaio inossidabile /
Aluminio / Aluminium Acero inoxidable / Acier inoxydable
Reference Pipe Dimensions Pipe Colour
Ex.: BTR01R2B
9
Supermarket Flow
Box Dimensions (mm) Max Load per Level 1mm pipe: 130kg
Width (Front): 200 Max Load per Level 2mm pipe: 230kg
Box Depth: 300
Height: 200
Box Tilt Rolls Rack - BTRRAL Box Tilt Rolls Cart - BTRCAL
Boxes not included
Structure Components
Componentes da estrutura / Componenti della struttura / Componenti della struttura/ Composants de structure
Reference Type Pipe Dimensions Pipe Colour Description Components
BTRRAL01 Kit
PE-C3M
T-2810C* C-354BE R-35B
Box Tilt
BTRRAL02 Assembled
Rolls Rack
Bulk
BTRRAL03
Material 45mm x 45mm ALUMINUM
JR-35AM JR-35DM
BTRCAL01 Kit
RO4-105RT1
Box Tilt
BTRCAL02 Assembled
Rolls Cart
Bulk
BTRCAL03
Material
*Available in other colors
Disponível em outra cores /
Disponible en otros colores /
Disponibile in altri colori /
Disponible dans d'autres couleurs

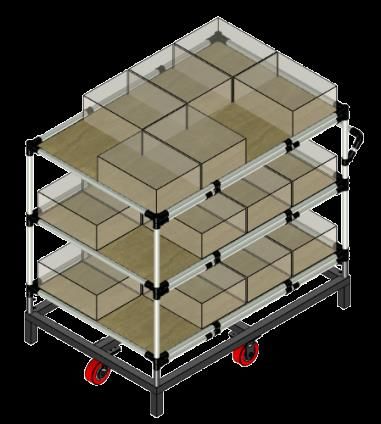

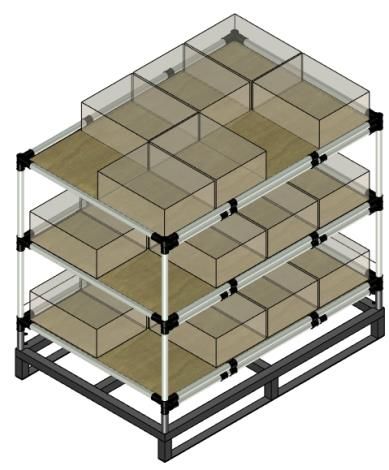

10Box Straight Plate Wagon System Flow
Max Load per Level 1mm pipe: 130kg Max Load per Level 1mm pipe: 44kg
Max Load 1mm pipe: 315kg Max Load 2mm pipe: 176kg
Max Load per Level 2mm pipe: 250kg Max Load per Level 2mm pipe: 78g
Max Load 2mm pipe: 315kg Max Load 2mm pipe: 312g
Box Dimensions (mm) Box Dimensions (mm)
1416
1416
Width (Front): 400 Width (Front): 600
Box Depth: 300 Box Depth: 400
Height: 150 Height: 234
Boxes not included
Structure Components
Componentes da estrutura / Componenti della struttura / Componenti della struttura/ Composants de structure
Pipe
Reference Type Pipe Colour Description Components
Dimensions
BSPW01S* Kit
BSPW02S* Assembled RO4-105RT1 RO4-105F1
MDF16
Raw
BSPW03S*
Material 800x600
BSPW01A* Kit
B RO4-200AF RO4-200AR
BSPW02A* Assembled
C
Raw
BSPW03A*
Material 1 - ᴓ 28*1.0 G C-29TCC3
2 - ᴓ 28*2.0
BSPW04S* Kit Y
A RO4-105RT1 RO4-105F1
BSPW05S* Assembled
M
Raw
BSPW06S* AB-AM
Material I ***
1200x800
BSPW04A* Kit AL****
RO4-200AF RO4-200AR
BSPW05A* Assembled
Raw
BSPW06A*
Material
***Stainless Steel 1mm pipe ****Aluminum 2mm pipe Maximum use 1 hour continuously ****
Aço inoxidável / Acciaio inossidabile / Acero inoxidable / Acier inoxydable Alumínio/ Alluminio / Aluminio / Aluminium Uso máximo 1 hora continuamente / Uso máximo 1 hora
continuamente / Utilizzo massimo 1 ora in modo continuato /
Utilisation maximale 1 heure en continu
Reference Pipe Dimensions Pipe Colour
****Use over one hour choose RO4-200
Ex.: BSPC01S2B Utilização superior a 1 hora optar por RO4-200/ Utilizzare oltre 1'ora optare per RO4-200 /
Uso superior a 1hora optar por RO4-200 / Utilisez plus d'une heure optez pour RO4-200

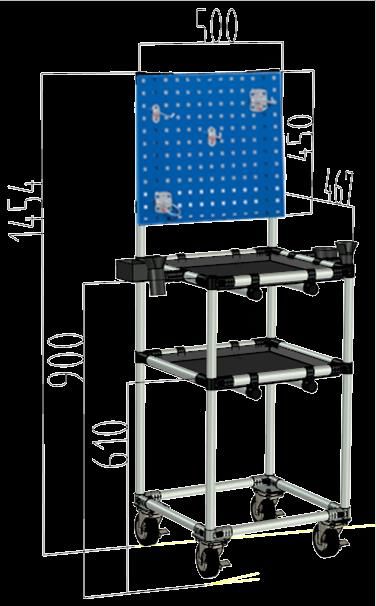

11Tool Cart
Max Load Structure 1mm pipe: 315kg
Max Load Structure 2mm pipe: 315kg
Structure Components
Componentes da estrutura / Componenti della struttura / Componenti della struttura/ Composants de structure
Reference Type Pipe Dimensions Pipe Colour Components
B
TC01* Kit
C TO-01R5015 C-TH07L C-TH11 RO4-105T1
G
1 - ᴓ 28*1.0 Y
TC02* Assembled 2 - ᴓ 28*2.0
A
C-TH05 C-TH07LE CHGALV15
TOS-003
M
CHGALV2
TC03* Raw Material
I ***
AL****
****Aluminum 2mm pipe ***Stainless Steel 1mm pipe
Alumínio/ Alluminio / Aço inoxidável / Acciaio inossidabile /
Aluminio / Aluminium Acero inoxidable / Acier inoxydable
Reference Pipe Dimensions Pipe Colour
Ex.: TC011B
12Tool Cart
Max Load Structure 1mm pipe: 315kg
Max Load Structure 2mm pipe: 315kg
Structure Components
Componentes da estrutura / Componenti della struttura / Componenti della struttura/ Composants de structure
Reference Type Pipe Dimensions Pipe Colour Components
B
TCB01* Kit
C TO-01R5015 C-TH07L C-TH11 RO4-105T1
G
1 - ᴓ 28*1.0 Y
TCB02* Assembled 2 - ᴓ 28*2.0
A
TOS-003 C-TH05 C-TH07LE HDF10MB
M
CHGALV2
TCB03* Raw Material
I ***
AL****
****Aluminum 2mm pipe ***Stainless Steel 1mm pipe
Alumínio/ Alluminio / Aço inoxidável / Acciaio inossidabile /
Aluminio / Aluminium Acero inoxidable / Acier inoxydable
Reference Pipe Dimensions Pipe Colour
Ex.: TCB011B
13Support Table
Max Load per Level : 100kg
Single Level Medium Support Table Multi Level Tall Support Table
Structure Components
Componentes da estrutura / Componenti della struttura / Componenti della struttura/ Composants de structure
Reference Type Dimensions Height Pipe Dimensions Pipe Colour Description Components
STSM01* Kit
Single Level Medium
750 PE-C2M
STSM02* Assembled Support Table
B
Raw
STSM03*
Material C
STM01* Kit G
1 - ᴓ 28*1.0 Y
STM02* Assembled 500x700 Multi Level Tall Support
2 - ᴓ 28*2.0
A Table
Raw HDF10MB
STM03*
Material M
1000
STST01* Kit I ***
AL**** Single Level Tall Support
STST02* Assembled Table
Raw
STST03*
Material
***Stainless Steel 1mm pipe
Aço inoxidável / Acciaio inossidabile / Acero inoxidable / Acier inoxydable
****Aluminum 2mm pipe
Alumínio/ Alluminio / Aluminio / Aluminium
Reference Pipe Dimensions Pipe Colour
Ex.: STSM012B
14Box Tilt Plate Rack Flow
Max Load per Level 1mm pipe: 45kg
Max Load : 315kg
Box Dimensions (mm)
Width (Front): 105
Box Depth: 150
Height: 75
Box Tilt Plate Rack Box Tilt Plate Cart Boxes not included
Structure Components
Componentes da estrutura / Componenti della struttura / Componenti della struttura/ Composants de structure
Reference Type Pipe Dimensions Pipe Colour Description Components
BTPR01* Kit B PE-C2M
C Box Tilt
BTPR02* Assembled CHGALV15
Rolls Rack
G
Bulk
BTPR03*
Material 1 - ᴓ 28*1.0 Y
BTPC01* Kit A
RO4-105RT2
M Box Tilt
BTPC02* Assembled
Rolls Cart
I ***
Bulk
BTPC03* AL****
Material
****Aluminum 2mm pipe ***Stainless Steel 1mm pipe
Alumínio/ Alluminio / Aço inoxidável / Acciaio inossidabile /
Aluminio / Aluminium Acero inoxidable / Acier inoxydable
Reference Pipe Colour
Ex.: BTPR01B
15Box Tilt Plate Rack Aluminum Flow
Max Load per level: 10kg
Max Load : 70kg
Box Dimensions (mm)
Width (Front): 105
Box Depth: 150
Height: 75
Box Tilt Plate Rack Boxes not included
Structure Components
Componentes da estrutura / Componenti della struttura / Componenti della struttura/ Composants de structure
Reference Type Pipe Dimensions Pipe Colour Description Components
CHGALV15
BTPAL01 Assembled
PE-C3M
ALUMINUM Box Tilt
BTPAL02 Kit 45mm x 45mm
Rolls Rack
T-2810C*
Bulk
BTPAL03
Material
*Available in other colors
Disponível em outra cores /
Disponible en otros colores /
Disponibile in altri colori /
Disponible dans d'autres couleurs
16Panel Cart Flow
P-C01 P-C02
Panel Cart
Reference Type Pipe Dimensions Pipe Colour Description Components
B Height: 900-
P-C01* 800x800 2400 166
C
Width: < 800
G
ᴓ 28* Y
A
M
Height: > 1200
P-C02* 1200x800 106
I ** Width: < 800
AL***
Reference Colour
**Stainless Steel ***Aluminum
Aço inoxidável / Acciaio inossidabile / Alumínio/ Alluminio /Aluminio / Aluminium
Ex.: P-C01B Acero inoxidable / Acier inoxydable
17Part Straight Packaging Workstation Flow
PSP-W01 PSP-W02 PSP-W03
Part Straight Packaging Workstation
Reference Pipe Dimension Pipe Colour
PSP-W01*
B
C
G
PSP-W02* ᴓ 28* Y
A
M
I **
AL***
PSP-W03*
Reference Colour
**Stainless Steel ***Aluminum
Aço inoxidável / Acciaio inossidabile / Alumínio/ Alluminio /Aluminio / Aluminium
Ex.: PSP-W01B Acero inoxidable / Acier inoxydable
18Adjustable Packaging Workstation Flow
APWL-TBL3
Adjustable Packaging Workstation
Lifting System
Type of Lifting Lifting System
Reference Compressed Lifting System Type of pipe
System Range (mm)
length (mm)
L-TBL1 215 440
APW
L-TBL2 290 525
T-9045AL2
L-TBL3 400 640
Reference Type of Lifting System
Ex.: APWL-TBL1
19E-Commerce Carts Flow
E-CC01 E-CC02 E-CC03
E-Commerce Carts
Reference Pipe Dimension Pipe Colour
B
E-CC01* C
G
Y
E-CC02* ᴓ 28*
A
M
E-CC03* I **
AL***
Reference Colour
**Stainless Steel ***Aluminum
Aço inoxidável / Acciaio inossidabile / Alumínio/ Alluminio /Aluminio / Aluminium
Ex.: E-CC01B Acero inoxidable / Acier inoxydable
20Chair
Chair with structure
Cadeira com estrutura / Sedia com struttura / Silla com estructura / Chaise avec structure
BES-01 * BES-02 * BES-03 *
* Casters RO3-60R2 * Casters RO4-80R2 * Casters RO4-105R2
Rodízios RO3-60R2 / Rulli RO3-60R2 / Rodízios RO4-R2 / Rulli RO4-R2 / Ruedas Rodízios RO4-105R2 / Rulli RO4-105R2 / Ruedas
Ruedas RO3-60R2 / Roulettes RO3-60R2 RO4-R2 / Roulettes RO4-R2 RO4-105R2 / Roulettes RO4-105R2
21Box Base Wagon Flow
MiniWagon
Max. ergon. Load
Wagon weight Max Load Height Casters configuration
Reference Description (15kg) Casters
(Kg) (Kg) (mm) (mm)
(Kg)
MINW-240 7 240 240* RO4-80 122
R S
MiniWagon R S
MINW-315 8,5 315 315* RO4-105 131
600 x 400 mm
MINW-180** 6 180 180* R03-60R1 98 S S
S S
* Values obtained in smooth and unobstructed ground, with distributed load and wheels at 90º with the
direction of movement.
Valores obtidos em chão liso e sem obstáculos, com carga distribuída e rodas a 90º com a direcção de movimento.
Valori ottenuti in terra liscia e non ostruita, con carico distribuito e ruote a 90º con la direzione di movimento.
Valores obtenidos en suelo liso y sin obstáculos, con carga distribuida y ruedas a 90º con la dirección de movimiento.
Valeurs obtenues dans un sol lisse et dégagé, avec une charge répartie et des roues à 90 ° avec la direction du mouvement.
** Arm and pin not included. ***Useful dimenssion.
Braço e pino não incluídos. Dimensões uteis.
Braccio e spillo non inclusi. Dimensioni utili.
Brazo y perno no incluidos. Dimensiones útiles.
Bras et goupille non inclus. Dimensions utiles.
22Box Base Wagon Flow
MiniWagon
Max. ergon. Load
Wagon weight Max Load Height Casters configuration
Reference Description (15kg) Casters
(Kg) (Kg) (mm) (mm)
(Kg)
MINW2-240 5 240 240* RO4-80 122
R S
R S
MiniWagon
MINW2-315 6 315 315* RO4-105 131
400 x 300 mm
S S
MINW2-180** 4 180 180* R03-60R1 98
S S
* Values obtained in smooth and unobstructed ground, with distributed load and wheels at 90º with the
direction of movement.
Valores obtidos em chão liso e sem obstáculos, com carga distribuída e rodas a 90º com a direcção de movimento.
Valori ottenuti in terra liscia e non ostruita, con carico distribuito e ruote a 90º con la direzione di movimento.
Valores obtenidos en suelo liso y sin obstáculos, con carga distribuida y ruedas a 90º con la dirección de movimiento.
Valeurs obtenues dans un sol lisse et dégagé, avec une charge répartie et des roues à 90 ° avec la direction du mouvement.
** Arm and pin not included. ***Useful dimenssion.
Braço e pino não incluídos. Dimensões uteis.
Braccio e spillo non inclusi. Dimensioni utili.
Brazo y perno no incluidos. Dimensiones útiles.
Bras et goupille non inclus. Dimensions utiles.
23Container Base Wagon Flow
MiniWagon Plus
Wagon weight Max Load Height Casters configuration
Reference Description Casters
(Kg) (Kg) (mm) (mm)
MiniWagon Plus
MNWP1-300 22 300 RO4-200FF 137
1230 x 830 mm
MiniWagon Plus R S
MNWP2-300 15 300 RO4-200FF 133
830 x 630 mm
R S
MiniWagon Plus R S
MNWP3-300 13 300 RO4-200FF 133
630 x 430 mm
R S
24Container Base Wagon Flow
BaseWagon
Max. ergon. Load
Wagon weight Max Load Height Quantity
Reference Description (15Kg) Casters
(Kg) (Kg) (mm) (pallet)
(Kg)
MW1-750 40 1050 750* RO5-350 209 9
Base Wagon Diamond
Configuration
1230x830mm
Base Wagon
Configuração Diamante
MW1-825A 37 900 825* RO5-250AL 209 9
1230x830mm
Configurazione a rombo
per Base Wagon
1230x830mm
MW1-825 BaseWagon Diamante 48 1500 825* RO8-500 288 7
Configuración
1230x830mm
Base Wagon Diamant
Configuration
1230x830mm
MW1-1050A 43 1200 1050* RO8-400AL 287 7
* Values obtained in smooth and unobstructed ground, with distributed load and wheels at 90º with the
direction of movement.
Valores obtidos em chão liso e sem obstáculos, com carga distribuída e rodas a 90º com a direcção de movimento.
Valori ottenuti in terra liscia e non ostruita, con carico distribuito e ruote a 90º con la direzione di movimento.
Valores obtenidos en suelo liso y sin obstáculos, con carga distribuida y ruedas a 90º con la dirección de movimiento.
Valeurs obtenues dans un sol lisse et dégagé, avec une charge répartie et des roues à 90 ° avec la direction du mouvement.
25Container Base Wagon Flow
BaseWagon
Max. ergon. Load
Wagon weight Max Load Height Quantity
Reference Description (15Kg) Casters
(Kg) (Kg) (mm) (pallet)
(Kg)
MW2-750 36 1050 750* RO5-350 209 9
Base Wagon Diamond
Configuration
830x630mm
Base Wagon
Configuração Diamante
MW2-825A 33 900 825* RO5-250AL 209 9
830x630mm
Configurazione a rombo
per Base Wagon
830x630mm
MW2-825 BaseWagon Diamante 44 1500 825* RO8-500 288 7
Configuración
830x630mm
Base Wagon Diamant
Configuration
830x630mm
MW2-1050A 39 1200 1050* RO8-400AL 287 7
* Values obtained in smooth and unobstructed ground, with distributed load and wheels at 90º with the
direction of movement.
Valores obtidos em chão liso e sem obstáculos, com carga distribuída e rodas a 90º com a direcção de movimento.
Valori ottenuti in terra liscia e non ostruita, con carico distribuito e ruote a 90º con la direzione di movimento.
Valores obtenidos en suelo liso y sin obstáculos, con carga distribuida y ruedas a 90º con la dirección de movimiento.
Valeurs obtenues dans un sol lisse et dégagé, avec une charge répartie et des roues à 90 ° avec la direction du mouvement.
26Container Base Wagon Flow
BaseWagon
Max. ergon. Load
Wagon weight Max Load Height Quantity
Reference Description (15Kg) Casters
(Kg) (Kg) (mm) (pallet)
(Kg)
MW3-750 44 1050 750* RO5-350 209 9
Base Wagon Diamond
Configuration
1230x1030mm
Base Wagon
Configuração Diamante
MW3-825A 41 900 825* RO5-250AL 209 9
1230x1030mm
Configurazione a rombo
per Base Wagon
1230x1030mm
MW3-825 BaseWagon Diamante 52 1500 825* RO8-500 288 7
Configuración
1230x1030mm
Base Wagon Diamant
Configuration
1230x1030mm
MW3-1050A 47 1200 1050* RO8-400AL 287 7
* Values obtained in smooth and unobstructed ground, with distributed load and wheels at 90º with the
direction of movement.
Valores obtidos em chão liso e sem obstáculos, com carga distribuída e rodas a 90º com a direcção de movimento.
Valori ottenuti in terra liscia e non ostruita, con carico distribuito e ruote a 90º con la direzione di movimento.
Valores obtenidos en suelo liso y sin obstáculos, con carga distribuida y ruedas a 90º con la dirección de movimiento.
Valeurs obtenues dans un sol lisse et dégagé, avec une charge répartie et des roues à 90 ° avec la direction du mouvement.
27Container Base Wagon Flow
BaseWagon
Max. ergon. Load
Wagon weight Max Load Height Quantity
Reference Description (15Kg) Casters
(Kg) (Kg) (mm) (pallet)
(Kg)
MW4-750 36 1050 750* RO5-350 209 9
Base Wagon Diamond
Configuration
1030x830mm
Base Wagon
Configuração Diamante
MW4-825A 33 900 825* RO5-250AL 209 9
1030x830mm
Configurazione a rombo
per Base Wagon
1030x830mm
MW4-825 BaseWagon Diamante 44 1500 825* RO8-500 288 7
Configuración
1030x830mm
Base Wagon Diamant
Configuration
1030x830mm
MW4-1050A 39 1200 1050* RO8-400AL 287 7
* Values obtained in smooth and unobstructed ground, with distributed load and wheels at 90º with the
direction of movement.
Valores obtidos em chão liso e sem obstáculos, com carga distribuída e rodas a 90º com a direcção de movimento.
Valori ottenuti in terra liscia e non ostruita, con carico distribuito e ruote a 90º con la direzione di movimento.
Valores obtenidos en suelo liso y sin obstáculos, con carga distribuida y ruedas a 90º con la dirección de movimiento.
Valeurs obtenues dans un sol lisse et dégagé, avec une charge répartie et des roues à 90 ° avec la direction du mouvement.
28Tall mini wagon Flow
Tall mini wagon
Internal Dimensions
Reference Description Acessories
Dimensões internas / Dimensioni Max. Load
Referência/ Articolo Descrição/Descrizzione Acessórios / Acessori
interno/ Dimensiones interne/ (Kg)
Referencia/ Référence Descriptión/Description Accesorios / Accessoires
Dimensiones internos (mm)
R S
TMINW3-1 C-CA4
R S
820 x 610 200 C-ECA4
S R S
TMINW3-2 BR-4V
S R S
To use with XCasters RO4-200FF Compatible with Eurobox
Utilização com XCasters RO4-200FF Compativel com eurobox
Da utilizzare con XCasters RO4-200FF Compatibili con eurobox
Da utilizzare con XCasters RO4-200FF Compatible con eurobox
À utiliser avec XCasters RO4-200FF Compatible avec eurobox
29Base Multishelve Wagon Flow
MWM*
Base Multishelve Wagon
Internal dimensions External dimensions
Reference Description Acessories
(mm) (mm)**
MWM1 724 x 524 800 x 600
MWM2 764 x 564 830 x 630
MWM3 884 x 674 950 x 740
BR-8M
MWM4 Base for Multishelve Wagon 964 x 764 1030 x 830
Base para wagon multiprateleira / T-2820
Base per wagon multi mensola /
Base para vagón multi estante / Xpanels
MWM5 Base pour wagon multi étagère 1124 x 724 1200 x 800
XCasters
MMW6 1164 x 764 1230 x 830
MWM7 1164 x 964 1230 x 1030
MWM8 1304 x 884 1370 x 950
*This structure is prepared to assemble 4Lean system components.
Esta estrutura está preparada para montar componentes 4Lean System.
Questa struttura è pronta per il montaggio di componenti del 4Lean System.
Multiple Casters Available Esta estructura está preparada para montar componentes 4Lean System.
Vários rodízios disponíveis Cette structure est prête à monter des composants du 4Lean System.
Ruote disponibili
Ruedas disponibles **Dimensions do not include arm and pin.
Roulettes disponibles Dimensões não incluem braço e pino.
Dimensioni non includono braccio e perno.
Dimensiones no incluyen el brazo y el perno.
Dimensions n'incluent pas le bras et la goupille .
30Maxi Pallet Flow
MPallet
MP*
MaxiWagon Multishelve
Internal dimensions External dimensions
Reference Description Acessories
(mm) (mm)
MP1 724 x 524 800 x 600
MP2 764 x 564 830 x 630
MP3 884 x 674 950 x 740
MP4 Base for Multishelve Wagon 964 x 764 1030 x 830 BR-8M
Base para wagon multiprateleira /
Base per wagon multi mensola / T-2820
Base para vagón multi estante /
MP5 Base pour wagon multi étagère 1124 x 724 1200 x 800 Xpanels
MP6 1164 x 764 1230 x 830
MP7 1164 x 964 1230 x 1030
MP8 1304 x 884 1370 x 950
*This structure is prepared to assemble 4Lean system components.
Esta estrutura está preparada para montar componentes 4Lean System.
Questa struttura è pronta per il montaggio di componenti del 4Lean System.
Esta estructura está preparada para montar componentes 4Lean System.
Cette structure est prête à monter des composants du 4Lean System.
MPallet
31Trolley Tall Ramp Wagon Flow
VAG-TRW*
Trolley Tall Ramp Wagon
Dimensions
Reference Description Acessories
(mm)
T-2820
VAG-TRW1 Tall Ramp Wagon 1 812x1696 BASE-TRW
MiniWagon
VAG-TRW2 Tall Ramp Wagon 2 1012x1696 R-22A
RMWE
*This structure is prepared to assemble 4Lean system components.
Esta estrutura está preparada para montar componentes 4Lean System.
Questa struttura è pronta per il montaggio di componenti del 4Lean System.
Esta estructura está preparada para montar componentes 4Lean System.
Cette structure est prête à monter des composants du 4Lean System.
32Box Straight Plate Wagon Plus Flow
Max Load per Level 2mm pipe: 133kg
Max Load per Level 2mm pipe: 90kg
Max Load 2mm pipe: 532kg
Max Load 2mm pipe: 532kg
Box Dimensions (mm) Box Dimensions (mm)
Width (Front): 800
Width (Front): 600 Box Depth: 1200
Box Depth: 400 Height: 150
Height: 150
355
388
1479
355
1475
388
355
387
Boxes not included
Structure Components
Componentes da estrutura / Componenti della struttura / Componenti della struttura/ Composants de structure
Description Dimensions
Reference Type Pipe Colour Components
(mm)
BSPW01P2* Kit
CHGALV15
B
BSPW02P2* Assembled 1200*800
C
BSPW05P2* Bulk Material G
Box Straight RO5-250AF RO5-250AR
Y
Plate Cart Plus
BSPW03P2* Kit A
FQ-AM
M
BSPW04P2* Assembled 800*600 I ***
AL****
BSPW06P2* Bulk Material
****Aluminum 2mm pipe ***Stainless Steel 1mm pipe
Alumínio/ Alluminio / Aço inoxidável / Acciaio inossidabile / Acero
Aluminio / Aluminium inoxidable / Acier inoxydable
Reference Colour
* Ex.: BSPWO1P2B
33Quality Label for Structure Specifications
Quality Labels
Etiquetas de Qualidade / Etichette di qualità / Etiquetas de Calidad / Labels de qualité
Reference Image Type Dimensions(mm) Description
Complete structure specifications:
- Title.
- Identification number.
Plasticized Quality
B-LQA4H 307x220 - Design.
Label
- Dimensions.
- Maximum load.
- Production date.
Minimum structure specifications:
- Identification number.
Adhesive Quality
B-LAQH 100x35 - Quality check date.
Label
- Maximum load.
- Production date.
Customizable
Customer’s reference label.
B-LCAQH Adhesive Quality 100x35
- Internal reference number.
Label
CE certification:
Adhesive CE 69x66
- CE marking plate.
PM-CE* Label 60x120
- Sticker CE security symbols
. CE certification manual:
M-CE* PDF A5
-Customer language
User and maintenance manual:
M-MAN PDF A5
- Customer language.
Finite Element Method :
M-FEM PDF A5
- Customer language
* Available for solution with CE marking
34Notes
| Notas | Appunti | Notes
•
•
•
•
•
•
•
•
•
•
•
35Notes
| Notas | Appunti | Notes
•
•
•
•
•
•
•
•
•
•
•
36UK
Liverpool
DE
Stuttgart
Iberia
Bergamo
Porto
Bilbao
Italy
Edition nº.007 03-03-2020
37Some of our clients
| Alguns dos nossos clientes | Alcuni dei nuostri clienti | Algunos de nuestros clientes |
Certains de nos clients
Horeca Equipments
Industrial and Agricultural Vehicles
Power transmission
Automotive
Aeronautics
Small Appliance
E-Commerce & Warehouse
Elevators
4Lean, Lda
We Build Lean38 4lean@4lean.net
www.4lean.netSome of our clients
| Alguns dos nossos clientes | Alcuni dei nuostri clienti | Algunos de nuestros clientes |
Certains de nos clients
White goods
Bicycles
Electrical
Electronics
Fashion
Process Industry
Ventilation and refrigeration
WoodWorking
Industrial Machines
Services
4Lean, Lda
We Build Lean39 4lean@4lean.net
www.4lean.netYou can also read
