Slurry flows inTitolo presentazione pipeline systems sottotitolo modelling and management Gianandrea Vittorio Messa Milano, XX mese 20XX FluidLab Group Dept. Civil and Environmental Engineering www.fluidlab.polimi.it Politecnico di Milano, Milano, Italy Seminars organized by the DICA Scientific Commission, V cycle

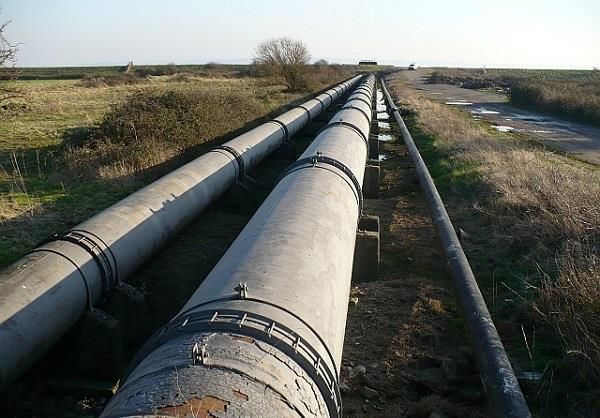

Why are slurry flows so interesting? 2 Several applications involved Mining industry Chemical industry Food industry Oil and gas …and many others Slurry pipelines Drying/separators Attractive for academia Complex system Many physical mechanisms Oil sands processing Challenge is linking scientific research (physical understanding and modelling) with practical purposes (design and management) Gianandrea Vittorio Messa, FluidLab Group, DICA
Research approach and milestones 3 2010 2013 2014 2015 2016 2018 Slurry flow modelling years… Impact erosion years… Key features of research @ FluidLab group: Synergy of numerical and experimental Always a look to the engineering needs Gianandrea Vittorio Messa, FluidLab Group, DICA
Keynote outline 1 Slurry pipeline flows 2 The impact erosion issue 3 Current and future developments Gianandrea Vittorio Messa, FluidLab Group, DICA
Keynote outline 1 Slurry pipeline flows 2 The impact erosion issue 3 Current and future developments Gianandrea Vittorio Messa, FluidLab Group, DICA
The slurry flow team and its partners 4 Stefano me Dr. Michael Malin CHAM Limited London UK Prof. Vaclav Matousek Czech Technical University in Prague Prague CZ Gianandrea Vittorio Messa, FluidLab Group, DICA
Basic questions 5 What is a slurry pipeline? A pipeline used to transport granular material mixed with water What are the main concerns? Reduce the energy consumption Protect the particles against degradation Protect the pipeline agains E/C Reduce water consumption? Solid volume fraction [-] Slurry What is to be predicted? Pressure losses Pressure gradient Particle distribution Velocity field Single-phase Slurry velocity Gianandrea Vittorio Messa, FluidLab Group, DICA

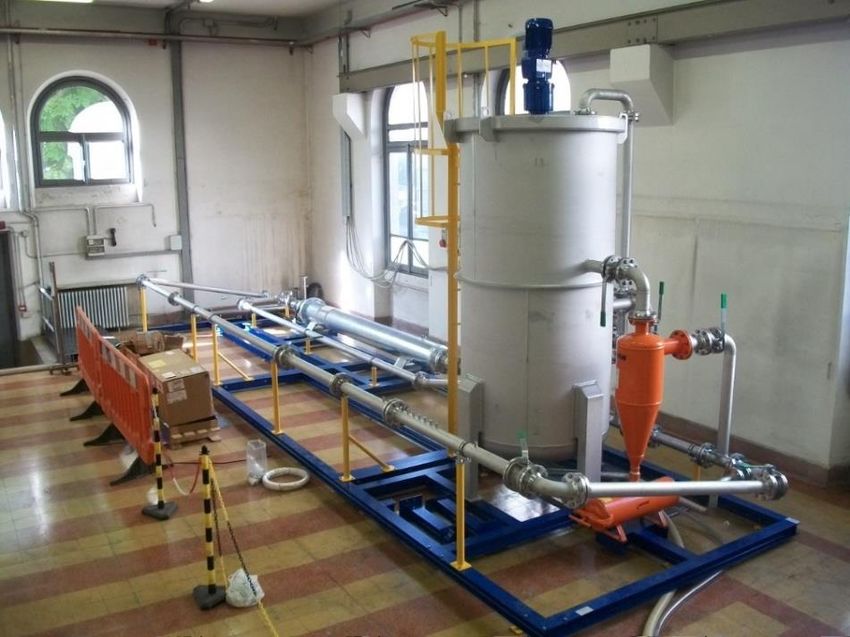

How to investigate slurry pipeline flows? 6 Physical modelling Predominant approach High economic cost Technical issues even for simple flows Size limitations https://sites.ualberta.ca/~turb/facilities.html "Conceptual" modelling Effective way for straight pipe flows Many simplifying assumptions Sometimes not so easy to implement Not applicable to other geometries Pecker and Helvaci (2008) Numerical modelling Very complex models Pending issues (particle accumulation) Many parameters involved Ekambara et al. (2009) Numerical problems Potentially applicable to complex geometries and large scale systems Gianandrea Vittorio Messa, FluidLab Group, DICA
A new predictive model 7 Defining the fundamental assumptions… What type of model? Euler-Euler, two-fluid model approach Solid Liquid phase Other approaches (e.g. Euler-Lagrange) not Slurry phase pratically applicable to dense flows in complex geometries What type of slurry flows? Fully-suspended flow (no particle accumulation) Fully-suspended flow Flow with a moving bed Flow with a stationary bed Gianandrea Vittorio Messa, FluidLab Group, DICA
Overview of two-fluid model equations 8 Mass and momentum conservation equations Constitutive equations and closures t f f u f f f 2 Tj 2 j j S j TTj 2 j t S j j kI j f,p 3 t p pu p p p m f f 2.5 p m f exp 1 1 p 1 p p p f 1 6 p M p f M f p Fd Fl Fvm d 3p f f u f u f f p f Tf TTf 2 u p u f u p u f 1 dp Fd Cd f 2 4 f f g M p f f u f t f 24 f up u f dp Cd max 1 0.15Re0.687 p ,0.44 Re p m Re p p p u p u p p p p Tp TpT d 3p Fl Cl f d 3p u f u p u f Fvm Cvm f u f u f u p u p 6 p p g M f p p u p t p Turbulence modelling Wall boundary conditions for the solid phase k2 w, p p s p u /p/ u /p/ s p s p ,1 1 s p ,2 t C f f k 2 f f u f k f f t k Re w, y p u /p/ y t k s p ,1 ln E Re w, y s p ,1 p f k t f f f Pk 0.75 m 0.3 p u /p/ d p dp s p ,2 0.3105Re 0.25 Re w,d f f w,d f f l f f u f f f t t f t f f f C1 Pk C2 k Gianandrea Vittorio Messa, FluidLab Group, DICA
A typical pipe flow solution 9 Pressure profile Flow y αp Chord average concentration profile Solution on pipe cross section Solid volume fraction Velocity of solid phase [m/s] Velocity of liquid phase [m/s] 0.270 0.283 0.295 0.308 0.320 0 0.90 1.80 2.70 3.60 0 0.90 1.80 2.70 3.60 Gianandrea Vittorio Messa, FluidLab Group, DICA
Main features of the two-fluid model 10 Modelling of turbulent dispersion1 Friction, mixture viscosity-related parameter2,3 Modelling of wall shear stress due to particles3 Parabolic solution algorithm for straight pipe flows4 Solid volume fraction 0.270 0.283 0.295 0.308 0.320 ACCURATE: good agreement vs experiments ROBUST: just one tuning, particle shape-related parameter FAST: 40" for straight pipes, 2-3 days for a valve NUMERICALLY STABLE: smooth solution, no oscillations 1 Spalding, in Recent Advancements in Numerical Methods in Fluids, Pineridge, 1980. Axial velocity of solid phase [m/s] 2 Messa et al., Powder Technol., 256 (2014), 61-70. 0 0.90 1.80 2.70 3.60 3 Messa and Malavasi, Powder Technol., 270 (2015), 358-367. 4 Patankar and Spalding, Int. J. Mass Transfer, 15 (1972), 1787-1806. Gianandrea Vittorio Messa, FluidLab Group, DICA
Application to slurry pipeline flows 11 Validated against about 80 pipe experiments1-6 Pressure gradient accuracy within ±10% Good match of solid volume fraction profiles Consistent slurry velocity distributions Cvd=0.11 Cvd=0.21 Cvd=0.31 1 Roco and Shook, Can. J. Chem. Eng. 61 (1983), 494-503 2 Gillies et al., Can. J. Chem. Eng. 82 (2004), 1060-1065 3 Matousek, Exp. Therm. Fluid Sci. 26 (2002), 692-70 4 Shaan et al, Can. J. Chem. Eng. 78 (2000), 717-725 Solid volume fraction 5 Lee at al., Terra et Aqua 99 (2005), 3-10 6 Shaan and Shook, Can. J. Chem. Eng. 78 (2000), 726-730 0.00 0.13 0.25 0.38 0.50 Gianandrea Vittorio Messa, FluidLab Group, DICA
Application to horizontal pipe bends1,2 12 S2 S3 S1 S4 S5 S6 OUTLET INLET 1 Kaushal et al., Int. J. Multiphase Flow, 52 (2013), 71-91. Solid volume fraction 2 Messa and Malavasi, Eng. Appl. Comput. Fluid Mech., 8(3) (2014), 356-372. 0 0.13 0.25 0.38 0.50 Gianandrea Vittorio Messa, FluidLab Group, DICA

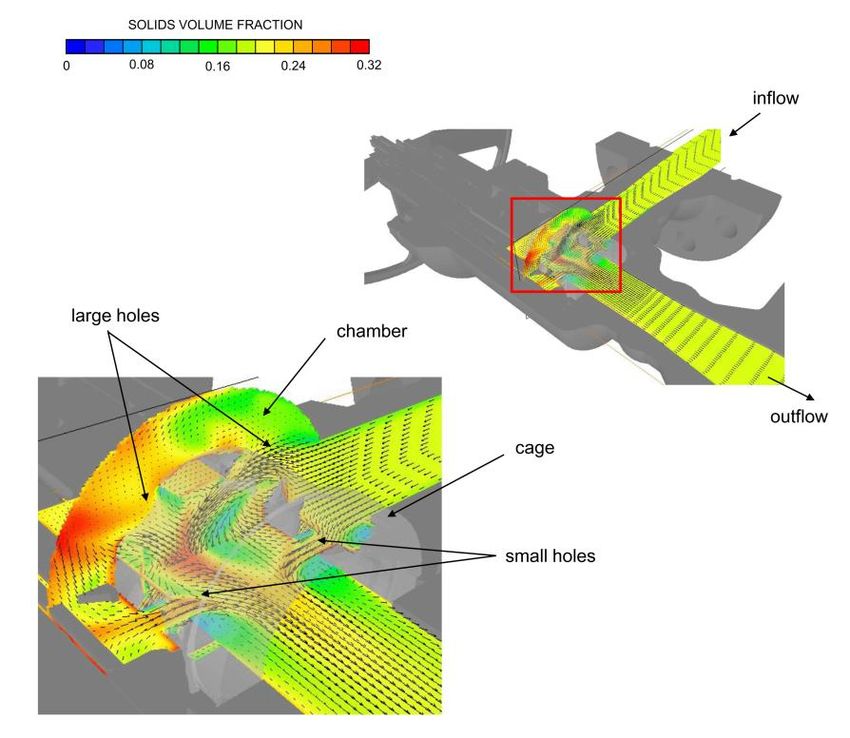

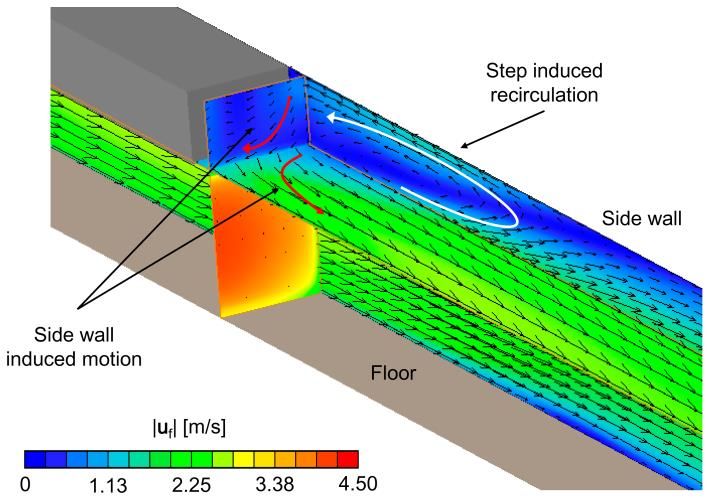

Application to more complex geometries 13 Backward-facing step1… Solid volume fraction 0 0.08 0.16 0.24 0.32 Fluid velocity magnitude [m/s] 0 1.13 2.25 3.38 4.50 … and flow control valves2 1 Messa and Malavasi, J. Hydrol. Hydromech., 62(3) (2014), 234-240. 2 Messa and Malavasi, PVP2013, Paris, France, 14-18 July 2013. Gianandrea Vittorio Messa, FluidLab Group, DICA
Keynote outline 1 Slurry pipeline flows 2 The impact erosion issue 3 Current and future developments Gianandrea Vittorio Messa, FluidLab Group, DICA
The impact erosion team and its partners 14 Stefano me Marco Yongbo Prof. Josè Gilberto Dalfrè Filho University of Campinas Campinas, Sao Paulo, Brasil Prof. Armando Carravetta Dr. Oreste Fecarotta Università Federico II di Napoli Napoli Gianandrea Vittorio Messa, FluidLab Group, DICA
Basic questions 15 What is the slurry impact erosion? The loss of material from hydraulic components due to the impingement of solid particles carried by a liquid Where is impact erosion likely to occur? Straight pipes and connections Hydraulic devices (pumps, valves…) How may research help? Improve the design of the components Enhance the management of the system Develop protective coatings How does our research develop? Valve needle Start with the impact erosion in dilute flow Move on with impact/abrasion erosion in dense flows Gate valve Gianandrea Vittorio Messa, FluidLab Group, DICA
First challenge: the EPICO project 16 EPICO project: "Erosion Prediction In Control Operation" GOAL: Development of methods for estimating the useful life of valves subjected to erosive wear in fields with sand production Experimental (two new setups @ LIF) Numerical (in-house code) Gianandrea Vittorio Messa, FluidLab Group, DICA

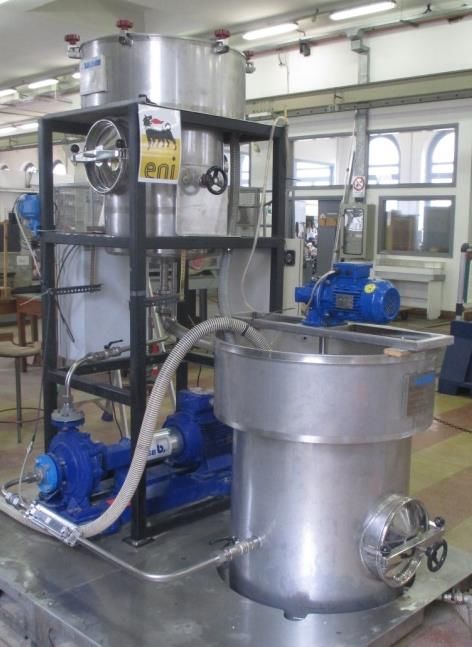

Two experimental facilities @ LIF 17 E-loop DIT nozzle specimen 2" to 4" testing line Up to 28 bar Up to 160 m3/h Angle choke valve Gate valve Inconel 718 GRE Gianandrea Vittorio Messa, FluidLab Group, DICA
Numerical approach: Eulerian-Lagrangian modelling 18 Fluid simulation Particle tracking Erosion model coupling Fluid simulation: solution of the Reynolds-averaged Navier-Stokes equations (RANS) U 0 U U P U g Re S p + turbulence model for Re Additional source due to particles Output: Fluid velocity magnitude [m/s] - Mean fluid pressure - Mean fluid velocity 0 7 14 21 28 35 - Fluid turbulence variables Gianandrea Vittorio Messa, FluidLab Group, DICA
Numerical approach: Eulerian-Lagrangian modelling 19 Fluid simulation Particle tracking Erosion model coupling Particle tracking: solution of the Lagrangian particle equations of motion p c f Wpdv dt f d p2 Cd w w p f W p g 1 8 du@ p Du@ p * mp f W p c J 3.0844 ω w dt Dt pd p ω Output: Particle velocity magnitude [m/s] - Particle trajectories - Particle-wall impacts characteristics 0 10 20 30 40 Gianandrea Vittorio Messa, FluidLab Group, DICA
Numerical approach: Eulerian-Lagrangian modelling 20 Fluid simulation Particle tracking Erosion model coupling Erosion model: material removal by each particle-wall impingement and sum Input data: Impact velocity Impact angle Properties of materials M imp C m p BH vimp f imp a n e.g. E/CRC Impact Output: Erosion depth [mm] wear - Mass losses scar 0 0.25 0.50 0.75 Gianandrea Vittorio Messa, FluidLab Group, DICA
Numerical modelling 21 In-house tool for erosion prediction Flow Specifically intended for complex geometries E-code Multi-component analysis Body Effect of selective coating CAD Cage Sleeve Retaining Volume Surface sleeve Meshing Meshing mmeroded 1.0 CFD E-code 0.8 simulation 0.6 0.4 Erosion 0.2 estimation 0.0 Gianandrea Vittorio Messa, FluidLab Group, DICA

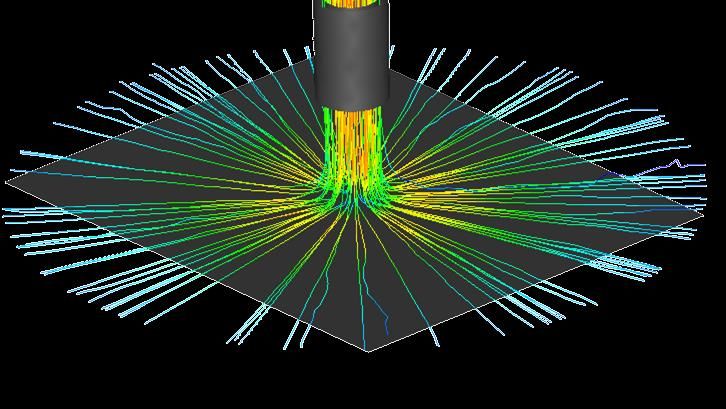

Research strategy1-3 22 Direct impact testing DIT nozzle Combine our experiments to literature data Assess the reliability of the prediction model3 Validate a target-oriented model E-code RANS simulation of water flow specimen DPM particle tracking E-code Fluid velocity magnitude [m/s] 0 7 14 21 28 35 Particle velocity magnitude [m/s] 0 10 20 30 40 1 Messa et al., Int. Conf. on Wear of Materials, Long Beach, US-CA, 2017 2 Gorini et al., Offshore Mediterranean Conference, Ravenna, Italy, 2017 3 Messa and Malavasi, Wear, 370-371 (2017), 59-72. Gianandrea Vittorio Messa, FluidLab Group, DICA
Research strategy1-4 23 Valve testing and validation Mass loss history of valve cage Erosion valve testing in the E-loop 20 Validation of the prediction model 18 Flow 16 E-loop mmeroded 14 1.0 Body 12 [g] 10 0.8 8 0.6 6 4 0.4 E-code Cage 2 0.2 Sleeve 0 Retaining 0.00 2.00 4.00 6.00 8.00 10.00 0.0 sleeve [h] Choke valve Gate valve Flow 1 Flow Messa et al., Int. Conf. on Wear of Materials, Long Beach, US-CA, 2017 2 Gorini et al., Offshore Mediterranean Conference, Ravenna, Italy, 2017 mm/d 3 Malavasi at al., ASME PVP 2018, Prague, CZ, 2018. Under review. 4 Messa at al., AIMETA 2017, Salerno, IT, 2017. 0 1 2 3 4 5 Gianandrea Vittorio Messa, FluidLab Group, DICA
Research strategy1-4 24 Virtual experiments and data analysis Type of valve Erosion valve simulation in different conditions Database collection Size of valve Sensitivity analysis Identification of the most relevant parameters Engineering failure analysis Useful life-time Valve opening Flow conditions Abrasive load E-code 1 Messa et al., Int. Conf. on Wear of Materials, Long Beach, US-CA, 2017 2 Gorini et al., Offshore Mediterranean Conference, Ravenna, Italy, 2017 3 Malavasi at al., ASME PVP 2018, Prague, CZ, 2018. Under review. 4 Messa at al., AIMETA 2017, Salerno, IT, 2017. Gianandrea Vittorio Messa, FluidLab Group, DICA
Keynote outline 1 Slurry pipeline flows 2 The impact erosion issue 3 Current and future developments Gianandrea Vittorio Messa, FluidLab Group, DICA
Towards the modelling of dense slurry erosion 25 Particle-particle interactions become important Self-induced geometry changes may become important IDEA: Mixed EE-EL model with self-updating boundary1-4 Computational burden of Eulerian-Lagrangian approach grows exponentially! No practically feasible for complex flows EE domain Interface EL subdomain 1 Messa et al., ASME Pressure Vessels and Piping Conference, Anaheim, US-CA, 2015. 2 Messa et al., Wear, 398-399 (2018), 127-145. 3 Messa and Malavasi, 9th Int. Conference on Multiphase Flow, Firenze, Italy, 2016. 4 Messa and Malavasi, Wear, 398-399 (2018), 127-145. Gianandrea Vittorio Messa, FluidLab Group, DICA
Investigation of concrete erosion1-3 26 E-CODE for non-homogeneous materials Experiments / simulation Cooperation with UNICAMP, Brazil E-code Experimental 1 Malavasi et al., XX SBRH, Bento Gonçalves, Brazil, 2013. 2 De Lima Branco et al., XXII SBRH, Florianopolis, Brazil, 2017. 3 Messa et al., J. Hydrol. Hydromech., 66 (2018), 121-128. Gianandrea Vittorio Messa, FluidLab Group, DICA

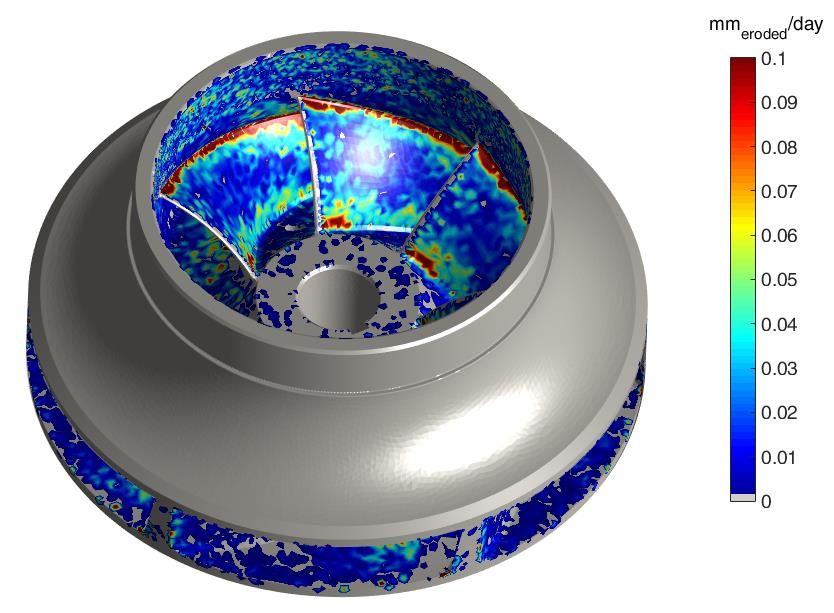

Impact erosion in devices with moving components 27 E-CODE for rotating bodies Application to Pumps As Turbines1 and Valves Cooperation with UNINA E-code Stirred tank Pump used as turbine Gate valve 1 Fecarotta et al., 3rd Efficient Water Systems Conference, Lefkada, Greece, 2018. Under review. Gianandrea Vittorio Messa, FluidLab Group, DICA
Towards a more general view of slurry systems 28 Keyword: sustainability of the process Accounting for water saving? Multidisciplinary design and management Durability Energy Water Gianandrea Vittorio Messa, FluidLab Group, DICA
Thank you for your attention www.fluidlab.polimi.it Gianandrea Vittorio Messa Assistant Professor FluidLab Group Dept. Civil and Environmental Engineering Politecnico di Milano Piazza Leonardo da Vinci, 32 20133 Milano (Italy) e-mail: gianandreavittorio.messa@polimi.it Tel. +39 02 2399 6287 Gianandrea Vittorio Messa, FluidLab Group, DICA
