TI PROBOARD FOR TILING DECKS
™
Tlle DIY
DECK
INSTALLATION
SYSTEMS
EXTERIOR
INSTALLATION
SOLUTIONS
.
Instructions for using TI PROBOARD™
TI.PROBOARD™
on the deck will Lay first
give you footing board here

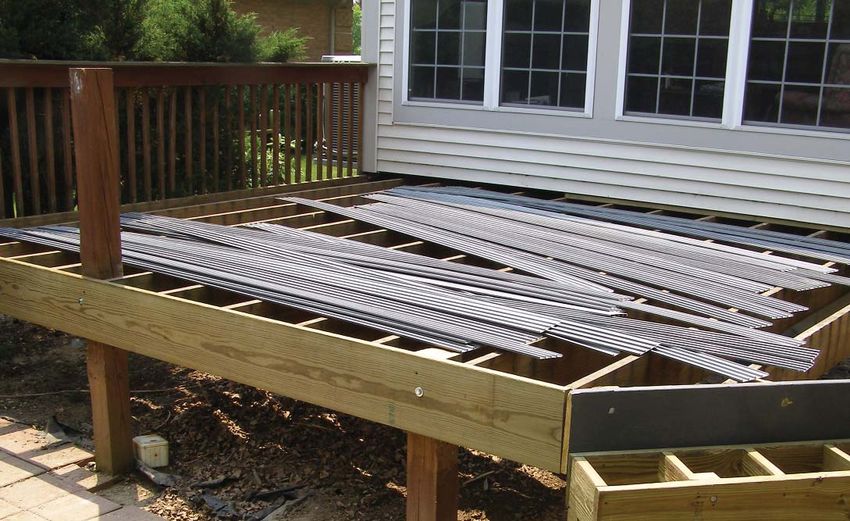

Place TI.PROBOARD™on the joists.
Screw the first TI-Proboard (with the slot)
in from the edge of the deck frame. IT IS
VERY IMPORTANT TO MAKE SURE THE
FIRST BOARD IS STRAIGHT AND SQUARE.

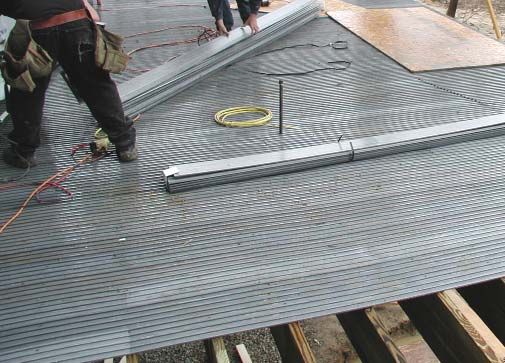

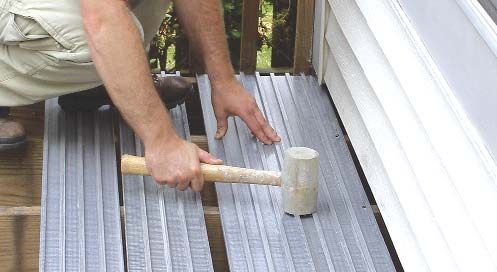

Measure and use a chalk line. Continue by
interlocking each board to the next, and
screw TI.PROBOARD™down on each joist.
White dots indicate suggested screw placement.
Put screws on each
side of seams
2

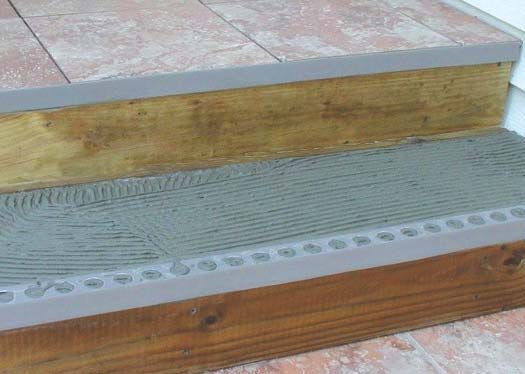

We recommend using a wet saw when Protective/decorative edging.
cutting TI.PROBOARD™ TI.EDGING™ provides a protective and
decorative finish. Install while the thin set
mix is still wet. This can be done after the
TI.PROBOARD™ has been screwed down
and mortar bed applied. Press TI.EDGING™
into the thin set with the long side pressing
against the deck board.

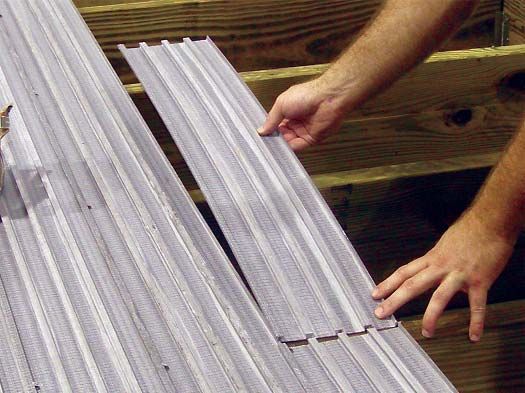

Joining / Butting TI.PROBOARD™
Place each end equal distance on the
center of joist . DO NOT MAINTAIN A
CONTINUAL SEAM ALONG THE SAME
JOIST ALL SEAMS ARE TO BE STAG-
GERED. No one piece of TI-ProBoard can
be shorter than 3 joist spans.
6 5 4 3 2 I
1. JOIST 4. WATER PROOFING
2. TI.PROBOARD™
(IF NEEDED)
5. THIN SET
3. MORTAR MIX
6. TILE
Installing Mortar Mix. Existing Decks
Mix to manufacturers specifications and Existing decks can be tiled over, but it is a
trowel level with the tops of the ribs ensur- judgement call if the deck is suitable to
ing to fill the ribs completely. See chart on accept the installation of TI.PROBOARD.™
page 5 for the recommended mortars to use. Slope may need to be adjusted to allow
water run off.
3

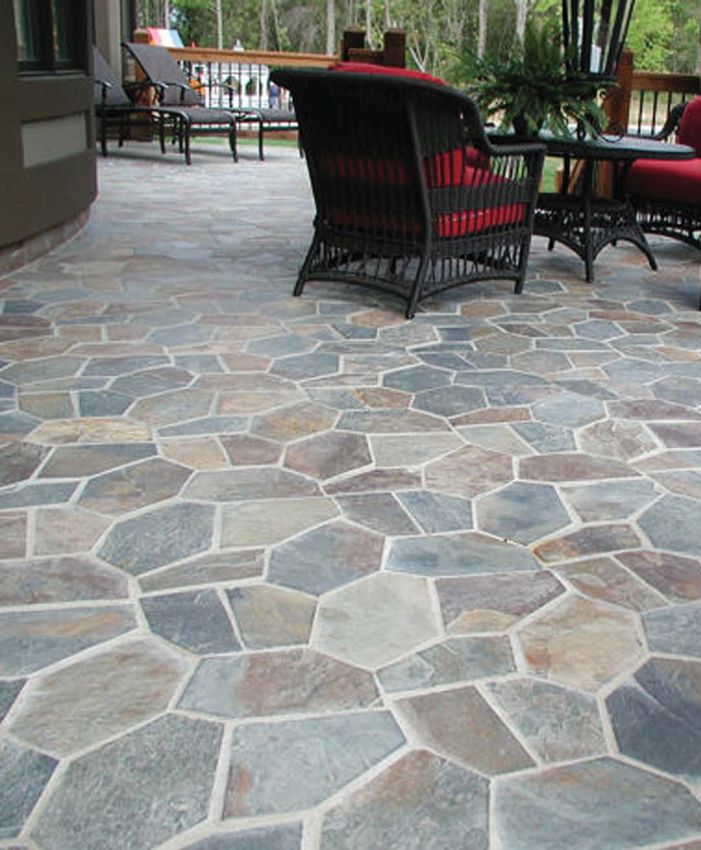

TI . PROBOARD is the base of a ™
unique system to form a solid tiled
surface to new or existing decks.
Deck Maintenance is a thing of 1. Water has to drain off the surface so the deck
the past with a tiled deck. must slope away from the house at a rate
of 1/4" per running foot.
Choose the color and design you 2. During installation of tile air temperature
want for your outdoor living space should not be below 40°F and not above 95°F.
3. To fill the channels of the TI.PROBOARD™ use
with a tiled deck. Create the style mortar designed to work in freeze/thaw
and elegance a tiled deck can give environments. Your local tile professional
you. For a rustic look there are store will advise on similar products if they
porcelain tiles with a brick or stone don't carry our suggestion.
4. Waterproofing (optional) after the underlay-
finish, or go for elegance with a ment has dried and before thinset is applied a
porcelain tile made to look like marble. waterproof membrane can be used.
So many attractive options are 5. Thin set coverage on the tile should not be
less than 98%. If you are not skilled in tiling
available almost without limits. we recommend you back butter each tile
TI.PROBOARD™ is a structural material which will give 100% coverage. Use 1/4”x 3/8”
x 1/4” notch trowel or 3/8” x 3/8”x 3/8”
so there is no other plywood, backer 6. Use thin set which is latex fortified to ANSI
boards etc. standard 118.4 or better.
To install, layout TI.PROBOARD™ 7. Use the correct exterior tile for your area.
8. Use a grout recommended for tiling outdoors
across the joists, clip each section or as recommended your tile professional.
together, use one coated deck screw to 9. Installing the TI . EDGING™around the perimeter
screw down each panel on every joist. this will give a finished look.
Each joist is 16” on center.
Questions asked:
How difficult is this going to be? What is the smallest tile that can be used?
TI.PROBOARD™ is not at all difficult, but Answer: 6" X 6".
the installation of tile outdoors has to What is the weight per sq ft of all components?
Answer: "Dead weight around 8 lbs sq ft".
be more detailed than installing tile When is water proofing necessary ?
indoors. We strongly recommend you Answer: 95% of decks built will not require water
use the setting materials we specify. proofing, and is only necessary if TI-PROBOARD
will be used over a living accomatations.
No special tools are required. When
What is the lenght of boards? Answer: 8 ft & 12 ft.
your deck is finished there is a dry
area underneath for storage. What is the width of boards? Answer: 6” & 12.”
How much mortar do I need?
60lb bag of mortar mix will cover approximately 25 sq ft.
4
T
International companies recommended
products for use with TI.PROBOARD
TM
TECHNOLOGY YOU CAN BUILD ON
Thin Set: Mer-Krete 801
1. Grout Options: Waterproofing: (IF NEEDED)
Mer-Krete Membrane: BFP or
A. MAPEI, Ultracolor ®
Underlayment B. MAPEI, KeracolorTM S
Hyudro-Guard
Laticrete226/Laticrete 3701 Underlalyments:
(1) 60Ib bag to (1) Gallon. C. MAPEI, Opticolor ® Mer-Krete Underlay c
(this mixture is more wetthan 2. Latex-Portland Cement Options:
typical Dry pack) A. MAPEI, Kerabond/KeralasticTM System
Waterproof Membrane B. MAPEI, Granirapid ® System
(IF NEEDED) C. MAPEI, Ultraflex TM 3 or 2
Laticrete 9235 3. Waterproofing Membrane (IF NEEDED): Thin Set: Super Flex™ Latex Modified
Thin Set A. MAPEI, Mapelastic 400 Thin Set Mortar
Laticrete 254 Platinum B. MAPEI, Mapelastic 400 fabric Waterproofing Membrane: (IF NEEDED)
Thin set. 4. Mortar: HydraFlex™ Waterproofing Crack
A. MAPEI, Planicrete AC blended with Isolation Membrane
Grout
Laticrete Spectra LOCK 3:1 Site Mix Underlalyments: Acrylbond®
Pro or Laticrete perma-color AMA acrylic mortar additive
blended with 3:1 Site Mix
Grout: AccuColor XT™, AccuColor
EFX™ or AccuColor® Grout
STUCCO FLASHING
Most waterproofing systems are
METAL FLASHING available using TI.PROBOARD™
over living accomodations.
CAULKING
MODIFIED THIN SET
SOFT
JOINT GROUT WATERPROOF MEMBRANE
TILE (IF NEEDED)
FRONT VIEW
SIDE VIEW
TI.PROBOARD™ MORTAR UNDERLAYMENT
5
Composition: TI.PROBOARD™ is manufactured in the
Advanced composite ribs attached USA from a specially formulated composite
to fiberglass matting. material under the direct control of Tile
Installation requirements on DIY LLC.
decks and balconies TI.PROBOARD™ has been fully tested to
• 1/4” slope per running foot. withstand the temperature differences it is
• Waterproofing system when used likely to encounter in the USA.
over a living space Following the correct procedures and using
the correct materials, your deck will be a
Material: Mortar Bed maintenance free area for many years.
• Underlayment or
comparable product. Waterproofing.
• 1¼" Coated screw suitable for For waterproofing over living accommoda-
treated lumber. tion TI.PROBOARD™can be used in con-
junction with building regulation systems.
• Use a grout recommended for
outdoors.
Tile for external use DECK LEVELING
For decks a fully vitrified or porcelain For low spots on the surface of the
tile should be used. This may vary for deck screed off with mortar mix.
different regions depending on freeze
/thaw variances. The co-efficient of
friction for the finished surface should
be rated at .6 or above. For added co-
efficient of friction on tiles use
PR0 . TRACTION WET non slip
treatment from the North American
Tile Tool Company creates an
“Invisible Tread” on tile which
significatly increases the co-eficient
TI.PROBOARD™ TM
of friction and reduces the problem recommends the use
of dangerous wet surfaces. Easy of North American PROFESSIONAL
one step application that last up to Tile Tool Company’s
NATTCO
®
five years. tile installation tools. DO.IT.YOURSELF
800.406 TILE www.nattco.com
6
EXPANSION /
CONTRACTION TEST TI.PROBOARD™
For expansion and contraction being installed on a 1000 square
between 130°F and -30°F. foot deck in a 2.5 million dollar
No deformation or physical dam- home. Comment from a tile
age was observed as a result of installer with Midwest Flooring for
being subjected to temperature Hoss Home Indianapolis, IN,
cycling. “Simple, no problems”
DEFLECTION TEST
Test Procedure: ASTM C627 “A
standard Test Method for Evaluating
Ceramic floor Tile Installation
Systems Using the Robinson-Type
Floor Tester”
CONCLUSION: The installation is
rated as “EXTRA HEAVY”suitable
for use in dairies, breweries, etc.
FREEZE/ THAW TEST
ASTM test C1026.
FIRE TEST
Report by UL
FIRE TEST RESULTS
Test Test
No. Code Sample Description
1 04090807 TI.PROBOARD™
(Flooring Material)
CFS CSD
Calculated FSI flame Calculated SDI Smoke
Flame Spread Smoke Developed
Spread Index Developed Index
0 0 0.0 0
7
